Transfer Case - 1-Speed Torque-On-Demand: Notes

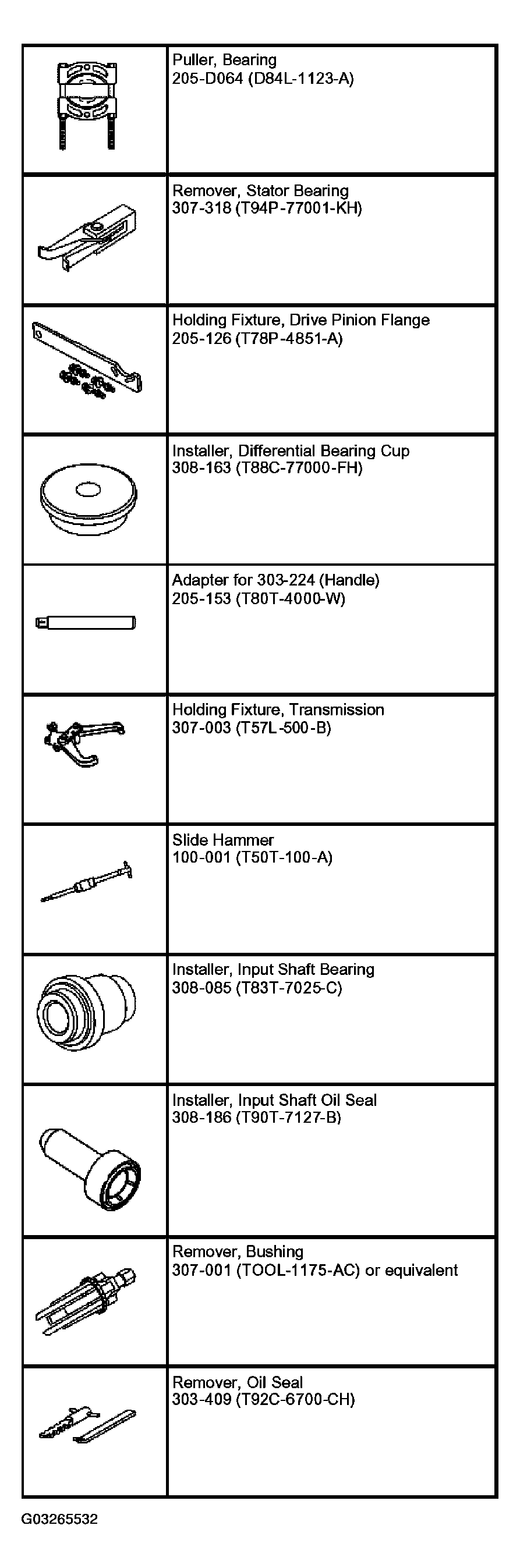

Fig 1: Identifying Special Tool(s)
G03265532Courtesy of FORD MOTOR CO.
MATERIAL SPECIFICATION

Item Specification
Silicone Gasket and Sealant F7AZ-19554-EA or equivalent WSE-M4G323-A4
MERCON® V Automatic Transmission Fluid XT-5-QM,XT-5-DM MERCON® V
