Symptom Chart: Notes

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

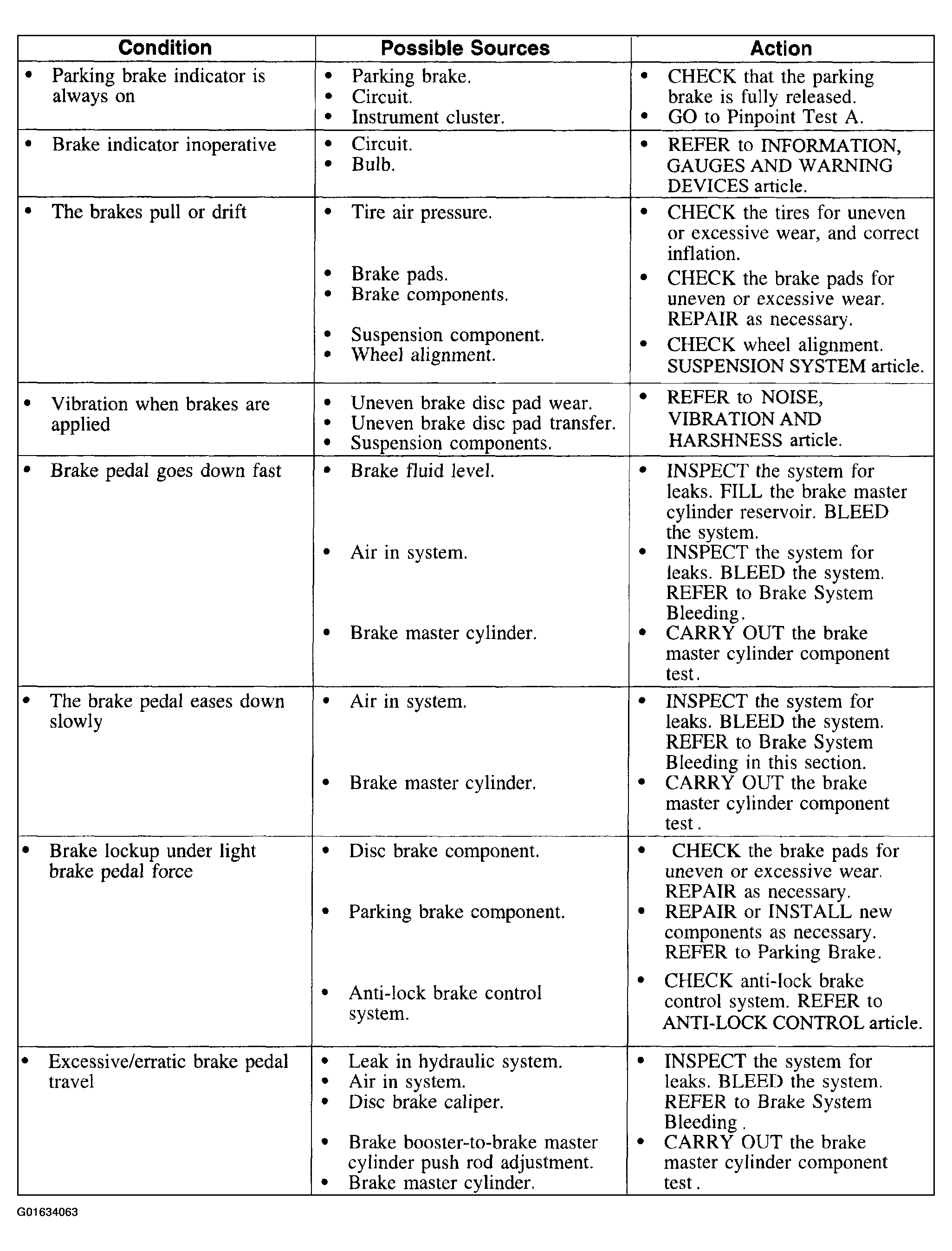

Fig 1: Symptom Chart (1 Of 2)
G01634063Courtesy of FORD MOTOR CO.

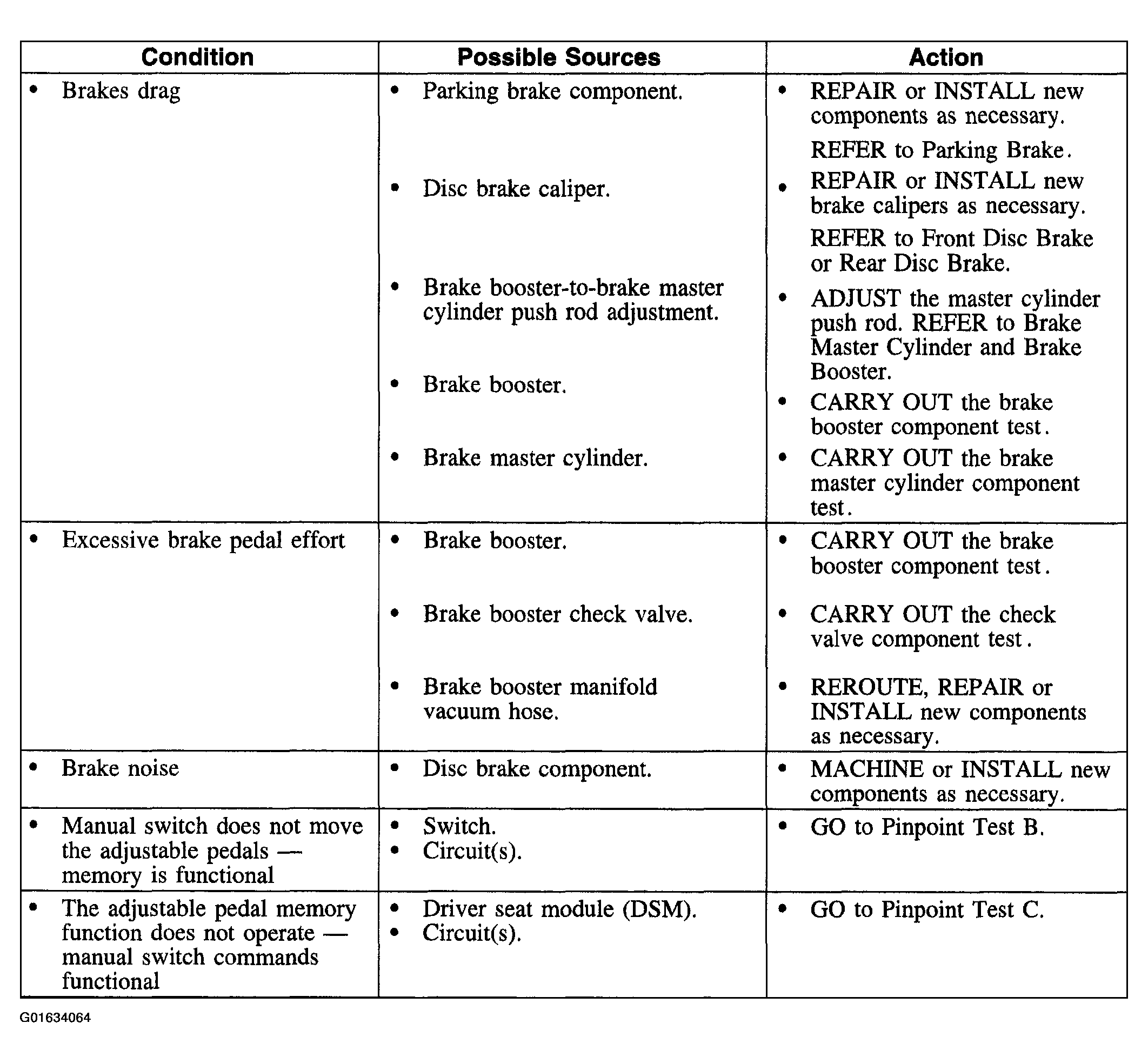

Fig 2: Symptom Chart (2 Of 2)
G01634064Courtesy of FORD MOTOR CO.
