Section 346 (Engine): Disassembly: Engine

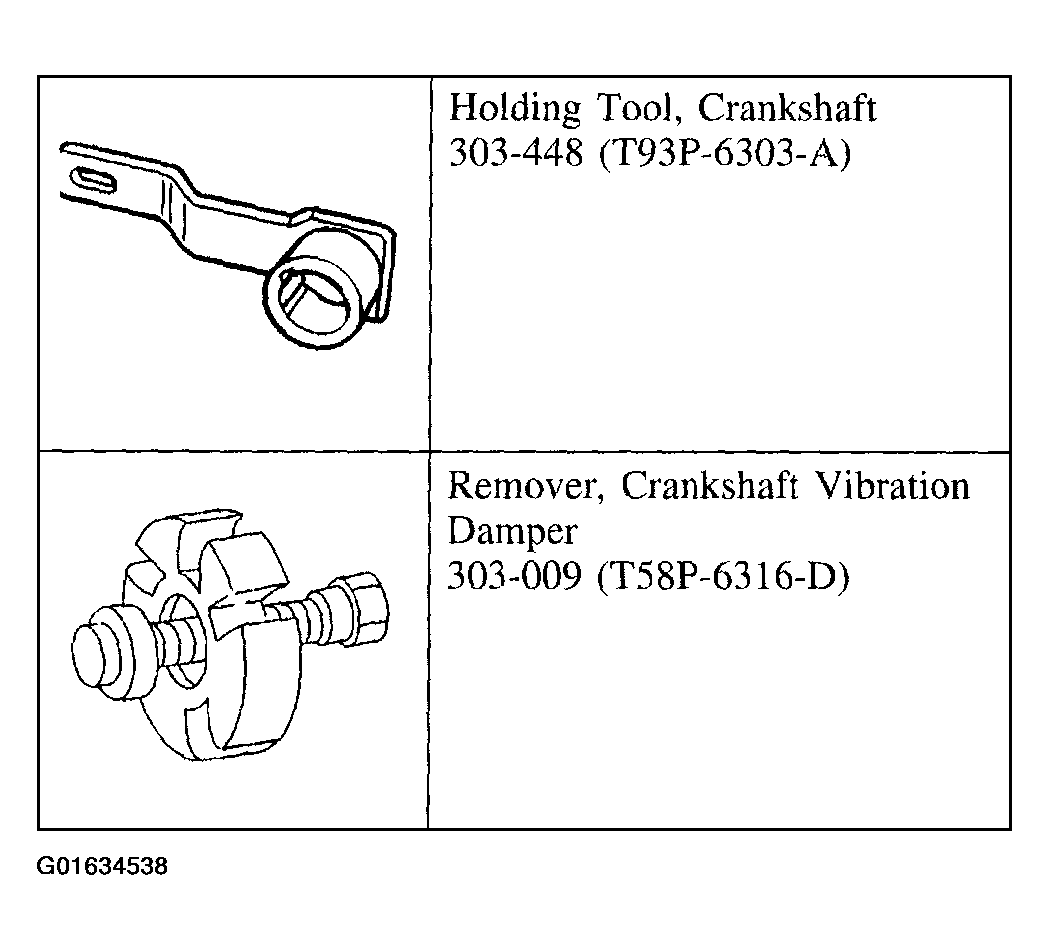

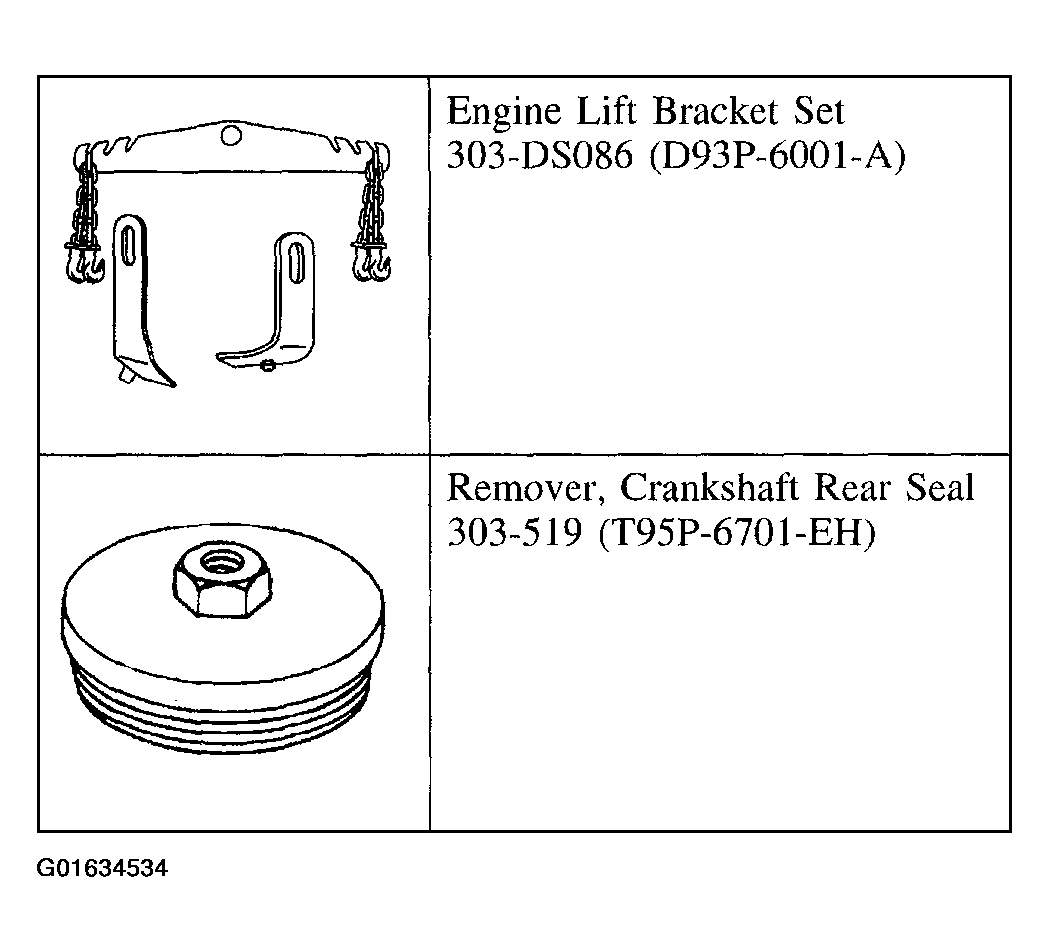

Fig 1: Special Tool(s) (1 Of 4)

Courtesy of FORD MOTOR CO.

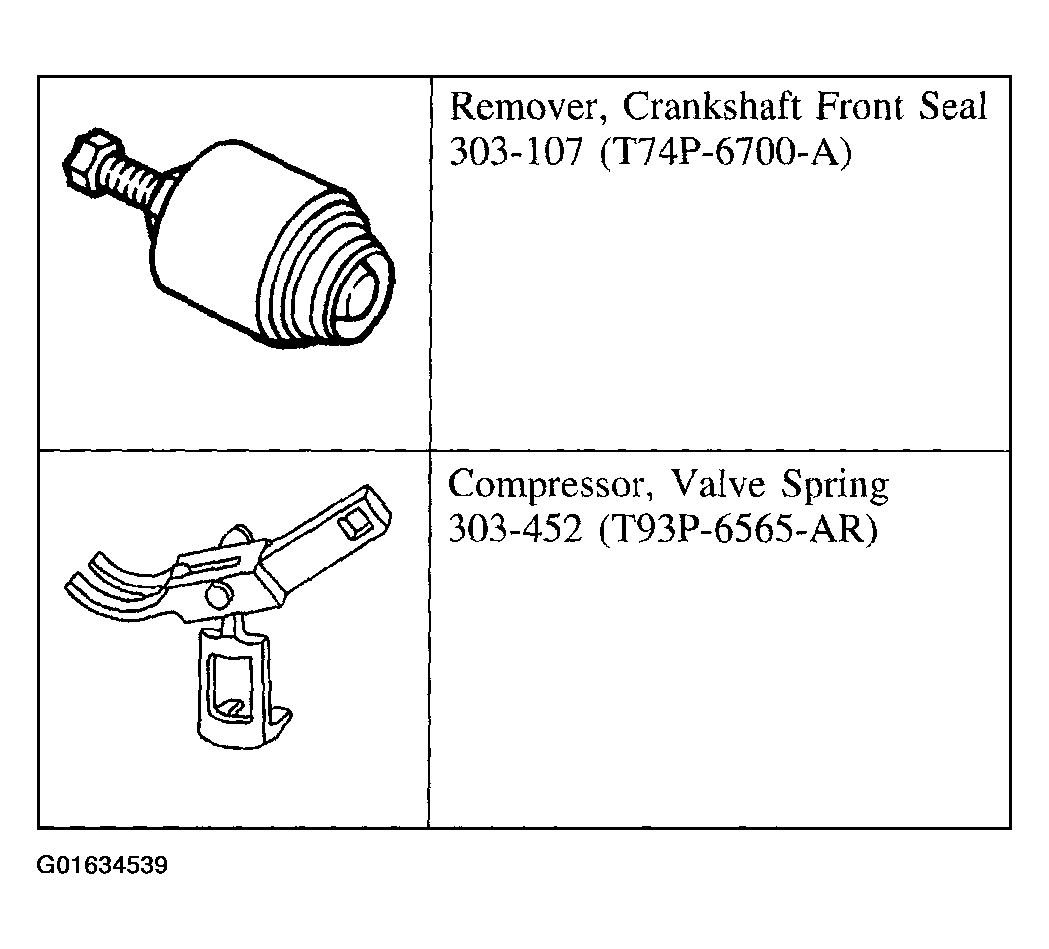

Fig 2: Special Tool(s)(2 Of 4)

Courtesy of FORD MOTOR CO.

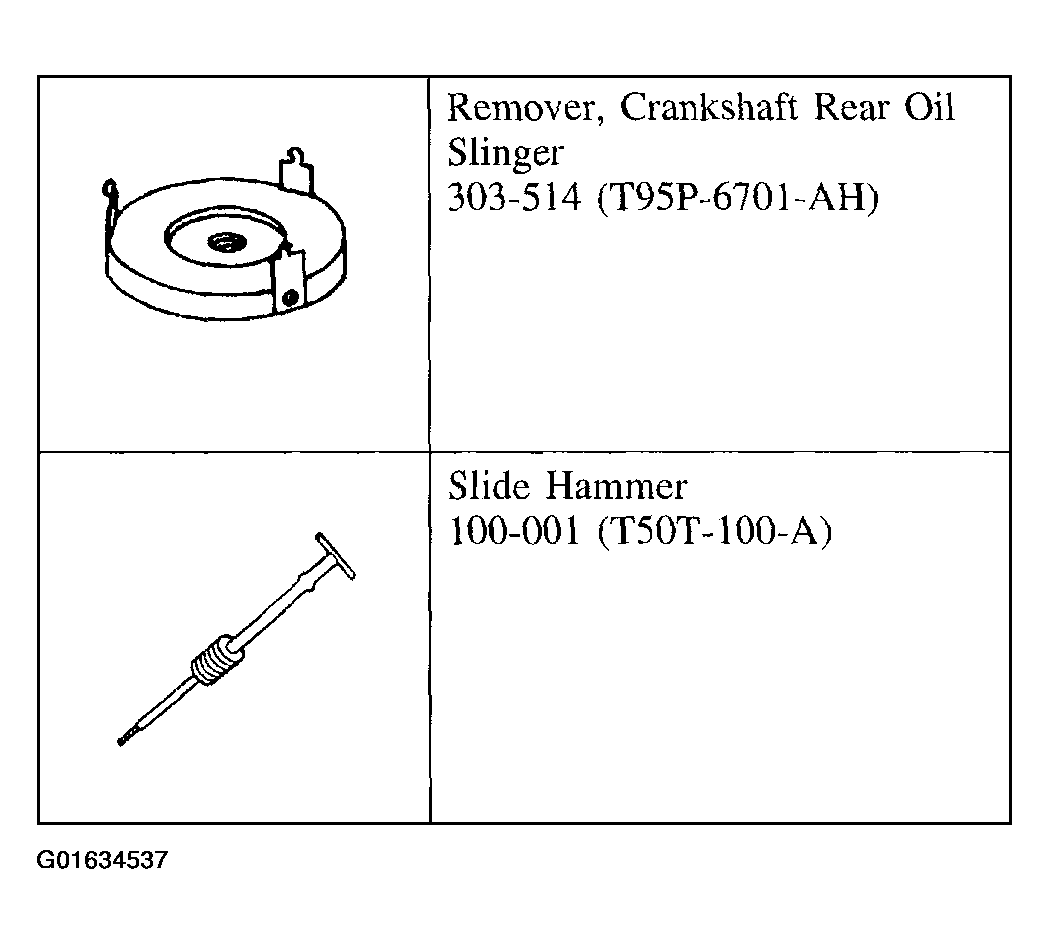

Fig 3: Special Tool(s) (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 4: Special Tool(s) (4 Of 4)

Courtesy of FORD MOTOR CO.

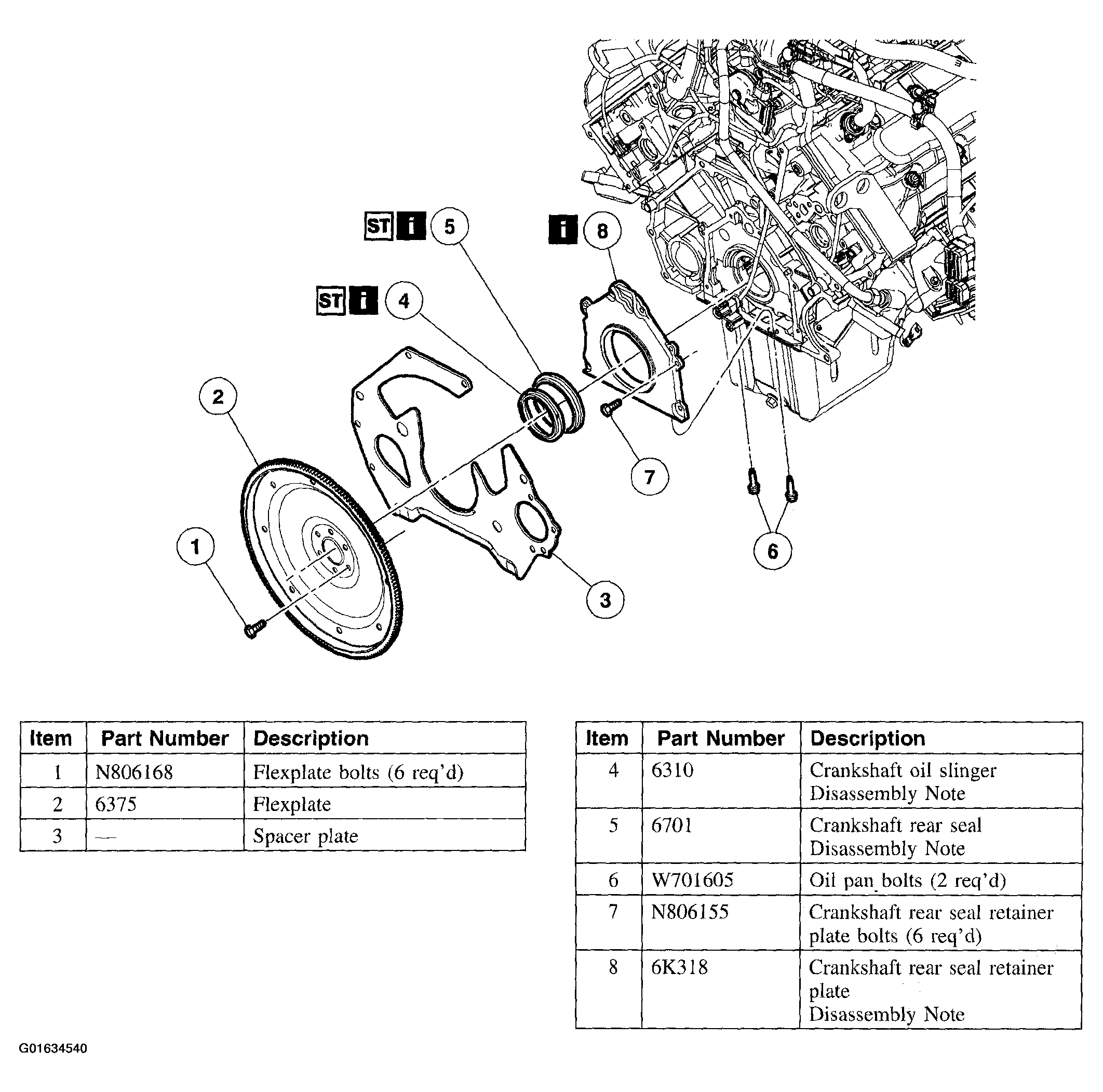

1. Remove the components in the order indicated in the following illustration.

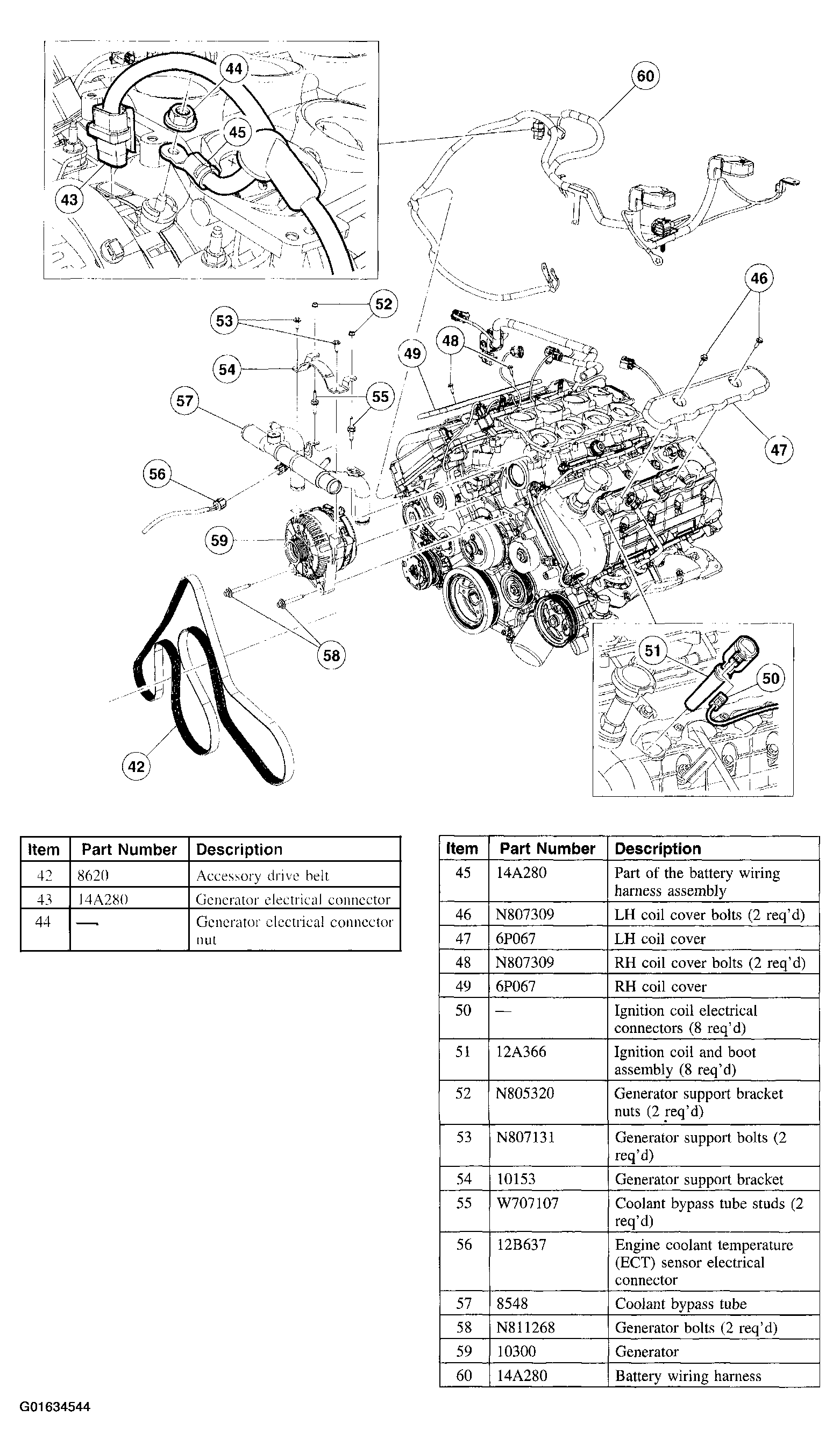

   Fig 5: Engine Disassembly Procedure (Steps 1-8)

   Courtesy of FORD MOTOR CO.
2. Remove the components in the order indicated in the following illustration.

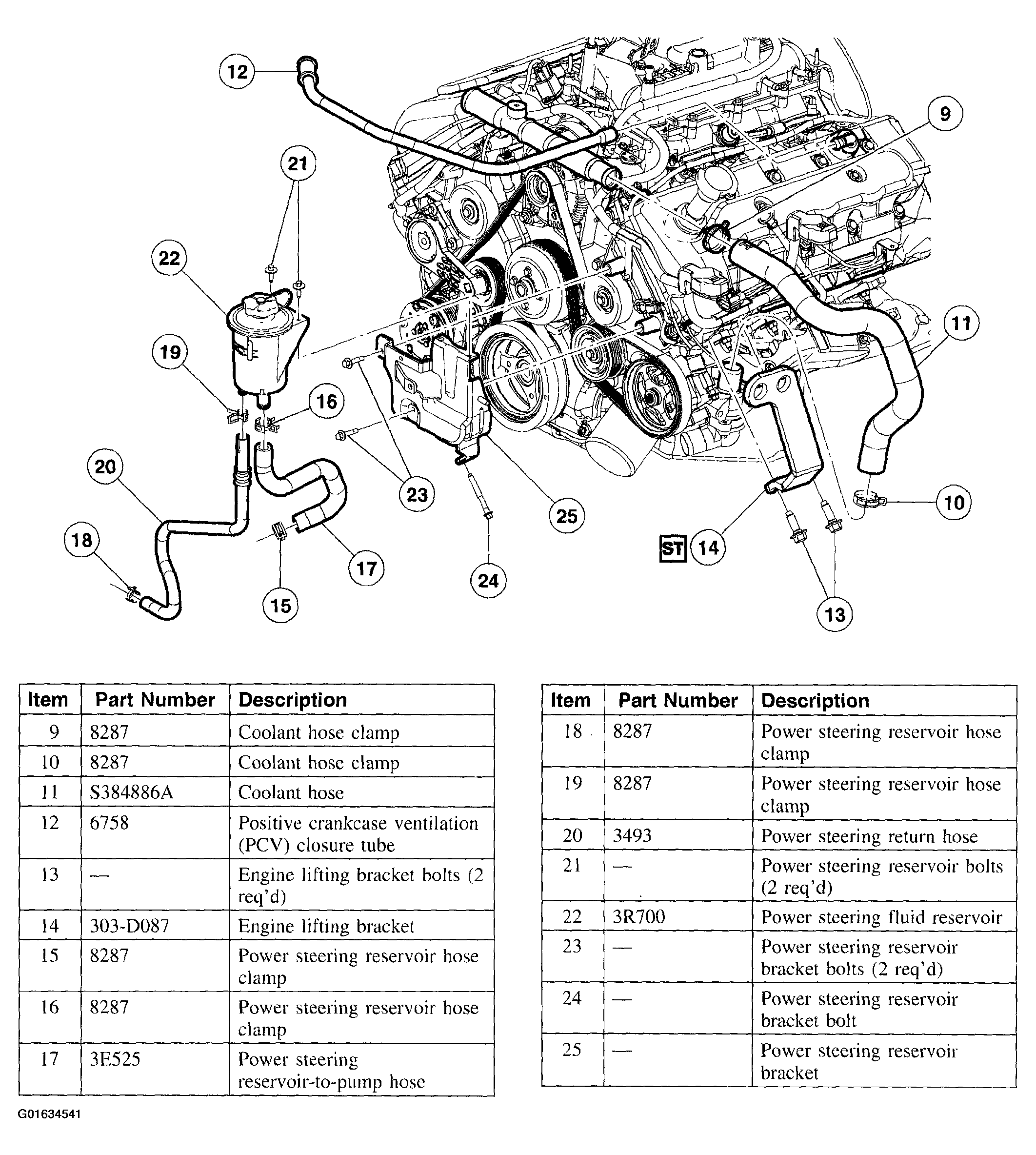

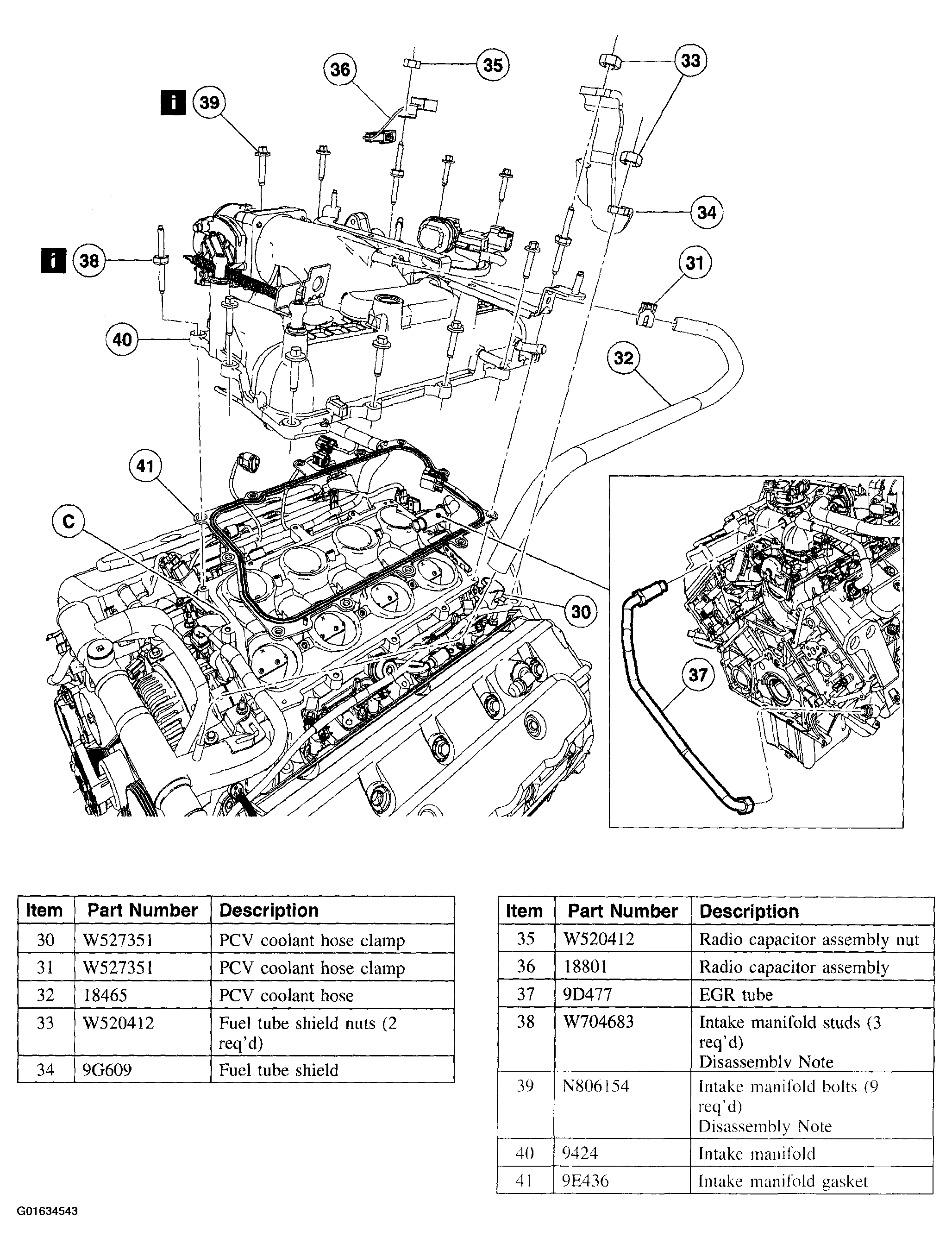

   Fig 6: Engine Disassembly Procedure (Steps 9-25)

   Courtesy of FORD MOTOR CO.
3. Remove the components in the order indicated in the following illustration.

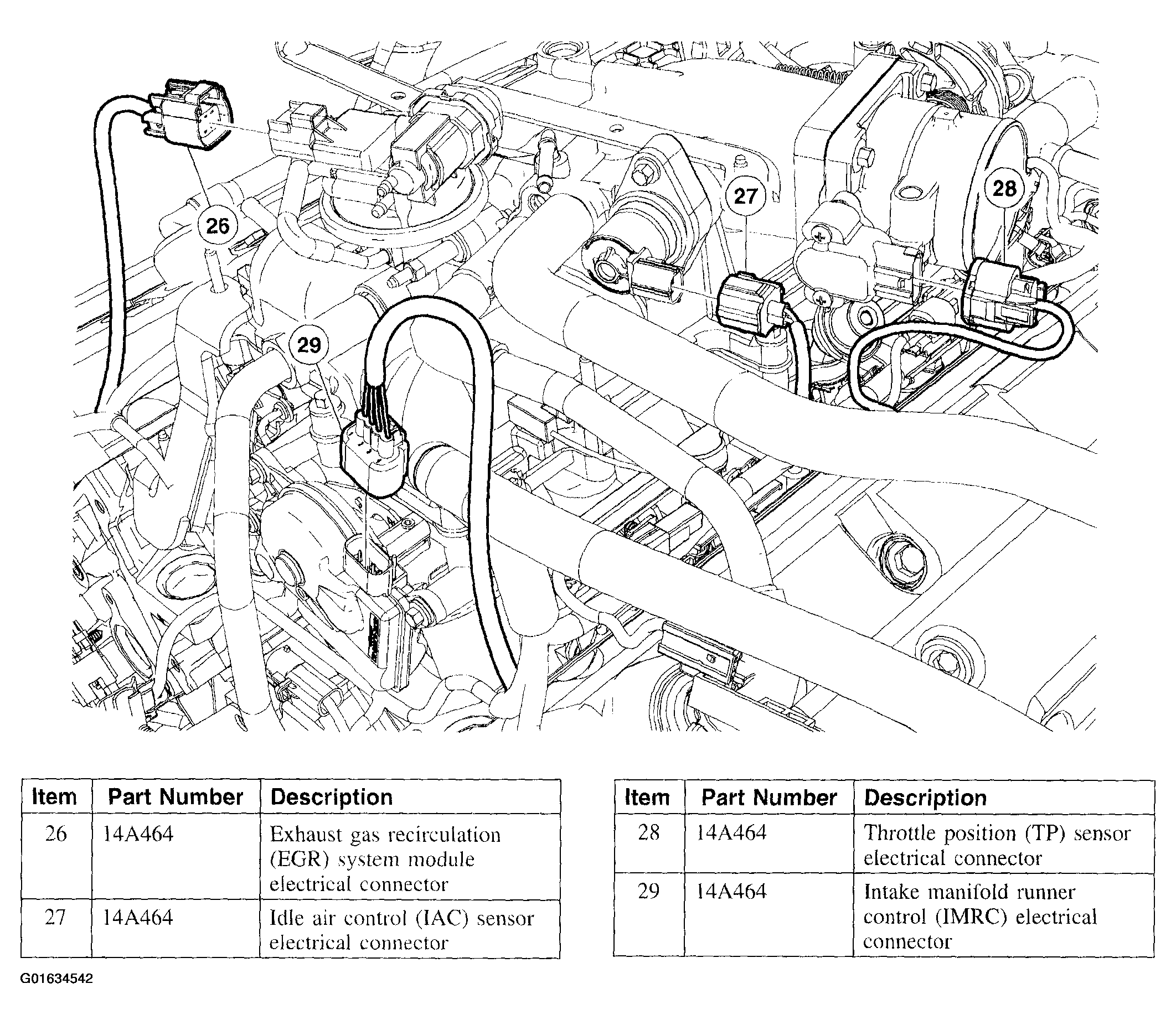

   Fig 7: Engine Disassembly Procedure (Steps 26-29)

   Courtesy of FORD MOTOR CO.
4. Remove the components in the order indicated in the following illustration.
   Fig 8: Engine Disassembly Procedure (Steps 30-41)

   Courtesy of FORD MOTOR CO.
5. Remove the components in the order indicated in the following illustration.
   Fig 9: Engine Disassembly Procedure (Steps 42-60)

   Courtesy of FORD MOTOR CO.
6. Remove the components in the order indicated in the following illustration.

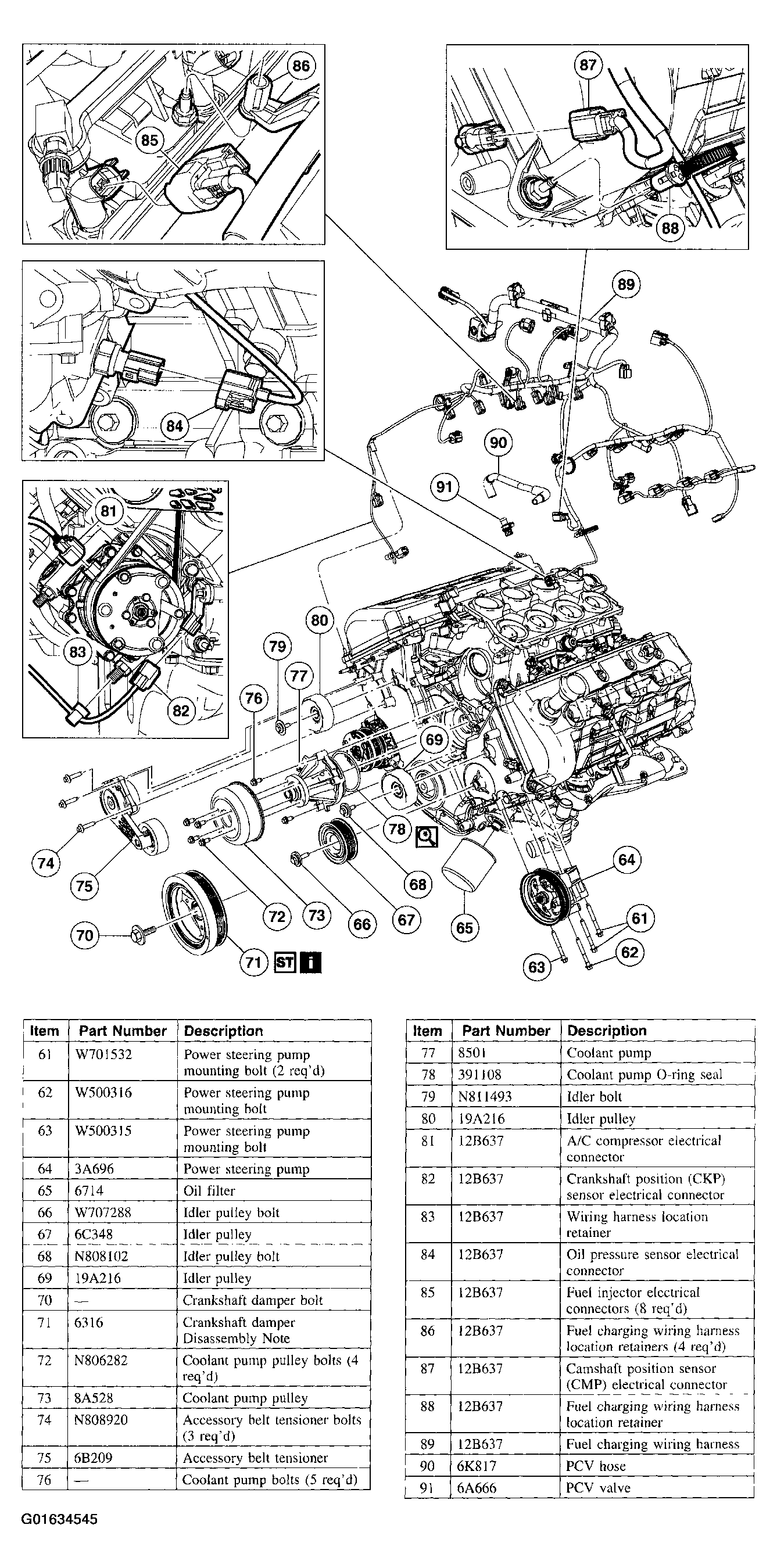

   Fig 10: Engine Disassembly Procedure (Steps 61-91)

   Courtesy of FORD MOTOR CO.
7. Remove the components in the order indicated in the following illustration.

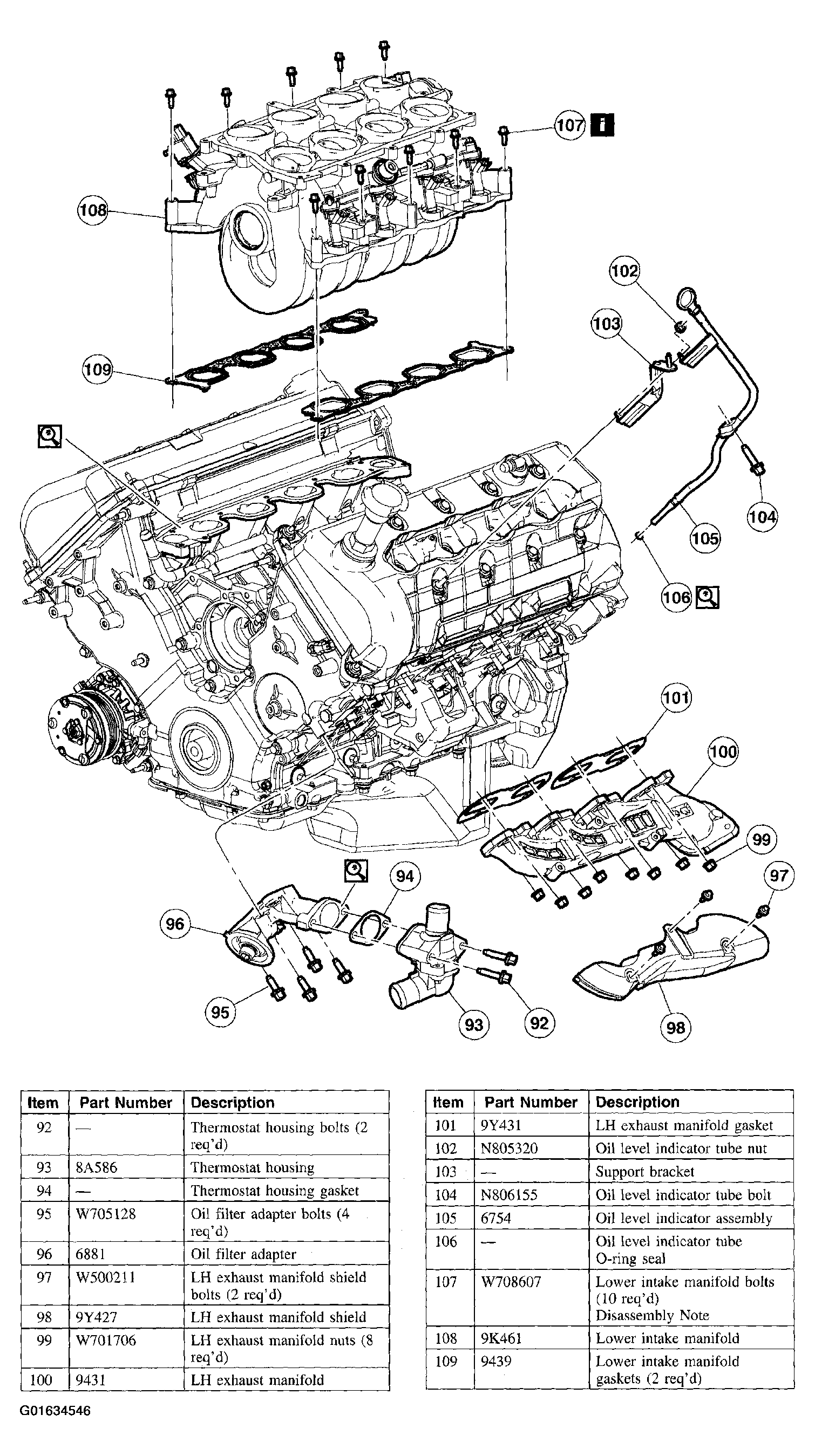

   Fig 11: Engine Disassembly Procedure (Steps 92-109)

   Courtesy of FORD MOTOR CO.
8. Remove the components in the order indicated in the following illustration.

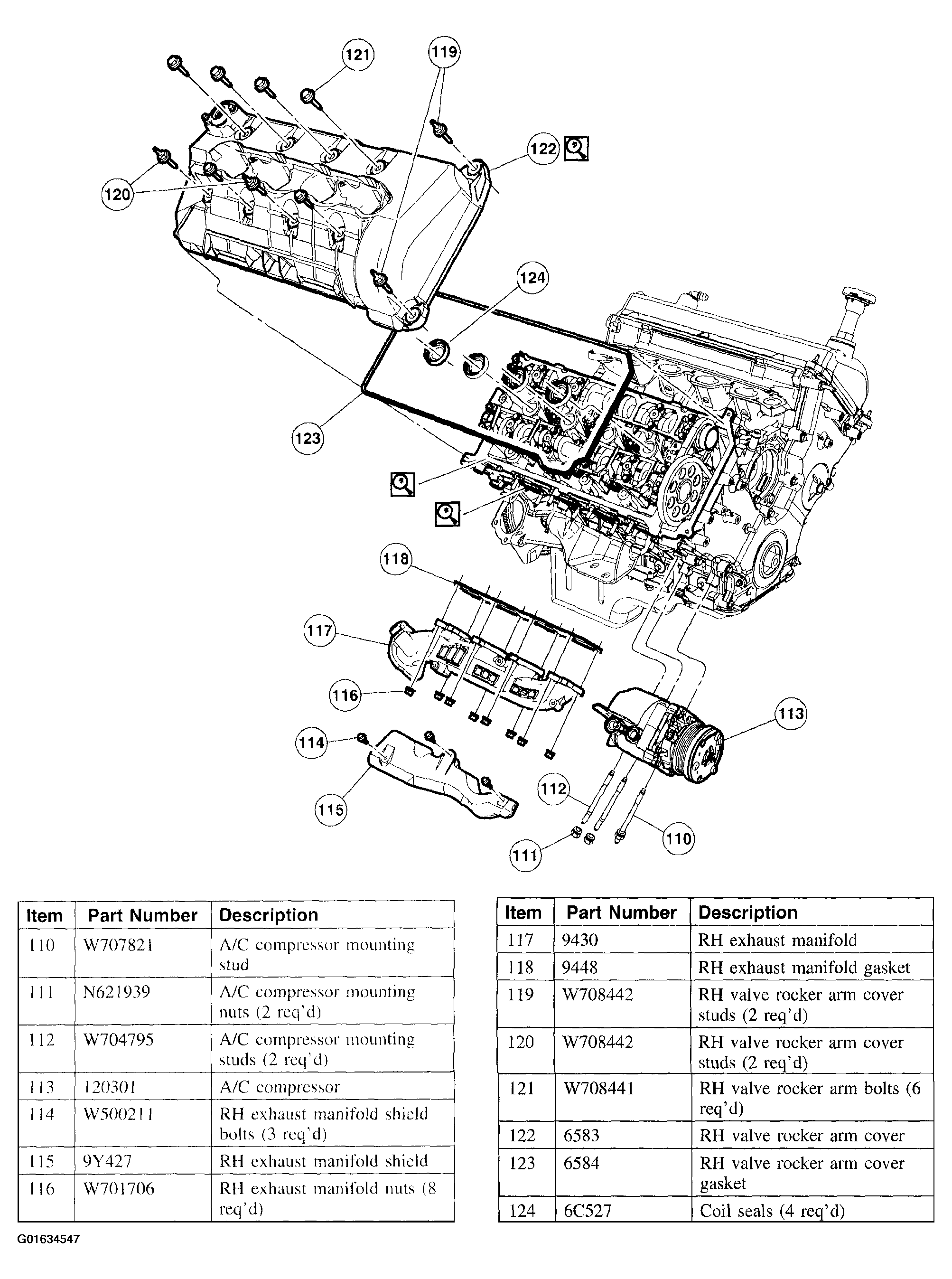

   Fig 12: Engine Disassembly Procedure (Steps 110-124)

   Courtesy of FORD MOTOR CO.
9. Remove the components in the order indicated in the following illustration.
   Fig 13: Engine Disassembly Procedure (Steps 125-138)

   Courtesy of FORD MOTOR CO.
10. Remove the components in the order indicated in the following illustration.

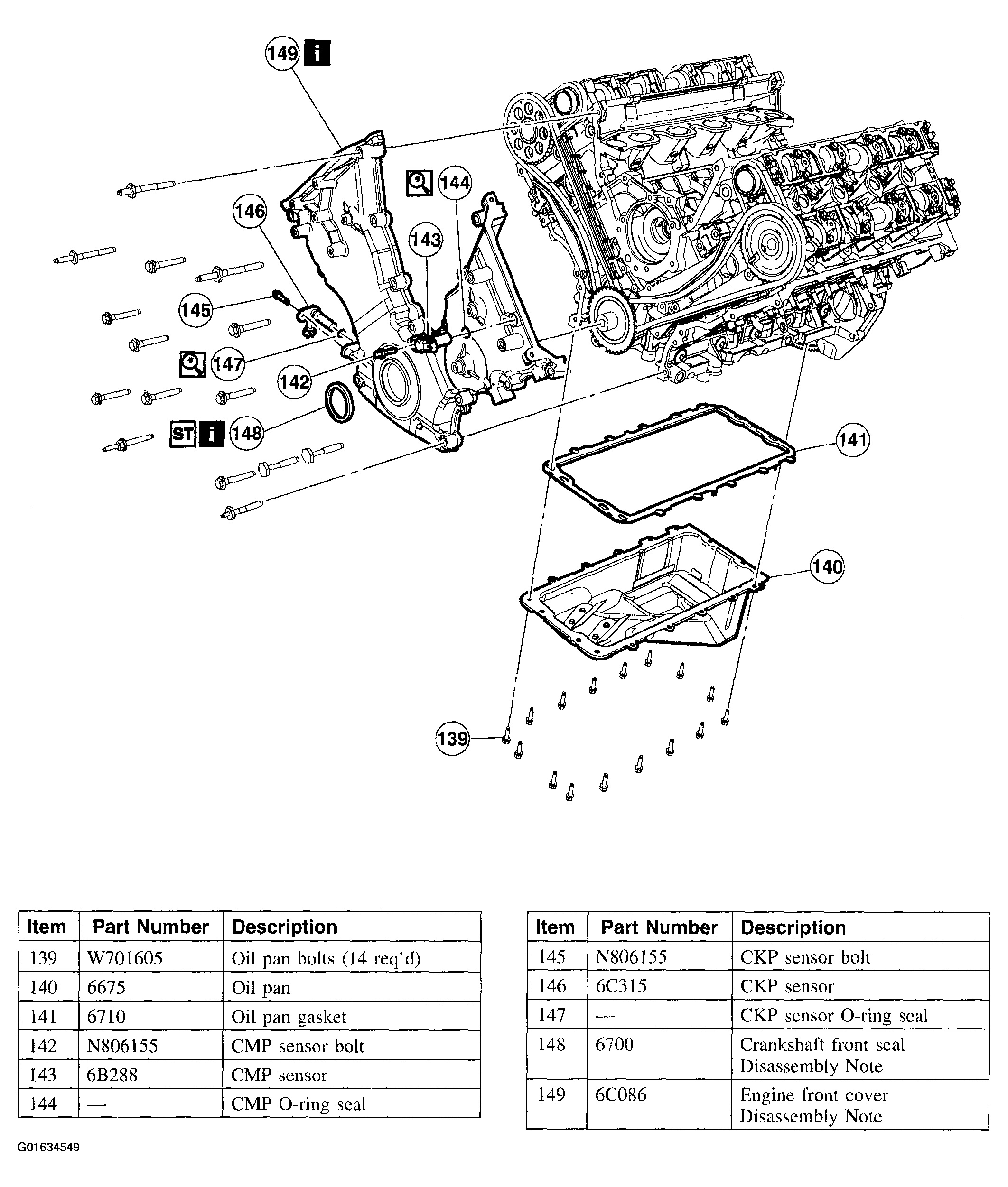

    Fig 14: Engine Disassembly Procedure (Steps 139-149)

    Courtesy of FORD MOTOR CO.
11. Remove the components in the order indicated in the following illustration.

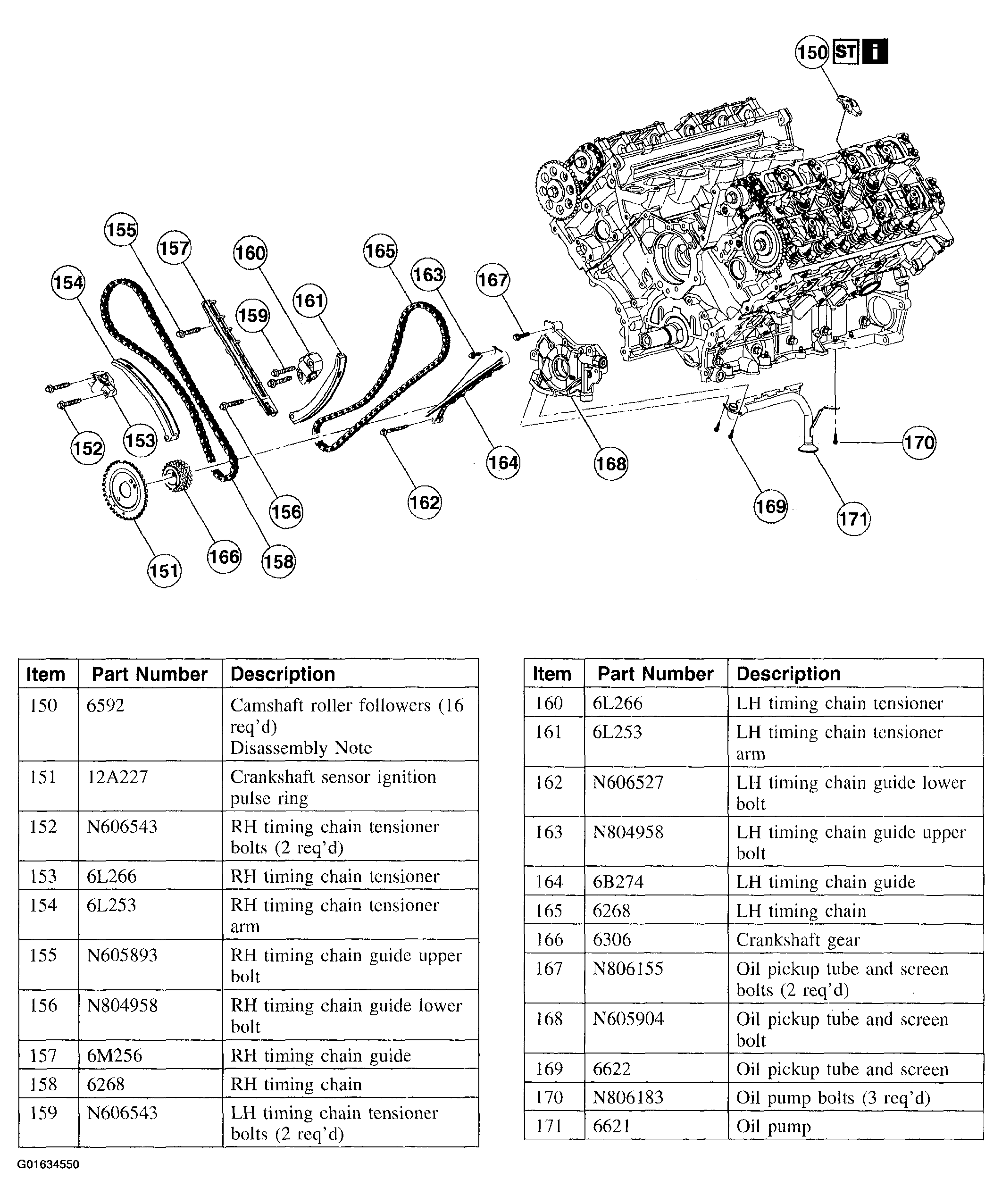

    Fig 15: Engine Disassembly Procedure (Steps 150-171)

    Courtesy of FORD MOTOR CO.
12. Remove the components in the order indicated in the following illustration.

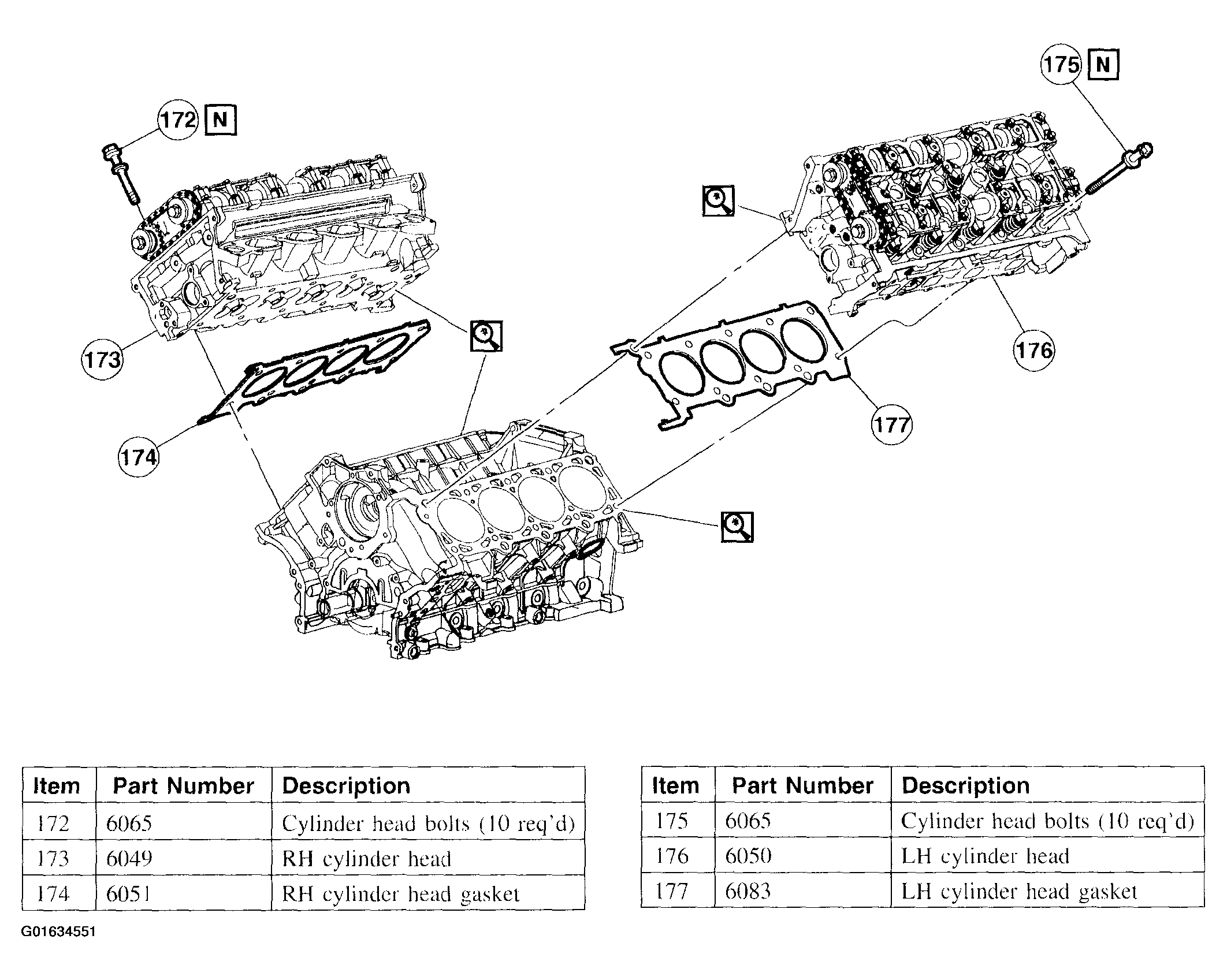

    Fig 16: Engine Disassembly Procedure (Steps 172-177)

    Courtesy of FORD MOTOR CO.
13. Remove the components in the order indicated in the following illustration.

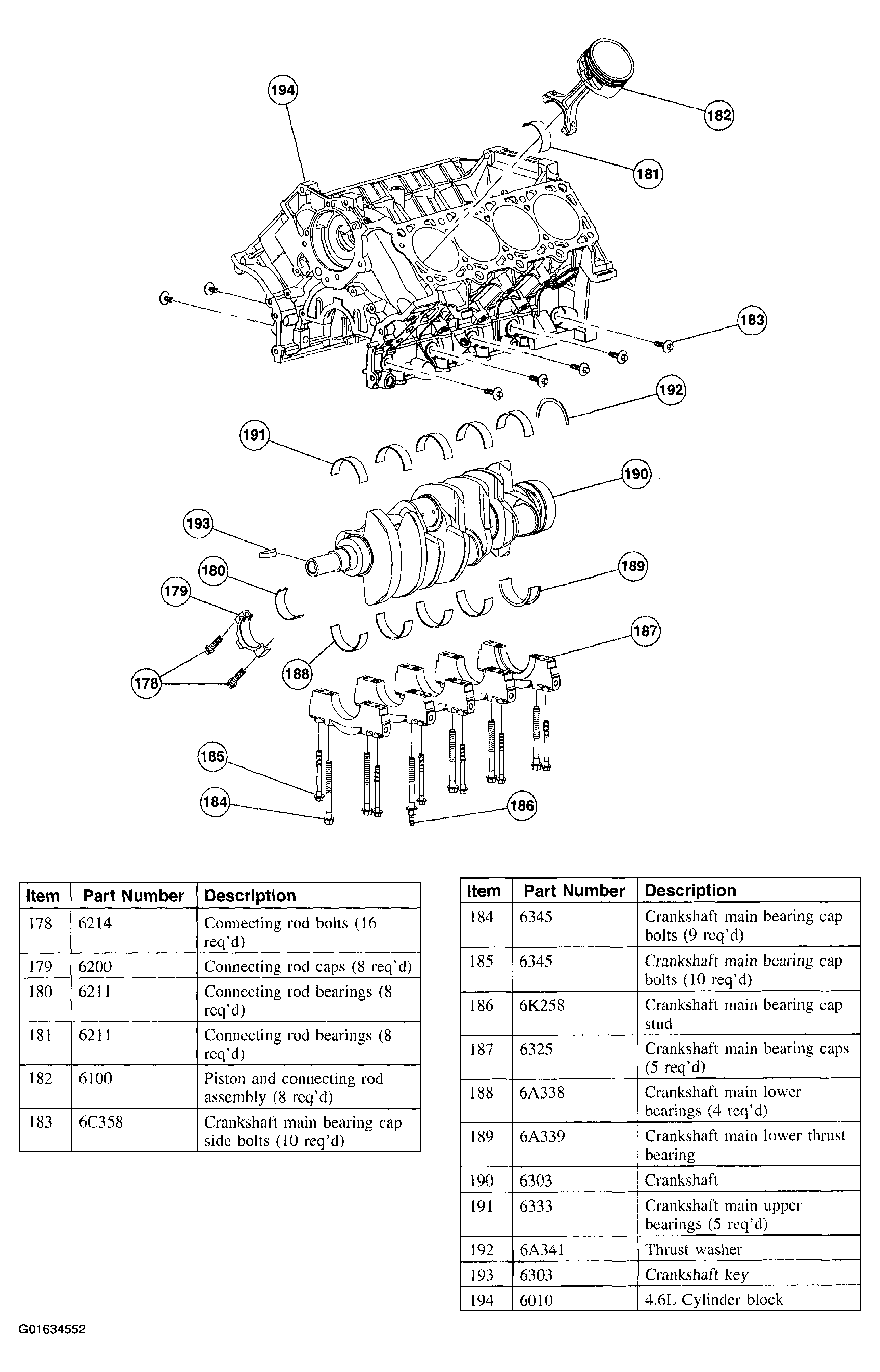

    Fig 17: Engine Disassembly Procedure (Steps 178-194)

    Courtesy of FORD MOTOR CO.

Item 4: Crankshaft Oil Slinger Disassembly Note

1. Using the special tools, remove the crankshaft oil slinger.
   Fig 18: Removing Crankshaft Oil Slinger

   Courtesy of FORD MOTOR CO.

Item 5: Crankshaft Rear Seal Disassembly Note

1. Using the special tools, remove the crankshaft rear seal.
   Fig 19: Removing Crankshaft Rear Seal

   Courtesy of FORD MOTOR CO.

Item 8: Crankshaft Rear Seal Retainer Plate Disassembly Note

1. After retainer plate removal, mount the engine on an engine stand.

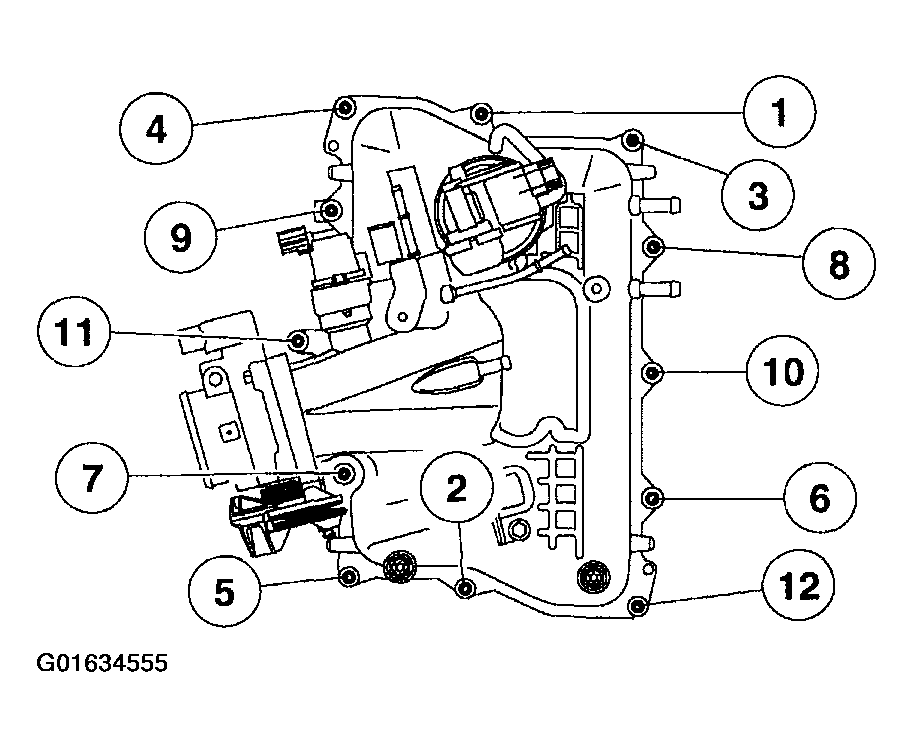

Items 38 and 39: Upper Intake Manifold Assembly Fasteners Disassembly Note

1. Remove the upper intake manifold assembly bolts in the sequence shown.

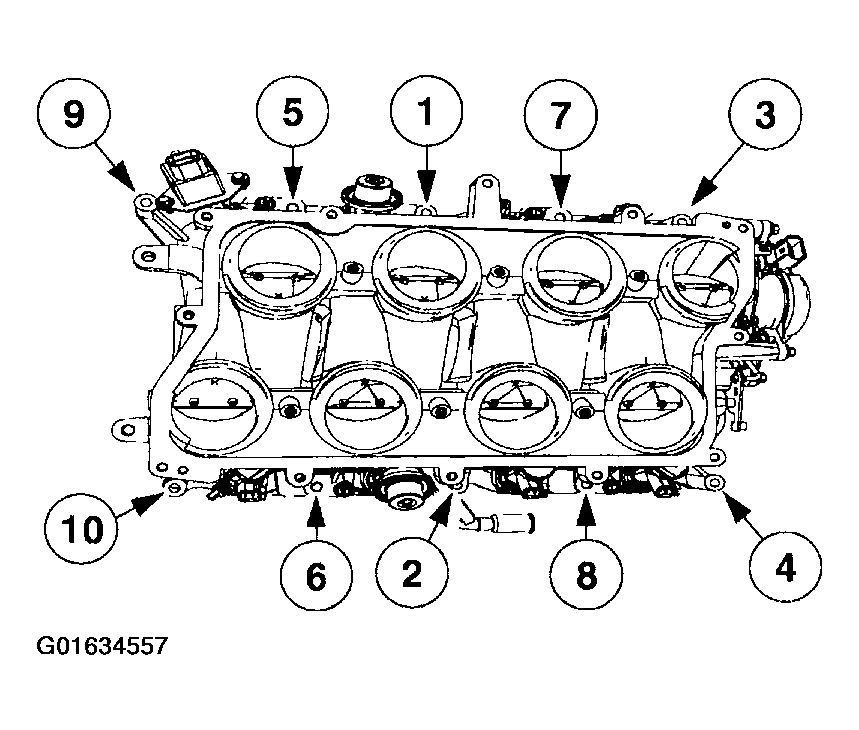

   Fig 20: Removing Sequence Of Upper Intake Manifold Assembly Bolts

   Courtesy of FORD MOTOR CO.

Item 71: Crankshaft Damper Disassembly Note

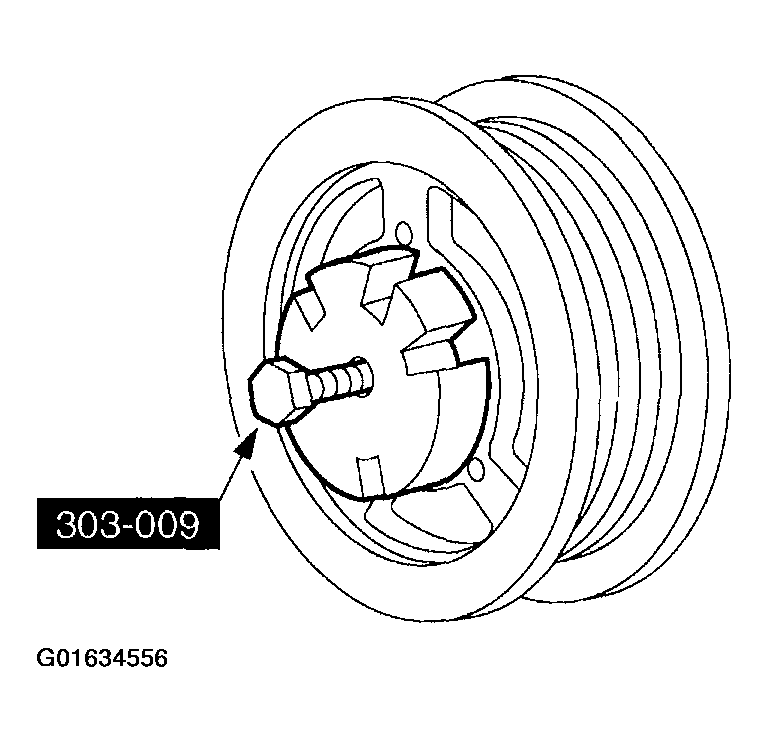

1. Using the special tool, remove the crankshaft vibration damper.
   Fig 21: Removing Crankshaft Vibration Damper

   Courtesy of FORD MOTOR CO.

Item 107: Lower Intake Manifold Bolts Disassembly Note

1. Remove the lower intake manifold assembly bolts in the sequence shown.
   Fig 22: Removing Sequence Of Lower Intake Manifold Assembly Bolts

   Courtesy of FORD MOTOR CO.

Item 148: Crankshaft Front Seal Disassembly Note

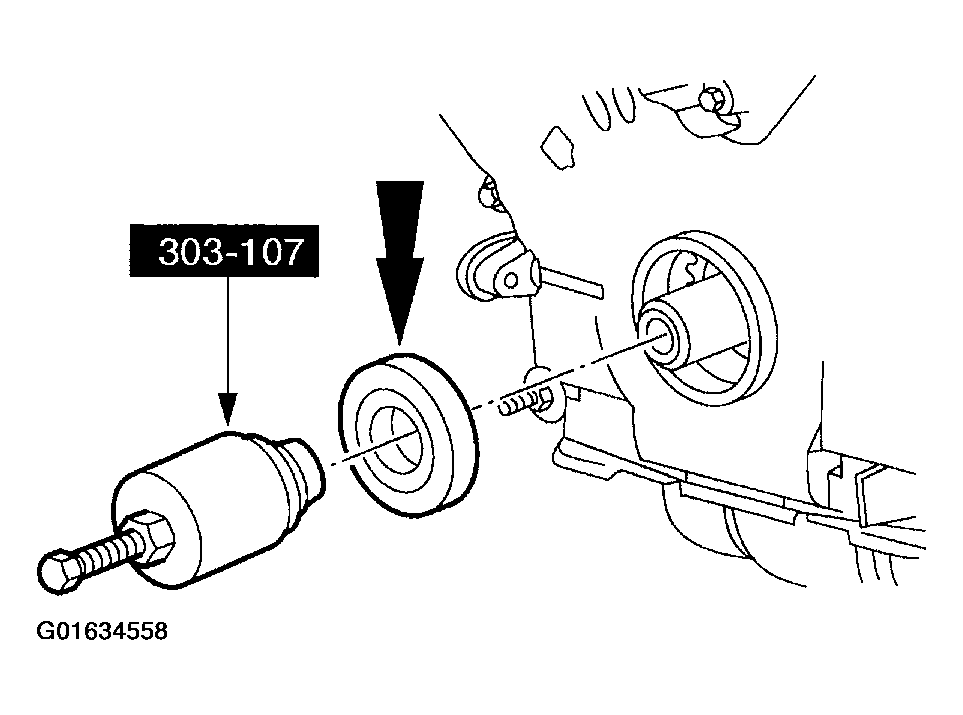

1. Using the special tool, remove the crankshaft front seal.
   Fig 23: Removing Crankshaft Front Seal

   Courtesy of FORD MOTOR CO.

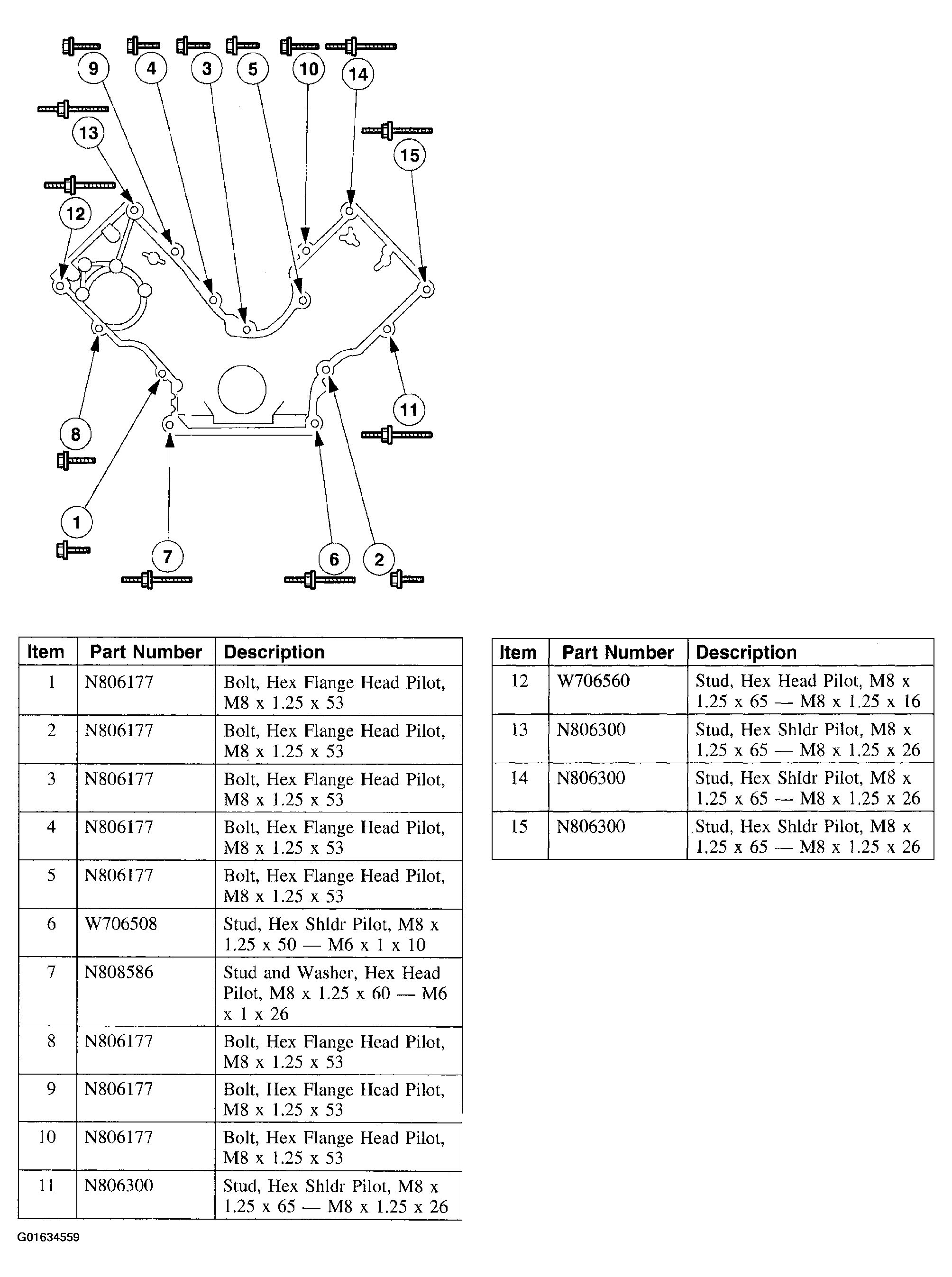

Item 149: Engine Front Cover Disassembly Note

1. Remove the engine front cover fasteners in the sequence shown.
   Fig 24: Removing Sequence Of Engine Front Cover Bolts And Studs

   Courtesy of FORD MOTOR CO.

Item 150: Camshaft Roller Followers Disassembly Note

1. Position the piston of the cylinder in which the roller followers are being removed at the bottom of the stroke and camshaft lobe at the base circle.
2. Using the special tool, compress the intake valve spring and remove the roller follower.

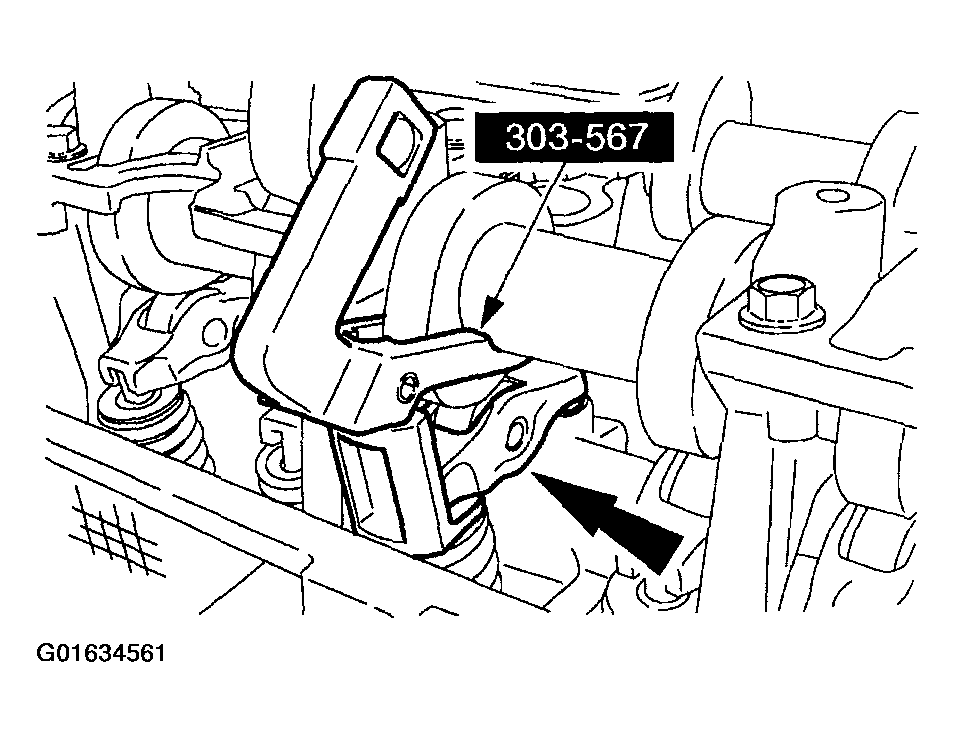

   Fig 25: Compressing Intake Valve Spring And Removing Roller Follower

   Courtesy of FORD MOTOR CO.
3. Using the special tool, compress the exhaust valve spring and remove the roller follower.
   Fig 26: Compressing Exhaust Valve Spring And Removing Roller Follower

   Courtesy of FORD MOTOR CO.
4. Repeat the above steps to remove all the roller followers.
