Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clips.

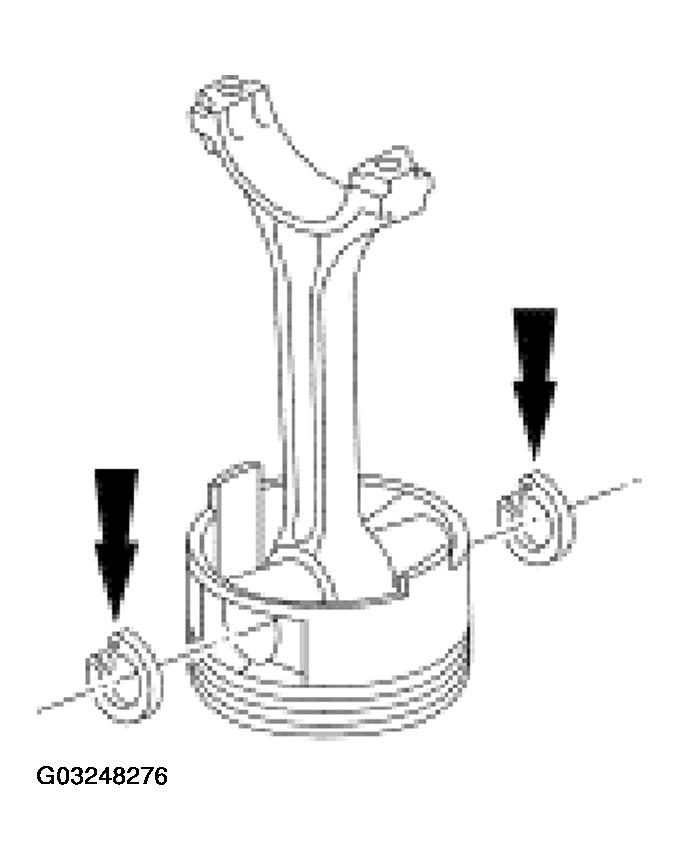

Fig 1: Removing Piston Pin Retaining Clips
Courtesy of FORD MOTOR CO.
Remove the piston pin from the piston and connecting rod assembly.

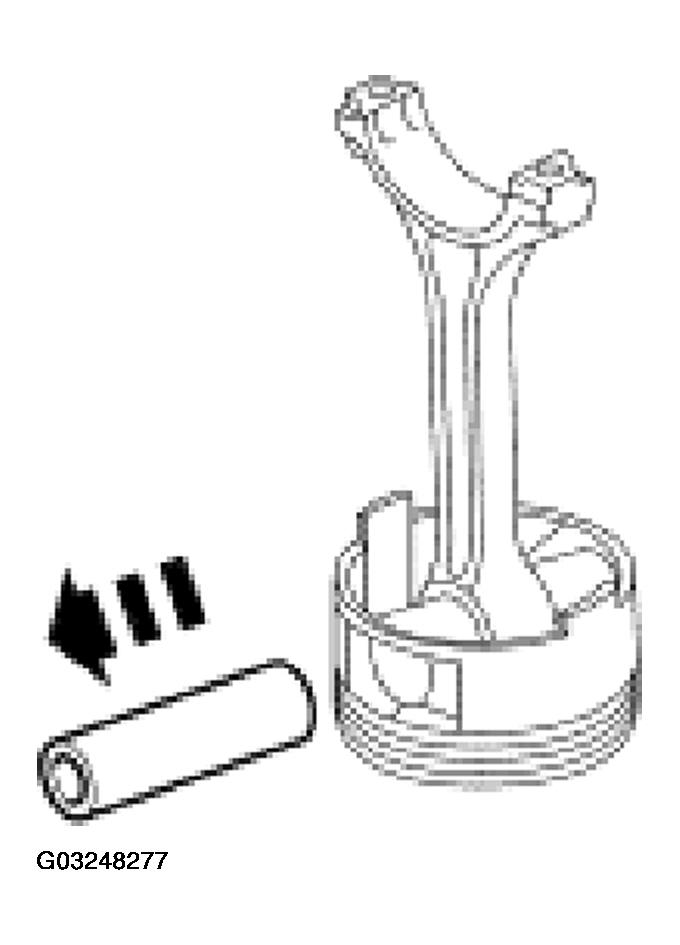

Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Remove the connecting rod from the piston.

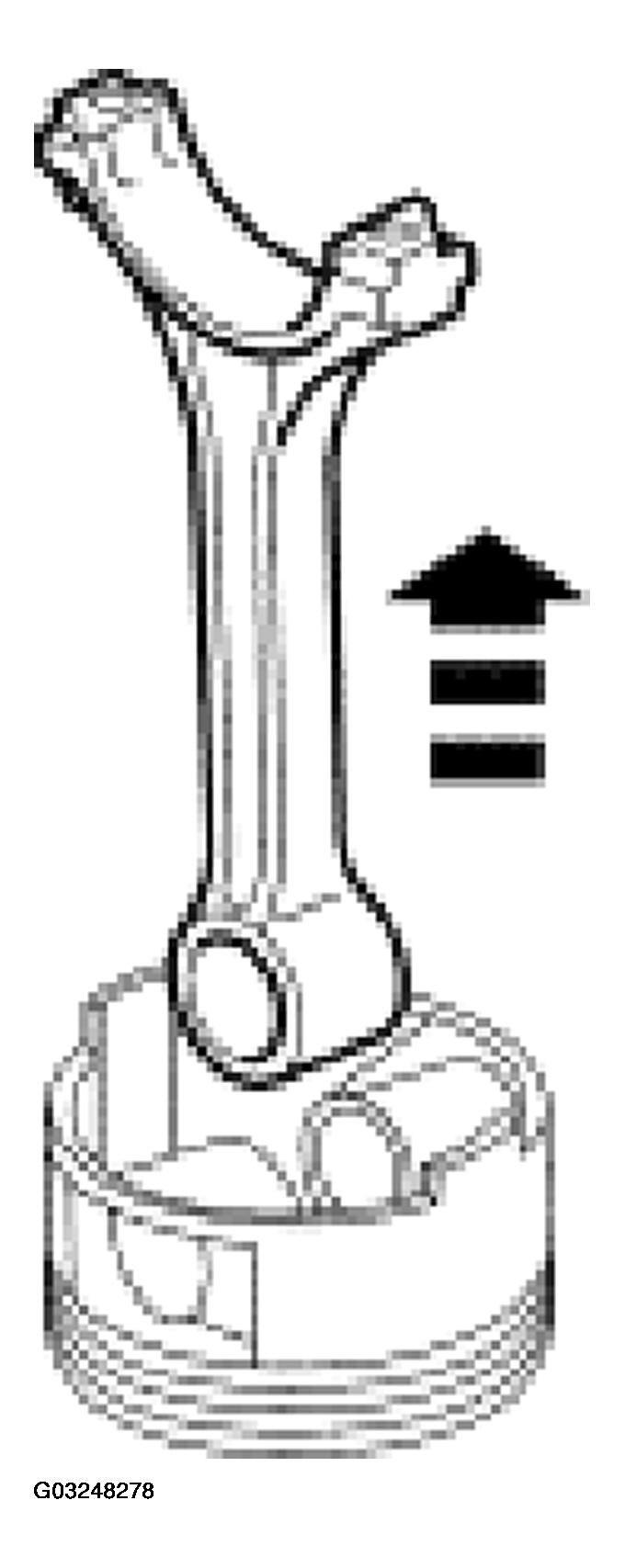

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
