Powertrain Control Module (PCM) C175b

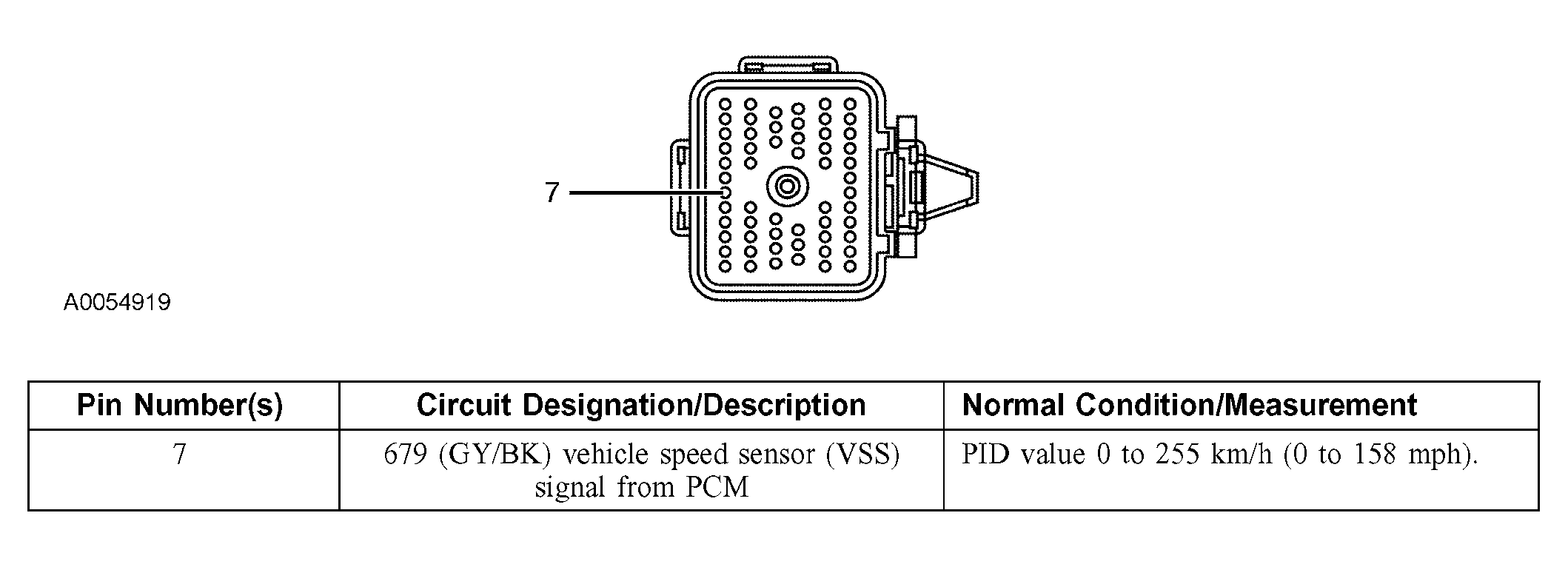

Fig 1: Identifying Powertrain Control Module C175b Connector Pins
G04025861Courtesy of FORD MOTOR CO.
