Item 3: Speed Sensor Installation Note

  1. Inspect and lubricate the O-ring seal with petroleum jelly.
    1. Install the intermediate shaft speed sensor into the transmission.
    2. Tighten the screw.

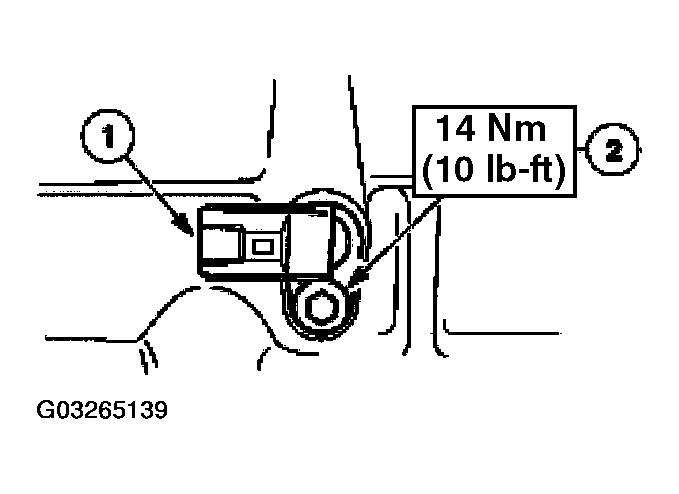

    Fig 1: Installing Intermediate Shaft Speed Sensor Into Transmission
    G03265139Courtesy of FORD MOTOR CO.
