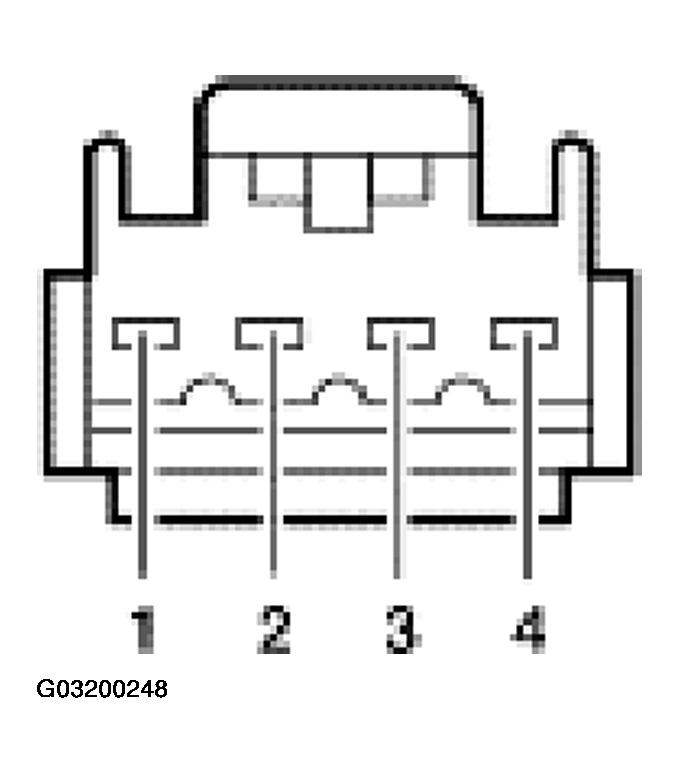

Steering Column Position Sensor C222
CIRCUIT DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-AL16 (WH/BK) telescope motor steering column position sensor signal | Voltage varies with telescope motor position. |
| 2 | 7-AL17 (YE/VT) steering column position sensor signal ground from the instrument cluster | 5 volt reference with ignition in ACC and RUN position. |
| 3 | 8-AL17 (WH/VT) tilt motor steering column position sensor signal | Voltage varies with tilt motor position. |
| 4 | 9-AL17 (BN/WH) steering column position sensor input from the instrument cluster | 0 volts, less than 5 ohms resistance to chassis ground. |
