Removal and Installation

  1. Remove the manual climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY -MANUAL  .
  2. Pull and remove the function selector knob.
  3. Release the clips and remove the function selector switch.

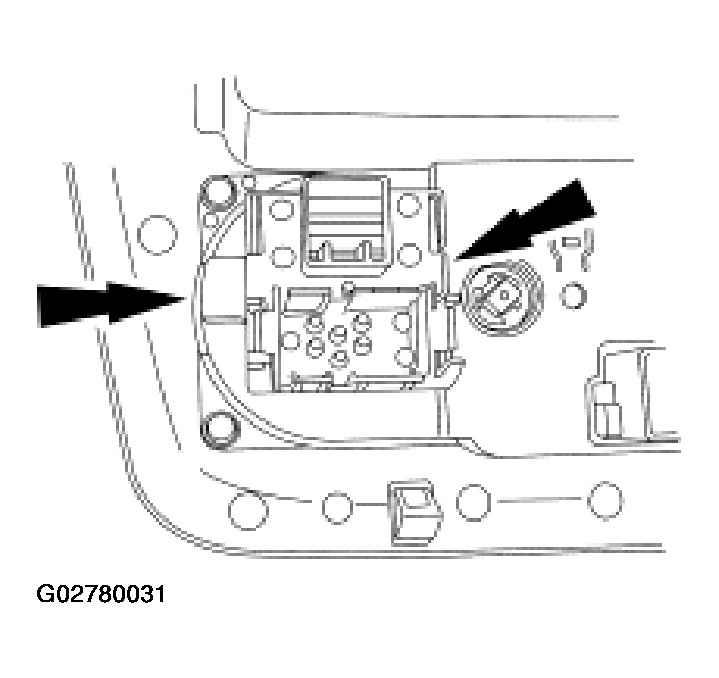

    Fig 1: Releasing Clips And Removing Function Selector Switch
    G02780031Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
