Suspension System-General Information: Specifications: Notes

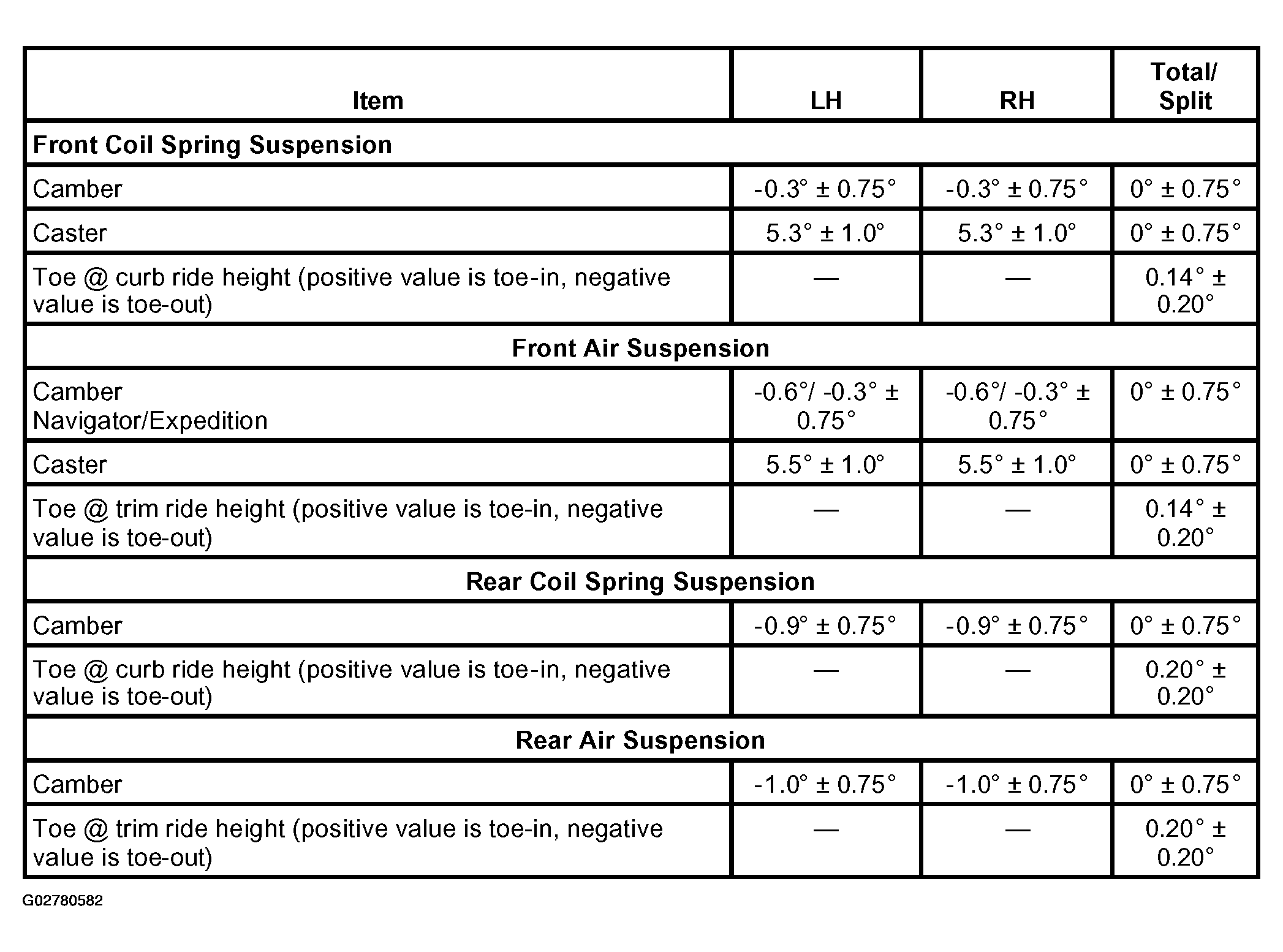

Fig 1: Alignment Specifications Chart

G02780582

Courtesy of FORD MOTOR CO.
