Removal And Installation

    CAUTION: Prior to removal of module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the LH instrument panel lower insulator.
    1. Remove the pin-type retainers.
    2. Disconnect the courtesy lamp.

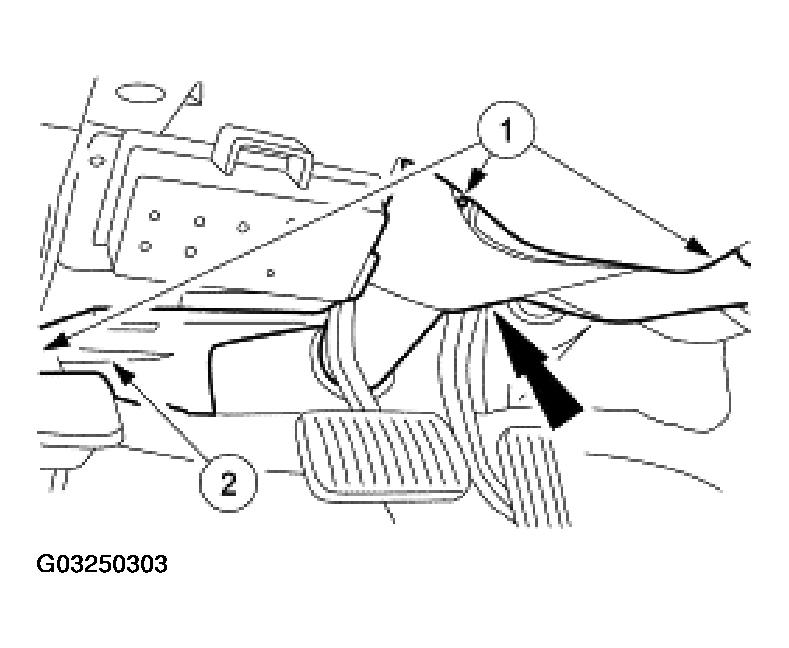

    Fig 1: Removing LH Instrument Panel Lower Insulator
    G03250303Courtesy of FORD MOTOR CO.
  3. Remove the accelerator pedal and shaft. For additional information, refer to ACCELERATION CONTROL .
  4. Position the LCM aside.
    1. Remove the screws.
    2. Release the locking tab.

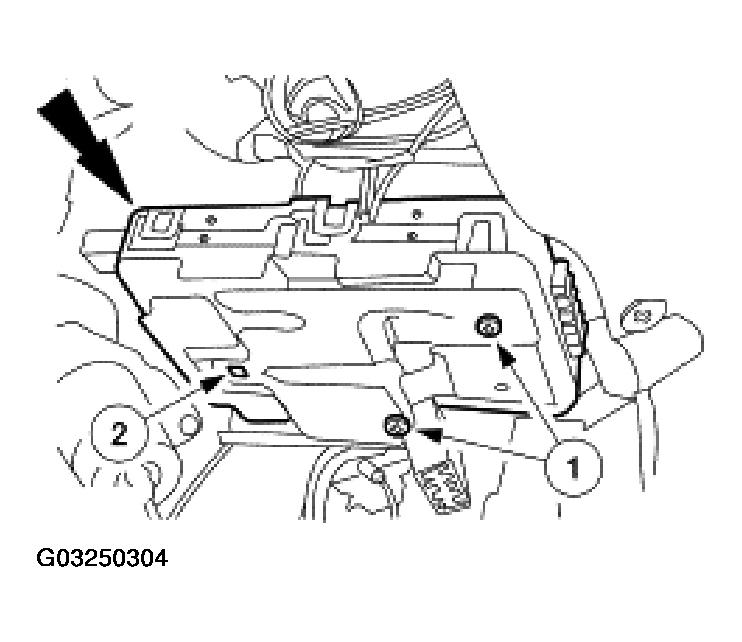

    Fig 2: Positioning LCM Aside
    G03250304Courtesy of FORD MOTOR CO.
  5. Disconnect the electrical connectors and remove the LCM.

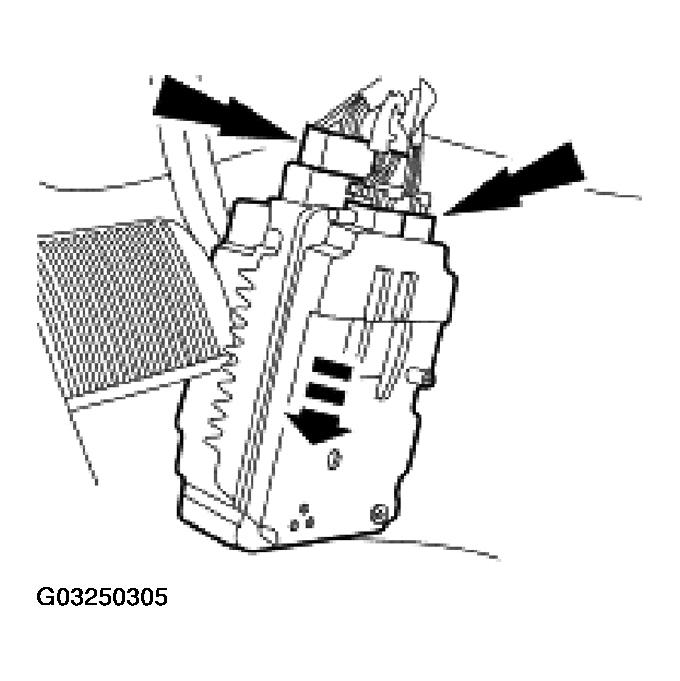

    Fig 3: Removing LCM
    G03250305Courtesy of FORD MOTOR CO.
    6. CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. For additional information, refer to MODULE CONFIGURATION .
  6. To install, reverse the removal procedure.
