Lumbar Control Switch: Installation

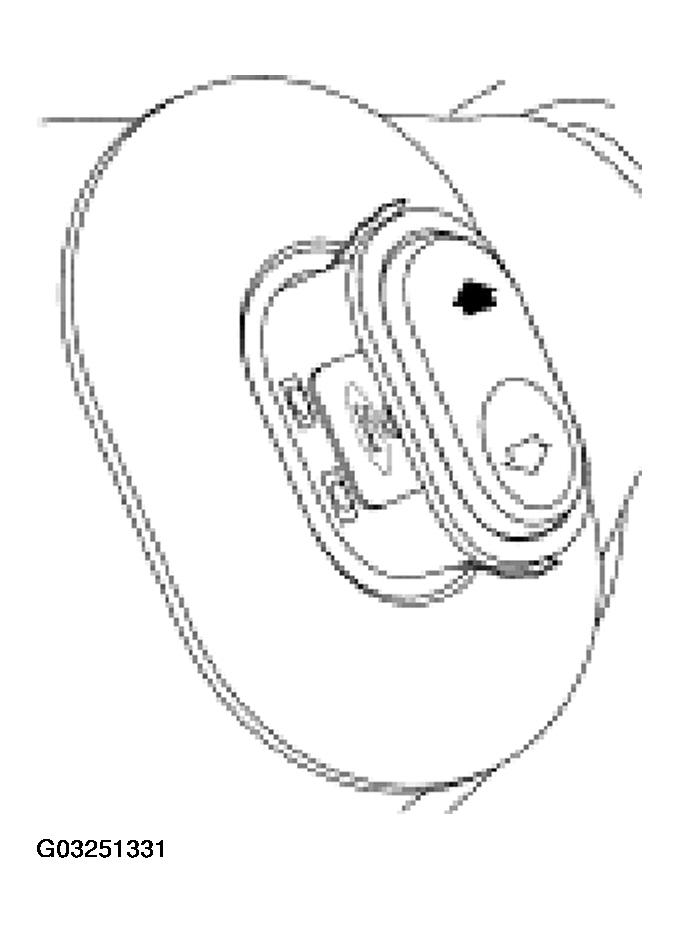

Install the power lumbar switch until seated into bezel.

Fig 1: Installing Power Lumbar Switch
Courtesy of FORD MOTOR CO.

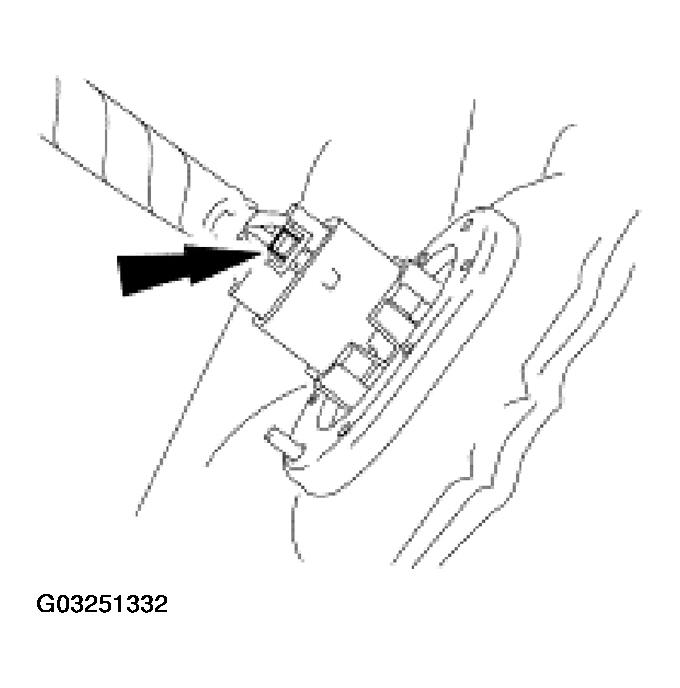

Connect the power lumbar switch electrical connector.

Fig 2: Connecting Power Lumbar Switch Electrical Connector
Courtesy of FORD MOTOR CO.

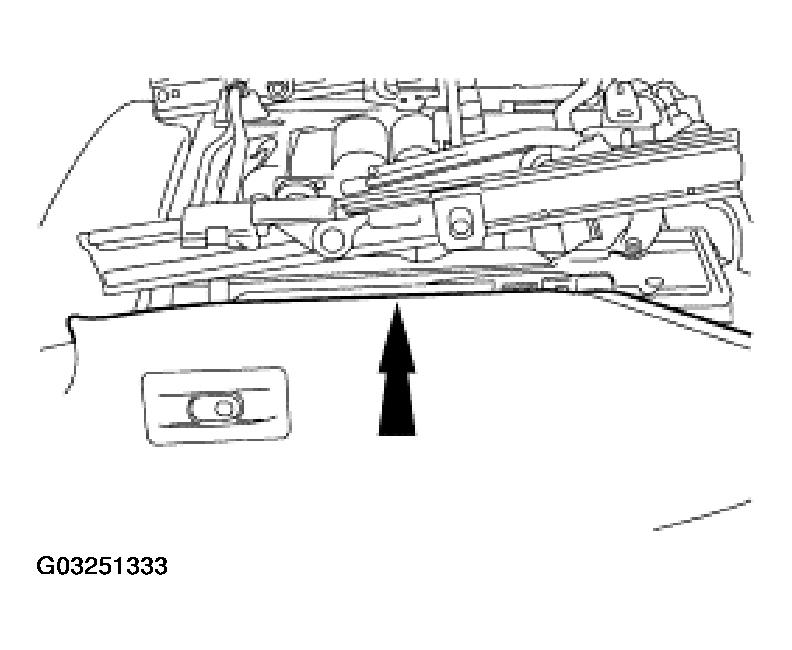

Position the seat cushion trim cover back and fasten the J-clips.

Fig 3: Positioning Seat Cushion Trim Cover
Courtesy of FORD MOTOR CO.
Install the affected seat. For additional information, refer to FRONT SEAT .
Reactivate the SRS. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
