Accelerator Pedal And Shaft - Adjustable: Removal

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced. For additional information, refer toDISC .

NOTE: Non-memory pedal shown, memory pedal similar.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the instrument panel close-out panel.
1. Remove the three pushpins from the areas shown.
2. Turn the lamp socket counterclockwise to disconnect it from the close-out panel.

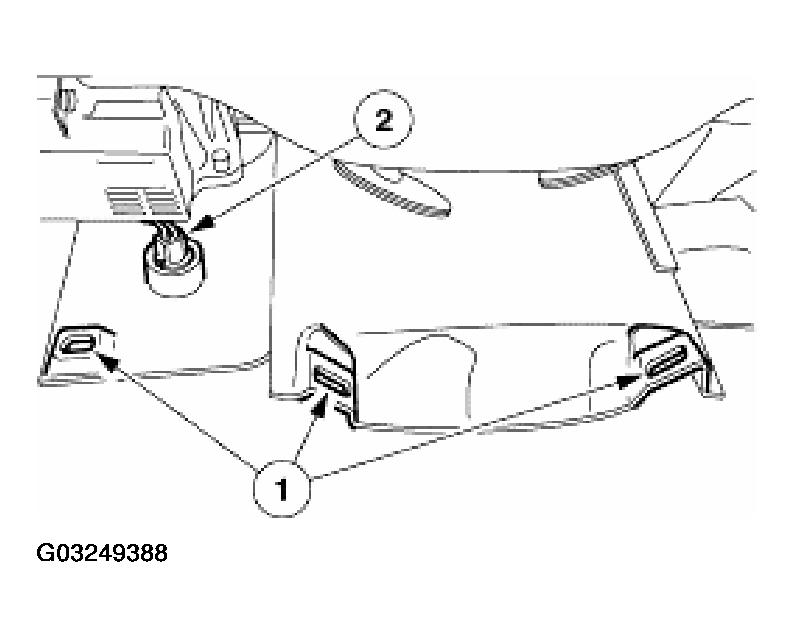

Fig 1: Removing Instrument Panel Close-Out Panel
Courtesy of FORD MOTOR CO.
Remove accelerator cable from the accelerator pedal and shaft assembly.

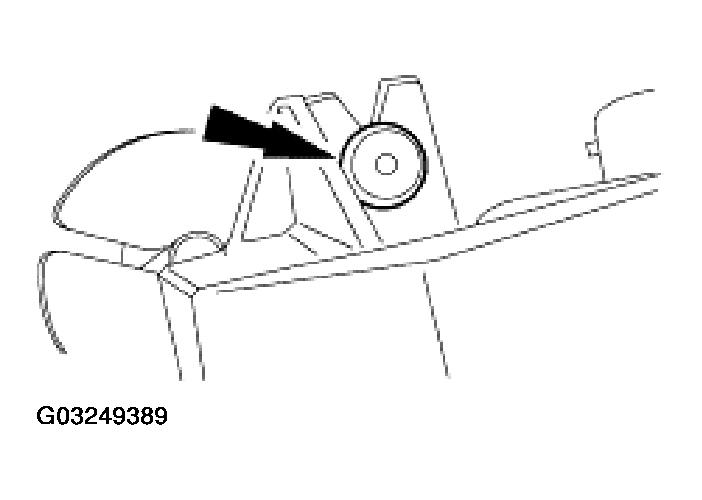

Fig 2: Removing Accelerator Cable From Accelerator Pedal And Shaft Assembly
Courtesy of FORD MOTOR CO.
Disconnect the adjustable drive cable from the brake pedal and shaft assembly.

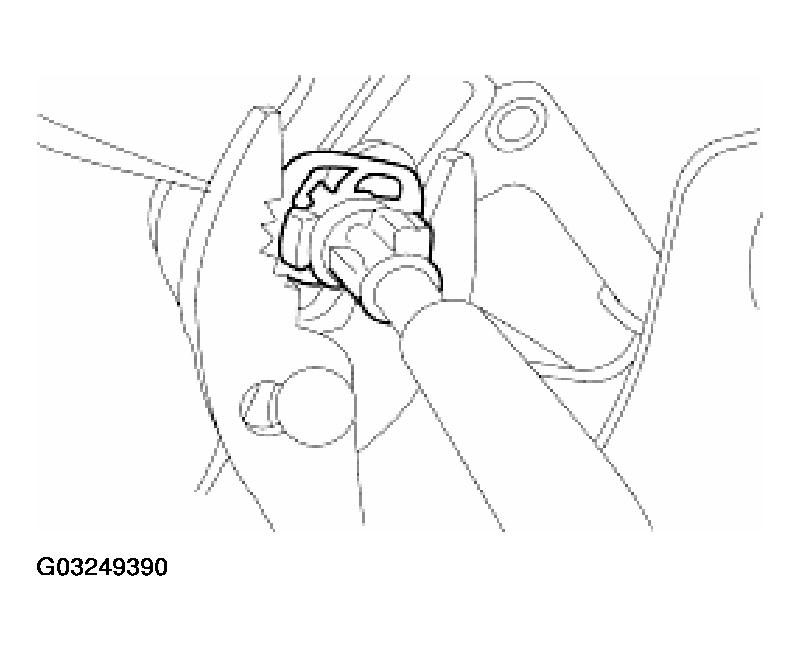

Fig 3: Disconnecting Adjustable Drive Cable From Brake Pedal And Shaft Assembly
Courtesy of FORD MOTOR CO.
Disconnect the drive motor electrical connector.

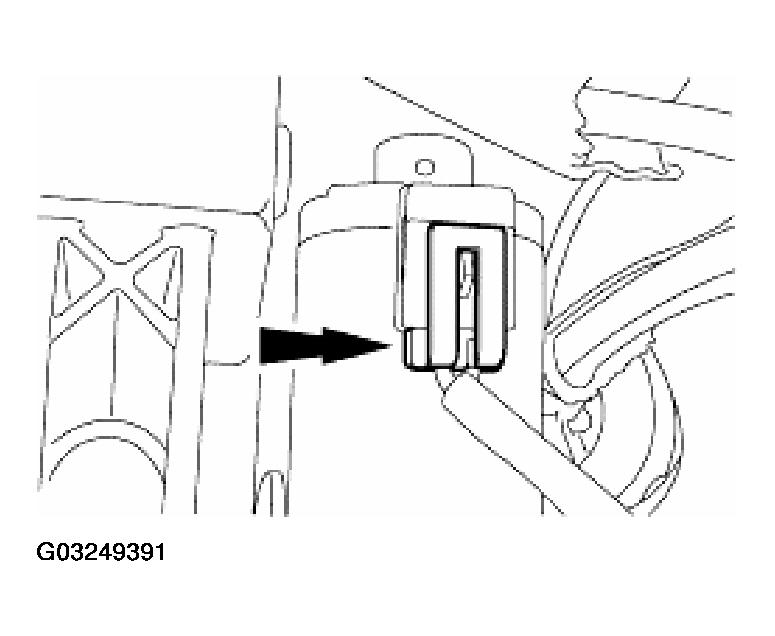

Fig 4: Disconnecting Drive Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the two nuts and remove the accelerator pedal and shaft assembly.

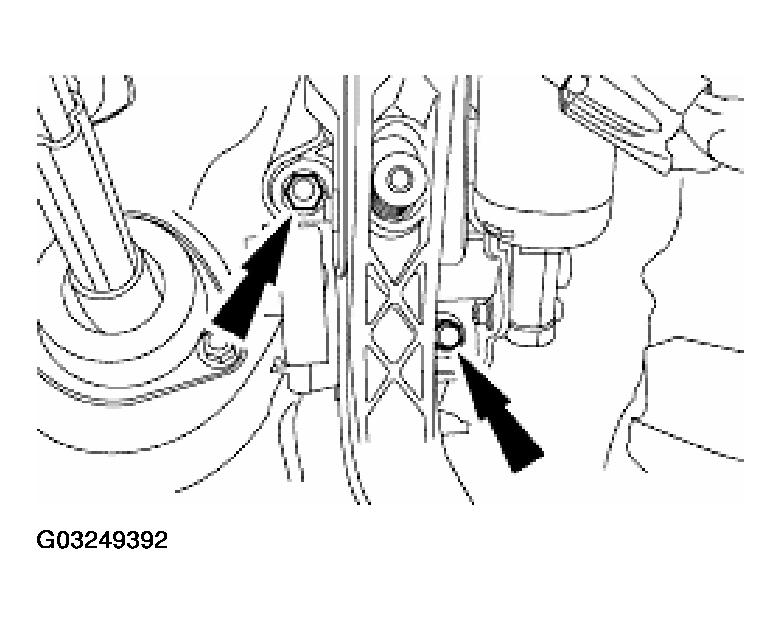

Fig 5: Removing Accelerator Pedal And Shaft Assembly
