Vehicle Security Module C3008d

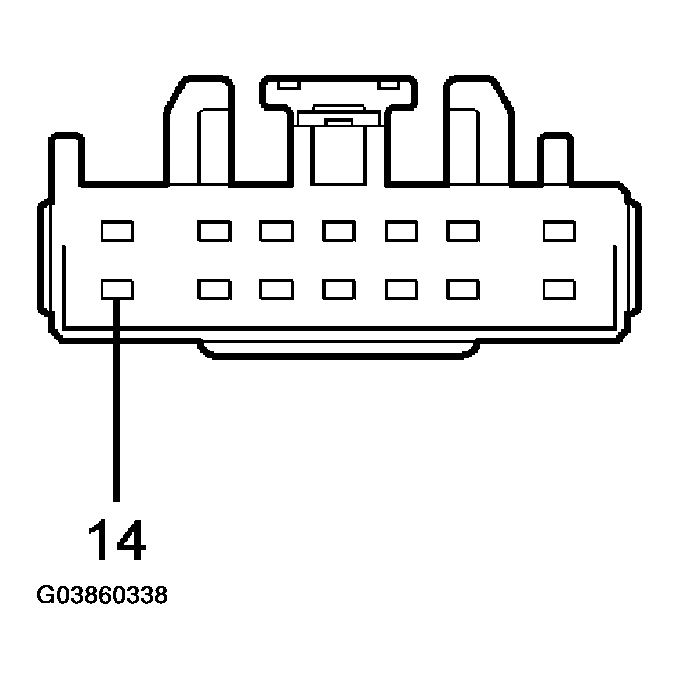

Fig 1: Identifying Vehicle Security Module C3008D Connector
G03860338Courtesy of FORD MOTOR CO.
CONNECTOR TERMINAL PIN REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
14 1205 (BK) vehicle security module ground Less than 5 ohms between the vehicle security module and ground.
