Vehicle Security Module C3008e

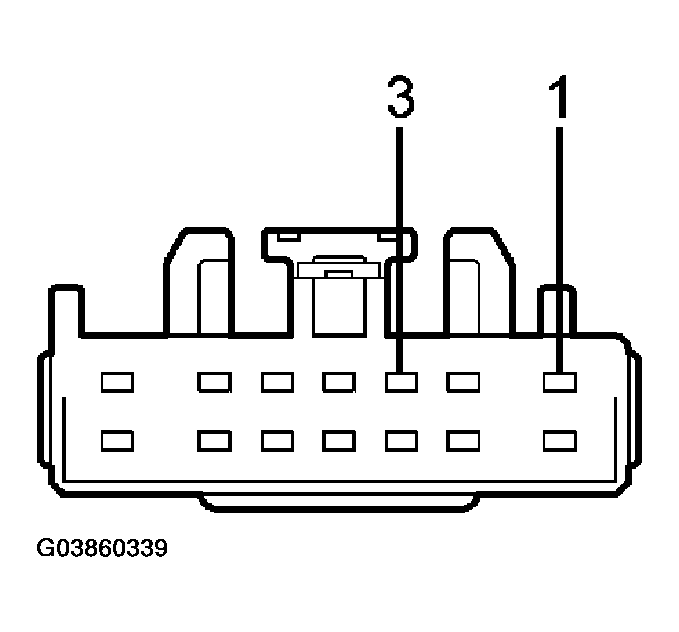

Fig 1: Identifying Vehicle Security Module C3008E Connector
G03860339Courtesy of FORD MOTOR CO.
CONNECTOR TERMINAL PIN REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 456 (DG/OG) vehicle security module voltage Greater than 10 volts at the vehicle security module connector.
3 645 (WH/LB) vehicle security module voltage Greater than 10 volts at the vehicle security module connector.
