Powertrain Control Module (PCM) C175b

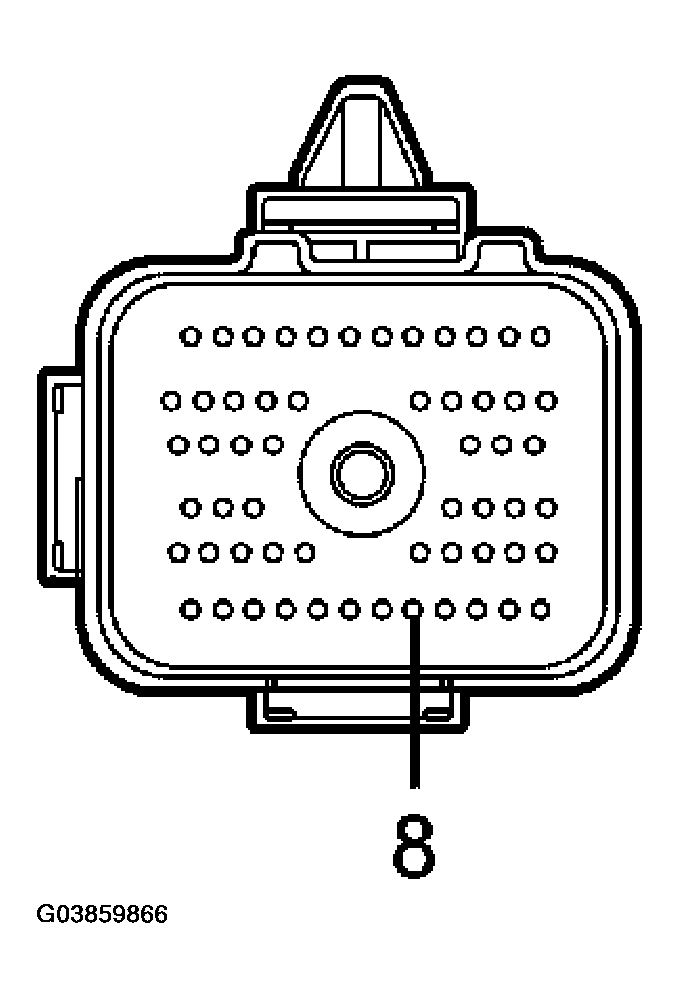

Fig 1: Identifying Connector Terminal Of Powertrain Control Module (PCM) C175B
G03859866Courtesy of FORD MOTOR CO.
POWERTRAIN CONTROL MODULE (PCM) C175B CIRCUIT DESIGNATION/DESCRIPTION CHART

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
8 904 (LG/RD) 0 volts with the key on engine off (KOEO), 0 volts during START, and 8-10 volts when in RUN (Key On Engine Running or KOER).
