Cooling Module: Notes

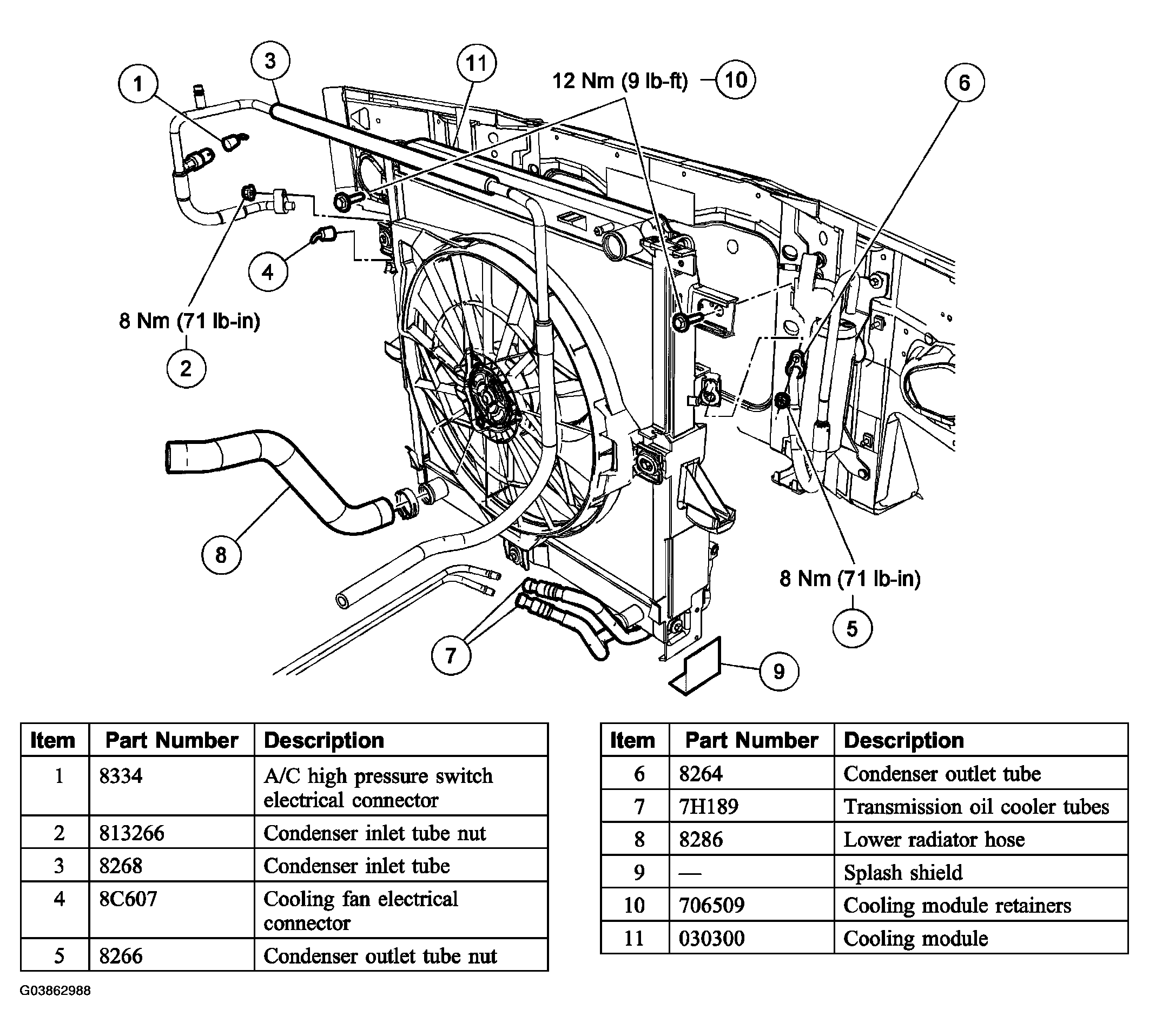

Fig 1: Cooling Module Replacement Components (Torque Specs)
G03862988Courtesy of FORD MOTOR CO.
