Body Support - Number 4
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Body Support - Number 4: Notes

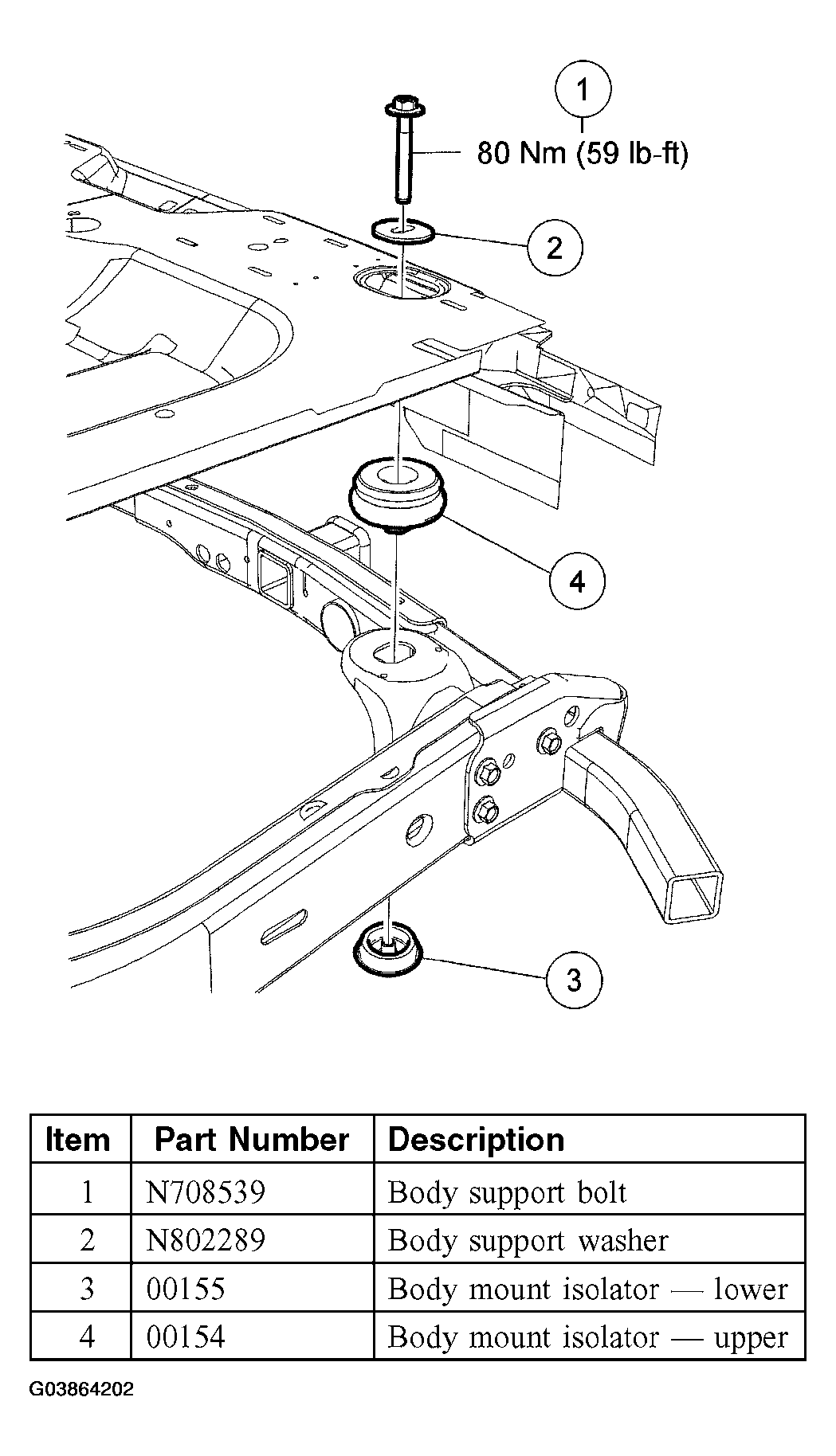

Fig 1: Identifying Body Support Components - Number 4
Courtesy of FORD MOTOR CO.
