Exterior Mirrors - Exploded View

NOTE: RH side shown, LH side similar.

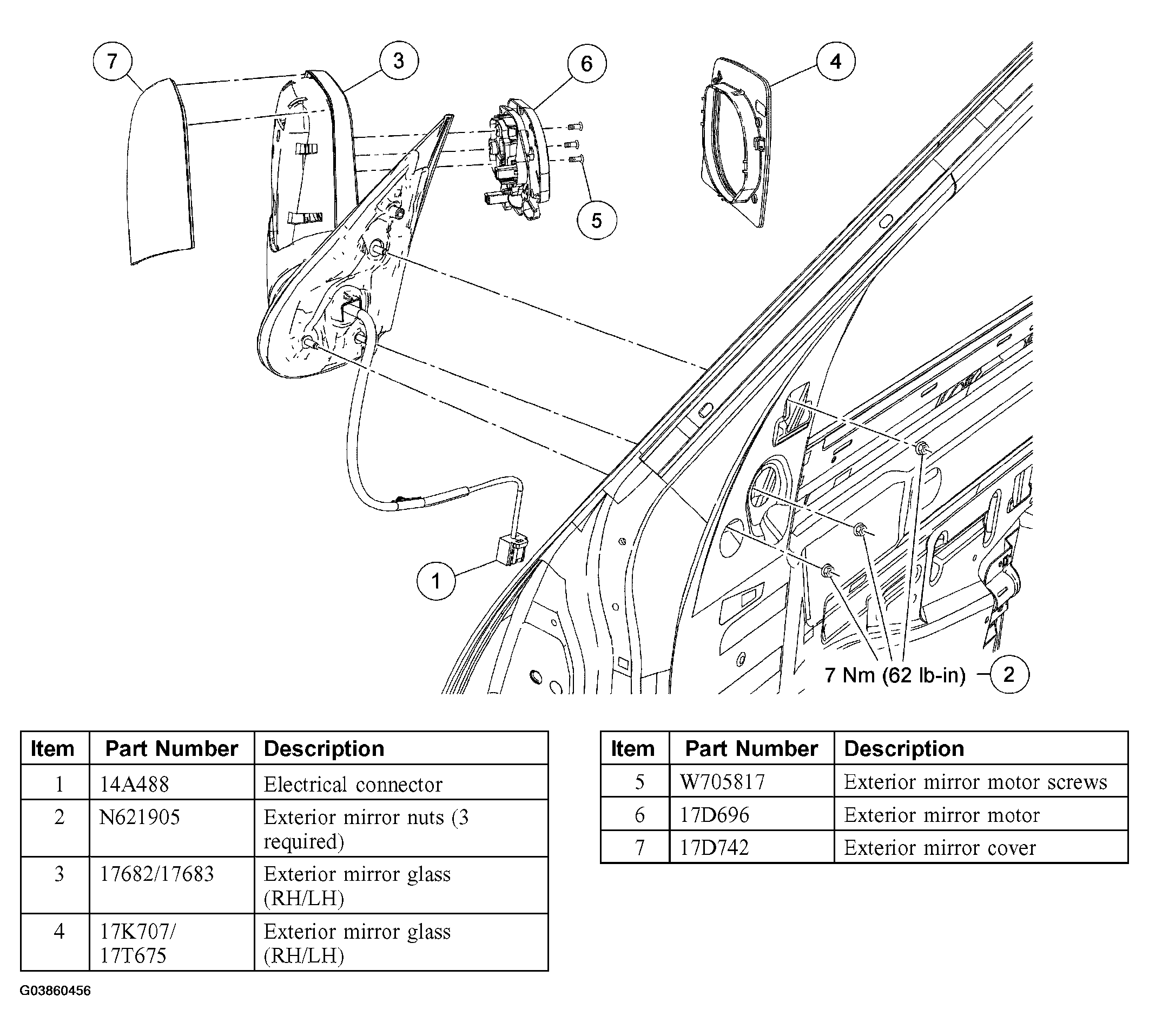

Fig 1: Exploded View Of Exterior Mirrors
G03860456Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
