Rear Seat Backrest - Third Row: Notes

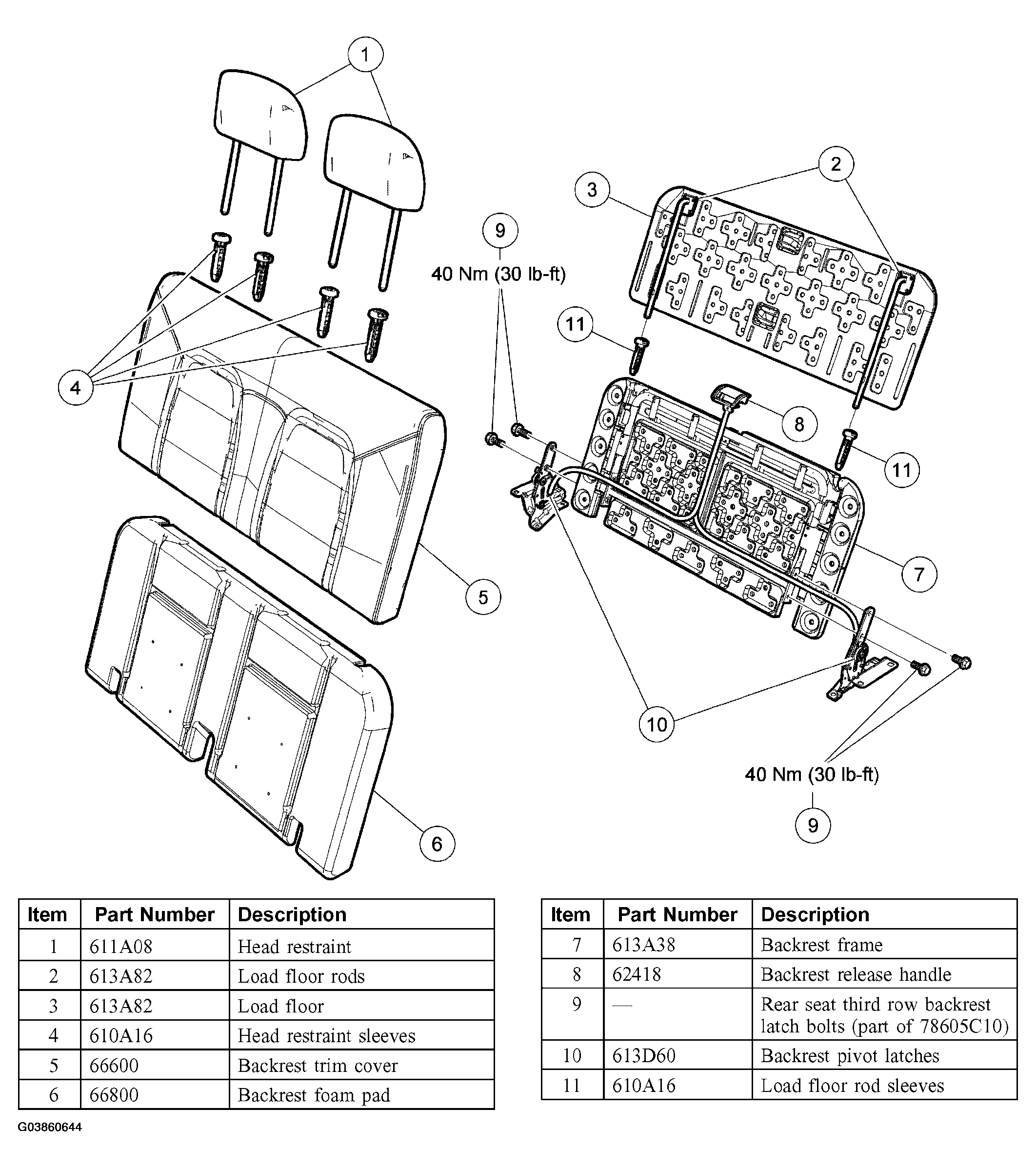

Fig 1: Identifying Rear Seat Backrest Components - Third Row
G03860644Courtesy of FORD MOTOR CO.
