Battery Cables: Notes

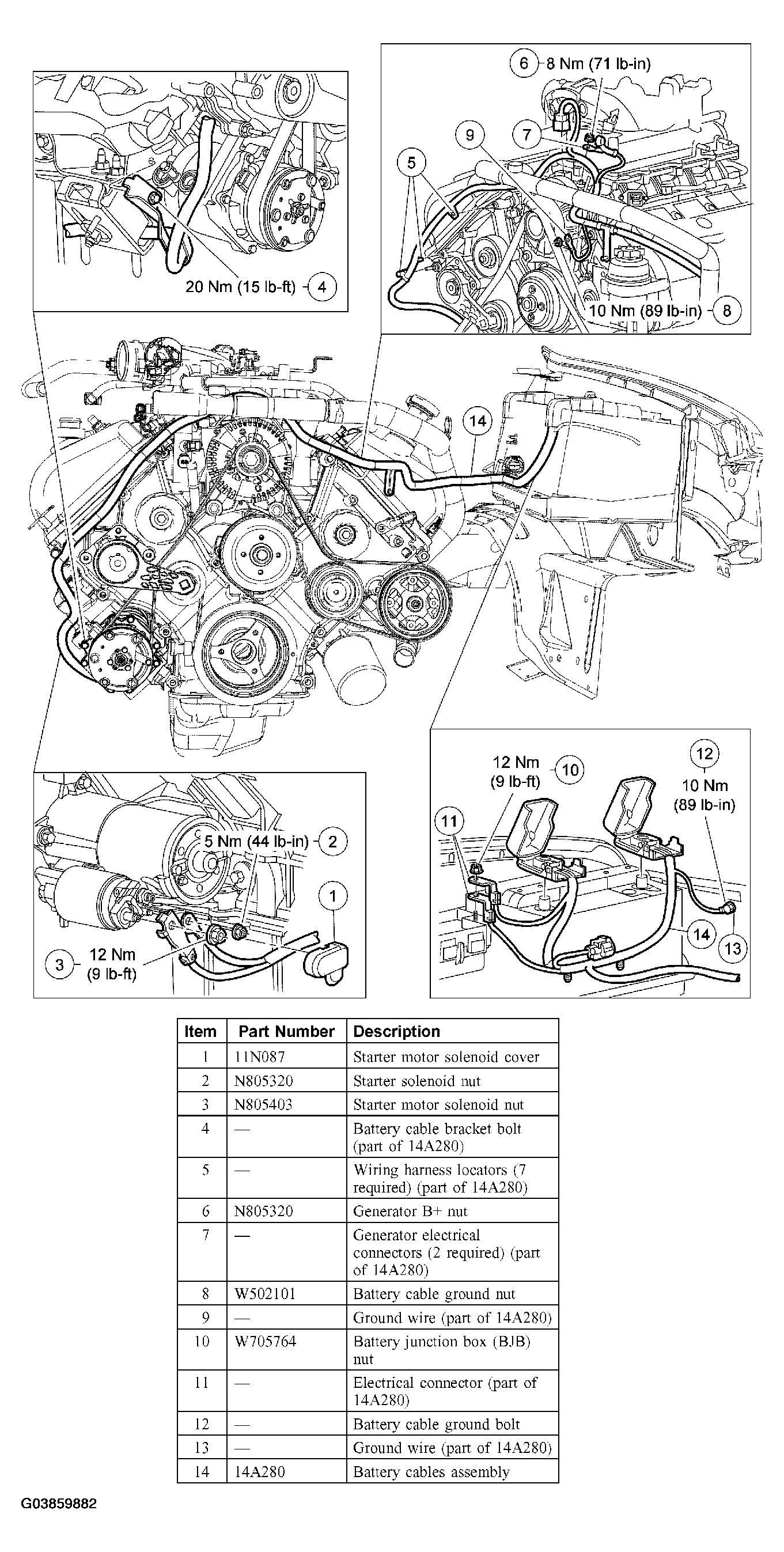

Fig 1: Identifying Battery Cables
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
