Exhaust Gas Recirculation (EGR) System Components - Exploded View

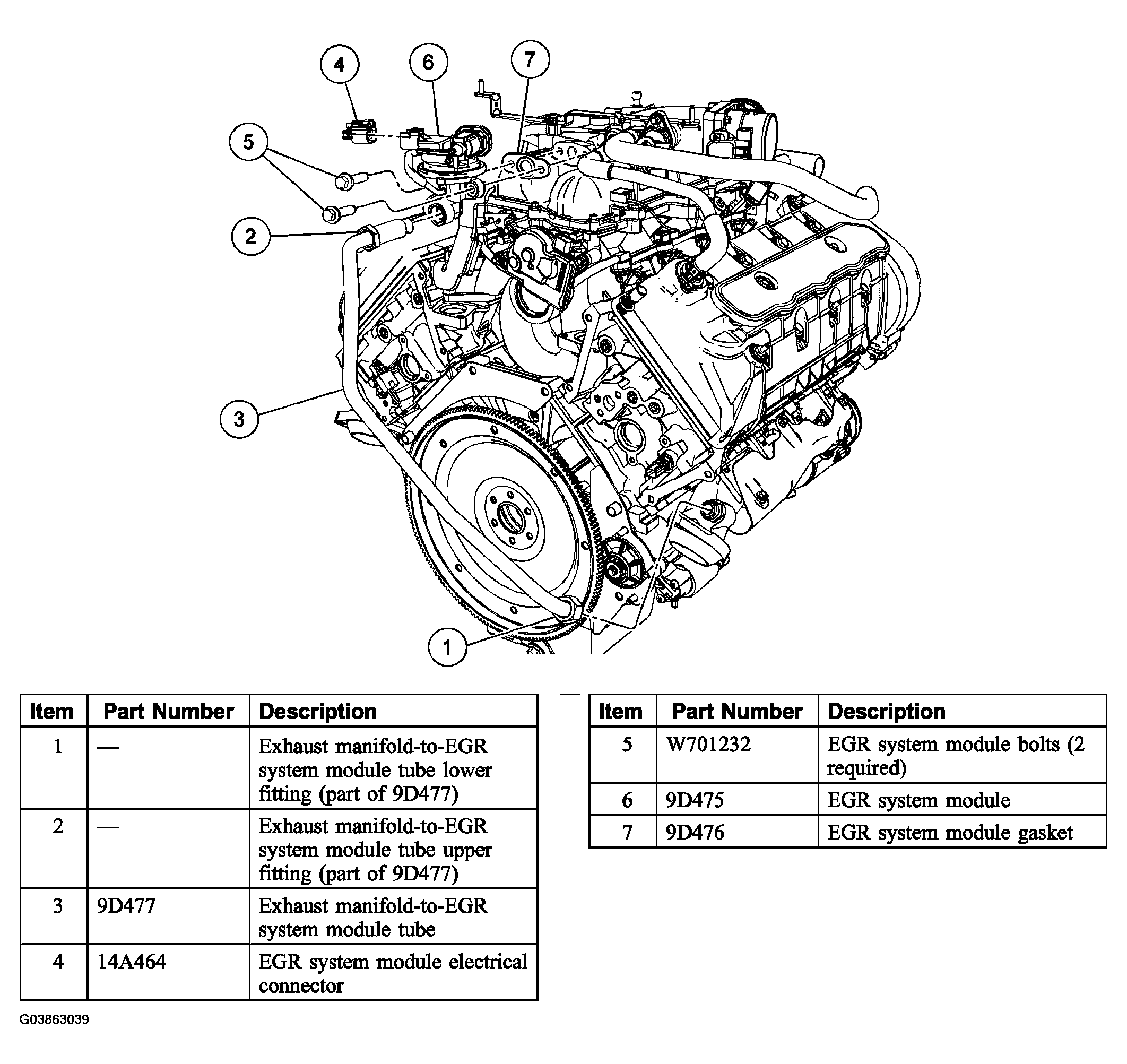

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System Components
G03863039Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
