Cooling System Components - Exploded View

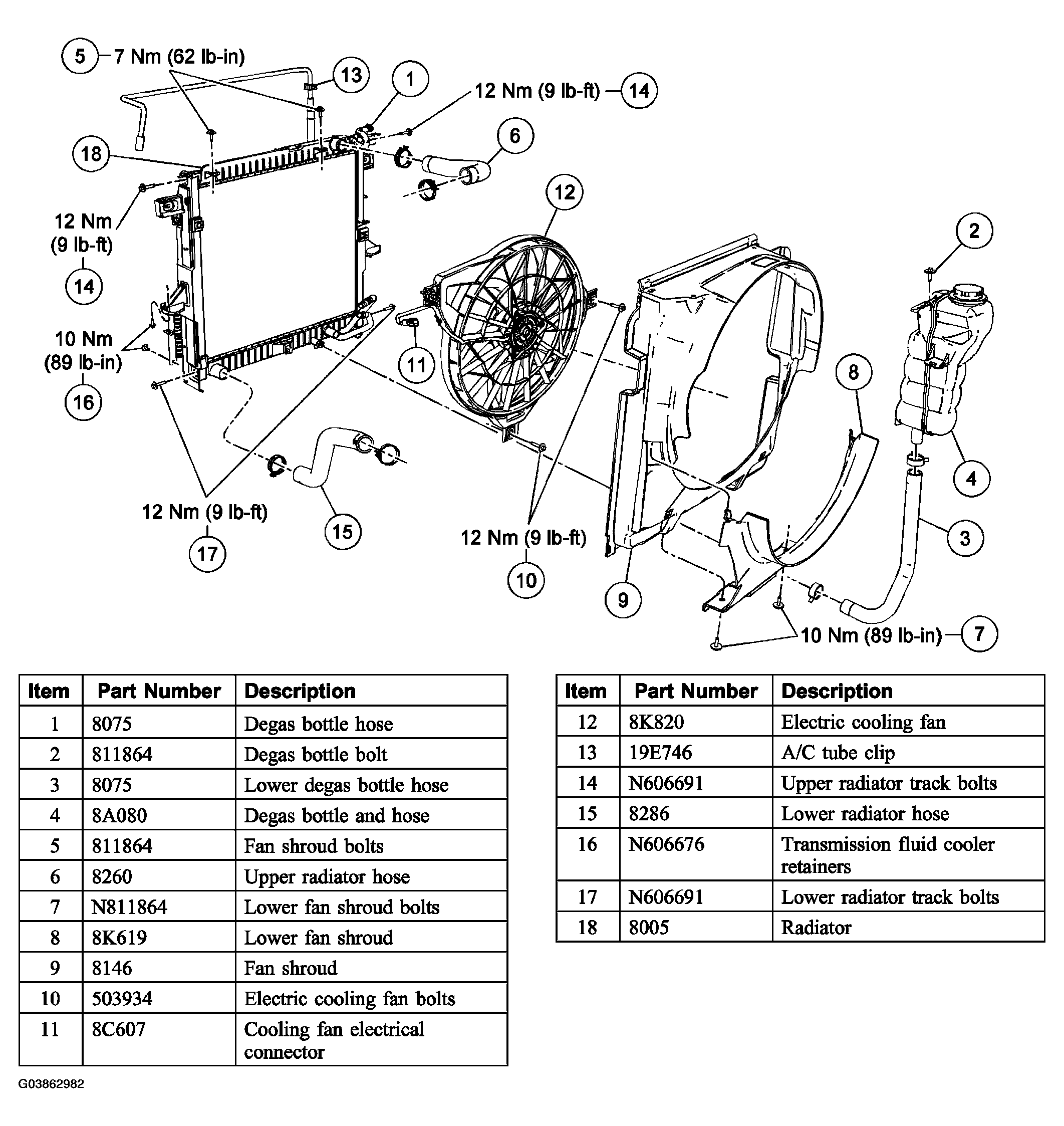

Fig 1: Exploded View Of Cooling System Components (Torque Specs)
G03862982Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
