Throttle Position (TP) Sensor

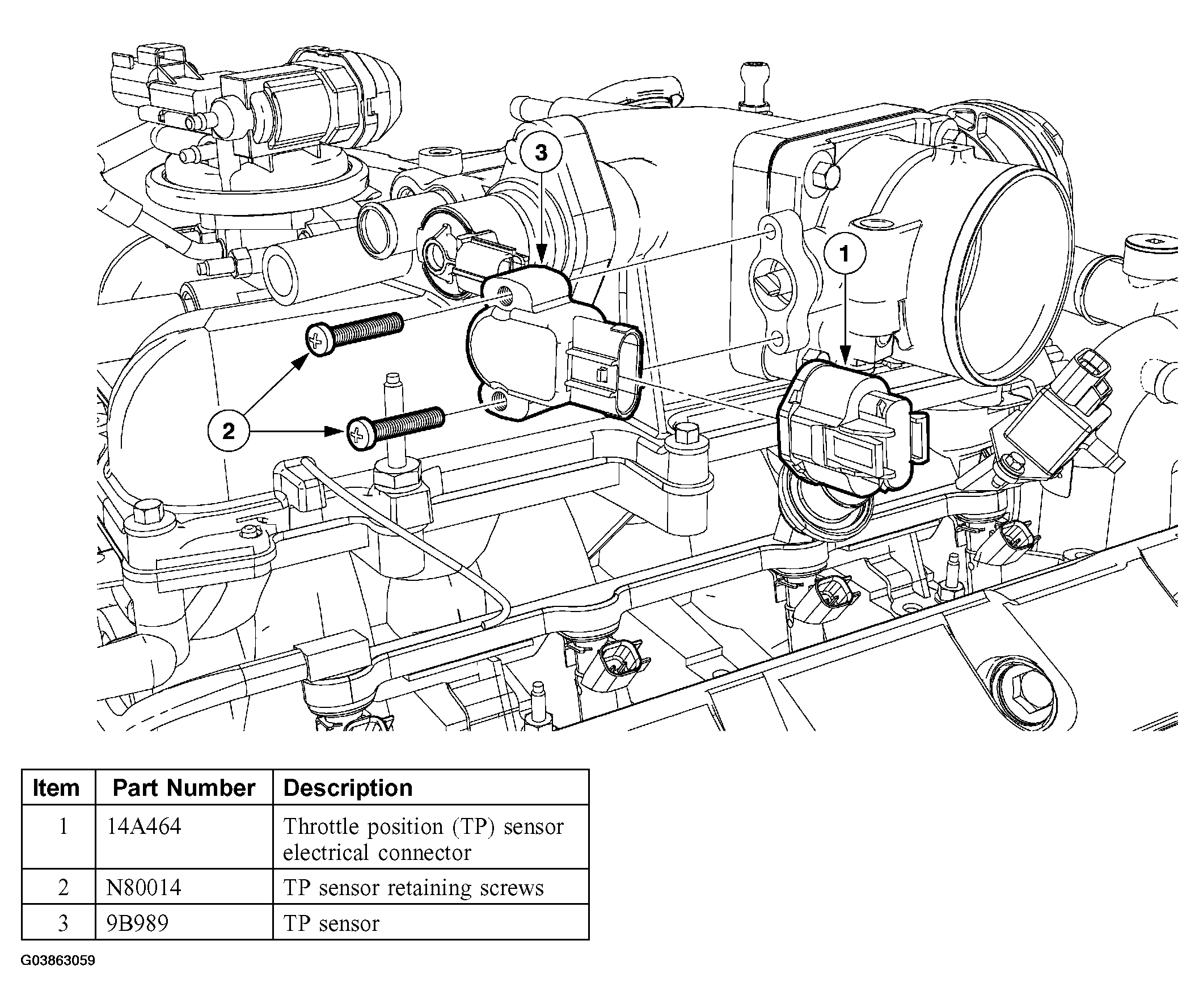

Fig 1: Removing Throttle Position (TP) Sensor
G03863059Courtesy of FORD MOTOR CO.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the throttle position (TP) sensor electrical connector.
  3. Remove the TP sensor retaining screws.
    • To install, tighten to 10 Nm (89 lb-in).
  4. Remove the TP sensor.
  5. To install, reverse the removal procedure.
