Driver Seat Module (DSM): Notes

SPECIAL TOOL(S)

G03860342
 Worldwide Diagnostic System (WDS)
Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool

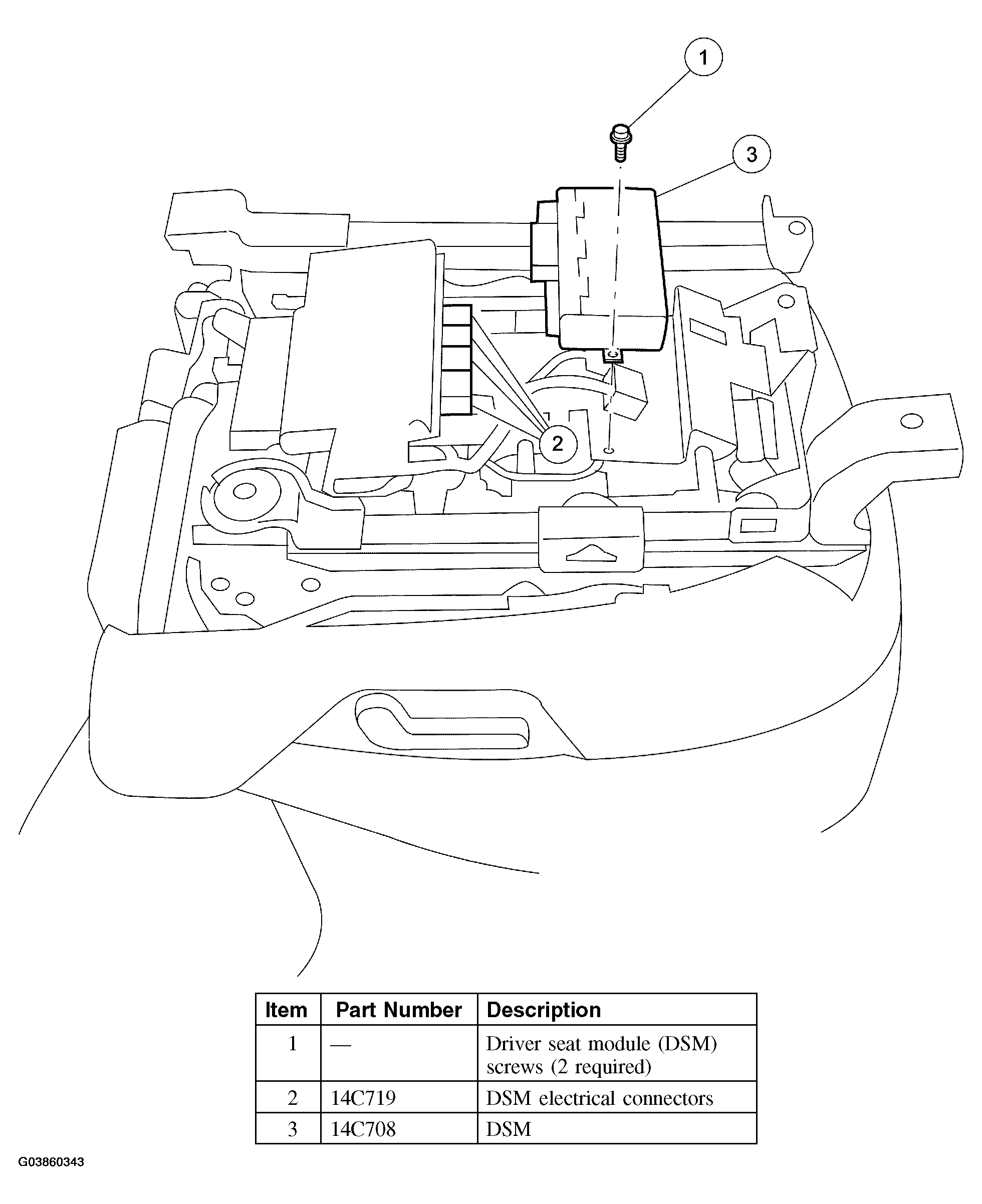

Fig 1: Identifying DSM Components
G03860343Courtesy of FORD MOTOR CO.
