Ignition Switch: Notes

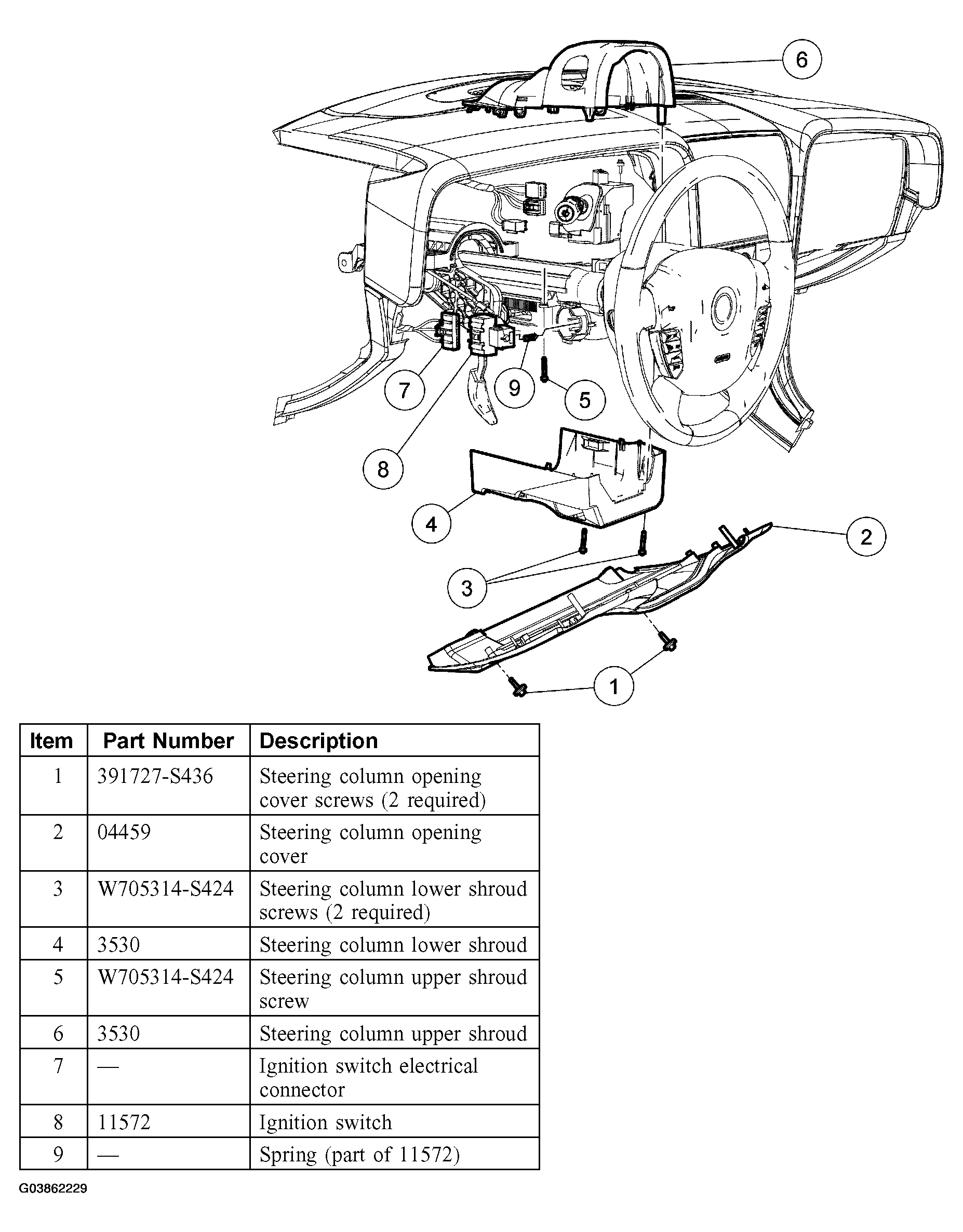

Fig 1: Identifying Ignition Switch Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
