Exhaust System - Exploded View

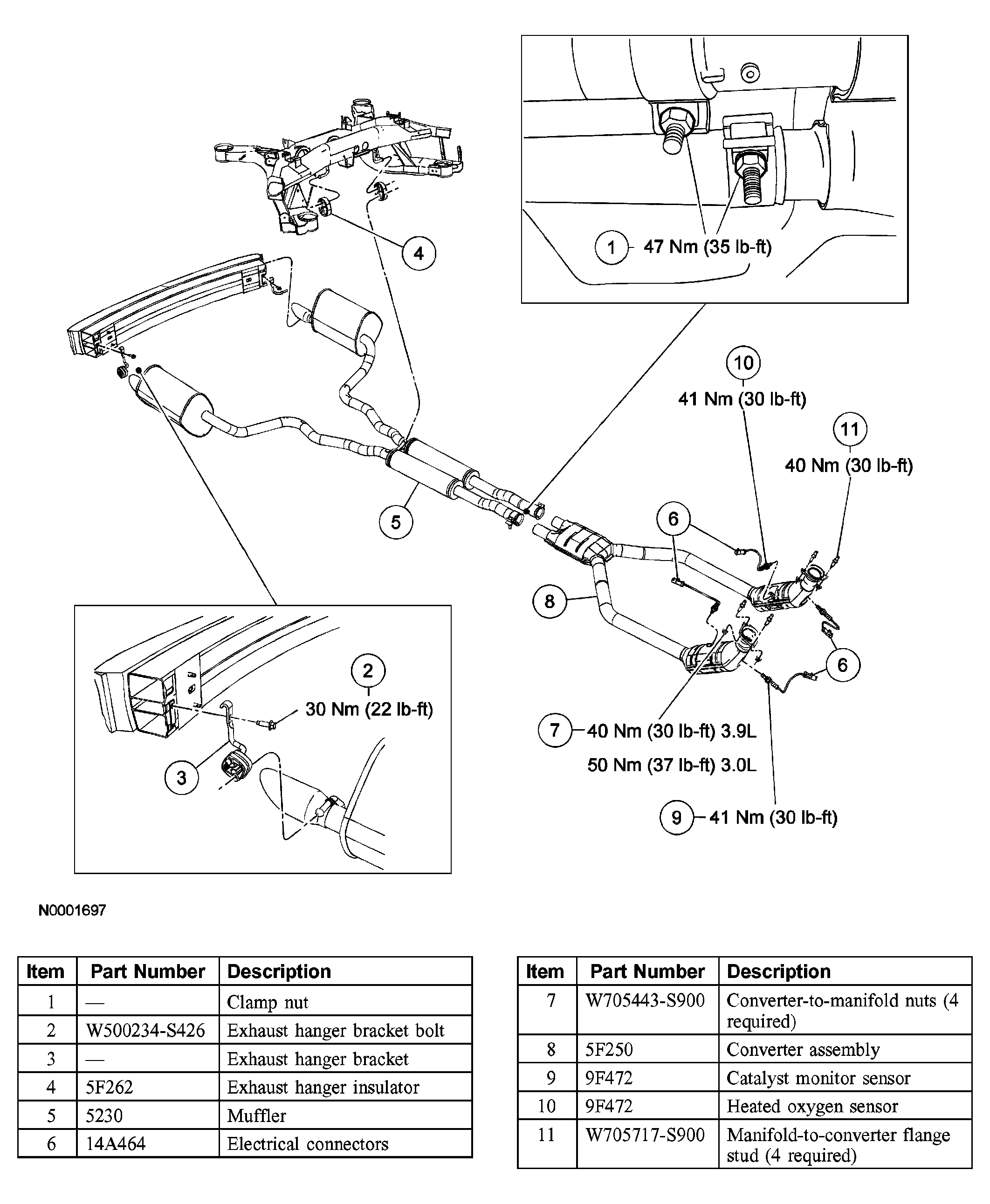

Fig 1: Exploded View Of Exhaust System
G03997857Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
