NAVIGATION SYSTEM MODULE







Removal and Installation

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.

Disconnect the battery.

2. Remove the upper luggage compartment trim panel.
3. Remove the package tray.
4. Disconnect the 3 navigation system module electrical connectors.

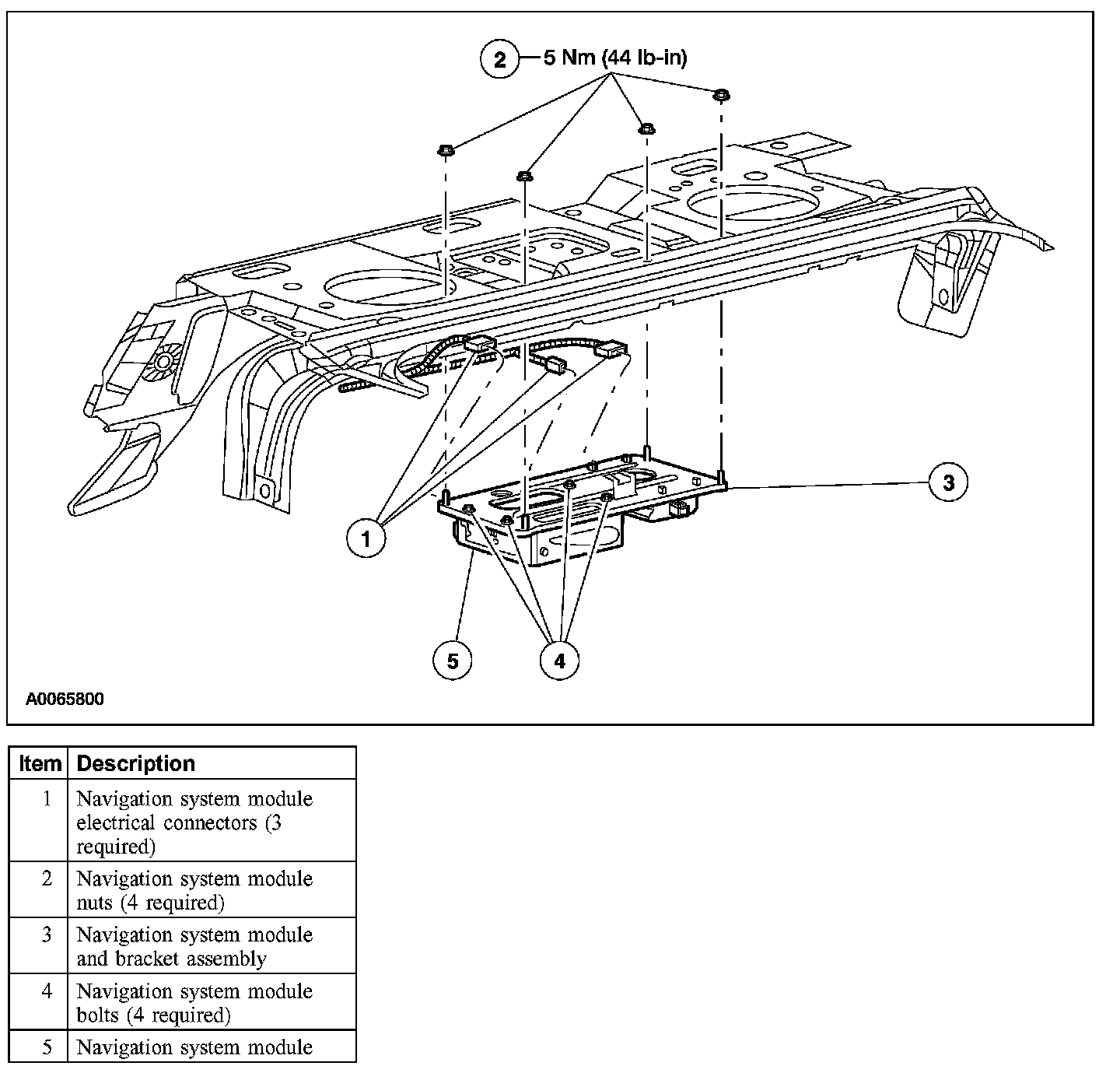

5. Remove the 4 nuts and the navigation system module and bracket assembly.
- To install, tighten to 5 Nm (44 lb-in).

6. Remove the 4 bolts and the navigation system module.
7. To install, reverse the removal procedure.
