Keyless Entry Key-Pad: Service and Repair

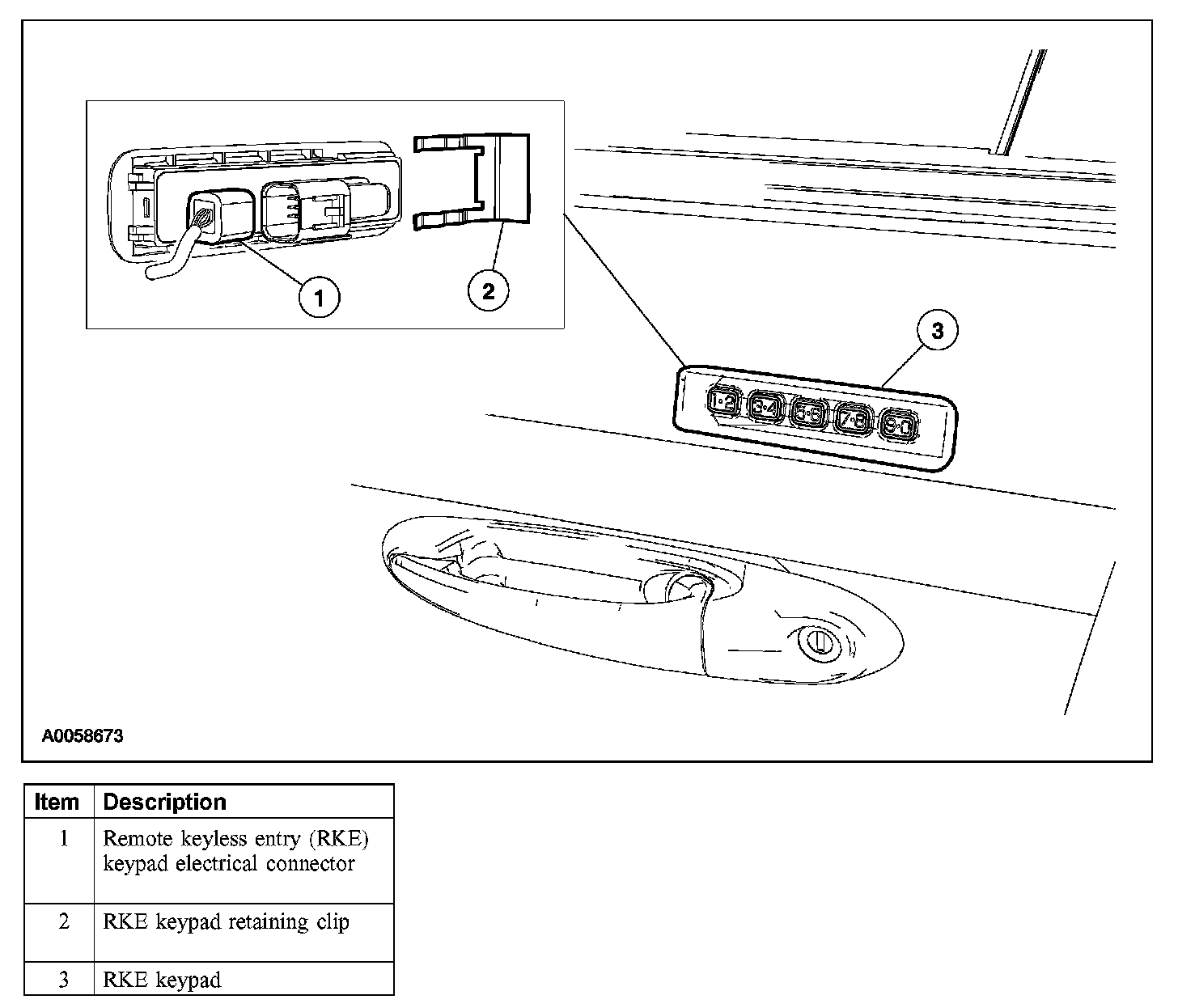

REMOTE KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the front door trim panel.
2. Disconnect the RKE keypad electrical connector.
3. Remove the RKE keypad retaining clip.
4. Remove the RKE keypad.
5. To install, reverse the removal procedure.
