Component Location Index

PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

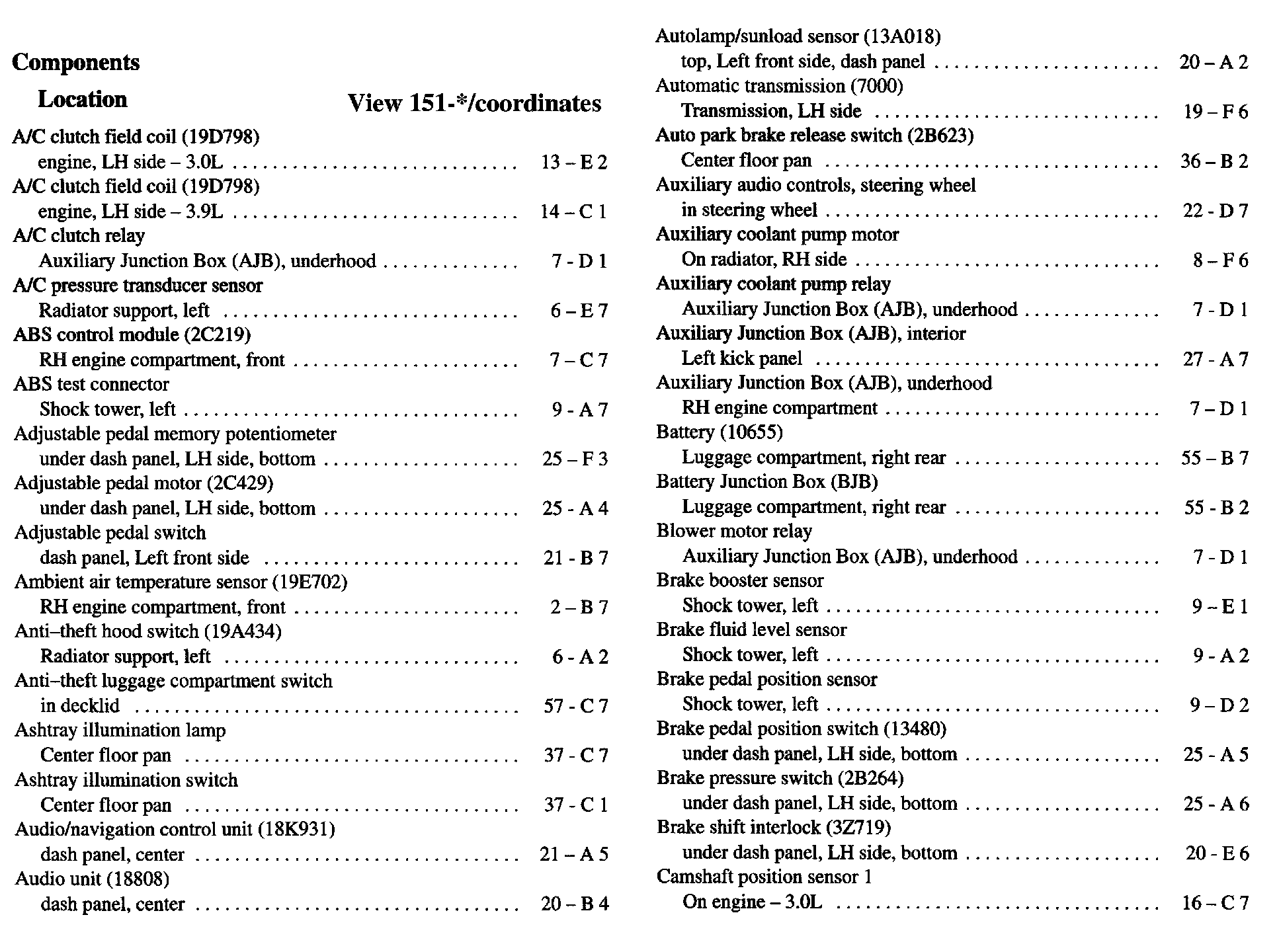

A/C-Ca:

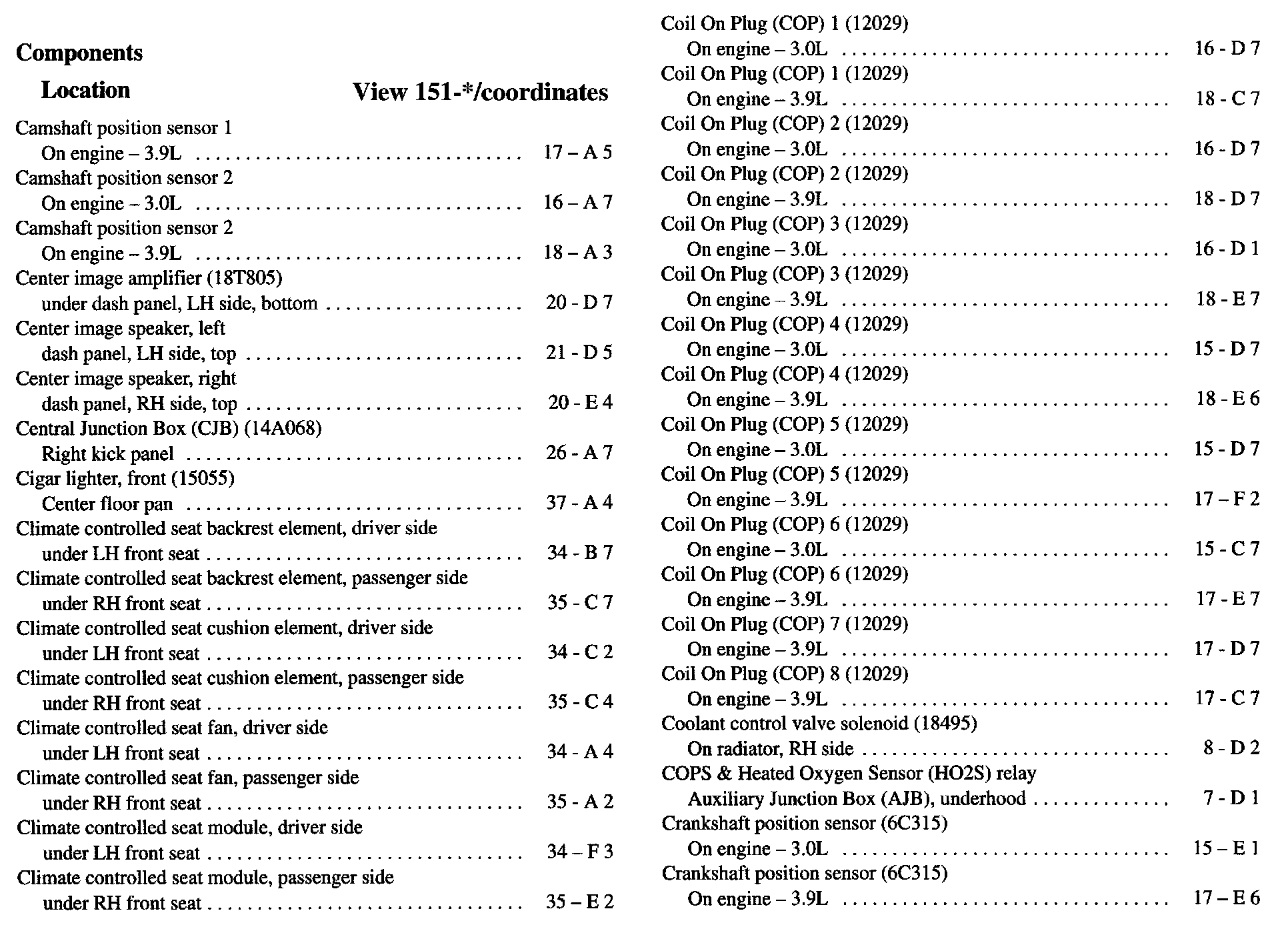

Ca-Cr:

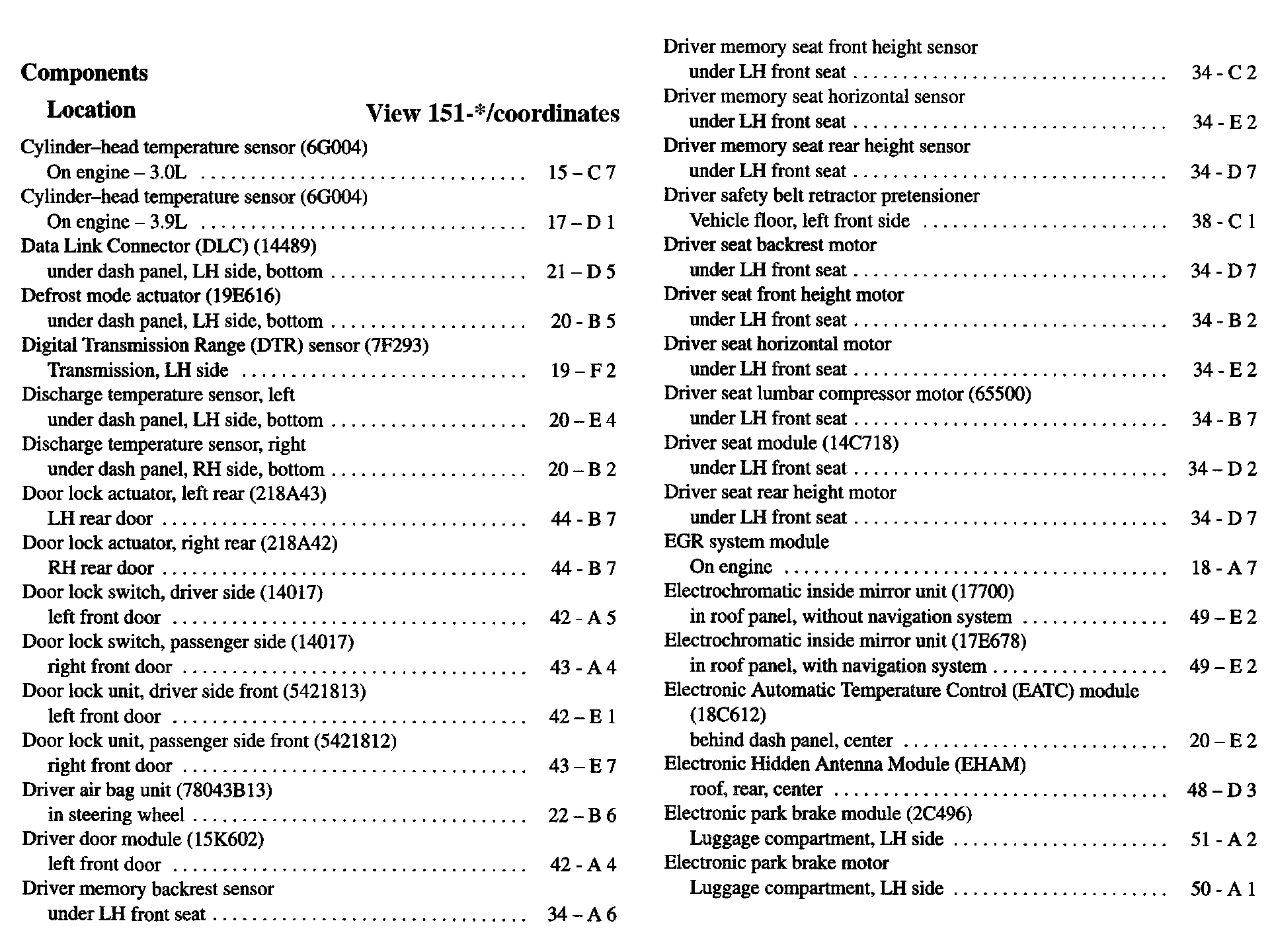

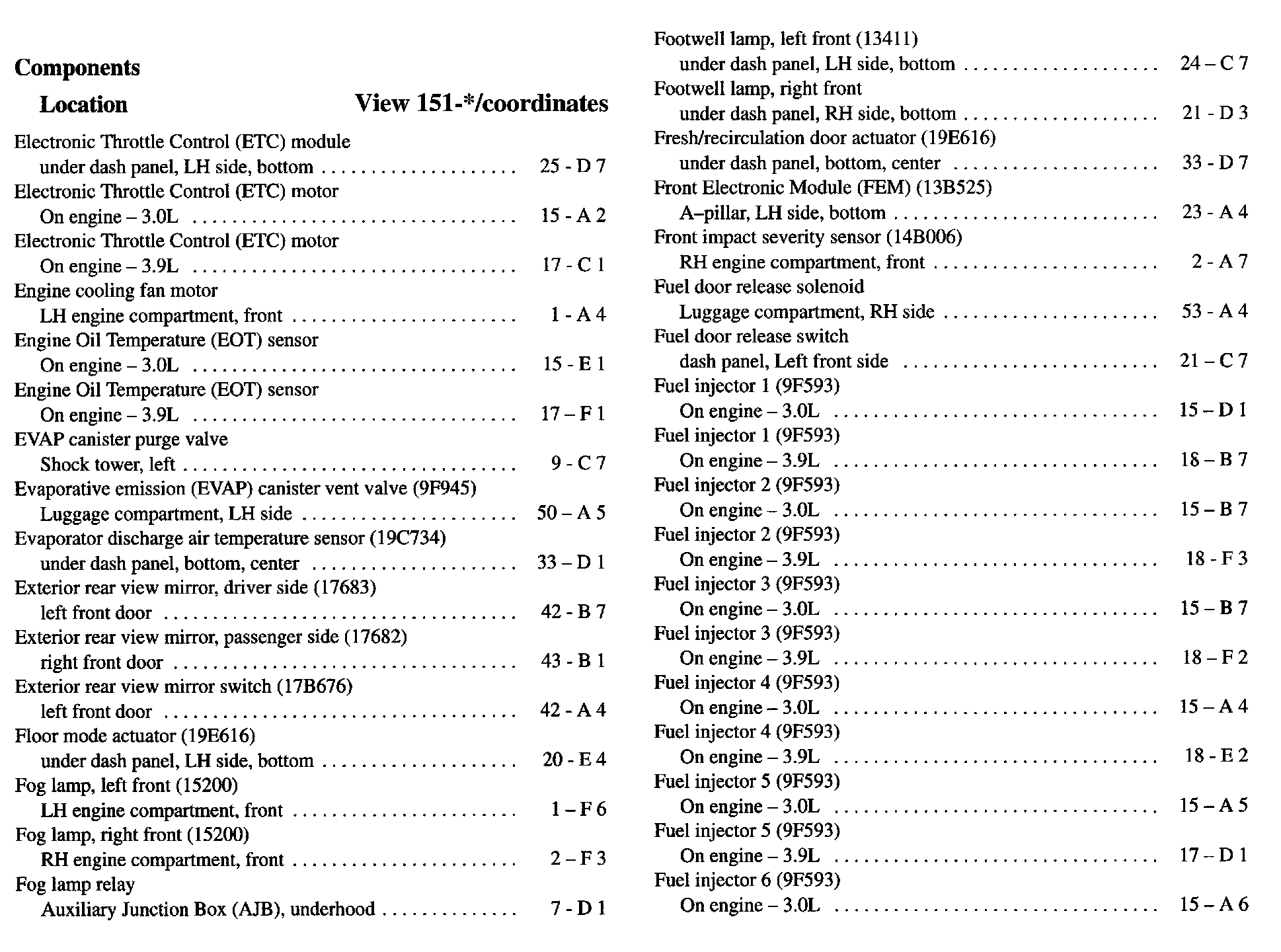

Cy-El:

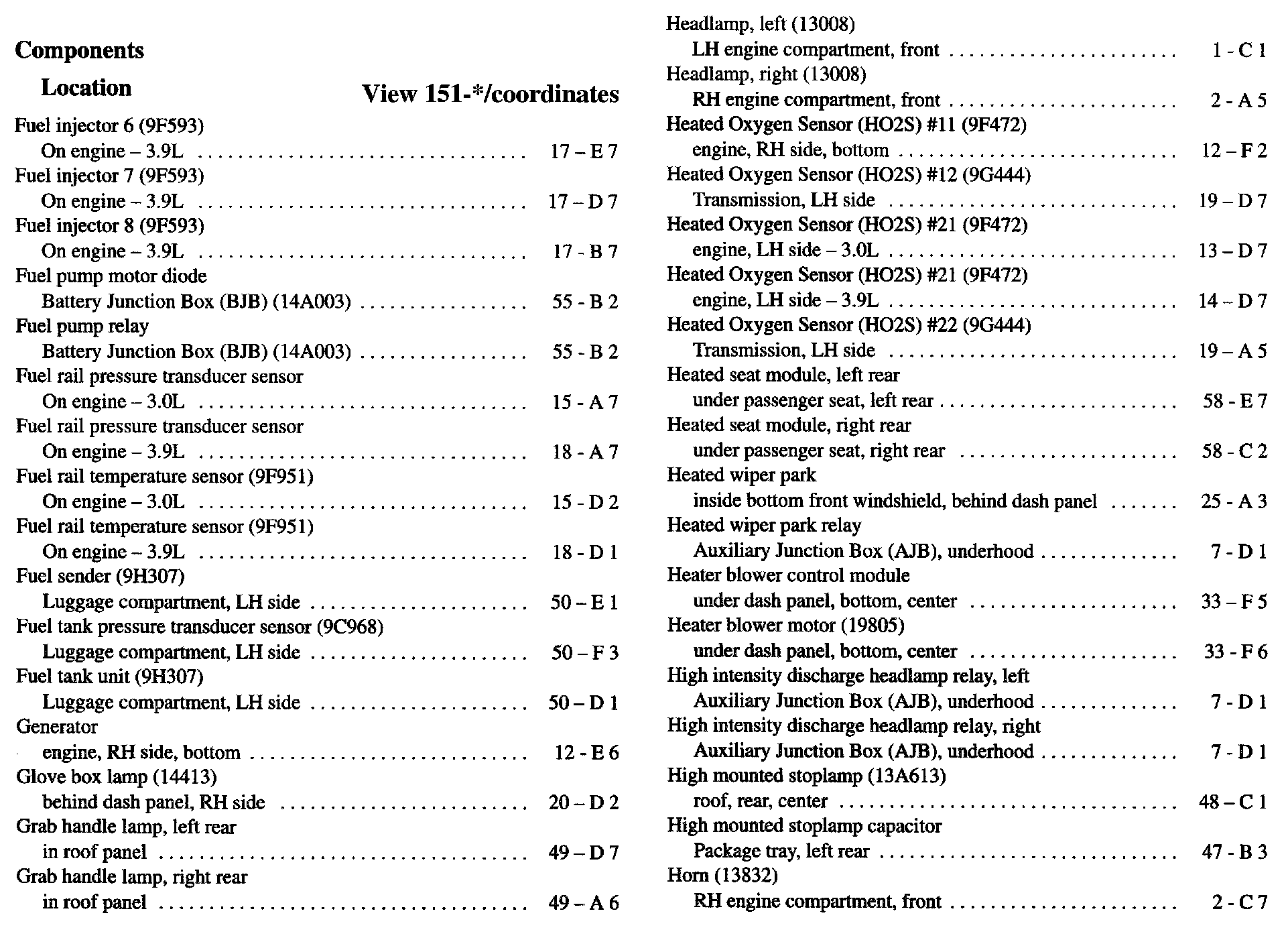

El-Fu:

Fu-Ho:

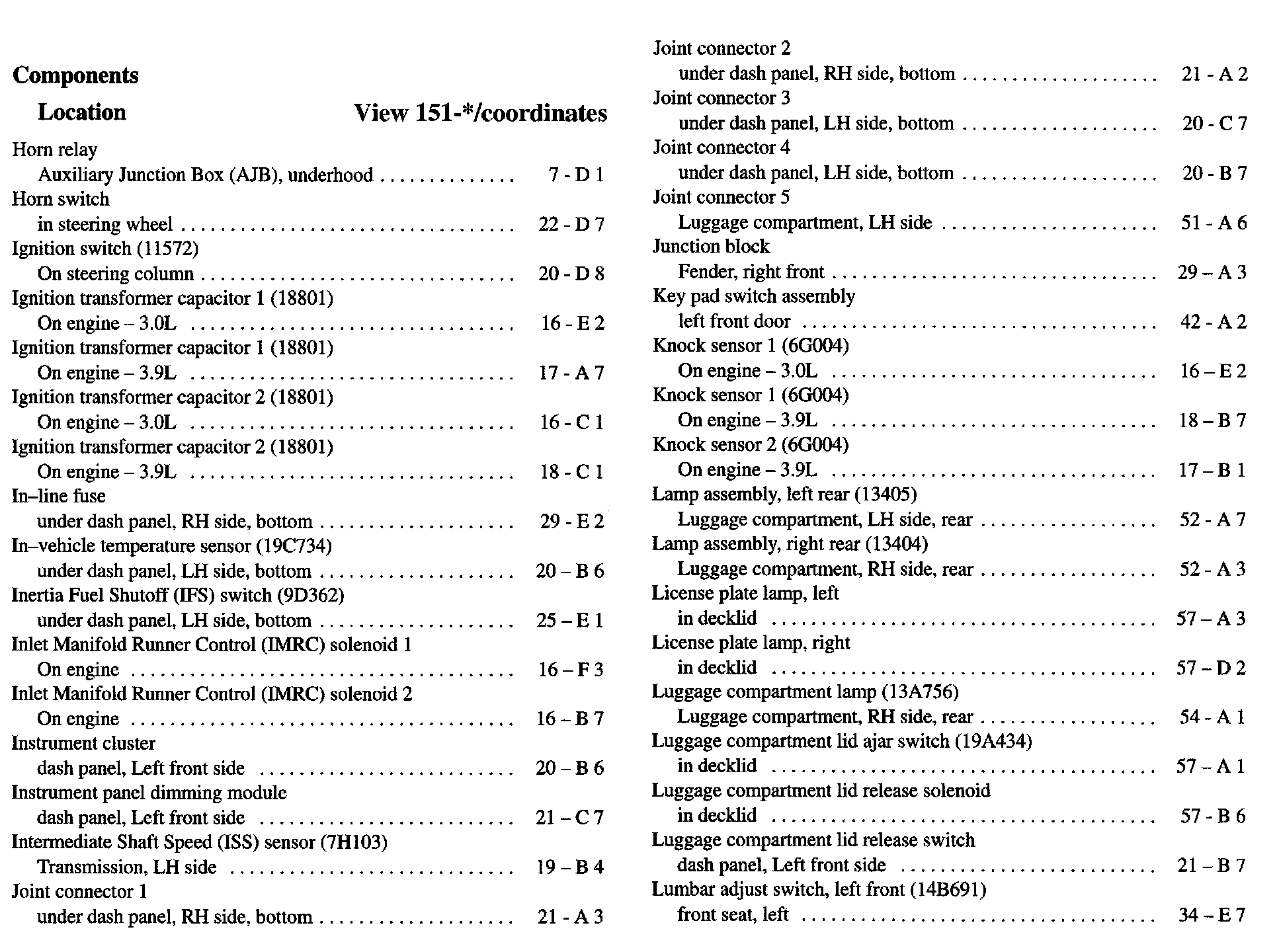

Ho-Lu:

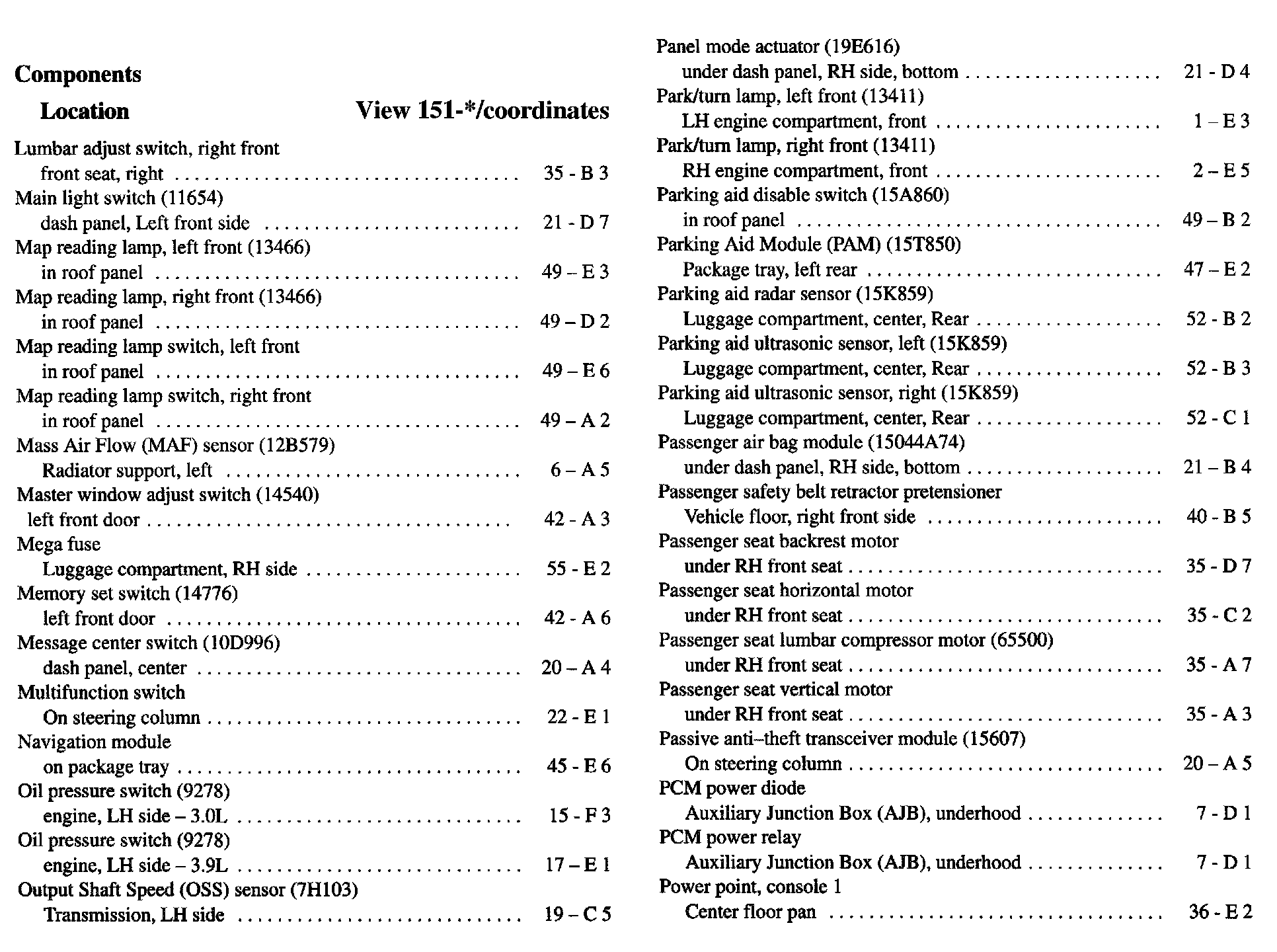

Lu-Po:

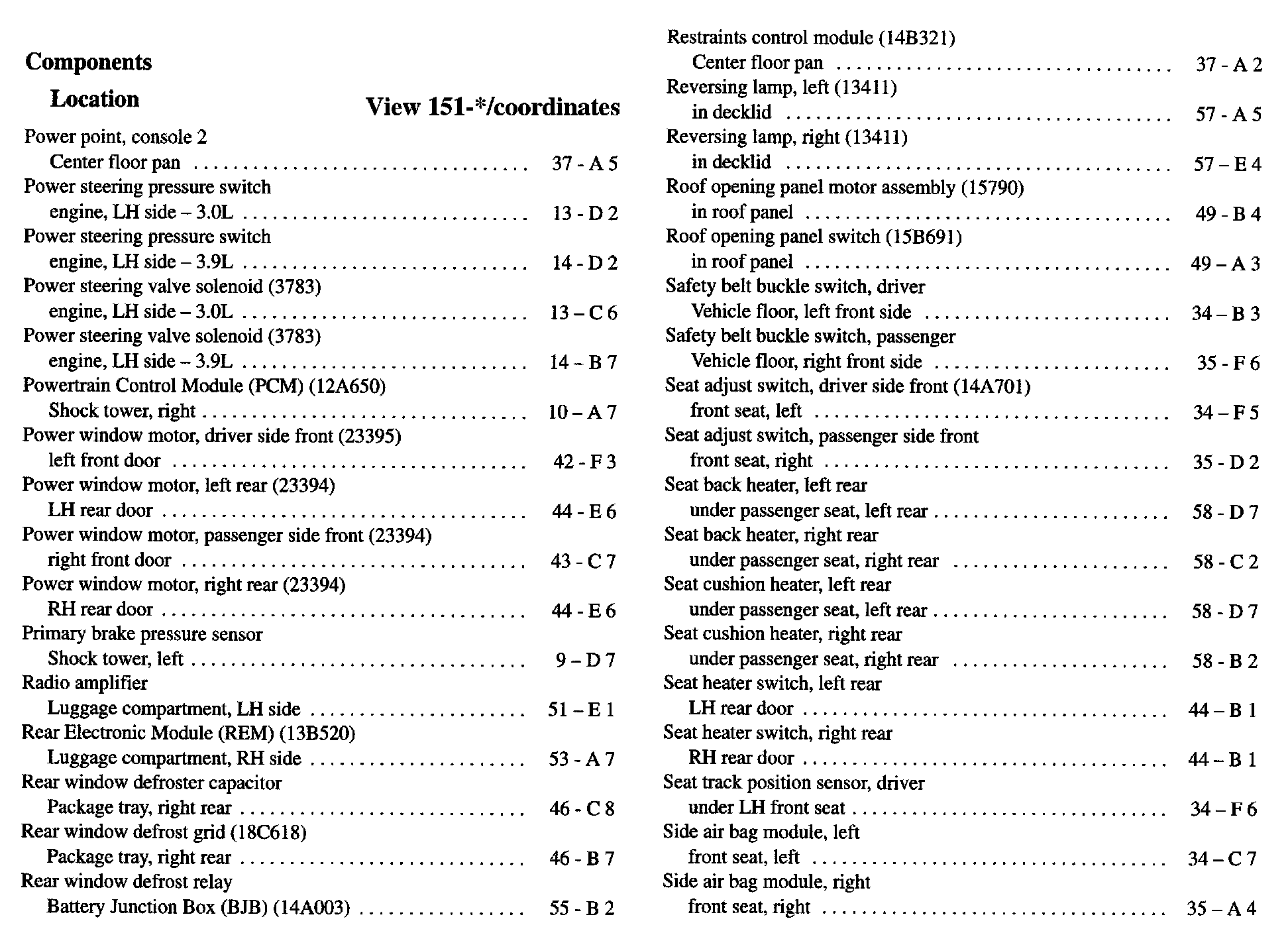

Po-Si:

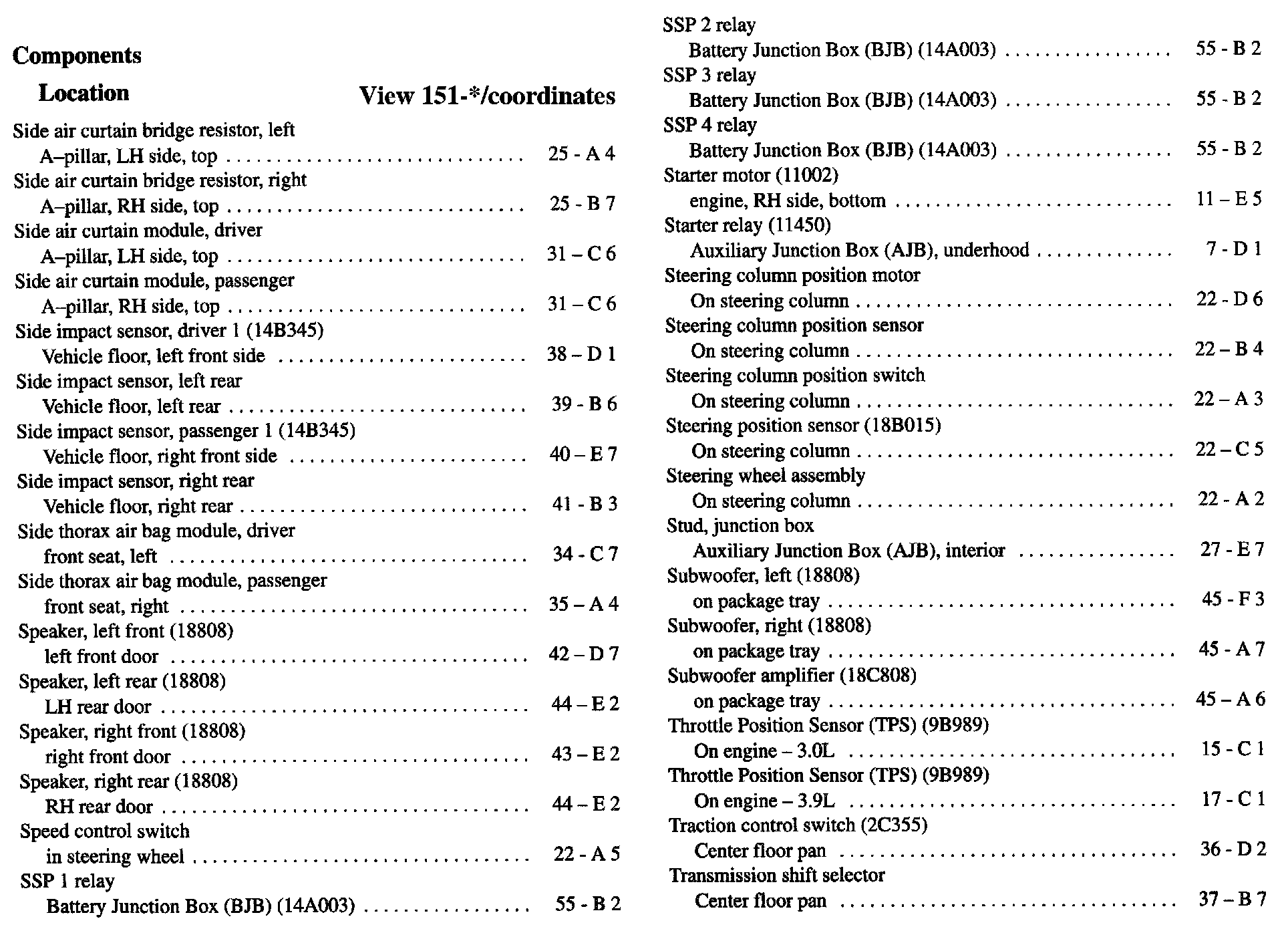

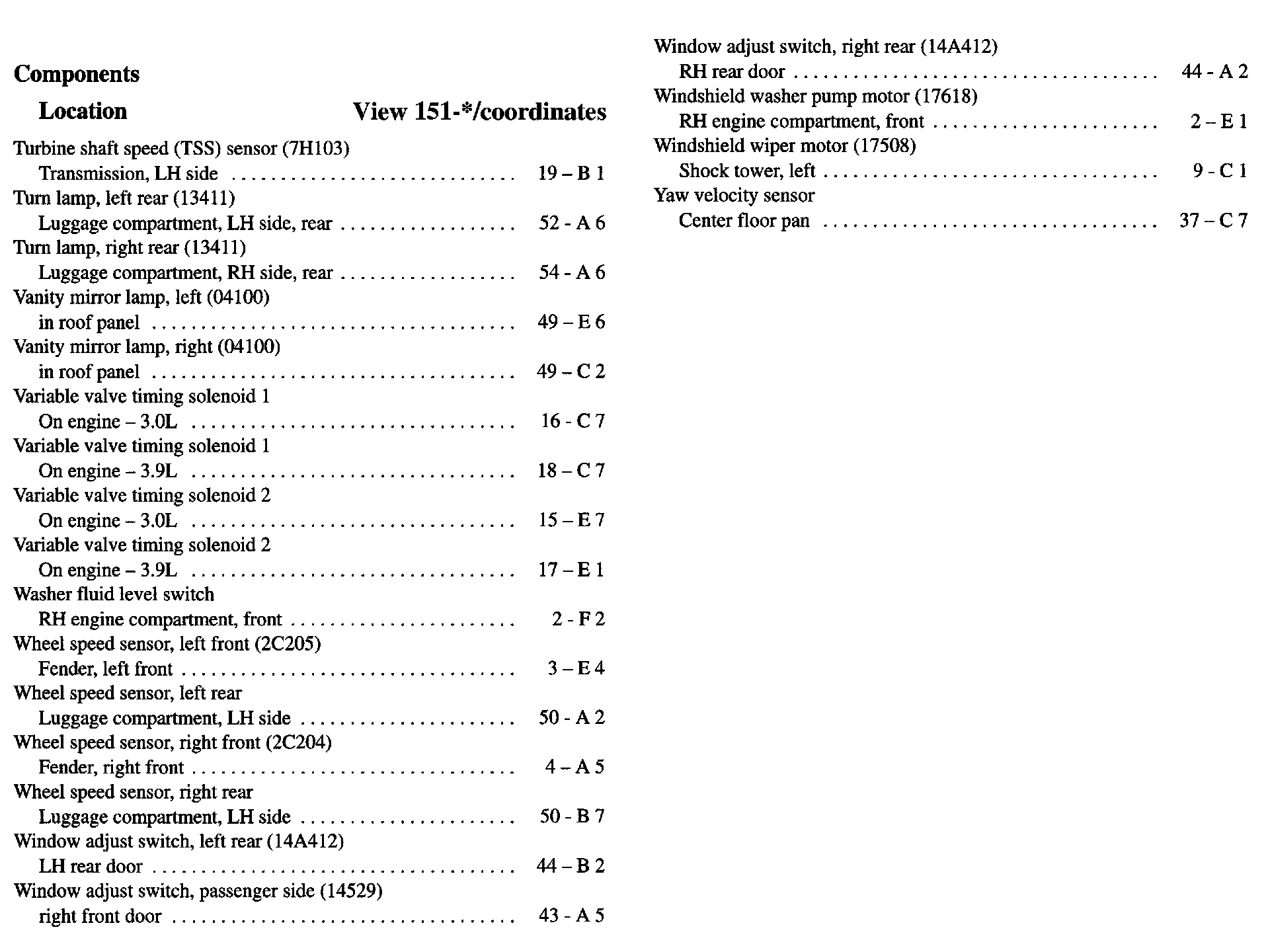

Si-Tr:

Tu-Ya:
