Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

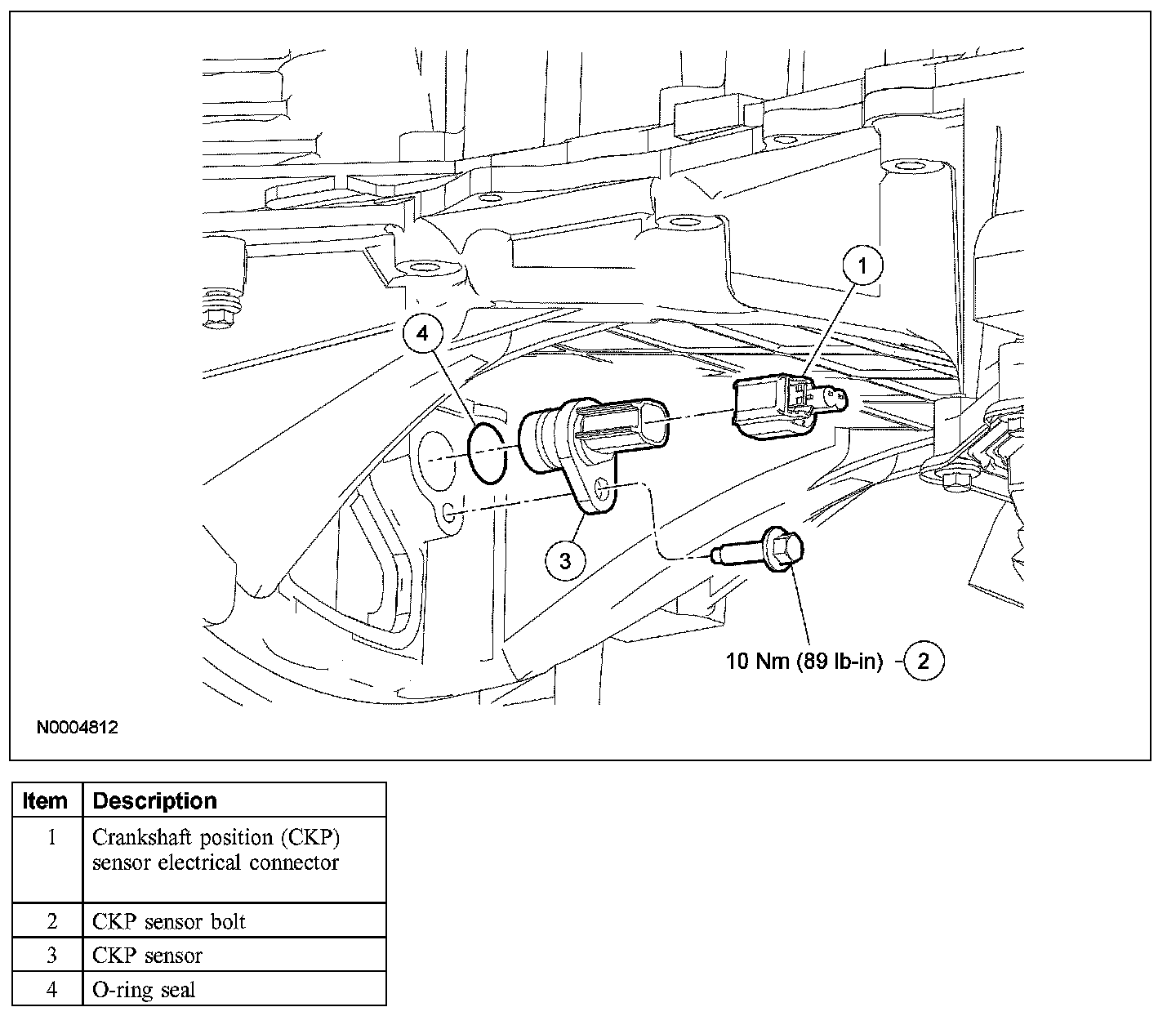

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Disconnect the crankshaft position (CKP) sensor electrical connector.
4. Remove the bolt and the CKP sensor.
- To install, tighten to 10 Nm (89 lb-in).
- Inspect and install a new O-ring seal as necessary.

5. NOTE: Lubricate the O-ring seal with clean engine oil.

To install, reverse the removal procedure.
