Anti-Lock Brake System (ABS) Module

Anti Lock Brake System (ABS) Module

Removal and Installation





1. Position the Battery Junction Box (BJB) aside.
1 Release the clips.
2 Position the BIB aside.

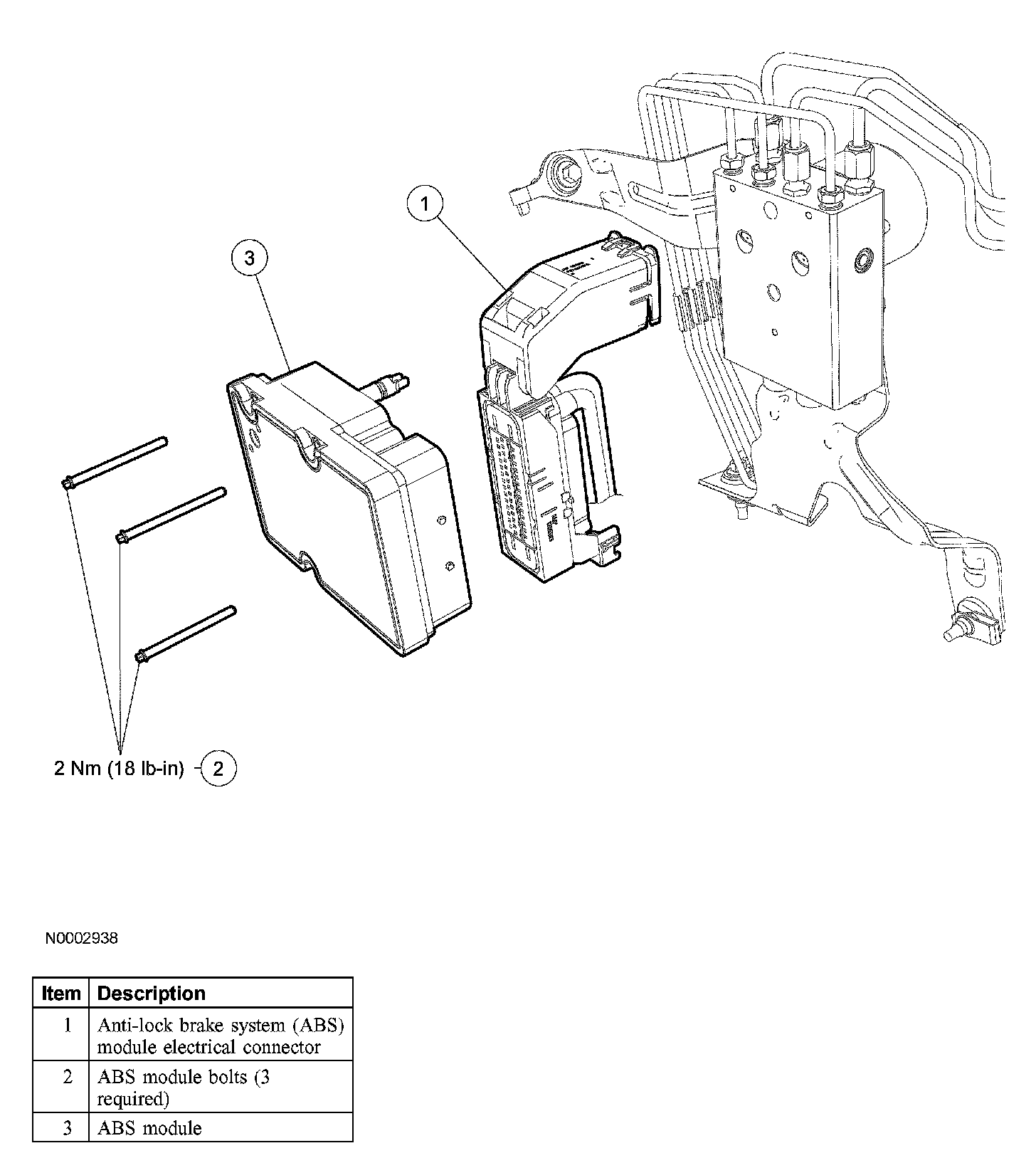

2. Disconnect the ABS electrical connector.
3. Remove the 3 ABS module screws and the ABS module.
^ To install, tighten to 2 Nm (18 inch lbs.).

4. NOTE: Use the diagnostic tool to configure the ABS module.

To install, reverse the removal procedure.
