Parking Brake Module

PARKING BRAKE MODULE







Removal and Installation

NOTE: If installing a new EPB module, the module must be configured. Follow the diagnostic tool instructions for configuring the EPB module.

1. Disconnect the battery.
2. Position the LH luggage compartment trim panel aside.

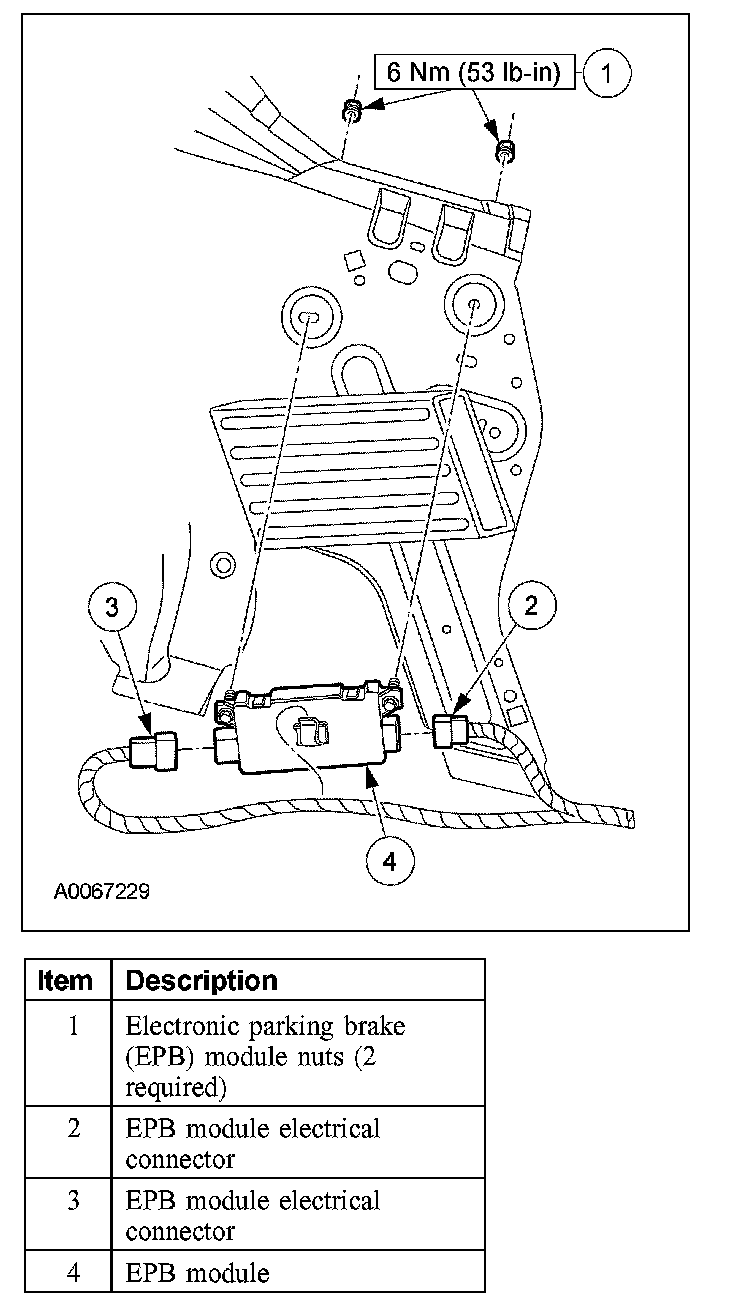

3. Disconnect the 2 EPB module electrical connectors.
4. Remove the 2 nuts and the EPB module.
- To install, tighten to 6 Nm (53 lb-in).

5. To install, reverse the removal procedure.
- If installing a new EPB module, configure the module.
