Power Window Switch: Service and Repair

WINDOW CONTROL SWITCH







Removal and Installation

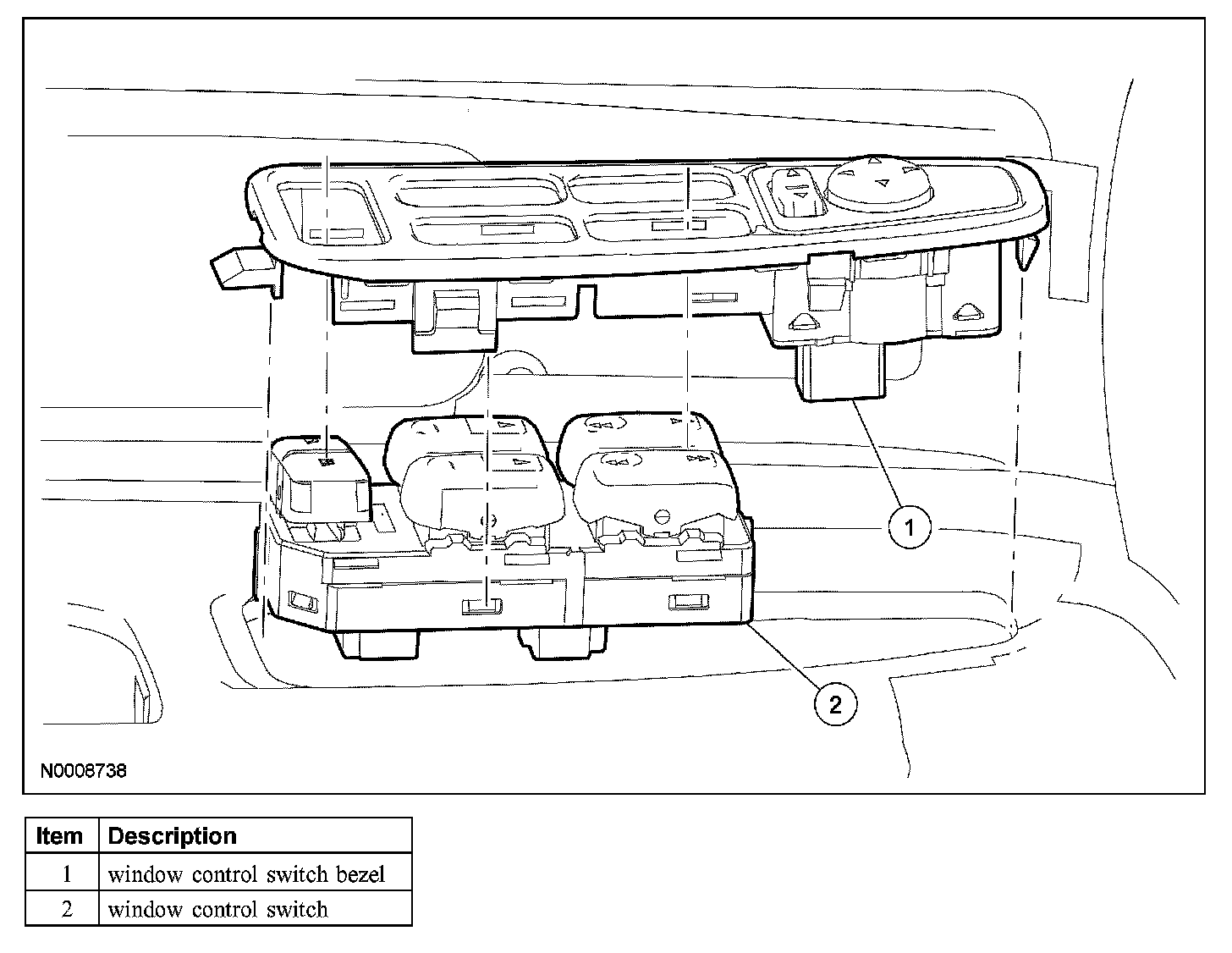

NOTE: The LH front window control switch is shown, all others are similar.

1. Disconnect the battery.
2. Carefully lift out the window control switch and bezel from the front of the door panel to avoid breaking the tab.
3. Disconnect the window control switch electrical connector.
4. Remove the window control switch from the window control switch bezel.
5. To install, reverse the removal procedure.
