Climate Controlled Seat Module: Removal

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: When installing a new dual climate control seat module (CCSM), it is necessary to carry out programmable module installation (PMI). For additional information, refer to MODULE CONFIGURATION .
  1. Before removing the dual CCSM, carry out the appropriate steps in the PMI procedure. For additional information, refer to MODULE CONFIGURATION .
  2. Position the front passenger seat all the way back and up.
  3. Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  4. Pull out and remove the lower front seat track shield.
    Fig 1: Removing Lower Front Seat Track Shield
    G03932104Courtesy of FORD MOTOR CO.
    5. NOTE: The inset shows the dual CCSM retaining bracket.
  5. Remove the dual CCSM.
    1. Pull the back of the dual CCSM away from the seat and slide it off the mounting bracket.
    2. Disconnect the electrical connectors.
    3. Remove the dual CCSM.

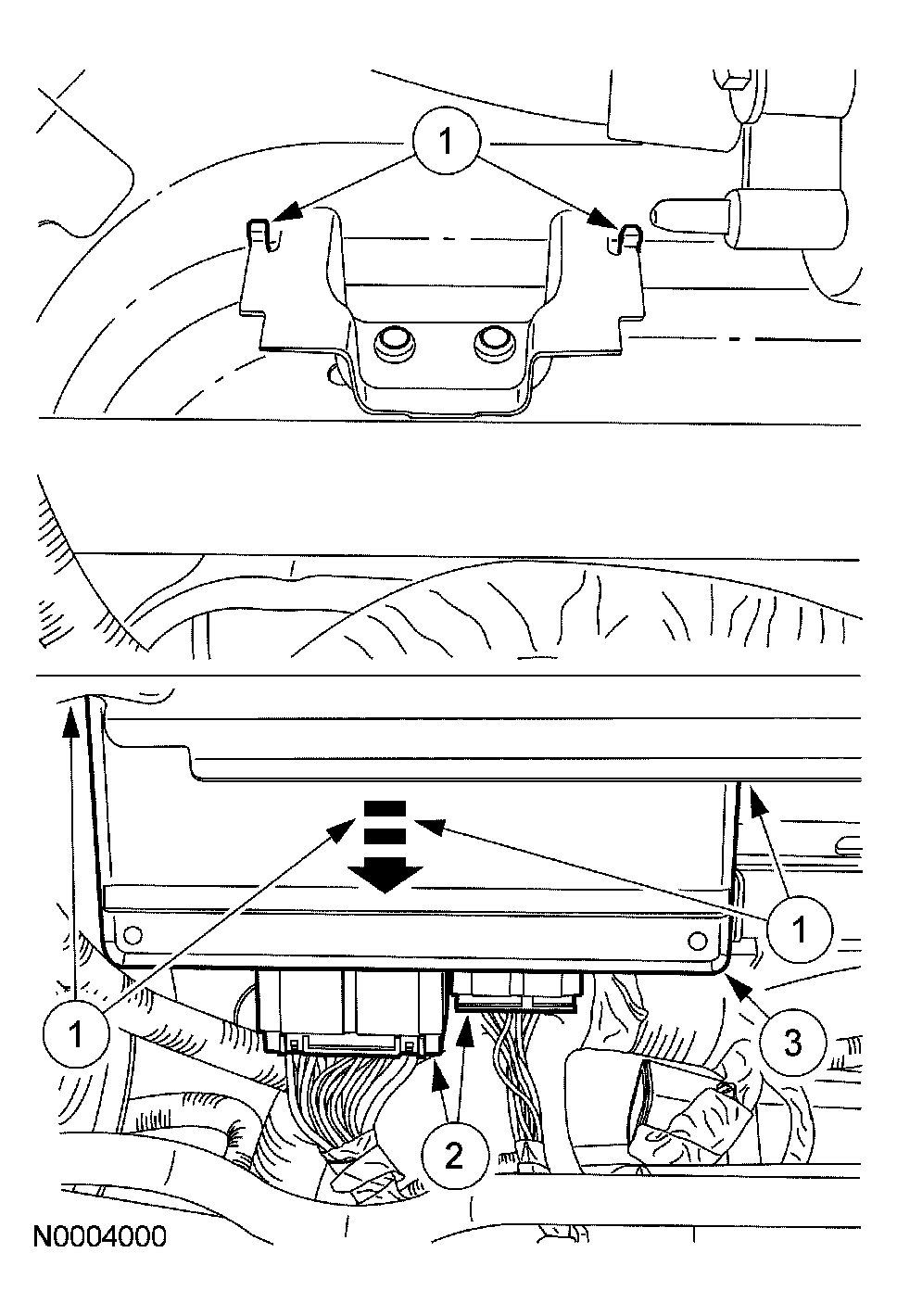

      Fig 2: Removing Dual CCSM
      G03932105Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
  7. Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in the General Procedures portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  8. Install the CCSM software data. Carry out the appropriate steps in the PMI procedure. For additional information, refer to MODULE CONFIGURATION .
