Direct Clutch Assembly: Assembly

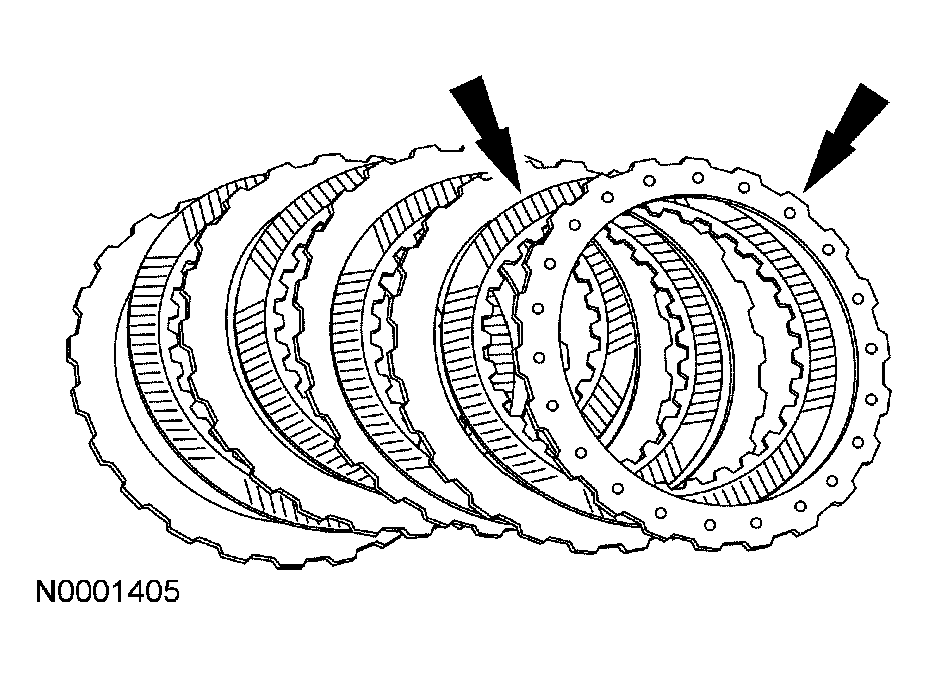

  1. Install the direct clutch plates, starting with the wave spring then a steel plate and alternating between steel and friction plates, and ending with the pressure plate on the top.
    Fig 1: Installing Direct Clutch Plates
    G03929355Courtesy of FORD MOTOR CO.

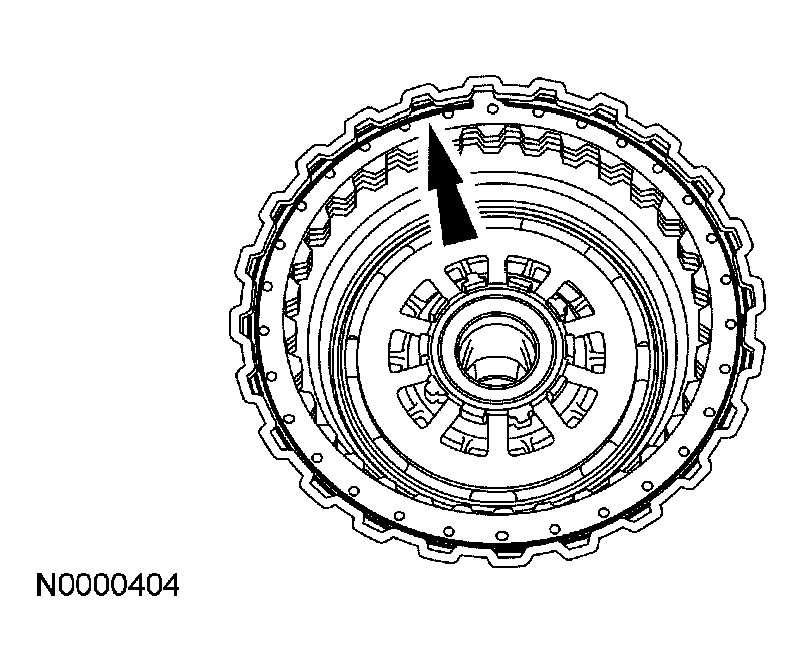

  2. Install the direct clutch snap ring.
    Fig 2: Installing Direct Clutch Snap Ring
    G03929353Courtesy of FORD MOTOR CO.

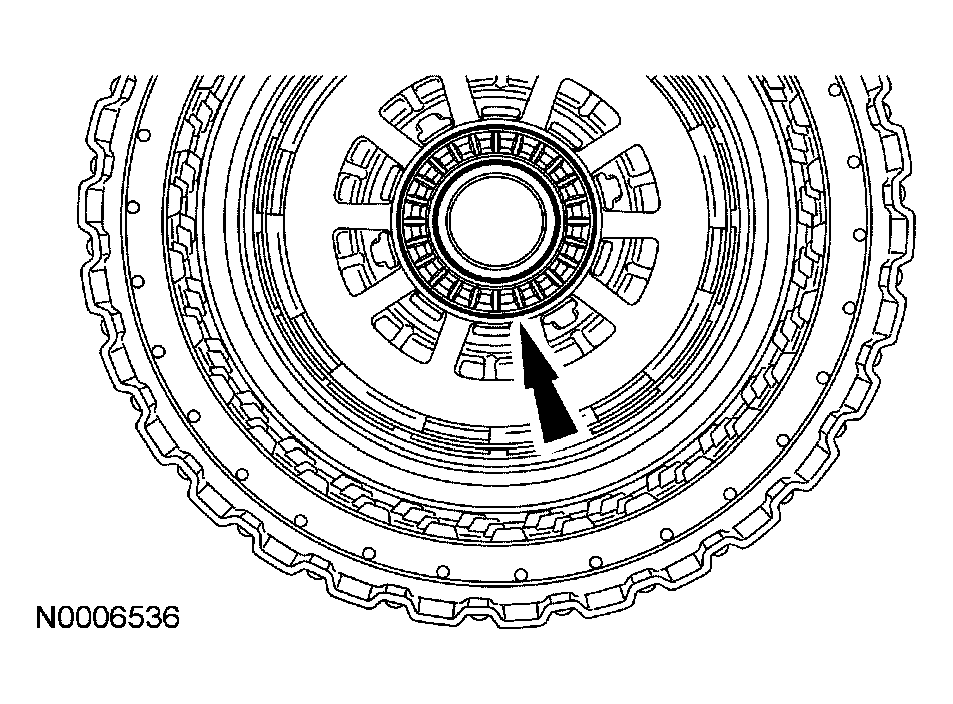

  3. Install the roller bearing.
    Fig 3: Installing Roller Bearing
    G03929352Courtesy of FORD MOTOR CO.
