Forward Clutch Assembly: Assembly

  1. Install the forward clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending up with the pressure plate.

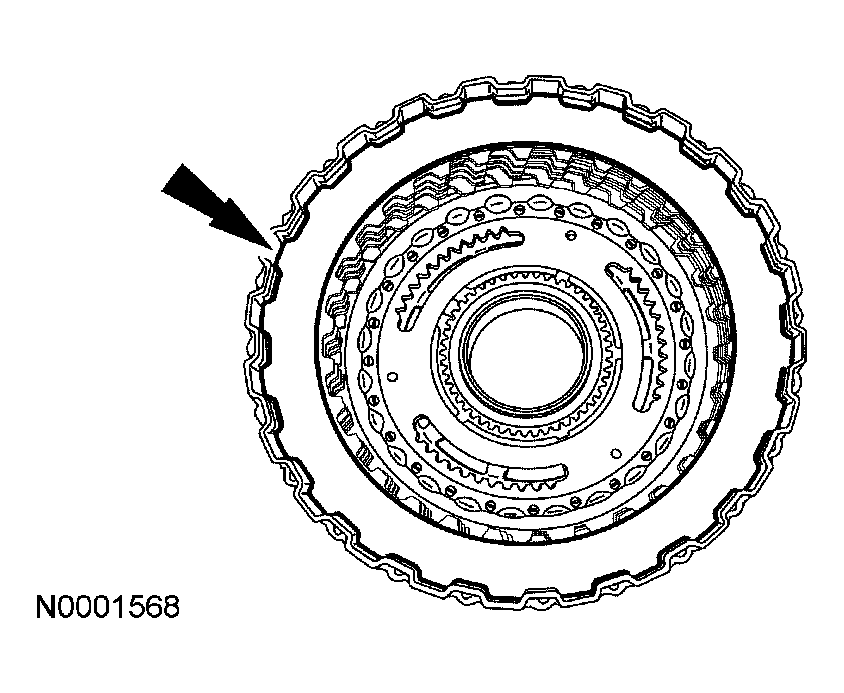

    Fig 1: Installing Forward Clutch Plates
    G03929329Courtesy of FORD MOTOR CO.
  2. Install the forward clutch plate snap ring.

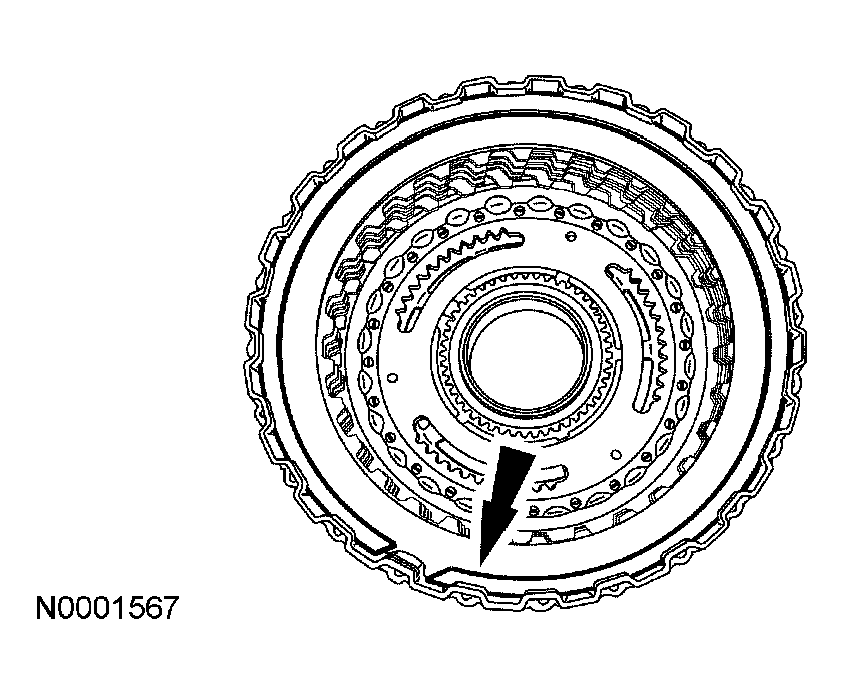

    Fig 2: Installing Forward Clutch Plate Snap Ring
    G03929328Courtesy of FORD MOTOR CO.
  3. Install the sun gear into the forward clutch drum. Make sure that it snaps and locks in place.

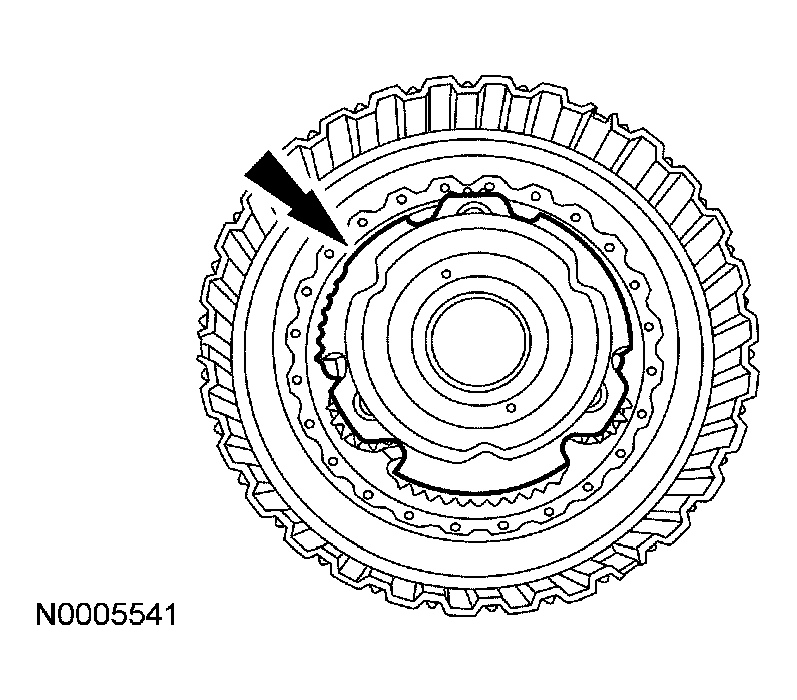

    Fig 3: Installing Sun Gear Into Forward Clutch Drum
    G03929332Courtesy of FORD MOTOR CO.
