Intermediate Clutch Assembly: Assembly

  1. Install the intermediate clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending with the pressure plate.

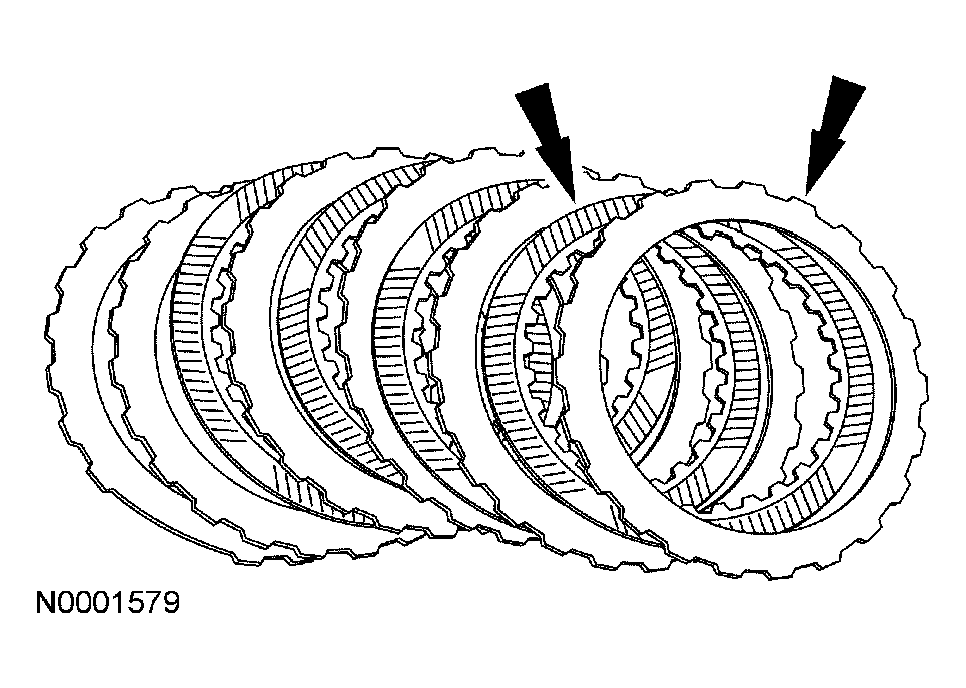

    Fig 1: Installing Intermediate Clutch Plates
    G03929362Courtesy of FORD MOTOR CO.
  2. Install the intermediate clutch plate snap ring.

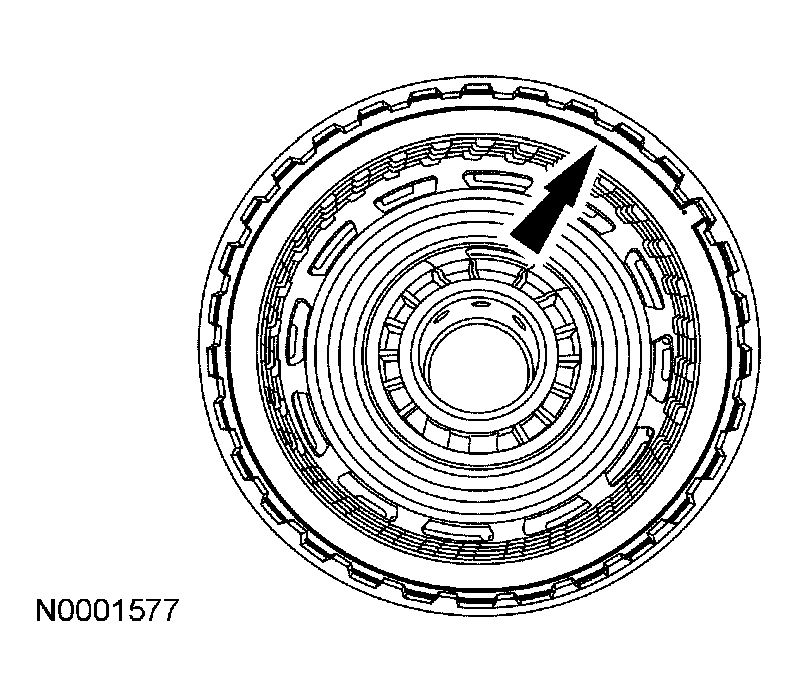

    Fig 2: Installing Intermediate Clutch Plate Snap Ring
    G03929360Courtesy of FORD MOTOR CO.
  3. Install the bearing race.

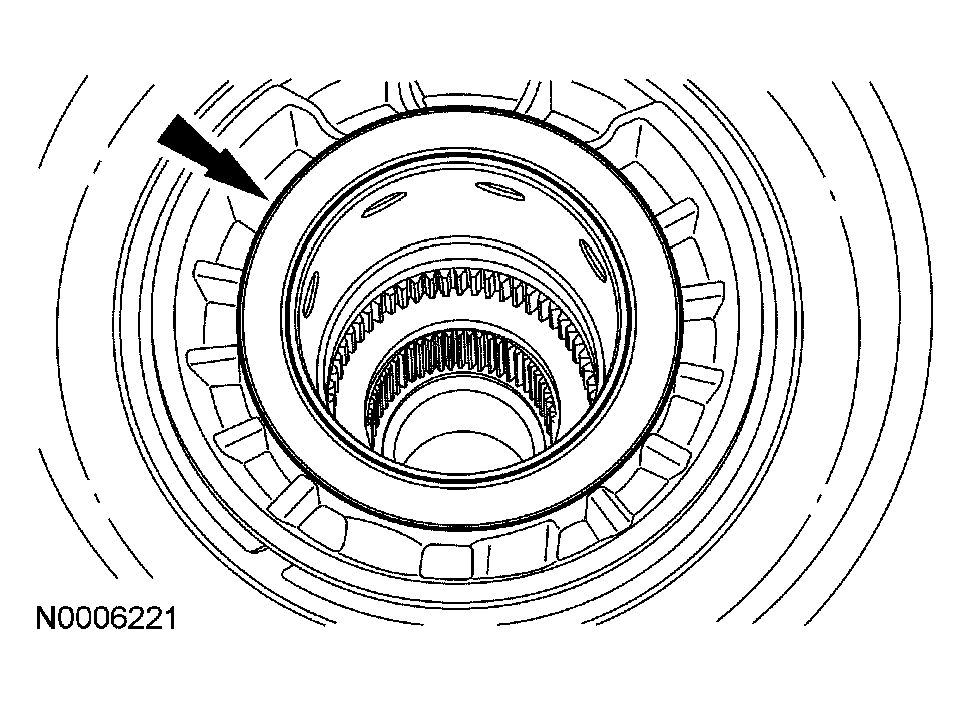

    Fig 3: Installing Bearing Race
    G03929359Courtesy of FORD MOTOR CO.
