Overdrive Clutch Assembly: Assembly

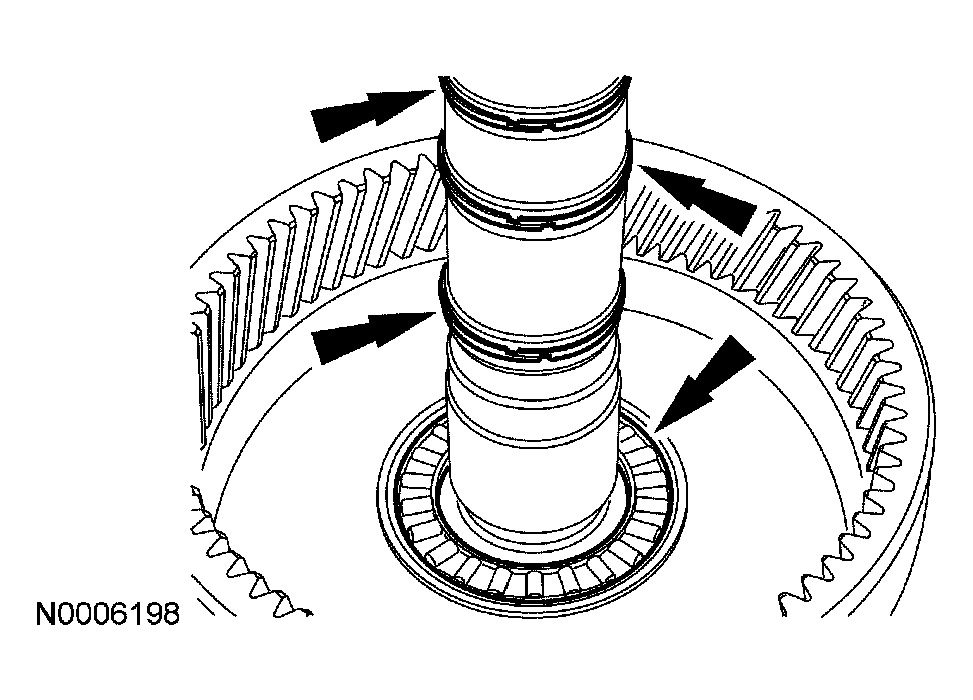

  1. Install the 3 square cut seals and the roller bearing.
    Fig 1: Installing Square Cut Seals
    G03929337Courtesy of FORD MOTOR CO.

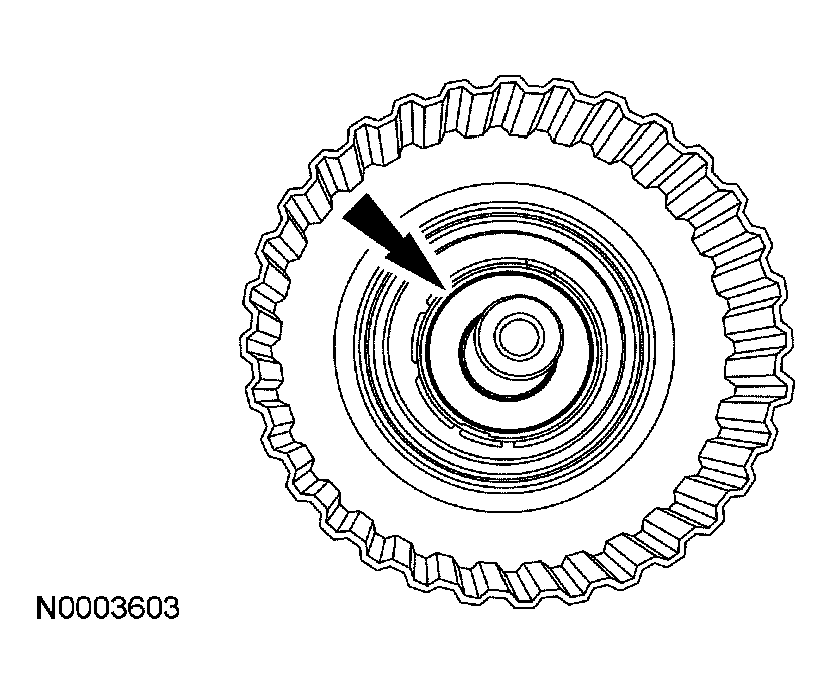

  2. If removed, install the overdrive clutch thrust washer.
    Fig 2: Installing Overdrive Clutch Thrust Washer
    G03929336Courtesy of FORD MOTOR CO.

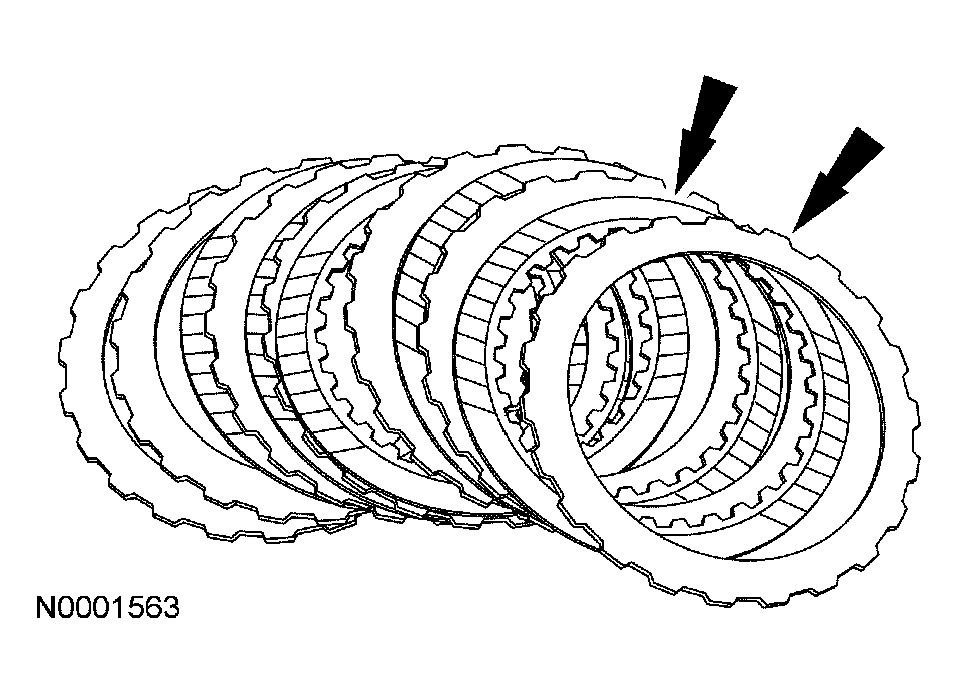

  3. Install the overdrive clutch plates, starting with the wave spring then a steel plate and alternating between friction and steel plates, and ending with the pressure plate on the top.
    Fig 3: Installing Overdrive Clutch Plates
    G03929340Courtesy of FORD MOTOR CO.

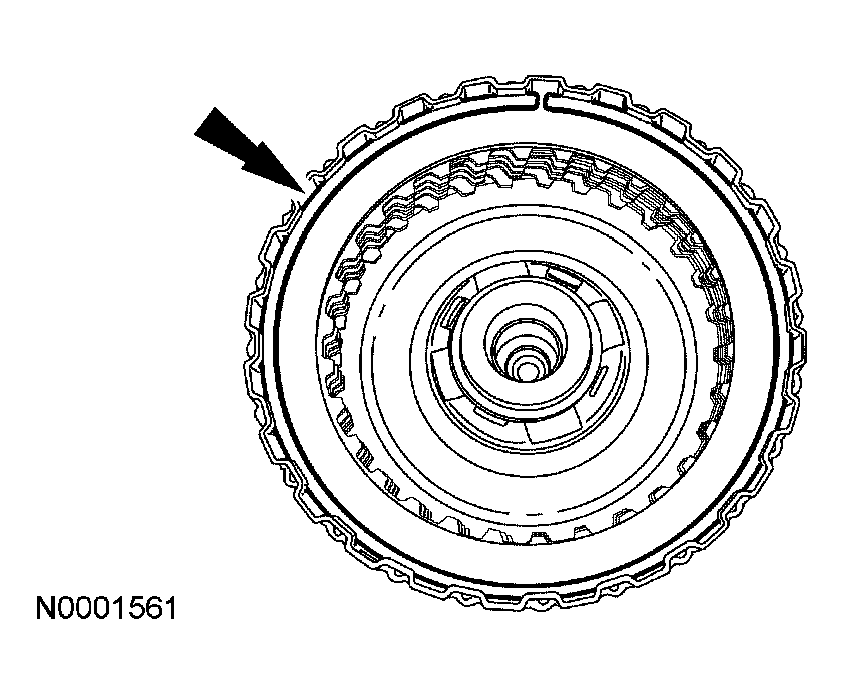

  4. Install the overdrive clutch pack snap ring.
    Fig 4: Installing Overdrive Clutch Pack Snap Ring
    G03929334Courtesy of FORD MOTOR CO.

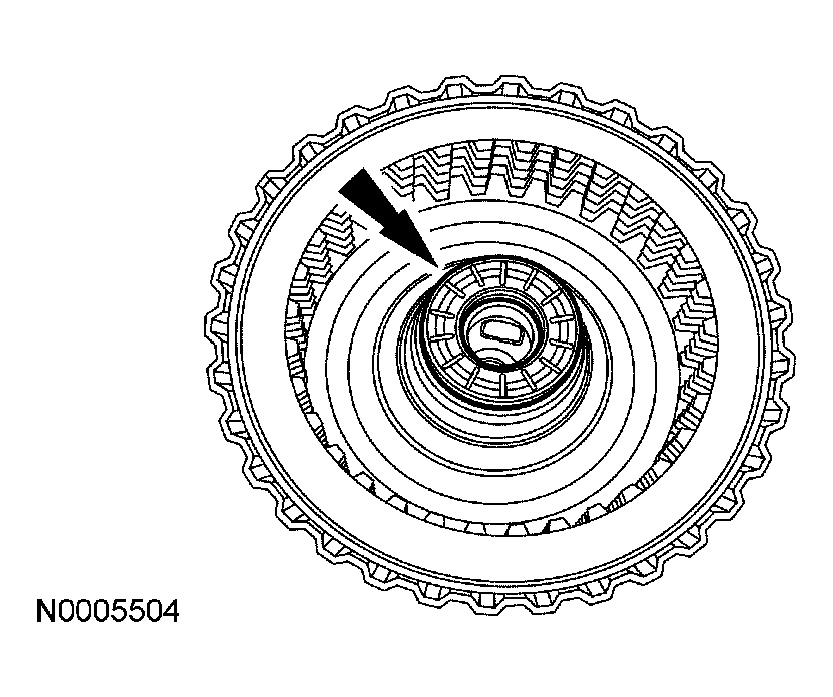

  5. Install the roller bearing.
    Fig 5: Installing Roller Bearing
    G03929333Courtesy of FORD MOTOR CO.
