Pump Assembly: Assembly

NOTE: Prior to installation, lightly lubricate the pump gears with clean automatic transmission fluid.

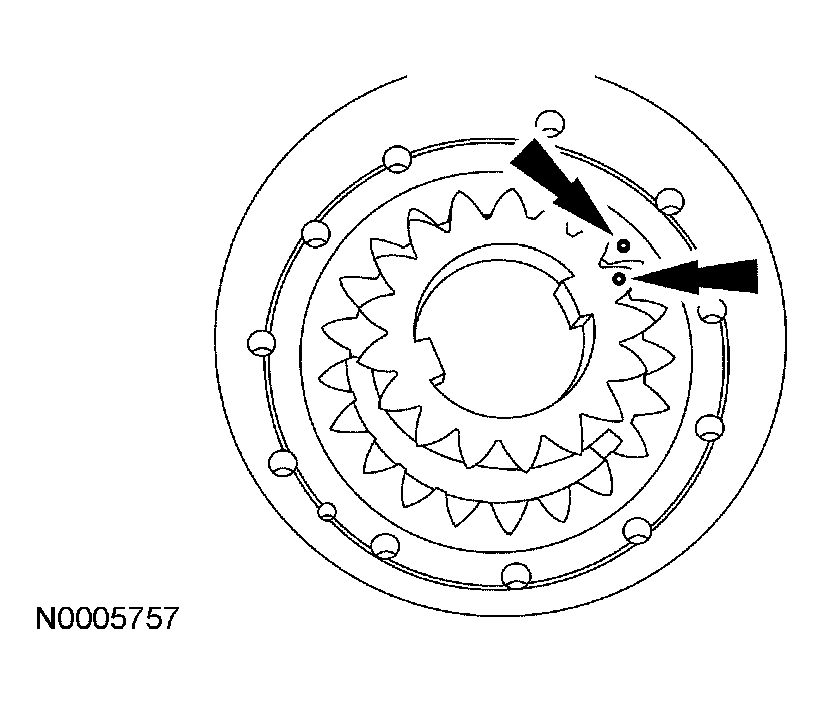

Fig 1: Installing Pump Gears

Courtesy of FORD MOTOR CO.

Install the pump gears with the dots facing the control body assembly.

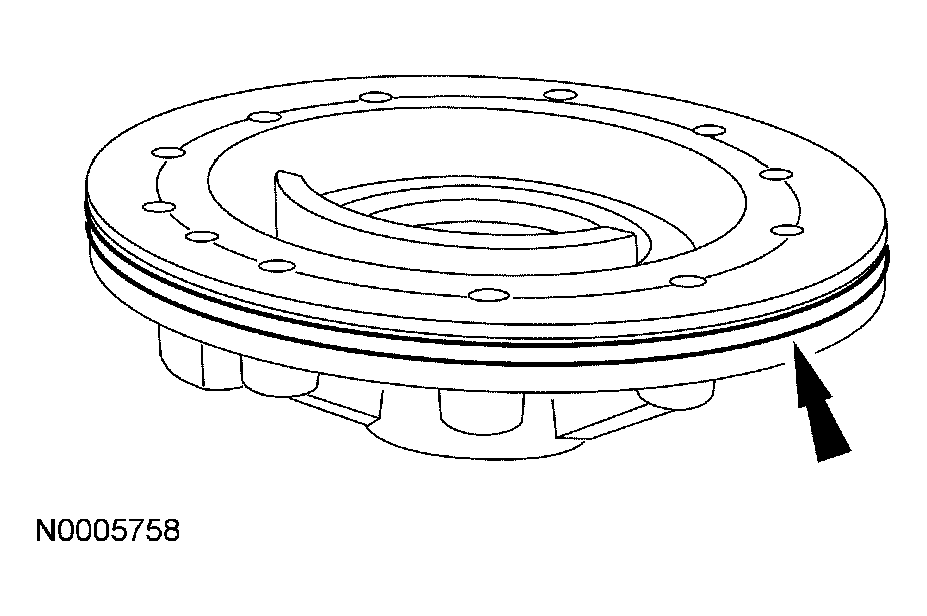

Install a new pump body outer seal.

Fig 2: Installing Pump Body Outer Seal
Courtesy of FORD MOTOR CO.

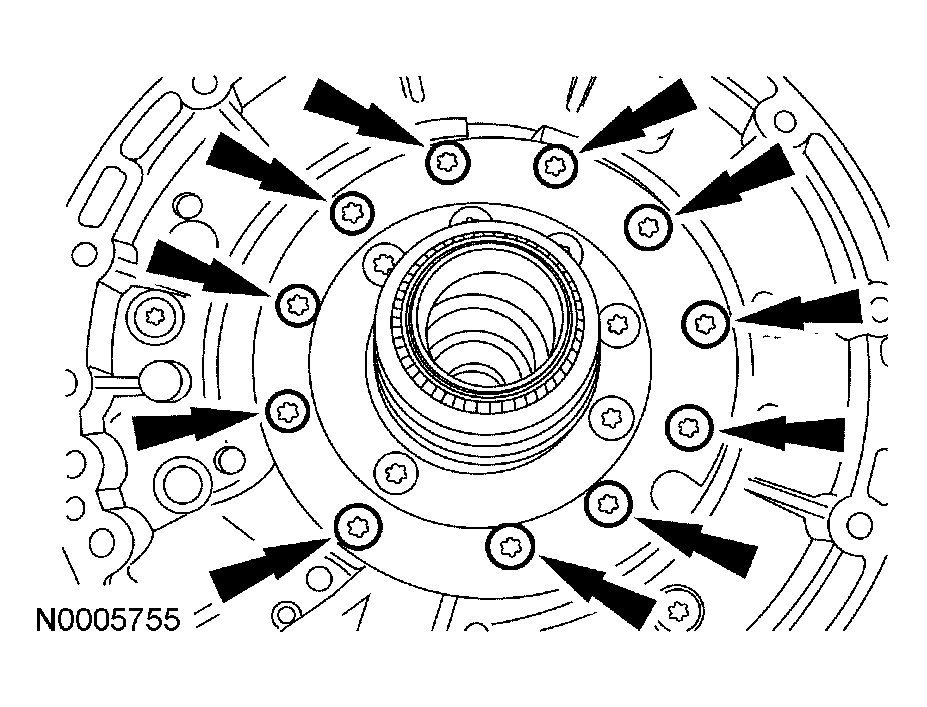

Assemble the plate assembly to the pump body assembly.
- Tighten to 15 Nm (11 lb-ft).
Fig 3: Assembling Plate Assembly To Pump Body
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the seal ends are correctly positioned together and not separated.

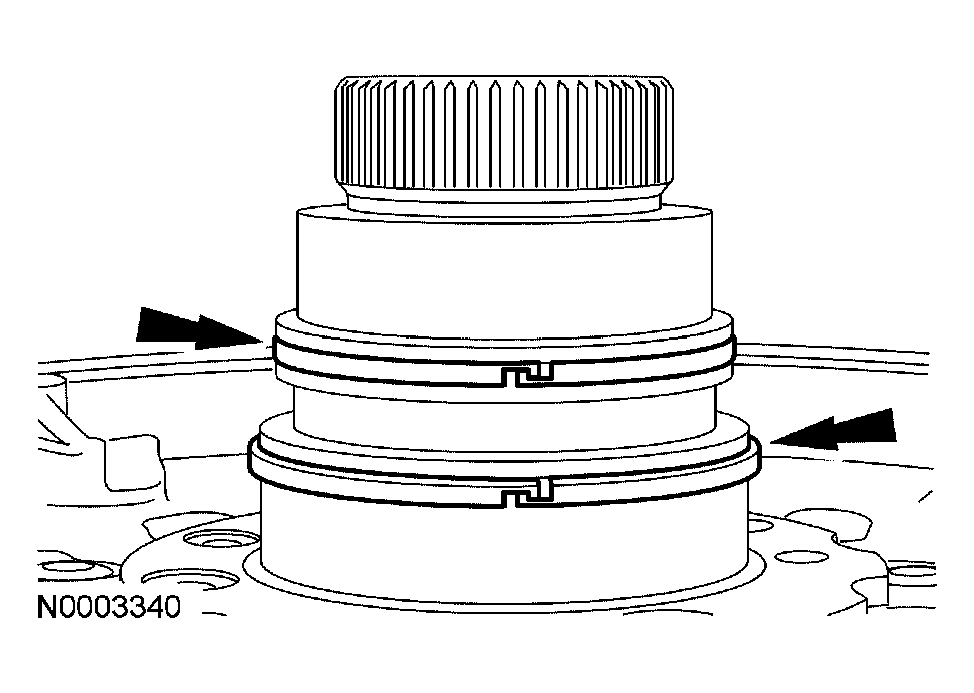

Fig 4: Installing Coast Clutch Teflon Seals

Courtesy of FORD MOTOR CO.

Install the 2 coast clutch Teflon® seals. Make sure the seals are fully seated in the stator support seal grooves and the seal ends are oriented 180 degrees apart.

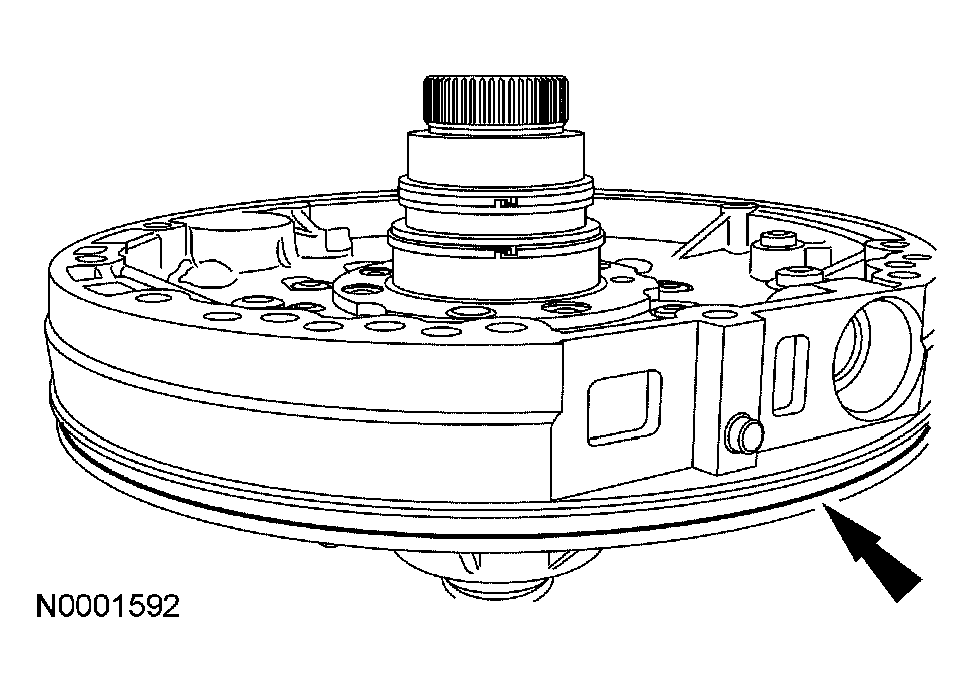

Install a new pump outer diameter front pump O-ring seal.

Fig 5: Installing Pump Outer Diameter Front Pump O-Ring Seal
Courtesy of FORD MOTOR CO.

NOTE: Lightly lubricate the thrust washer and the bearing with petroleum jelly to hold them in place during assembly.

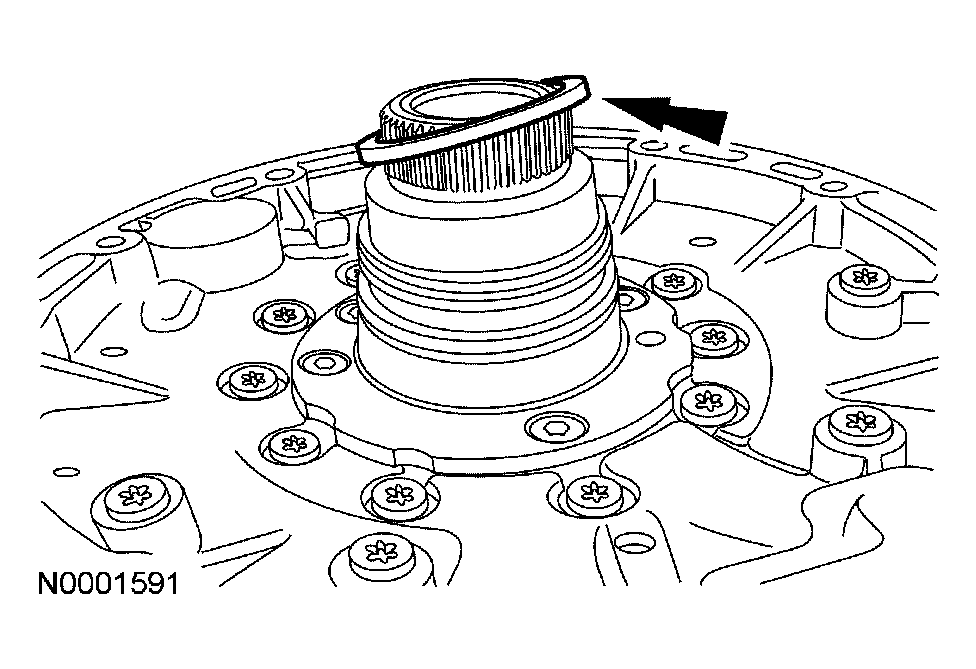

Fig 6: Installing Pump Thrust Washer

Courtesy of FORD MOTOR CO.

Install the pump thrust washer.

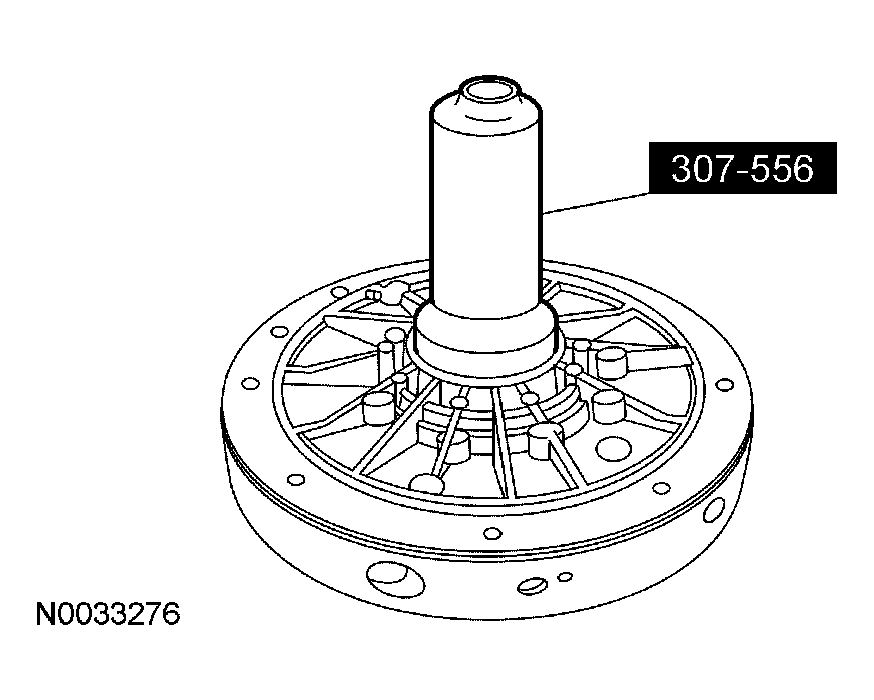

Using the special tool, install the front pump seal.

Fig 7: Installing Front Pump Seal
Courtesy of FORD MOTOR CO.
