Pump Assembly: Disassembly

Remove the front pump washer.

Fig 1: Removing Front Pump Washer
Courtesy of FORD MOTOR CO.
Remove and discard the front pump O-ring seal.

Fig 2: Removing Front Pump O-Ring Seal
Courtesy of FORD MOTOR CO.
Remove and discard the front pump seals.

Fig 3: Removing Front Pump Seals
Courtesy of FORD MOTOR CO.
Remove the 11 bolts and separate the pump control body from the pump body.

Fig 4: Separating Pump Control Body From Pump Body
Courtesy of FORD MOTOR CO.

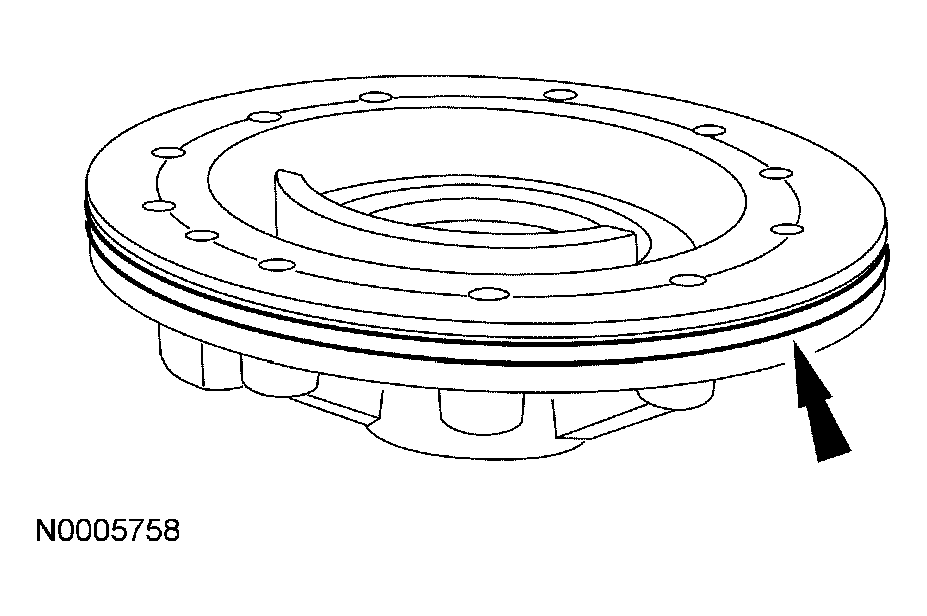

Inspect the pump body outer seal for damage. If damage is indicated a new pump assembly will be required.

Fig 5: Inspecting Pump Body Outer Seal
Courtesy of FORD MOTOR CO.

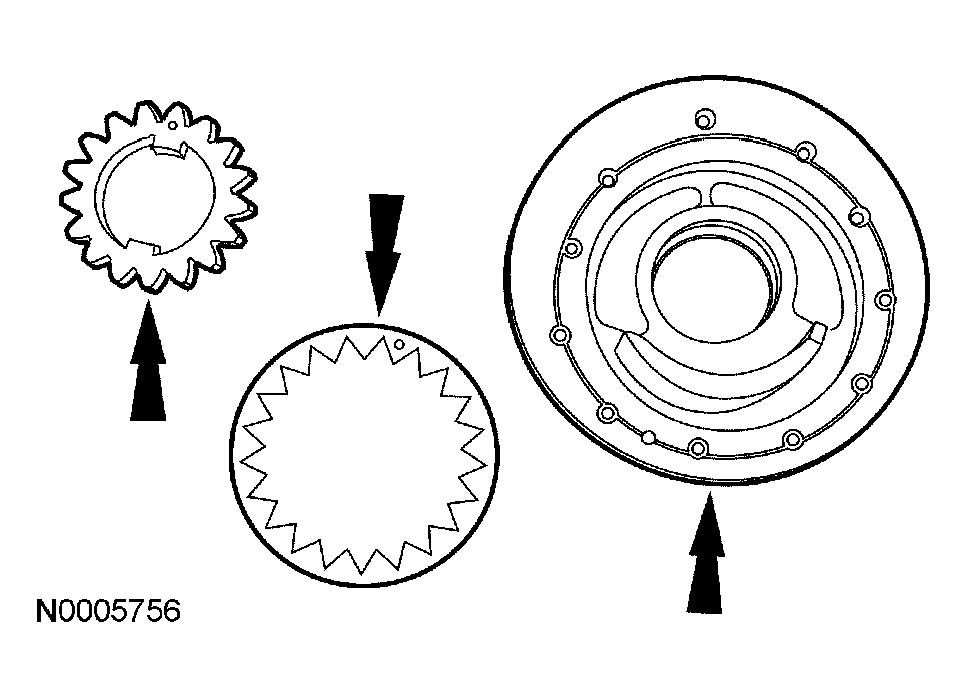

Remove and inspect the inner and the outer pump gears.
- Clean all pump parts in solvent.
- Dry the parts with compressed air.
- Inspect the pump gears, faces, gear teeth, pump housing and mating surfaces for damage or scoring.
- Install a new pump if any of the parts are damaged or worn.
Fig 6: Installing Pump
Courtesy of FORD MOTOR CO.
