Connector Views

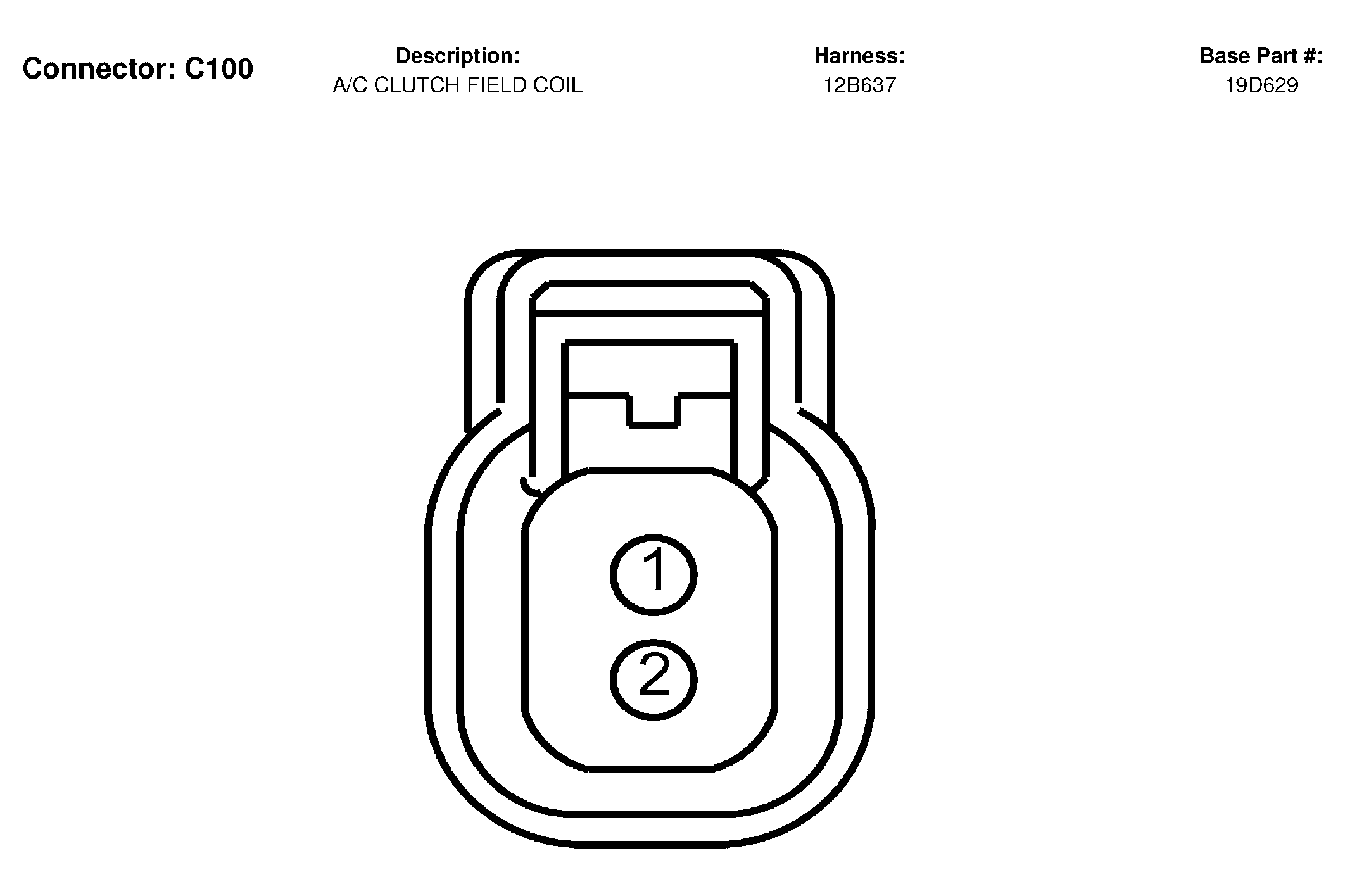

Fig 1: A/C Clutch Field Coil Connector End View (C100)

Courtesy of FORD MOTOR CO.

C100 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	321 (GY-WH)	18	A/C clutch relay output
2	57 (BK)	18	Ground

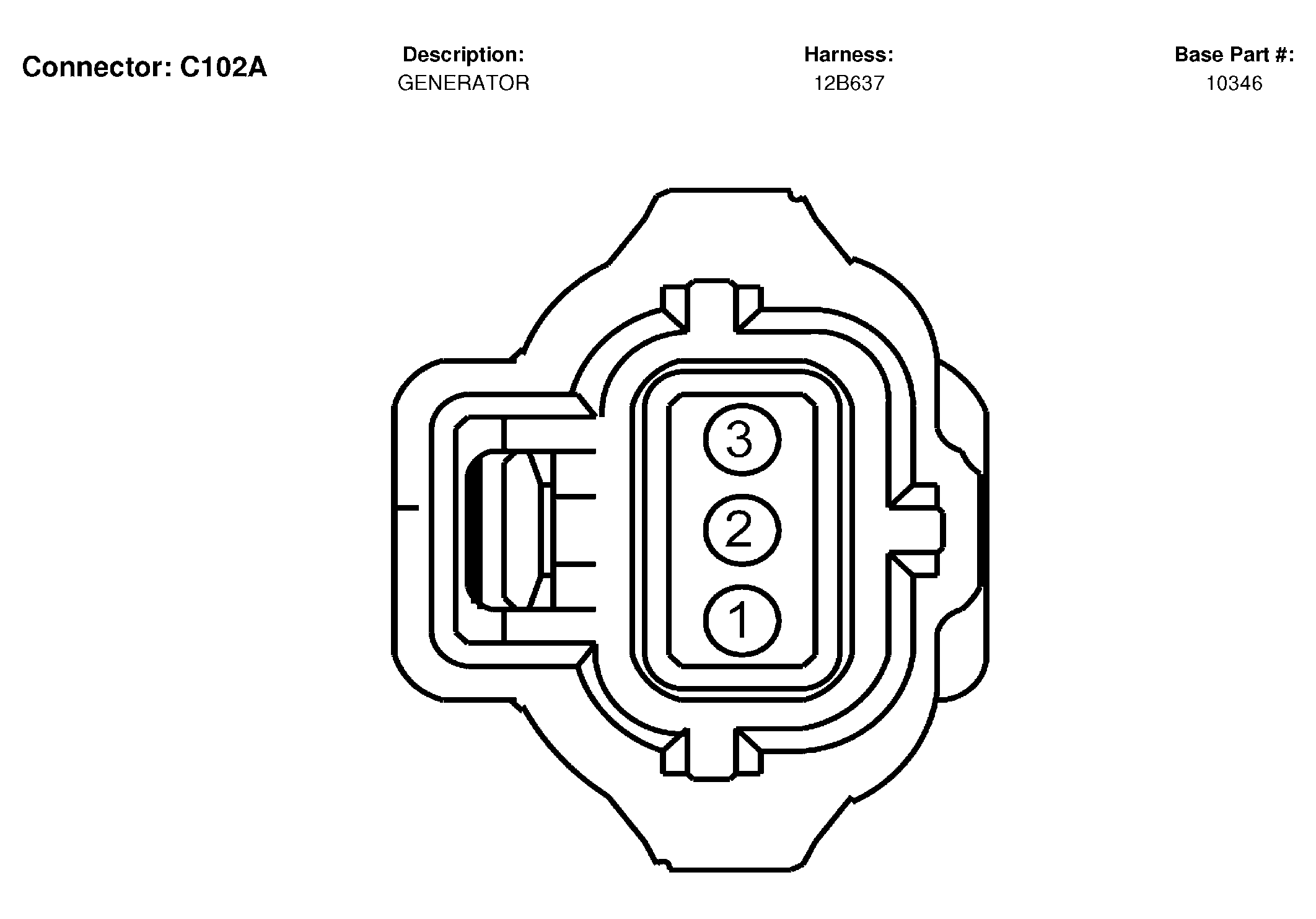

Fig 2: Generator Connector End View (C102A)

Courtesy of FORD MOTOR CO.

C102A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1817 (YE)	20	Generator monitor
2	1816 (YE-LB)	20	Generator communication
3	35 (OG-LB)	20	Voltage supplied at all times (overload protected)

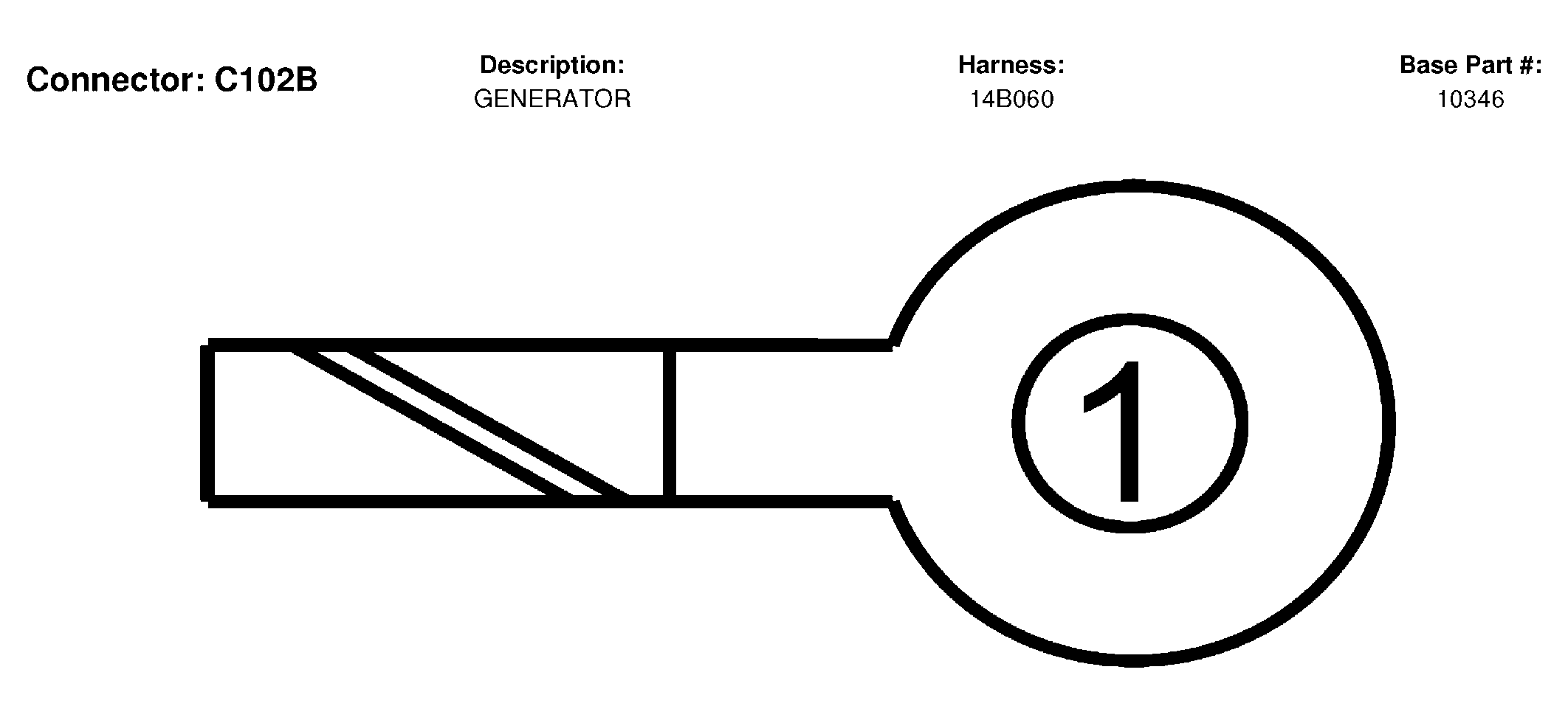

Fig 3: Generator Connector End View (C102B)

Courtesy of FORD MOTOR CO.

C102B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	2037 (RD)	04	Battery cable +

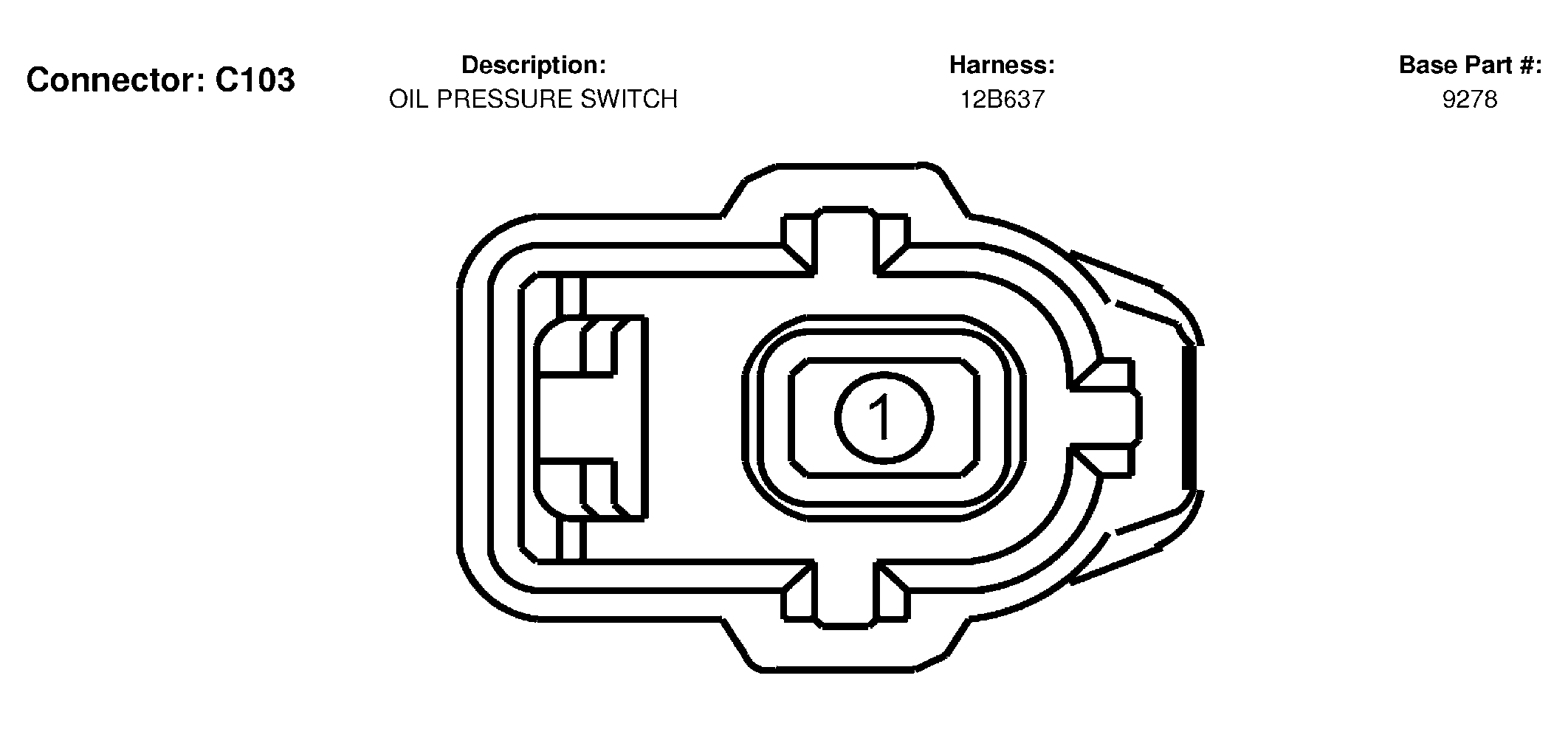

Fig 4: Oil Pressure Switch Connector End View (C103)

Courtesy of FORD MOTOR CO.

C103 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	31 (WH-RD)	20	Engine oil pressure indicator, control

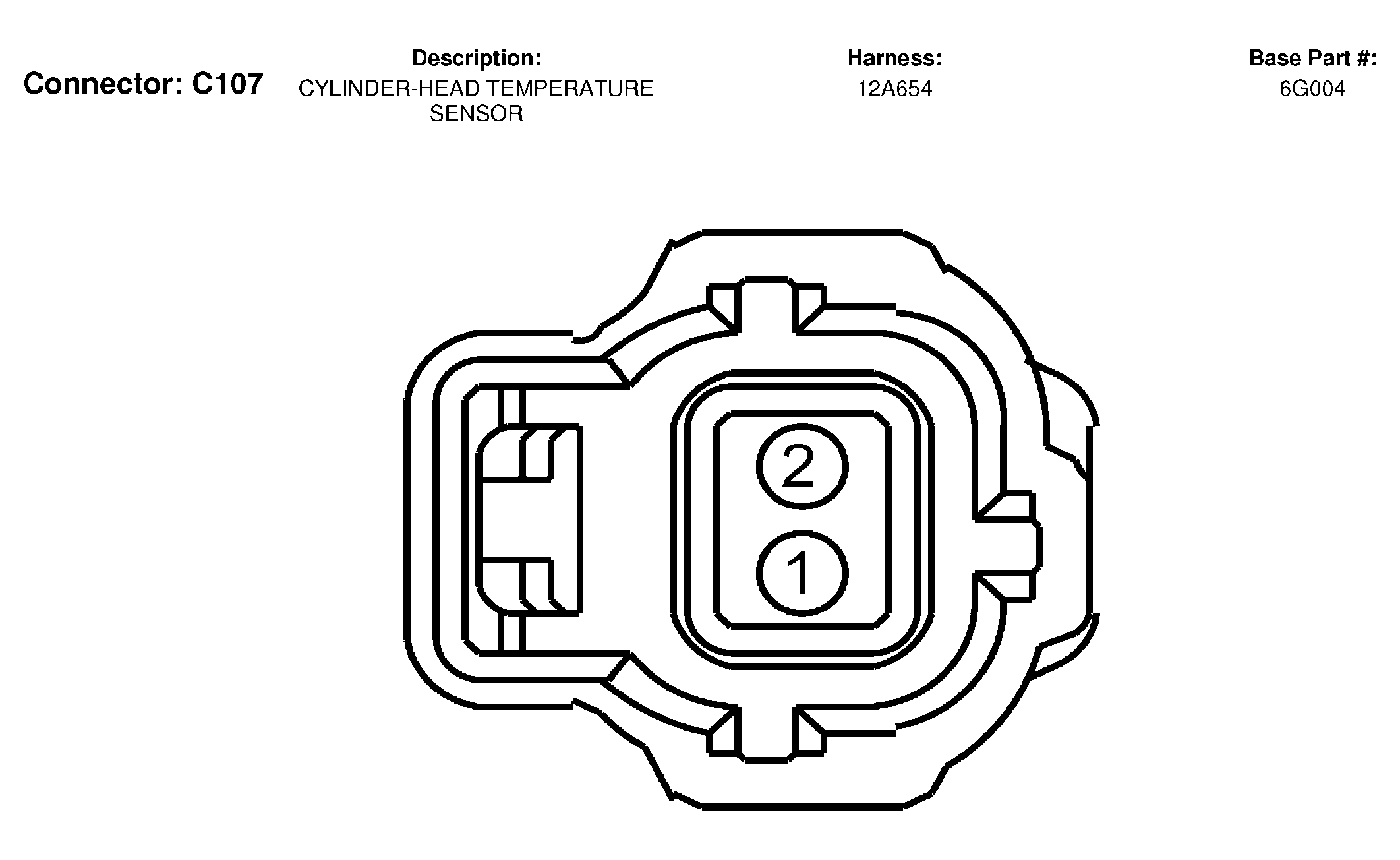

Fig 5: Cylinder-Head Temperature Sensor Connector End View (C107)

Courtesy of FORD MOTOR CO.

C107 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1102 (YE-LG)	20	Cylinder-head temperature sensor signal
2	359 (GY-RD)	20	Signal return

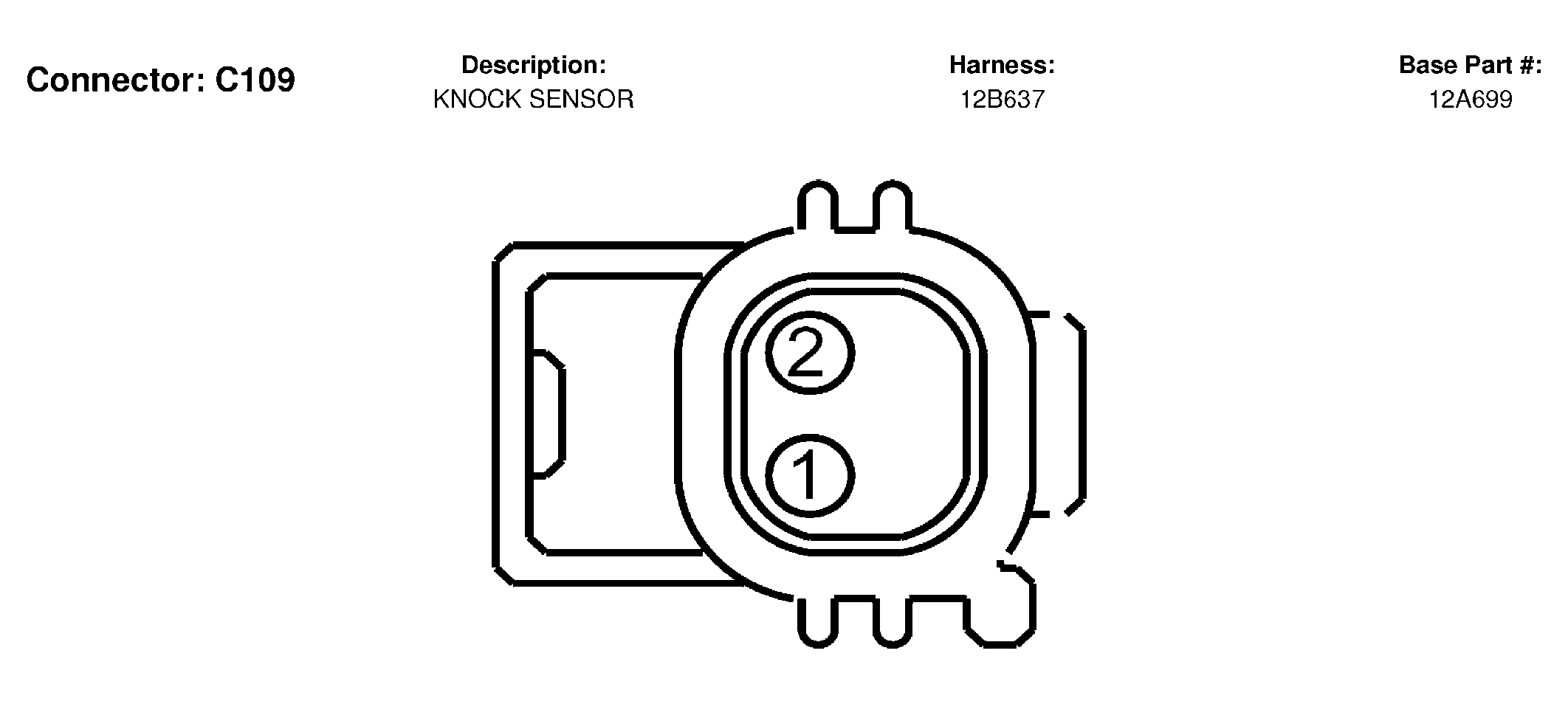

Fig 6: Knock Sensor Connector End View (C109)

Courtesy of FORD MOTOR CO.

C109 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1273 (YE)	20	Knock sensor -
2	310 (YE-RD)	20	Knock sensor +

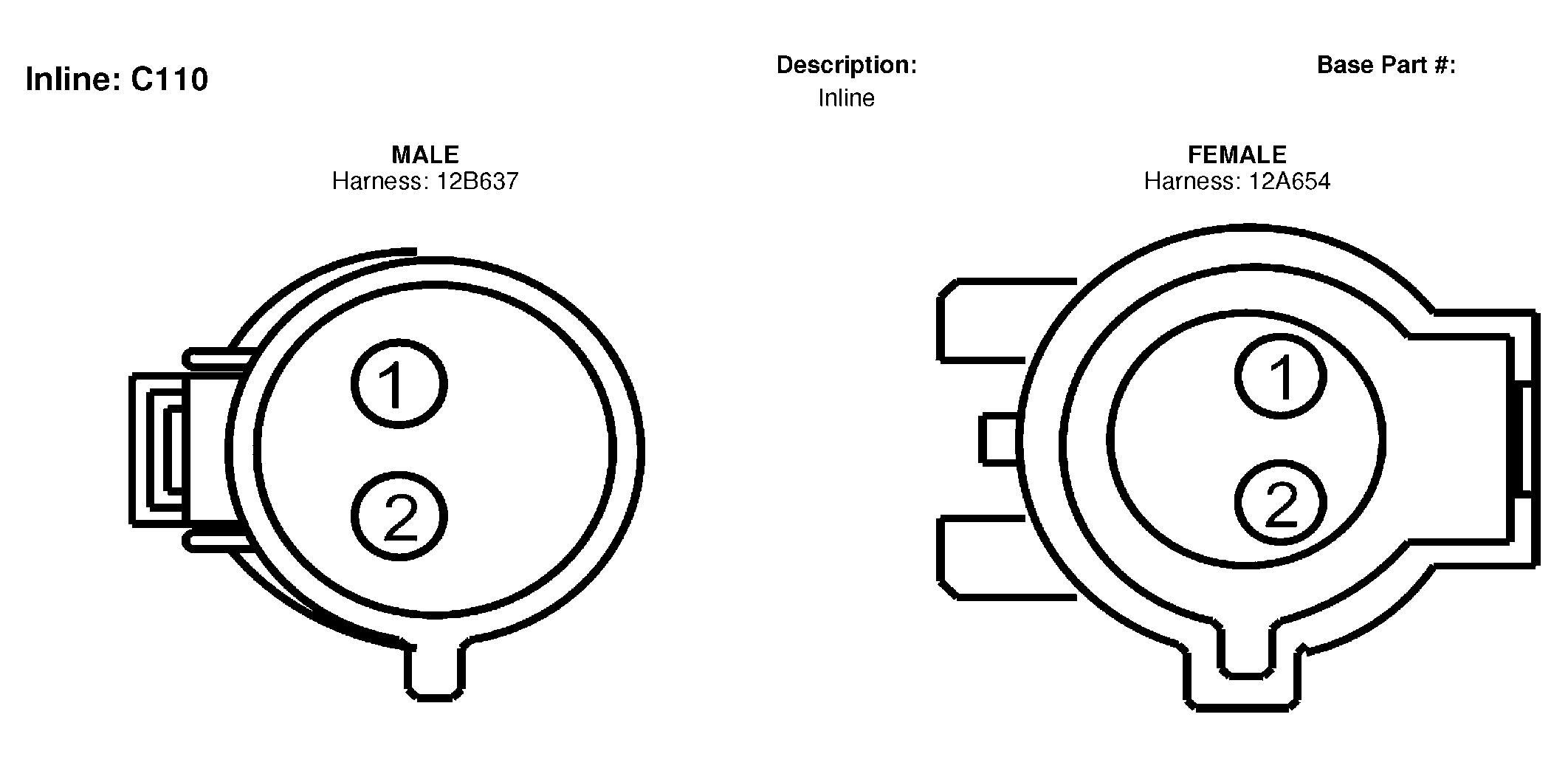

Fig 7: Inline Connector End View (C110)

Courtesy of FORD MOTOR CO.

C110 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	359 (GY-RD)	20
2	1102 (YE-LG)	20

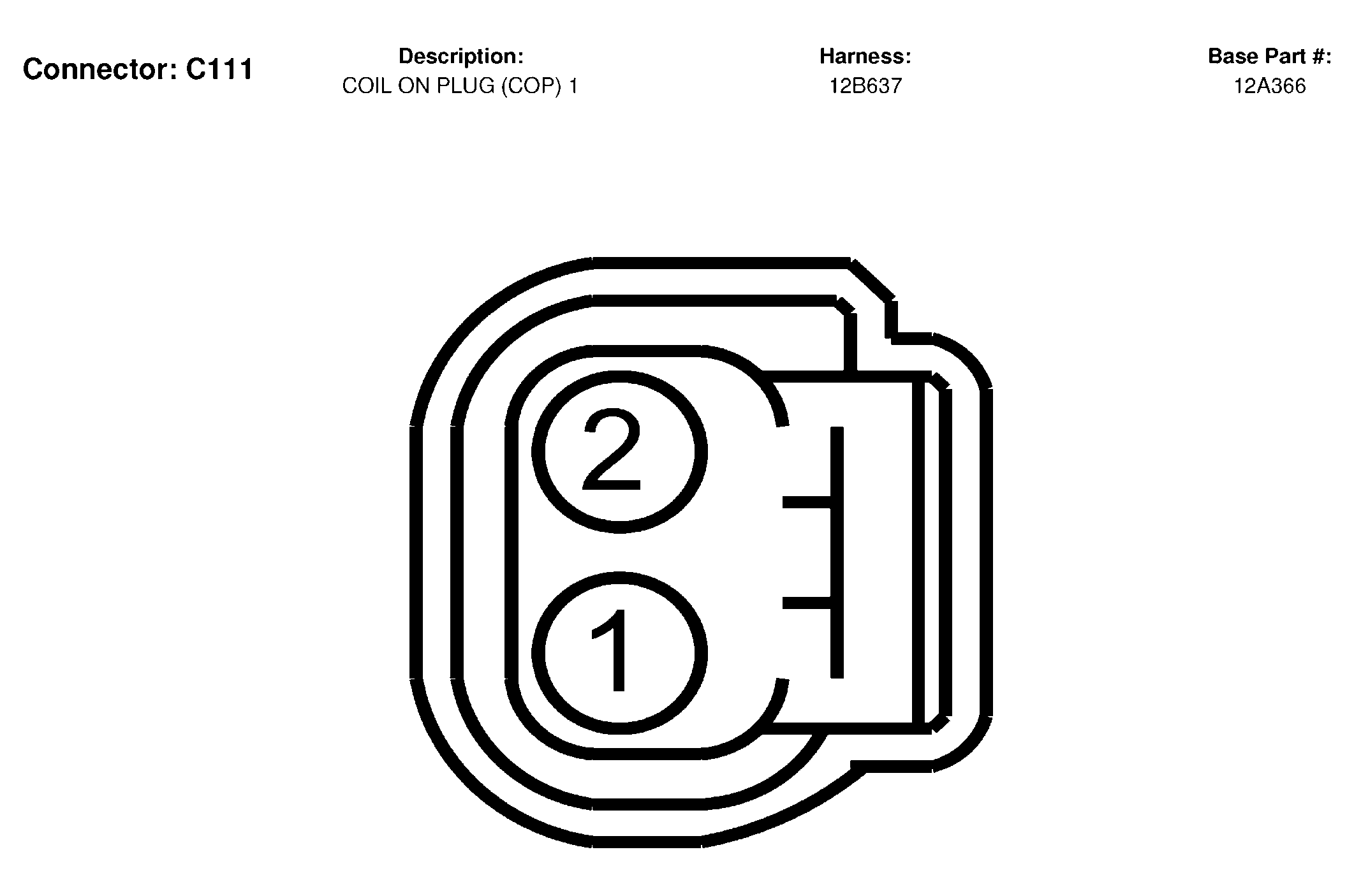

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

Courtesy of FORD MOTOR CO.

C111 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1024 (LG-WH)	20	Coil On Plug (COP) 1, control

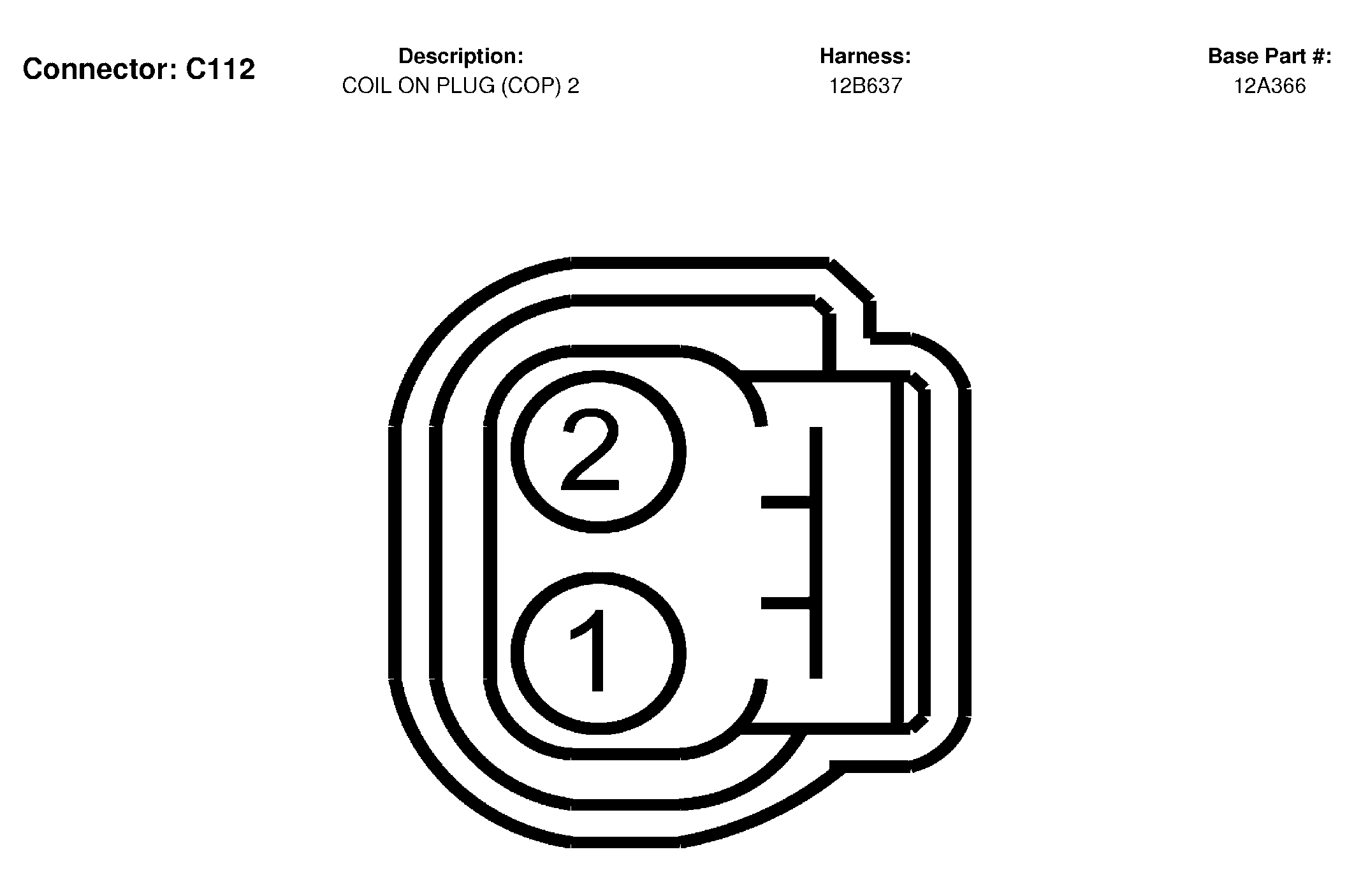

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

Courtesy of FORD MOTOR CO.

C112 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1026 (PK-WH)	20	Coil On Plug (COP) 2, control

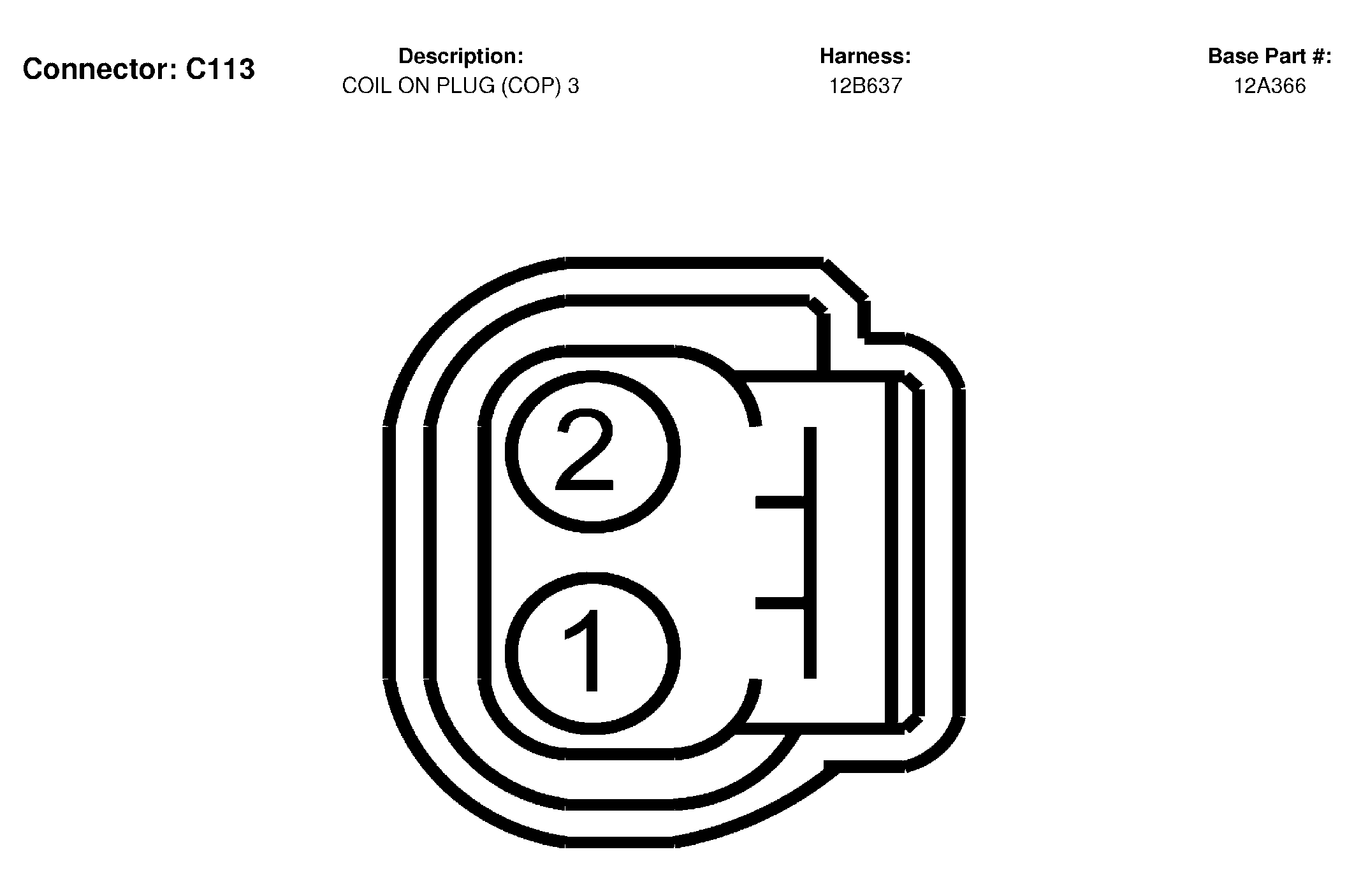

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

Courtesy of FORD MOTOR CO.

C113 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1028 (WH-PK)	20	Coil On Plug (COP) 3, control

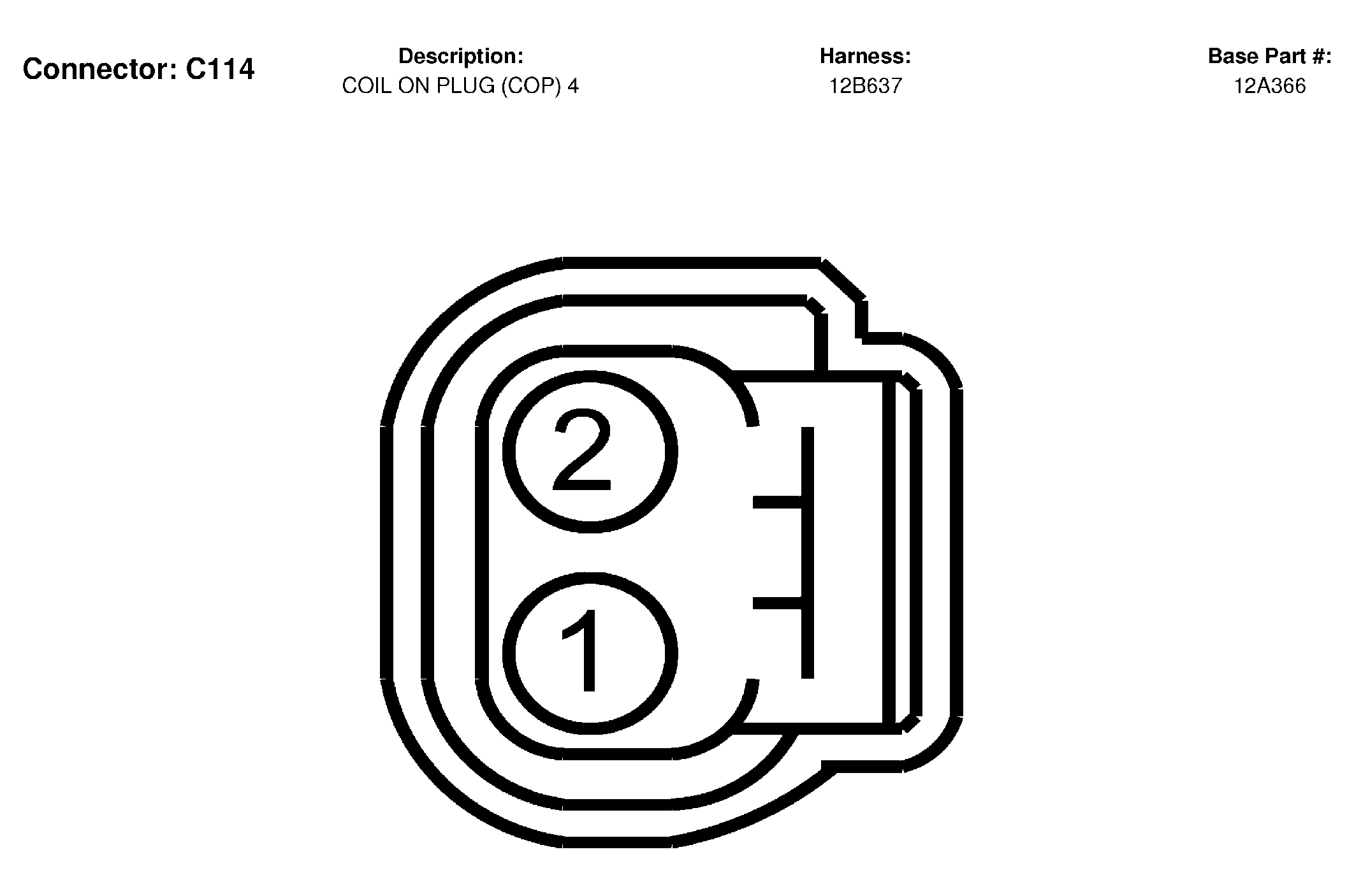

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

Courtesy of FORD MOTOR CO.

C114 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1030 (DG-VT)	20	Coil On Plug (COP) 4, control

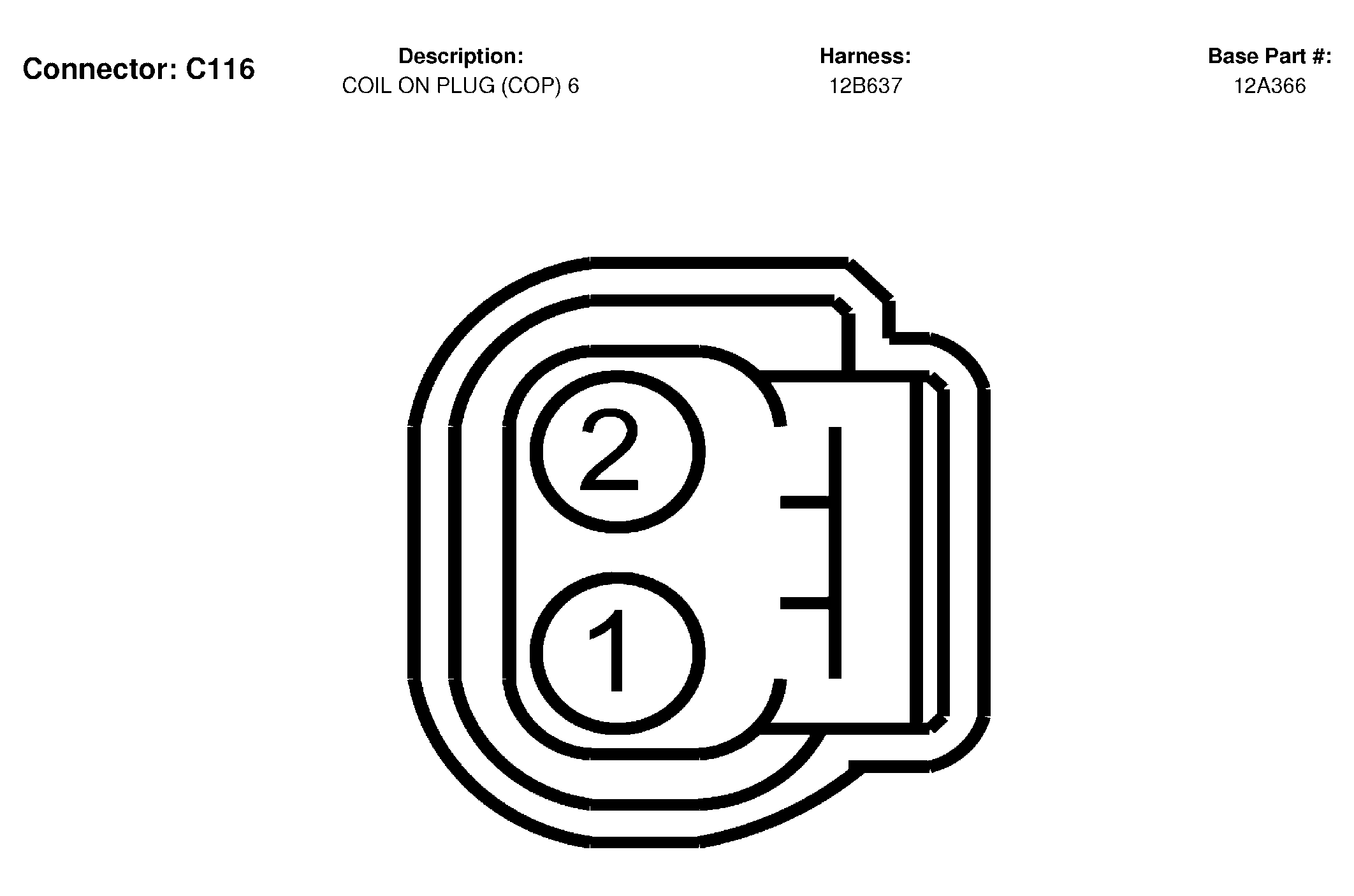

Fig 12: Coil On Plug (COP) 6 Connector End View (C116)

Courtesy of FORD MOTOR CO.

C115 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1021 (LG-YE)	20	Coil On Plug (COP) 5, control

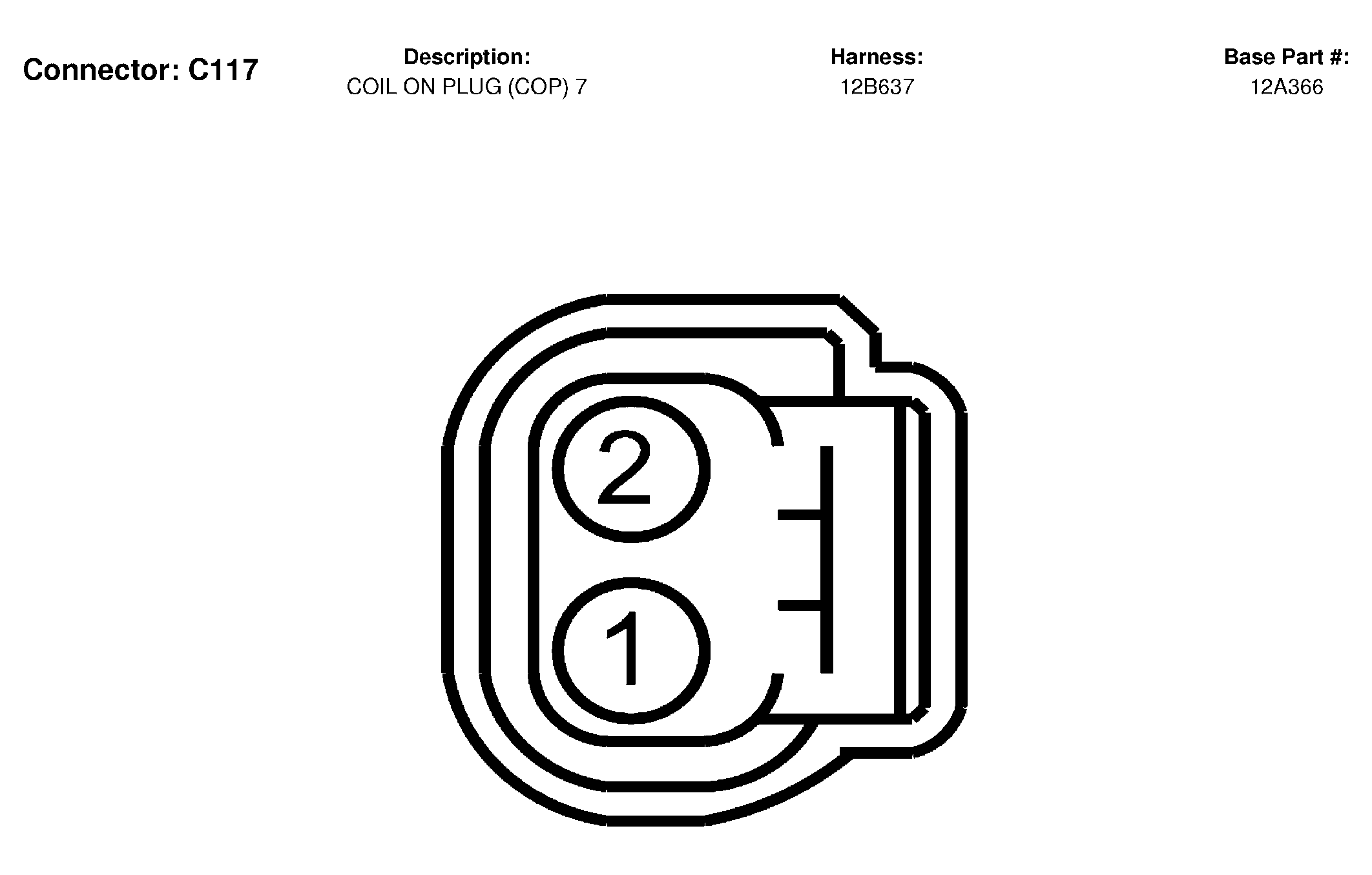

Fig 13: Coil On Plug (COP) 7 Connector End View (C117)

Courtesy of FORD MOTOR CO.

C116 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1025 (OG-YE)	20	Coil On Plug (COP) 6, control

Fig 14: Coil On Plug (COP) 8 Connector End View (C118)

Courtesy of FORD MOTOR CO.

C117 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1027 (PK-LB)	20	Coil On Plug (COP) 7, control

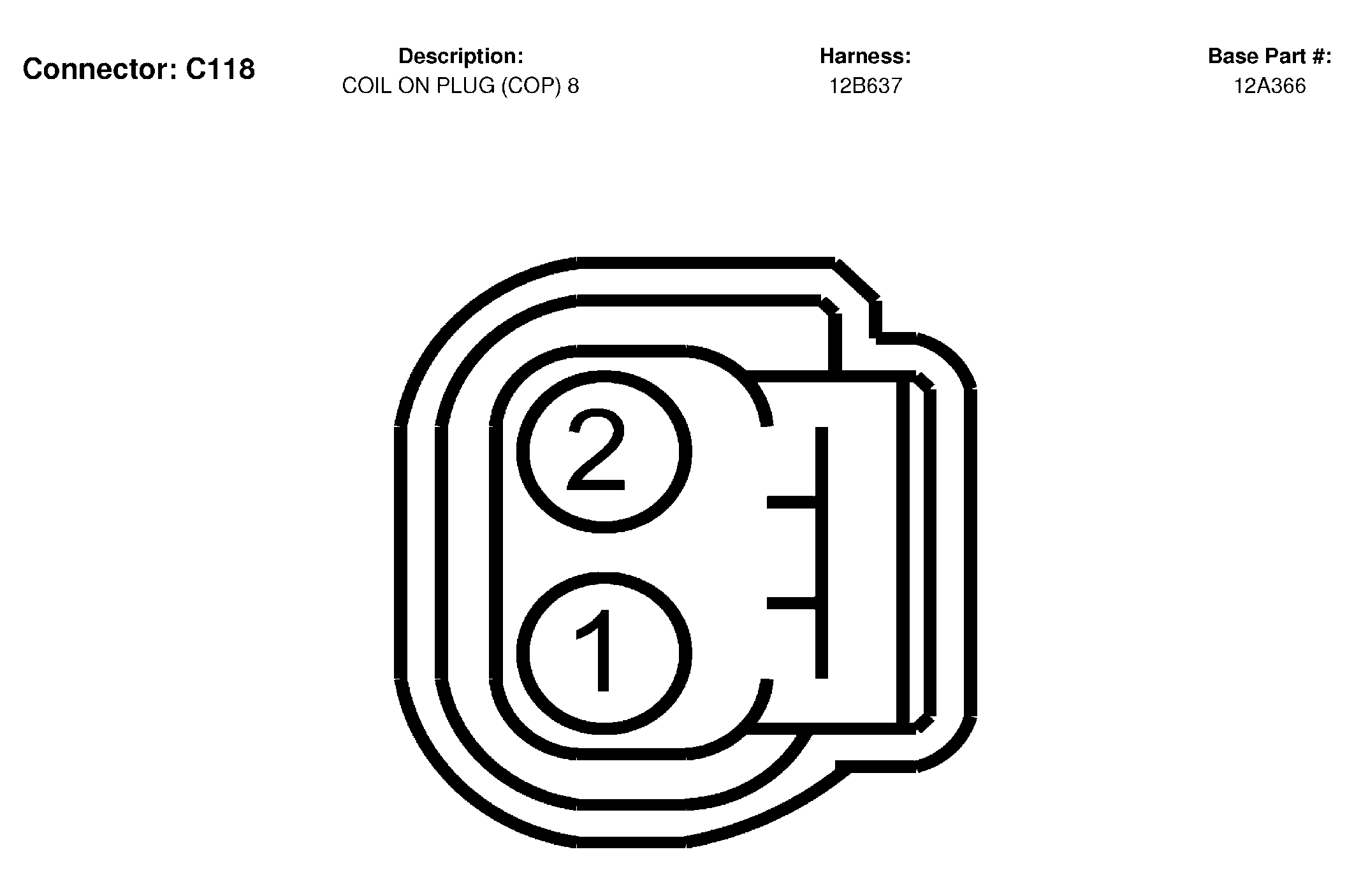

Fig 15: Coil On Plug (COP) 8 Connector End View (C118)

Courtesy of FORD MOTOR CO.

C118 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output
2	1029 (WH-RD)	20	Coil On Plug (COP) 8, control

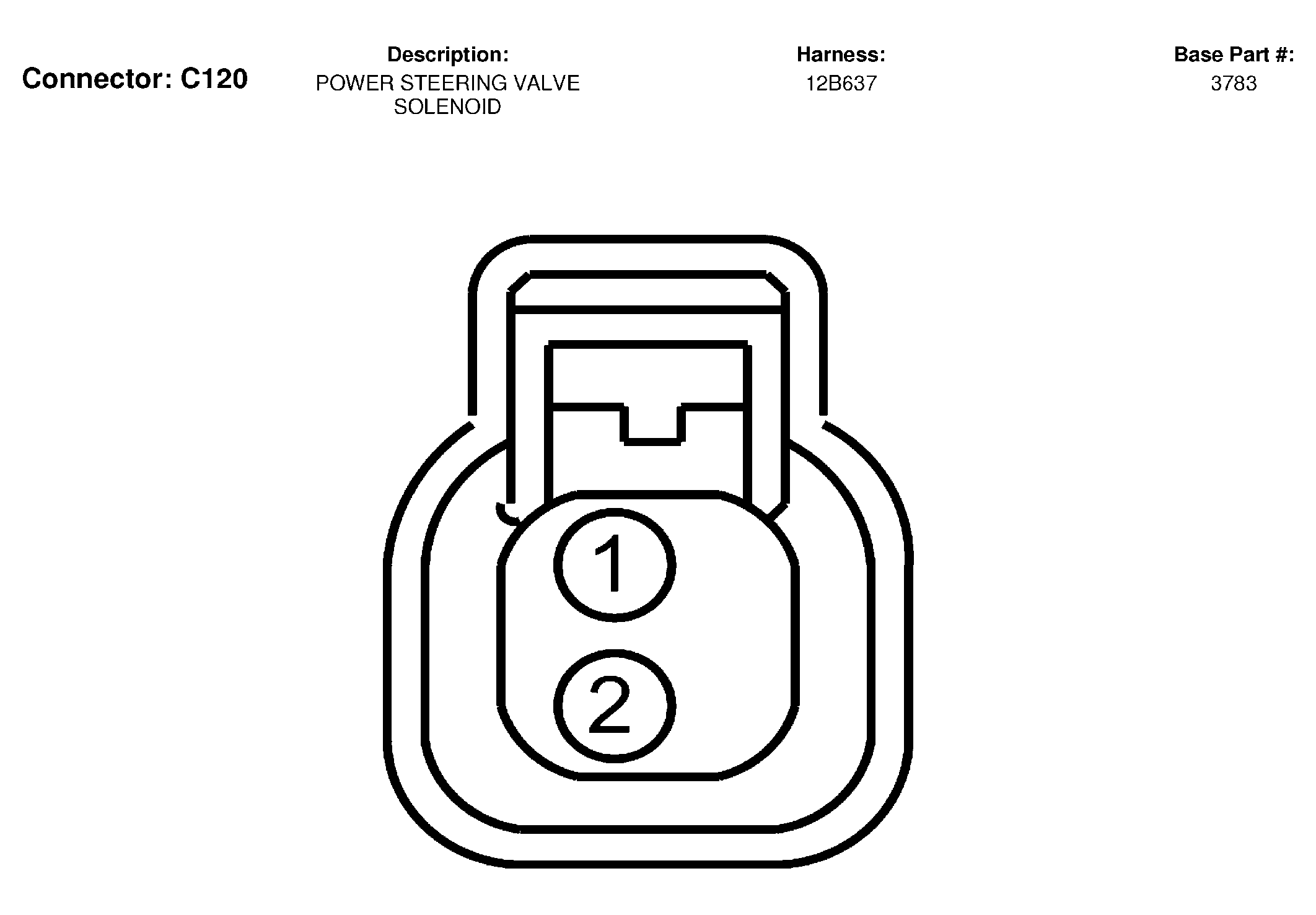

Fig 16: Power Steering Valve Solenoid Connector End View (C120)

Courtesy of FORD MOTOR CO.

C120 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	115 (LG-BK)	20	Power steering valve solenoid -
2	114 (LB-YE)	20	Power steering valve solenoid +

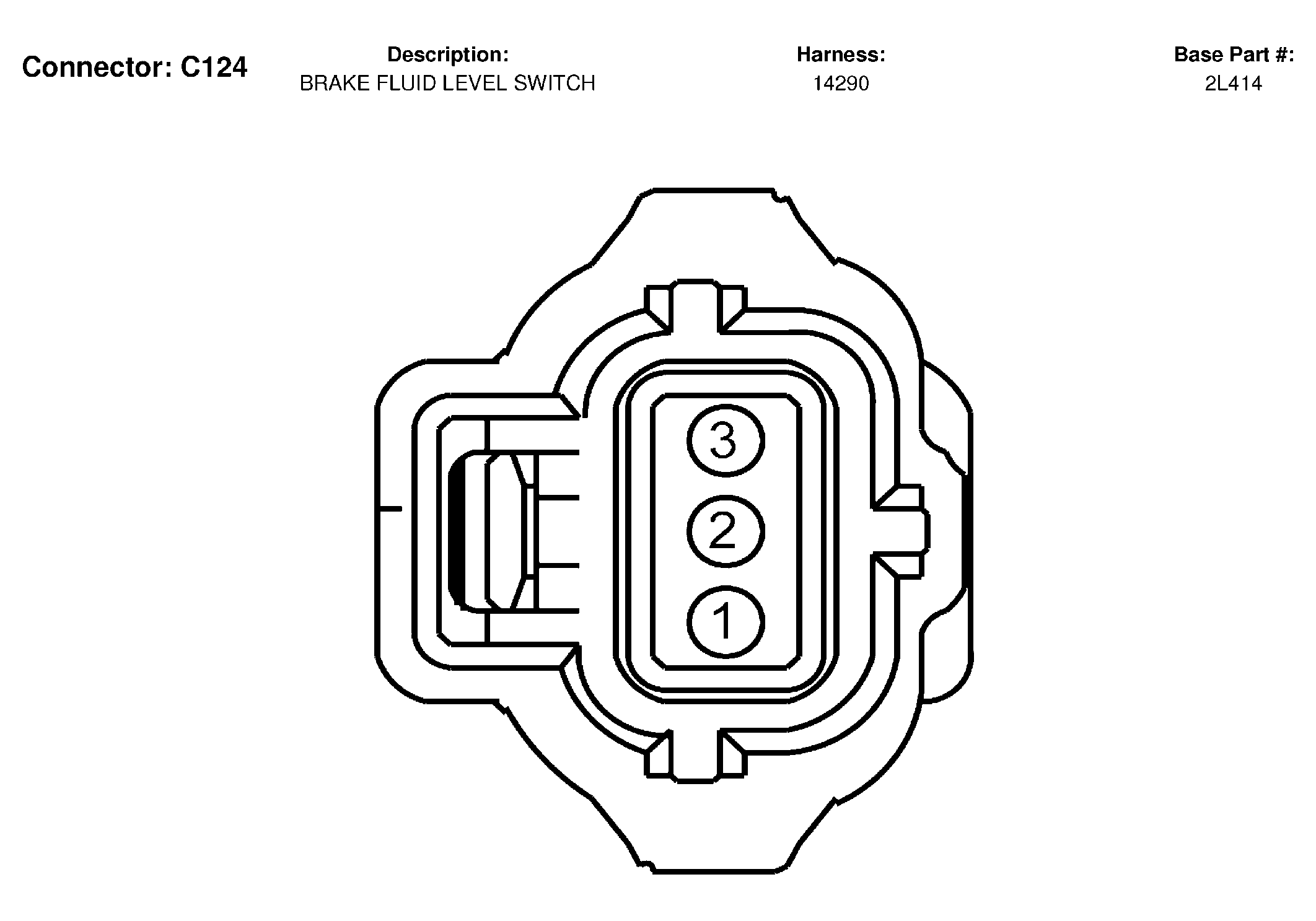

Fig 17: Brake Fluid Level Switch Connector End View (C124)

Courtesy of FORD MOTOR CO.

C124 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	409 (TN-BK)	20	Brake fluid level switch signal
3	977 (VT-WH)	20	Brake indicator, control

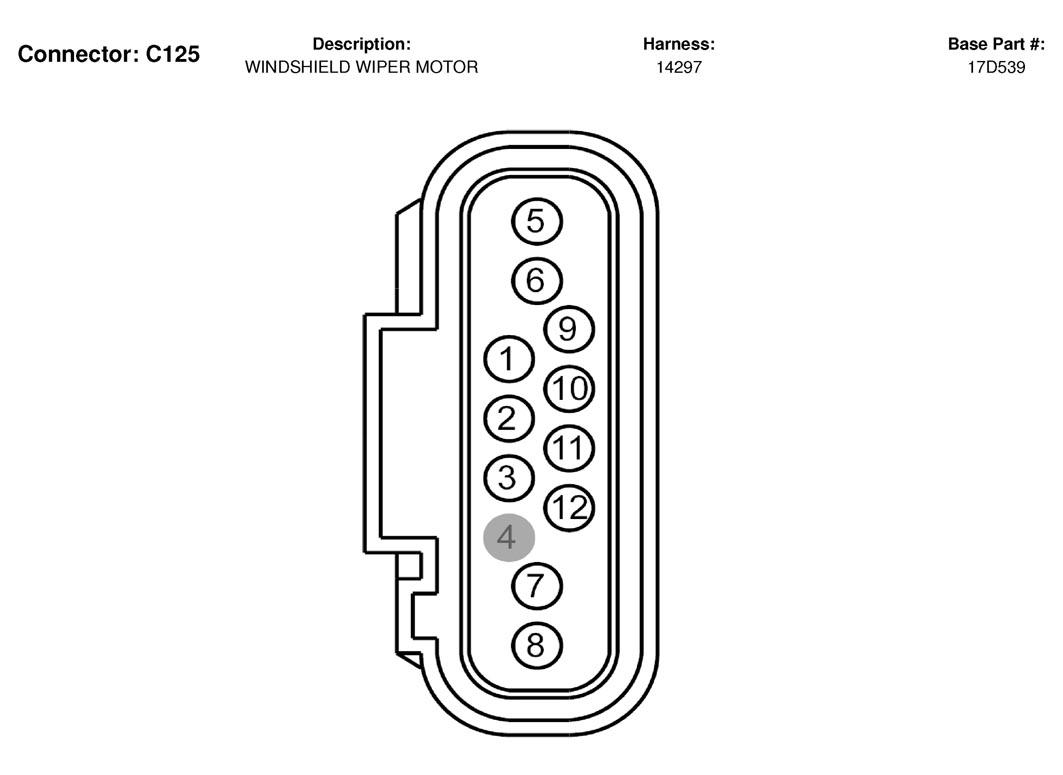

Fig 18: Windshield Wiper Motor Connector End View (C125)

Courtesy of FORD MOTOR CO.

C125 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	61 (YE-RD)	20	Front wiper switch circuit H
2	28 (BK-PK)	20	Wiper ON/OFF signal
3	676 (PK-OG)	20	Ground
4	*	*	not used
5	2025 (RD-YE)	14	Voltage supplied at all times (overload protected)
6	57 (BK)	14	Ground
7	941 (BK-WH)	14	Windshield washer pump motor, feed
8	65 (DG)	20	Voltage in Run or Accessory (overload protected)
9	63 (RD)	20	Front wiper switch circuit A
10	56 (DB-OG)	20	Front wiper switch circuit C
11	58 (WH)	20	Front wiper switch circuit B
12	680 (LB-OG)	20	Washer switch signal

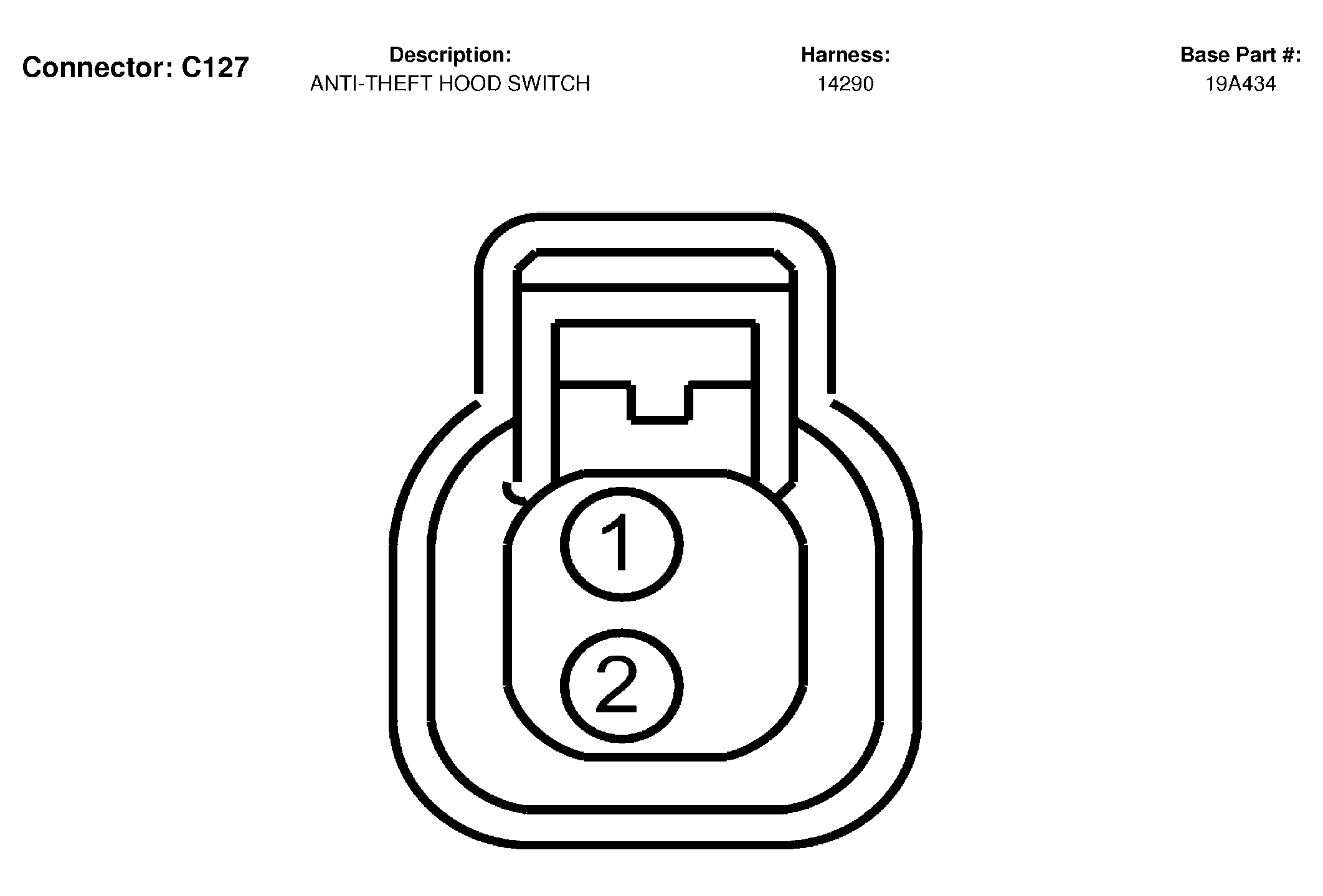

Fig 19: Anti-Theft Hood Switch Connector End View (C127)

Courtesy of FORD MOTOR CO.

C127 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1304 (VT-OG)	20	Anti-theft hood switch signal
2	57 (BK)	20	Ground

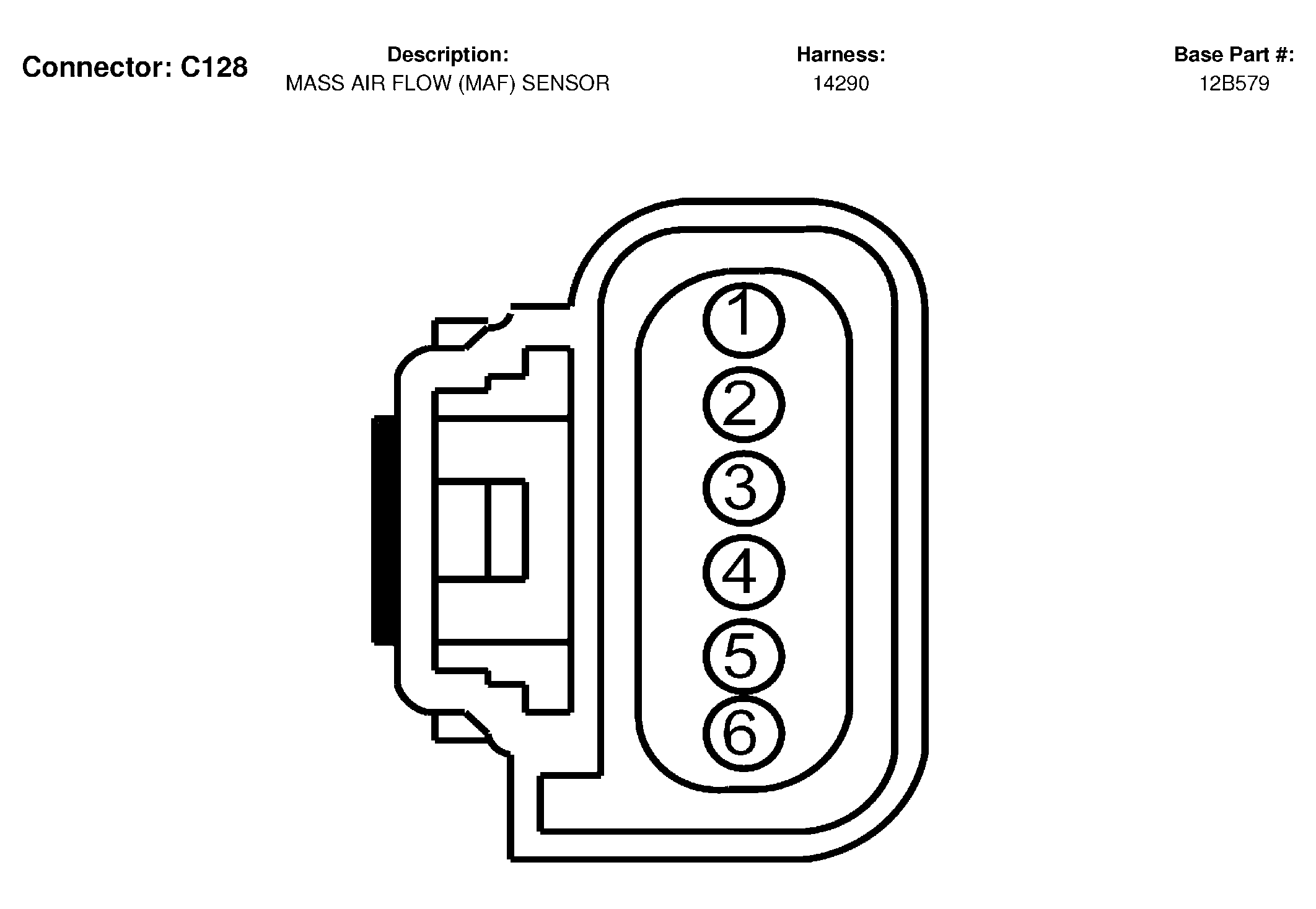

Fig 20: Mass Air Flow (MAF) Sensor Connector End View (C128)

Courtesy of FORD MOTOR CO.

C128 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	743 (GY)	20	Intake Air Temperature (IAT) sensor signal
2	359 (GY-RD)	20	Signal return
3	967 (LB-RD) 20	20	Mass Air Flow (MAF) sensor, signal
4	968 (TN-LB)	20	Mass Air Flow (MAF) sensor, signal return
5	570 (BK-WH)	20	Ground
6	361 (RD)	20	Voltage supplied in Start and Run (overload protected)

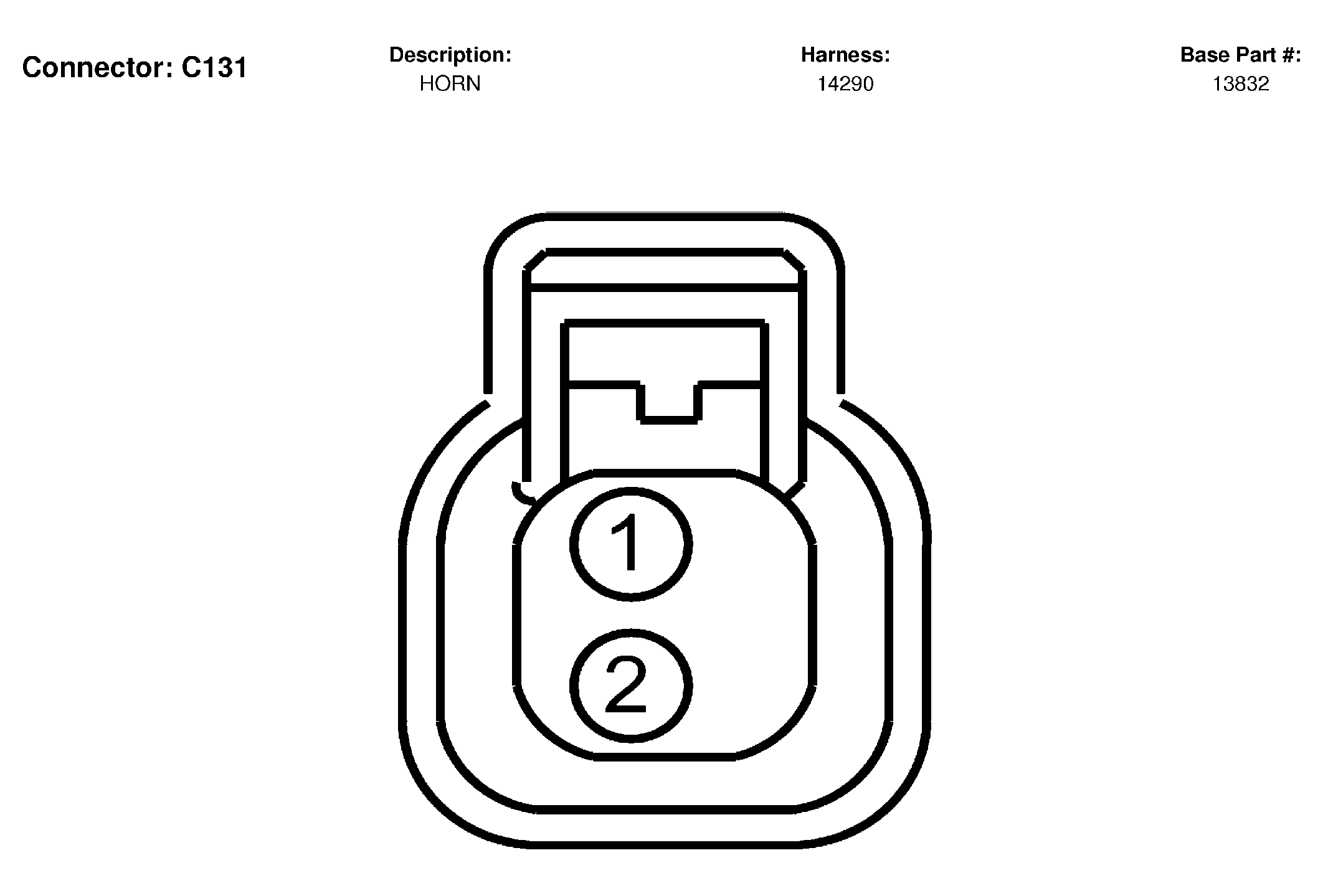

Fig 21: Horn Connector End View (C131)

Courtesy of FORD MOTOR CO.

C131 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	18	Ground
2	6 (YE-LG)	18	Horn relay output

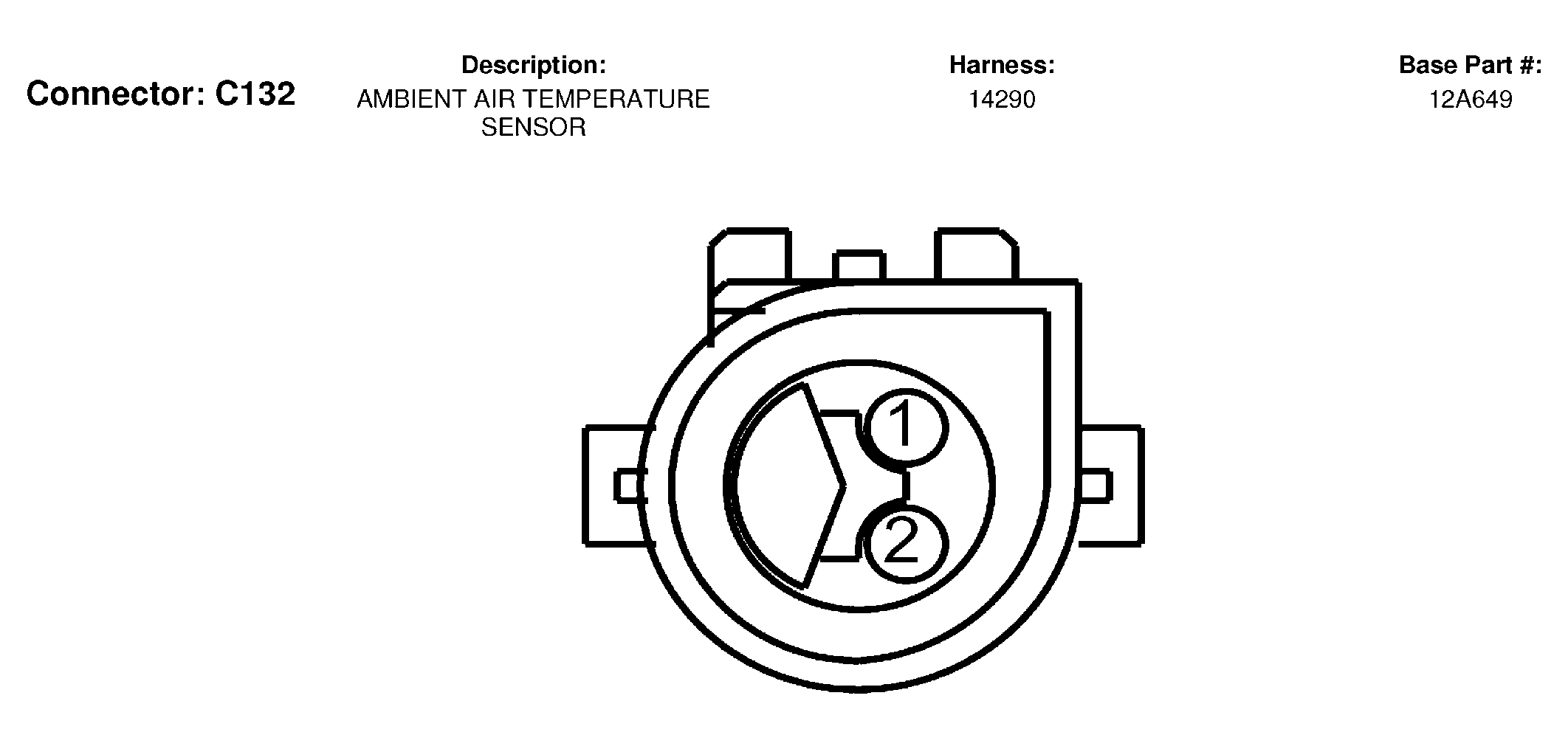

Fig 22: Ambient Air Temperature Sensor Connector End View (C132)

Courtesy of FORD MOTOR CO.

C132 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
13	061 (LB-OG)	20	Ambient air temperature sensor signal
2	3059 (YE-LG)	20	Signal return

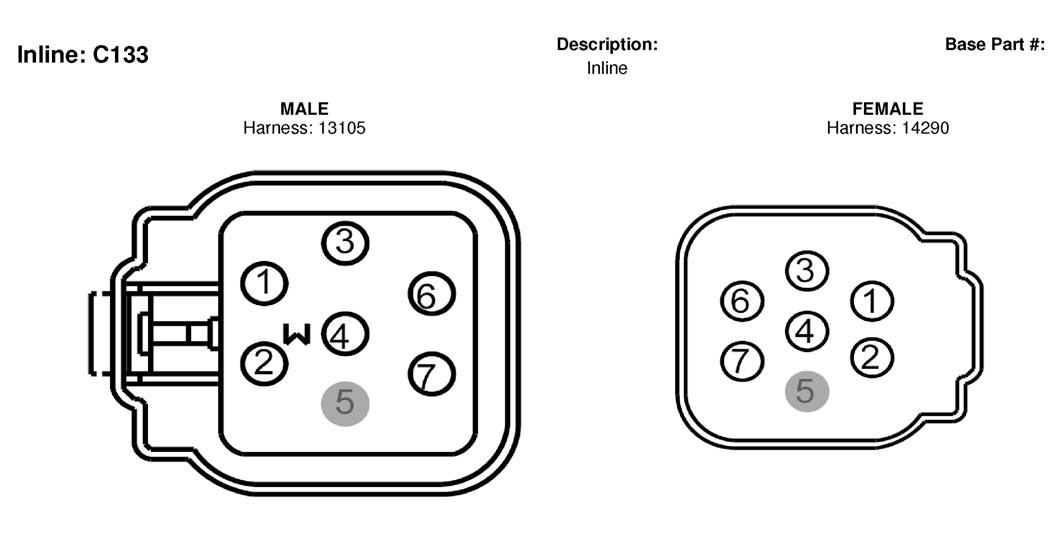

Fig 23: Inline Connector End View (C133)

Courtesy of FORD MOTOR CO.

C133 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1337 (VT-YE)	16	14290
1	1335 (YE-WH)	20	13105
2	160 (DB-WH)	20	14290
2	161 (DG-OG)	16	13105 w/o HID
2	161 (DG-OG)	20	13105 with HID
3	380 (PK-YE)	16	14290
3	379 (BR-WH)	20	13105
4	57 (BK)	16
5	*	*
6	14 (BR)	20
7	3 (LG-WH)	16	14290
7	2 (WH-LB)	20	13105

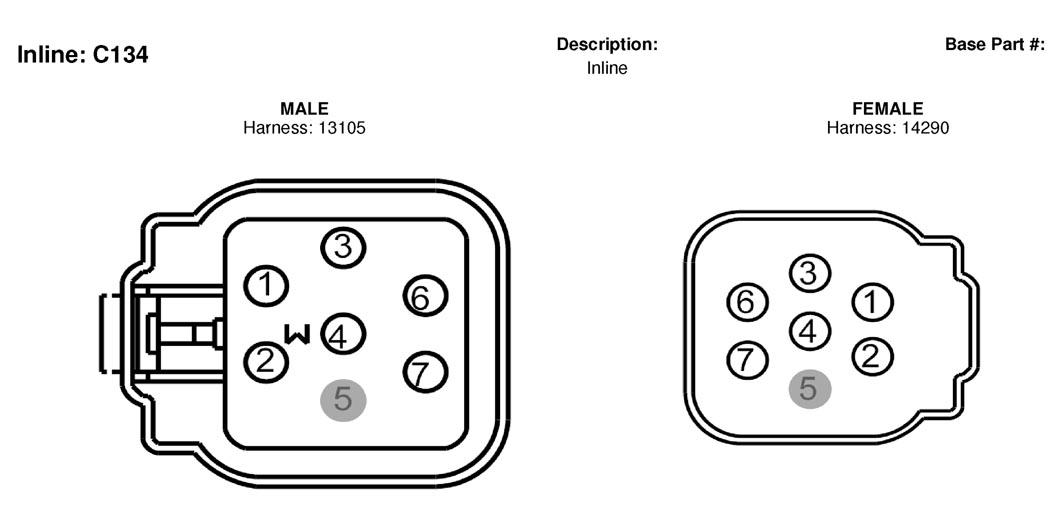

Fig 24: Inline Connector End View (C134)

Courtesy of FORD MOTOR CO.

C134 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1335 (YE-WH)	20
2	161 (DG-OG)	16	13105 w/o HID
2	161 (DG-OG)	20	13105 with HID
2	161 (DG-OG)	20	14290
3	379 (BR-WH)	20	13105
3	379 (BR-WH)	16	14290
4	57 (BK)	16
5	*	*
6	14 (BR)	20
7	2 (WH-LB)	20

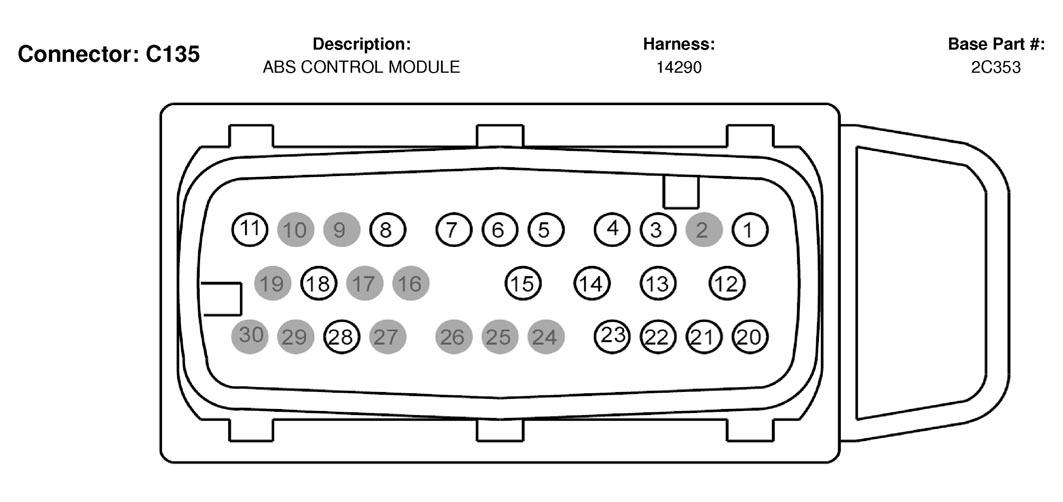

Fig 25: ABS Control Module Connector End View (C135)

Courtesy of FORD MOTOR CO.

C135 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	523 (RD-PK)	20	Wheel speed sensor, right rear -
2	*	*	not used
3	524 (PK-BK)	20	Wheel speed sensor, right rear +
4	514 (YE-RD)	20	Wheel speed sensor, right front -
5	516 (YE-BK)	20	Wheel speed sensor, right front +
6	1651 (WH-RD)	20	Brake pedal position switch signal
7	409 (TN-BK)	20	Brake fluid level switch signal
8	88 (BK-WH)	20	Voltage supplied in Run (overload protected)
9	*	*	not used
10	*	*	not used
11	959 (GY)	20	Traction control switch, On/Off signal
12	57 (BK)	12	Ground
13	601 (LB-PK)	12	Voltage supplied at all times (overload protected)
14	483 (RD)	14	Voltage supplied at all times (overload protected)
15	57 (BK)	12	Ground
16	*	*	not used
17	*	*	not used
18	1827 (WH-LG)	20	HS CAN +
19	*	*	not used
20	521 (TN-OG)	20	Wheel speed sensor, left front -
21	522 (TN-BK)	20	Wheel speed sensor, left front +
22	518 (LG-RD)	20	Wheel speed sensor, left rear -
23	519 (LG-BK)	20	Wheel speed sensor, left rear +
24	*	*	not used
25	*	*	not used
26	*	*	not used
27	*	*	not used
28	1828 (PK-LG)	20	HS CAN -
29	*	*	not used
30	*	*	not used

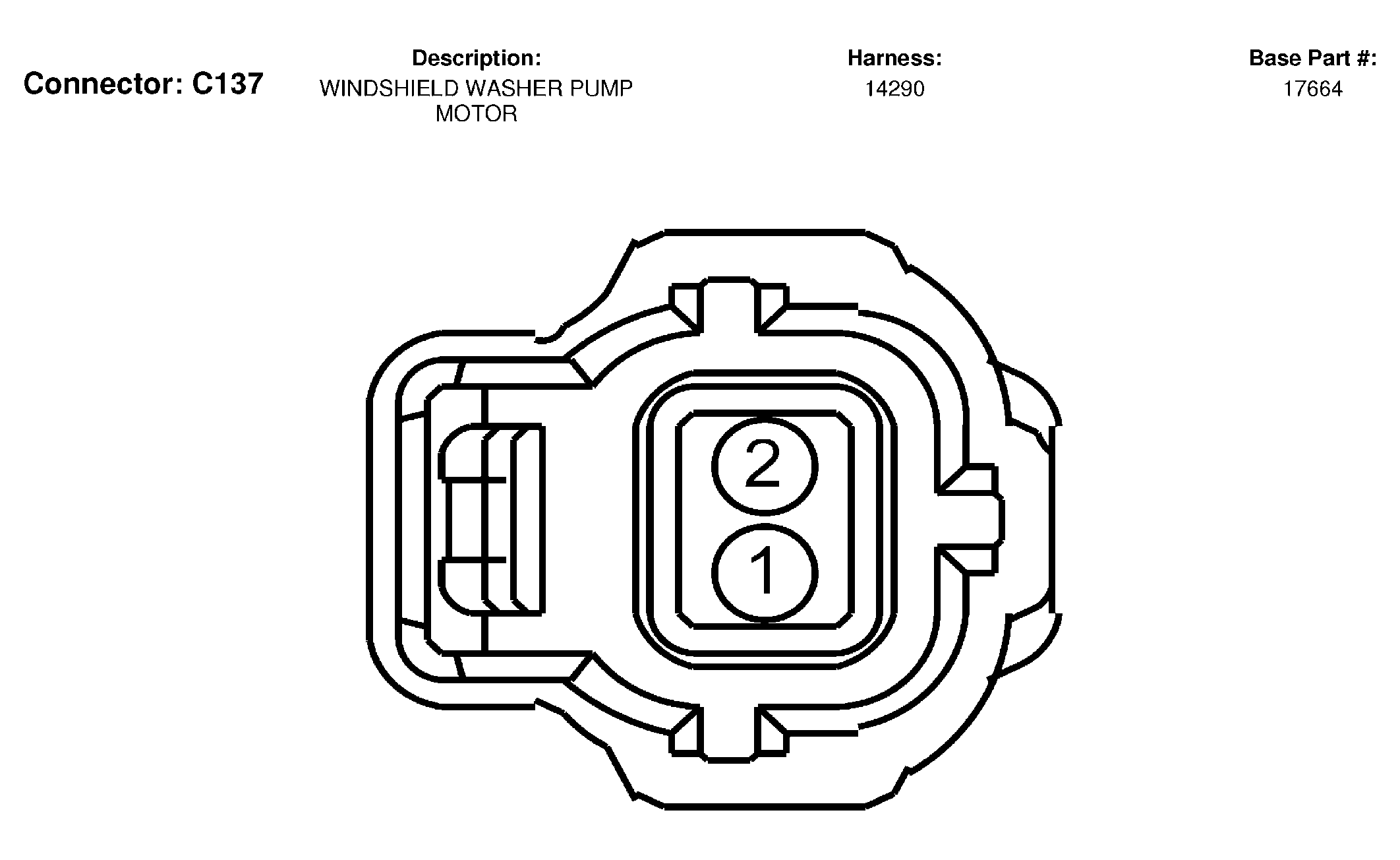

Fig 26: Windshield Washer Pump Motor Connector End View (C137)

Courtesy of FORD MOTOR CO.

C137 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	941 (BK-WH)	14	Windshield washer pump motor, feed
2	57 (BK)	14	Ground

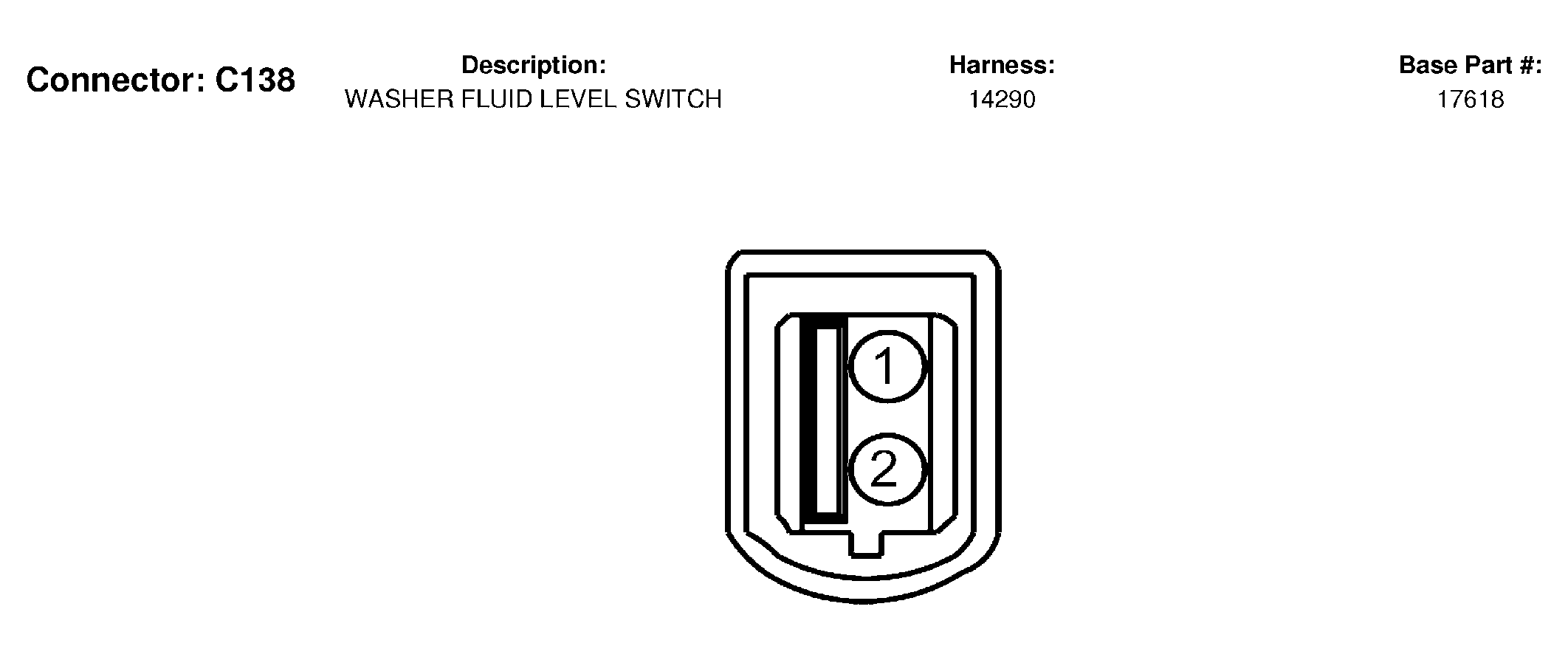

Fig 27: Washer Fluid Level Switch Connector End View (C138)

Courtesy of FORD MOTOR CO.

C138 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	82 (PK-YE)	20	Low washer fluid indicator control
2	57 (BK)	20	Ground

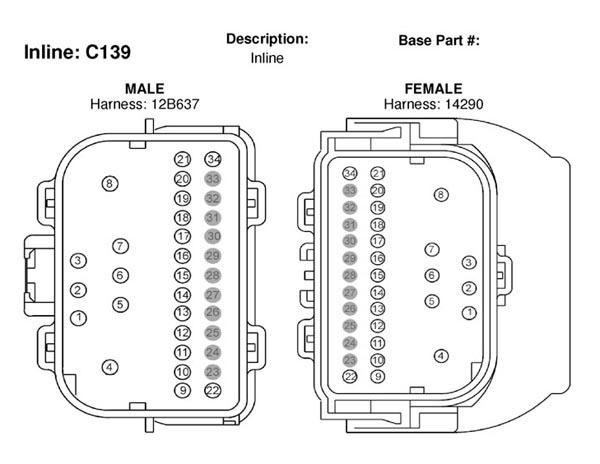

Fig 28: Inline Connector End View (C139)

Courtesy of FORD MOTOR CO.

C139 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	262 (BR-PK)	20
2	883 (PK-LB)	20
3	348 (RD-VT)	20	12B637
3	1040 (RD-BK)	20	14290
4	1789 (VT-WH)	20	12B637
4	1789 (VT-WH)	18	14290
5	39 (RD-WH)	20	12B637
5	*	*	14290
6	676 (PK-OG)	20	12B637
6	*	*	14290
7	88 (BK-WH)	20
8	140 (BK-PK)	20	12B637
8	140 (BK-PK)	14	14290
9	915 (PK-LB)	20
10	29 (RD-WH)	20	12B637
10	*	*	14290
11	911 (WH-LG)	20	12B637
11	*	*	14290
12	1269 (OG-RD)	20
13	658 (PK-LG)	20	12B637
13	*	*	14290
14	1907 (WH-LG)	20	12B637
14	*	*	14290
15	679 (GY-BK)	20
16	584 (YE)	20
17	1270 (OG-RD)	20	12B637
17	*	*	14290
18	75 (DG-LG)	20
19	229 (RD-OG)	20
20	191 (LG-BK)	20
21	1154 (WH-BK)	20
22	914 (TN-OG)	20
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	*	*
34	203 (OG-LB)	20	12B637
34	*	*	14290

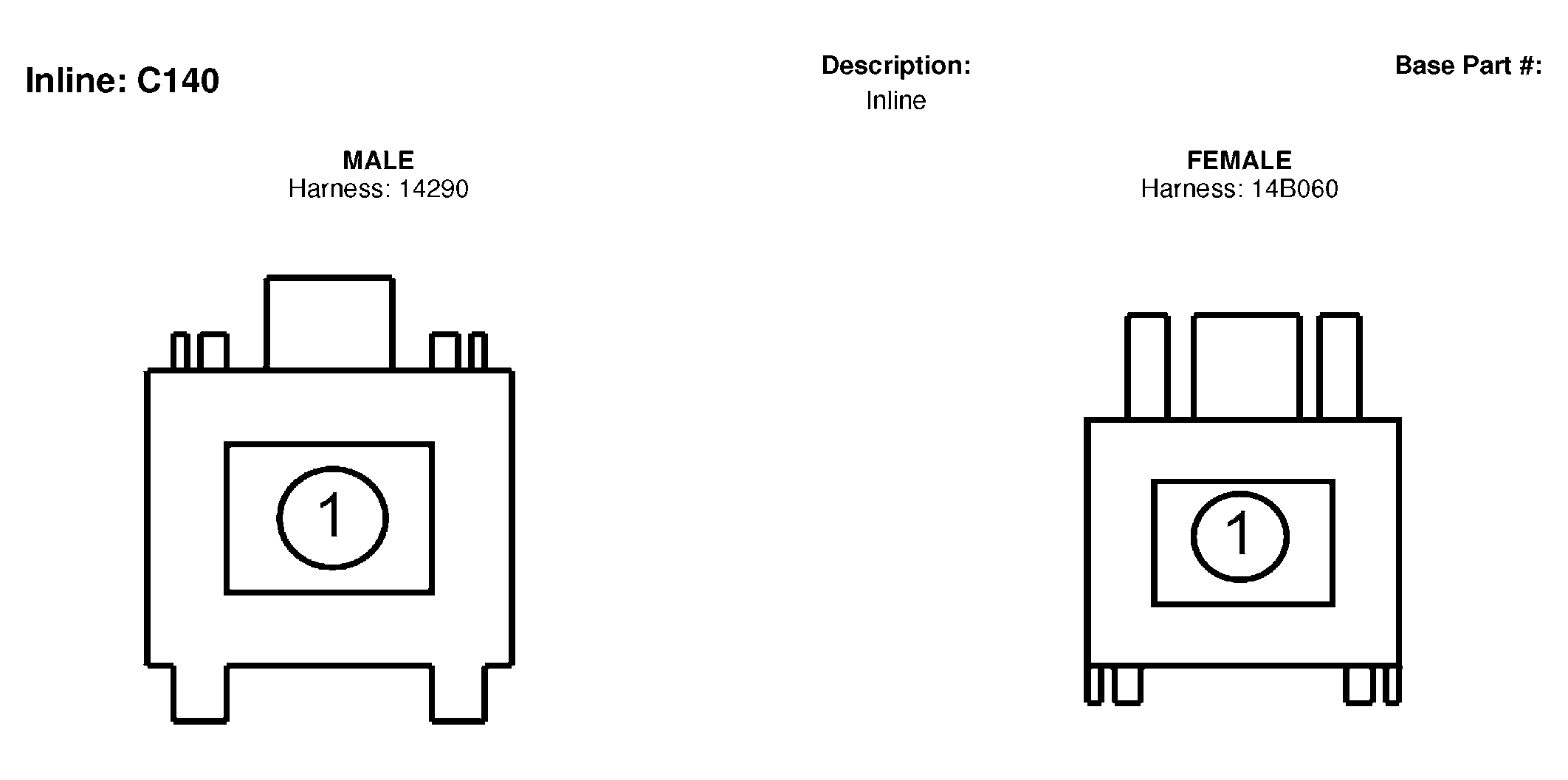

Fig 29: Inline Connector End View (C140)

Courtesy of FORD MOTOR CO.

C140 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	113 (YE-LB)	12

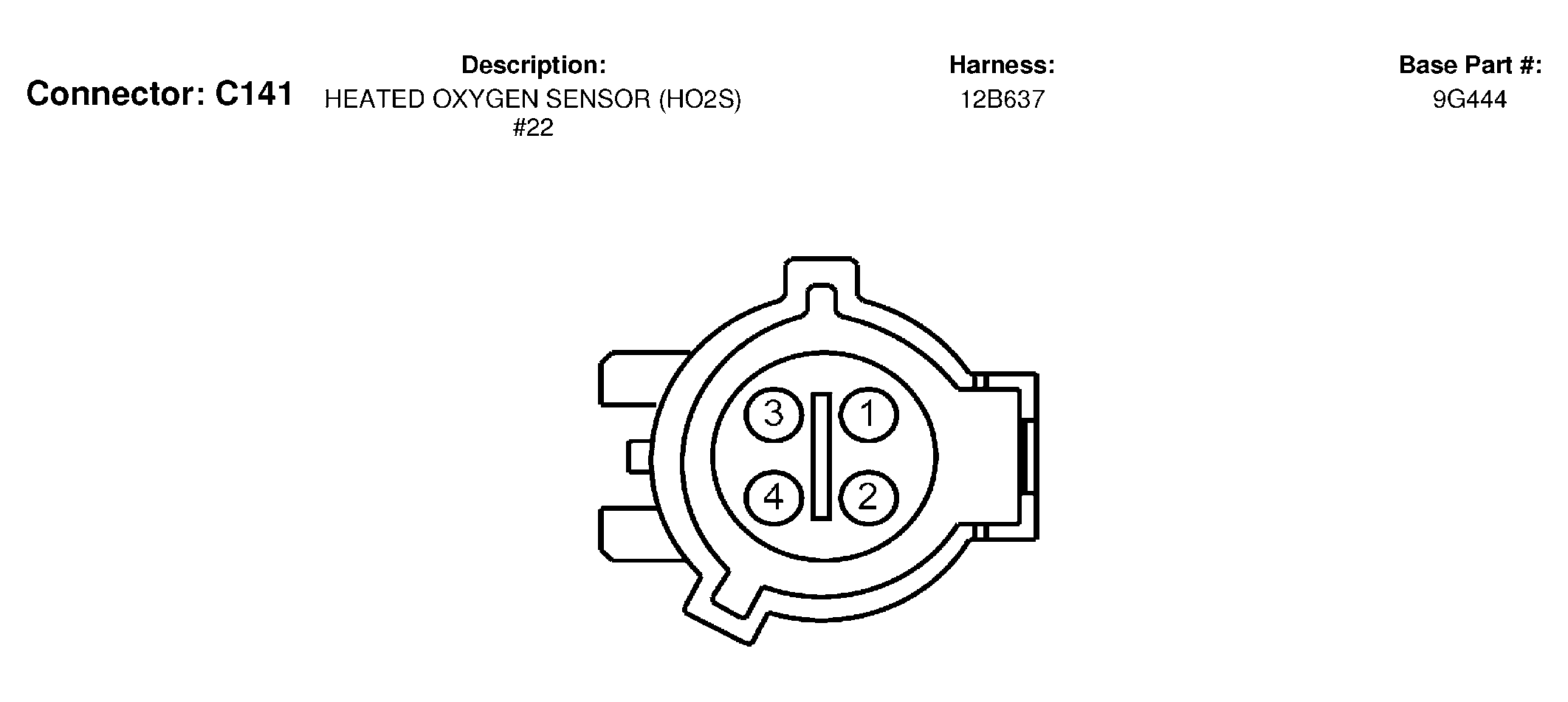

Fig 30: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

Courtesy of FORD MOTOR CO.

Pin: 2 - 391(RD-YE) - Voltage supplied in Start and Run (overload protected), Gauge: 20

C141 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	390 (TN-YE)	18	Heated Oxygen Sensor (HO2S) #22, heater
2	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
3	393 (VT-LG)	18	Heated Oxygen Sensor (HO2S) #22 signal
4	359 (GY-RD)	20	Signal return

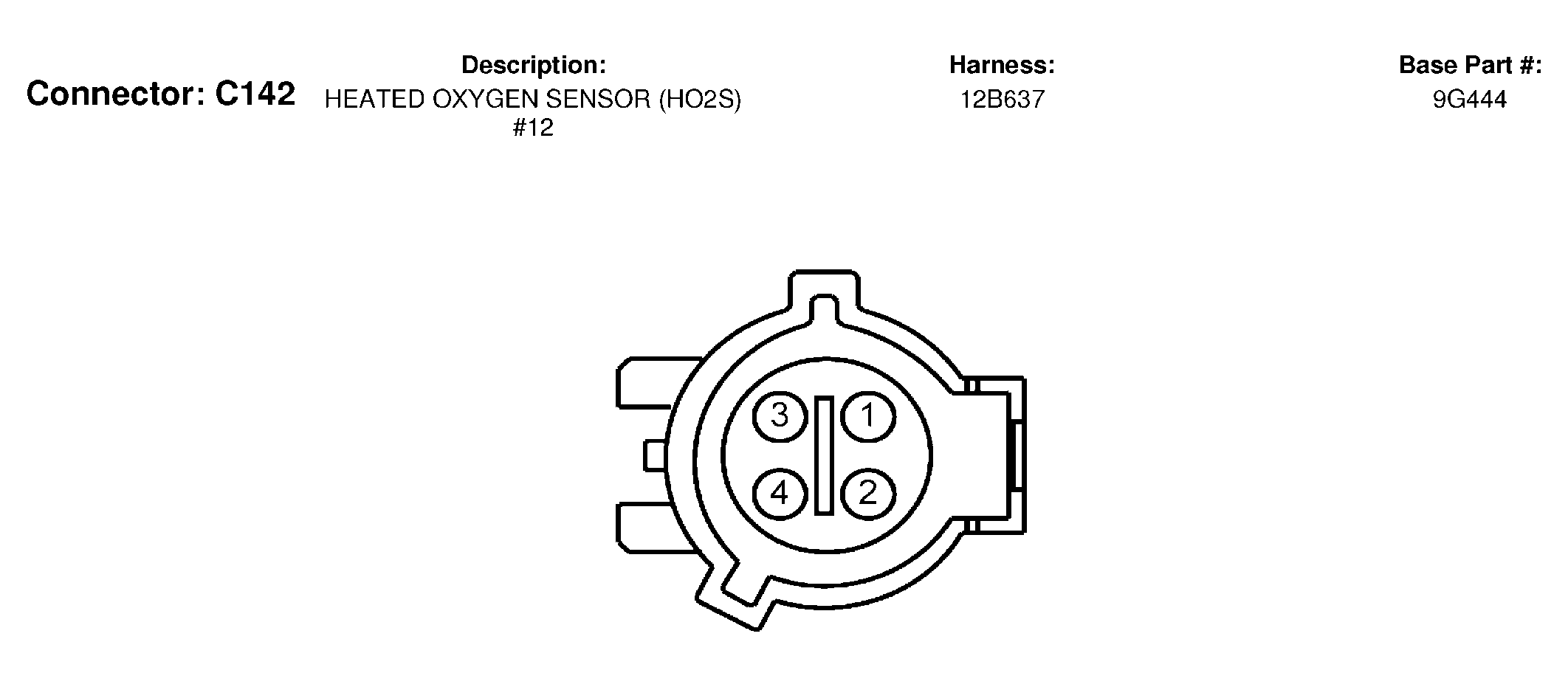

Fig 31: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

Courtesy of FORD MOTOR CO.

C142 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	389 (WH-BK)	18	Heated Oxygen Sensor (HO2S) #12, heater
2	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
3	392 (RD-LG)	18	Heated Oxygen Sensor (HO2S) #12 signal
4	359 (GY-RD)	20	Signal return

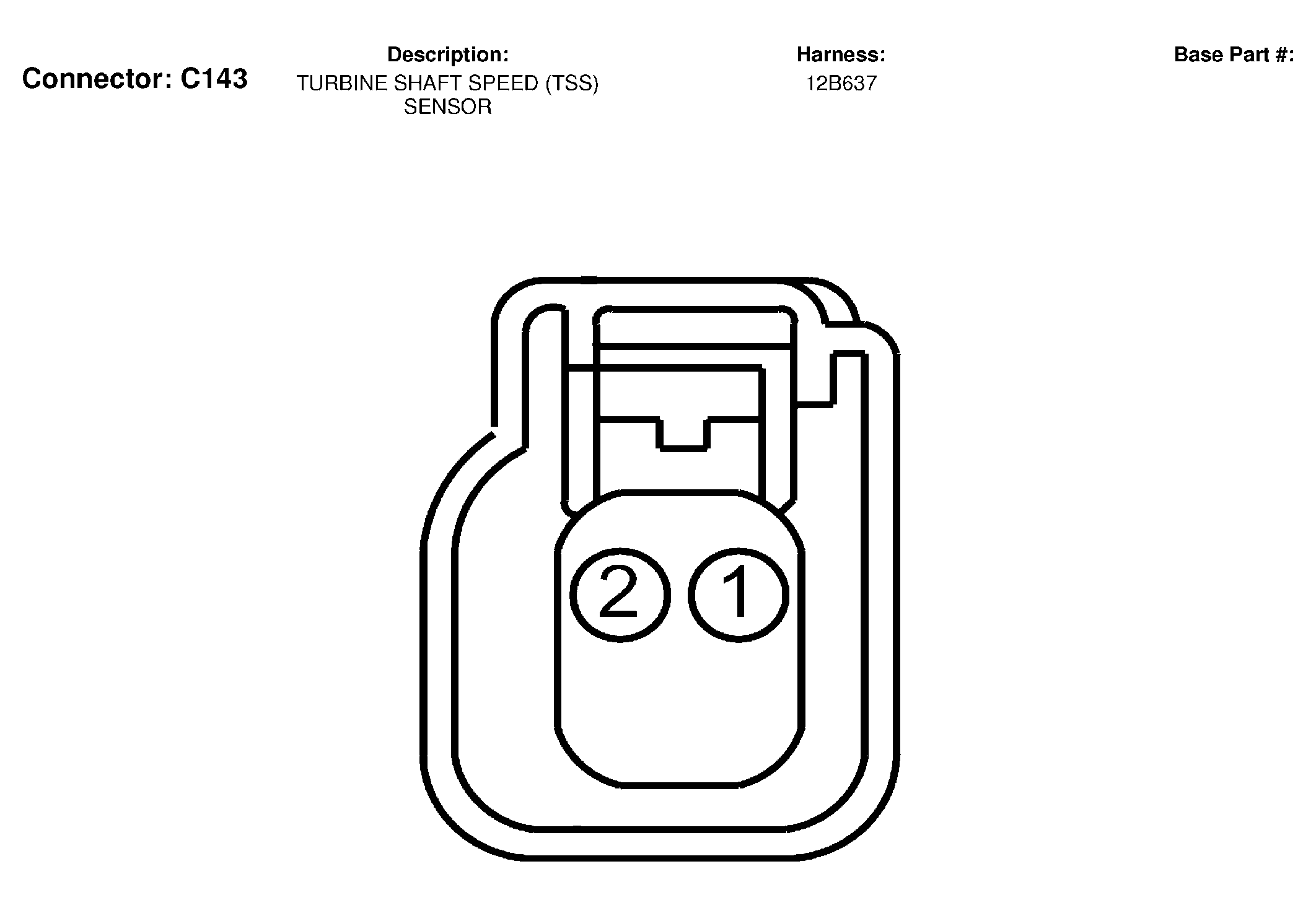

Fig 32: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)

Courtesy of FORD MOTOR CO.

C143 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	970 (DG-WH)	20	Turbine shaft speed (TSS) sensor signal
2	359 (GY-RD)	20	Signal return

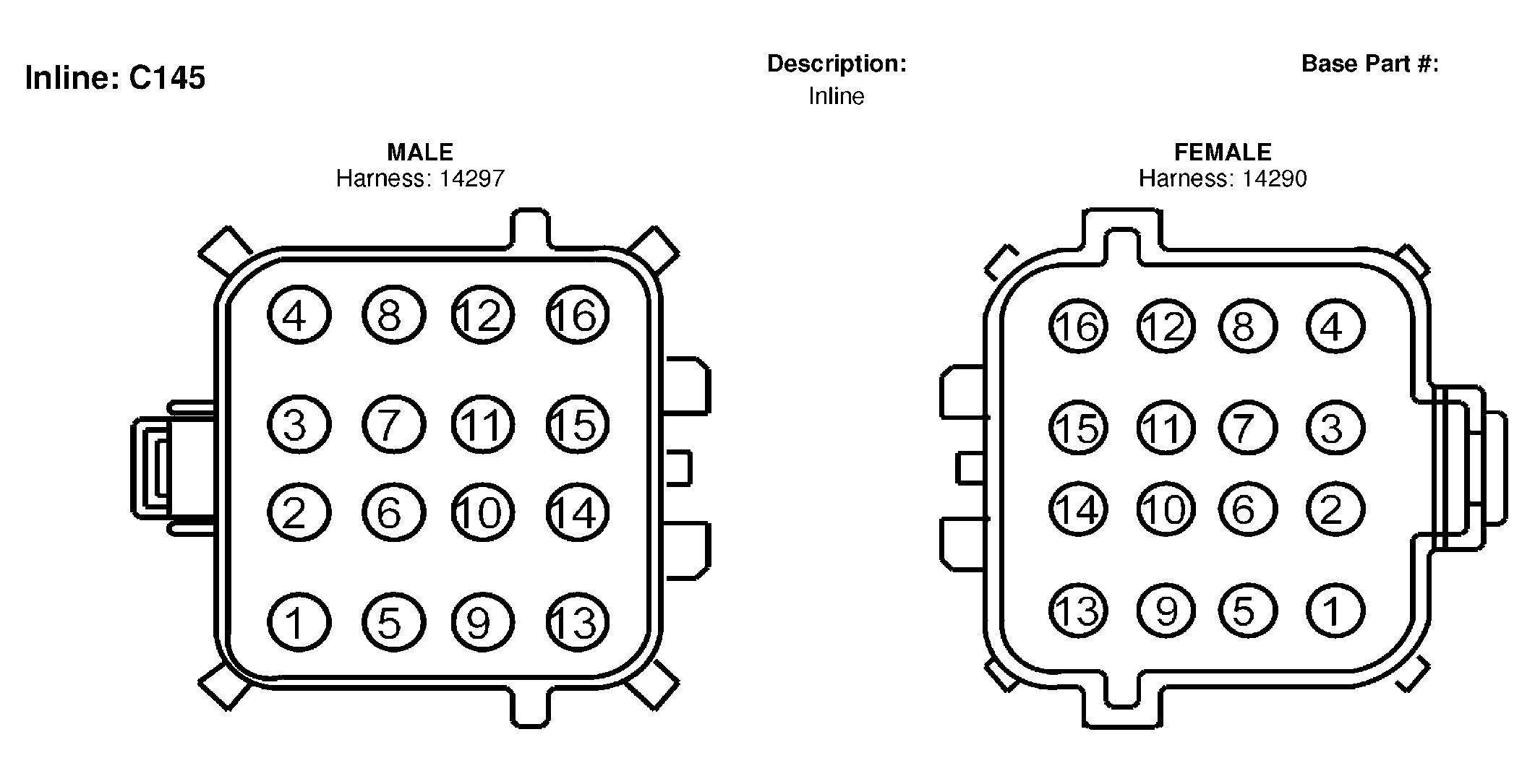

Fig 33: Inline Connector End View (C145)

Courtesy of FORD MOTOR CO.

C145 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	2025 (RD-YE)	14
2	28 (BK-PK)	20	14297
2	28 (BK-PK)	14	14290
3	57 (BK)	14
4	*	*
5	676 (PK-OG)	20	14297
5	676 (PK-OG)	14	14290
6	58 (WH)	20
7	*	*
8	*	*
9	941 (BK-WH)	14
10	680 (LB-OG)	20
11	*	*
12	*	*
13	65 (DG)	20
14	61 (YE-RD)	20
15	56 (DB-OG)	20
16	63 (RD)	20

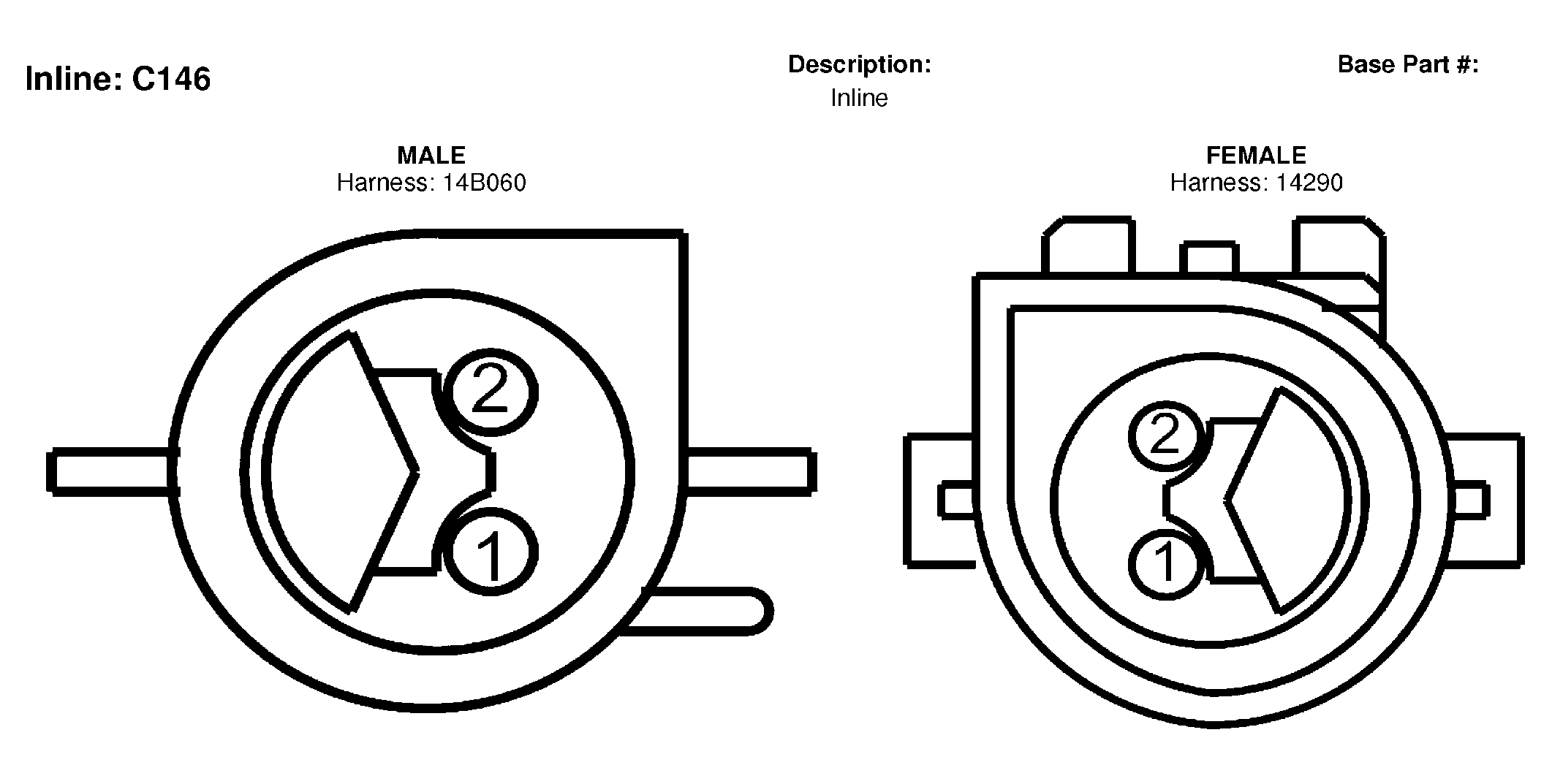

Fig 34: Inline Connector End View (C146)

Courtesy of FORD MOTOR CO.

C146 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	113 (YE-LB)	12
2	*	*

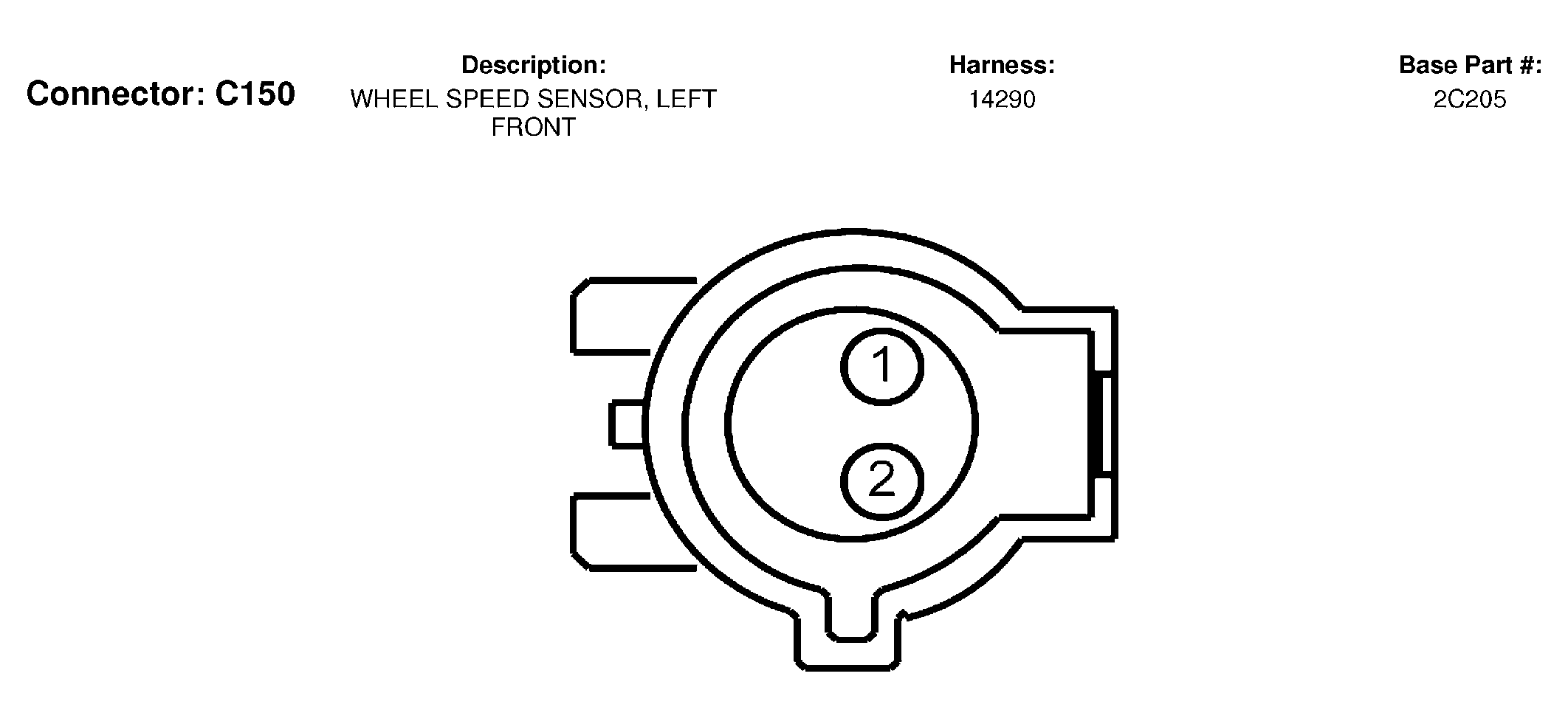

Fig 35: Wheel Speed Sensor, Left Front Connector End View (C150)

Courtesy of FORD MOTOR CO.

C150 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	521 (TN-OG)	20	Wheel speed sensor, left front -
2	522 (TN-BK)	20	Wheel speed sensor, left front +

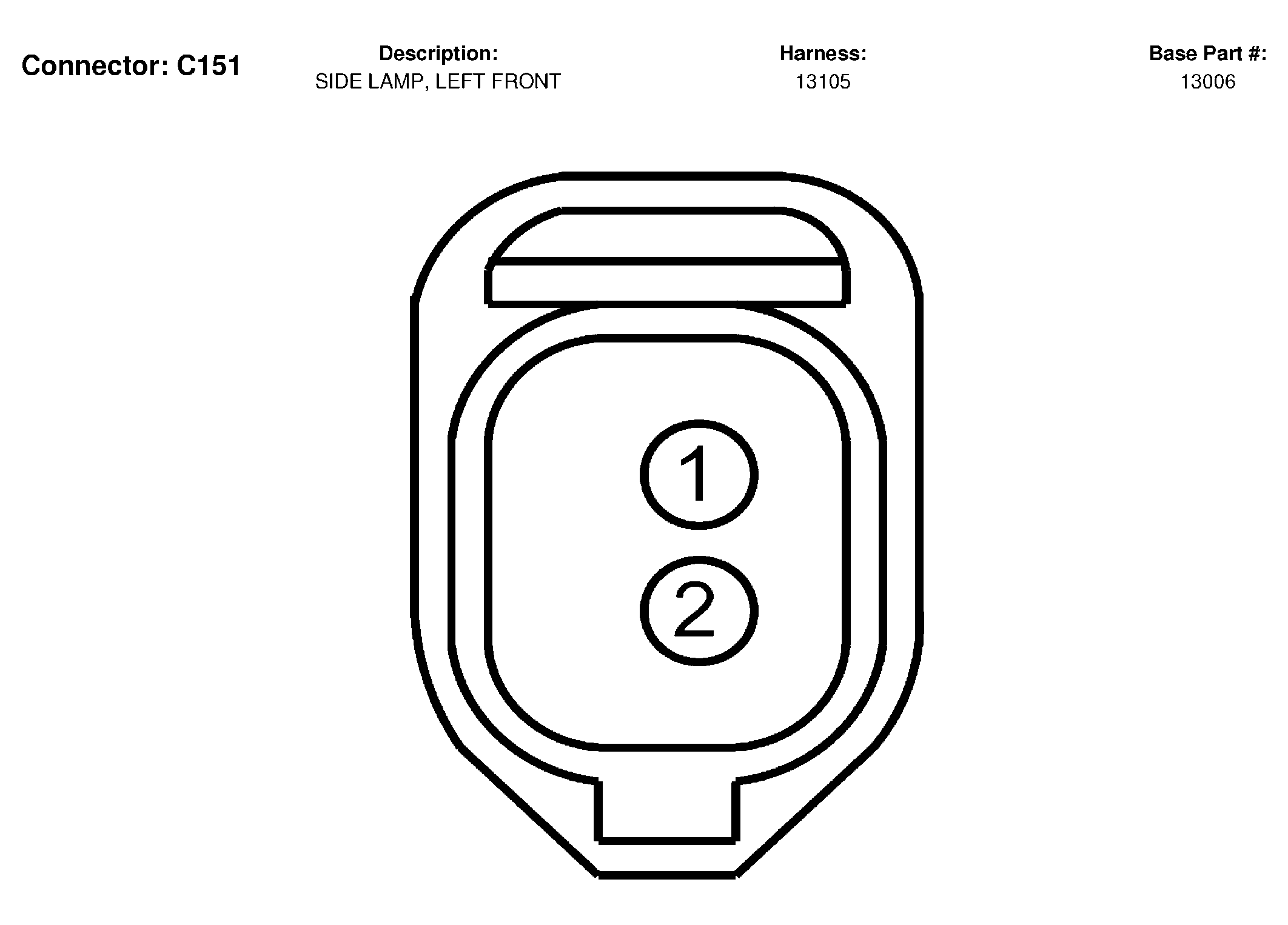

Fig 36: Side Lamp, Left Front Connector End View (C151)

Courtesy of FORD MOTOR CO.

C151 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps

Fig 37: Wheel Speed Sensor, Right Front Connector End View (C160)

Courtesy of FORD MOTOR CO.

C160 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	514 (YE-RD)	20	Wheel speed sensor, right front -
2	516 (YE-BK)	20	Wheel speed sensor, right front +

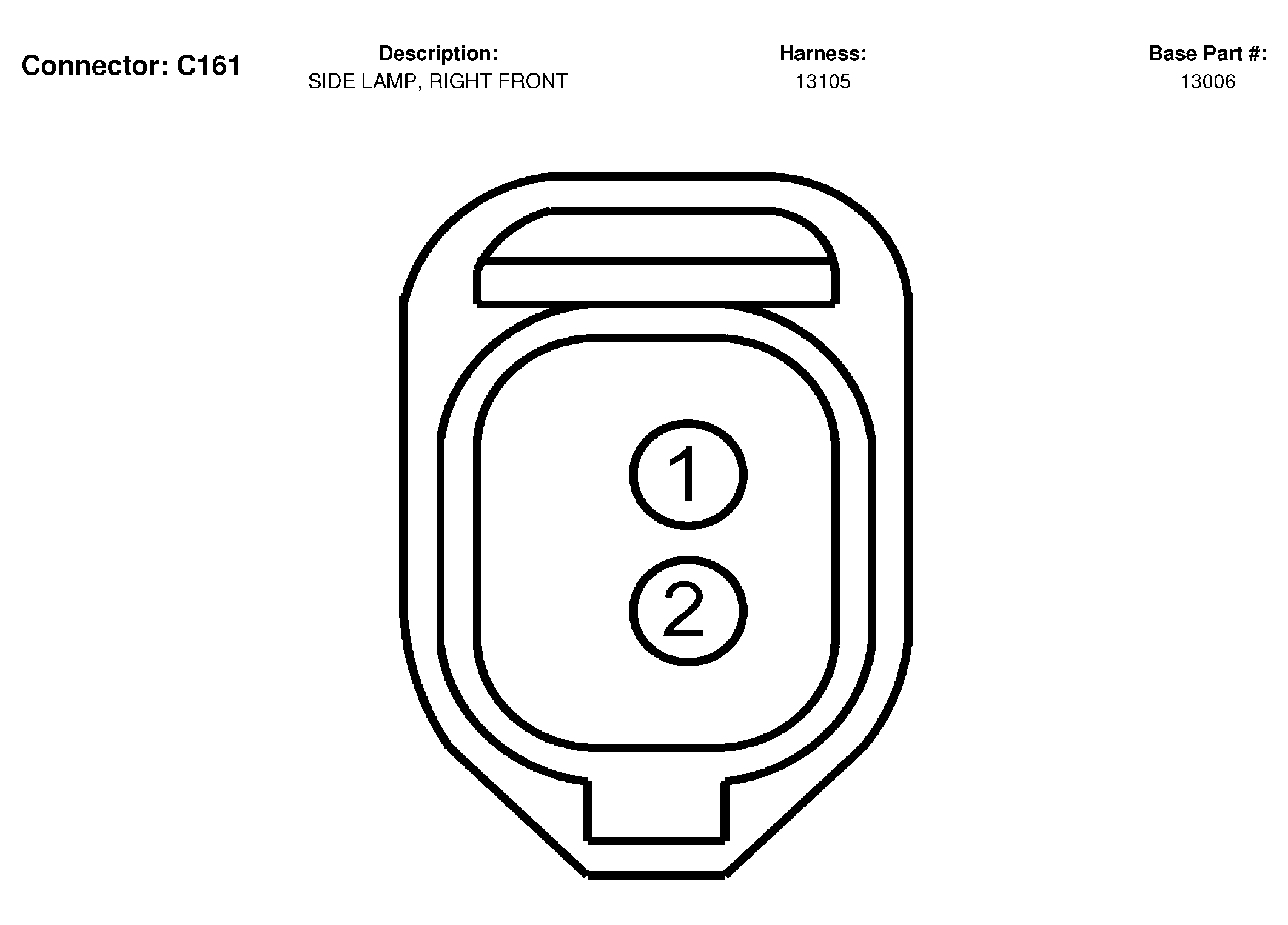

Fig 38: Side Lamp, Right Front Connector End View (C161)

Courtesy of FORD MOTOR CO.

C161 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps

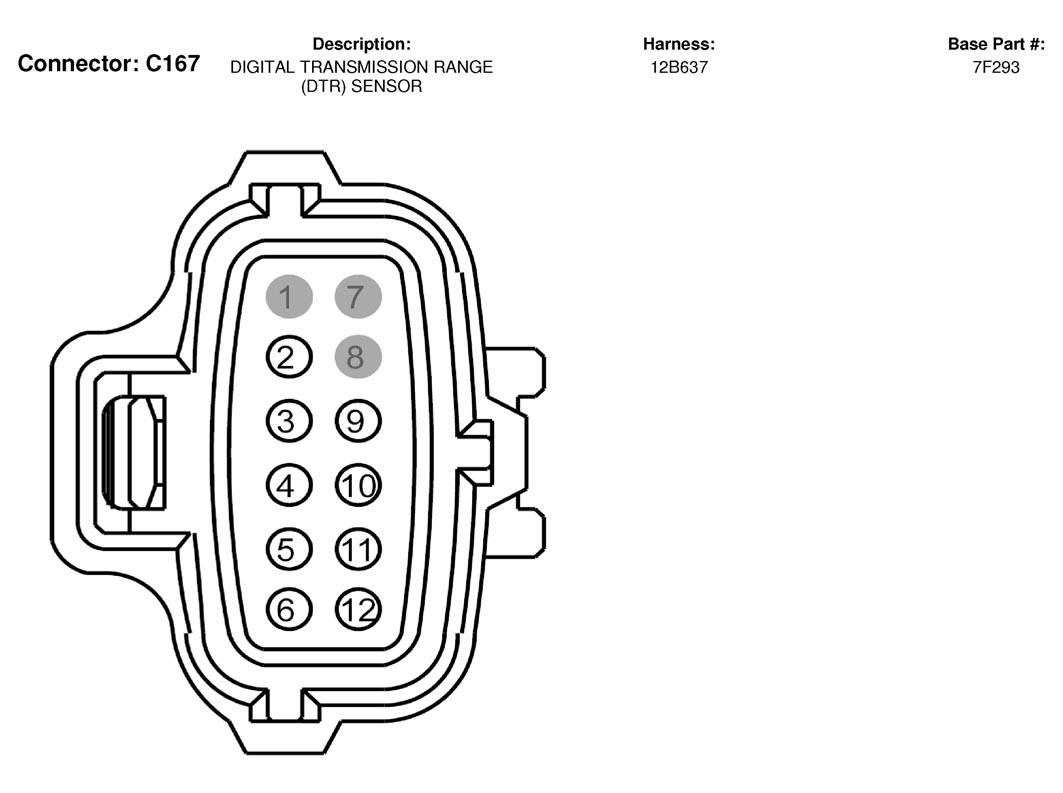

Fig 39: Digital Transmission Range (DTR) Sensor Connector End View (C167)

Courtesy of FORD MOTOR CO.

C167 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	359 (GY-RD)	20	Signal return
3	1268 (RD-BK)	20	Digital Transmission Range (DTR) sensor, TR3A
4	1144 (YE-BK)	20	Digital Transmission Range (DTR) sensor, TR1
5	1145 (LB-BK)	20	Digital Transmission Range (DTR) sensor, TR2
6	1143 (WH-BK)	20	Digital Transmission Range (DTR) sensor, TR4
7	*	*	not used
8	*	*	not used
9	1789 (VT-WH)	20	Voltage supplied in Start and Run (overload protected)
10	33 (WH-PK)	20	Power, Hot in Start with Park or Neutral
11	140 (BK-PK)	20	Voltage supplied in reverse
12	262 (BR-PK)	20	Voltage supplied in Start (overload protected)

Fig 40: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

Courtesy of FORD MOTOR CO.

C171 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	387 (RD-WH)	18	Heated Oxygen Sensor (HO2S) #11, heater
2	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
3	74 (GY-LB)	18	Heated Oxygen Sensor (HO2S) #11 signal
4	359 (GY-RD)	20	Signal return

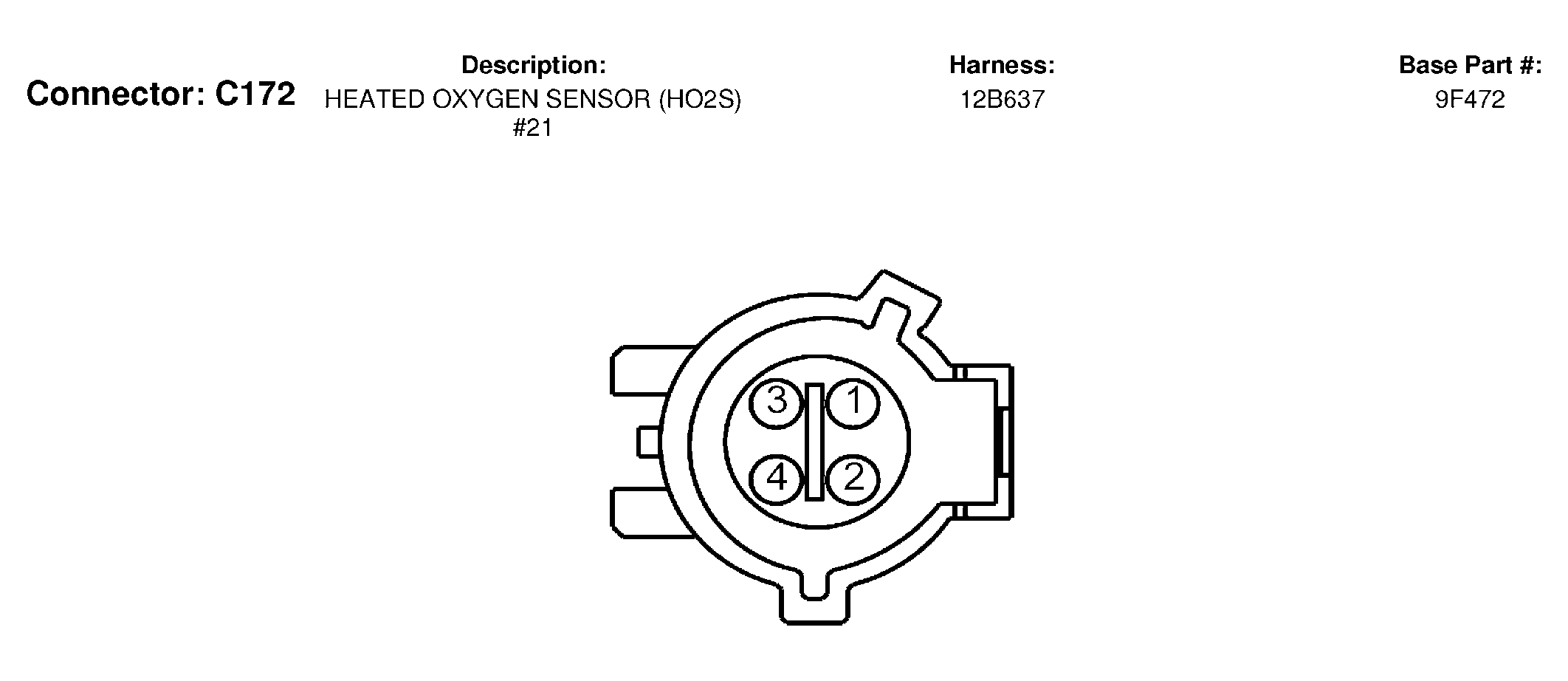

Fig 41: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

Courtesy of FORD MOTOR CO.

C172 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	388 (YE-LB)	18	Heated Oxygen Sensor (HO2S) #21, heater
2	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
3	94 (RD-BK)	18	Heated Oxygen Sensor (HO2S) #21 signal
4	359 (GY-RD)	20	Signal return

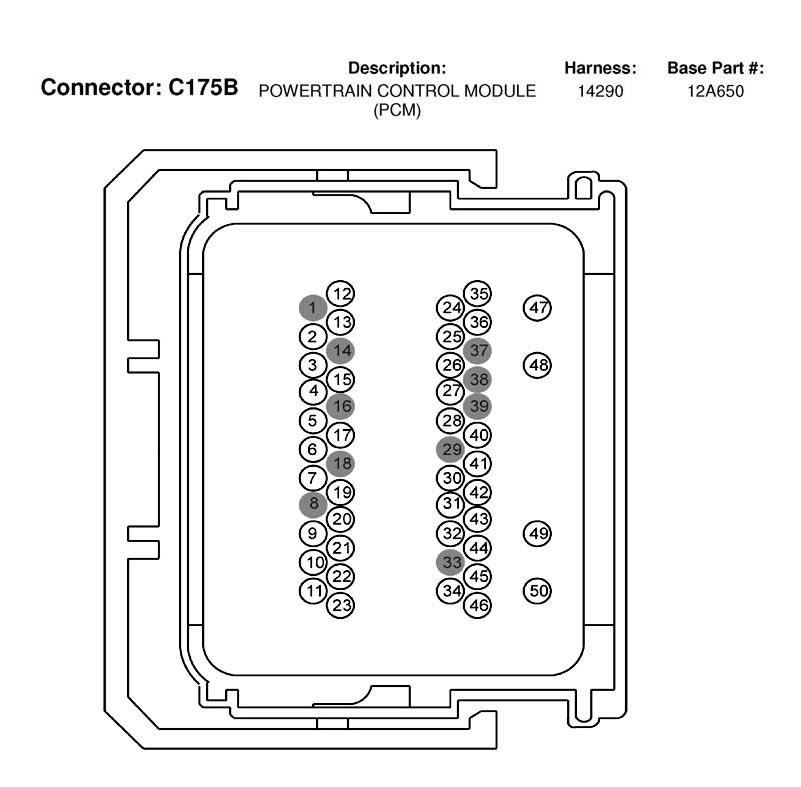

Fig 42: Powertrain Control Module (PCM) Connector End View (C175B)

Courtesy of FORD MOTOR CO.

C175B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	3405 (GY-RD)	20	Starter relay control
3	883 (PK-LB)	20	Low charge protection switch signal
4	3093 (WH-LB)	20	Electronic throttle control, VREF 1
5	1283 (TN-YE)	20	Accelerator pedal position 1 signal
6	1284 (TN-WH)	20	Electronic throttle control, signal return
7	636 (OG)	20	Deactivator switch signal
8	*	*	not used
9	791 (RD-PK)	20	Fuel tank pressure transducer sensor signal
10	57 (BK)	18	Ground
11	1827 (WH-LG)	20	HS CAN +
12	926 (LB-OG)	20	Modulated fuel pump signal
13	91 (VT-WH)	20	EVAP canister vent control solenoid control
14	*	*	not used
15	3062 (BK-WH)	20	Evaporator discharge air temperature sensor signal
16	*	*	not used
17	3012 (WH)	20	Accelerator pedal position 2 signal
18	*	*	not used
19	151 (LB-BK)	20	Speed control switch reference voltage
20	1799 (YE-BK)	20	RDI/VEMS signal
21	238 (DG-YE)	20	Fuel pump monitor
22	1215 (WH-LG)	20	TX signal
23	1828 (PK-LG)	20	HS CAN -
24	3091 (LB-BK)	20	Electronic throttle control, VREF 2
25	73 (OG-LB)	20	A/C clutch relay control
26	743 (GY)	20	Intake Air Temperature (IAT) sensor signal
27	224 (TN-WH)	20	Transmission control switch signal
28	3015 (WH-RD)	20	Accelerator pedal position 3 signal
29	*	*	not used
30	848 (DG-OG)	20	Speed control switch, Signal return
31	1154 (WH-BK)	20	A/C pressure transducer sensor signal
32	967 (LB-RD)	20	Mass Air Flow (MAF) sensor, signal
33	*	*	not used
34	191 (LG-BK)	20	Vapor management valve control
35	361 (RD)	20	Voltage supplied in Start and Run (overload protected)
36	361 (RD)	20	Voltage supplied in Start and Run (overload protected)
37	*	*	not used
38	*	*	not used
39	*	*	not used
40	351 (BR-WH)	20	Reference voltage
41	359 (GY-RD)	20	Signal return
42	1216 (GY-OG)	20	RX signal
43	968 (TN-LB)	20	Mass Air Flow (MAF) sensor, signal return
44	107 (VT)	20	Flash/EEPROM power supply
45	729 (RD-WH)	20	Voltage supplied at all times (overload protected)
46	330 (YE-LG)	20	Power steering pressure switch signal
47	570 (BK-WH)	18	Ground
48	570 (BK-WH)	18	Ground
49	570 (BK-WH)	18	Ground
50	570 (BK-WH)	18	Ground

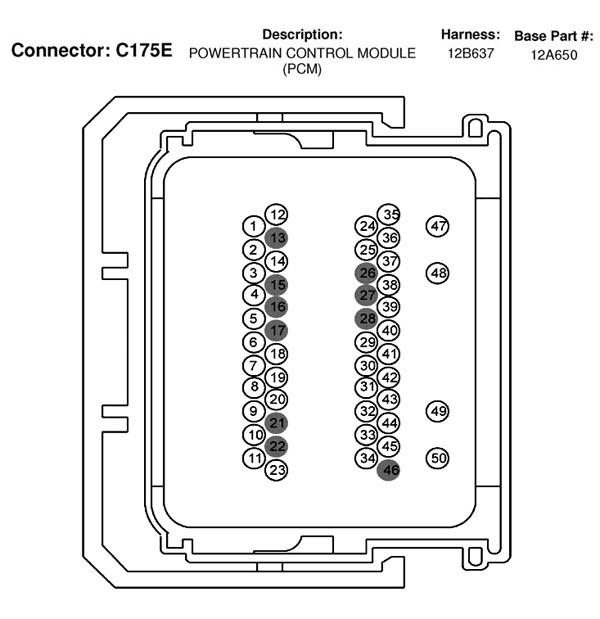

Fig 43: Powertrain Control Module (PCM) Connector End View (C175E)

Courtesy of FORD MOTOR CO.

C175E CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1024 (LG-WH)	20	Coil On Plug (COP) 1, control
2	555 (TN)	20	Fuel injector 1, control
3	556 (WH)	20	Fuel injector 2, control
4	557 (BR-YE)	20	Fuel injector 3, control
5	558 (BR-LB)	20	Fuel injector 4, control
6	360 (BR-PK)	20	EVR solenoid signal
7	1858 (PK-OG)	20	Throttle position sensors, signal return
8	559 (TN-BK)	20	Fuel injector 5, control
9	560 (LG-OG)	20	Fuel injector 6, control
10	561 (TN-RD)	20	Fuel injector 7, control
11	562 (LB)	20	Fuel injector 8, control
12	1026 (PK-WH)	20	Coil On Plug (COP) 2, control
13	*	*	not used
14	229 (RD-OG)	20	Engine cooling fan motor control
15	*	*	not used
16	*	*	not used
17	*	*	not used
18	1857 (YE-WH)	20	Throttle position sensors, reference voltage
19	355 (GY-WH)	20	Throttle position sensor 1 signal
20	1273 (YE)	20	Knock sensor -
21	*	*	not used
22	*	*	not used
23	3067 (LB-RD)	20	Manifold Absolute Pressure signal
24	1028 (WH-PK)	20	Coil On Plug (COP) 3, control
25	282 (DB-OG)	20	Camshaft position sensor signal
26	*	*	not used
27	*	*	not used
28	*	*	not used
29	357 (YE-WH)	20	Throttle position sensor 2 signal
30	74 (GY-LB)	18	Heated Oxygen Sensor (HO2S) #11 signal
31	94 (RD-BK)	18	Heated Oxygen Sensor (HO2S) #21 signal
32	310 (YE-RD)	20	Knock sensor +
33	1102 (YE-LG)	20	Cylinder-head temperature sensor signal
34	138 (BK-PK)	20	Crankshaft position sensor +
35	1030 (DG-VT)	20	Coil On Plug (COP) 4, control
36	1164 (LB)	20	Fuel rail temperature signal
37	141 (RD-PK)	20	Fuel rail pressure signal
38	1021 (LG-YE)	20	Coil On Plug (COP) 5, control
39	1025 (OG-YE)	20	Coil On Plug (COP) 6, control
40	351 (BR-WH)	20	Reference voltage
41	359 (GY-RD)	20	Signal return
42	1027 (PK-LB)	20	Coil On Plug (COP) 7, control
43	1029 (WH-RD)	20	Coil On Plug (COP) 8, control
44	352 (BR-LG)	20	Differential Pressure Feedback EGR (DPFE) sensor signal
45	139 (GY-YE)	20	Crankshaft position sensor -
46	*	*	not used
47	1835 (DB-YE)	18	Throttle actuator control motor +
48	1836 (OG-YE)	18	Throttle actuator control motor -
49	387 (RD-WH)	18	Heated Oxygen Sensor (HO2S) #11, heater
50	388 (YE-LB)	18	Heated Oxygen Sensor (HO2S) #21, heater

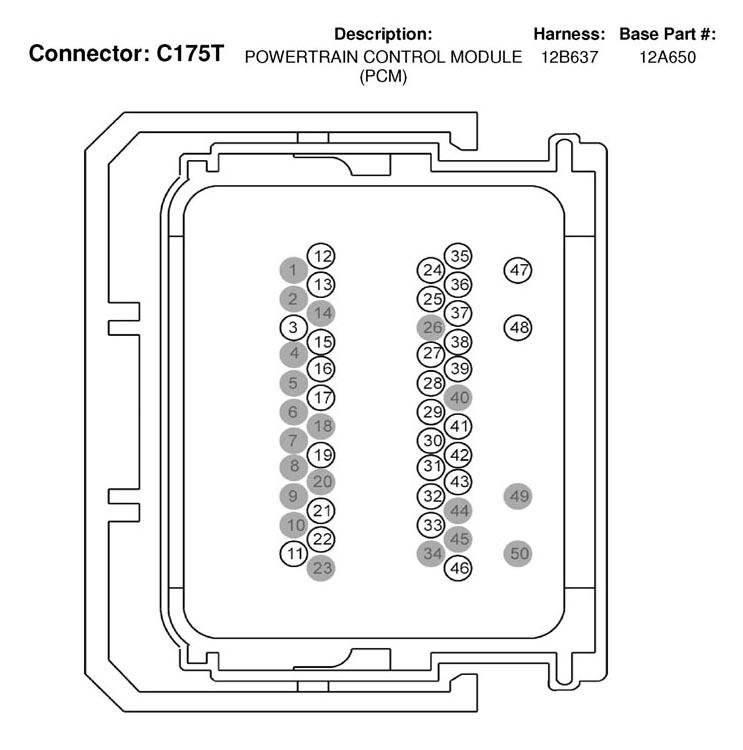

Fig 44: Powertrain Control Module (PCM) Connector End View (C175T)

Courtesy of FORD MOTOR CO.

C175T CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	136 (DB-YE)	20	Output Shaft Speed (OSS) sensor signal
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	925 (WH-YE)	20	Electronic pressure control (EPC) solenoid control
12	1907 (WH-LG)	20	Not Used
13	203 (OG-LB)	20	Not Used
14	*	*	not used
15	970 (DG-WH)	20	Turbine shaft speed (TSS) sensor signal
16	1144 (YE-BK)	20	Digital Transmission Range (DTR) sensor, TR1
17	1145 (LB-BK)	20	Digital Transmission Range (DTR) sensor, TR2
18	*	*	not used
19	1816 (YE-LB)	20	Generator communication
20	*	*	not used
21	75 (DG-LG)	20	Electronic throttle control warning indicator control
22	658 (PK-LG)	20	Not Used
23	*	*	not used
24	392 (RD-LG)	18	Heated Oxygen Sensor (HO2S) #12 signal
25	393 (VT-LG)	18	Heated Oxygen Sensor (HO2S) #22 signal
26	*	*	not used
27	1268 (RD-BK)	20	Digital Transmission Range (DTR) sensor, TR3A
28	1143 (WH-BK)	20	Digital Transmission Range (DTR) sensor, TR4
29	923 (OG-BK)	20	Transmission Fluid Temperature (TFT) sensor signal
30	29 (YE-WH)	20	Not Used
31	911 (WH-LG)	20	Not Used
32	1270 (OG-RD)	20	Not Used
33	1269 (OG-RD)	20	Anti-theft indicator control
34	*	*	not used
35	914 (TN-OG)	20	SCP Bus +
36	915 (PK-LB)	20	SCP Bus -
37	679 (GY-BK)	20	vehicle speed signal
38	1817 (YE)	20	Generator monitor
39	584 (YE)	20	Generator/Battery indicator control
40	*	*	not used
41	359 (GY-RD)	20	Signal return
42	237 (OG-YE)	20	Shift solenoid A control
43	315 (VT-OG)	20	Shift solenoid B
44	*	*	not used
45	*	*	not used
46	126 (VT-YE)	20	Torque Converter Clutch (TCC) solenoid control
47	389 (WH-BK)	18	Heated Oxygen Sensor (HO2S) #12, heater
48	390 (TN-YE)	18	Heated Oxygen Sensor (HO2S) #22, heater
49	*	*	not used
50	*	*	not used

Fig 45: Camshaft Position Sensor Connector End View (C180)

Courtesy of FORD MOTOR CO.

C180 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	359 (GY-RD)	20	Signal return
2	282 (DB-OG)	20	Camshaft position sensor signal

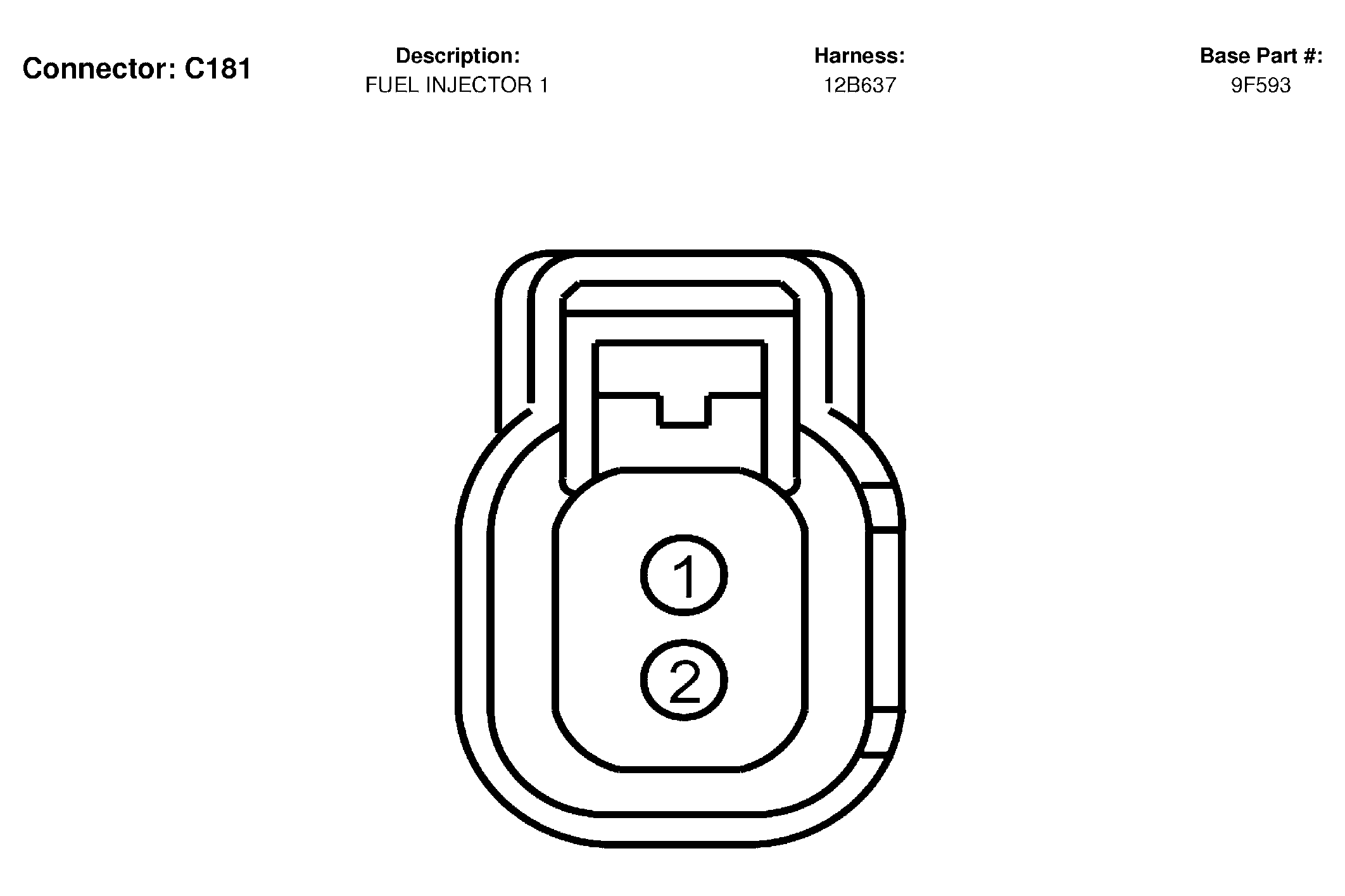

Fig 46: Fuel Injector 1 Connector End View (C181)

Courtesy of FORD MOTOR CO.

C181 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	555 (TN)	20	Fuel injector 1, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

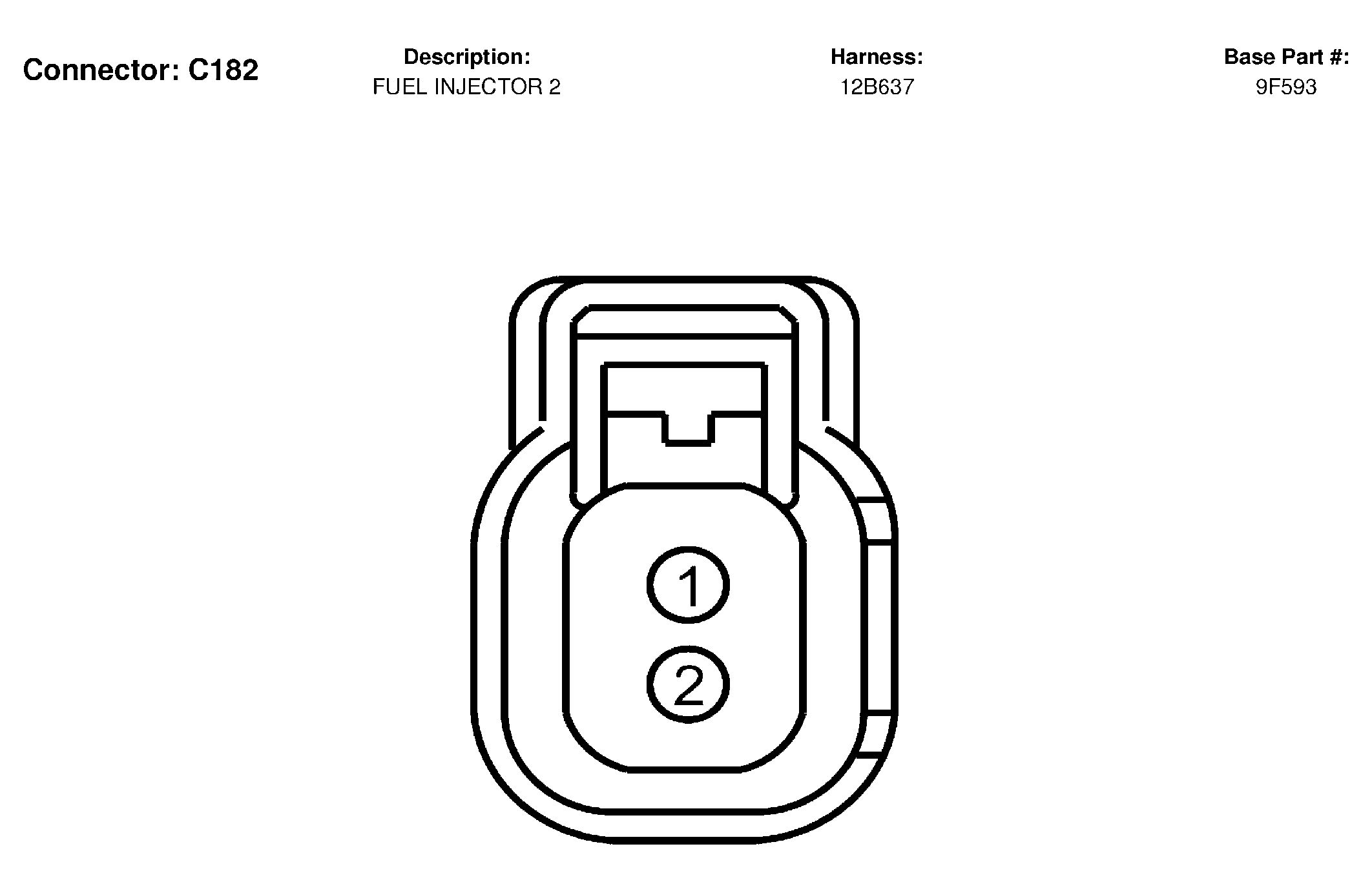

Fig 47: Fuel Injector 2 Connector End View (C182)

Courtesy of FORD MOTOR CO.

C182 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	556 (WH)	20	Fuel injector 2, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

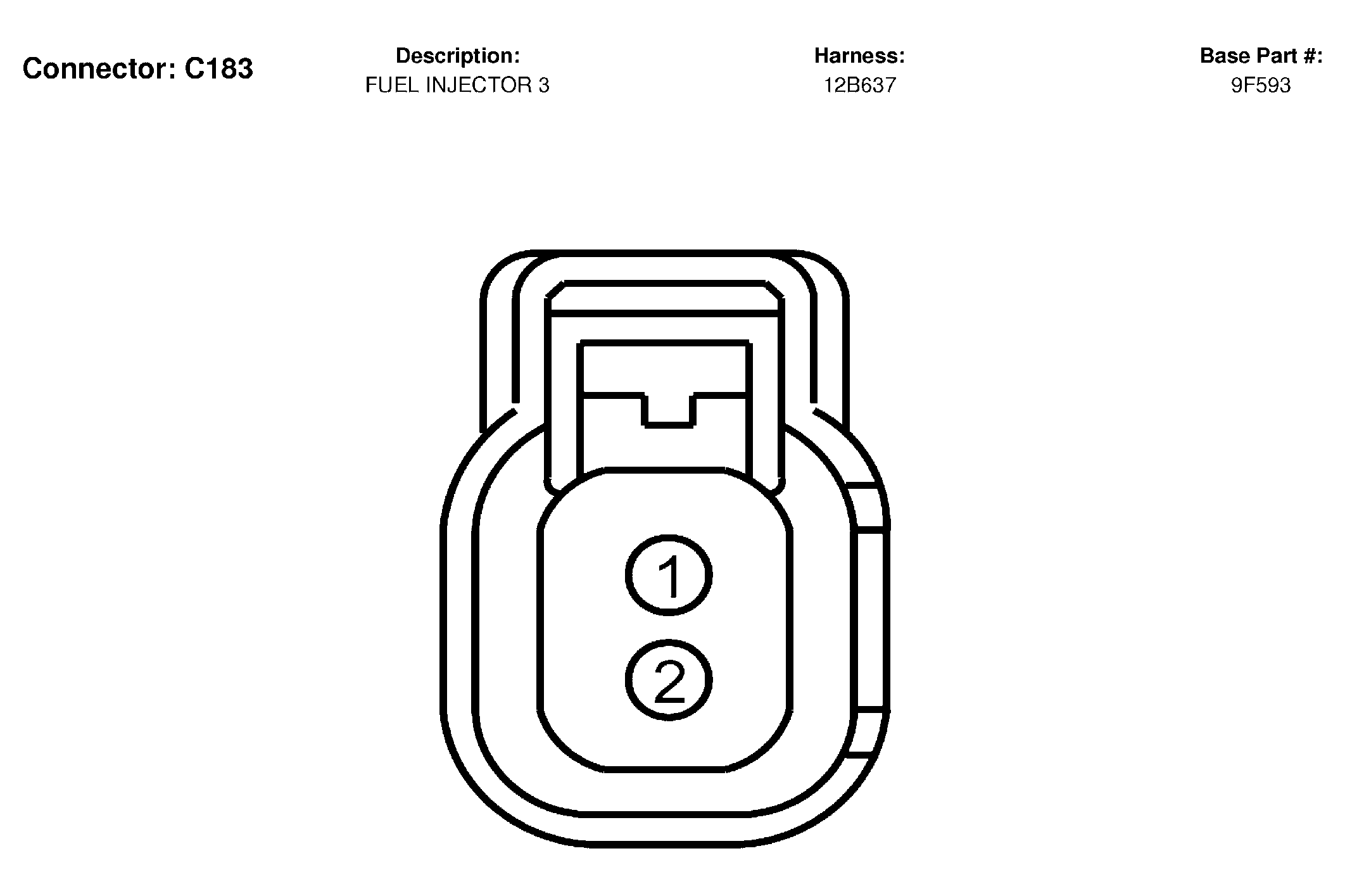

Fig 48: Fuel Injector 3 Connector End View (C183)

Courtesy of FORD MOTOR CO.

C183 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	557 (BR-YE)	20	Fuel injector 3, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

Fig 49: Fuel Injector 4 Connector End View (C184)

Courtesy of FORD MOTOR CO.

C184 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	558 (BR-LB)	20	Fuel injector 4, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

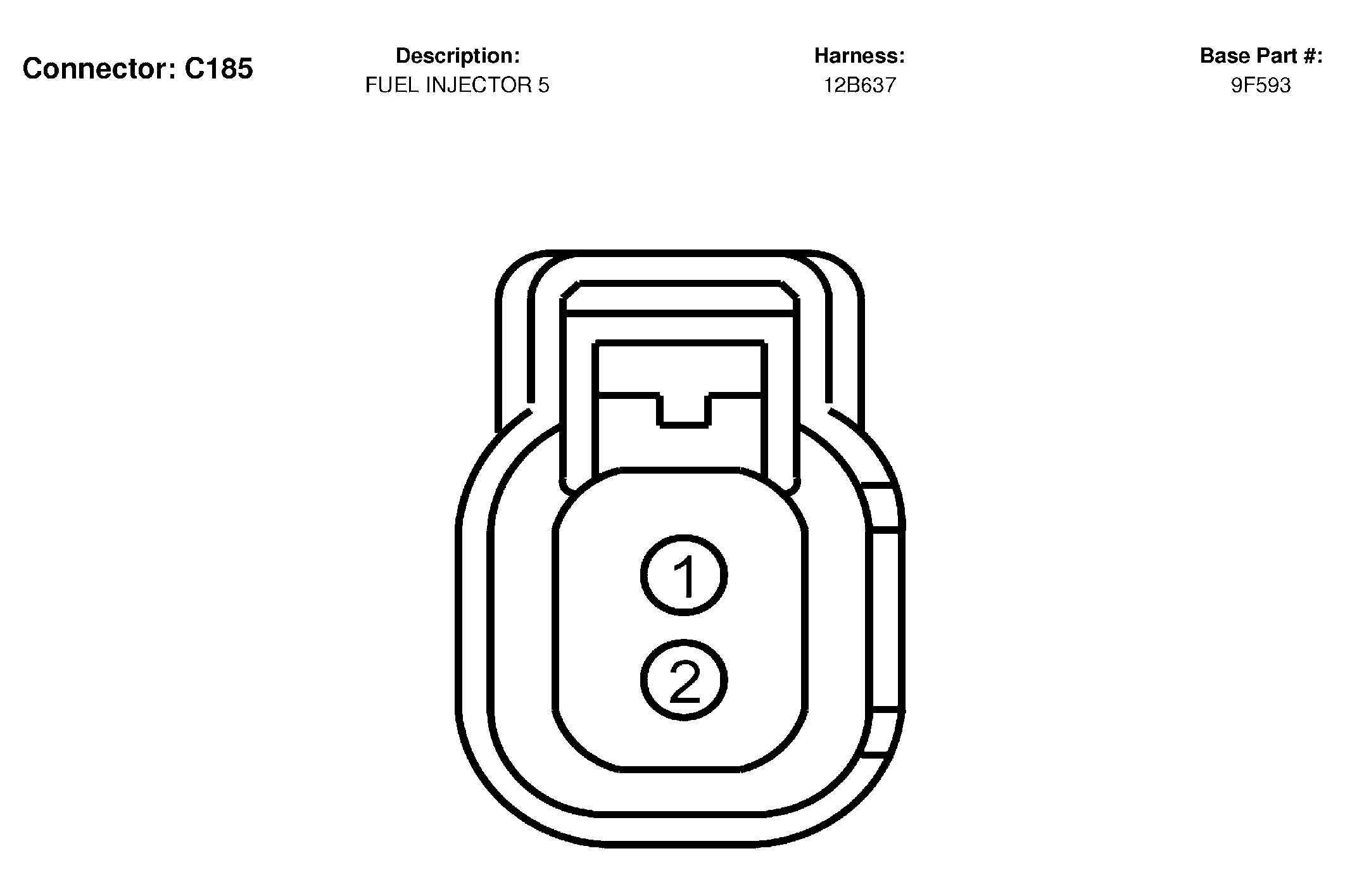

Fig 50: Fuel Injector 5 Connector End View (C185)

Courtesy of FORD MOTOR CO.

C185 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	559 (TN-BK)	20	Fuel injector 5, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

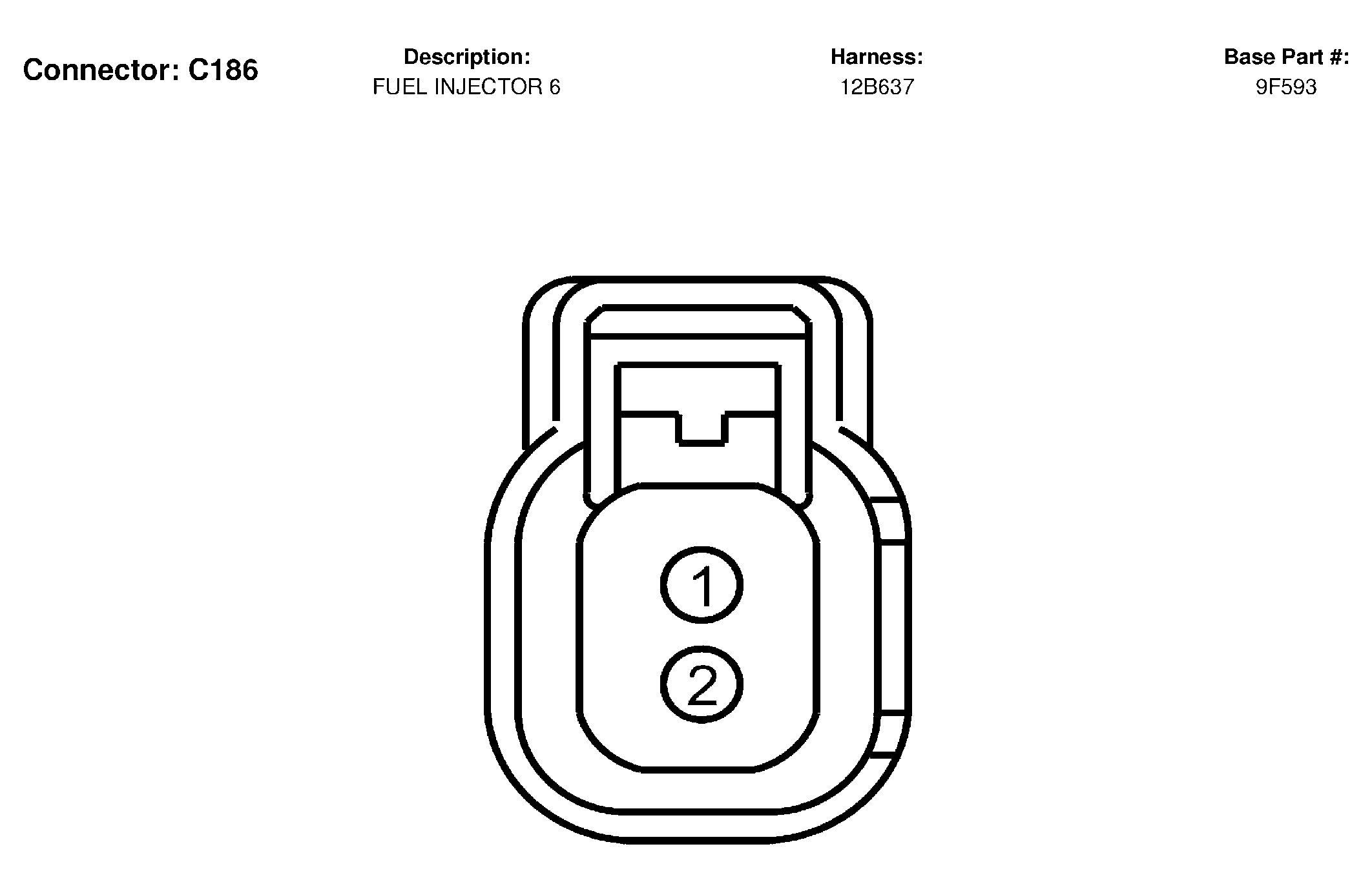

Fig 51: Fuel Injector 6 Connector End View (C186)

Courtesy of FORD MOTOR CO.

C186 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	560 (LG-OG)	20	Fuel injector 6, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

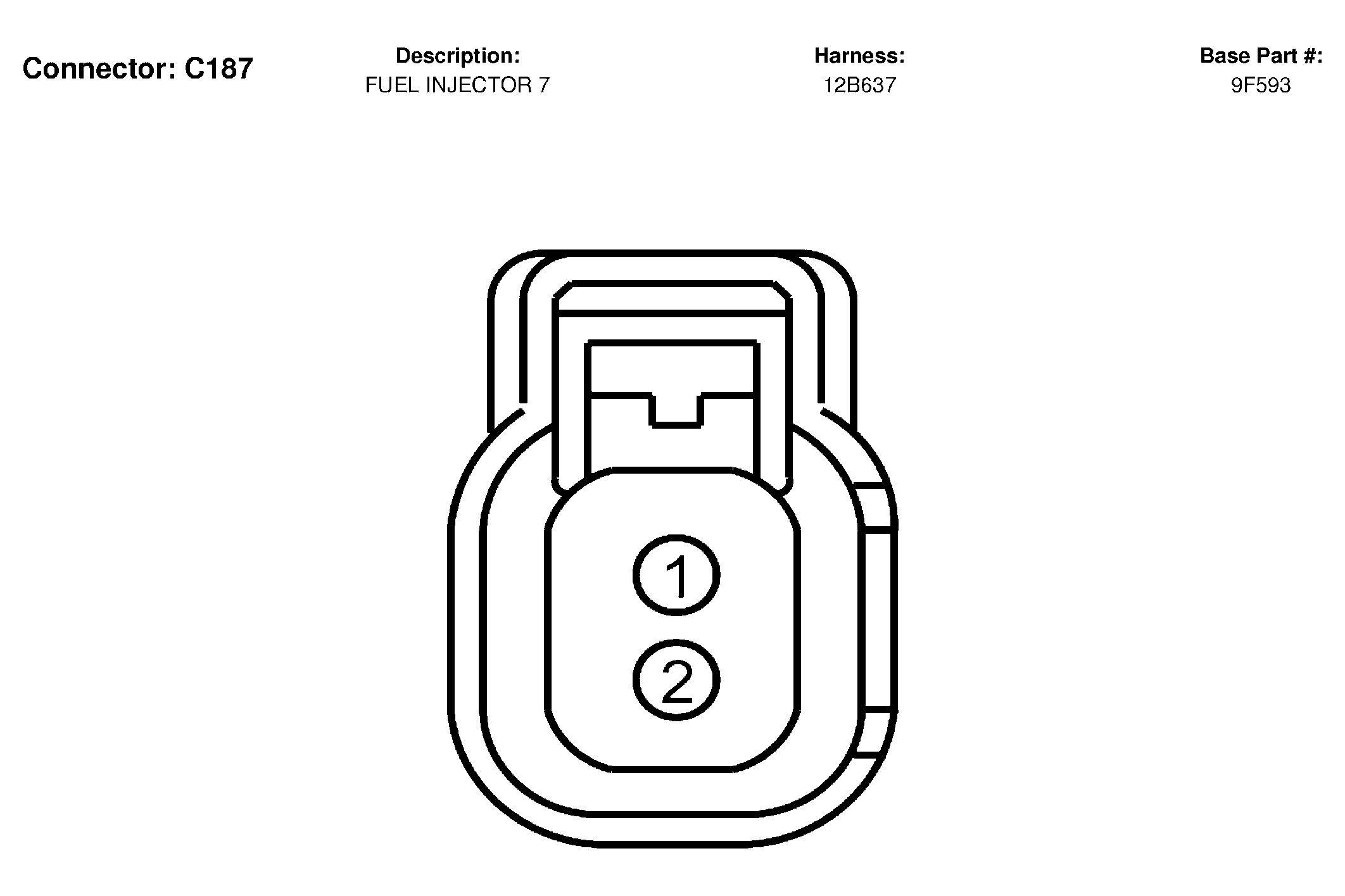

Fig 52: Fuel Injector 7 Connector End View (C187)

Courtesy of FORD MOTOR CO.

C187 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	561 (TN-RD)	20	Fuel injector 7, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

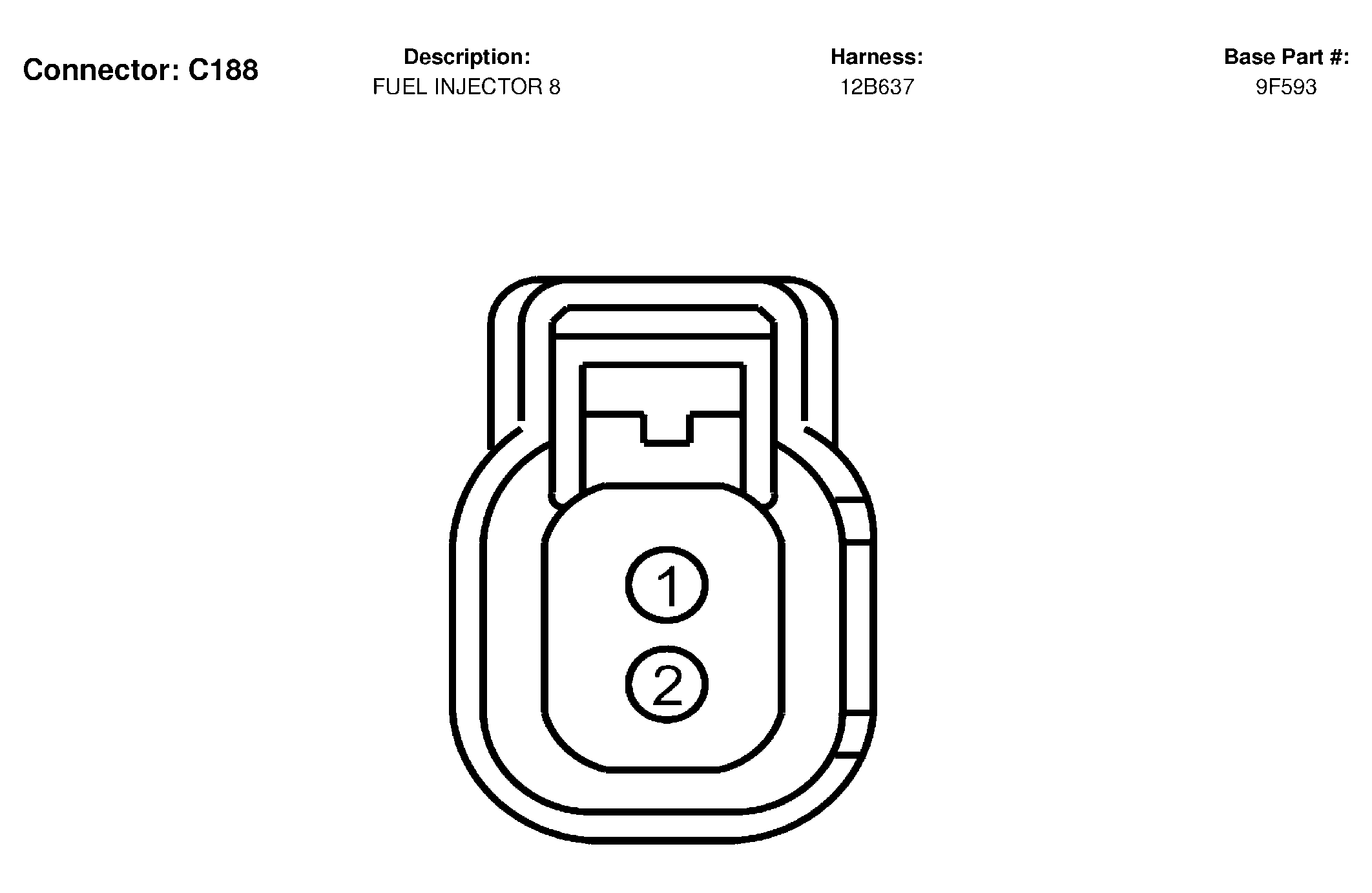

Fig 53: Fuel Injector 8 Connector End View (C188)

Courtesy of FORD MOTOR CO.

C188 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	562 (LB)	20	Fuel injector 8, control
2	1838 (WH-RD)	20	Voltage supplied in Start and Run (overload protected)

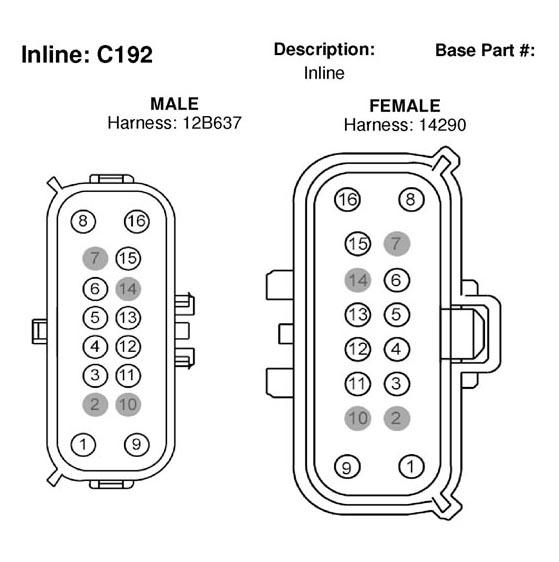

Fig 54: Inline Connector End View (C192)

Courtesy of FORD MOTOR CO.

C192 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1118 (RD)	18
2	*	*
3	114 (LB-YE)	20
4	115 (LG-BK)	20
5	31 (WH-RD)	20
6	57 (BK)	18
7	*	*
8	321 (GY-WH)	18
9	1838 (WH-RD)	20
10	*	*
11	35 (OG-LB)	20
12	33 (WH-PK)	20
13	48 (BK)	20	12B637
13	48 (BK-WH)	20	14290
14	*	*
15	330 (YE-LG)	20
16	391 (RD-YE)	18	12B637
16	391 (RD-YE)	20	14290

Fig 55: Starter Motor Connector End View (C197A)

Courtesy of FORD MOTOR CO.

C197A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	2037 (RD)	06	Battery cable +

Fig 56: Starter Motor Connector End View (C197B)

Courtesy of FORD MOTOR CO.

C197B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	113 (YE-LB)	12	Starter relay output

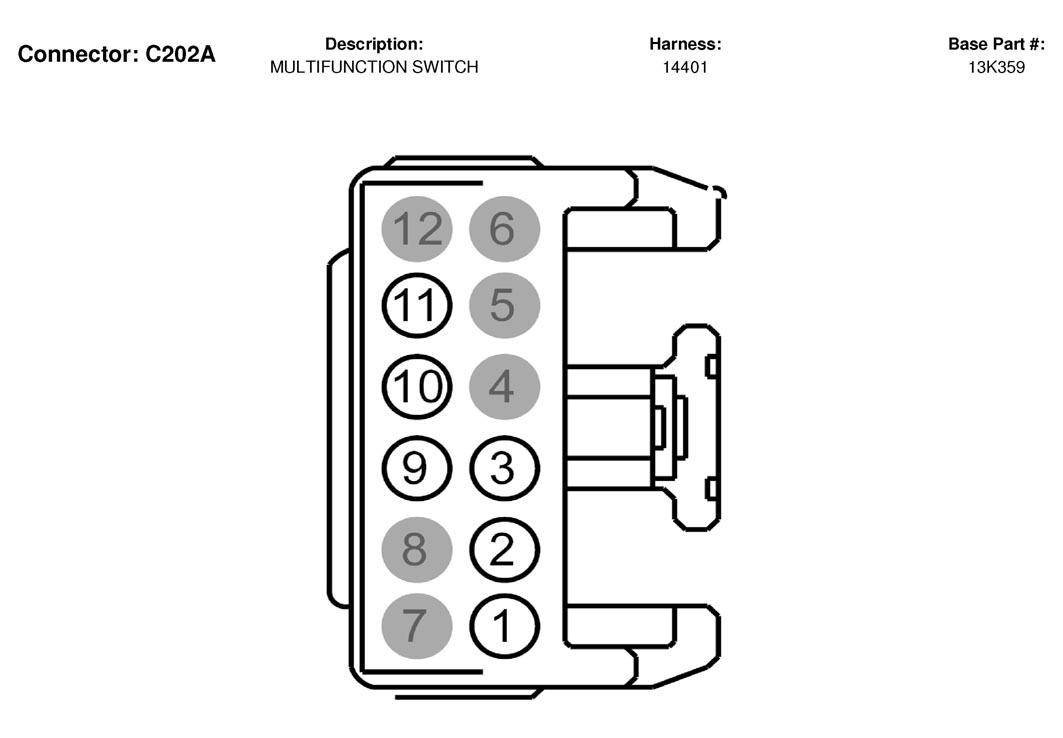

Fig 57: Multifunction Switch Connector End View (C202A)

Courtesy of FORD MOTOR CO.

C202A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	380 (VT-YE)	18	Left cornering lamp control
2	9 (LG-OG)	16	Left rear turn signal
3	379 (BR-WH)	18	Cornering lamp control
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	57 (BK)	18	Ground
10	12 (LG-BK)	20	High beam signal
11	910 (PK)	16	Voltage supplied at all times (overload protected)
12	*	*	not used

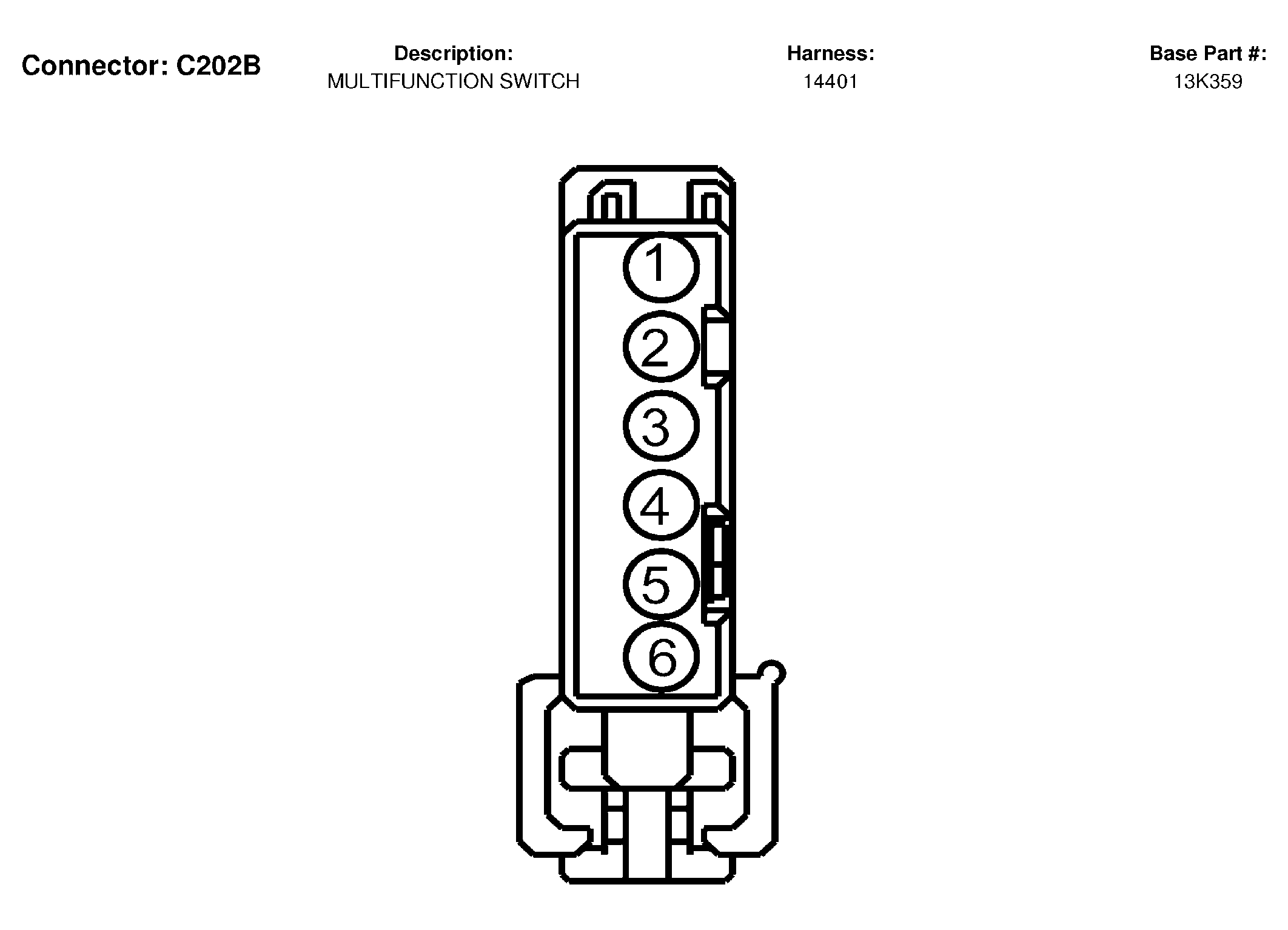

Fig 58: Multifunction Switch Connector End View (C202B)

Courtesy of FORD MOTOR CO.

C202B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	61 (YE-RD)	22	Front wiper switch circuit H
2	680 (LB-OG)	22	Washer switch signal
3	58 (WH)	22	Front wiper switch circuit B
4	63 (RD)	22	Front wiper switch circuit A
5	57 (BK)	22	Ground
6	56 (DB-OG)	22	Front wiper switch circuit C

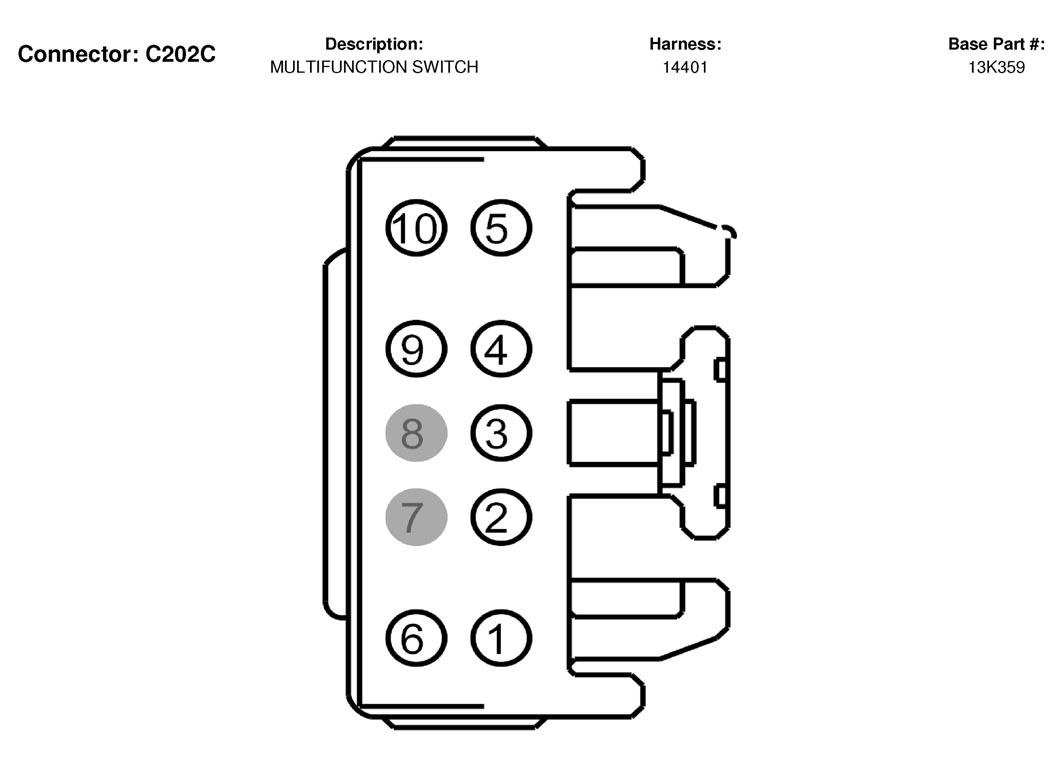

Fig 59: Multifunction Switch Connector End View (C202C)

Courtesy of FORD MOTOR CO.

C202C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	44 (LB)	20	Turn signal flasher output
1	44 (LB)	20	Turn signal flasher output
2	3 (LG-WH)	20	Left turn signal
2	3 (LG-WH)	20	Left turn signal
3	2 (WH-LB)	20	Right turn signal
3	2 (WH-LB)	20	Right turn signal
4	511 (LG)	16	Brake pedal position switch output, (overload protected)
5	5 (OG-LB)	16	Right rear turn signal
6	383 (RD-WH)	16	Voltage supplied at all times (overload protected)
7	*	*	not used
8	*	*	not used
9	1039 (BK-YE)	16	Voltage supplied in Run (overload protected)
10	385 (WH-RD)	20	Turn signal flasher power
10	385 (WH-RD)	20	Turn signal flasher power

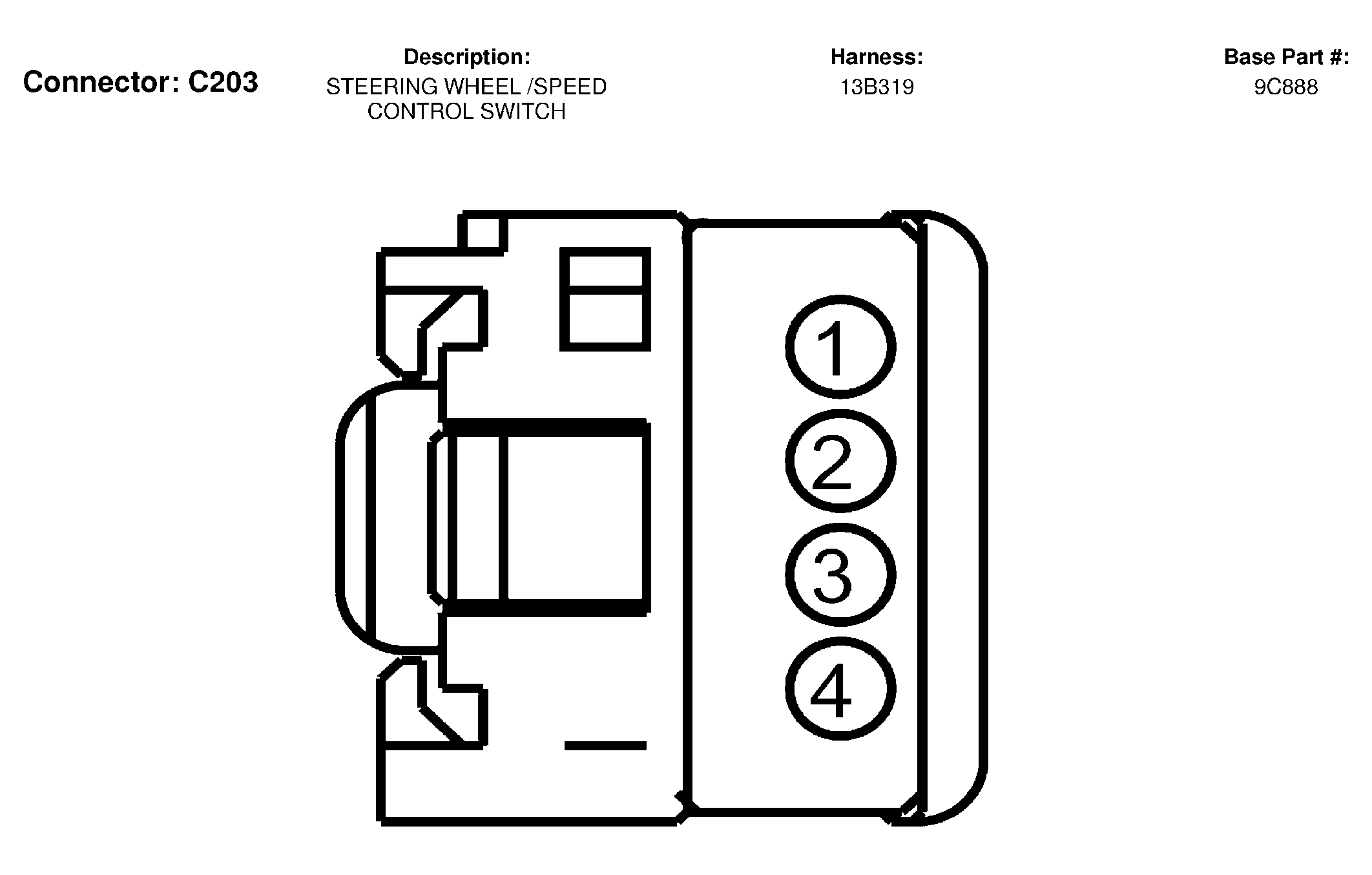

Fig 60: Steering Wheel/Speed Control Switch Connector End View (C203)

Courtesy of FORD MOTOR CO.

C203 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	151 (LB-BK)	22	Speed control switch reference voltage
2	848 (DG-OG)	22	Speed control switch, Signal return
3	57 (BK)	22	Ground
4	484 (OG-BK)	22	Switch illumination +

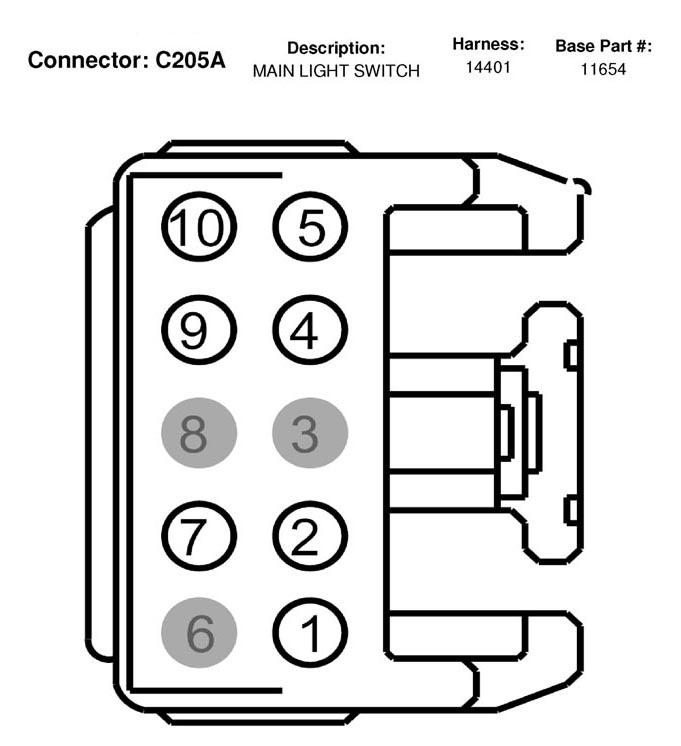

Fig 61: Main Light Switch Connector End View (C205A)

Courtesy of FORD MOTOR CO.

C205A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	484 (OG-BK)	22	Switch illumination +
3	*	*	not used
4	220 (VT-OG)	22	Autolamp On/Off signal
5	1032 (WH-BK)	22	Park lamps, On, signal
6	*	*	not used
7	57 (BK)	22	Ground
8	*	*	not used
9	1400 (TN-WH)	22	Headlamps Off signal
10	1033 (RD-YE)	22	Headlamp, On, signal

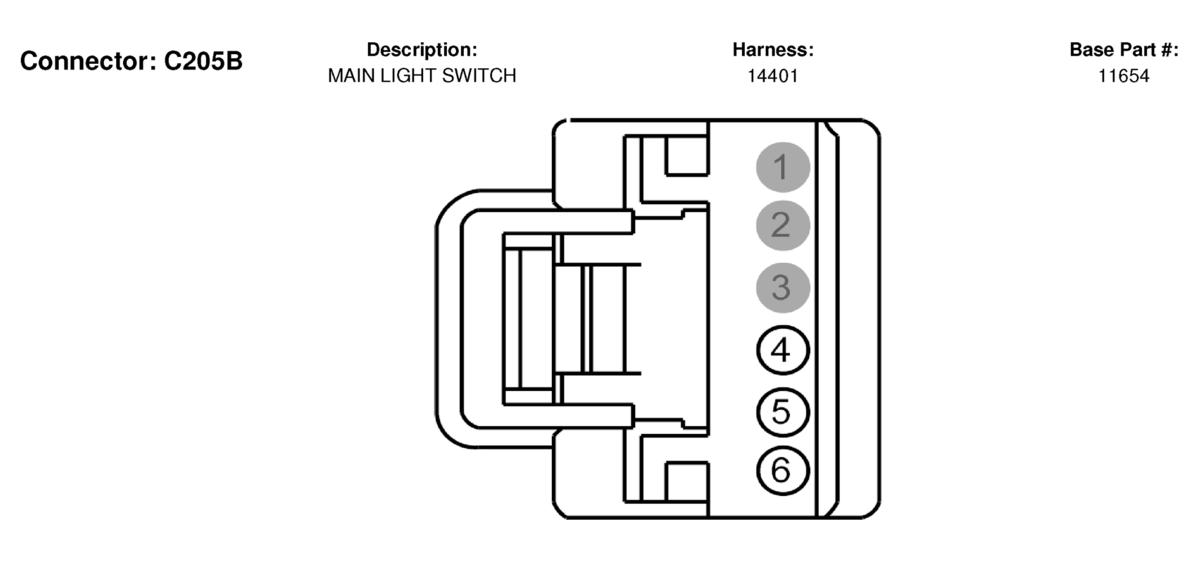

Fig 62: Main Light Switch Connector End View (C205B)

Courtesy of FORD MOTOR CO.

C205B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	*	*	not used
4	57 (BK)	22	Ground
5	1034 (BK-WH)	22	Front dome lamp switch signal
6	1036 (BR-WH)	22	Illumination dimmer signal

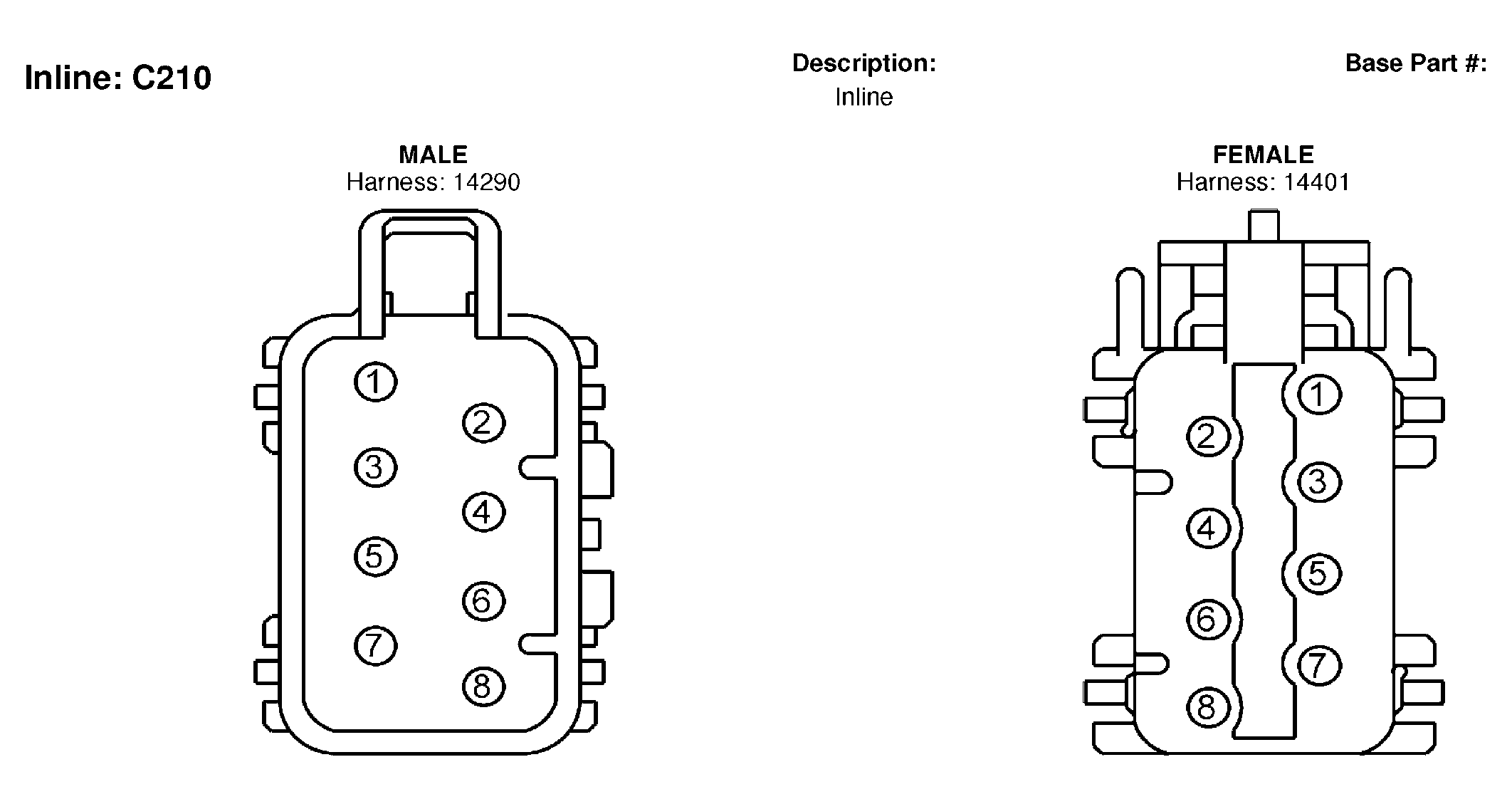

Fig 63: Inline Connector End View (C2010)

Courtesy of FORD MOTOR CO.

C210 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	754 (LG-WH)	20
2	1001 (WH-YE)	14	14290
2	1001 (WH-YE)	12	14401
3	752 (YE-RD)	20
4	1050 (LG-VT)	10	14290
4	1050 (LG-VT)	12	14401
5	260 (RD-OG)	20
6	1715 (RD)	12
7	37 (YE)	10
8	1052 (TN-BK)	10

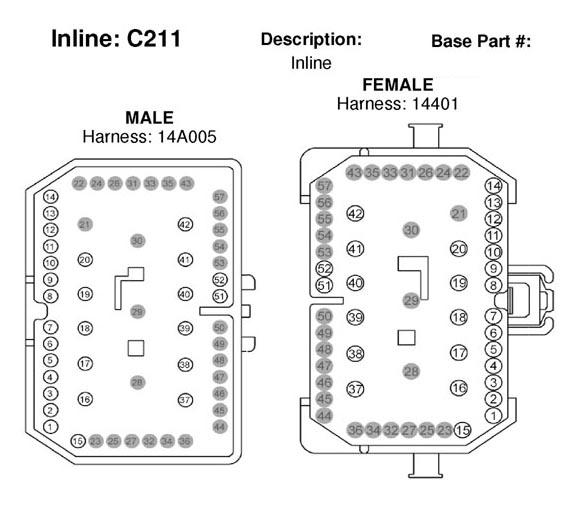

Fig 64: Inline Connector End View (C211)

Courtesy of FORD MOTOR CO.

C211 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1069 (OG-LB)	22
2	1122 (RD)	22
3	1124 (WH)	22
4	1125 (BR)	22
5	1442 (DG-WH)	22	Early production
6	1499 (PK-LG)	22
7	1350 (WH-PK)	20
8	245 (BR-LG)	22
9	246 (VT)	22
10	435 (YE-LB)	22
11	436 (RD-LG)	22
12	437 (YE-LG)	22
13	438 (RD-WH)	22
14	484 (OG-BK)	22
15	660 (YE-LG)	22
16	1003 (GY-YE)	20	14401
16	1003 (GY-YE)	22	14A005
17	937 (RD-WH)	20	14401
17	937 (RD-WH)	22	14A005
18	1523 (DG)	22
19	53 (BK-LB)	20
20	569 (DG)	20	14401
20	569 (DG)	22	14A005
21	*	*
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	*	*
29	*	*
30	*	*
31	*	*
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	705 (LG-OG)	20	14401
37	705 (LG-OG)	18	14A005
38	802 (OG-RD)	18
39	803 (BR-PK)	18
40	805 (WH-LG)	18
41	811 (DG-OG)	18
42	693 (OG)	22
43	*	*
44	*	*
45	*	*
46	*	*
47	*	*
48	*	*
49	*	*
50	*	*
51	914 (TN-OG)	22
52	915 (PK-LB)	22
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*

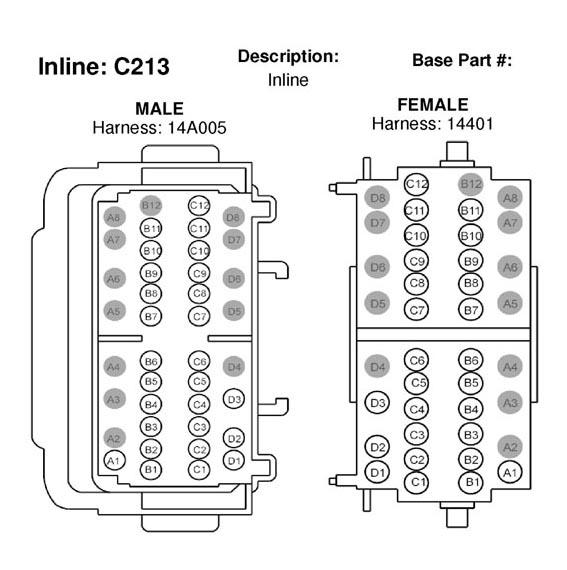

Fig 65: Inline Connector End View (C213)

Courtesy of FORD MOTOR CO.

C213 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
A1	48 (-)	22	Navigation
A2	*	*
A3	*	*
A4	*	*
A5	*	*
A6	*	*
A7	*	*
A8	*	*
B1	1530 (LB)	22	Navigation
B1	798 (LG-RD)	22	w/o Navigation
B2	1531 (LG)	22	Navigation
B2	856 (VT)	22	w/o Navigation
B3	1534 (BK)	22	Navigation
B3	48 (-)	22	w/o Navigation
B4	1535 (BK)	22	Navigation
B4	799 (OG-BK)	22	w/o Navigation
B5	1536 (BK)	22	Navigation
B5	690 (GY)	22	w/o Navigation
B6	1537 (RD)	22	Navigation
B7	1538 (YE-RD)	22	Navigation
B7	804 (OG-LG)	18	w/o Navigation
B8	48 (-)	22	Navigation
B8	813 (LB-WH)	18	w/o Navigation
B9	1532 (DB-WH)	22	Navigation
B10	1533 (DG-OG)	22	Navigation
B11	174 (GY-BK)	22	Navigation
B12	*	*
C1	280 (LG)	22	Navigation
C2	857 (WH-OG)	22	Navigation
C3	279 (WH-RD)	22	Navigation
C4	858 (BR)	22	Navigation
C5	277 (LB-BK)	22	Navigation
C6	859 (YE)	22	Navigation
C7	278 (VT-WH)	22	Navigation
C7	800 (GY-LB)	18	w/o Navigation
C8	855 (LB)	22	Navigation
C8	801 (TN-YE)	18	w/o Navigation
C9	48 (-)	22
C10	168 (RD-BK)	22
C11	167 (BR-OG)	22
C12	173 (DG-VT)	22
D1	832 (LB-PK)	22
D2	833 (TN)	22
D3	1068 (LG-BK)	22
D4	*	*
D5	*	*
D6	*	*
D7	*	*
D8	*	*

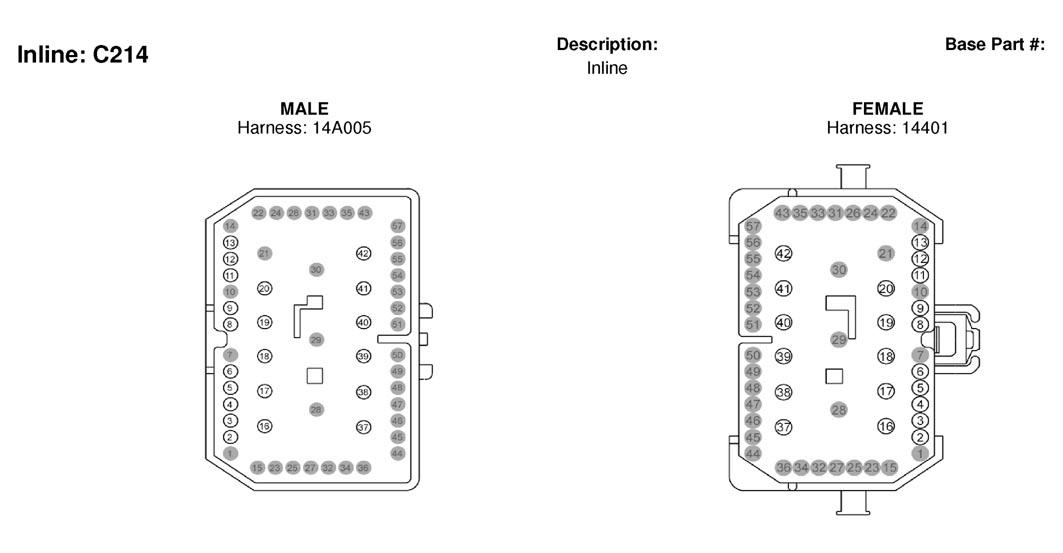

Fig 66: Inline Connector End View (C214)

Courtesy of FORD MOTOR CO.

C214 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	*	*
2	964 (DB-LG)	22	14401
2	964 (DB-LG)	20	14A005
3	1651 (WH-RD)	22
4	1843 (BK-OG)	20
5	1312 (LG-BK)	22	14401
5	1312 (LG-BK)	20	14A005
6	1313 (LB-BK)	22	14401
6	1313 (LB-BK)	20	14A005
7	*	*
8	707 (WH-YE)	22
9	26 (WH-VT)	22
10	*	*
11	298 (VT-OG)	22
12	1040 (RD-BK)	20
13	640 (RD-YE)	20	14401
13	640 (RD-YE)	22	14A005
14	*	*
15	*	*
16	59 (DG-VT)	20
17	10 (LG-RD)	18	14401
17	10 (LG-RD)	14	14A005
18	22 (LB-BK)	20
19	676 (PK-OG)	20	14401
19	676 (PK-OG)	18	14A005
20	1524 (DB)	18
21	70 (LB-WH)	22
22	*	*
23	*	*
24	*	*
25	*	*
26	*	*
27	*	*
28	186 (BR-LB)	12
29	*	*
30	*	*
31	*	*
32	*	*
33	*	*
34	*	*
35	*	*
36	*	*
37	1493 (PK-BK)	20	14401
37	1493 (PK-BK)	20	14A005 memory
37	1495 (WH)	20	14A005 w/o memory
38	9 (LG-OG)	16
39	1492 (LB-RD)	20	14401
39	1492 (LB-RD)	20	14A005 memory
39	1494 (RD)	20	14A005 w/o memory
40	1772 (VT)	18	14401
40	1772 (VT)	20	14A005
41	14 (BR)	20
42	5 (OG-LB)	16
43	29 (YE-WH)	22
44	*	*
45	*	*
46	*	*
47	*	*
48	*	*
49	*	*
50	*	*
51	*	*
52	*	*
53	*	*
54	*	*
55	*	*
56	*	*
57	*	*

Fig 67: Horn Switch Connector End View (C217A)

Courtesy of FORD MOTOR CO.

C217A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1 (DB)	22	Horn relay control

Fig 68: Horn Switch Connector End View (C217B)

Courtesy of FORD MOTOR CO.

C217B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	460 (YE-LB)	22	Horn switch ground

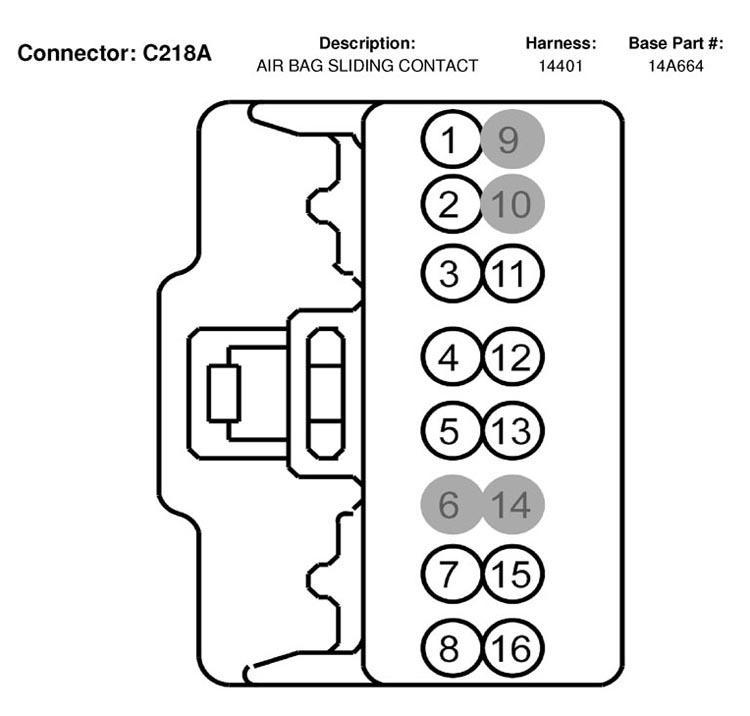

Fig 69: Air Bag Sliding Contact Connector End View (C218A)

Courtesy of FORD MOTOR CO.

C218A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	614 (GY-OG)	20	Driver air bag feed
2	615 (GY-WH)	20	Driver air bag return
3	848 (DG-OG)	22	Speed control switch, Signal return
4	1070 (BR-LB)	22	Audio/climate control switch signal
5	595 (LB-RD)	22	Audio/climate control switch, Radio, signal
6	*	*	not used
7	1516 (YE-WH)	20	Driver air bag feed 2, signal
8	1517 (RD-OG)	20	Driver air bag feed 2, return
9	*	*	not used
10	*	*	not used
11	1 (DB)	22	Horn relay control
12	484 (OG-BK)	22	Switch illumination +
13	151 (LB-BK)	22	Speed control switch reference voltage
14	*	*	not used
15	57 (BK)	22	Ground
16	460 (YE-LB)	22	Horn switch ground

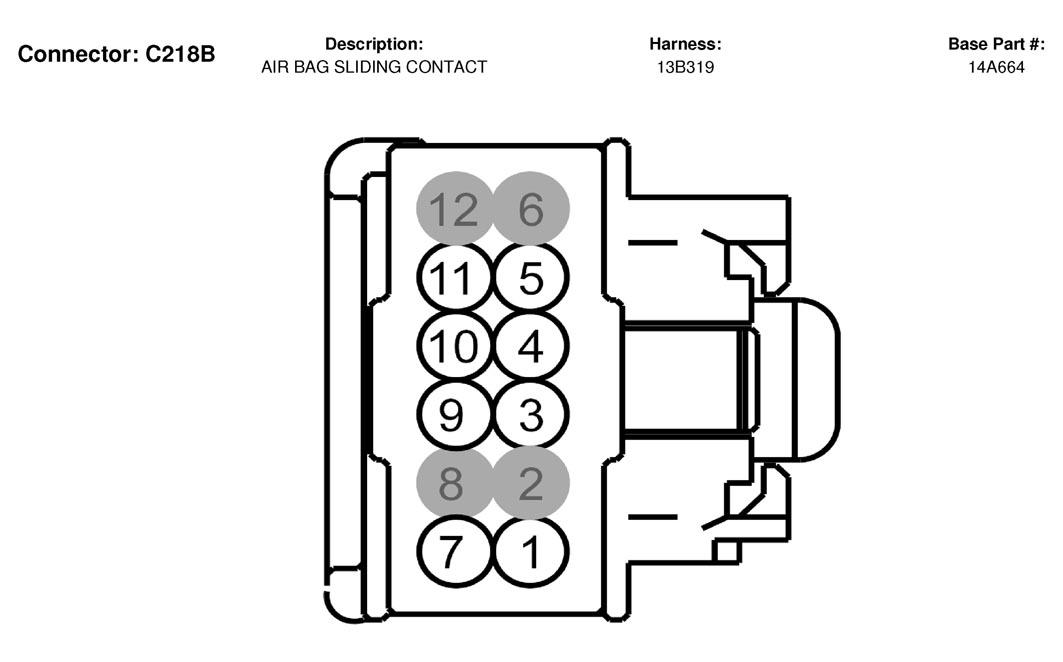

Fig 70: Air Bag Sliding Contact Connector End View (C218B)

Courtesy of FORD MOTOR CO.

C218B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	460 (YE-LB)	22	Horn switch ground
2	*	*	not used
3	151 (LB-BK)	22	Speed control switch reference voltage
4	484 (OG-BK)	22	Switch illumination +
5	1 (DB)	22	Horn relay control
6	*	*	not used
7	57 (BK)	22	Ground
8	*	*	not used
9	595 (LB-RD)	22	Audio/climate control switch, Radio, signal
10	1070 (BR-LB)	22	Audio/climate control switch signal
11	848 (DG-OG)	22	Speed control switch, Signal return
12	*	*	not used

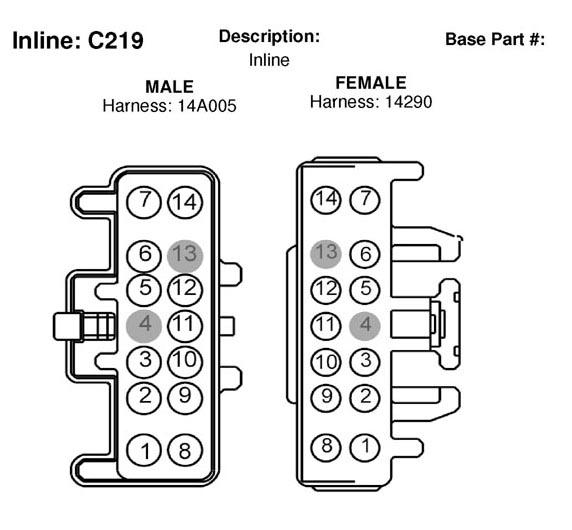

Fig 71: Inline Connector End View (C219)

Courtesy of FORD MOTOR CO.

C219 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1521 (LG)	16
2	114 (LB-YE)	20
3	1445 (RD-LG)	16
4	*	*
5	420 (DB-YE)	20
6	418 (DG-YE)	18
7	517 (BK-WH)	14
8	931 (OG)	16	moonroof
8	1507 (WH-RD)	16	w/o moonroof
9	115 (LG-BK)	20
10	1048 (LB-WH)	16
11	1499 (PK-LG)	20
12	57 (BK)	20
13	*	*
14	131 (VT-OG)	16

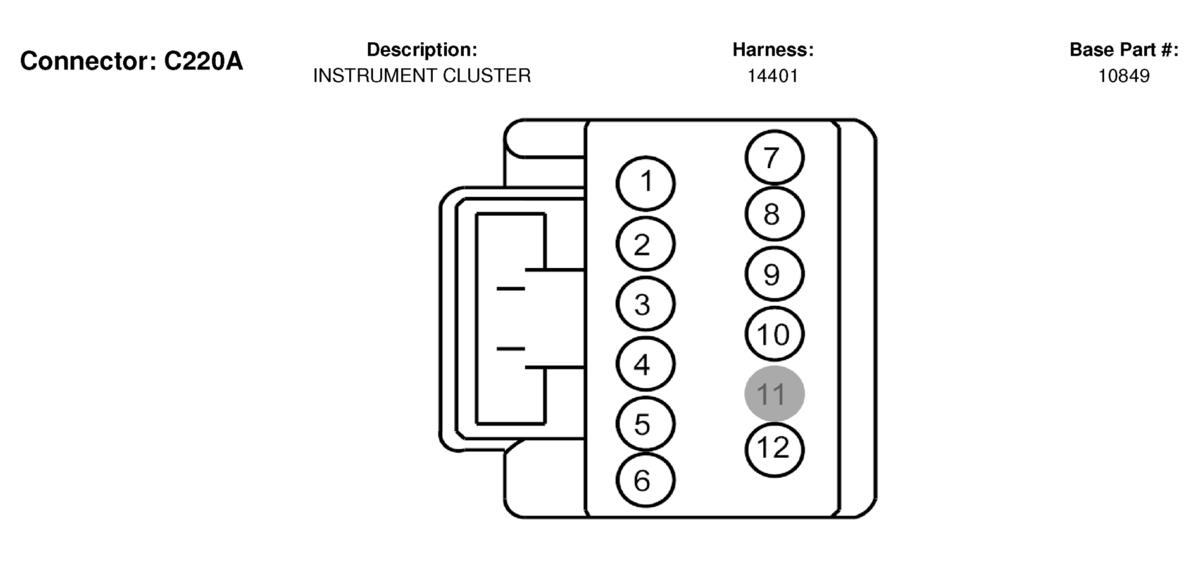

Fig 72: Instrument Cluster Connector End View (C220A)

Courtesy of FORD MOTOR CO.

C220A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	82 (PK-YE)	22	Low washer fluid indicator control
2	31 (WH-RD)	22	Engine oil pressure indicator, control
3	57 (BK)	20	Ground
4	3 (LG-WH)	20	Left turn signal
5	2 (WH-LB)	20	Right turn signal
6	484 (OG-BK)	22	Switch illumination +
7	1523 (DG)	22	Voltage supplied at all times (overload protected)
8	640 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
9	1003 (GY-YE)	20	Voltage supplied in Run (overload protected)
10	1843 (BK-OG)	20	Signal return
11	*	*	not used
12	29 (YE-WH)	22	Fuel sender signal

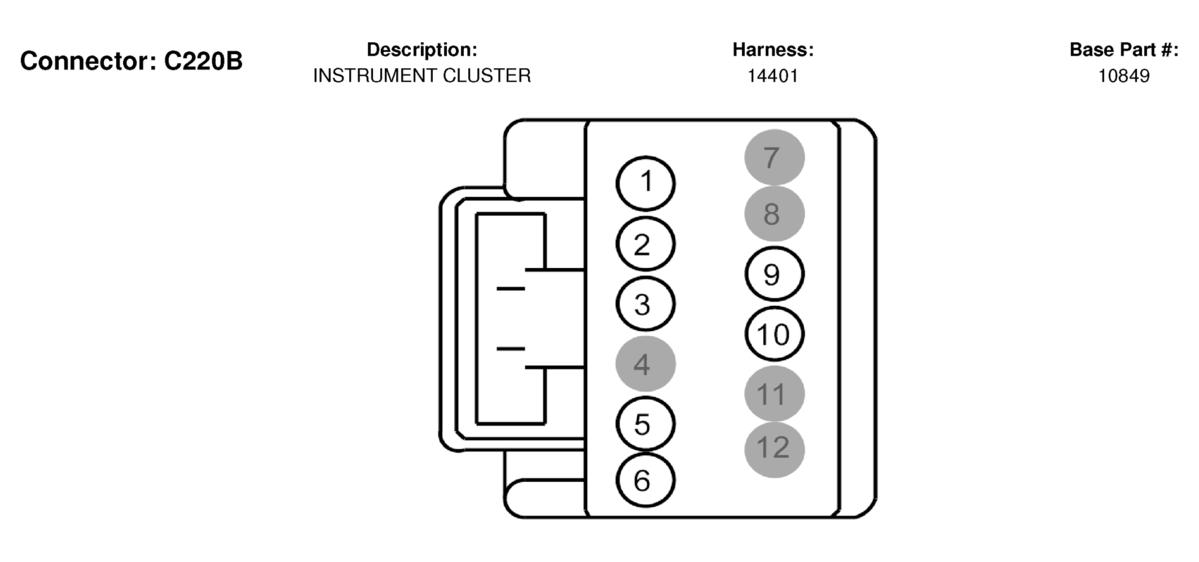

Fig 73: Instrument Cluster Connector End View (C220B)

Courtesy of FORD MOTOR CO.

C220B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	608 (BK-YE)	22	Air bag indicator control
2	977 (VT-WH)	22	Brake indicator, control
3	584 (YE)	22	Generator/Battery indicator control
4	*	*	not used
5	915 (PK-LB)	22	SCP Bus -
6	914 (TN-OG)	22	SCP Bus +
7	*	*	not used
8	*	*	not used
9	75 (DG-LG)	20	Electronic throttle control warning indicator control
10	143 (LB-YE)	22	Message center switch signal
11	*	*	not used
12	*	*	not used

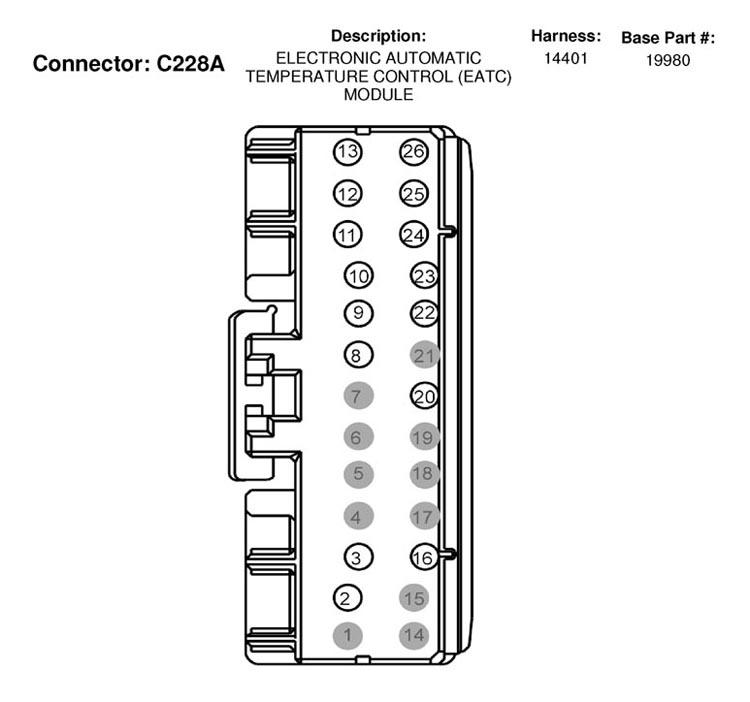

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228A)

Courtesy of FORD MOTOR CO.

C228A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	57 (BK)	20	Ground
3	260 (RD-OG)	20	Blower motor speed control, feed back signal
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	754 (LG-WH)	20	Blower motor speed control, high
9	1069 (OG-LB)	22	Fresh/recirculation door actuator +/-
10	660 (YE-LG)	22	Fresh/recirculation door actuator +
11	1124 (WH)	22	Temperature blend door actuator +/-
12	1125 (BR)	22	Temperature blend door actuator +/-
13	246 (VT)	22	Temperature blend door actuator, driver +/-
14	*	*	not used
15	*	*	not used
16	752 (YE-RD)	20	Blower motor speed control, common
17	*	*	not used
18	*	*	not used
19	*	*	not used
20	438 (RD-WH)	22	Temperature blend door variable resistor -
21	*	*	not used
22	1375 (PK-YE)	22	Floor mode actuator +/-
23	1376 (BK-LB)	22	Floor mode actuator +/-
24	1379 (PK-LB)	22	Panel/Defrost mode actuator +/-
25	1380 (TN-YE)	22	Panel/Defrost mode actuator +/-
26	245 (BR-LG)	22	Temperature blend door actuator, driver +/-

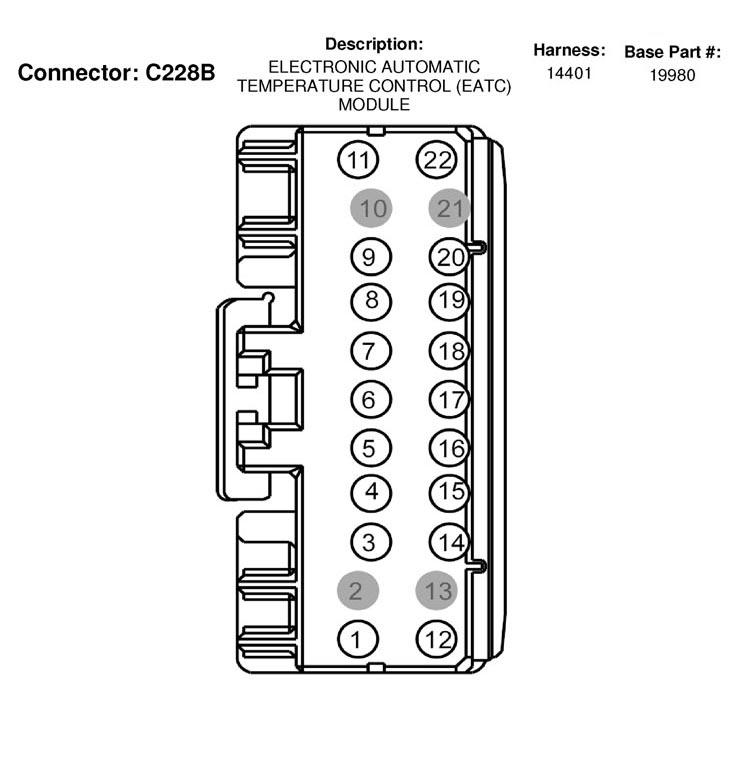

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228B)

Courtesy of FORD MOTOR CO.

C228B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	915 (PK-LB)	22	SCP Bus -
2	*	*	not used
3	435 (YE-LB)	22	Fresh/recirculation door actuator signal
4	437 (YE-LG)	22	Temperature blend door actuator signal
5	1122 (RD)	22	Temperature blend door actuator signal
6	468 (BR)	22	Sunload sensor, passenger side signal
7	1070 (BR-LB)	22	Audio/climate control switch signal
8	436 (RD-LG)	22	Temperature blend door variable resistor +
9	364 (BK-LG)	22	Blower motor relay control
10	*	*	not used
11	1566 (RD-YE)	22	Voltage supplied at all times (overload protected)
12	914 (TN-OG)	22	SCP Bus +
13	*	*	not used
14	1130 (PK-LG)	22	Floor mode actuator signal
15	1123 (YE-WH)	22	Panel/Defrost mode actuator signal
16	3059 (YE-LG)	22	Signal return
17	3061 (LB-OG)	22	Ambient air temperature sensor signal
18	476 (BR-YE)	22	Sunload sensor, driver side signal
19	3058 (LG-RD)	22	In-vehicle temperature sensor signal
20	688 (GY-LB)	22	Rear window defrost relay control
21	*	*	not used
22	1812 (BR-WH)	22	Voltage supplied in Run (overload protected)

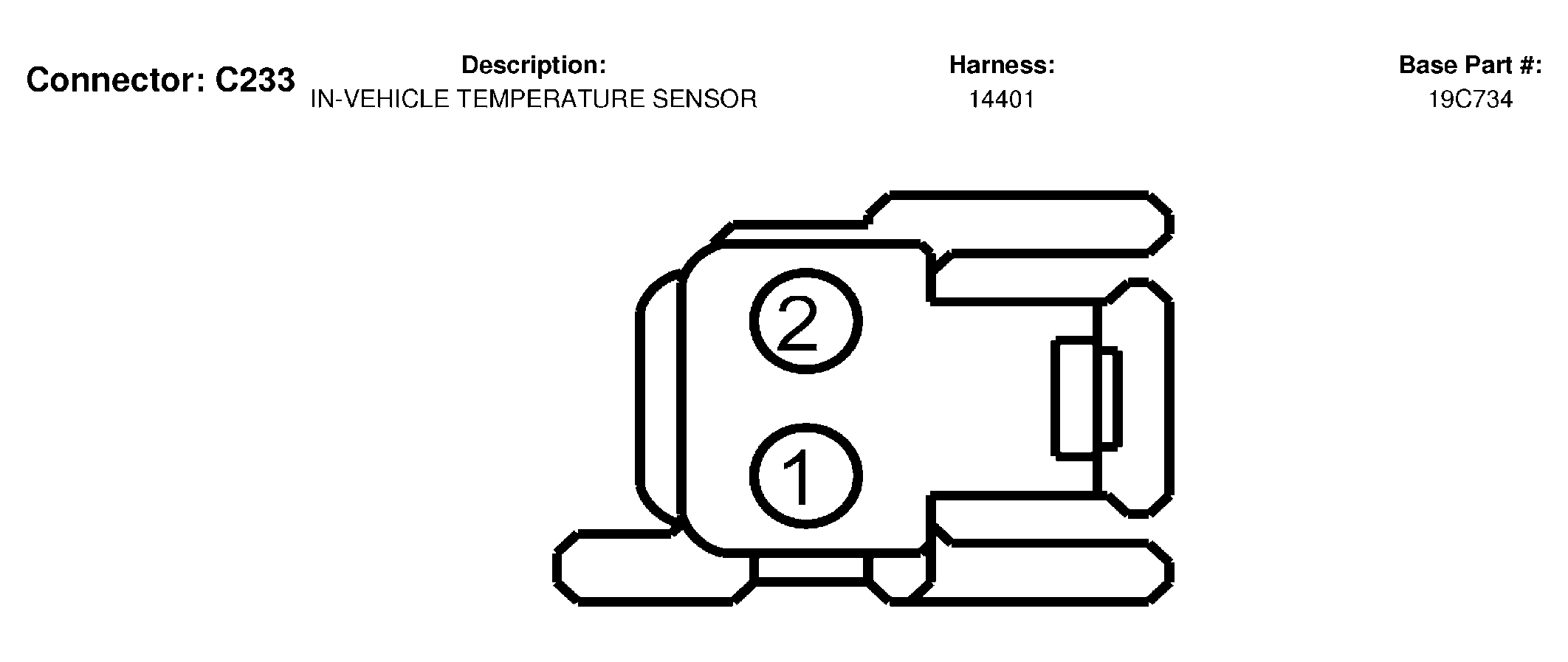

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)

Courtesy of FORD MOTOR CO.

C233 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	3058 (LG-RD)	22	In-vehicle temperature sensor signal
2	3059 (YE-LG)	22	Signal return
2	3059 (YE-LG)	22	Signal Return

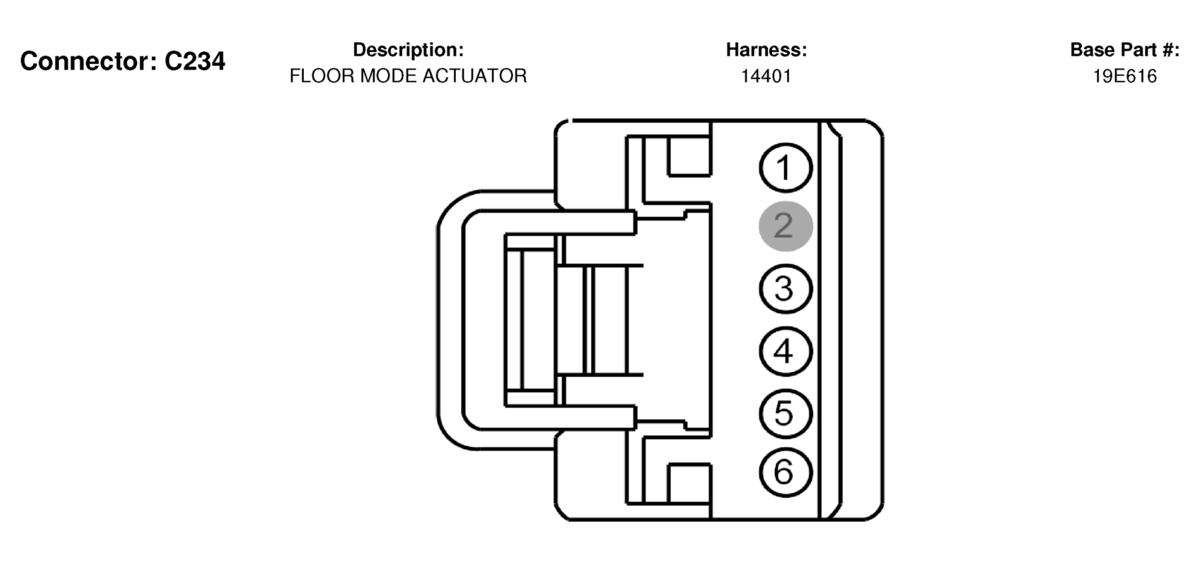

Fig 77: Floor Mode Actuator Connector End View (C234)

Courtesy of FORD MOTOR CO.

C234 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1375 (PK-YE)	22	Floor mode actuator +/-
2	*	*	not used
3	1130 (PK-LG)	22	Floor mode actuator signal
4	438 (RD-WH)	22	Temperature blend door variable resistor -
5	436 (RD-LG)	22	Temperature blend door variable resistor +
6	1376 (BK-LB)	22	Floor mode actuator +/-

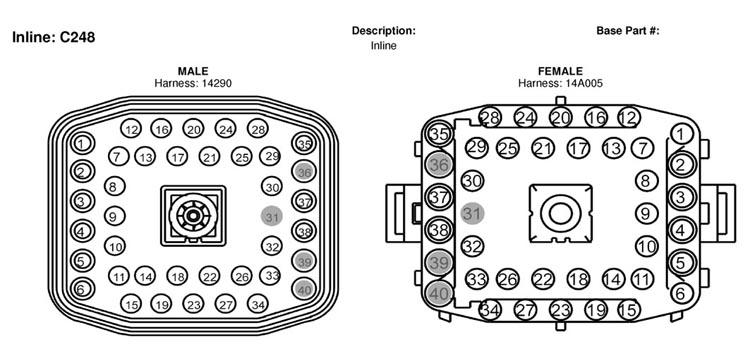

Fig 78: Inline Connector End View (C248)

Courtesy of FORD MOTOR CO.

C248 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	490 (RD)	12	14290
1	490 (RD)	14	14A005
2	1213 (WH-LB)	14	14290
2	1213 (WH-LB)	16	14A005
3	193 (YE-LG)	10	14290
3	193 (YE-LG)	12	14A005
4	720 (RD-YE)	14	14290
4	720 (RD-YE)	12	14A005 navigation
4	720 (RD-YE)	16	14A005 w/o navigation
5	366 (RD-BK)	14	14290
5	366 (RD-BK)	12	14A005
6	1119 (RD)	14
7	421 (PK)	14	14290
7	421 (PK)	20	14A005
8	391 (RD-YE)	14	14290
8	391 (RD-YE)	20	14A005
9	14 (BR)	20	14290
9	14 (BR)	18	14A005
10	359 (GY-RD)	20	14290
10	359 (GY-RD)	22	14A005
11	351 (BR-WH)	20
12	3015 (WH-RD)	20	14290
12	3015 (WH-RD)	22	14A005
13	3091 (LB-BK)	20	14290
13	3091 (LB-BK)	22	14A005
14	238 (DG-YE)	20	14290
14	238 (DG-YE)	22	14A005
15	3012 (WH)	20	14290
15	3012 (WH)	22	14A005
16	91 (VT-WH)	20
17	926 (LB-OG)	20	14290
17	926 (LB-OG)	22	14A005
18	791 (RD-PK)	20
19	636 (OG)	20	14290
19	636 (OG)	18	14A005
20	1284 (TN-WH)	20	14290
20	1284 (TN-WH)	22	14A005
21	1283 (TN-YE)	20	14290
21	1283 (TN-YE)	22	14A005
22	518 (LG-RD)	20
23	3093 (WH-LB)	20	14290
23	3093 (WH-LB)	22	14A005
24	617 (PK-OG)	20	14290
24	617 (PK-OG)	22	14A005
25	620 (VT-LB)	20	14290
25	620 (VT-LB)	22	14A005
26	519 (LG-BK)	20
27	523 (RD-PK)	20	14290
27	523 (RD-PK)	18	14A005
28	618 (VT-LG)	20	14290
28	618 (VT-LG)	22	14A005
29	619 (PK-WH)	20	14290
29	619 (PK-WH)	22	14A005
30	409 (TN-BK)	20	14290
30	409 (TN-BK)	22	14A005
31	*	*
32	1651 (WH-RD)	20
33	679 (GY-BK)	20	14290
33	679 (GY-BK)	22	14A005
34	524 (PK-BK)	20	14290
34	524 (PK-BK)	18	14A005
35	140 (BK-PK)	14	14290
35	140 (BK-PK)	18	14A005
36	*	*
37	566 (DG)	16
38	1190 (YE-BK)	10
39	*	*
40	*	*

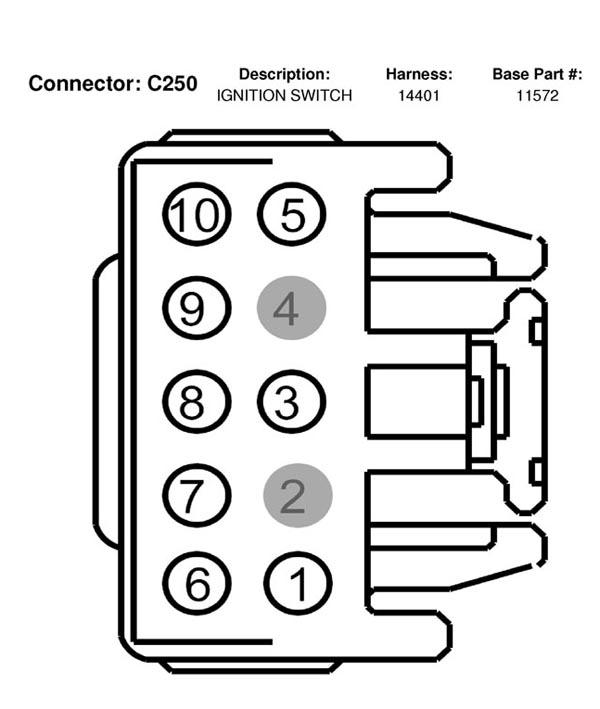

Fig 79: Ignition Switch Connector End View (C250)

Courtesy of FORD MOTOR CO.

C250 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1717 (VT-OG)	12	Voltage supplied in Start and Run (overload protected)
2	*	*	not used
3	158 (BK-PK)	20	Key warning switch signal
4	*	*	not used
5	296 (WH-VT)	16	Voltage supplied in Run or Accessory (overload protected)
6	294 (WH-LB)	14	Voltage supplied in Run (overload protected)
7	687 (GY-YE)	12	Voltage supplied in Run (overload protected)
8	1050 (LG-VT)	12	Voltage supplied at all times (overload protected)
9	1715 (RD)	12	Voltage supplied at all times (overload protected)
10	1522 (DG)	16	Voltage supplied in Start (overload protected)

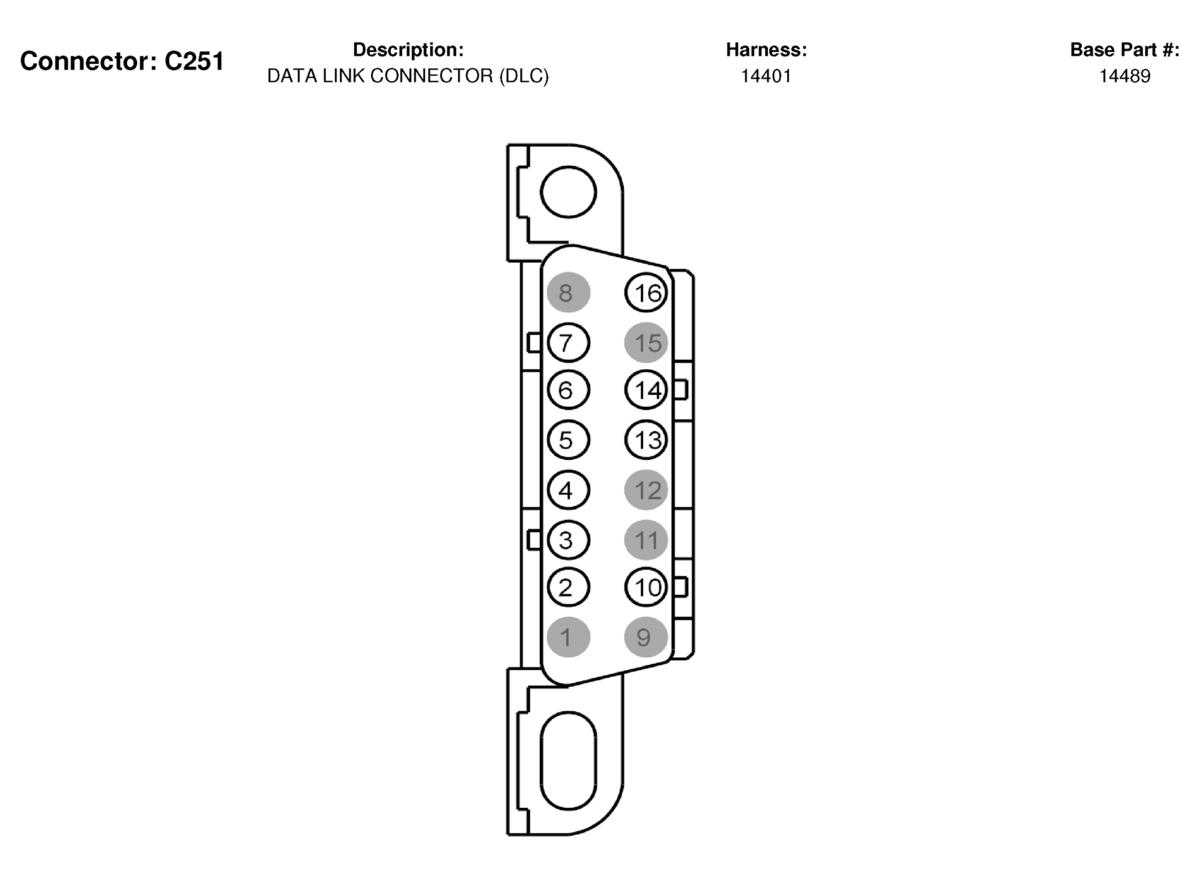

Fig 80: Data Link Connector (DLC) Connector End View (C251)

Courtesy of FORD MOTOR CO.

C251 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	914 (TN-OG)	22	SCP Bus +
3	693 (OG)	22	UBP Bus
4	57 (BK)	18	Ground
5	570 (BK-WH)	18	Ground
6	1827 (WH-LG)	22	HS CAN +
7	70 (LB-WH)	22	ISO Bus
8	*	*	not used
9	*	*	not used
10	915 (PK-LB)	22	SCP Bus -
11	*	*	not used
12	*	*	not used
13	107 (VT)	22	Flash/EEPROM power supply
14	1828 (PK-LG)	22	HS CAN -
15	*	*	not used
16	40 (LB-WH)	18	Voltage supplied at all times (overload protected)

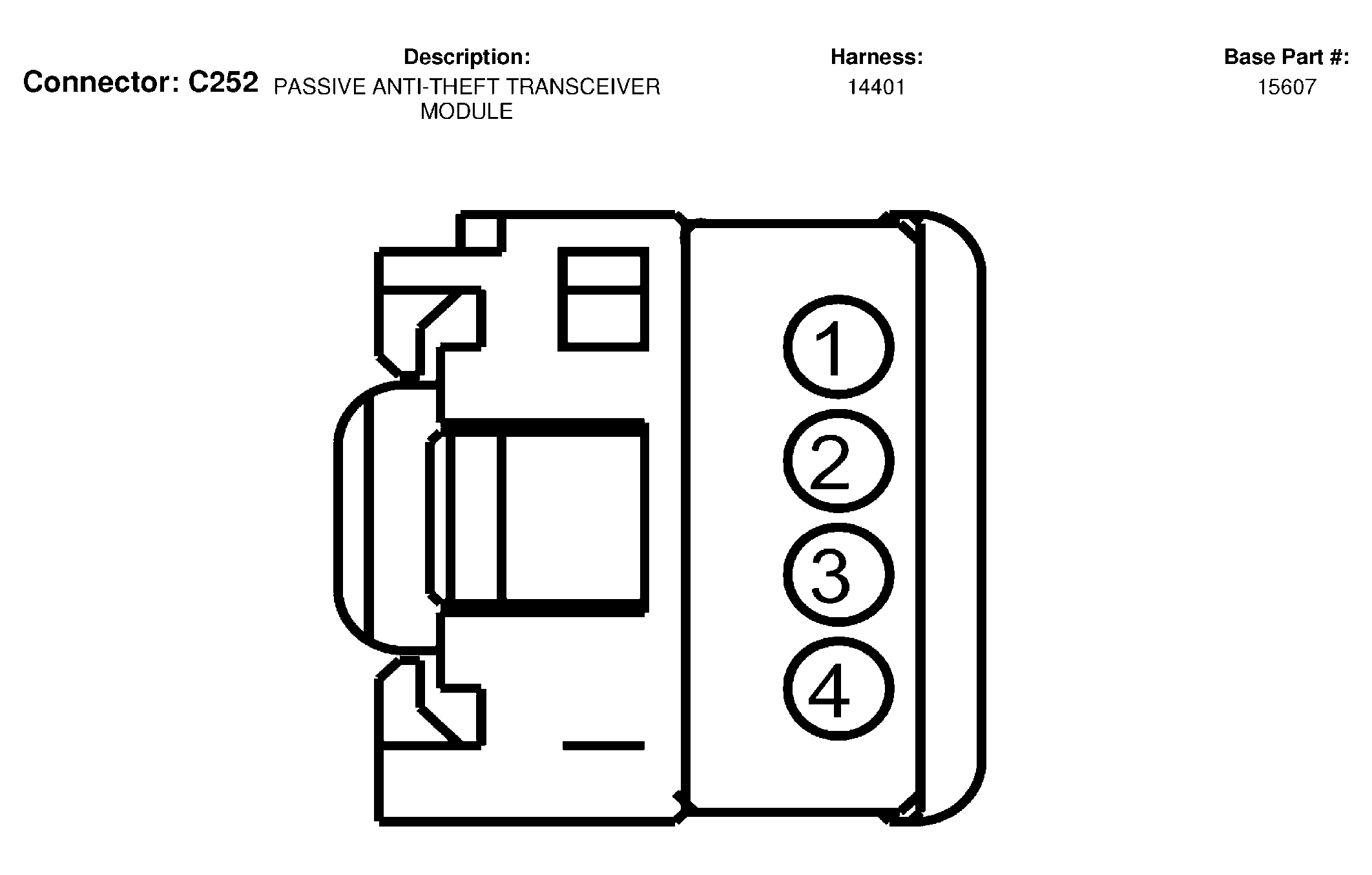

Fig 81: Passive Anti-Theft Transceiver Module Connector End View (C252)

Courtesy of FORD MOTOR CO.

C252 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1266 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
2	676 (PK-OG)	22	Ground
3	1215 (WH-LG)	22	TX signal
4	1216 (GY-OG)	22	RX signal

Fig 82: Massage Center Switch Connector End View (C253)

Courtesy of FORD MOTOR CO.

C253 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	*	*	not used
3	484 (OG-BK)	22	Switch illumination +
4	143 (LB-YE)	22	Message center switch signal
5	*	*	not used
6	676 (PK-OG)	22	Ground

Fig 83: Glove Box Lamp Connector End View (C254)

Courtesy of FORD MOTOR CO.

C254 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	705 (LG-OG)	20	Demand lighting
1	705 (LG-OG)	20	Demand lighting

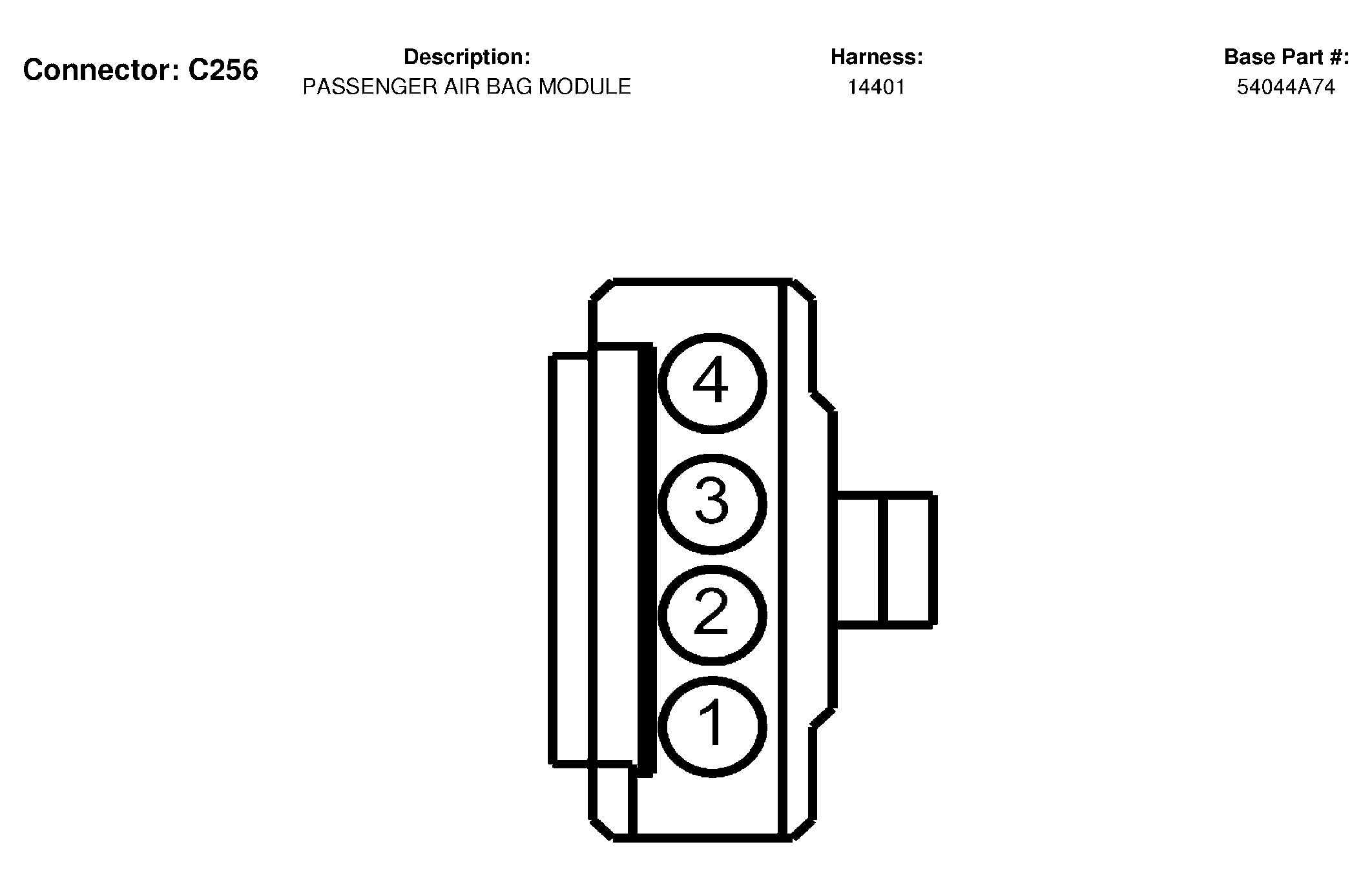

Fig 84: Passenger Air Bag Module Connector End View (C256)

Courtesy of FORD MOTOR CO.

C256 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	607 (LB-OG)	20	Passenger air bag feed
2	616 (PK-BK)	20	Passenger air bag return
3	1518 (BK-WH)	20	Passenger air bag feed 2, signal
4	1519 (LG-RD)	20	Passenger air bag feed 2, return

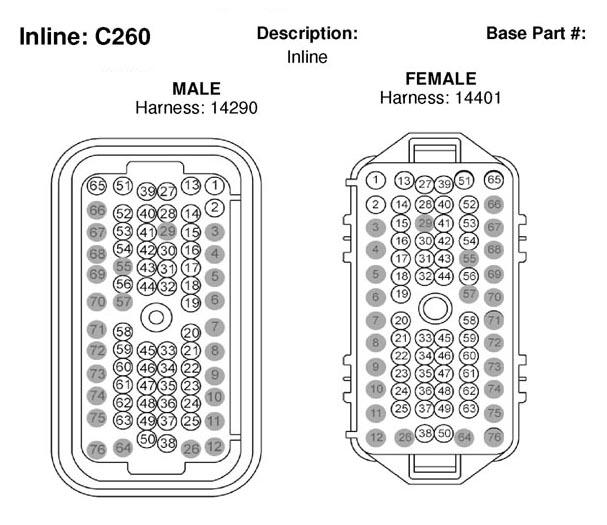

Fig 85: Inline Connector End View (C260)

Courtesy of FORD MOTOR CO.

C260 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	185 (BK)	12
2	65 (DG)	20	14290
2	65 (DG)	22	14401
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	*	*
10	*	*
11	*	*
12	*	*
13	720 (RD-YE)	14
14	959 (GY)	20	14290
14	959 (GY)	22	14401
15	224 (TN-WH)	20	14290
15	224 (TN-WH)	22	14401
16	2 (WH-LB)	20
17	3 (LG-WH)	20
18	61 (YE-RD)	20	14290
18	61 (YE-RD)	22	14401
19	680 (LB-OG)	20	14290
19	680 (LB-OG)	22	14401
20	58 (WH)	20	14290
20	58 (WH)	22	14401
21	56 (DB-OG)	20	14290
21	56 (DB-OG)	22	14401
22	63 (RD)	20	14290
22	63 (RD)	22	14401
23	31 (WH-RD)	20	14290
23	31 (WH-RD)	22	14401
24	82 (PK-YE)	20	14290
24	82 (PK-YE)	22	14401
25	1304 (VT-OG)	20	14290
25	1304 (VT-OG)	22	14401
26	*	*
27	194 (PK)	20	14290
27	194 (PK)	22	14401
28	161 (DG-OG)	20
29	*	*
30	1 (DB)	20	14290
30	1 (DB)	22	14401
31	151 (LB-BK)	20	14290
31	151 (LB-BK)	22	14401
32	848 (DG-OG)	20	14290
32	848 (DG-OG)	22	14401
33	1215 (WH-LG)	20	14290
33	1215 (WH-LG)	22	14401
34	1216 (GY-OG)	20	14290
34	1216 (GY-OG)	22	14401
35	262 (BR-PK)	20
36	88 (BK-WH)	20
37	1827 (WH-LG)	20	14290
37	1827 (WH-LG)	22	14401
38	914 (TN-OG)	20	14290
38	914 (TN-OG)	22	14401
39	160 (DB-WH)	20
40	379 (BR-WH)	16	14290
40	379 (BR-WH)	18	14401
41	380 (VT-YE)	16	14290
41	380 (VT-YE)	18	14401
42	1040 (RD-BK)	20
43	1049 (BR-PK)	16
44	1789 (VT-WH)	18	14290
44	1789 (VT-WH)	20	14401
45	460 (YE-LB)	20
46	1337 (VT-YE)	20
47	364 (BK-LG)	20	14290
47	364 (BK-LG)	22	14401
48	1266 (RD-YE)	20
49	1828 (PK-LG)	20	14290
49	1828 (PK-LG)	22	14401
50	915 (PK-LB)	20	14290
50	915 (PK-LB)	22	14401
51	676 (PK-OG)	14	14290
51	676 (PK-OG)	20	14401
52	3059 (YE-LG)	20	14290
52	3059 (YE-LG)	22	14401
53	3061 (LB-OG)	20	14290
53	3061 (LB-OG)	22	14401
54	75 (DG-LG)	20
55	*	*
56	107 (VT)	20	14290
56	107 (VT)	22	14401
57	*	*
58	570 (BK-WH)	18
59	1335 (YE-WH)	20
60	584 (YE)	20	14290
60	584 (YE)	22	14401
61	977 (VT-WH)	20	14290
61	977 (VT-WH)	22	14401
62	1799 (YE-BK)	20	14290
62	1799 (YE-BK)	22	14401
63	1269 (OG-RD)	20	14290
63	1269 (OG-RD)	22	14401
64	*	*
65	28 (BK-PK)	14	14290
65	28 (BK-PK)	20	14401
66	*	*
67	*	*
68	*	*
69	*	*
70	*	*
71	*	*
72	*	*
73	*	*
74	*	*
75	*	*
76	*	*

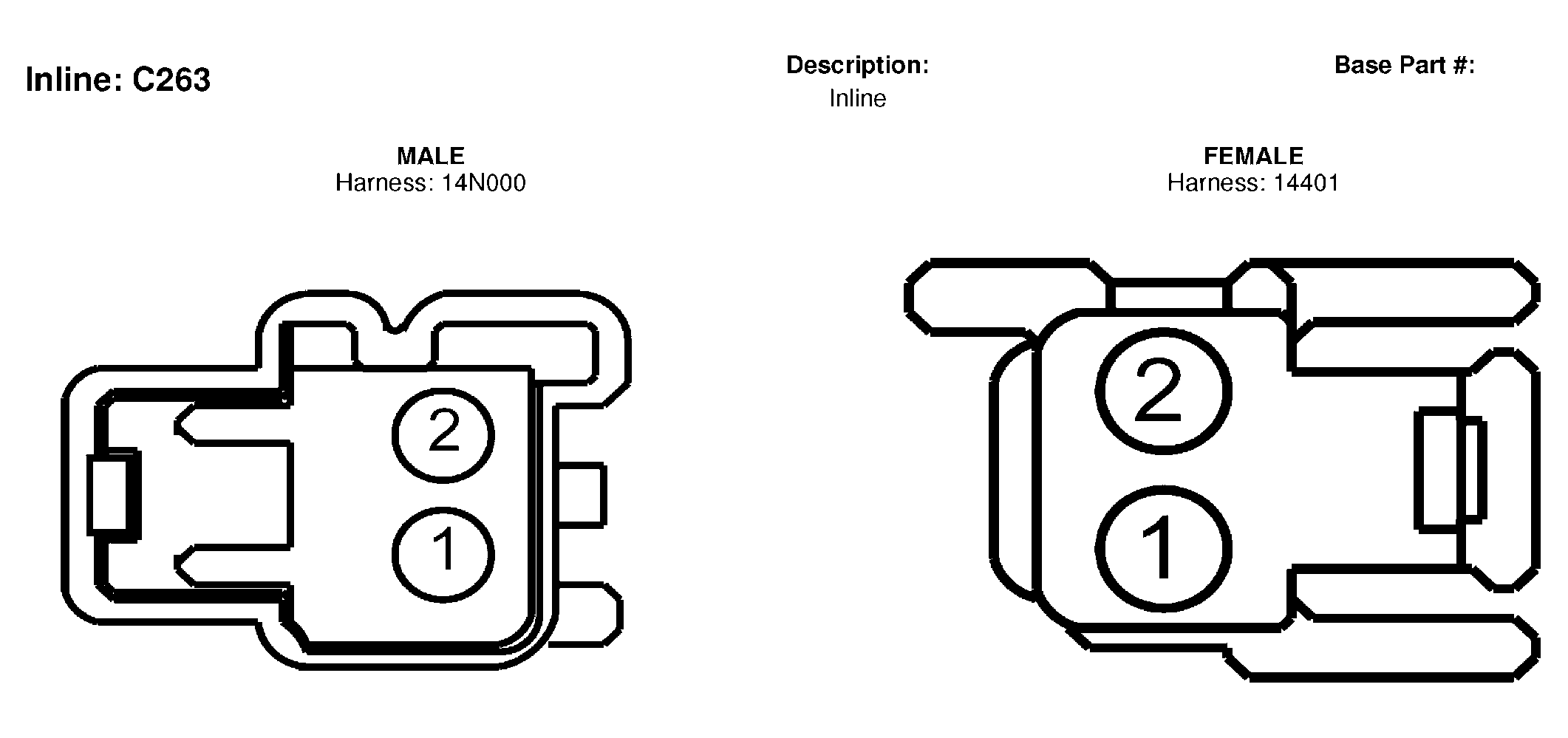

Fig 86: Inline Connector End View (C263)

Courtesy of FORD MOTOR CO.

C263 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	2136 (OG)	20
2	2137 (RD-LB)	20

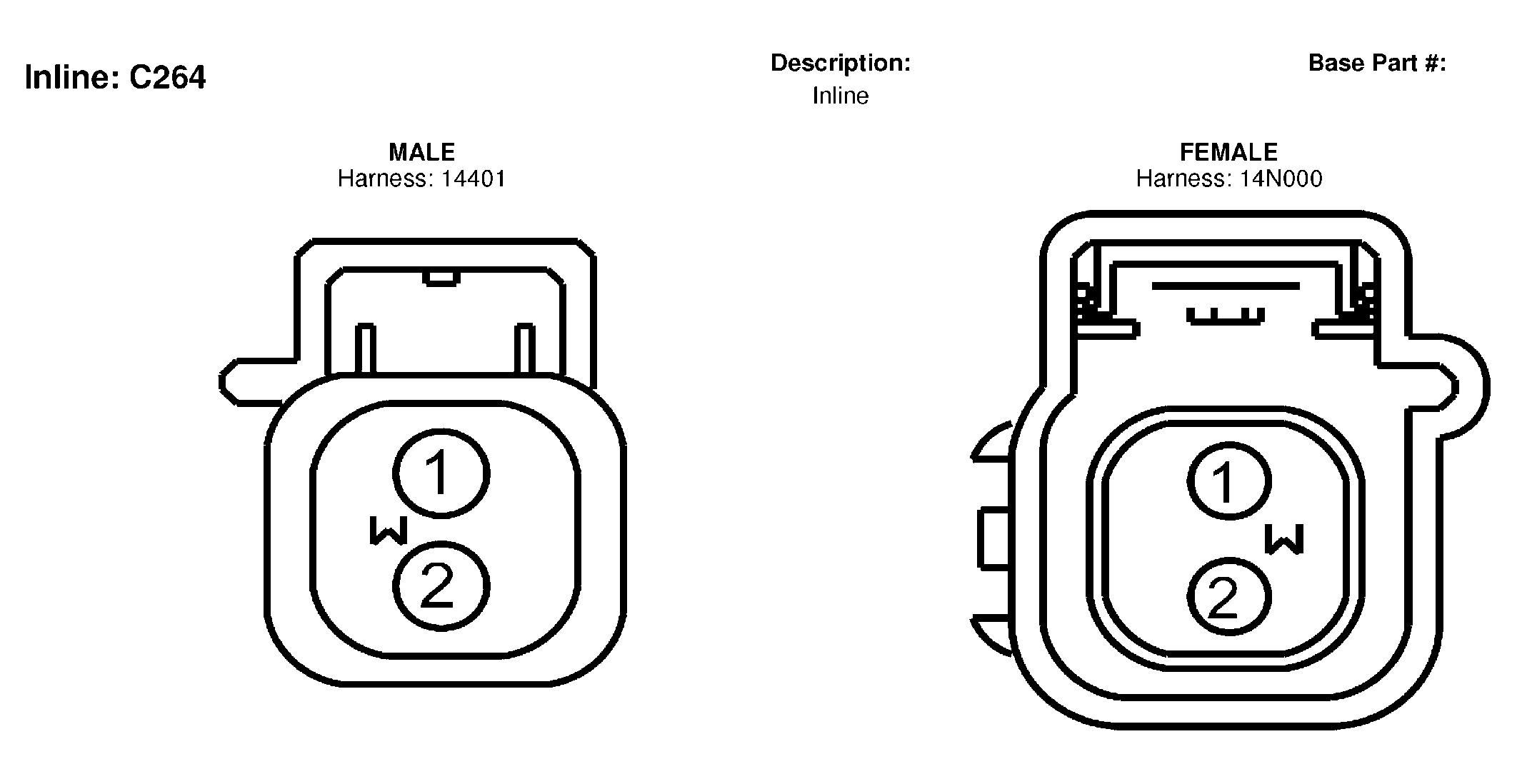

Fig 87: Inline Connector End View (C264)

Courtesy of FORD MOTOR CO.

C264 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	2136 (OG)	20
2	2137 (RD-LB)	20

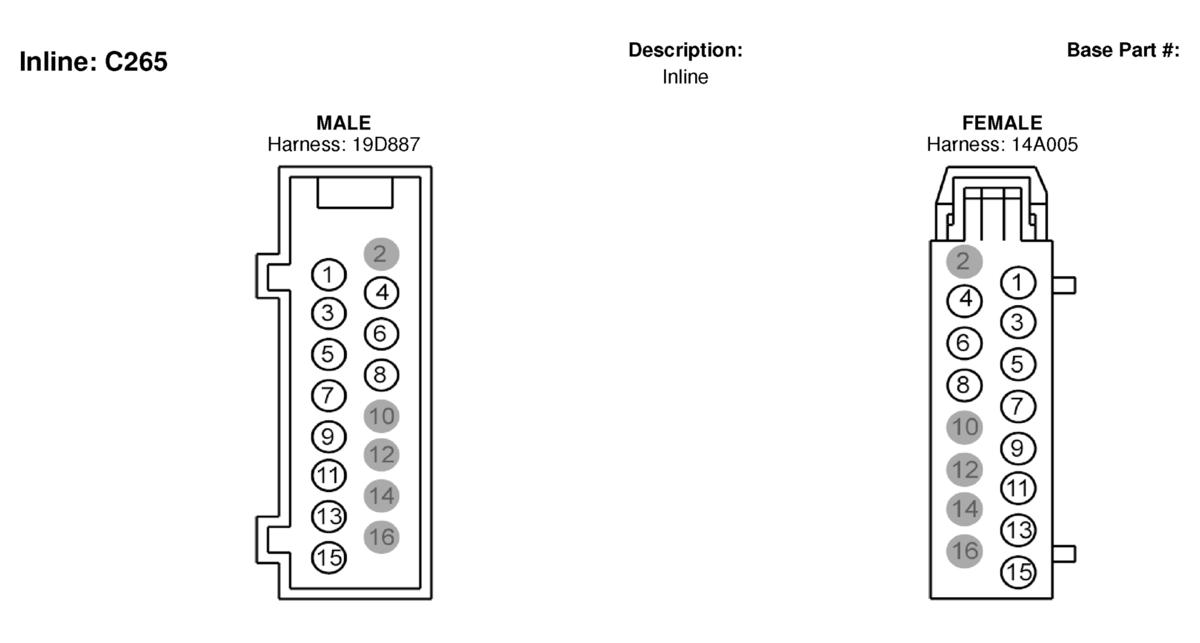

Fig 88: Inline Connector End View (C265)

Courtesy of FORD MOTOR CO.

C265 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	1069 (OG-LB)	22
2	*	*
3	435 (YE-LB)	22
4	245 (BR-LG)	22
5	438 (RD-WH)	22
6	437 (YE-LG)	22
7	436 (RD-LG)	22
8	246 (VT)	22
9	660 (YE-LG)	22
10	*	*
11	1125 (BR)	22
12	*	*
13	1122 (RD)	22
14	*	*
5	1124 (WH)	22
16	*	*

Fig 89: Deactivator Switch Connector End View (C227)

Courtesy of FORD MOTOR CO.

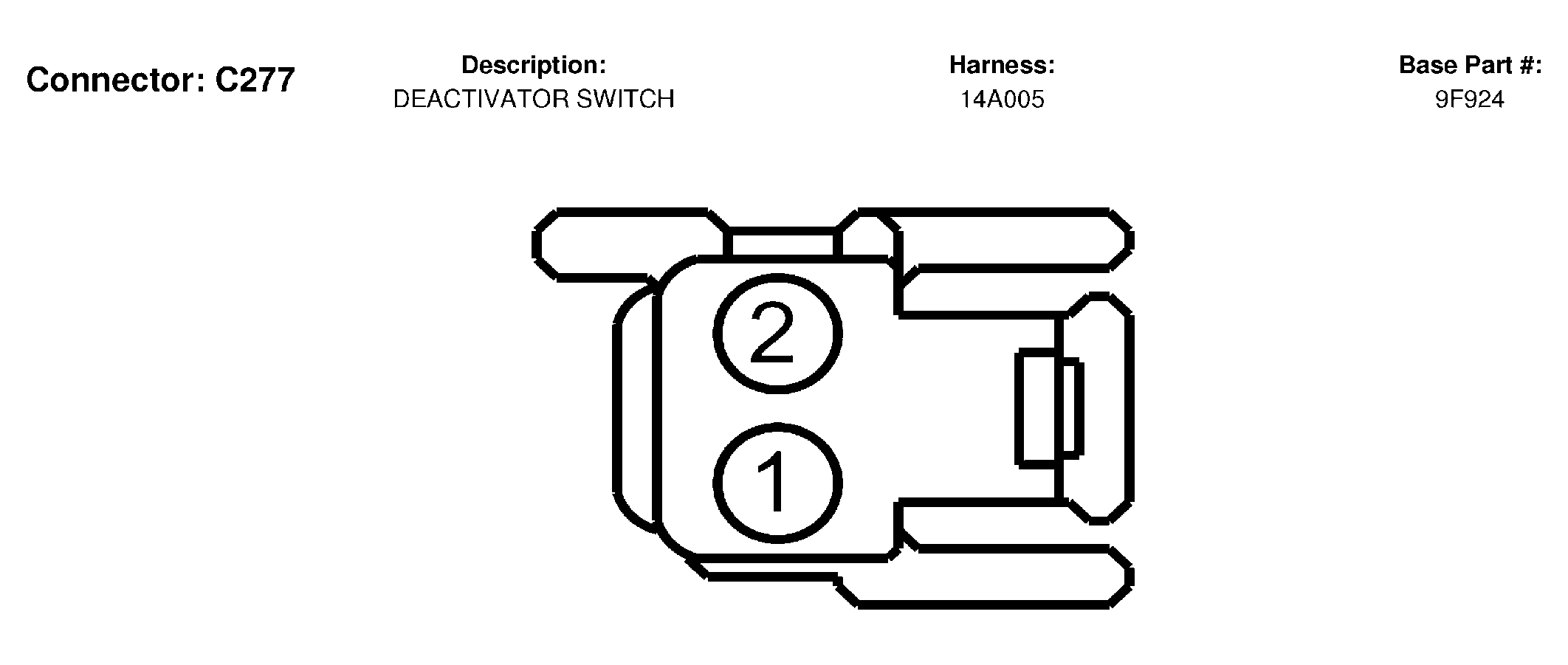

C277 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	636 (OG)	18	Deactivator switch signal
2	22 (LB-BK)	18	Voltage supplied at all times (overload protected)

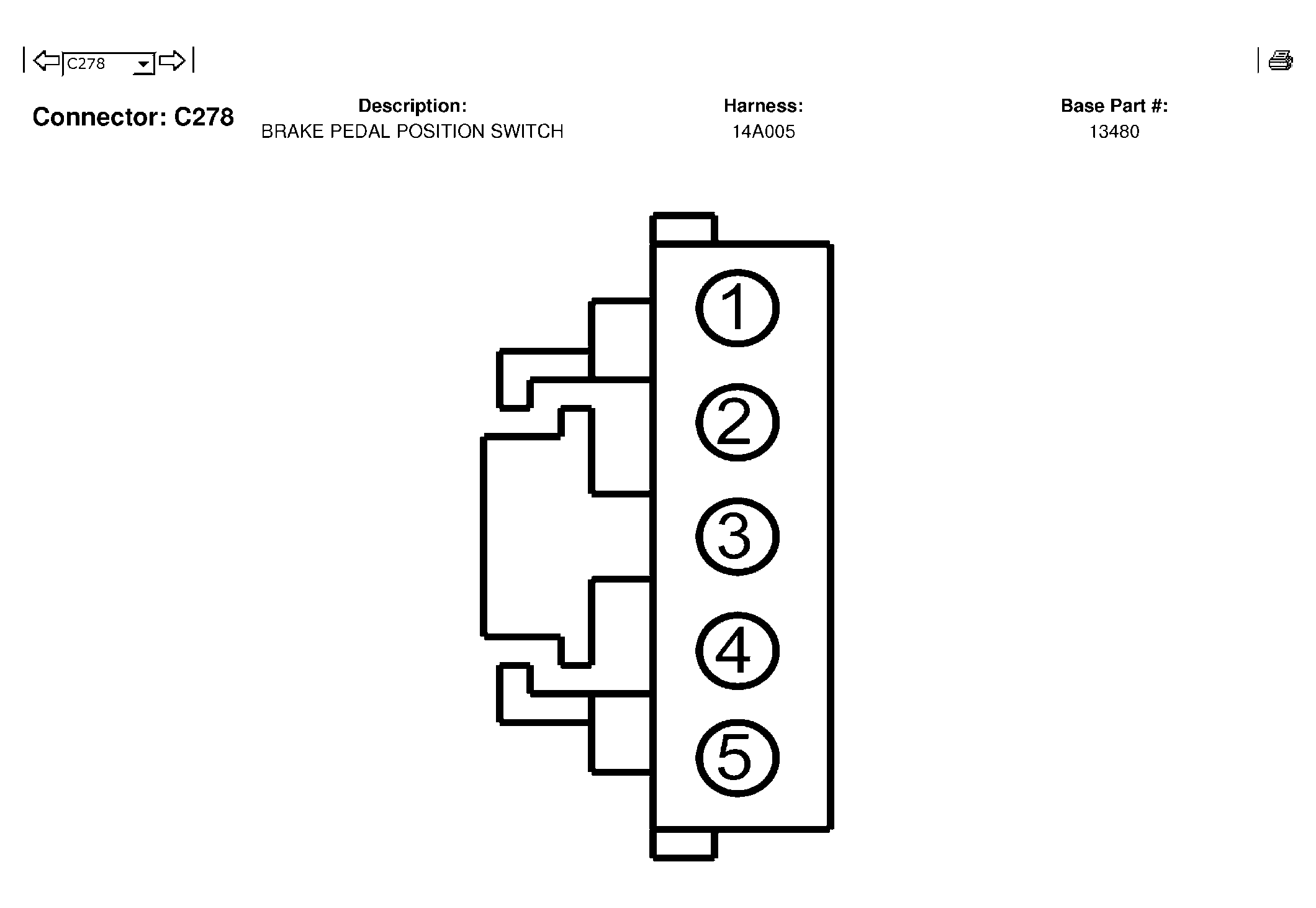

Fig 90: Brake Pedal Position Switch Connector End View (C278)

Courtesy of FORD MOTOR CO.

C278 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1119 (RD)	14	Voltage supplied at all times (overload protected)
2	10 (LG-RD)	14	Voltage supplied at all times (overload protected)
3	22 (LB-BK)	18	Voltage supplied at all times (overload protected)
4	1651 (WH-RD)	18	Brake pedal position switch signal
5	57 (BK)	18	Ground

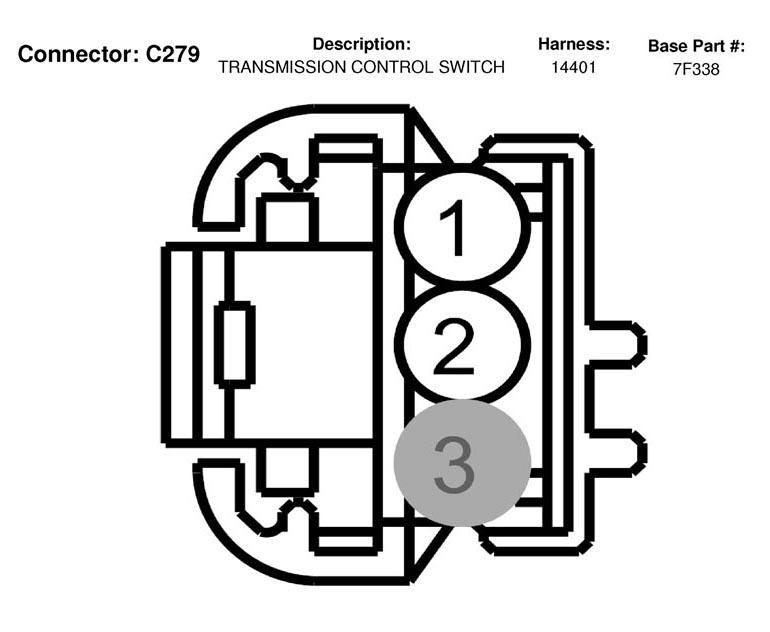

Fig 91: Transmission Control Switch Connector End View (C279)

Courtesy of FORD MOTOR CO.

C279 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	640 (RD-YE)	22	Voltage supplied in Start and Run (overload protected)
2	224 (TN-WH)	22	Transmission control switch signal
3	*	*	not used

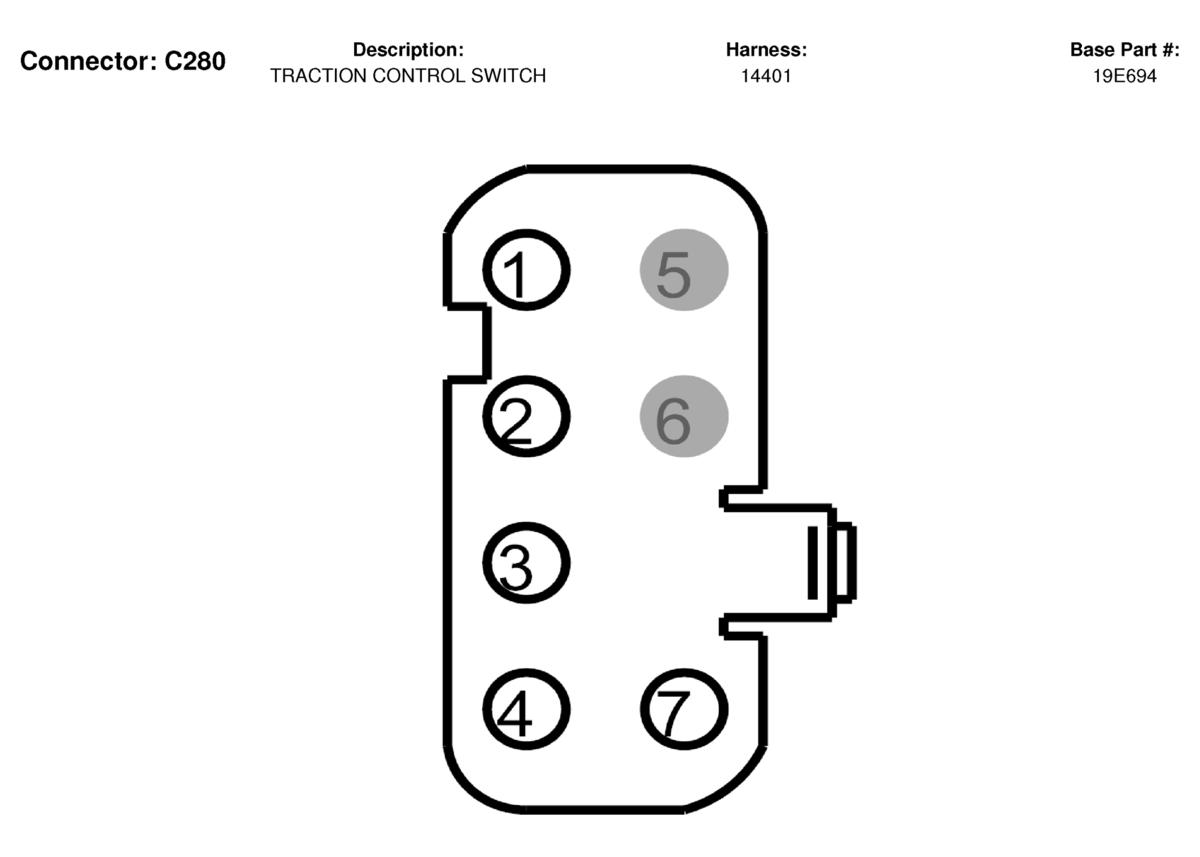

Fig 92: Traction Control Switch Connector End View (C280)

Courtesy of FORD MOTOR CO.

C280 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	959 (GY)	22	Traction control switch, On/Off signal
2	57 (BK)	22	Ground
3	484 (OG-BK)	22	Switch illumination +
4	939 (VT)	22	Traction control switch indicator control
5	*	*	not used
6	*	*	not used
7	57 (BK)	22	Ground

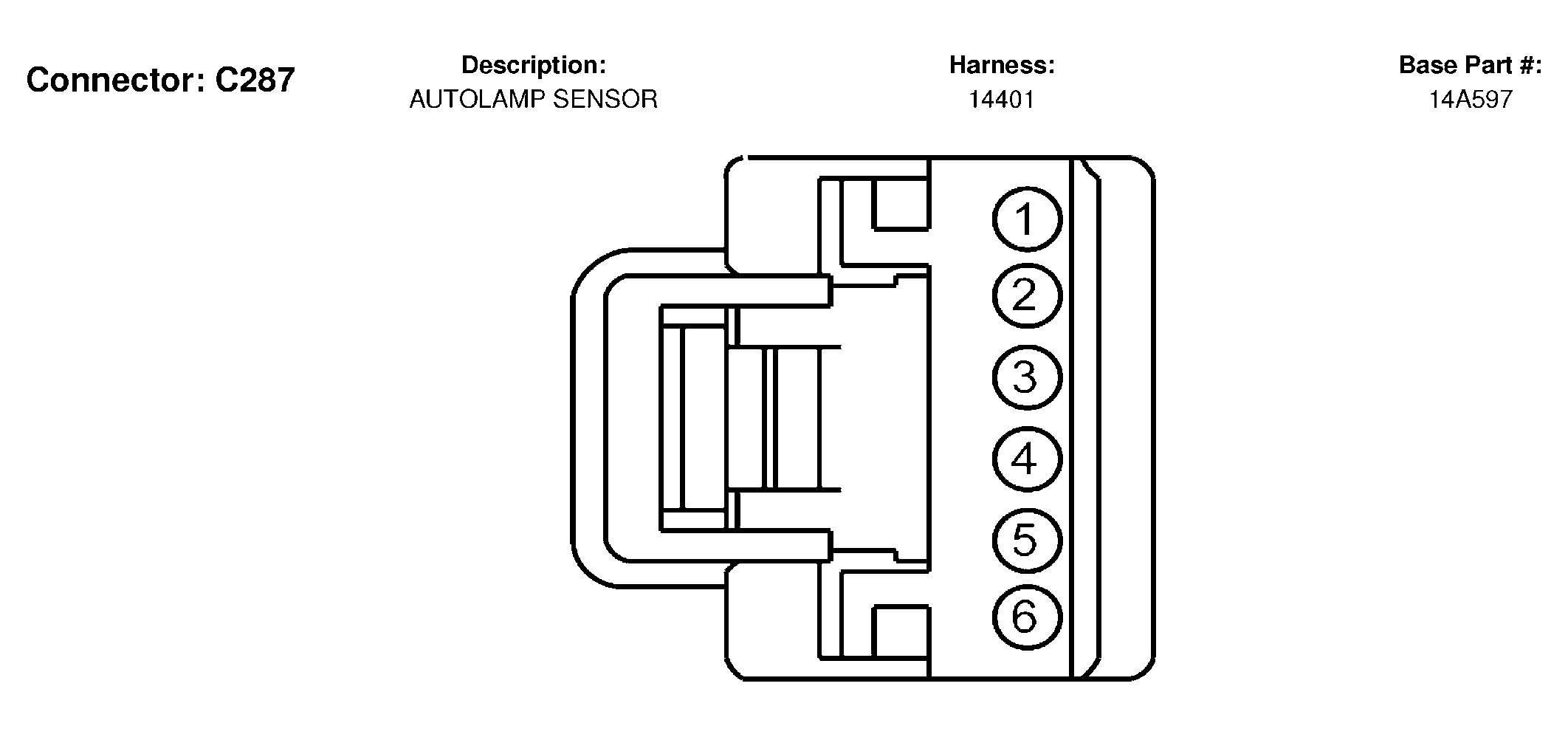

Fig 93: Autolamp Sensor Connector End View (C287)

Courtesy of FORD MOTOR CO.

C287 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	476 (BR-YE)	22	Sunload sensor, driver side signal
2	218 (WH-VT)	22	Autolamp sensor signal
3	1523 (DG)	22	Voltage supplied at all times (overload protected)
4	1269 (OG-RD)	22	Anti-theft indicator control
5	676 (PK-OG)	22	Ground
6	468 (BR)	22	Sunload sensor, passenger side signal

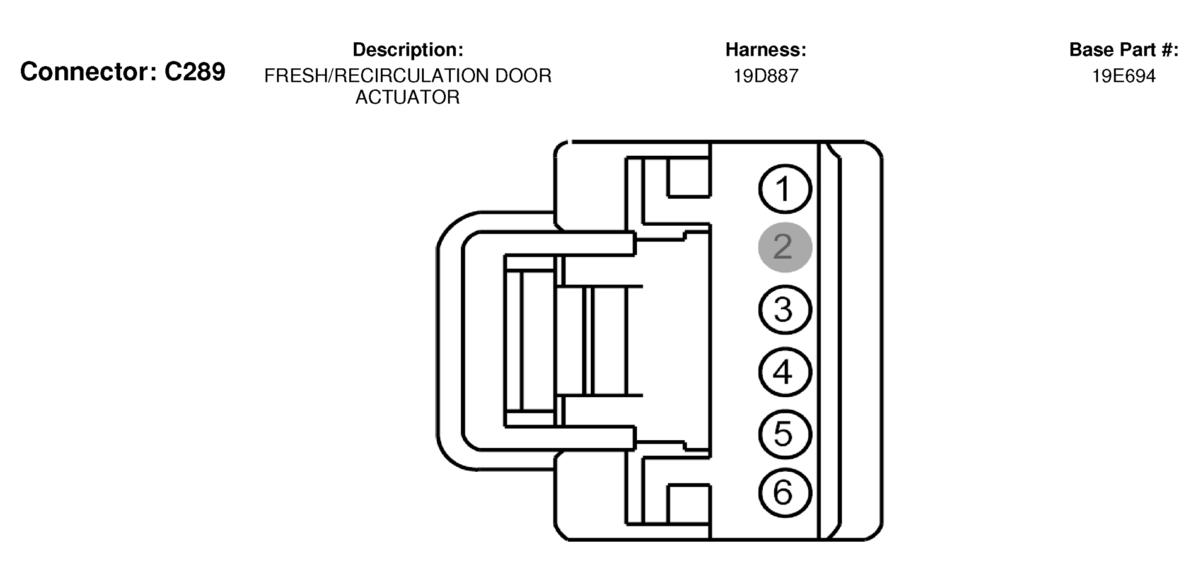

Fig 94: Fresh/Recirculation Door Actuator Connector End View (C289)

Courtesy of FORD MOTOR CO.

C289 CONNECTOR REFERENCE

Pin	Circuit Gauge	Circuit Function	Qualifier
1	660 (YE-LG)	22	Fresh/recirculation door actuator +
2	*	*	not used
3	435 (YE-LB)	22	Fresh/recirculation door actuator signal
4	438 (RD-WH)	22	Temperature blend door variable resistor -
5	436 (RD-LG)	22	Temperature blend door variable resistor +
6	1069 (OG-LB)	22	Fresh/recirculation door actuator +/-

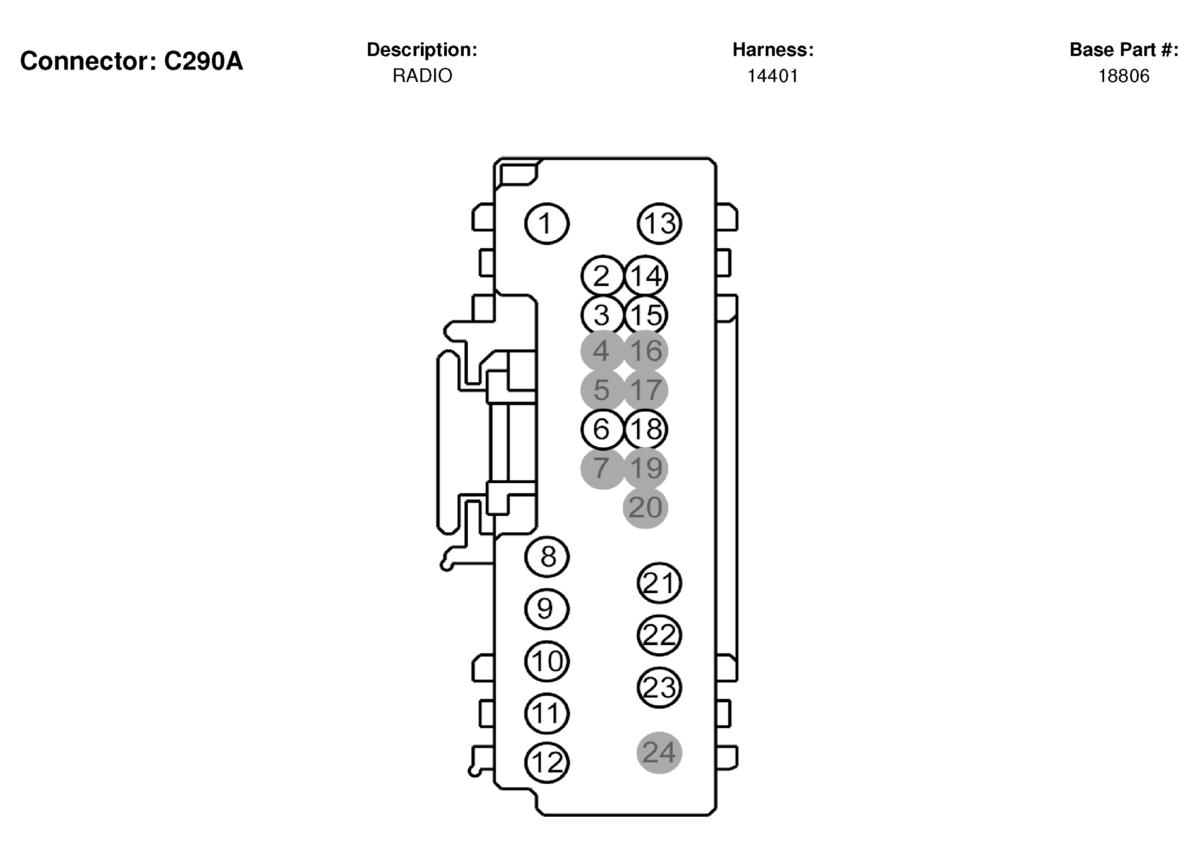

Fig 95: Radio Connector End View (C290A)

Courtesy of FORD MOTOR CO.

C290A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1772 (VT)	16	Voltage supplied at all times (overload protected)
2	1678 (WH-VT)	22	Voltage supplied in Run or Accessory (overload protected)	Early production
2	1499 (PK-LG)	22	Accessory delay relay output	Late production
3	484 (OG-BK)	22	Switch illumination +	SWB Late production
4	*	*	not used
5	*	*	not used
6	57 (BK)	22	Ground	SWB Late production
7	*	*	not used
8	804 (OG-LG)	18	Speaker, left front +
9	800 (GY-LB)	18	Speaker, left rear +
10	802 (OG-RD)	18	Speaker, right rear +
11	805 (WH-LG)	18	Speaker, right front +
12	811 (DG-OG)	18	Speaker, right front -
13	694 (BK-LG)	16	Ground
14	679 (GY-BK)	22	vehicle speed signal	SWB Late production
15	1000 (RD-BK)	20	Voltage supplied in Start (overload protected)
16	*	*	not used
17	*	*	not used
18	595 (LB-RD)	22	Audio/climate control switch, Radio, signal
19	*	*	not used
20	*	*	not used
21	813 (LB-WH)	18	Speaker, left front -
22	801 (TN-YE)	18	Speaker, left rear -
23	803 (BR-PK)	18	Speaker, right rear -
24	*	*	not used

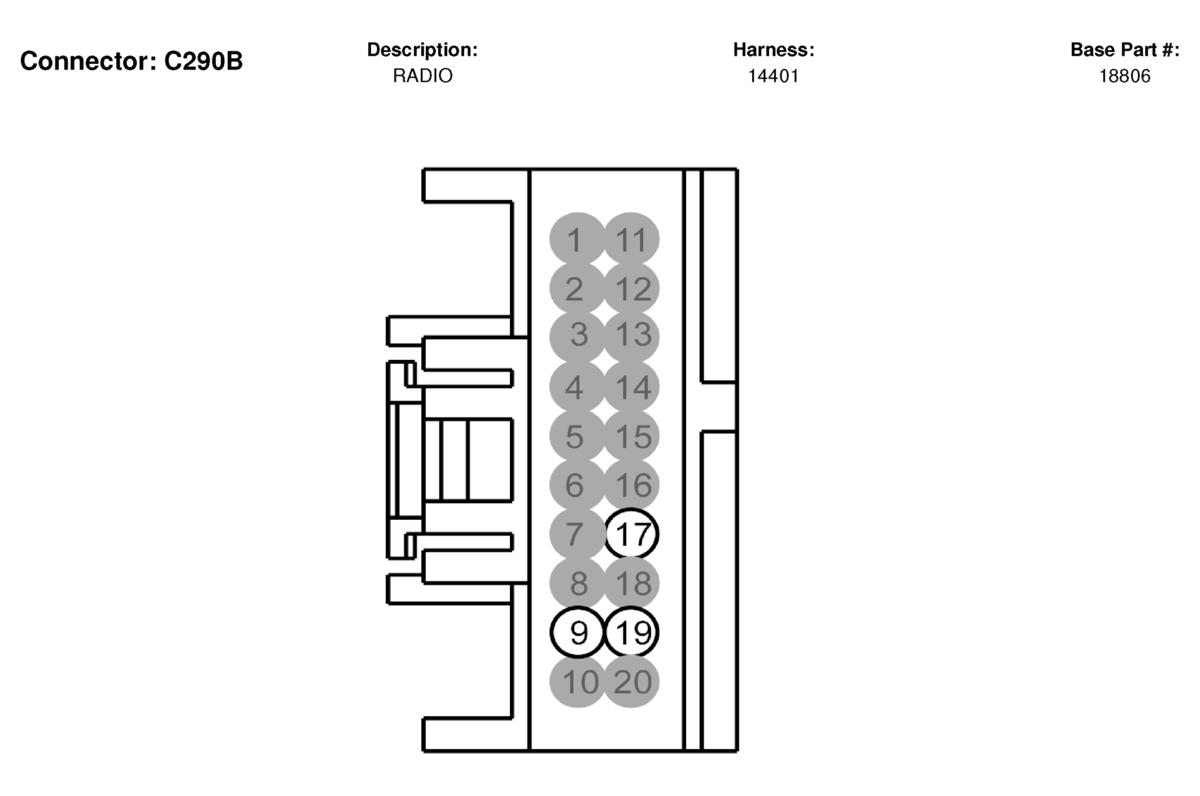

Fig 96: Radio Connector End View (C290B)

Courtesy of FORD MOTOR CO.

C290B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	914 (TN-OG)	22	SCP Bus +
10	*	*	not used
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	*	*	not used
16	*	*	not used
17	1442 (DG-WH)	22	Parking aid, audio mute signal Early production
18	*	*	not used
19	915 (PK-LB)	22	SCP Bus -
20	*	*	not used

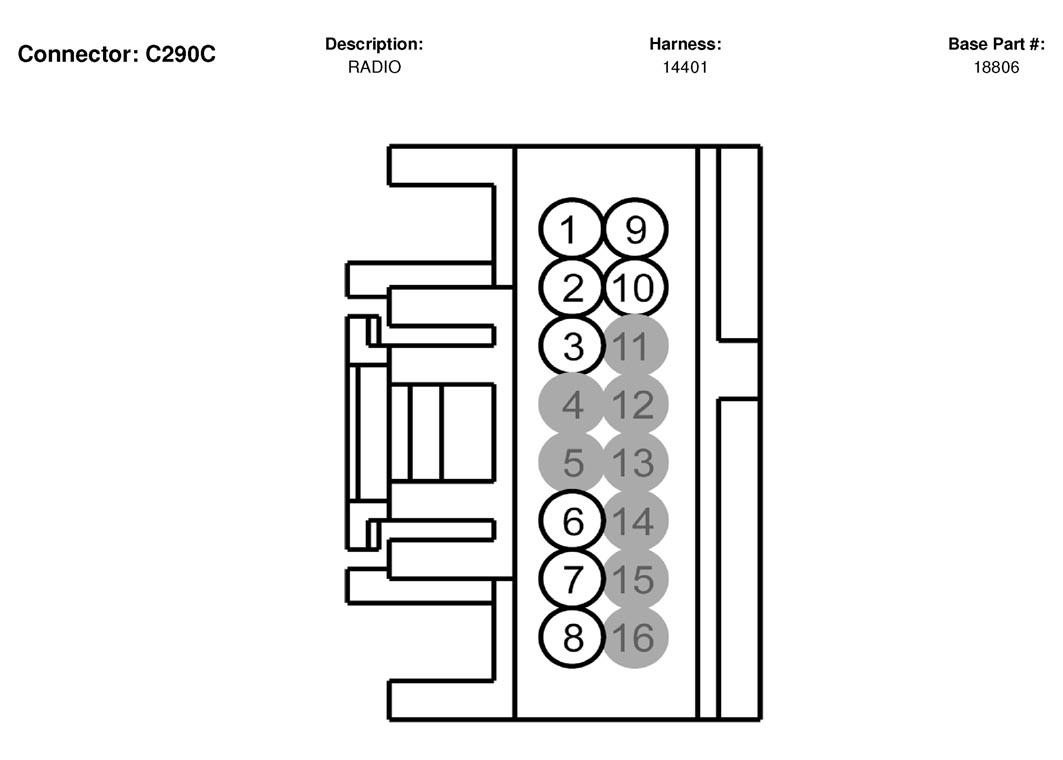

Fig 97: Radio Connector End View (C290C)

Courtesy of FORD MOTOR CO.

C290C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	798 (LG-RD)	22	CD changer, Left +
2	856 (VT)	22	CD changer, Left -
3	48 (-)	22	Shield
4	*	*	not used
5	*	*	not used
6	1068 (LG-BK)	22	Audio System ON (ASYSON)
7	832 (LB-PK)	22	Audio corporate protocol A
8	833 (TN)	22	Audio corporate protocol B
9	799 (OG-BK)	22	CD changer, Right +
10	690 (GY)	22	CD changer, Right -
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	*	*	not used
16	*	*	not used

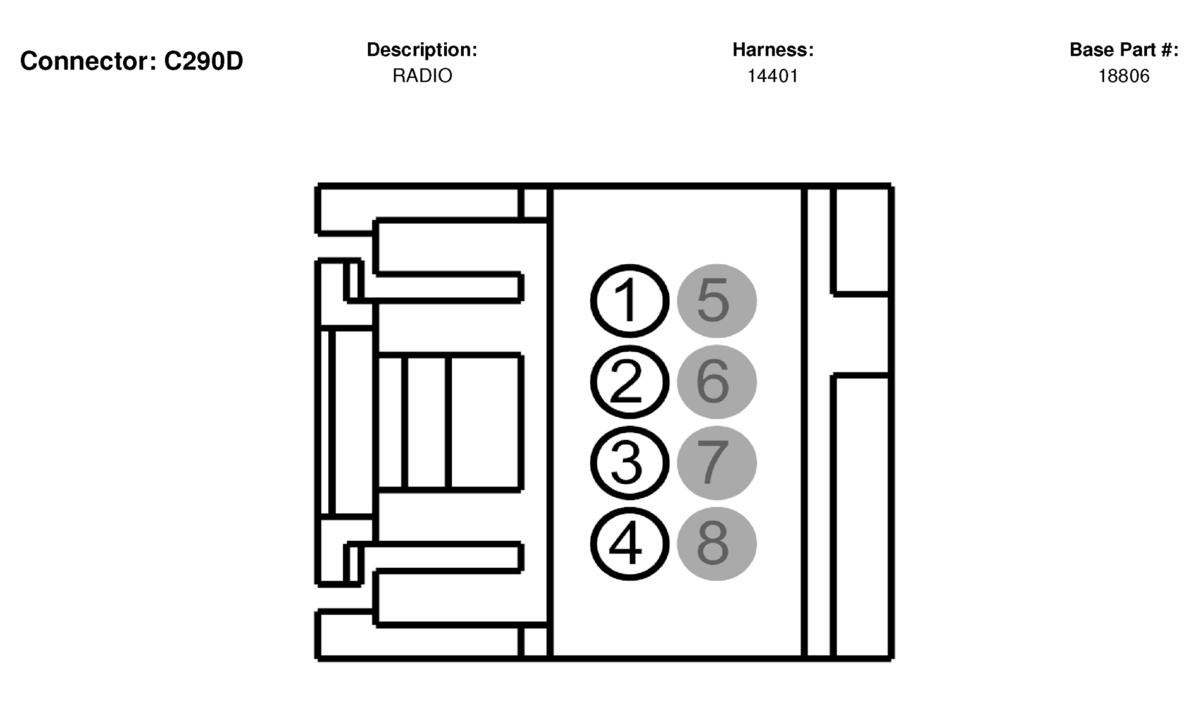

Fig 98: Radio Connector End View (C290D)

Courtesy of FORD MOTOR CO.

C290D CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	167 (BR-OG)	22	Subwoofer -
2	168 (RD-BK)	22	Subwoofer +
3	48 (-)	22	Shield
4	173 (DG-VT)	22	Subwoofer, High, mute
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used

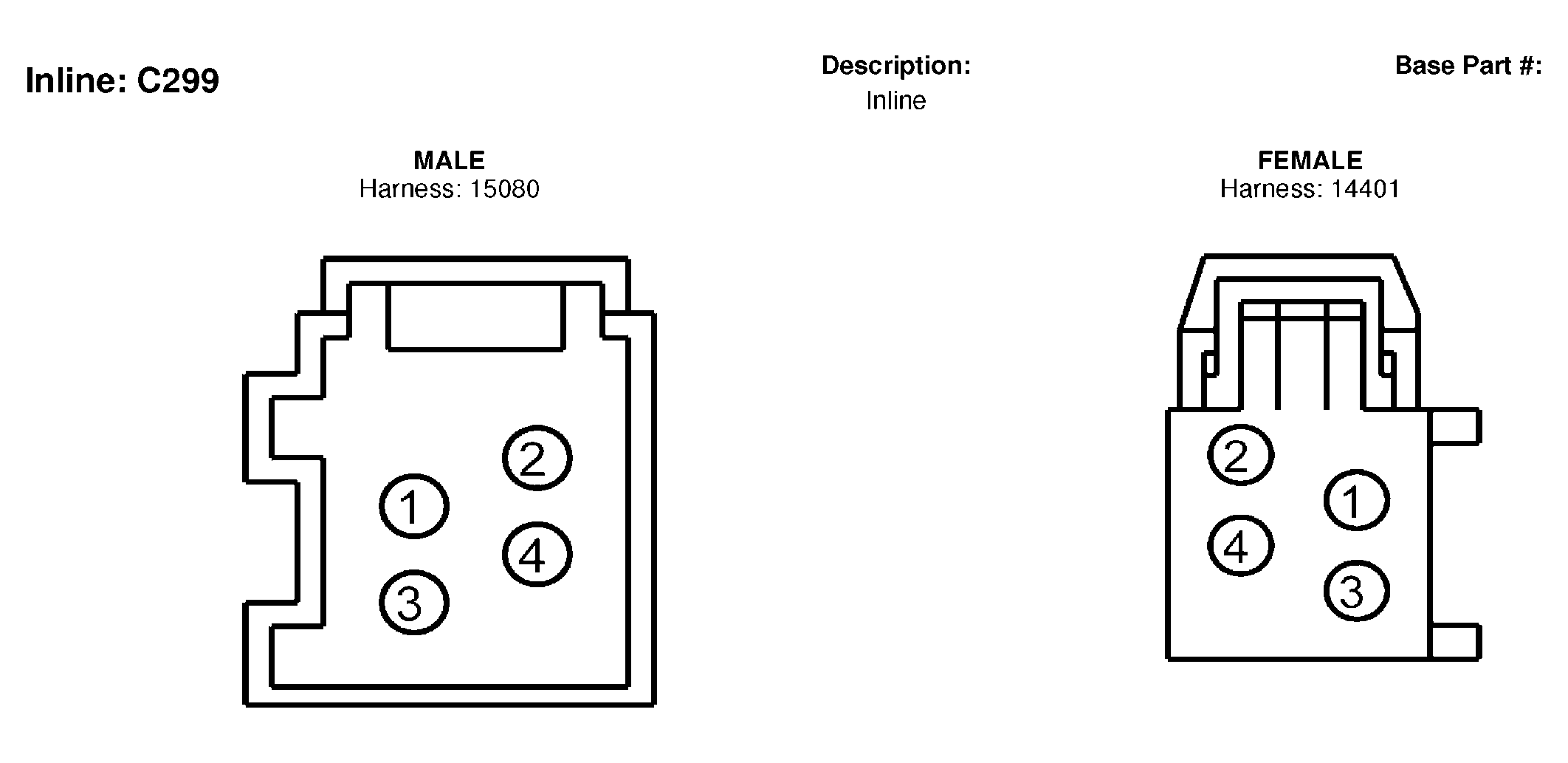

Fig 99: Inline Connector End View (C299)

Courtesy of FORD MOTOR CO.

C299 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	484 (OG-BK)	22
2	40 (LB-WH)	16
3	1049 (BR-PK)	16
4	57 (BK)	12

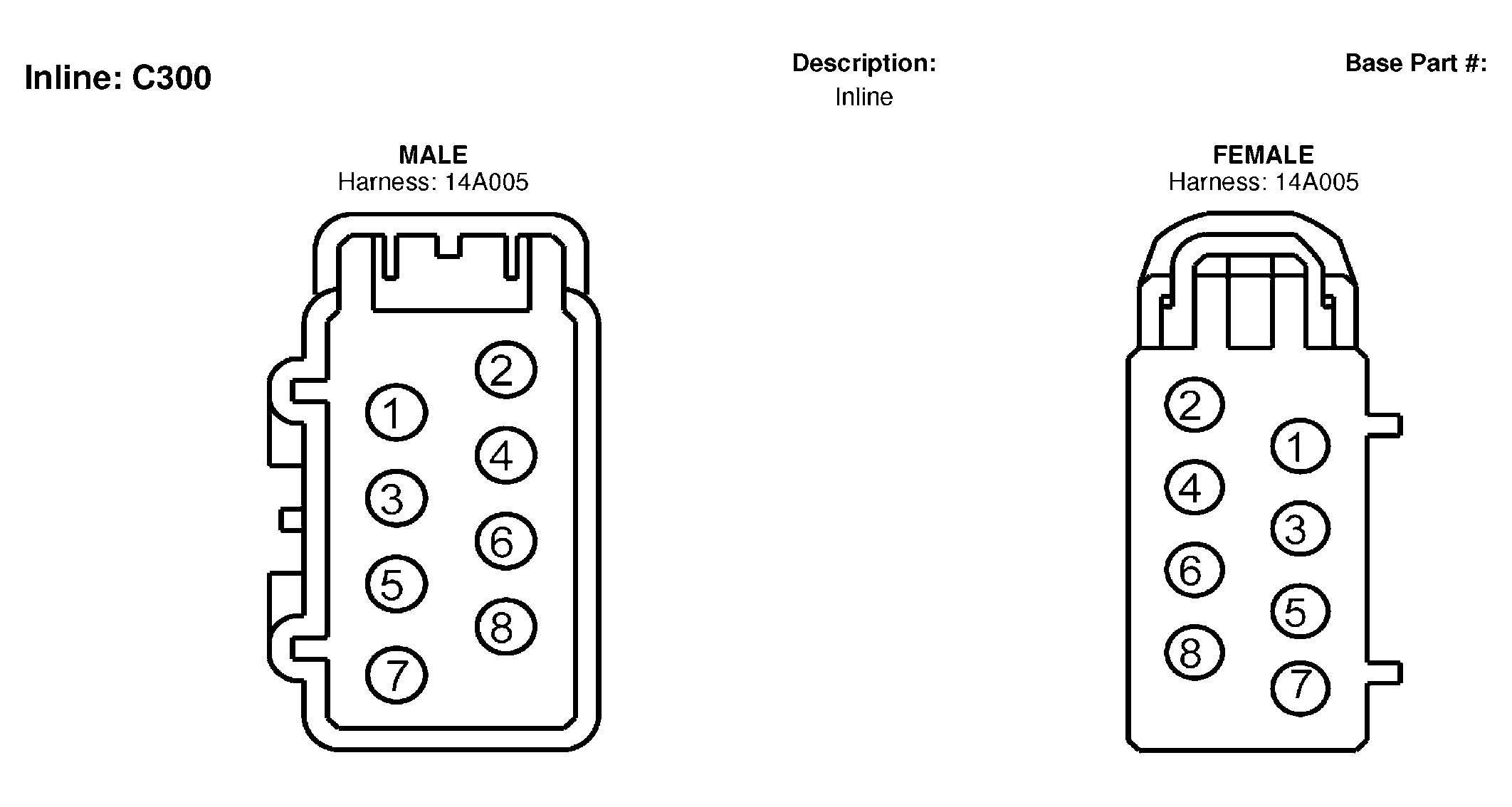

Fig 100: Inline Connector End View (C300)

Courtesy of FORD MOTOR CO.

C300 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	170 (RD-LB)	12
2	319 (YE-BK)	12
3	320 (RD-BK)	12
4	118 (PK-OG)	16
5	53 (BK-LB)	20
6	117 (PK-BK)	16
7	627 (BK-OG)	20
8	57 (BK)	14

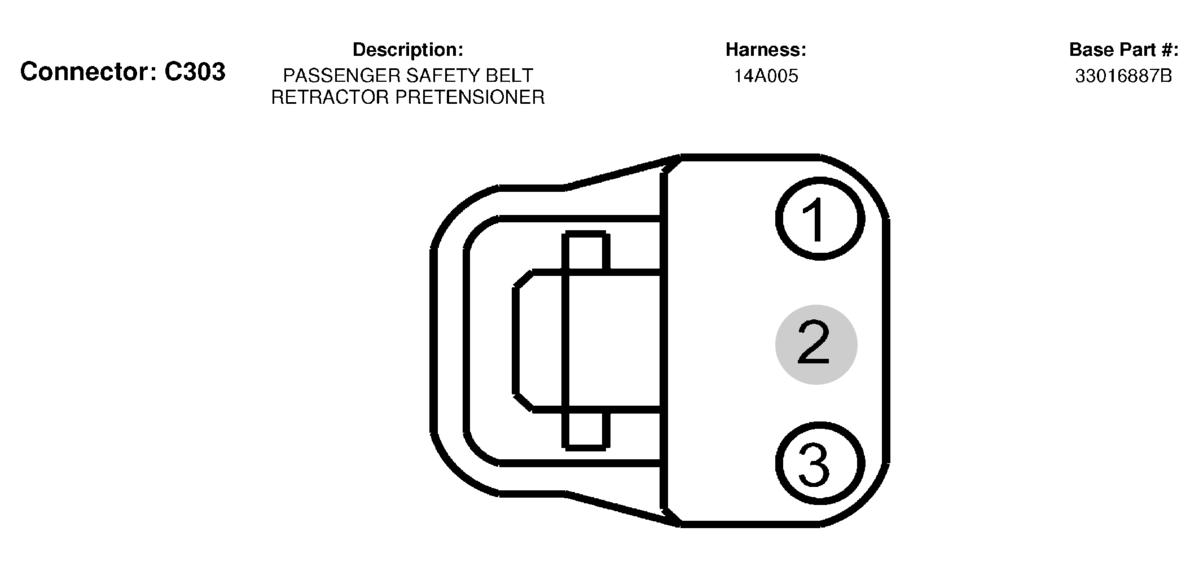

Fig 101: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

Courtesy of FORD MOTOR CO.

C303 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1081 (YE-RD)	20	Passenger safety belt retractor pretensioner, feed
2	*	*	not used
3	1082 (YE-BK)	20	Passenger safety belt retractor pretensioner, return

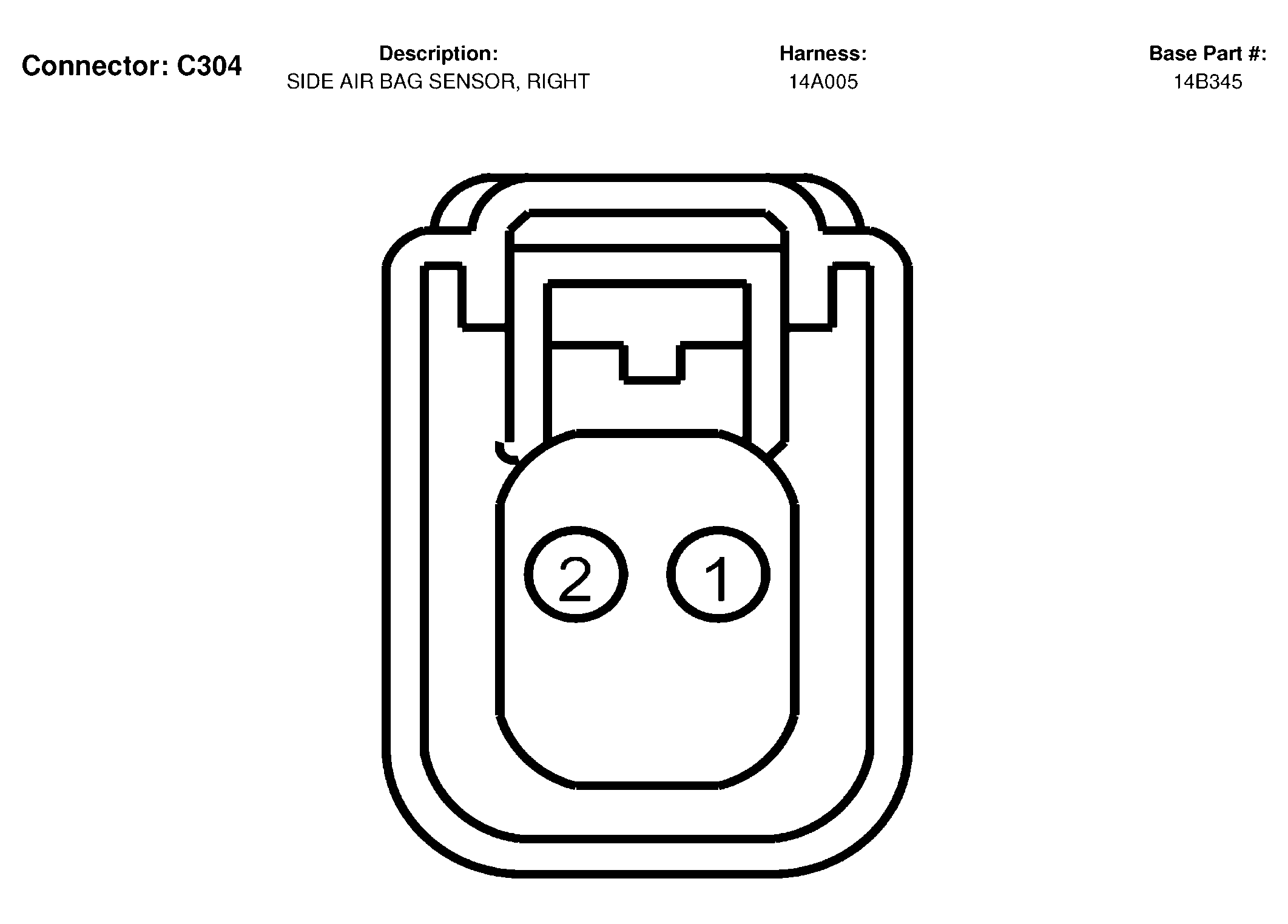

Fig 102: Side Air Bag Sensor, Right Connector End View (C304)

Courtesy of FORD MOTOR CO.

C304 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1263 (WH)	20	Side air bag sensor, right +
2	1264 (BR)	20	Side air bag sensor, right -

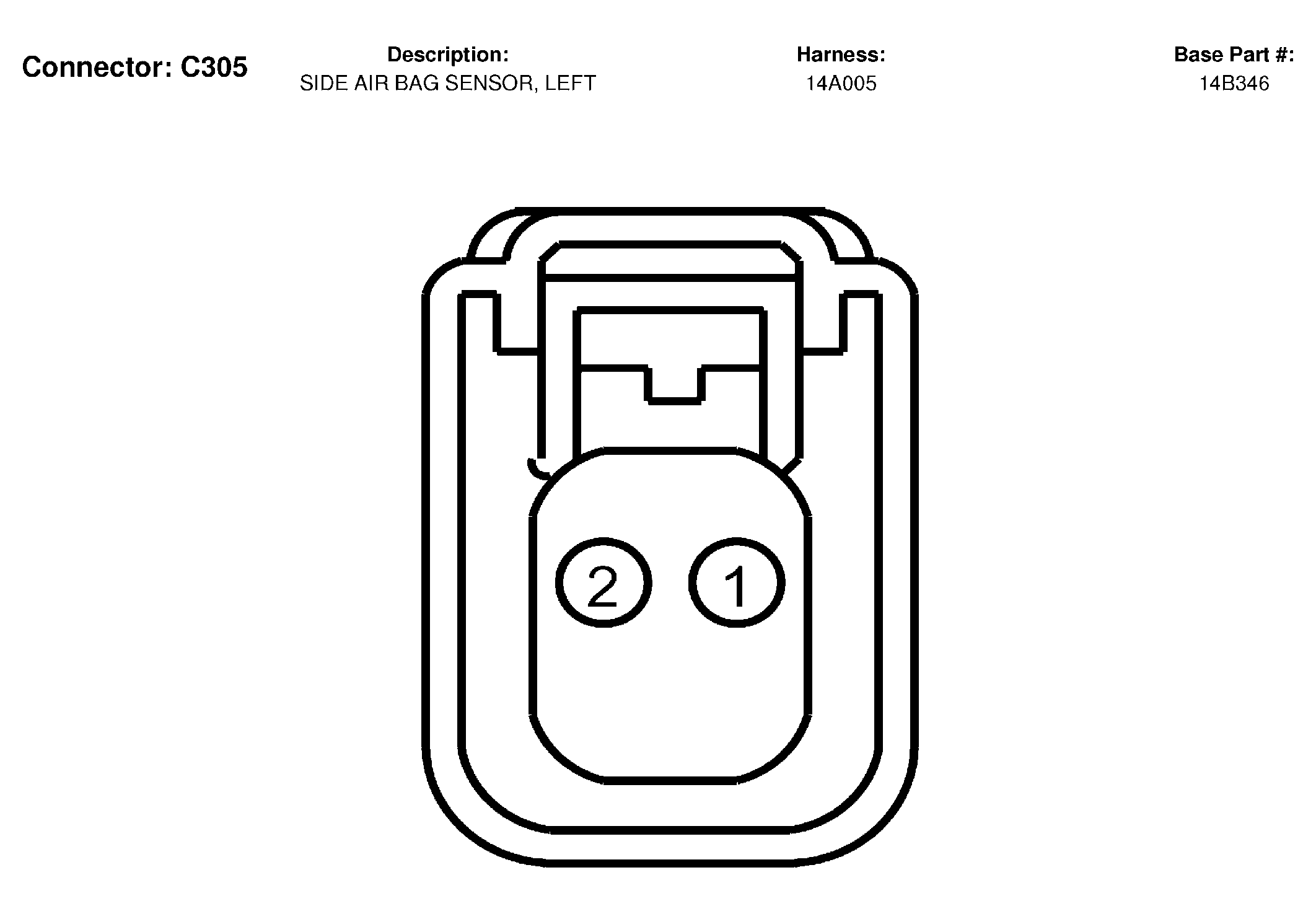

Fig 103: Side Air Bag Sensor, Left Connector End View (C305)

Courtesy of FORD MOTOR CO.

C305 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1261 (WH-LG)	20	Side air bag sensor, left +
2	1262 (BR-LG)	20	Side air bag sensor, left -

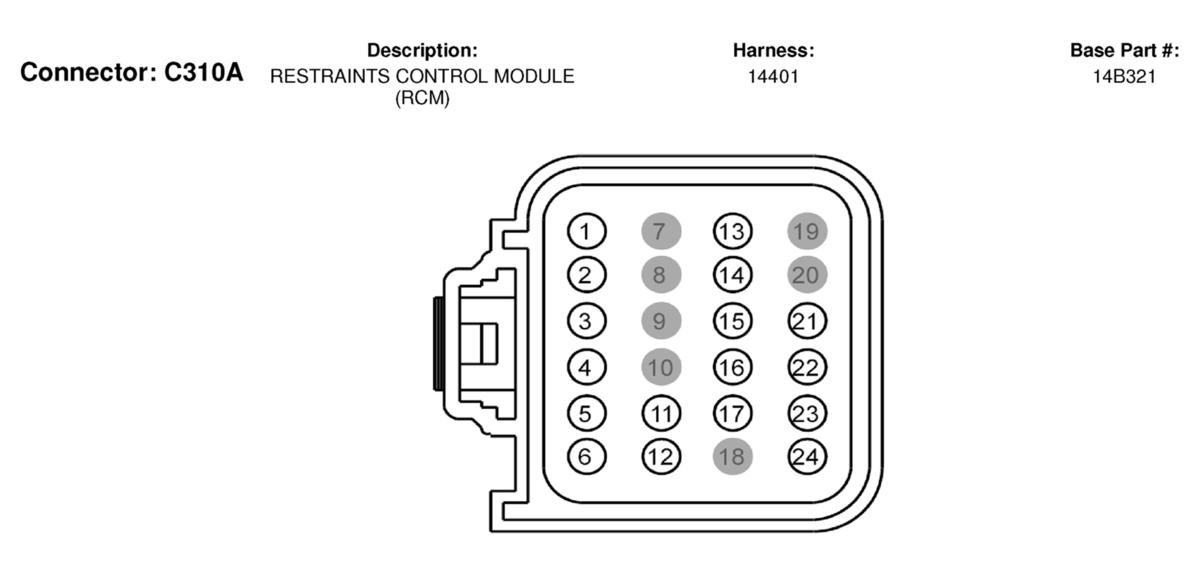

Fig 104: Restraints Control Module (RCM) Connector End View (C310A)

Courtesy of FORD MOTOR CO.

C310A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	614 (GY-OG)	20	Driver air bag feed
2	615 (GY-WH)	20	Driver air bag return
3	607 (LB-OG)	20	Passenger air bag feed
4	616 (PK-BK)	20	Passenger air bag return
5	1516 (YE-WH)	20	Driver air bag feed 2, signal
6	1517 (RD-OG)	20	Driver air bag feed 2, return
7	*	*	not used
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	70 (LB-WH)	22	ISO Bus
12	937 (RD-WH)	20	Voltage supplied in Start and Run (overload protected)
13	1518 (BK-WH)	20	Passenger air bag feed 2, signal
14	1519 (LG-RD)	20	Passenger air bag feed 2, return
15	608 (BK-YE)	22	Air bag indicator control
16	676 (PK-OG)	20	Ground
17	1799 (YE-BK)	22	RDI/VEMS signal
18	*	*	not used
19	*	*	not used
20	*	*	not used
21	2136 (OG)	20	Deployable steering column feed
22	2137 (RD-LB)	20	Deployable steering column return
23	1083 (LB-PK)	22	Air bag, tone driver
24	1632 (TN-LB)	22	Passenger air bag deactivation indicator control

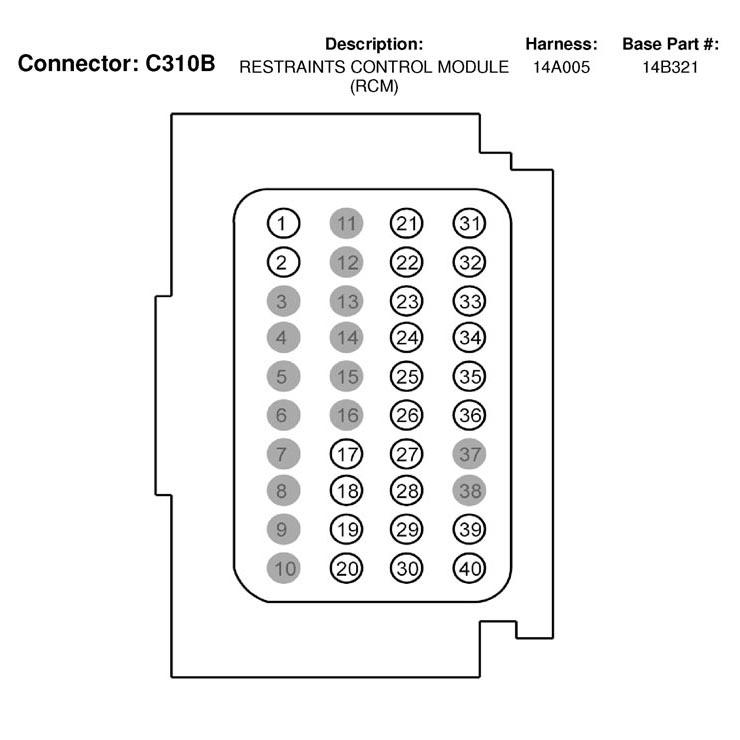

Fig 105: Restraints Control Module (RCM) Connector End View (C310B)

Courtesy of FORD MOTOR CO.

C310B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1257 (WH-LB)	20	Side air bag module impact - Left +
2	1258 (RD)	20	Side air bag module impact - Left -
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	*	*	not used
16	*	*	not used
17	1079 (LG-RD)	20	Driver safety belt retractor pretensioner, feed
18	1080 (LG-BK)	20	Driver safety belt retractor pretensioner, return
19	617 (PK-OG)	22	Front impact severity sensor feed
20	618 (VT-LG)	22	Front impact severity sensor return
21	1259 (WH-YE)	18	Side air bag module impact - Right -
22	1260 (BR-YE)	18	Side air bag module impact - Right +
23	1520 (LG)	22	Seat position sensor - horizontal sense
24	1558 (TN-BK)	22	Signal return
25	85 (BR-LB)	22	Safety belt buckle switch, driver +
26	1514 (RD-BK)	22	Safety belt buckle switch, passenger signal
27	1261 (WH-LG)	22	Side air bag sensor, left +
28	1262 (BR-LG)	22	Side air bag sensor, left -
29	1263 (WH)	22	Side air bag sensor, right +
30	1264 (BR)	22	Side air bag sensor, right -
31	676 (PK-OG)	22	Ground
32	676 (PK-OG)	22	Ground
33	1919 (PK-OG)	22	CAN +
34	1918 (BR-WH)	22	CAN -
35	1081 (YE-RD)	20	Passenger safety belt retractor pretensioner, feed
36	1082 (YE-BK)	20	Passenger safety belt retractor pretensioner, return
37	*	*	not used
38	*	*	not used
39	619 (PK-WH)	22	Air bag crash sensor #2 feed
40	620 (VT-LB)	22	Air bag crash sensor #2 ground monitor

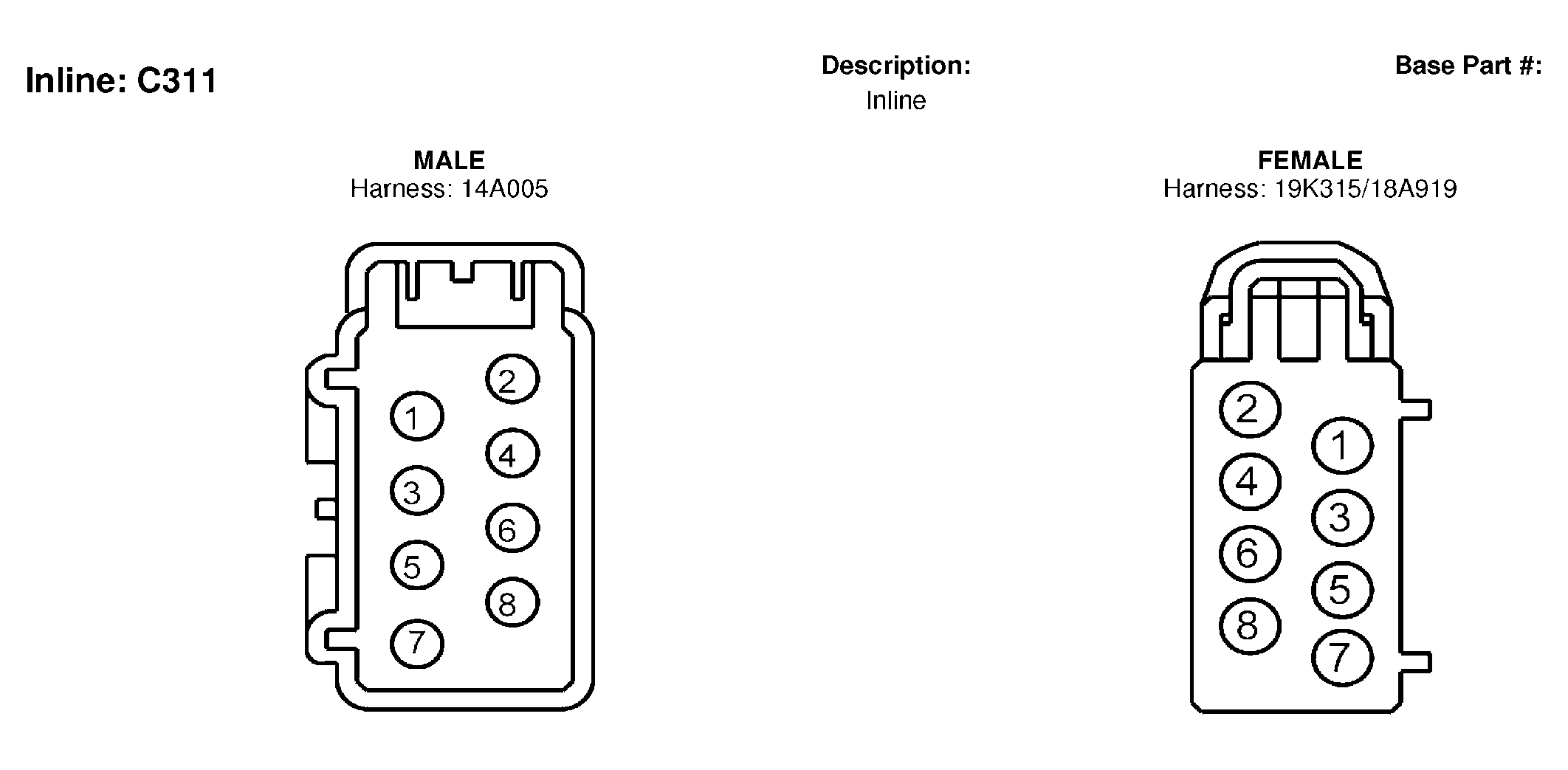

Fig 106: Inline Connector End View (C311)

Courtesy of FORD MOTOR CO.

C311 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	987 (RD-WH)	12
2	986 (YE-WH)	12	non Livery
2	57 (BK)	12	Livery
3	1466 (GY-OG)	12
4	170 (RD-LB)	12
5	1507 (WH-RD)	16	14A005
5	1507 (WH-RD)	14	18A919, 19K315
6	1465 (GY-WH)	12
7	57 (BK)	12	non Livery
7	986 (YE-WH)	12	Livery
8	1521 (LG)	16	14A005
8	1521 (LG)	14	18A919, 19K315

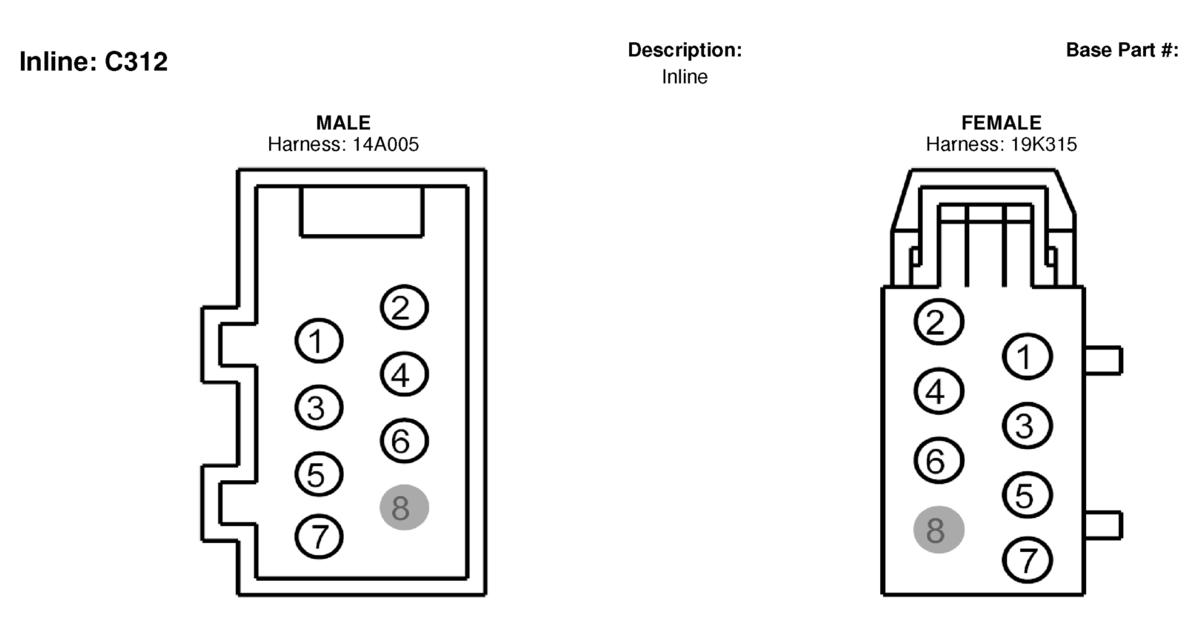

Fig 107: Inline Connector End View (C312)

Courtesy of FORD MOTOR CO.

C312 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1445 (RD-LG)	16
2	1040 (RD-BK)	20
3	1019 (TN-LB)	22	19K315
3	1019 (TN-LB)	20	14A005
4	1018 (LG-OG)	22	19K315
4	1018 (LG-OG)	20	14A005
5	57 (BK)	16
6	1020 (DG-VT)	22	19K315
6	1020 (DG-VT)	20	14A005
7	1255 (WH-RD)	22	19K315
7	1255 (WH-RD)	20	14A005
8	*

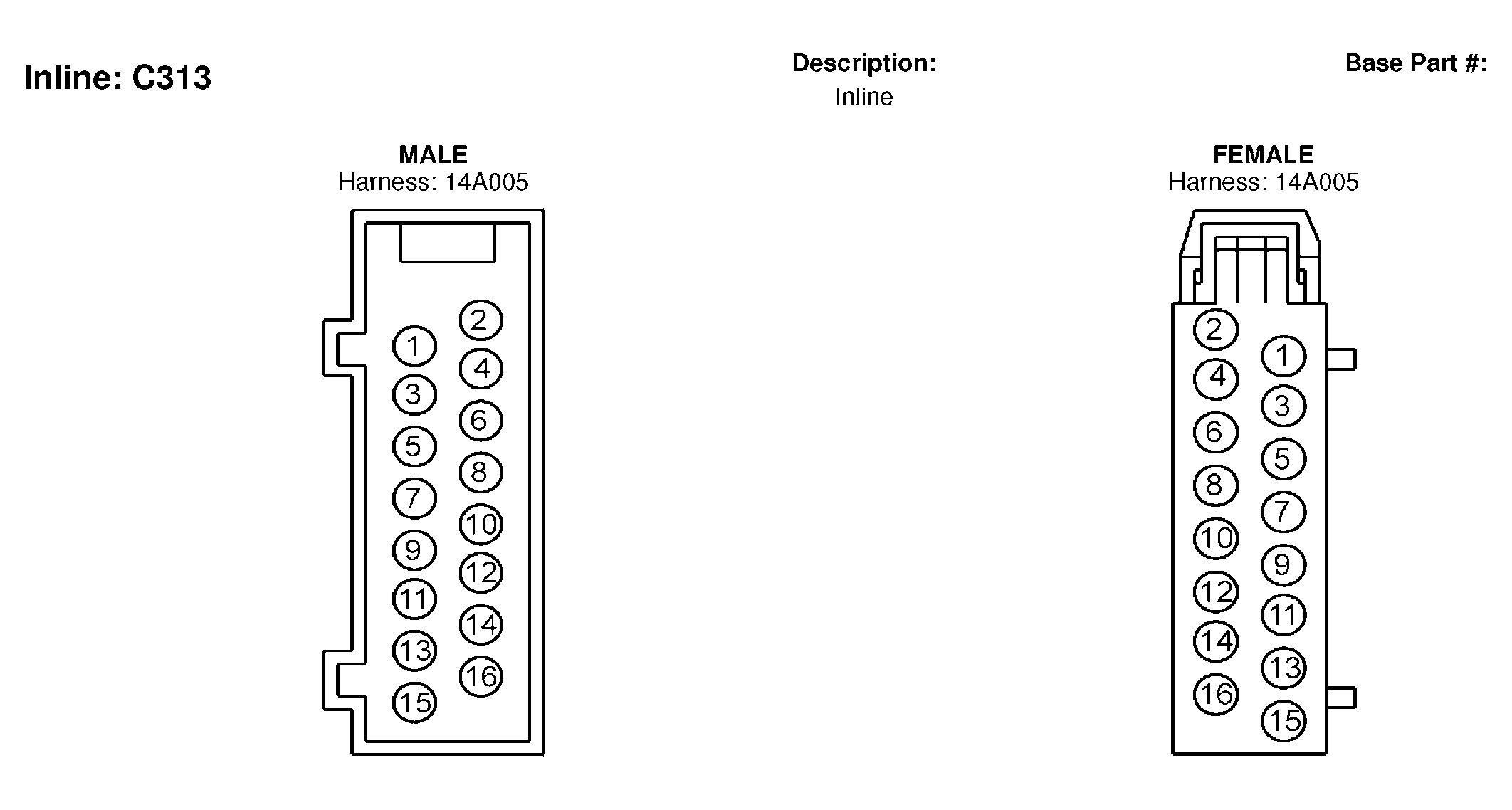

Fig 108: Inline Connector End View (C313)

Courtesy of FORD MOTOR CO.

C313 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	914 (TN-OG)	22	Early production
2	915 (PK-LB)	22	Early production
3	14 (BR)	20
4	140 (BK-PK)	18
5	1114 (BR-PK)	20
6	1115 (TN-WH)	20
7	432 (BK-PK)	20
8	427 (PK-BK)	20
9	417 (VT-OG)	20
10	486 (BR-WH)	20
11	1350 (WH-PK)	20
12	1523 (DG)	22
13	523 (RD-PK)	18
14	524 (PK-BK)	18
15	802 (OG-RD)	18
16	803 (BR-PK)	18

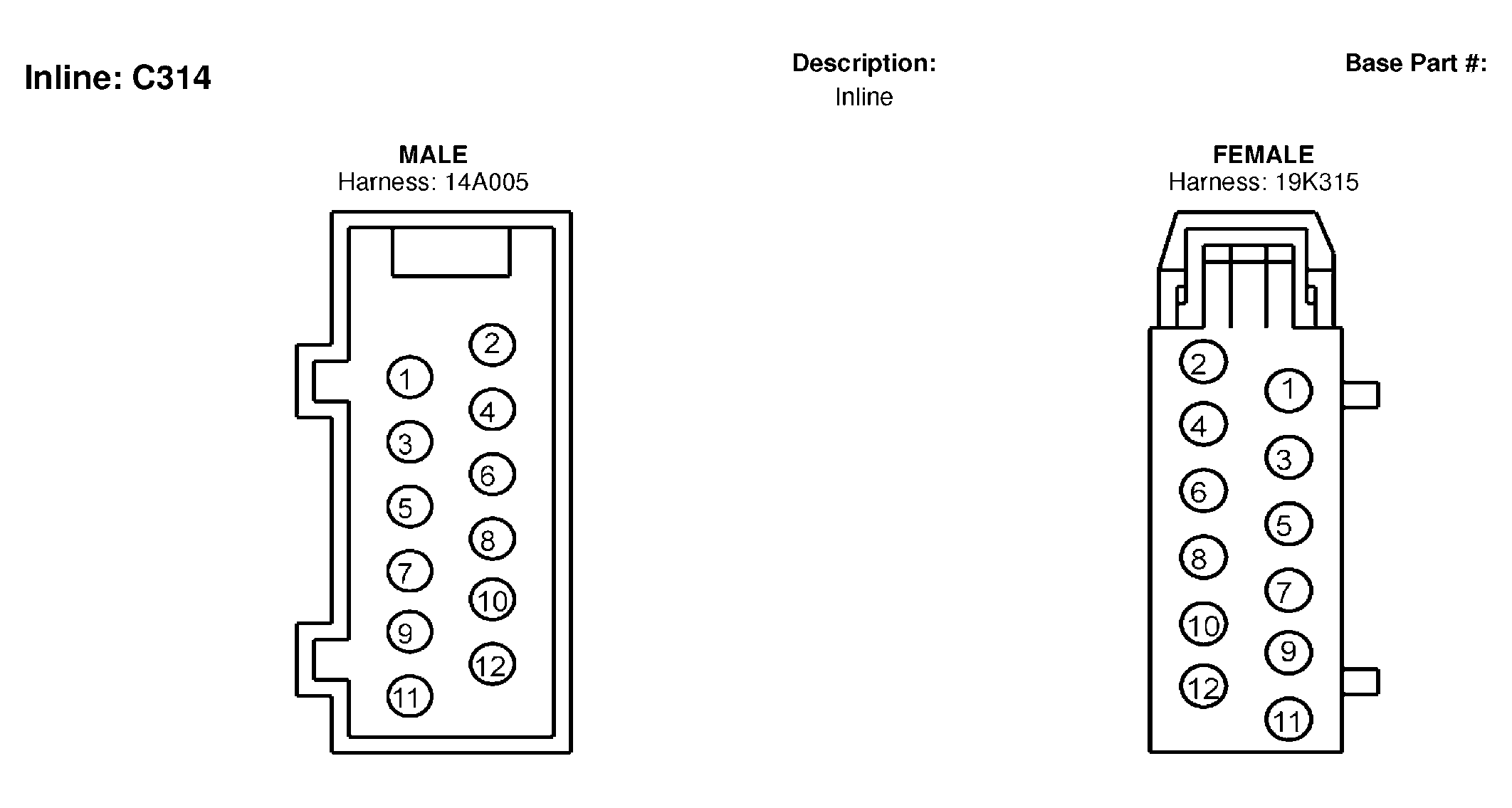

Fig 109: Inline Connector End View (C314)

Courtesy of FORD MOTOR CO.

C314 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1068 (LG-BK)	22
2	581 (RD)	20	14A005
2	581 (RD)	22	19K315
3	833 (TN)	22
4	676 (PK-OG)	20	14A005
4	676 (PK-OG)	20	19K315
4	676 (PK-OG)	20	19K315
5	832 (LB-PK)	22	19K315
6	580 (BR)	20	14A005
6	580 (BR)	22	19K315
7	1445 (RD-LG)	16	19K315
8	1256 (WH-YE)	20	14A005
8	1256 (WH-YE)	22	19K315
9	964 (DB-LG)	20	14A005
9	964 (DB-LG)	22	19K315
10	579 (BK-OG)	20	14A005
10	579 (BK-OG)	22	19K315
11	1040 (RD-BK)	20	14A005
11	1040 (RD-BK)	22	19K315
12	484 (OG-BK)	20	14A005
12	484 (OG-BK)	22	19K315

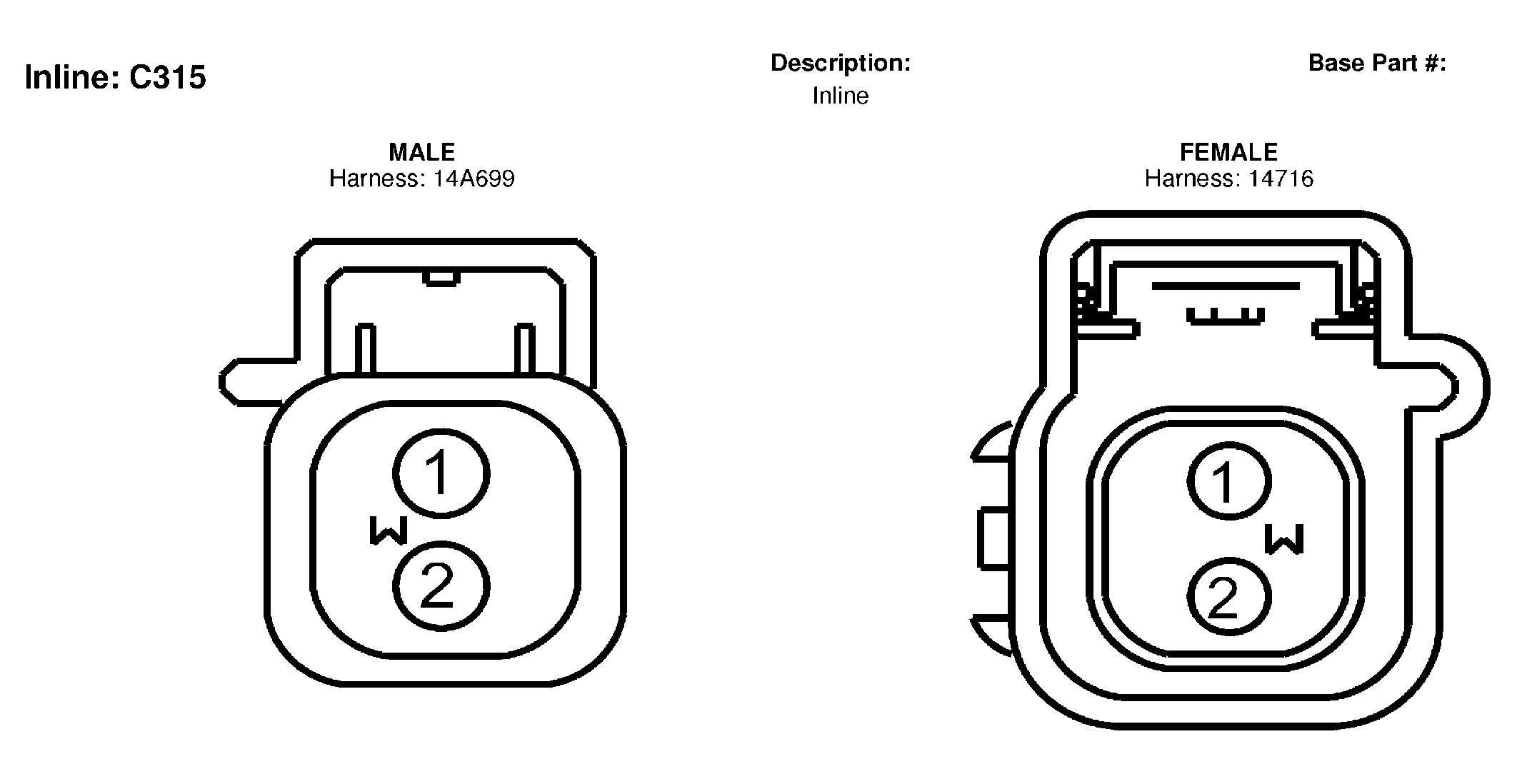

Fig 110: Inline Connector End View (C315)

Courtesy of FORD MOTOR CO.

C315 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1257 (WH-LB)	20
2	1258 (RD)	20

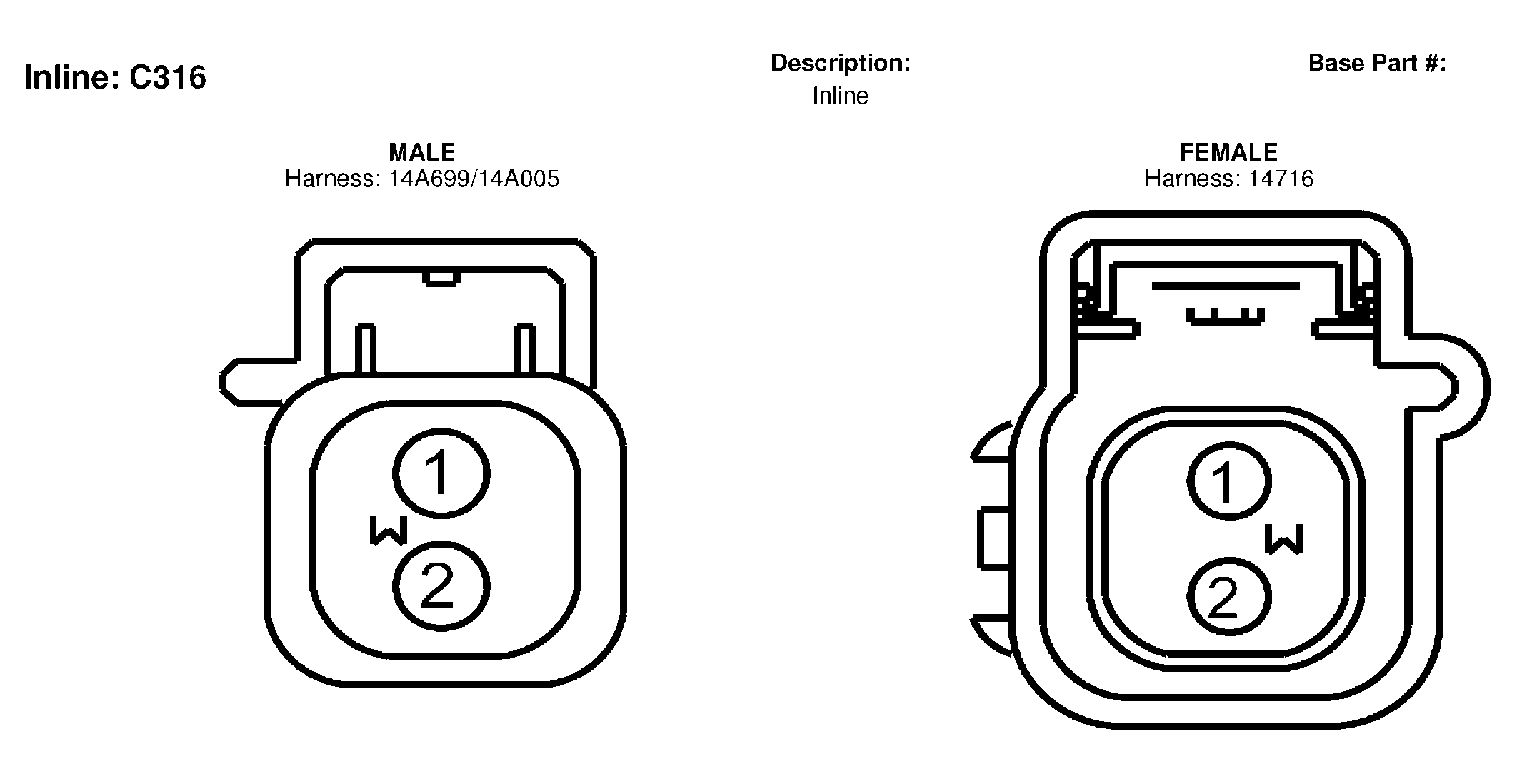

Fig 111: Inline Connector End View (C316)

Courtesy of FORD MOTOR CO.

C316 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1257 (WH-LB)	20	14716
1	1259 (WH-YE)	18	14A699 except Limo
1	1259 (WH-YE)	18	14A005 Limo
2	1258 (RD)	20	14716
2	1260 (BR-YE)	18	14A699 except Limo
2	1260 (BR-YE)	18	14A005 Limo

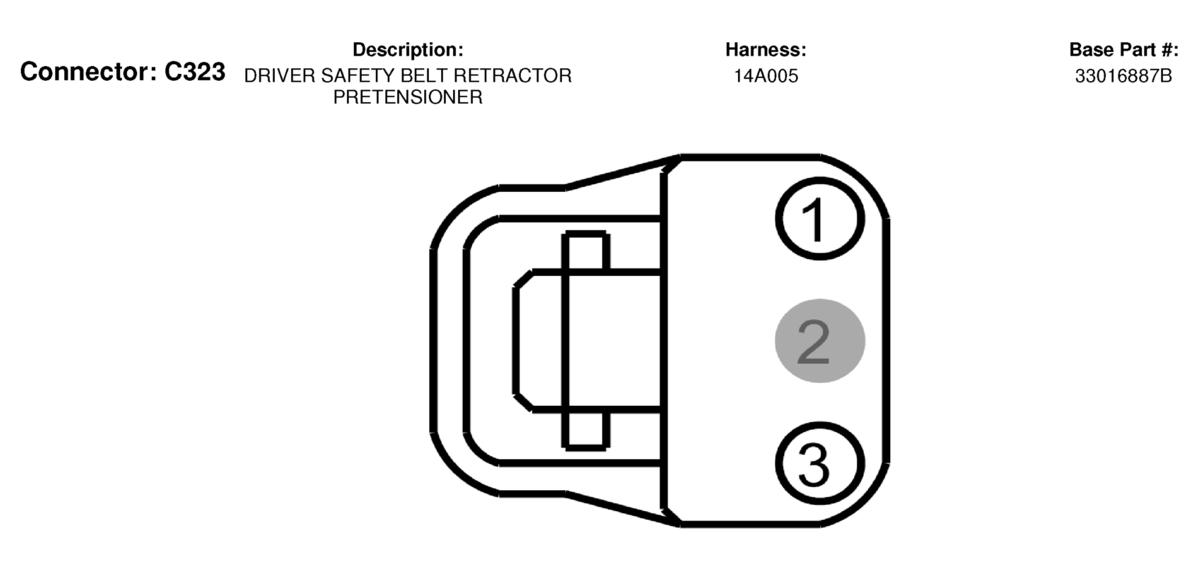

Fig 112: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

Courtesy of FORD MOTOR CO.

C323 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1079 (LG-RD)	20	Driver safety belt retractor pretensioner, feed
2	*	*	not used
3	1080 (LG-BK)	20	Driver safety belt retractor pretensioner, return

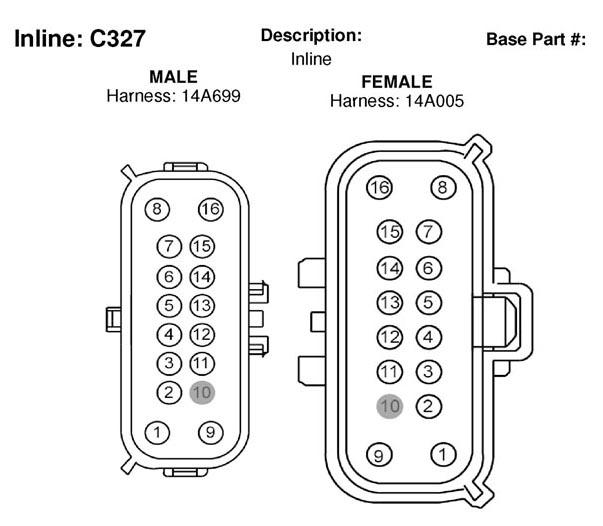

Fig 113: Inline Connector End View (C327)

Courtesy of FORD MOTOR CO.

C327 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	918 (GY)	14
2	1064 (YE-LB)	16
3	1060 (BK-LB)	20
4	1259 (WH-YE)	18
5	1260 (BR-YE)	18
6	1061 (BR-LB)	22
7	1514 (RD-BK)	22
8	57 (BK)	16
9	919 (GY-BK)	14
10	*	*
11	937 (RD-WH)	22
12	1558 (TN-BK)	22
13	676 (PK-OG)	22
14	1918 (BR-WH)	22
15	1919 (PK-OG)	22
16	566 (DG)	16

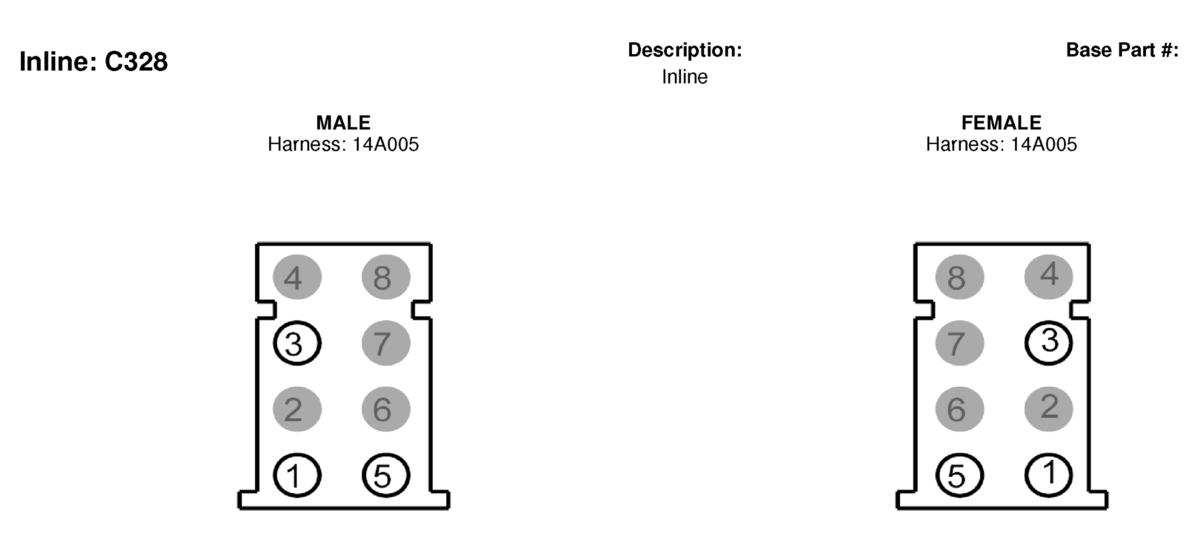

Fig 114: Inline Connector End View (C328)

Courtesy of FORD MOTOR CO.

C328 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	1190 (YE-BK)	10
2	*	*
3	366 (RD-BK)	12
4	*	*
5	482 (WH-PK)	16
6	*	*
7	*	*
8	*	*

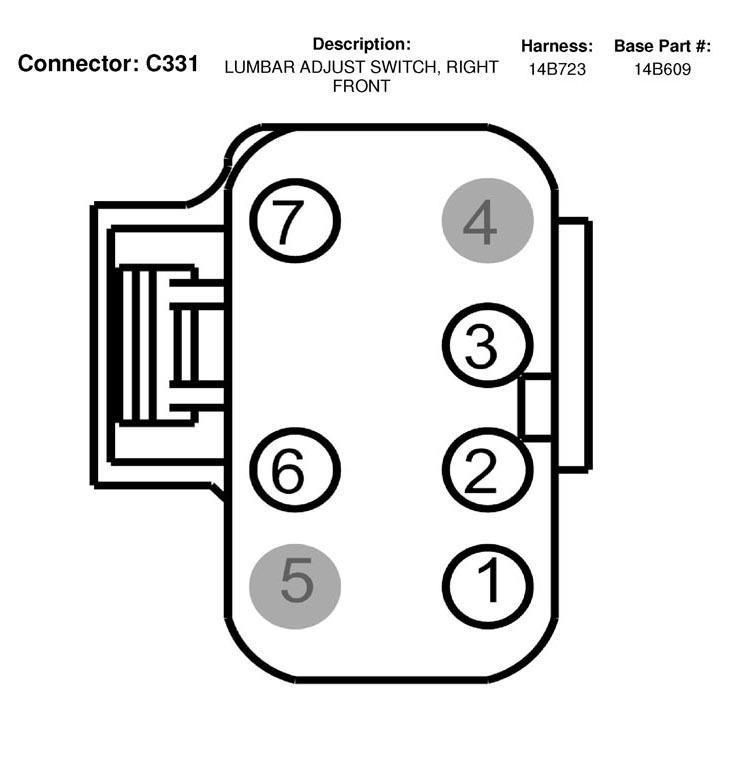

Fig 115: Lumbar Adjust Switch, Right Front Connector End View (C331)

Courtesy of FORD MOTOR CO.

C331 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1097 (BR)	16	Lumbar compressor motor +/-
2	566 (DG)	16	Voltage supplied at all times (overload protected)
3	57 (BK)	16	Ground
4	*	*	not used
5	*	*	not used
6	57 (BK)	16	Ground
7	1094 (PK)	16	Lumbar compressor motor +/-

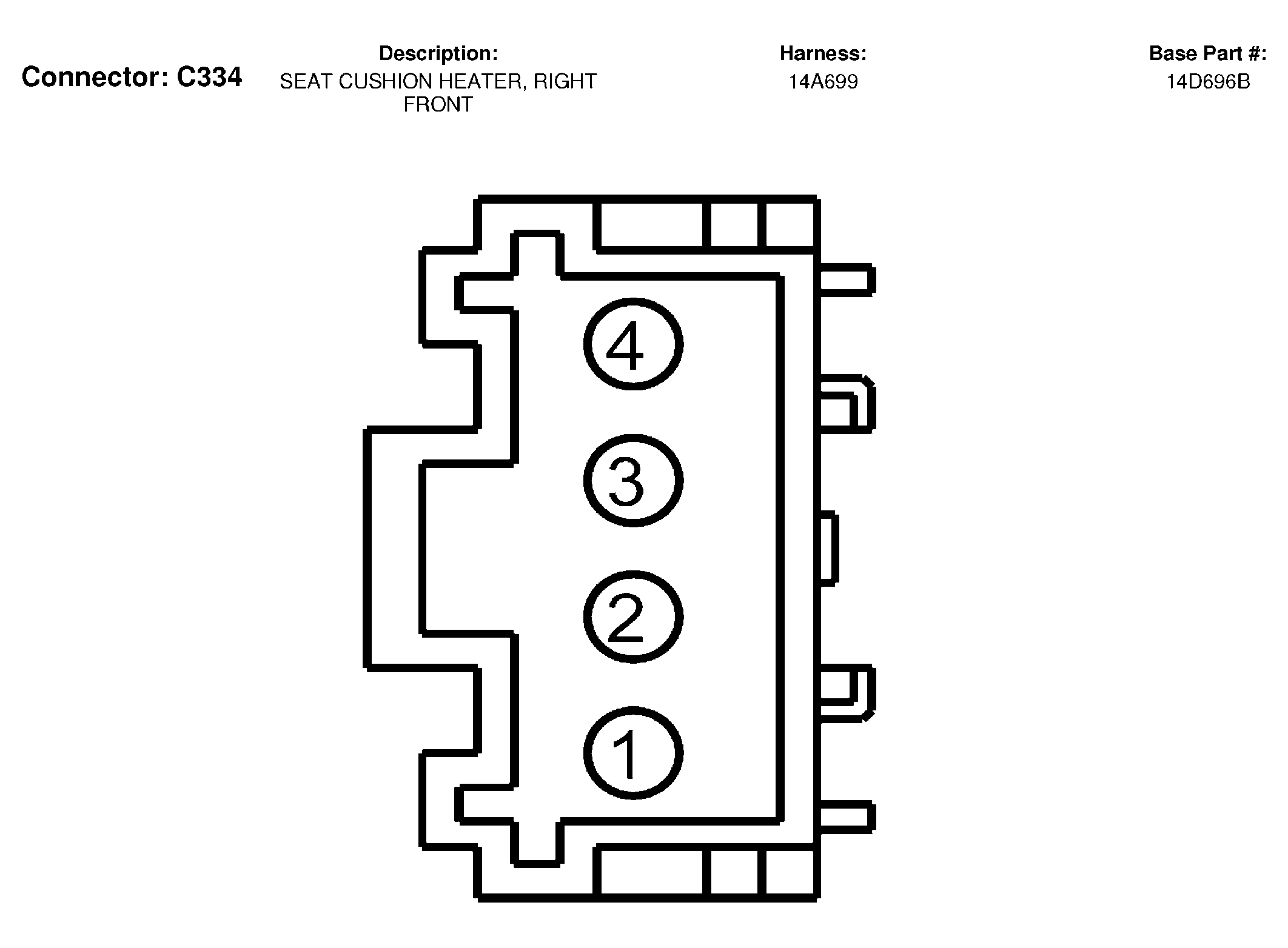

Fig 116: Seat Cushion Heater, Right Front Connector End View (C334)

Courtesy of FORD MOTOR CO.

C334 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1064 (YE-LB)	16	heater feed
2	1060 (BK-LB)	22	Temperature signal
3	1061 (BR-LB)	22	Temperature return
4	57 (BK)	16	Ground

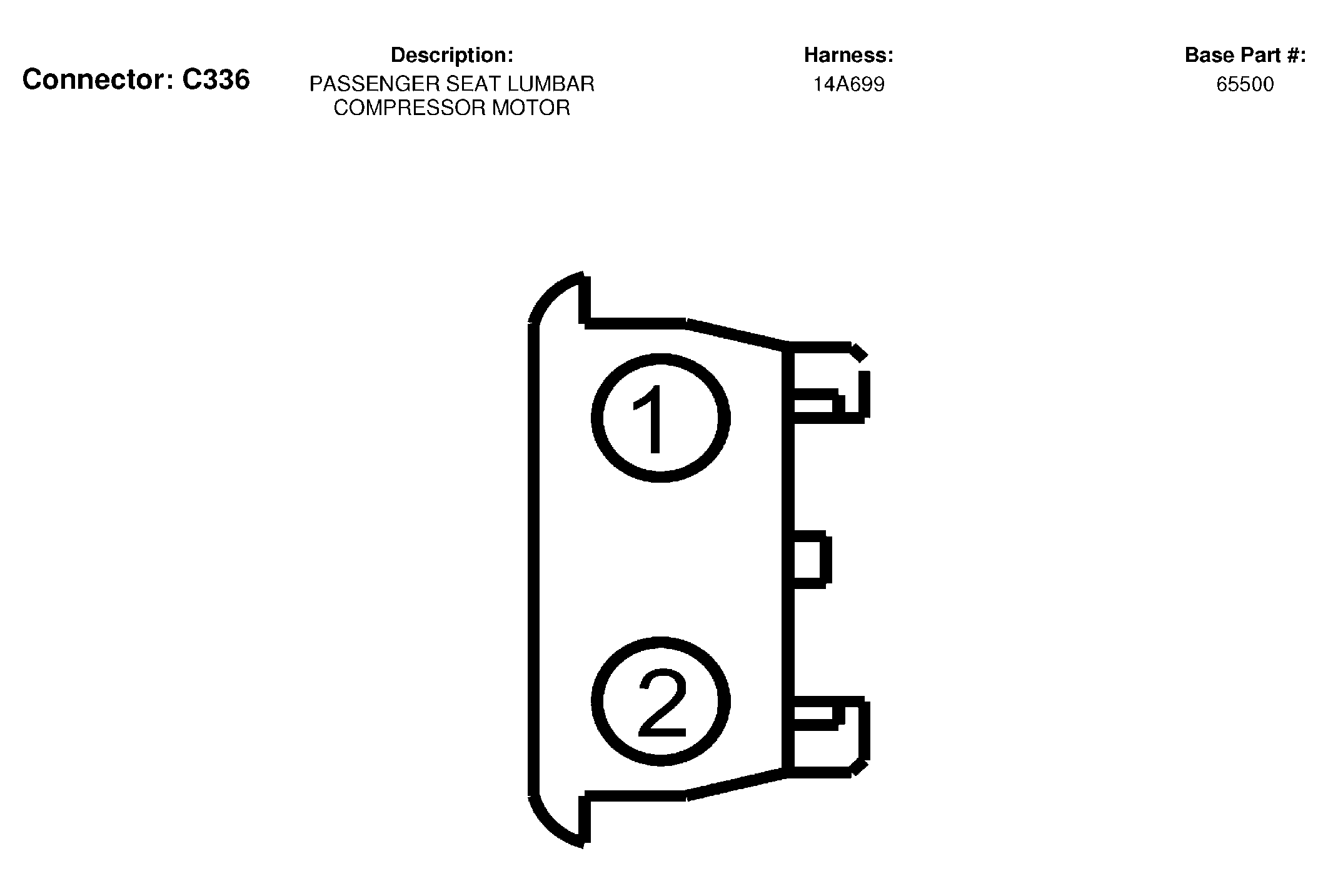

Fig 117: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

Courtesy of FORD MOTOR CO.

C336 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1094 (PK)	16	Lumbar compressor motor +/-
2	1097 (BR)	16	Lumbar compressor motor +/-

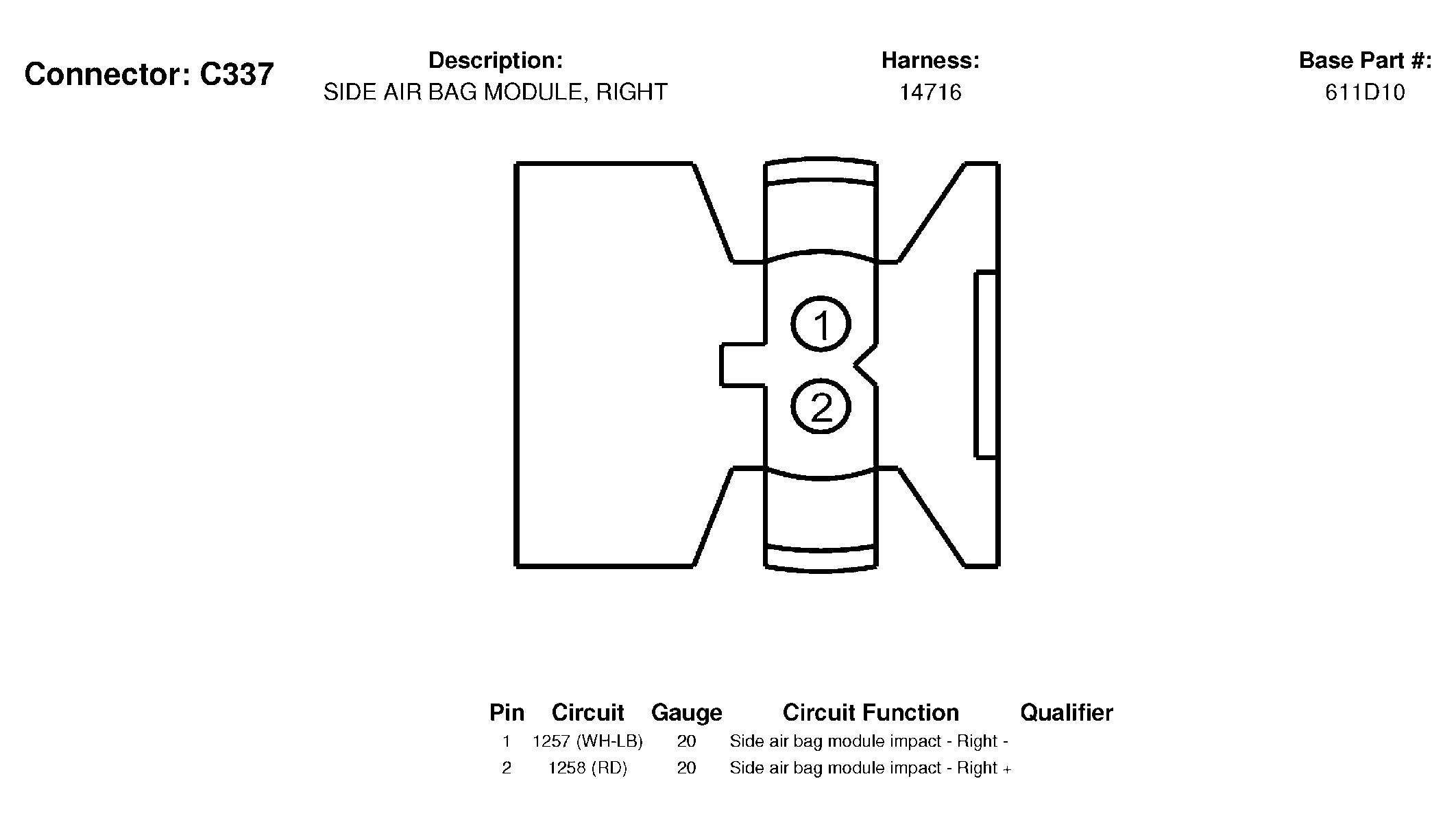

Fig 118: Side Air Bag Module, Right Connector End View (C337)

Courtesy of FORD MOTOR CO.

C337 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1257 (WH-LB)	20	Side air bag module impact - Right -
2	1258 (RD)	20	Side air bag module impact - Right +

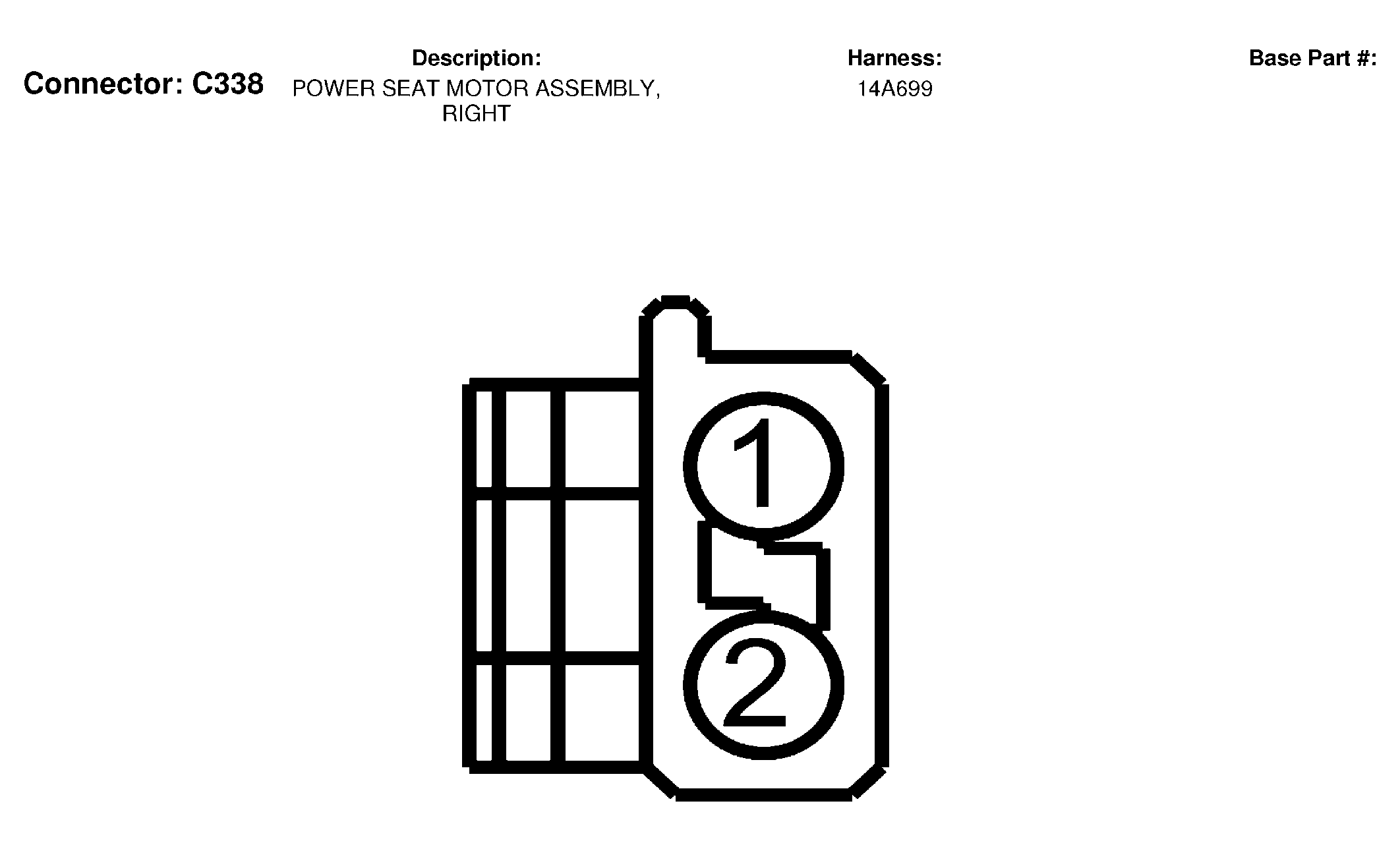

Fig 119: Power Seat Motor Assembly, Right Connector End View (C338)

Courtesy of FORD MOTOR CO.

C338 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	918 (GY)	14	Seat backrest motor +/-
2	919 (GY-BK)	14	Seat backrest motor +/-

Fig 120: Inline Connector End View (C339)

Courtesy of FORD MOTOR CO.

C339 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	9 (LG-OG)	16
2	5 (OG-LB)	16
3	14 (BR)	20
4	707 (WH-YE)	22
5	705 (LG-OG)	20
6	486 (BR-WH)	20
7	635 (YE)	20
8	417 (VT-OG)	20
9	26 (WH-VT)	22
10	*	*
11	518 (LG-RD)	20
12	519 (LG-BK)	20
13	*	*
14	*	*
15	801 (TN-YE)	18
16	800 (GY-LB)	18

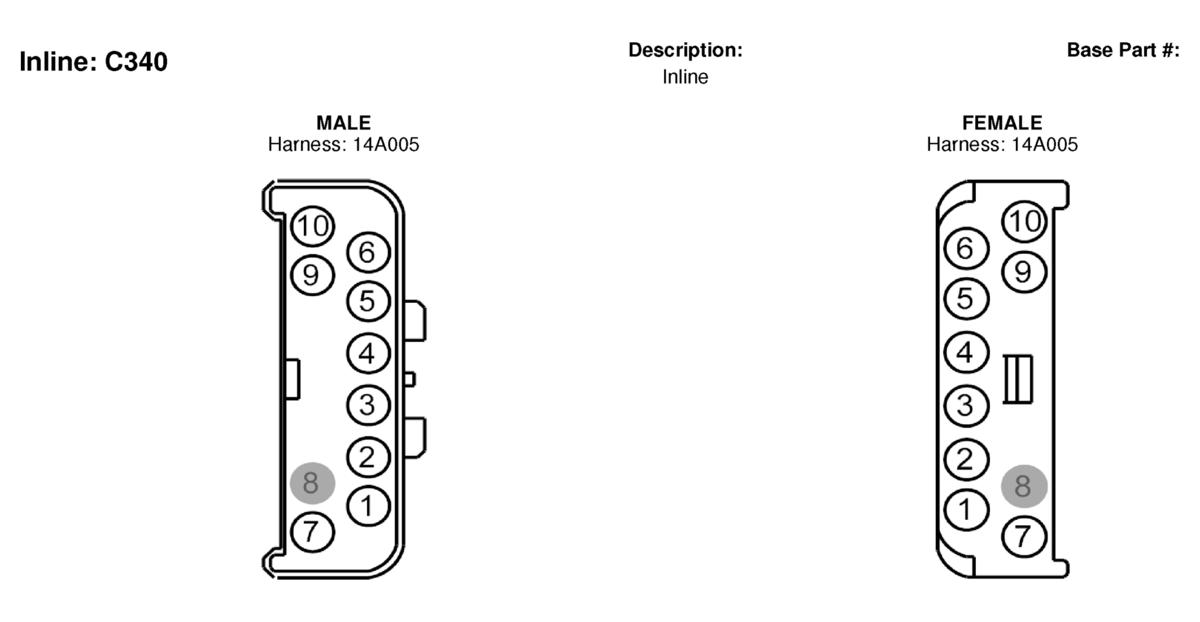

Fig 121: Inline Connector End View (C340)

Courtesy of FORD MOTOR CO.

C340 CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	359 (GY-RD)	20
2	791 (RD-PK)	20
3	351 (BR-WH)	20
4	29 (YE-WH)	20
5	1843 (BK-OG)	20
6	926 (LB-OG)	22
7	238 (DG-YE)	22
8	*	*
9	391 (RD-YE)	20
10	91 (VT-WH)	20

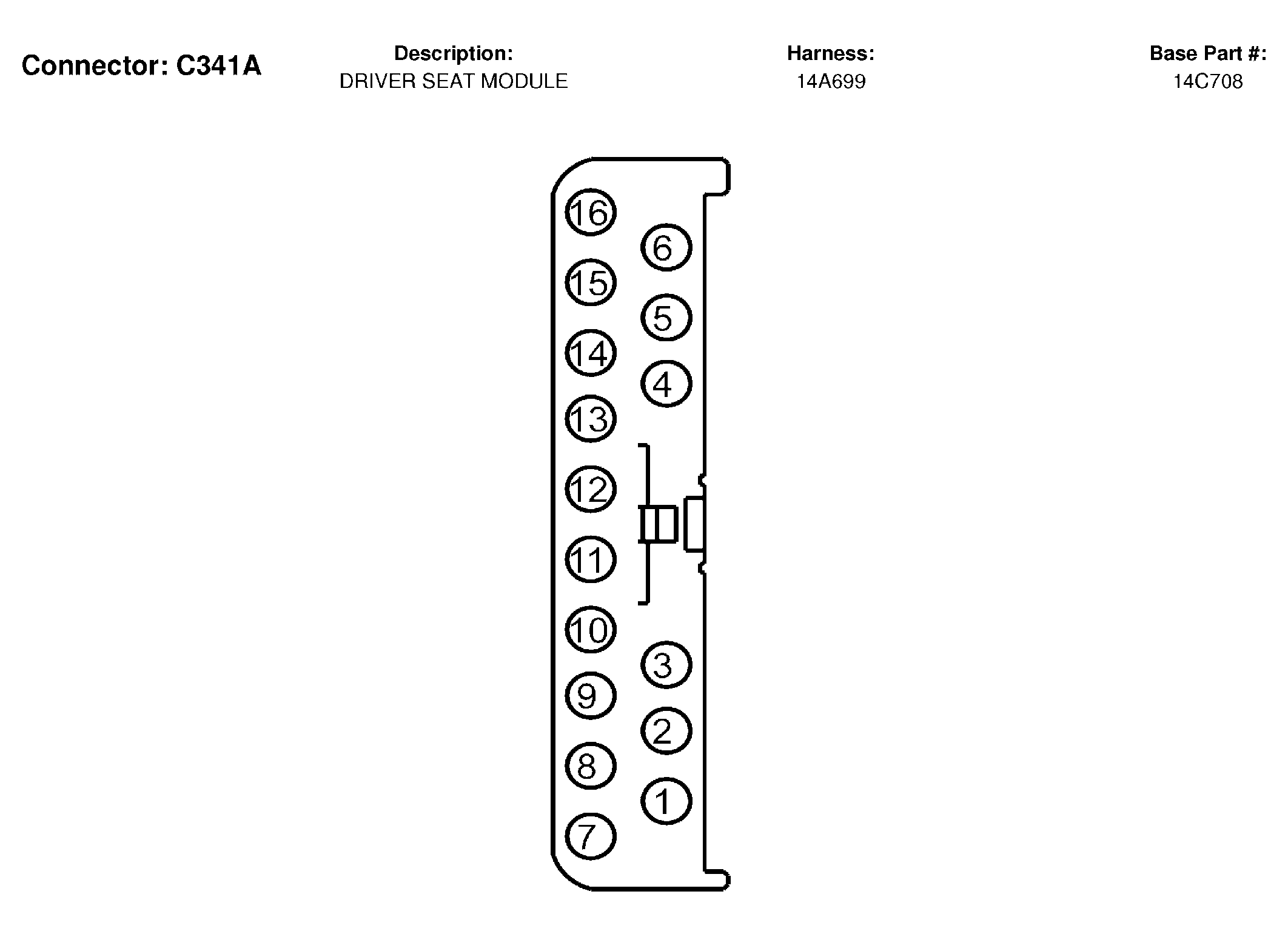

Fig 122: Driver Seat Module Connector End View (C341A)

Courtesy of FORD MOTOR CO.

C341A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	979 (RD-LB)	14	Front height motor +/-
2	918 (GY)	14	Seat backrest motor +/-
3	983 (RD-LG)	14	Rear height motor +/-
4	981 (RD-WH)	14	Fwd/Rwd motor +/-
5	982 (YE-LG)	14	Rear height motor +/-
6	978 (YE-LB)	14	Front height motor +/-
7	447 (OG-RD)	22	Seat position sensors -
8	442 (LG-OG)	22	Fwd/Rwd motor sensor signal
9	446 (OG-WH)	22	Seat position sensors +
10	443 (LG-RD)	22	Front height motor sensor signal
11	444 (LG-BK)	22	Rear height motor sensor signal
12	1490 (LB-OG)	14	Adjustable pedal motor +/-
13	445 (OG-LB)	22	Backrest forward/rearward sensor signal
14	1489 (LB-BK)	14	Adjustable pedal motor +/-
15	919 (GY-BK)	14	Seat backrest motor +/-
16	980 (YE-WH)	14	Fwd/Rwd motor +/-

Fig 123: Driver Seat Module Connector End View (C341B)

Courtesy of FORD MOTOR CO.

C341B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	14	Ground
2	490 (RD)	14	Voltage supplied at all times (overload protected)

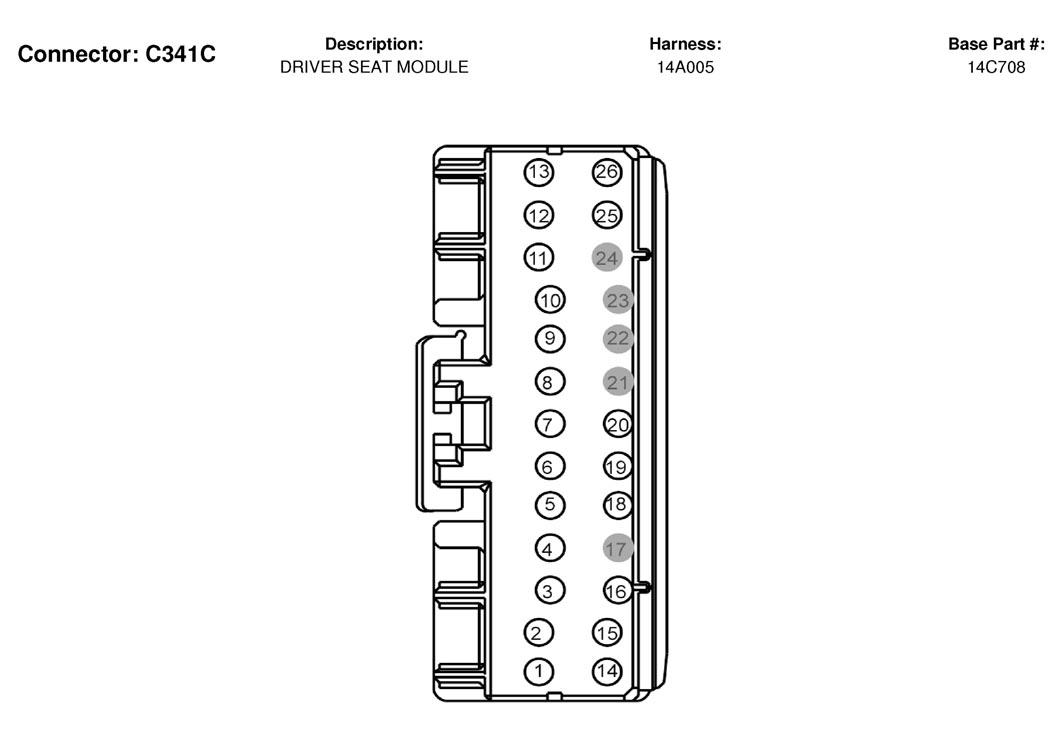

Fig 124: Driver Seat Module Connector End View (C341C)

Courtesy of FORD MOTOR CO.

C341C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	676 (PK-OG)	20	Ground
2	540 (RD)	20	Left mirror, Left/Right +/-
3	541 (DB-YE)	20	Left mirror, Up/Down +/-
4	948 (YE-LB)	20	Left mirror, Up/Down mirror movement +/-
5	544 (VT)	20	Right mirror, Up/Down +/-
6	953 (WH-VT)	20	Right mirror, Up/Down mirror movement +/-
7	952 (WH-LG)	20	Right mirror, Right/Left mirror movement +/-
8	543 (DG)	20	Right mirror, Left/Right +/-
9	949 (RD-WH)	20	Left mirror, Right/Left mirror movement position signal
10	951 (DB-WH)	20	Left mirror, Up/Down mirror movement position signal
11	954 (DG-WH)	20	Right mirror, Right/Left mirror movement position signal
12	957 (VT-WH)	20	Right mirror, Up/Down mirror movement position signal
13	955 (GY)	22	Mirror motor sensor, signal return
14	1524 (DB)	20	Voltage supplied at all times (overload protected)
15	958 (GY-RD)	22	Mirror motor sensor, feed
16	947 (YE-RD)	20	Left mirror, Right/Left mirror movement +/-
17	*	*	not used
18	1492 (LB-RD)	22	Adjustable pedal motor +/-
19	1491 (LB-YE)	22	Adjustable pedal memory potentiometer signal
20	1493 (PK-BK)	22	Adjustable pedal motor +/-
21	*	*	not used
22	*	*	not used
23	*	*	not used
24	*	*	not used
25	914 (TN-OG)	22	SCP Bus +
26	915 (PK-LB)	22	SCP Bus -

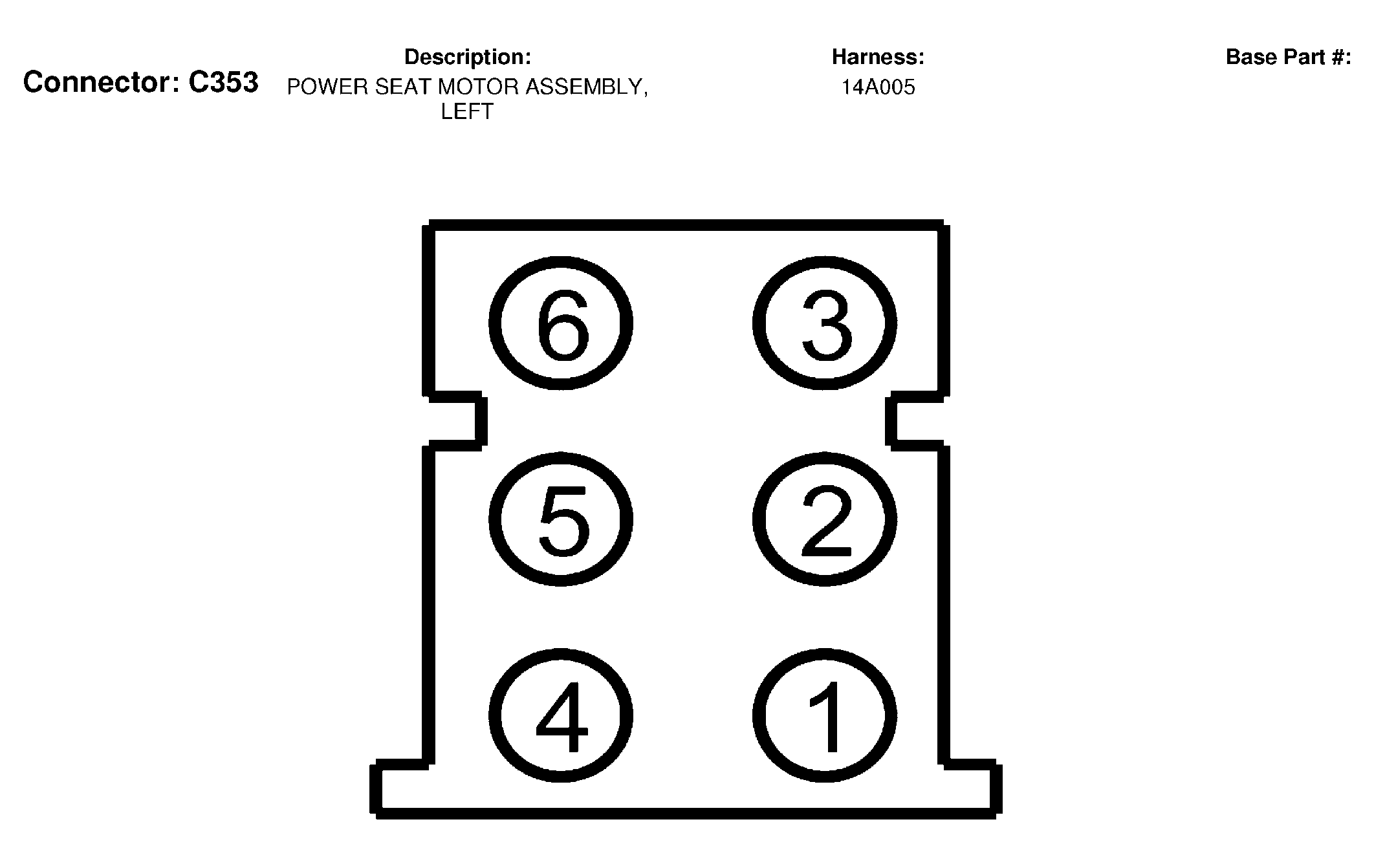

Fig 125: Power Seat Motor Assembly Left Connector End View (C353)

Courtesy of FORD MOTOR CO.

C353 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	981 (RD-WH)	14	Fwd/Rwd motor +/-
2	978 (YE-LB)	14	Front height motor +/-
3	979 (RD-LB)	14	Front height motor +/-
4	980 (YE-WH)	14	Fwd/Rwd motor +/-
5	983 (RD-LG)	14	Rear height motor +/-
6	982 (YE-LG)	14	Rear height motor +/-

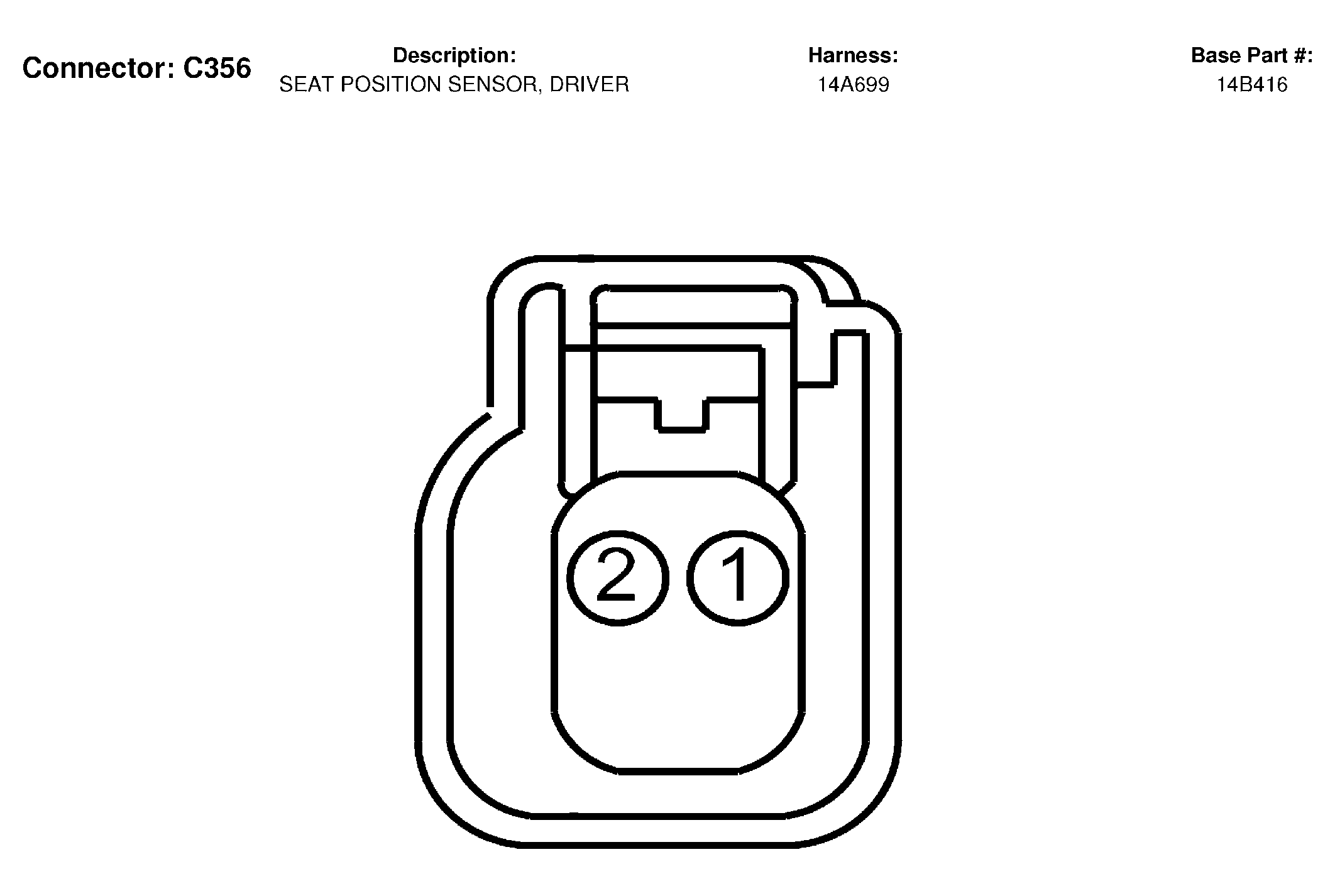

Fig 126: Seat Position Sensor, Driver Connector End View (C356)

Courtesy of FORD MOTOR CO.

C356 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1558 (TN-BK)	22	Signal return
2	1520 (LG)	22	Seat position sensor - horizontal sense

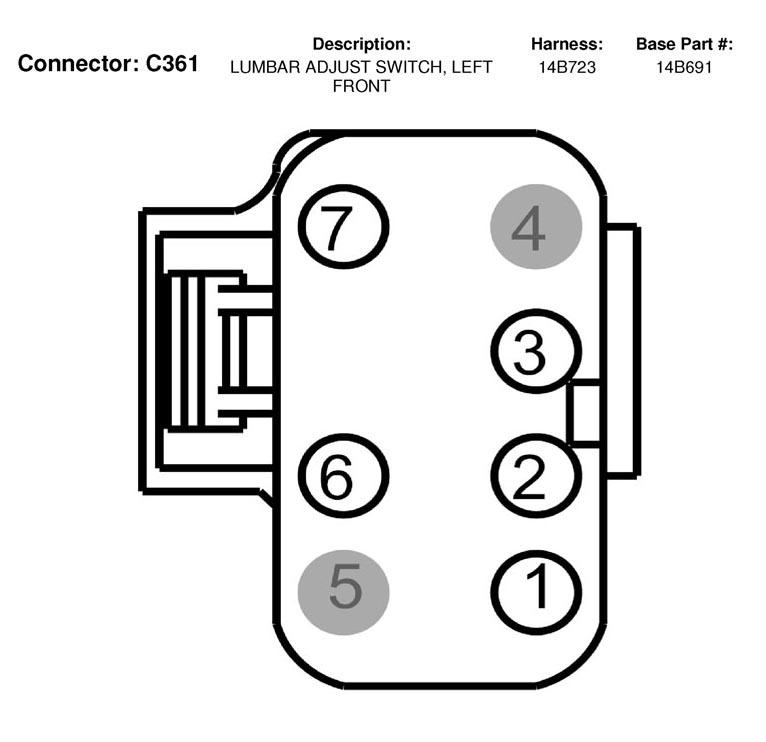

Fig 127: Lumbar Adjust Switch, Left Front Connector End View (C361)

Courtesy of FORD MOTOR CO.

C361 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1097 (BR)	16	Lumbar compressor motor +/-
2	566 (DG)	16	Voltage supplied at all times (overload protected)
3	57 (BK)	16	Ground
4	*	*	not used
5	*	*	not used
6	57 (BK)	16	Ground
7	1094 (PK)	16	Lumbar compressor motor +/-

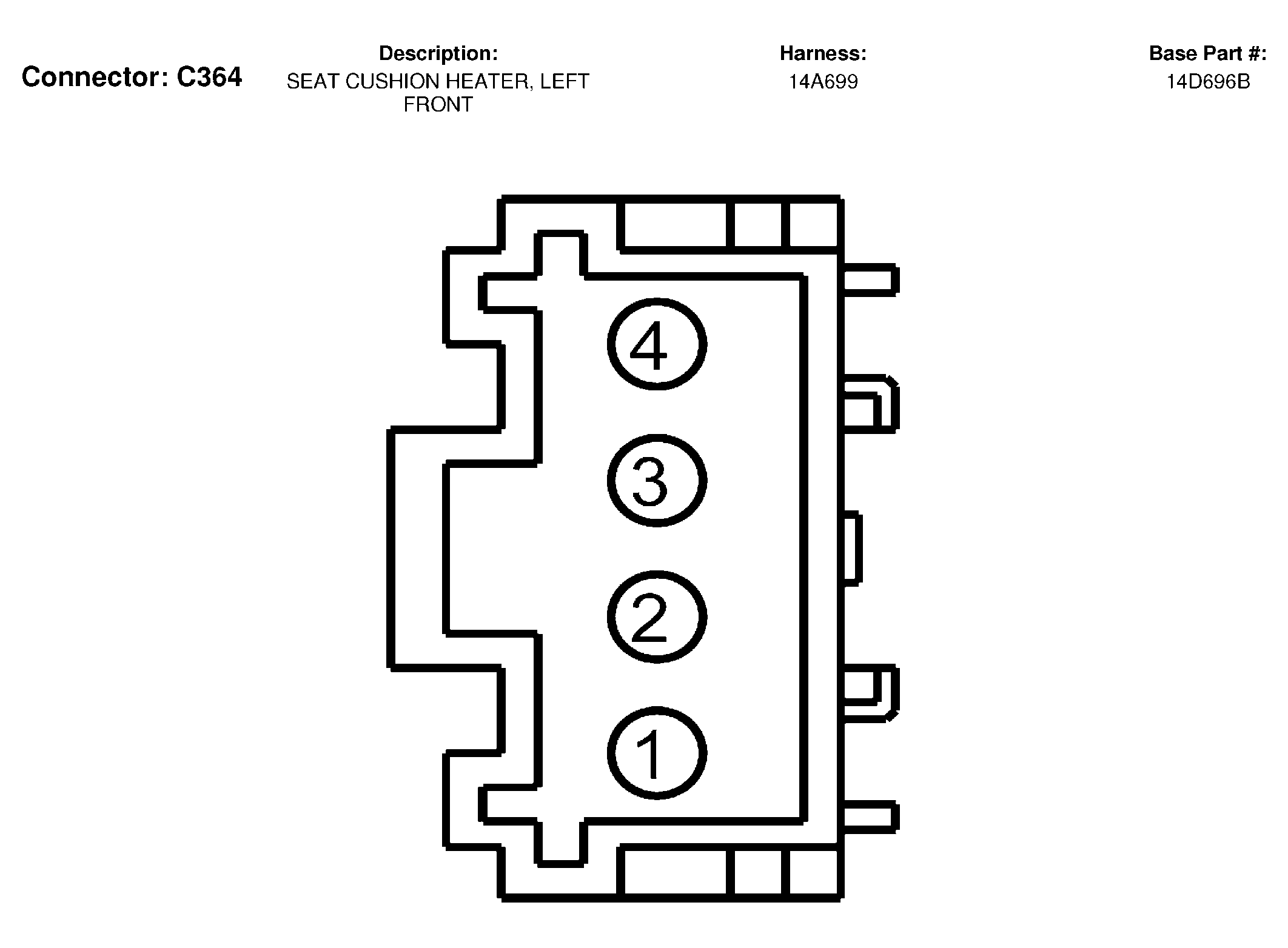

Fig 128: Seat Cushion Heater, Left Front Connector End View (C364)

Courtesy of FORD MOTOR CO.

C364 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1064 (YE-LB)	16	heater feed
2	1060 (BK-LB)	22	Temperature signal
3	1061 (BR-LB)	22	Temperature return
4	57 (BK)	16	Ground

Fig 129: Driver Seat Lumbar Compressor Motor Connector End View (C366)

Courtesy of FORD MOTOR CO.

C366 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1094 (PK)	16	Lumbar compressor motor +/-
2	1097 (BR)	16	Lumbar compressor motor +/-

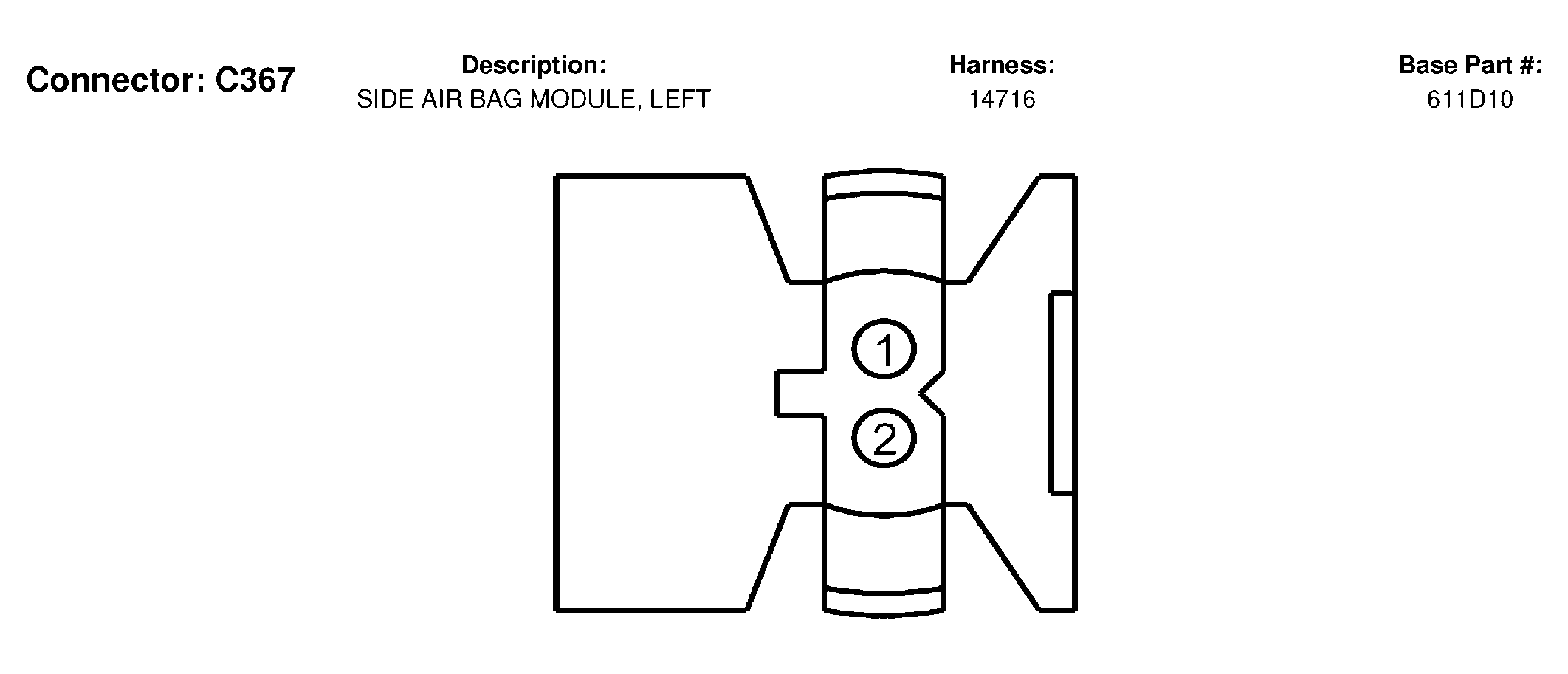

Fig 130: Side Air Bag Module, Left Connector End View (C367)

Courtesy of FORD MOTOR CO.

C367 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1094 (PK)	16	Lumbar compressor motor +/-
2	1097 (BR)	16	Lumbar compressor motor +/-

Fig 131: Driver Seat Backrest Motor Connector End View (C368)

Courtesy of FORD MOTOR CO.

C368 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	918 (GY)	14	Seat backrest motor +/-
2	919 (GY-BK)	14	Seat backrest motor +/-

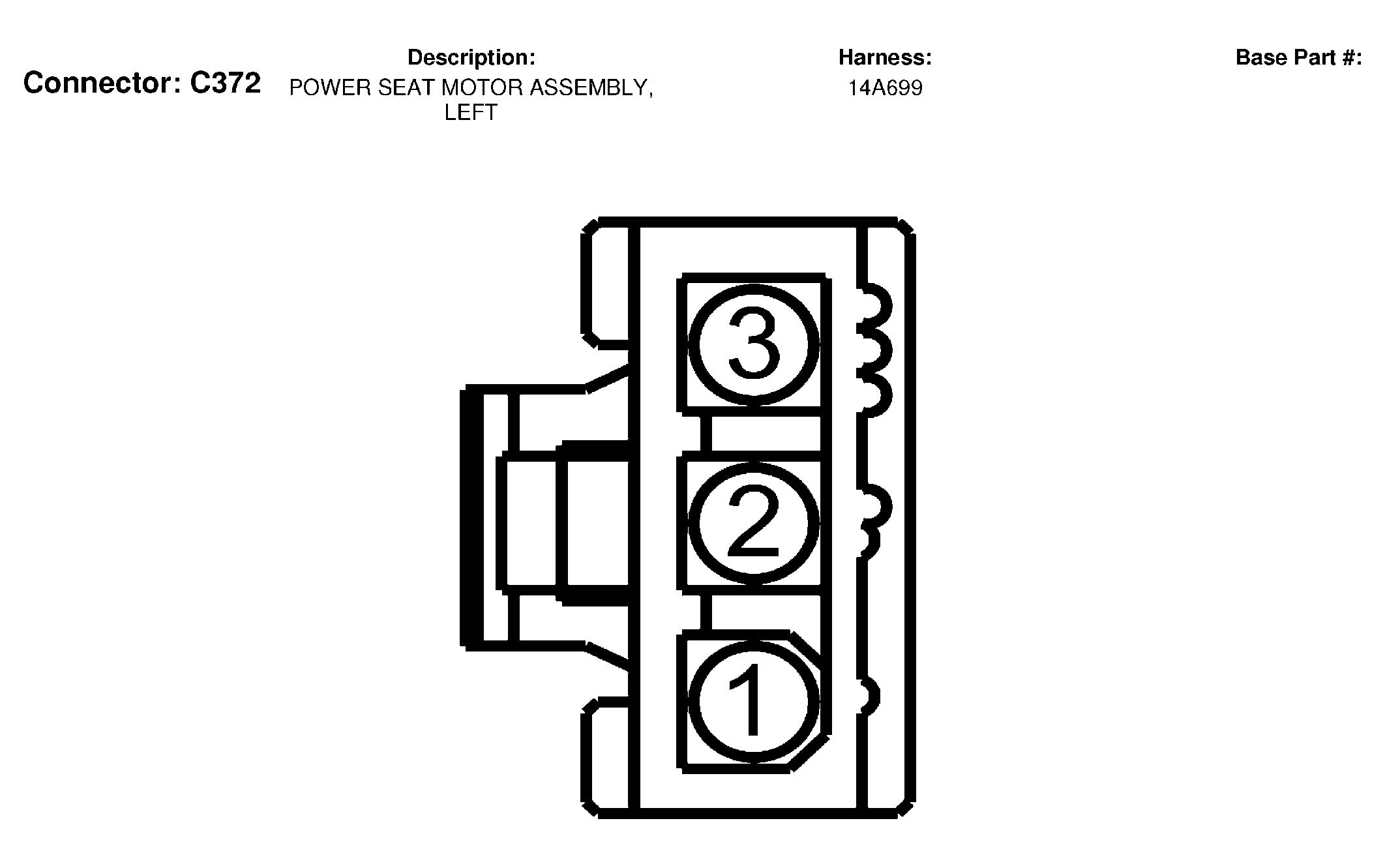

Fig 132: Power Seat Motor Assembly, Left Connector End View (C372)

Courtesy of FORD MOTOR CO.

C372 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	447 (OG-RD)	22	Seat position sensors -
2	442 (LG-OG)	22	Fwd/Rwd motor sensor signal
3	446 (OG-WH)	22	Seat position sensors +

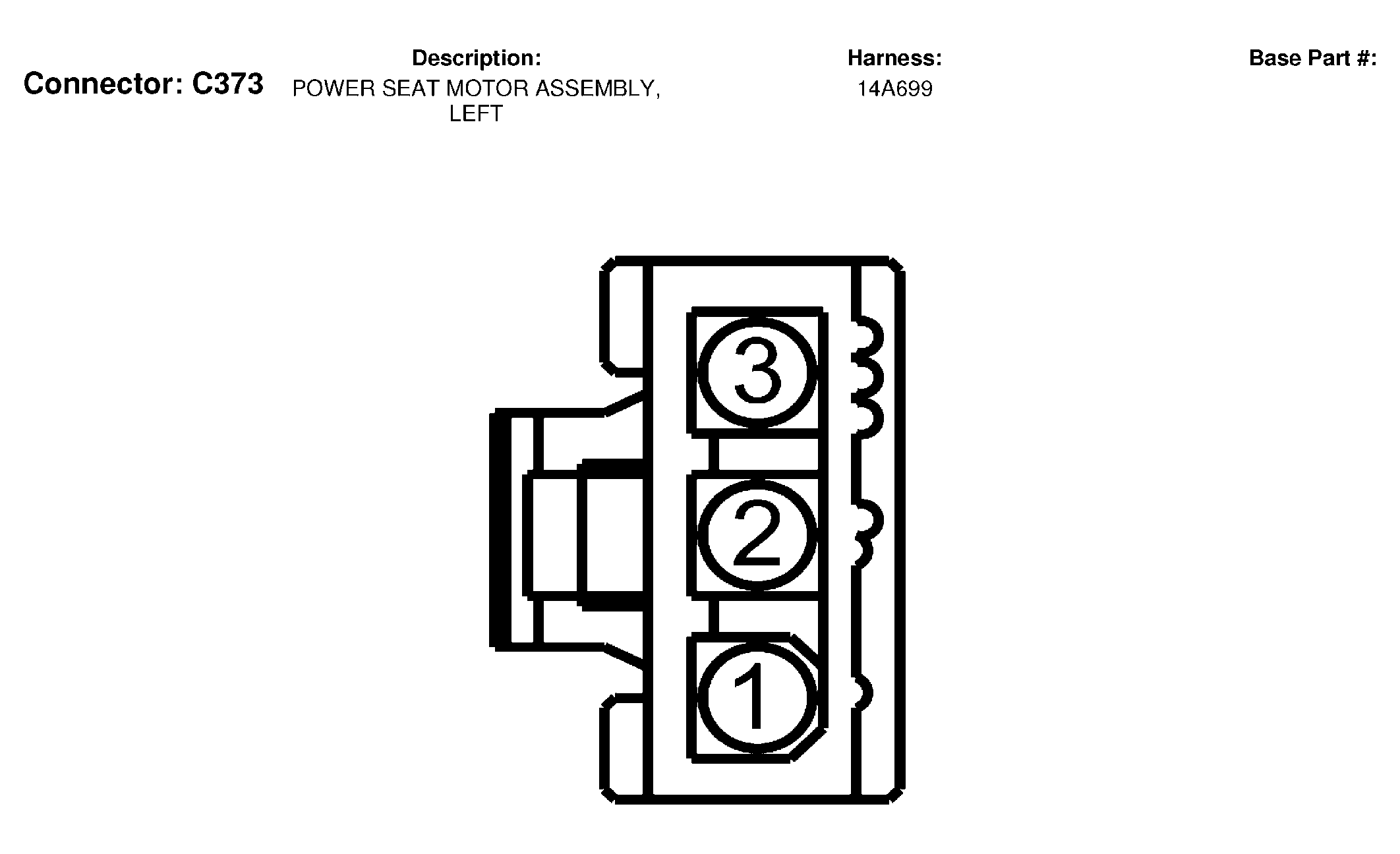

Fig 133: Power Seat Motor Assembly, Left Connector End View (C373)

Courtesy of FORD MOTOR CO.

C373 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	447 (OG-RD)	22	Seat position sensors -
2	444 (LG-BK)	22	Rear height motor sensor signal
3	446 (OG-WH)	22	Seat position sensors +

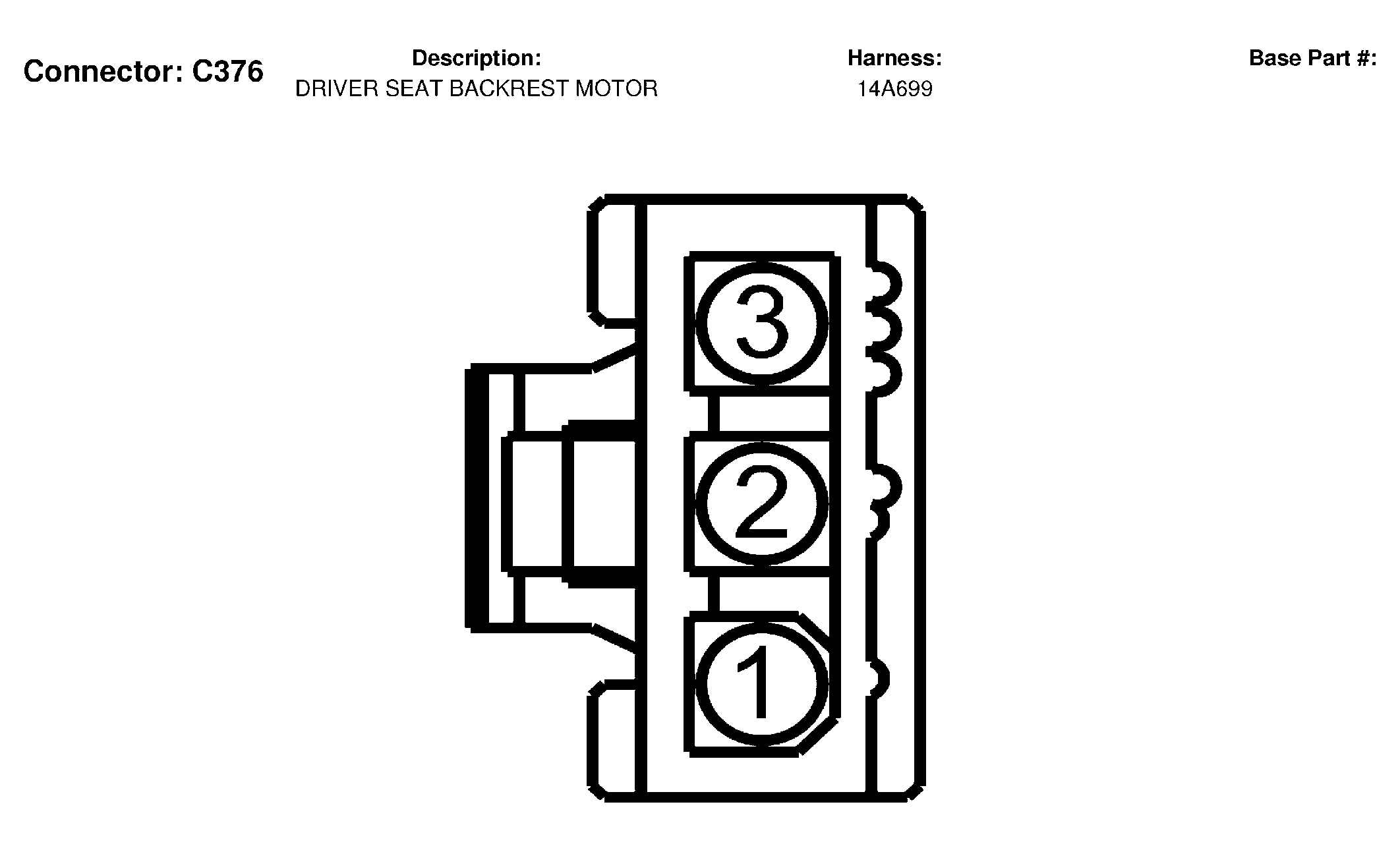

Fig 134: Driver Seat Backrest Motor Connector End View (C376)

Courtesy of FORD MOTOR CO.

C376 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	446 (OG-WH)	22	Seat position sensors +
2	445 (OG-LB)	22	Backrest forward/rearward sensor signal
3	447 (OG-RD)	22	Seat position sensors -

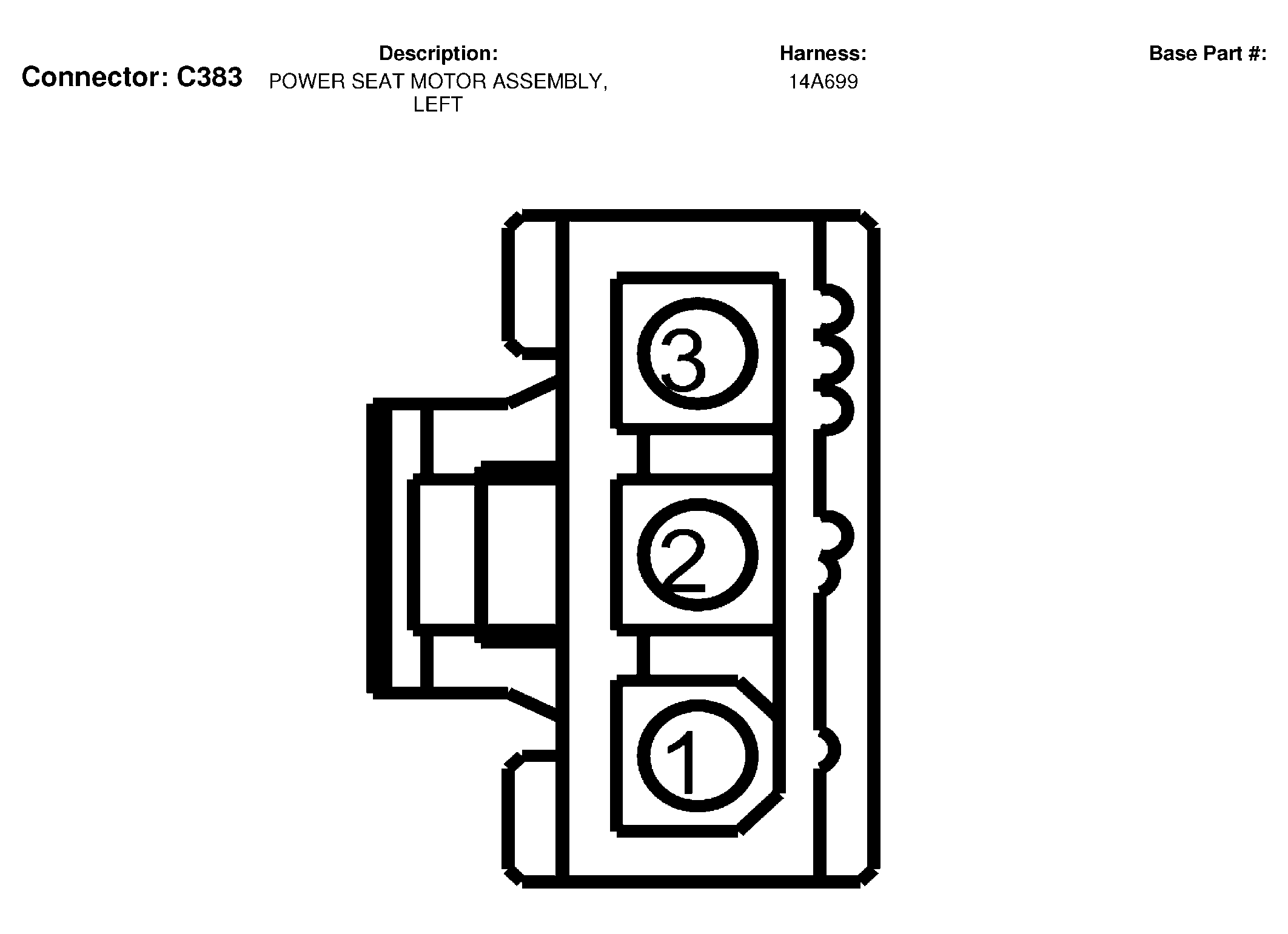

Fig 135: Power Seat Motor Assembly, Left Connector End View (C383)

Courtesy of FORD MOTOR CO.

C383 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	446 (OG-WH)	22	Seat position sensors +
2	443 (LG-RD)	22	Front height motor sensor signal
3	447 (OG-RD)	22	Seat position sensors -

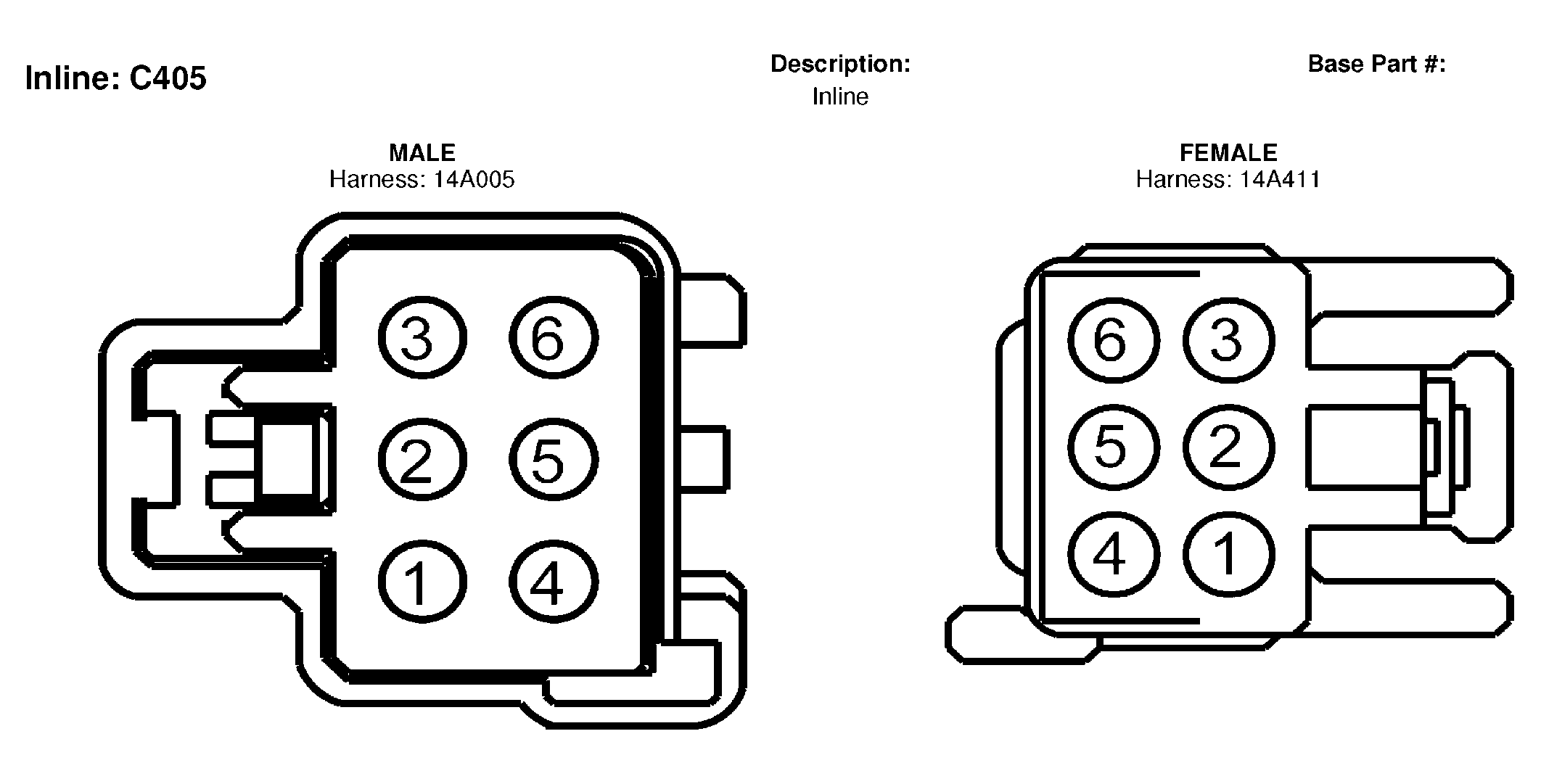

Fig 136: Inline Connector End View (C405)

Courtesy of FORD MOTOR CO.

C405 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	57 (BK)	20
2	1114 (BR-PK)	20
3	1115 (TN-WH)	20
4	432 (BK-PK)	20
5	427 (PK-BK)	20
6	417 (VT-OG)	20

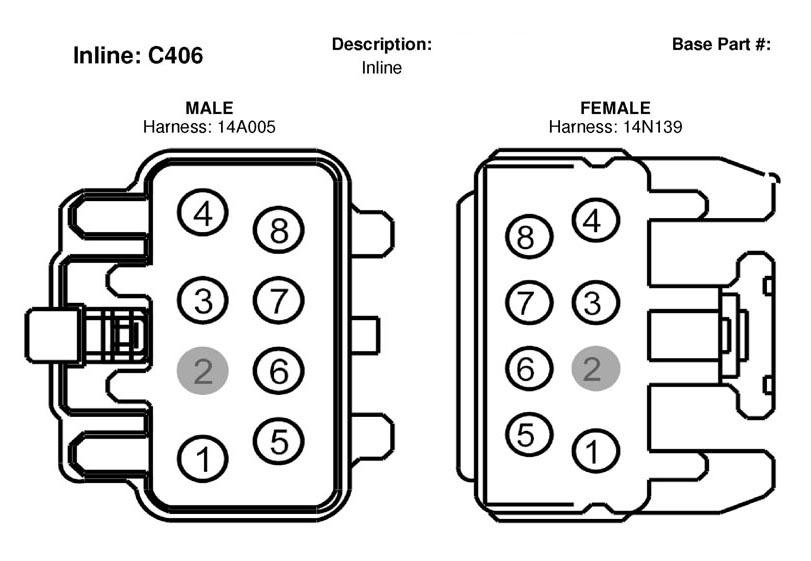

Fig 137: Inline Connector End View (C406)

Courtesy of FORD MOTOR CO.

C406 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1440 (DG-YE)	20	14A005
1	1440 (DG-YE)	20	14N139
1	1440 (DG-YE)	20	14N139
2	*	*
3	1438 (DG)	20
4	1439 (BR-PK)	20	14A005
4	1439 (BR-PK)	20	14N139
4	1439 (BR-PK)	20	14N139
5	1441 (WH-LG)	20
6	1444 (DB-YE)	20
7	1443 (WH-LB)	20
8	1437 (BK-PK)	20

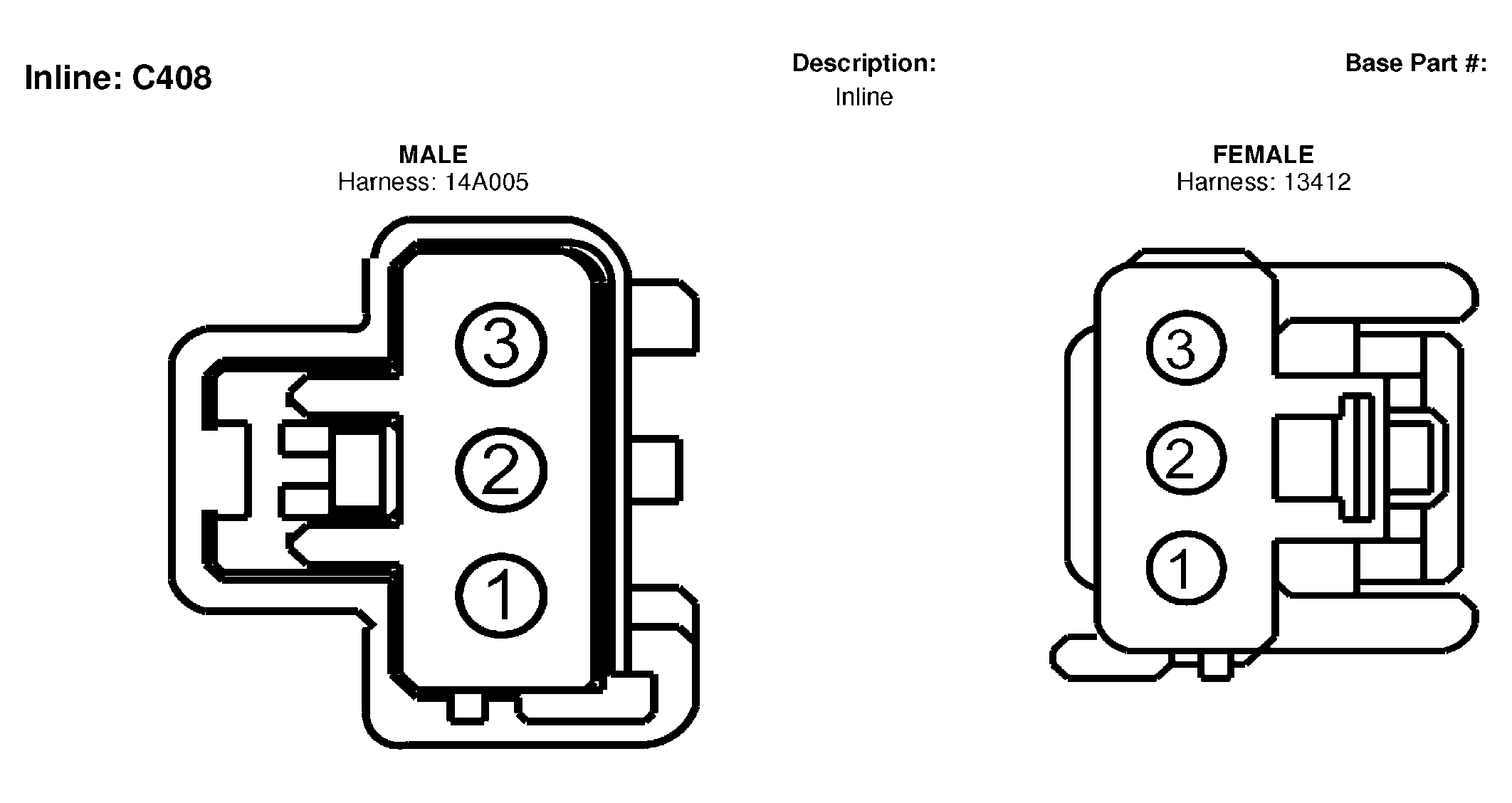

Fig 138: Inline Connector End View (C408)

Courtesy of FORD MOTOR CO.

C408 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	14 (BR)	20
2	140 (BK-PK)	18	14A005
2	140 (BK-PK)	20	13412
2	140 (BK-PK)	20	13412
3	57 (BK)	20

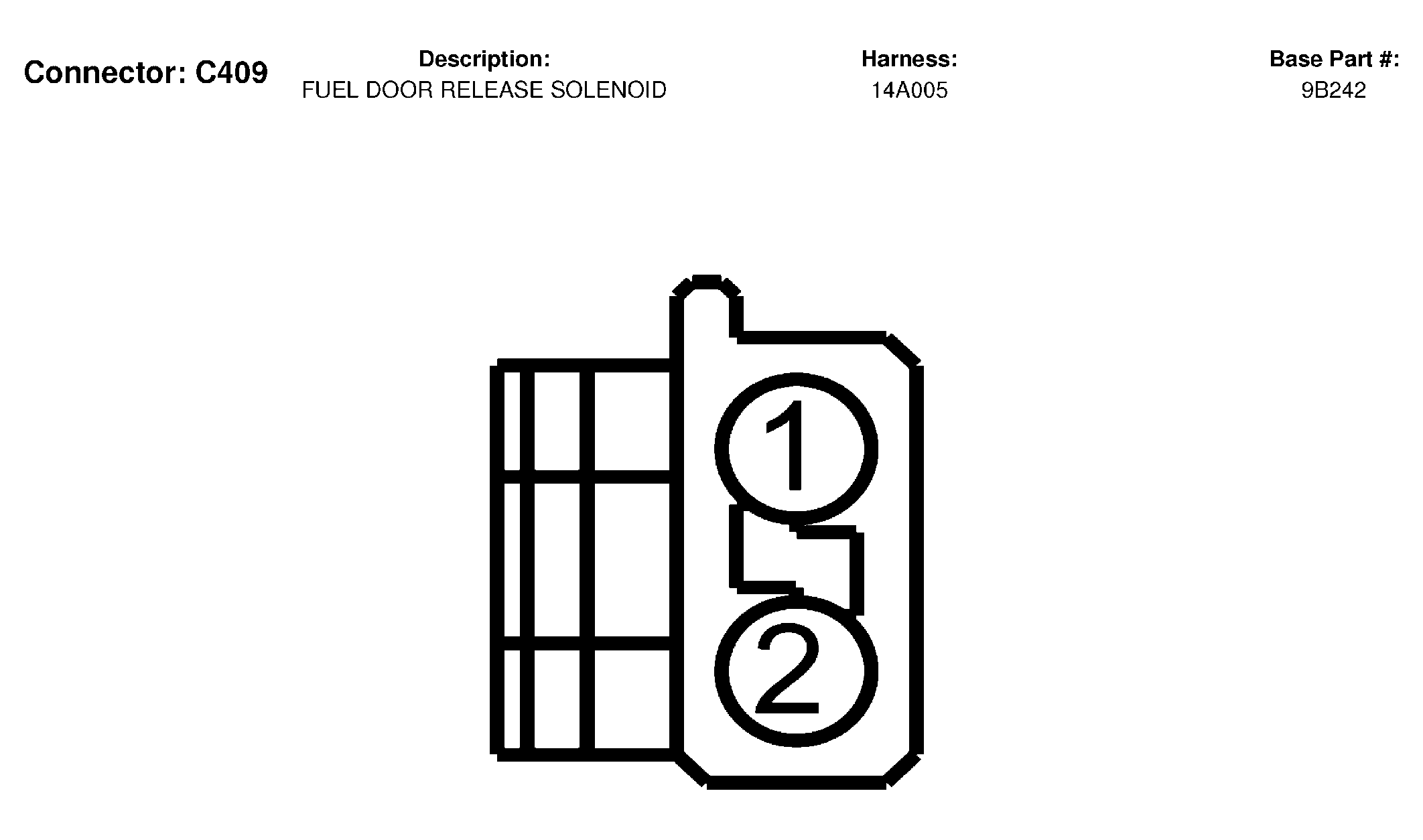

Fig 139: Fuel Door Release Solenoid Connector End View (C409)

Courtesy of FORD MOTOR CO.

C409 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	482 (WH-PK)	16	Fuel door release solenoid control
2	57 (BK)	16	Ground

Fig 140: Lamp Assembly, Left Rear Connector End View (C414A)

Courtesy of FORD MOTOR CO.

C414A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	5 (OG-LB)	20	Left rear turn signal

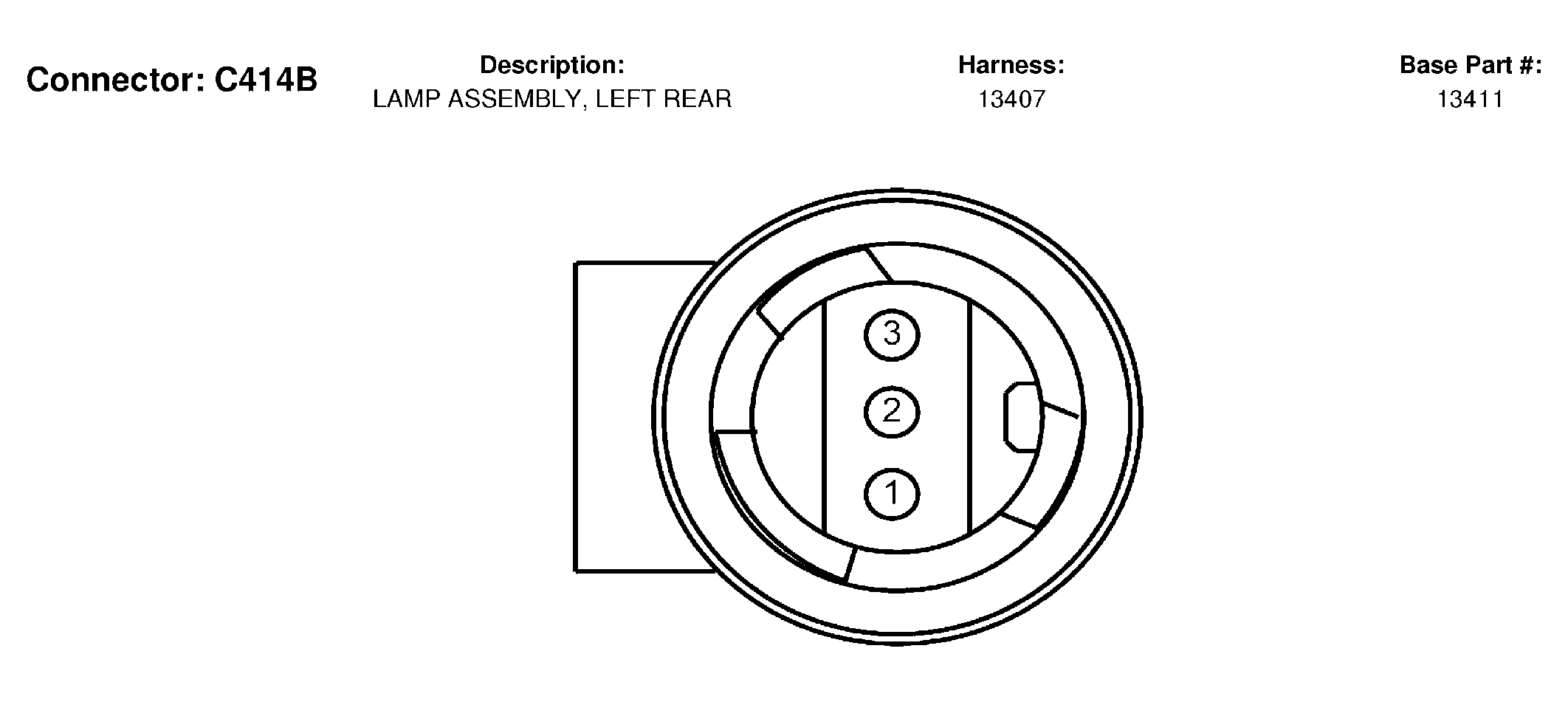

Fig 141: Lamp Assembly, Left Rear Connector End View (C414B)

Courtesy of FORD MOTOR CO.

C414B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	5 (OG-LB)	20	Left rear turn signal

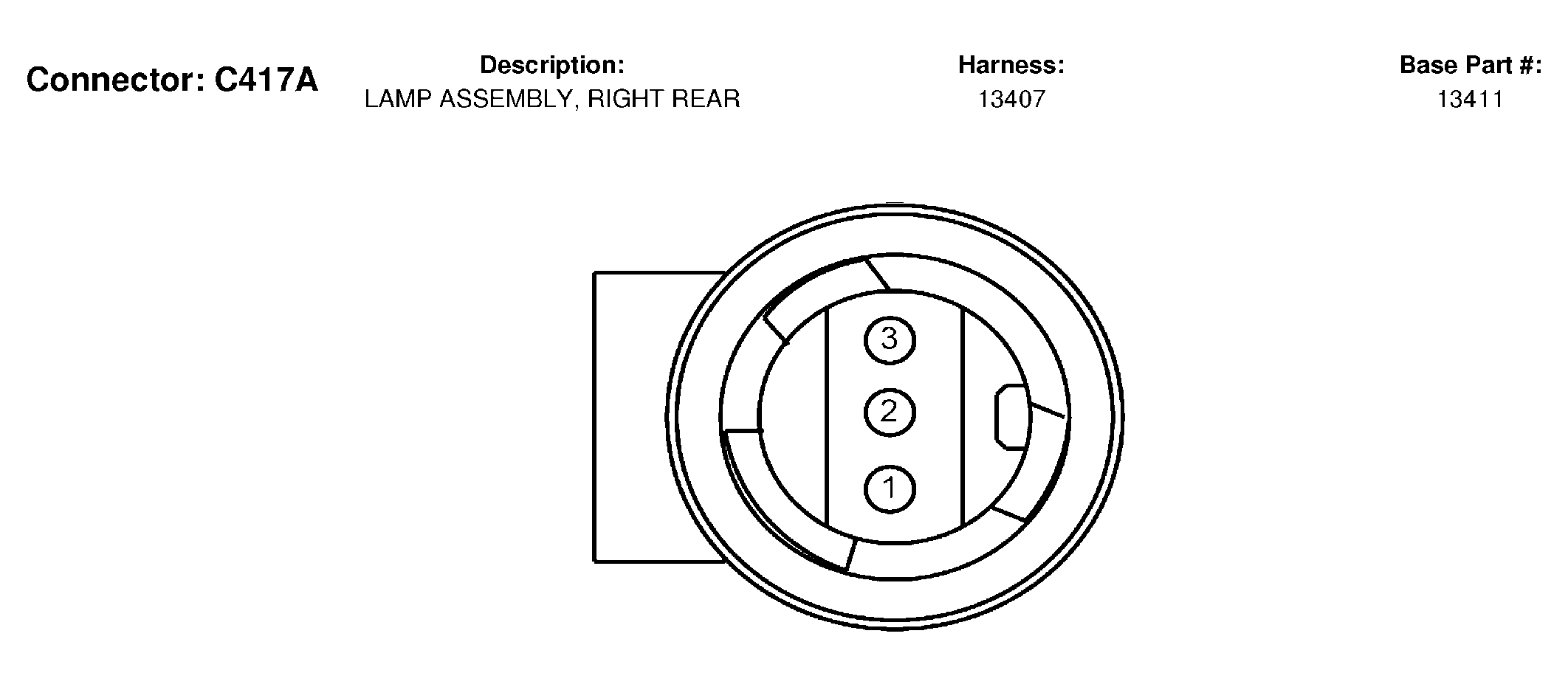

Fig 142: Lamp Assembly, Right Rear Connector End View (C417A)

Courtesy of FORD MOTOR CO.

C417A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	5 (OG-LB)	20	Right rear turn signal

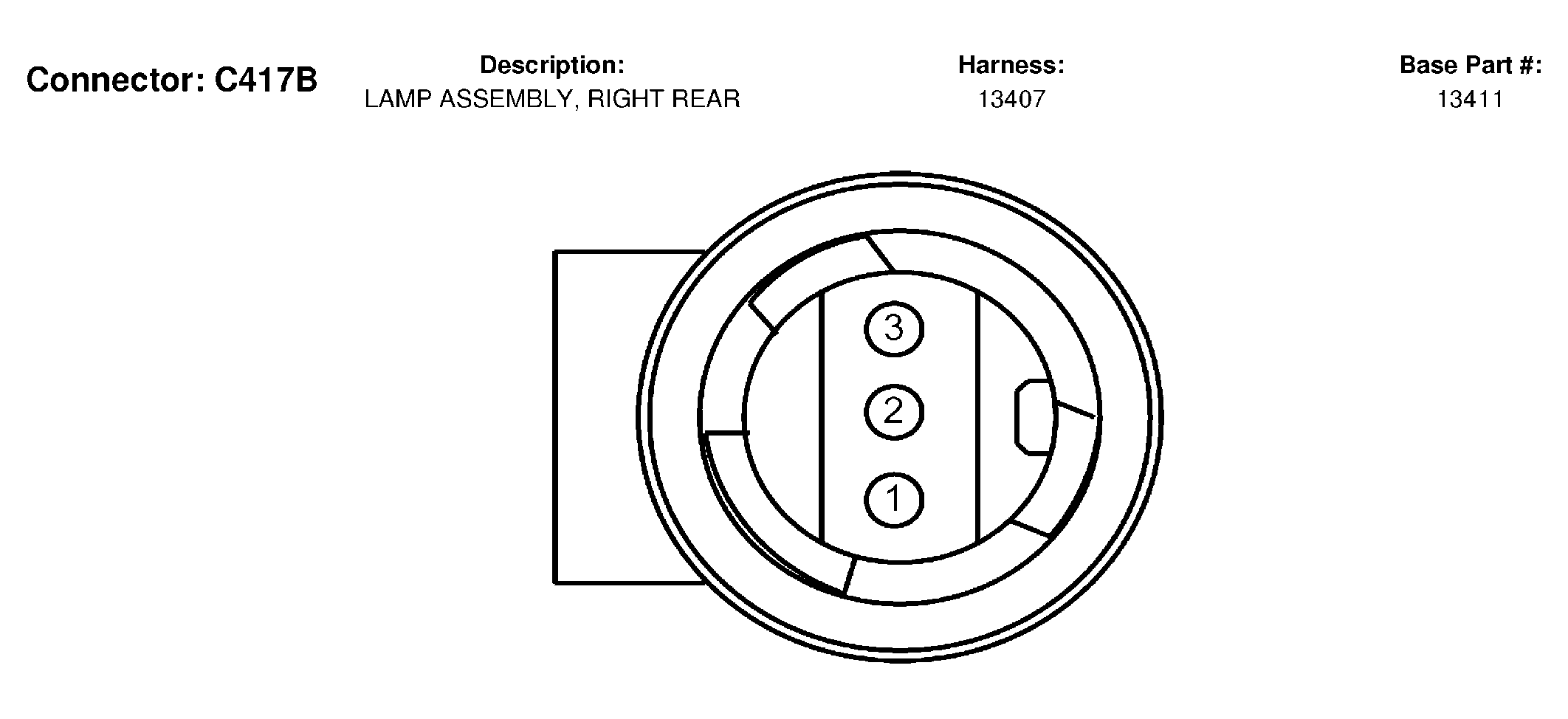

Fig 143: Lamp Assembly, Right Rear Connector End View (C417B)

Courtesy of FORD MOTOR CO.

C417B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	5 (OG-LB)	20	Right rear turn signal

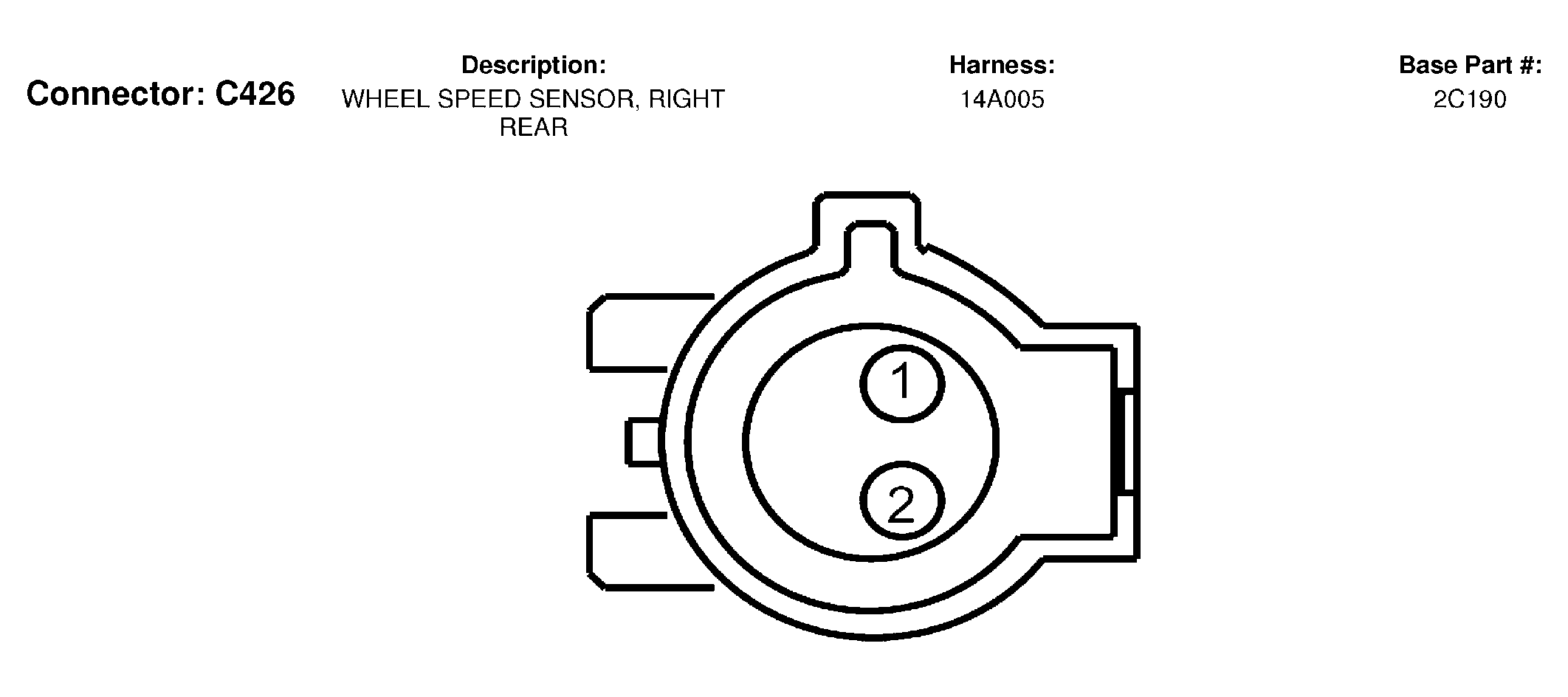

Fig 144: Wheel Speed Sensor, Right Rear Connector End View (C426)

Courtesy of FORD MOTOR CO.

C426 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	523 (RD-PK)	18	Wheel speed sensor, right rear +
2	524 (PK-BK)	18	Wheel speed sensor, right rear -

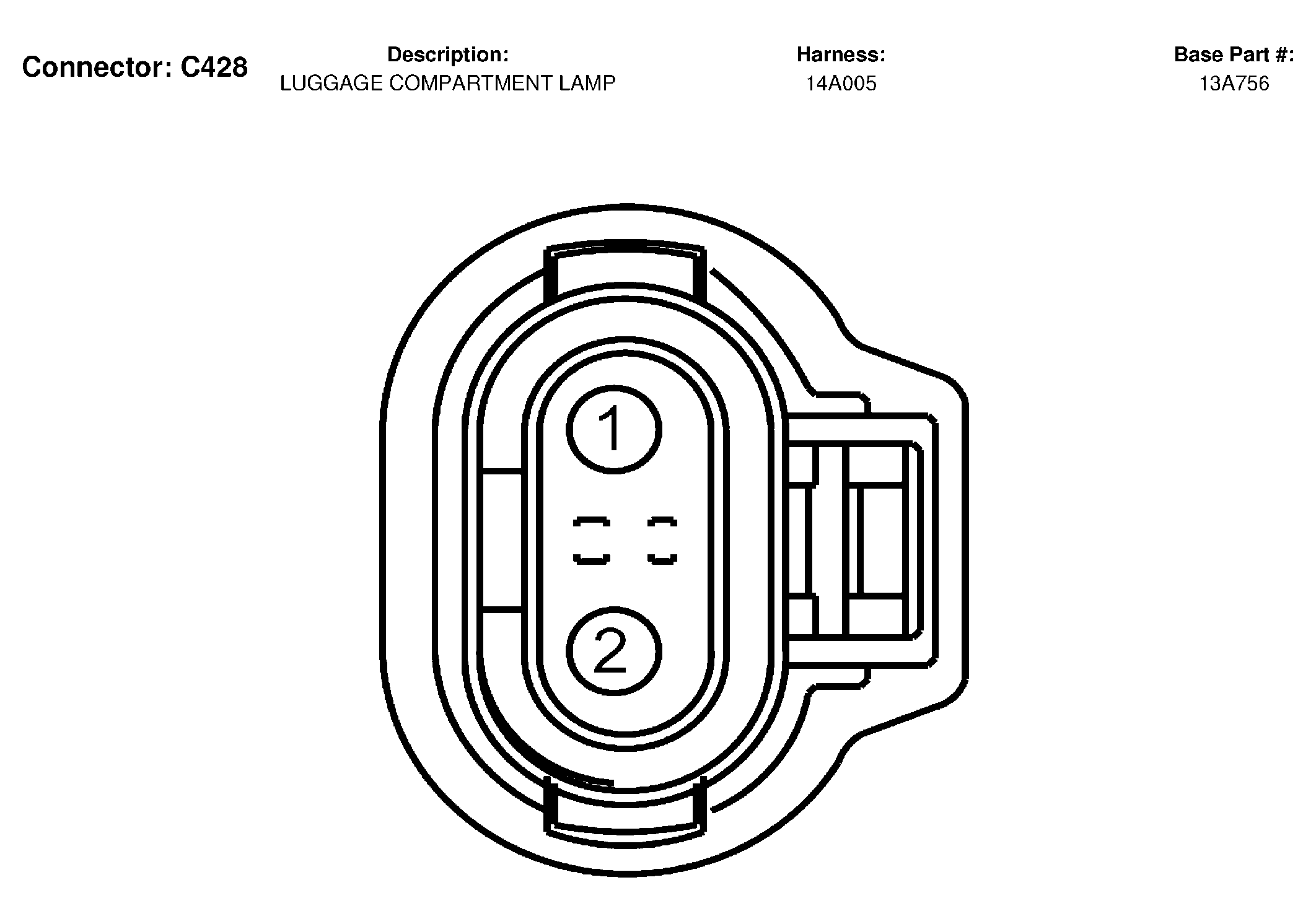

Fig 145: Luggage Compartment Lamp Connector End View (C428)

Courtesy of FORD MOTOR CO.

C428 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	705 (LG-OG)	20	Demand lighting
2	707 (WH-YE)	22	Luggage compartment lamp ground

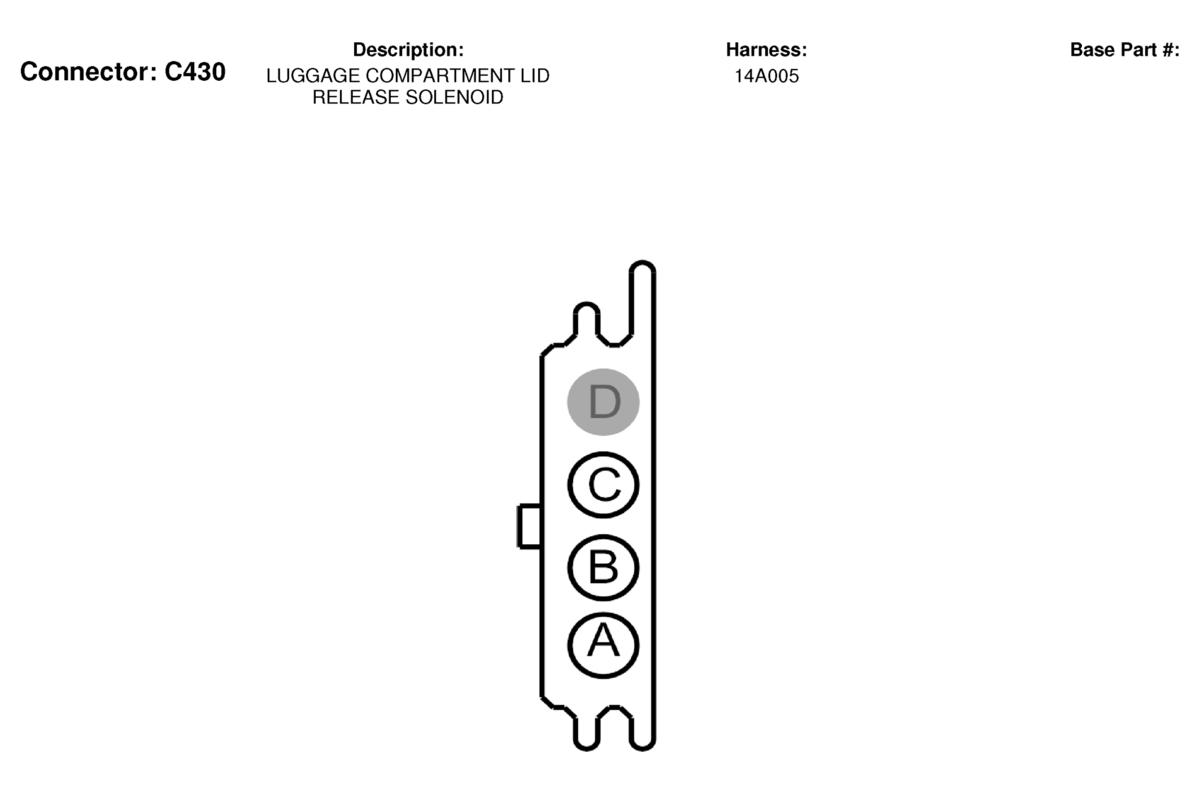

Fig 146: Luggage Compartment Lid Release Solenoid Connector End View (C430)

Courtesy of FORD MOTOR CO.

C430 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
A	605 (RD)	16	Luggage compartment lid release solenoid control
B	57 (BK)	18	Ground
C	486 (BR-WH)	20	Luggage compartment lid release solenoid signal
D	*	*	not used

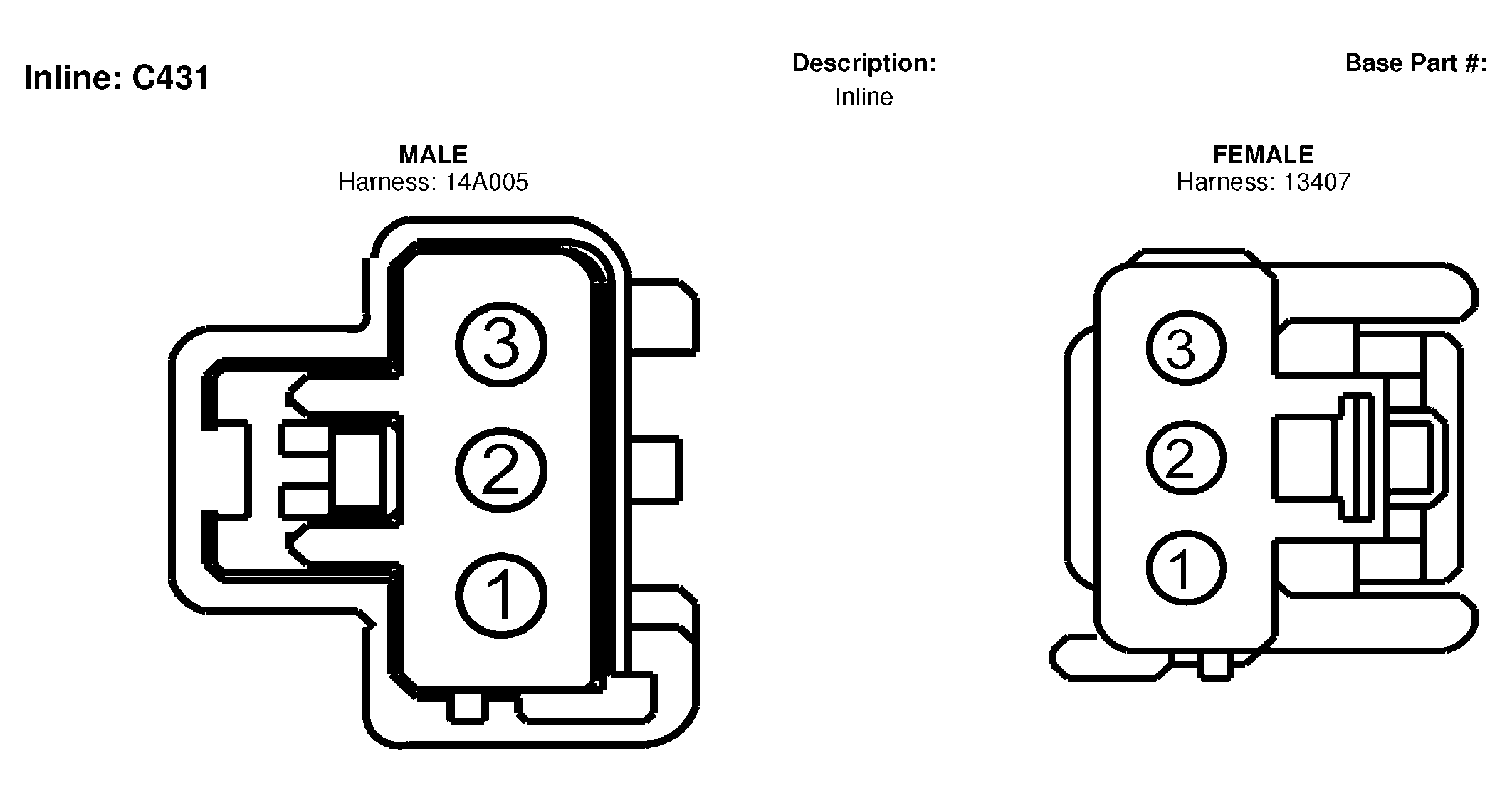

Fig 147: Inline Connector End View (C431)

Courtesy of FORD MOTOR CO.

C431 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	5 (OG-LB)	20	14A005
1	5 (OG-LB)	20	13407
1	5 (OG-LB)	20	13407
2	14 (BR)	20	14A005
2	14 (BR)	20	13407
2	14 (BR)	20	13407
3	57 (BK)	20	14A005
3	57 (BK)	20	13407
3	57 (BK)	20	13407

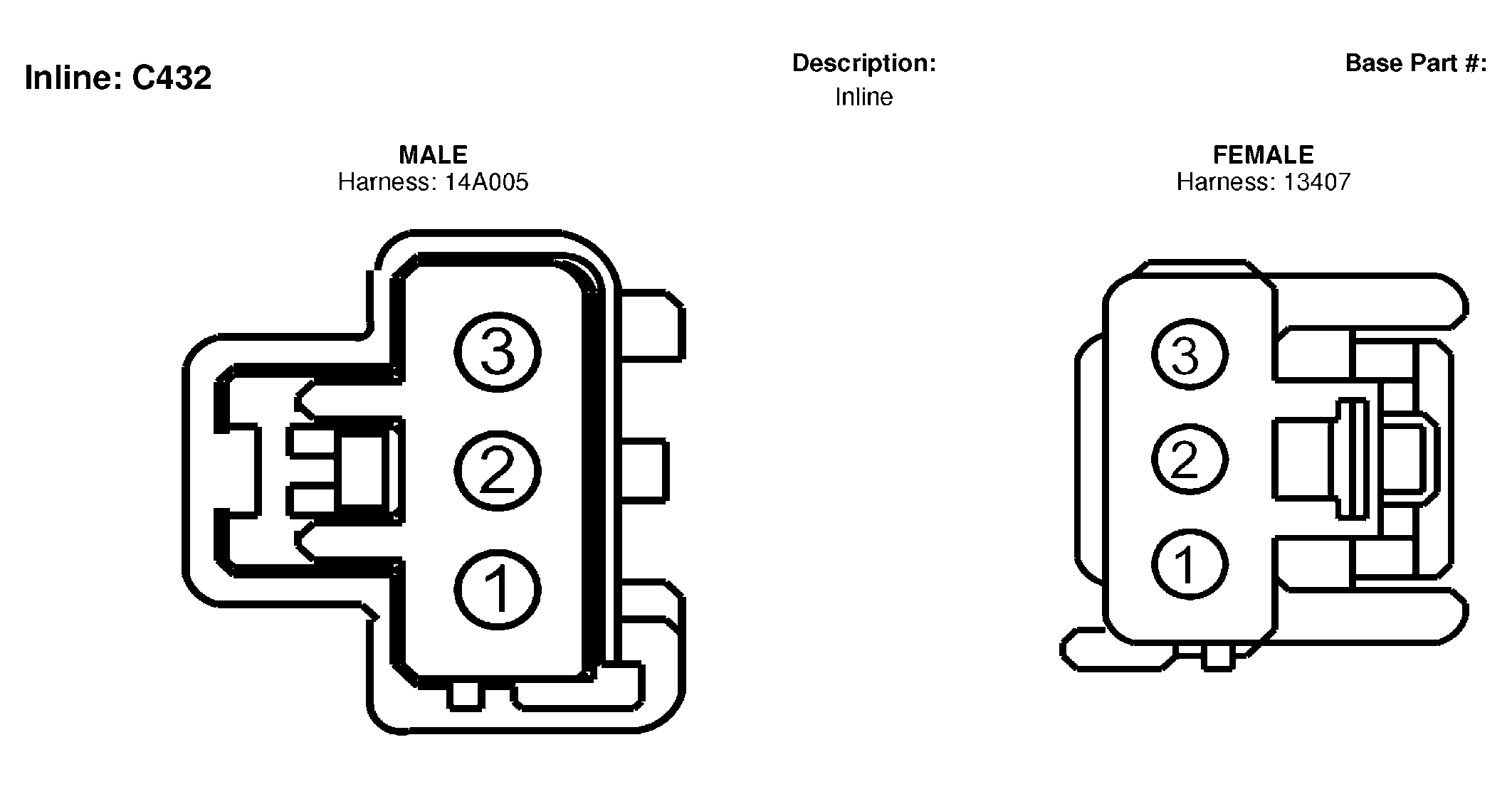

Fig 148: Inline Connector End View (C432)

Courtesy of FORD MOTOR CO.

C432 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	9 (LG-OG)	20	14A005
1	5 (OG-LB)	20	13407
1	5 (OG-LB)	20	13407
2	14 (BR)	20	14A005
2	14 (BR)	20	13407
2	14 (BR)	20	13407
3	57 (BK)	20	14A005
3	57 (BK)	20	13407
3	57 (BK)	20	13407

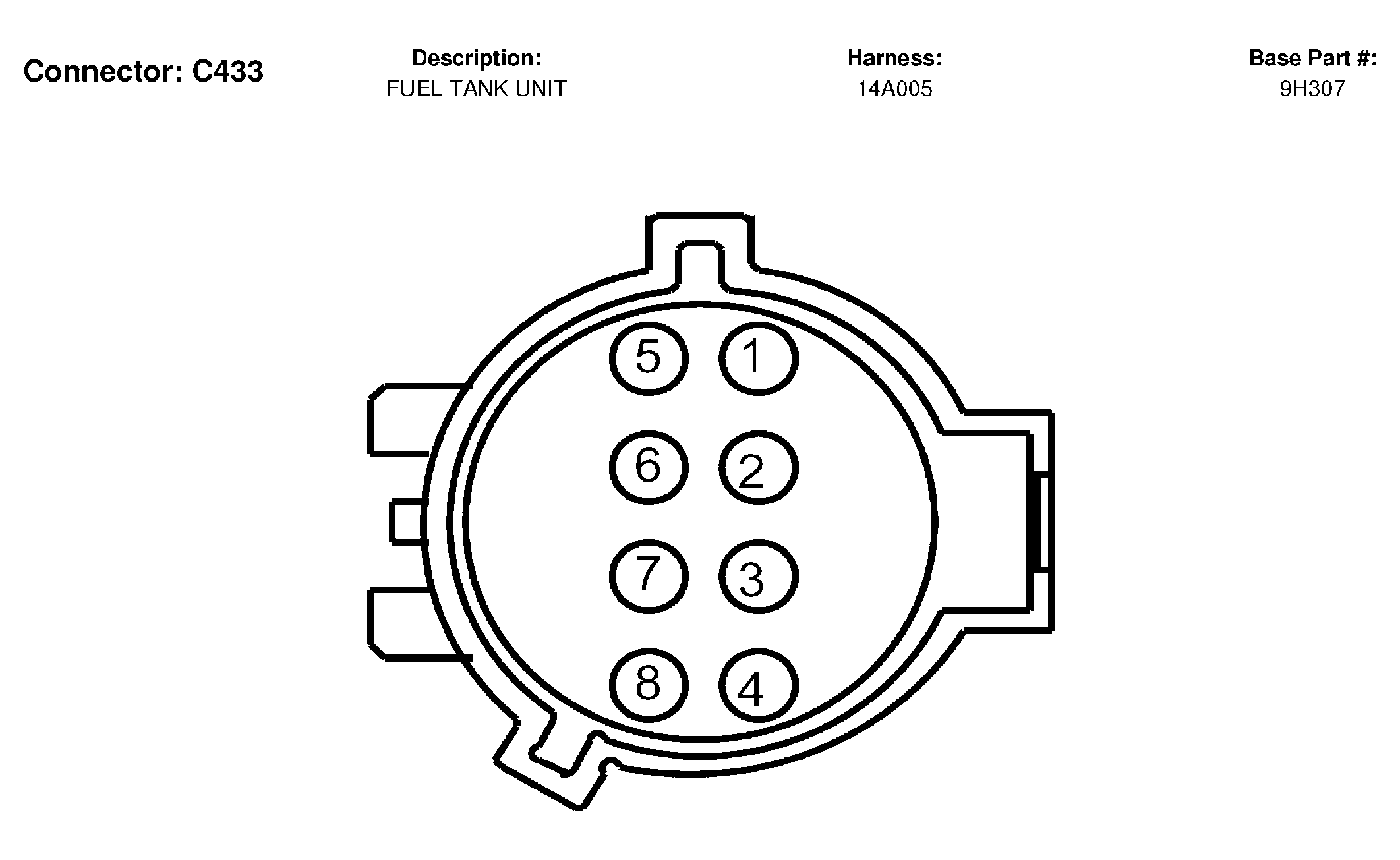

Fig 149: Fuel Tank Unit Connector End View (C433)

Courtesy of FORD MOTOR CO.

C433 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	359 (GY-RD)	20	Signal return
3	791 (RD-PK)	20	Fuel tank pressure transducer sensor signal
4	351 (BR-WH)	20	Reference voltage
5	29 (YE-WH)	20	Fuel sender signal
6	789 (BR-WH)	14	Fuel pump, return
7	787 (PK-BK)	14	Fuel pump, feed
8	1843 (BK-OG)	20	Signal return

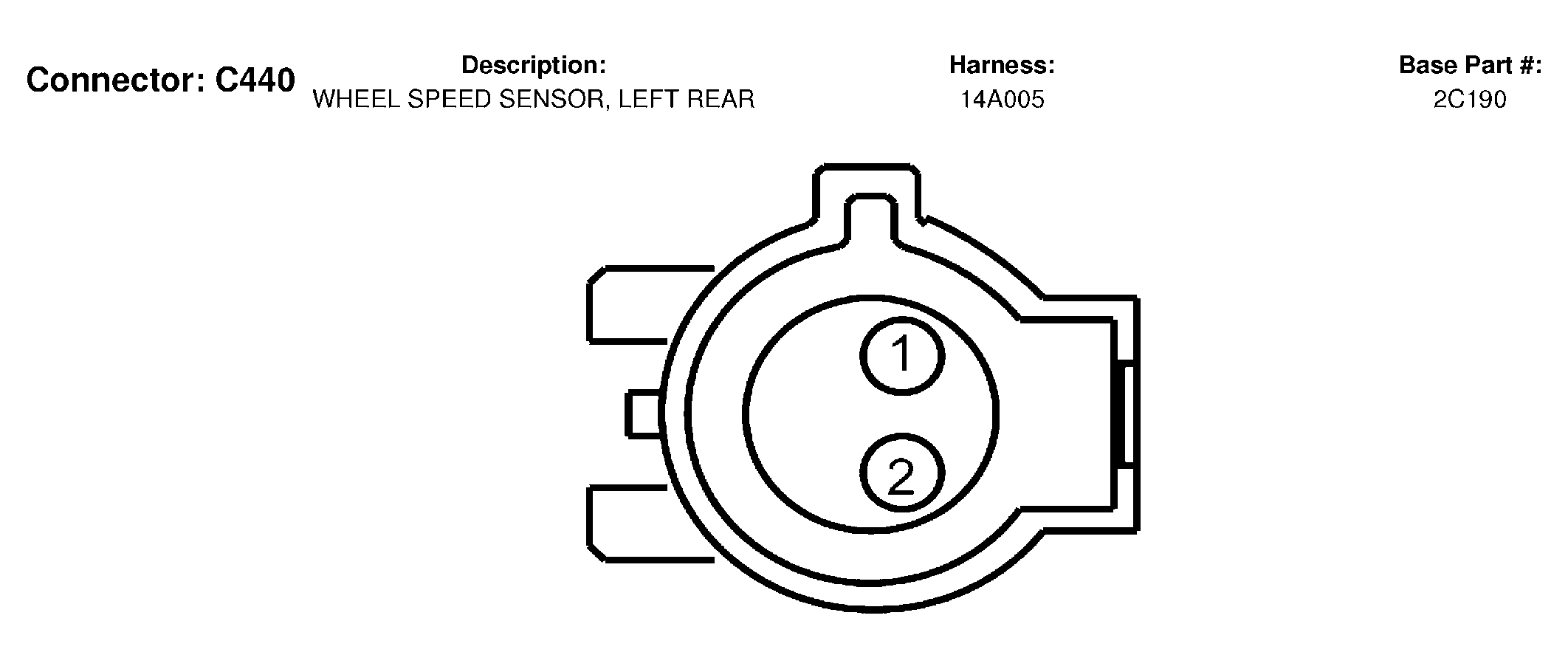

Fig 150: Wheel Speed Sensor, Left Rear Connector End View (C440)

Courtesy of FORD MOTOR CO.

C440 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	518 (LG-RD)	20	Wheel speed sensor, left rear +
2	519 (LG-BK)	20	Wheel speed sensor, left rear -

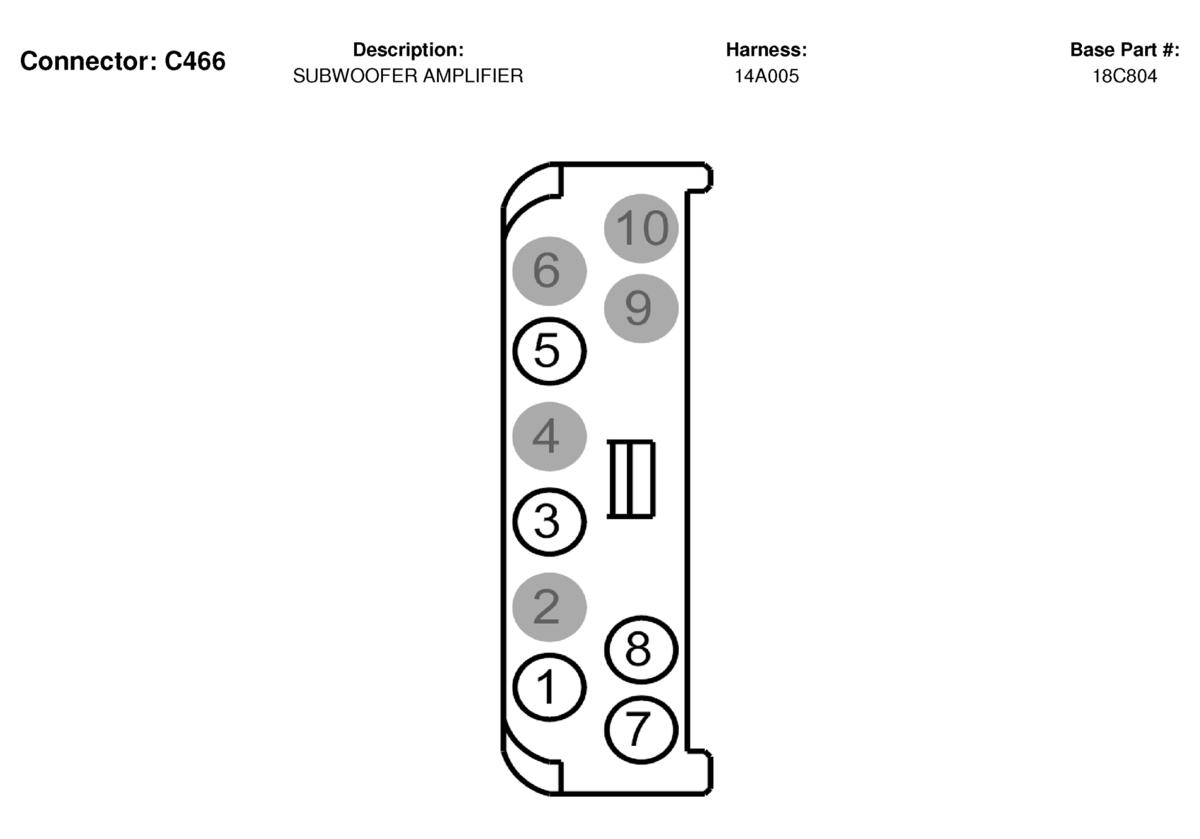

Fig 151: Subwoofer Amplifier Connector End View (C466)

Courtesy of FORD MOTOR CO.

C466 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	173 (DG-VT)	22	Subwoofer, High, mute
2	*	*	not used
3	694 (BK-LG)	14	Ground
4	*	*	not used
5	720 (RD-YE)	16	Voltage supplied at all times (overload protected)
6	*	*	not used
7	167 (BR-OG)	22	Subwoofer -
8	168 (RD-BK)	22	Subwoofer +
9	*	*	not used
10	*	*	not used

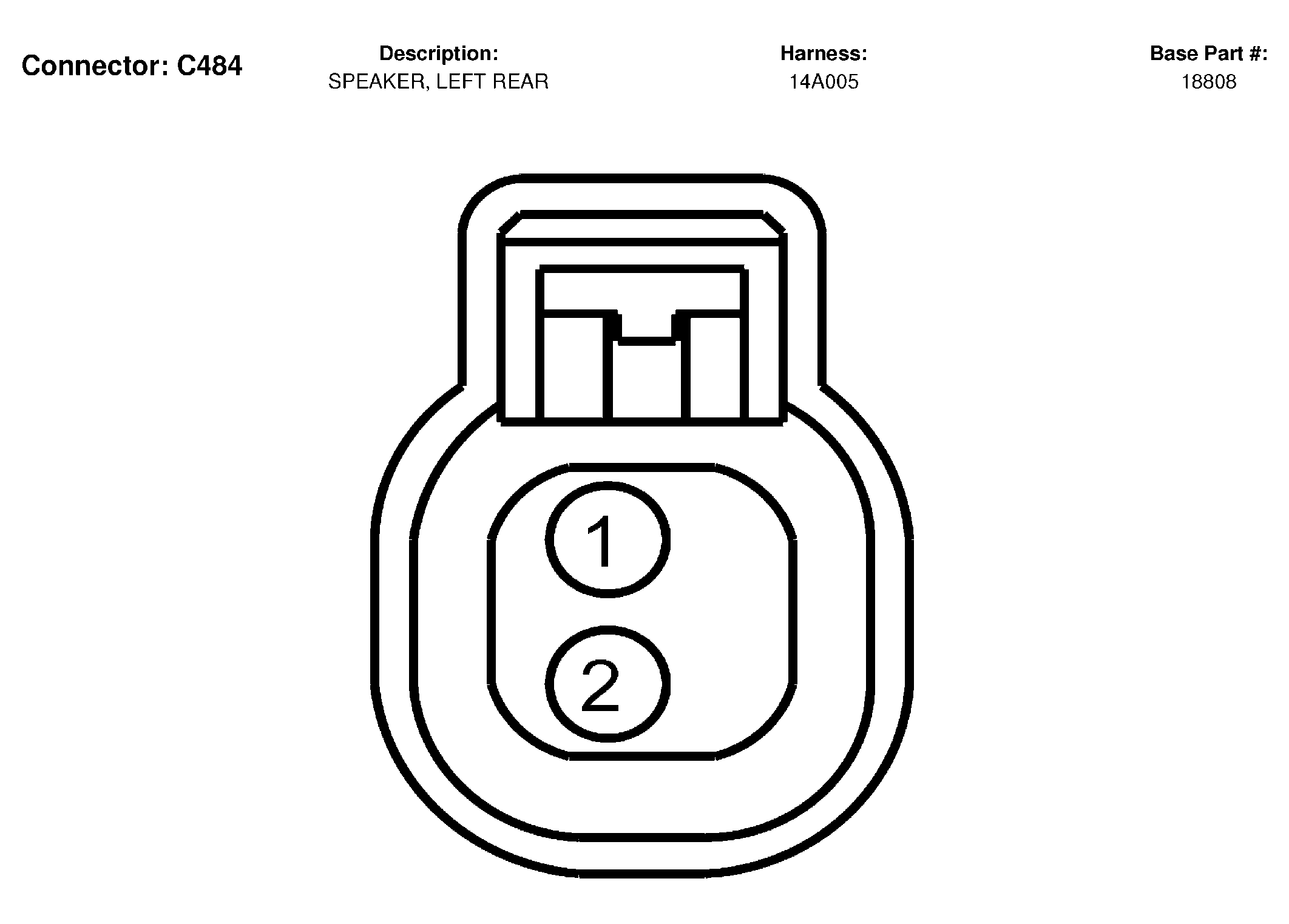

Fig 152: Speaker, Left Rear Connector End View (C484)

Courtesy of FORD MOTOR CO.

C484 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	800 (GY-LB)	18	Speaker, left rear +
2	801 (TN-YE)	18	Speaker, left rear -

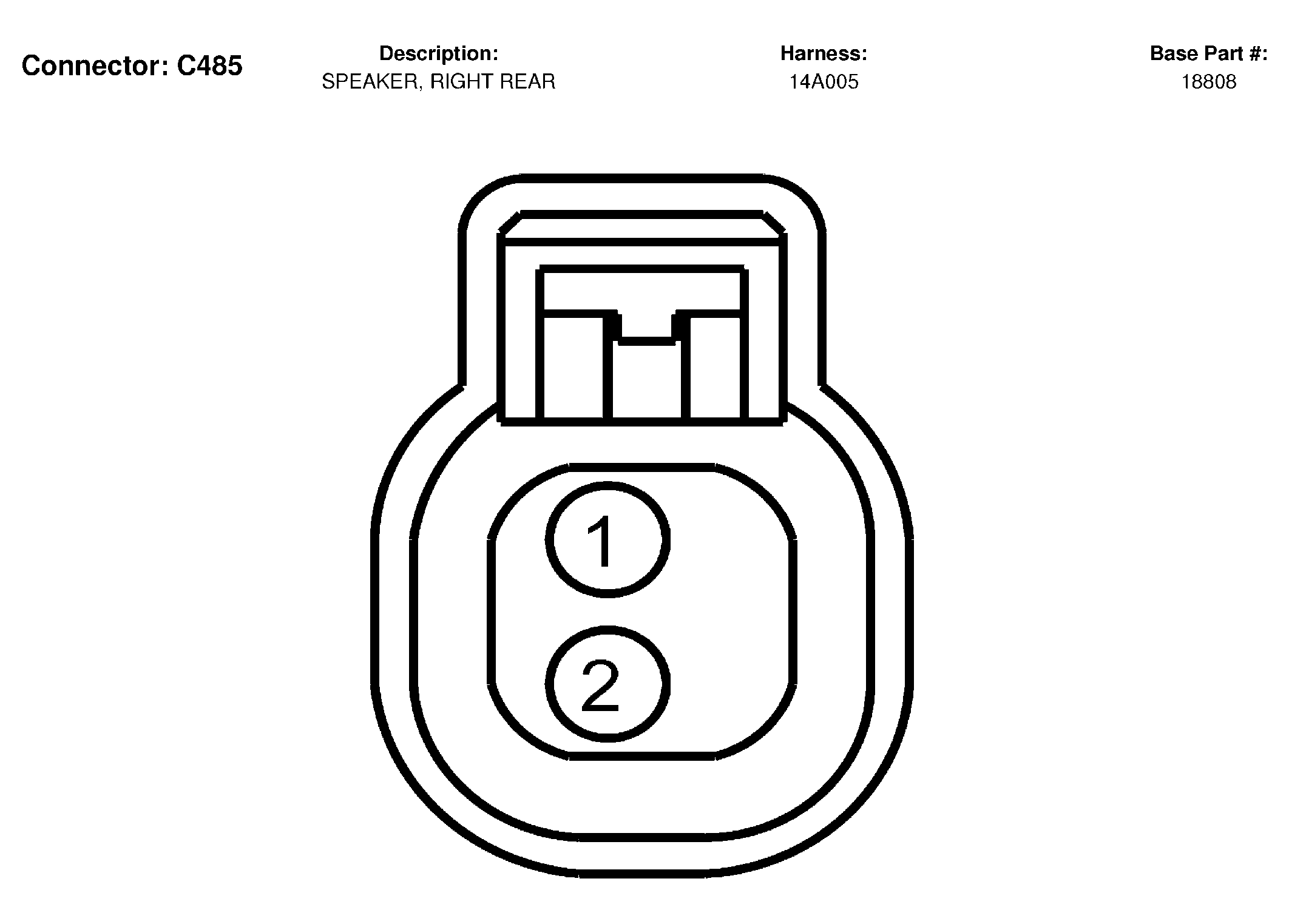

Fig 153: Speaker, Right Rear Connector End View (C485)

Courtesy of FORD MOTOR CO.

C485 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	802 (OG-RD)	18	Speaker, right rear + w/o navigation
1	802 (OG-RD)	16	Speaker, right rear + navigation
2	803 (BR-PK)	18	Speaker, right rear - w/o navigation
2	803 (BR-PK)	16	Speaker, right rear - navigation

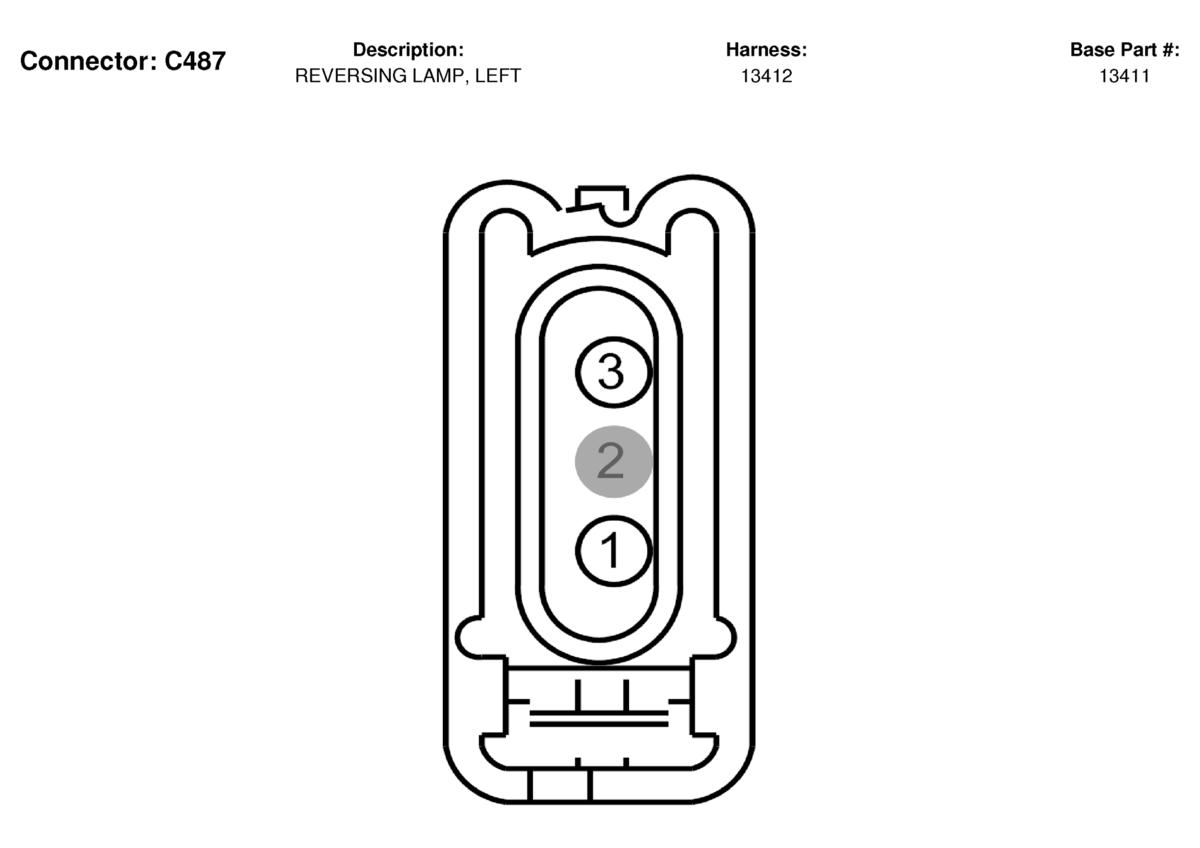

Fig 154: Reversing Lamp, Left Connector End View (C487)

Courtesy of FORD MOTOR CO.

C487 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	*	*	not used
3	140 (BK-PK)	20	Voltage supplied in reverse

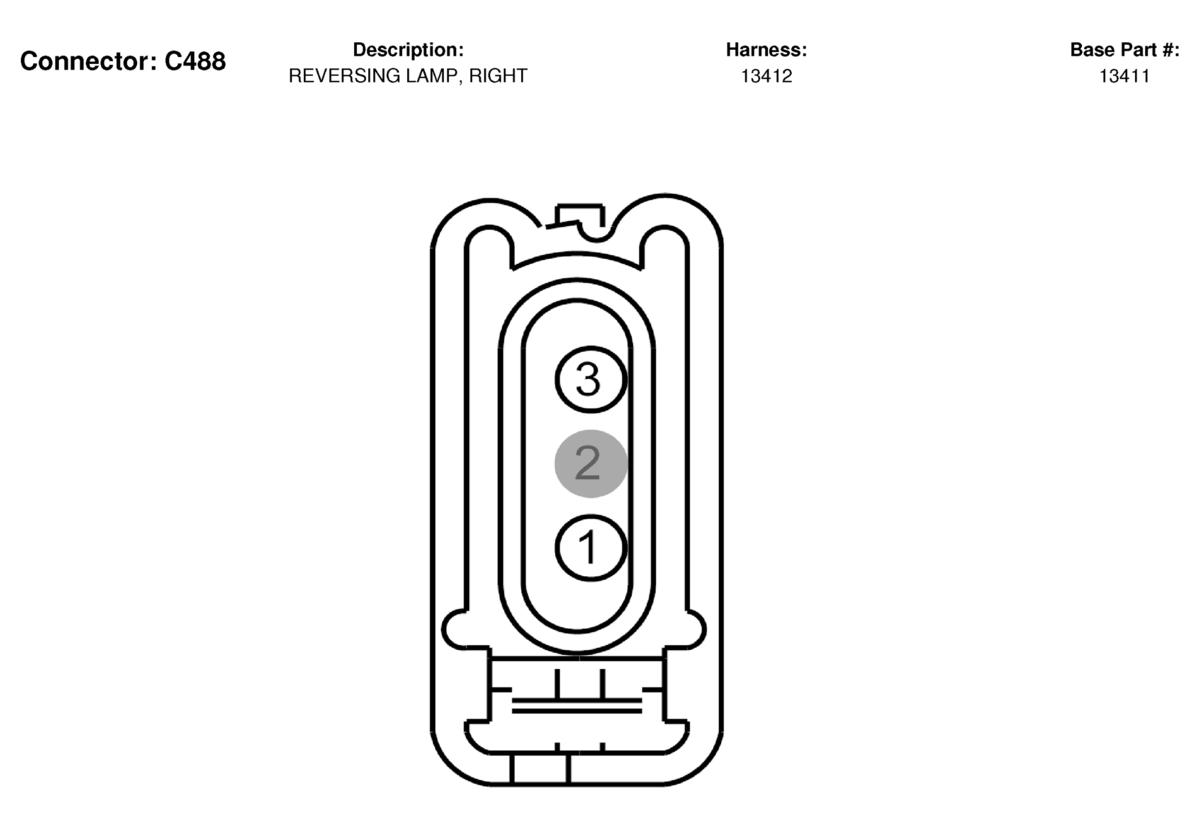

Fig 155: Reversing Lamp, Right Connector End View (C488)

Courtesy of FORD MOTOR CO.

C488 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	*	*	not used
3	140 (BK-PK)	20	Voltage supplied in reverse

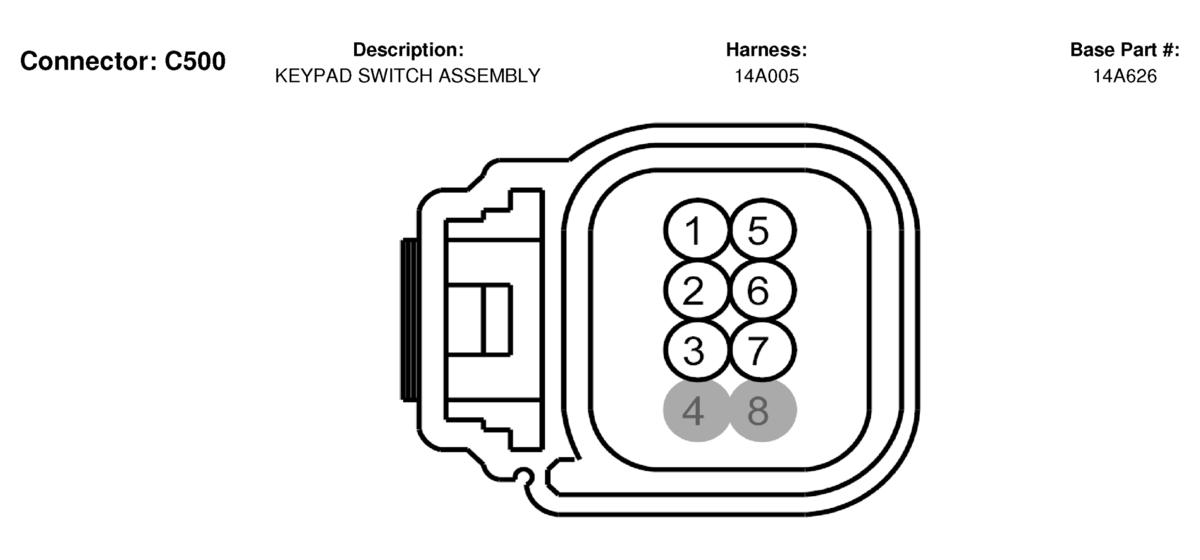

Fig 156: Keypad Switch Assembly Connector End View (C500)

Courtesy of FORD MOTOR CO.

C500 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	78 (LB-YE)	22	Key pad, output, 1/2
2	1524 (DB)	20	Voltage supplied at all times (overload protected)
3	79 (LG-RD)	22	Key pad, output, 3/4
4	*	*	not used
5	66 (LB)	22	Key pad illumination -
6	57 (BK)	20	Ground
7	121 (YE-BK)	22	Key pad, output, 5/6
8	*	*	not used

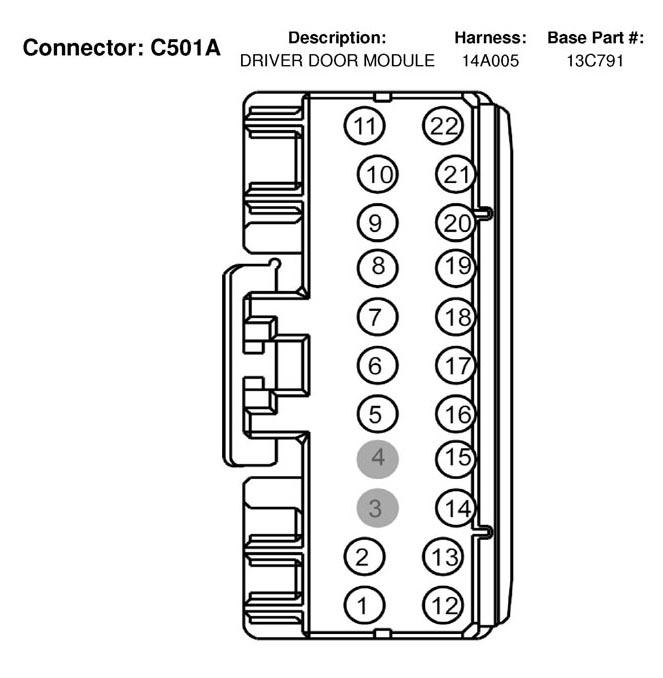

Fig 157: Driver Door Module Connector End View (C501A)

Courtesy of FORD MOTOR CO.

C501A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	16	Ground
2	1213 (WH-LB)	14	Voltage supplied at all times (overload protected)
3	*	*	not used
4	*	*	not used
5	676 (PK-OG)	20	Ground
6	119 (PK-YE)	22	Door lock switch signal, Lock
7	267 (BR-LG)	22	Memory seat switch, position 1 signal
8	270 (BR-OG)	22	Memory Set
9	940 (DB-OG)	22	Left mirror, Up/Down mirror movement +/-
10	945 (YE-BK)	22	Mirror motor common
11	118 (PK-OG)	16	Passenger doors Unlock -
12	117 (PK-BK)	16	All door lock +
13	163 (RD-OG)	16	Driver door Unlock -
14	915 (PK-LB)	22	SCP Bus -
15	914 (TN-OG)	22	SCP Bus +
16	120 (PK-LG)	22	Door lock switch signal, Unlock
17	268 (BK-OG)	22	Memory seat switch, position 2 signal
18	944 (DG-OG)	22	Right mirror, Right/Left mirror movement +/-
19	943 (VT-OG)	22	Right mirror, Up/Down mirror movement +/-
20	942 (RD-OG)	22	Left mirror, Right/Left mirror movement +/-
21	1524 (DB)	20	Voltage supplied at all times (overload protected)
22	1237 (LG-RD)	16	Decklid signal - Open, closed

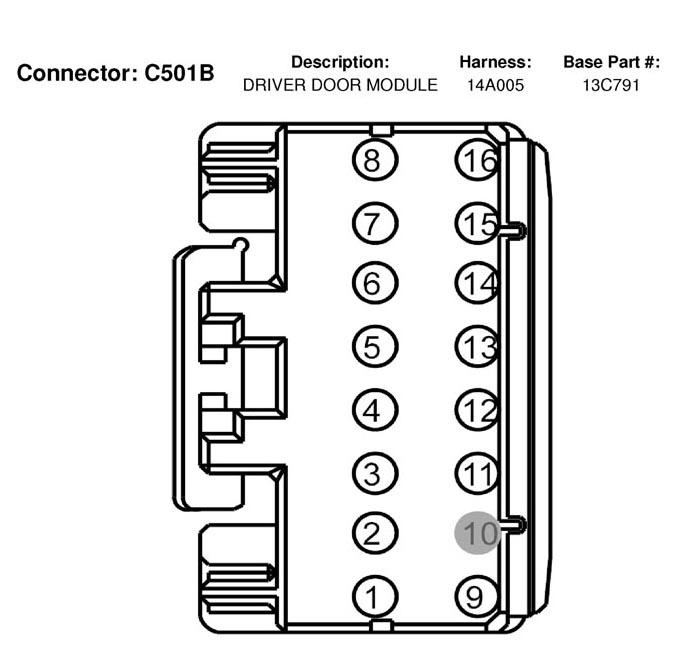

Fig 158: Driver Door Module Connector End View (C501B)

Courtesy of FORD MOTOR CO.

C501B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	78 (LB-YE)	22	Key pad, output, 1/2
2	26 (WH-VT)	22	Decklid ajar signal
3	627 (BK-OG)	20	Door ajar switch signal, right front
4	867 (DB)	20	Door ajar switch signal, driver side front
5	982 (YE-LG)	22	Rear height motor +/-
6	983 (RD-LG)	22	Rear height motor +/-
7	979 (RD-LB)	22	Front height motor +/-
8	978 (YE-LB)	22	Front height motor +/-
9	121 (YE-BK)	22	Key pad, output, 5/6
10	*	*	not used
11	272 (WH-OG)	22	Memory seat switch indicator control
12	79 (LG-RD)	22	Key pad, output, 3/4
13	918 (GY)	22	Seat backrest motor +/-
14	919 (GY-BK)	22	Seat backrest motor +/-
15	981 (RD-WH)	22	Fwd/Rwd motor +/-
16	980 (YE-WH)	22	Fwd/Rwd motor +/-

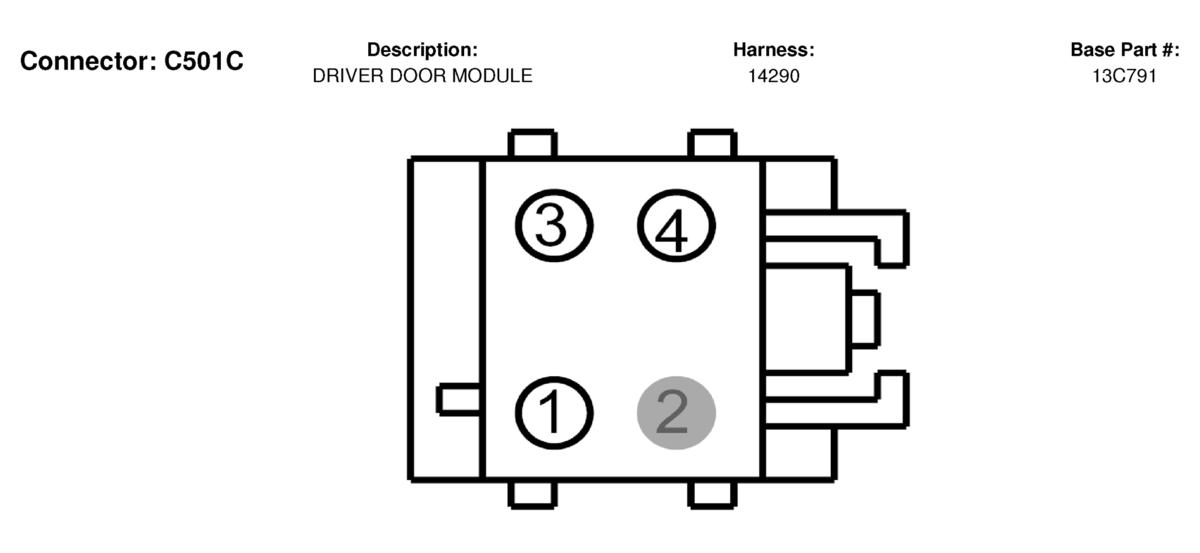

Fig 159: Driver Door Module Connector End View (C501C)

Courtesy of FORD MOTOR CO.

C501C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	605 (RD)	16	Luggage compartment lid release solenoid control
2	*	*	not used
3	1213 (WH-LB)	14	Voltage supplied at all times (overload protected)
4	66 (LB)	22	Key pad illumination -

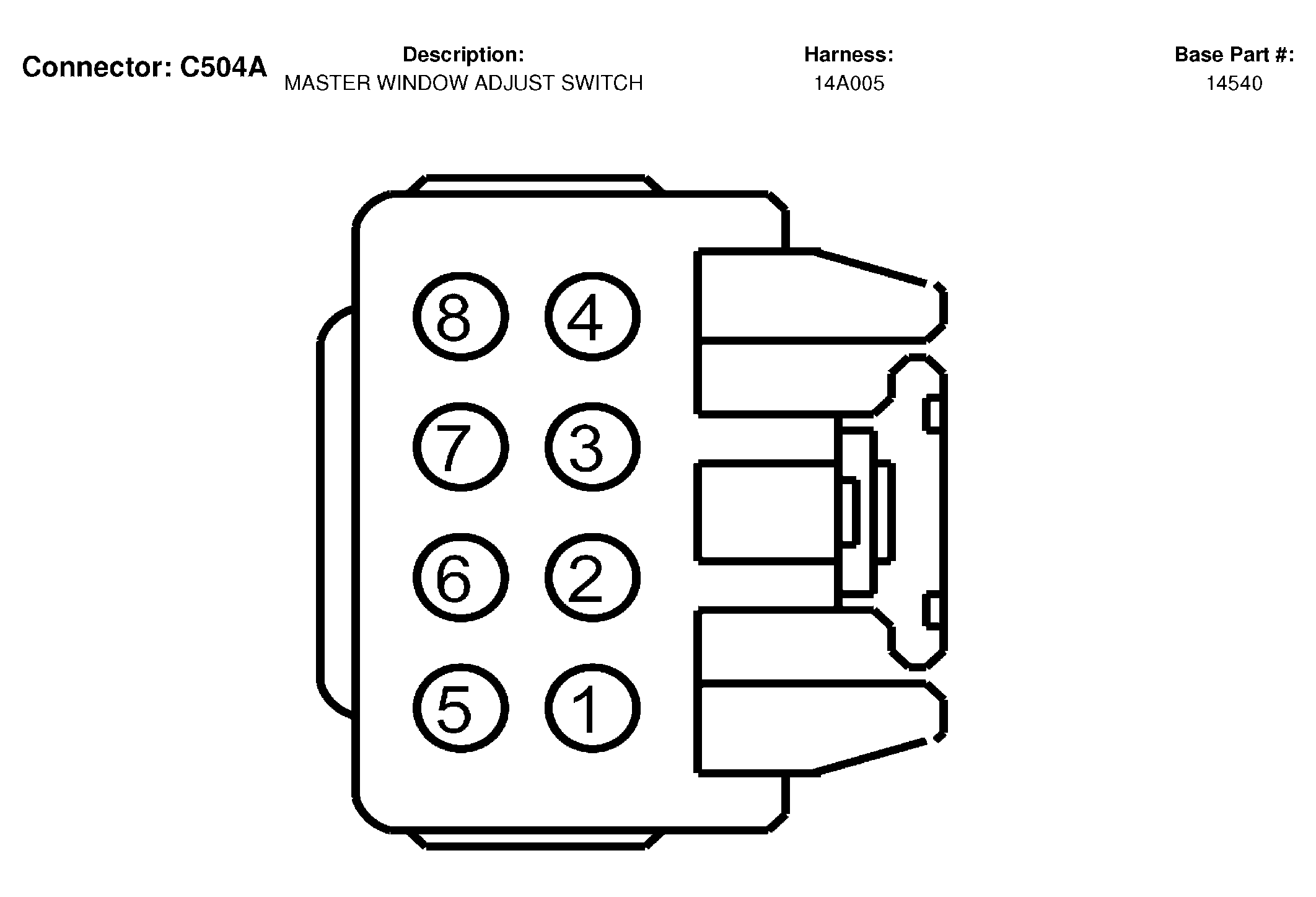

Fig 160: Master Window Adjust Switch Connector End View (C504A)

Courtesy of FORD MOTOR CO.

C504A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	316 (YE-LB)	14	Window adjust switch, rear +/-
2	317 (GY-OG)	14	Window adjust switch, rear +/-
3	319 (YE-BK)	12	Window adjust switch, rear +/-
4	320 (RD-BK)	12	Window adjust switch, rear +/-
5	226 (WH-BK)	14	Power window motor, driver front +/-
6	227 (YE)	14	Power window motor, driver front +/-
7	313 (WH-YE)	12	Window switch, feed, right front, Up
8	314 (TN-LB)	12	Window switch, feed, right front, Down

Fig 161: Master Window Adjust Switch Connector End View (C504B)

Courtesy of FORD MOTOR CO.

C504B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	*	*	not used
4	*	*	not used
5	57 (BK)	12	Ground
6	*	*	not used
7	170 (RD-LB)	12	Window lockout signal
8	193 (YE-LG)	12	Accessory relay output

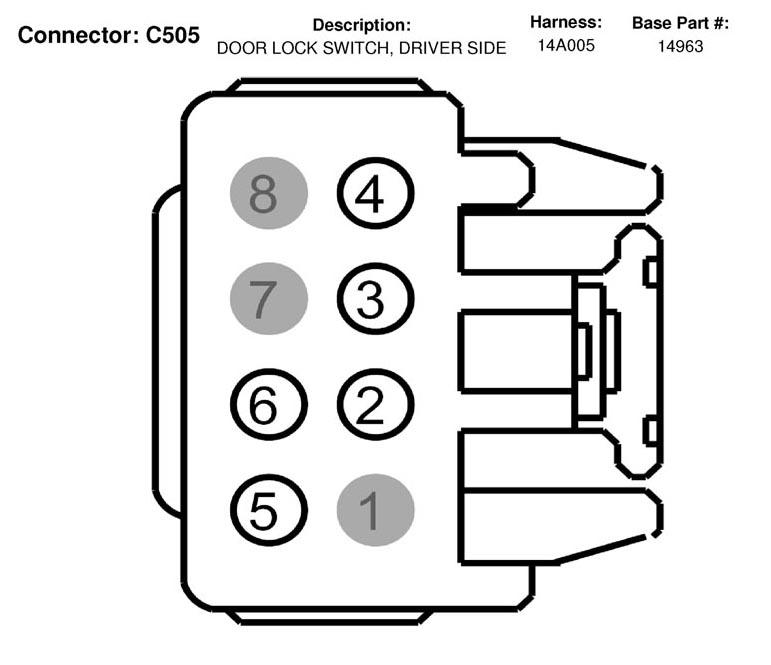

Fig 162: Door Lock Switch, Driver Side Connector End View (C505)

Courtesy of FORD MOTOR CO.

C505 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	119 (PK-YE)	22	Door lock switch signal, Lock
3	57 (BK)	20	Ground
4	1524 (DB)	20	Voltage supplied at all times (overload protected)
5	964 (DB-LG)	20	Voltage in Run or Accessory (overload protected)
6	120 (PK-LG)	22	Door lock switch signal, Unlock
7	*	*	not used
8	*	*	not used

Fig 163: Door Entry Lamp, Left Front Connector End View (C506)

Courtesy of FORD MOTOR CO.

C506 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground

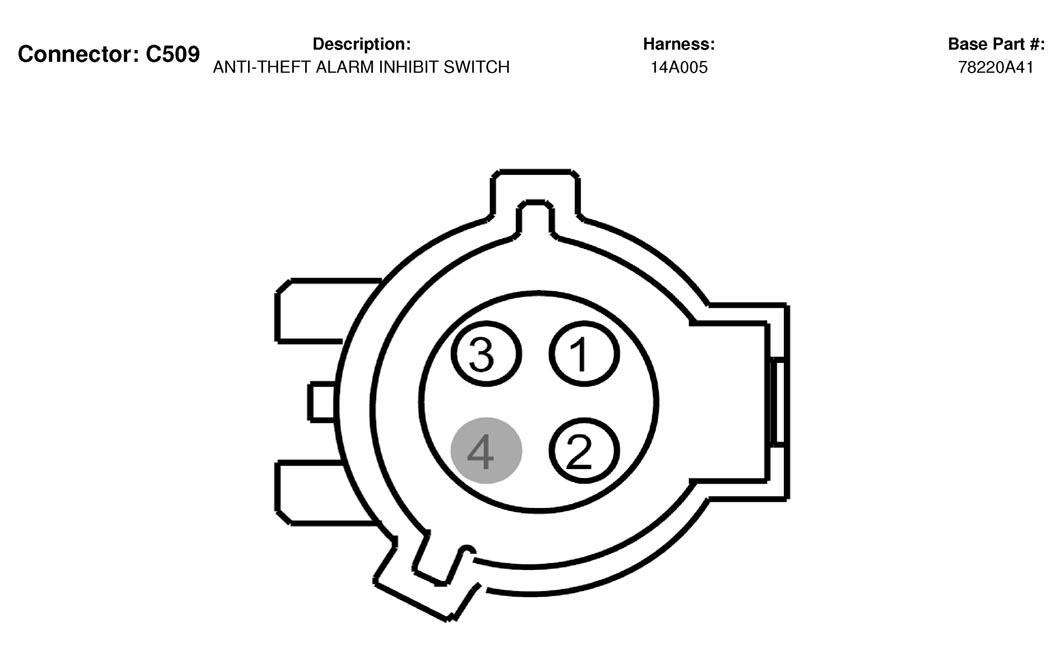

Fig 164: Anti-Theft Alarm Inhibit Switch Connector End View (C509)

Courtesy of FORD MOTOR CO.

C509 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1312 (LG-BK)	20	Anti-theft inhibit switch, arm
2	1313 (LB-BK)	20	Anti-theft inhibit switch, disarm
3	57 (BK)	20	Ground
4	*	*	not used

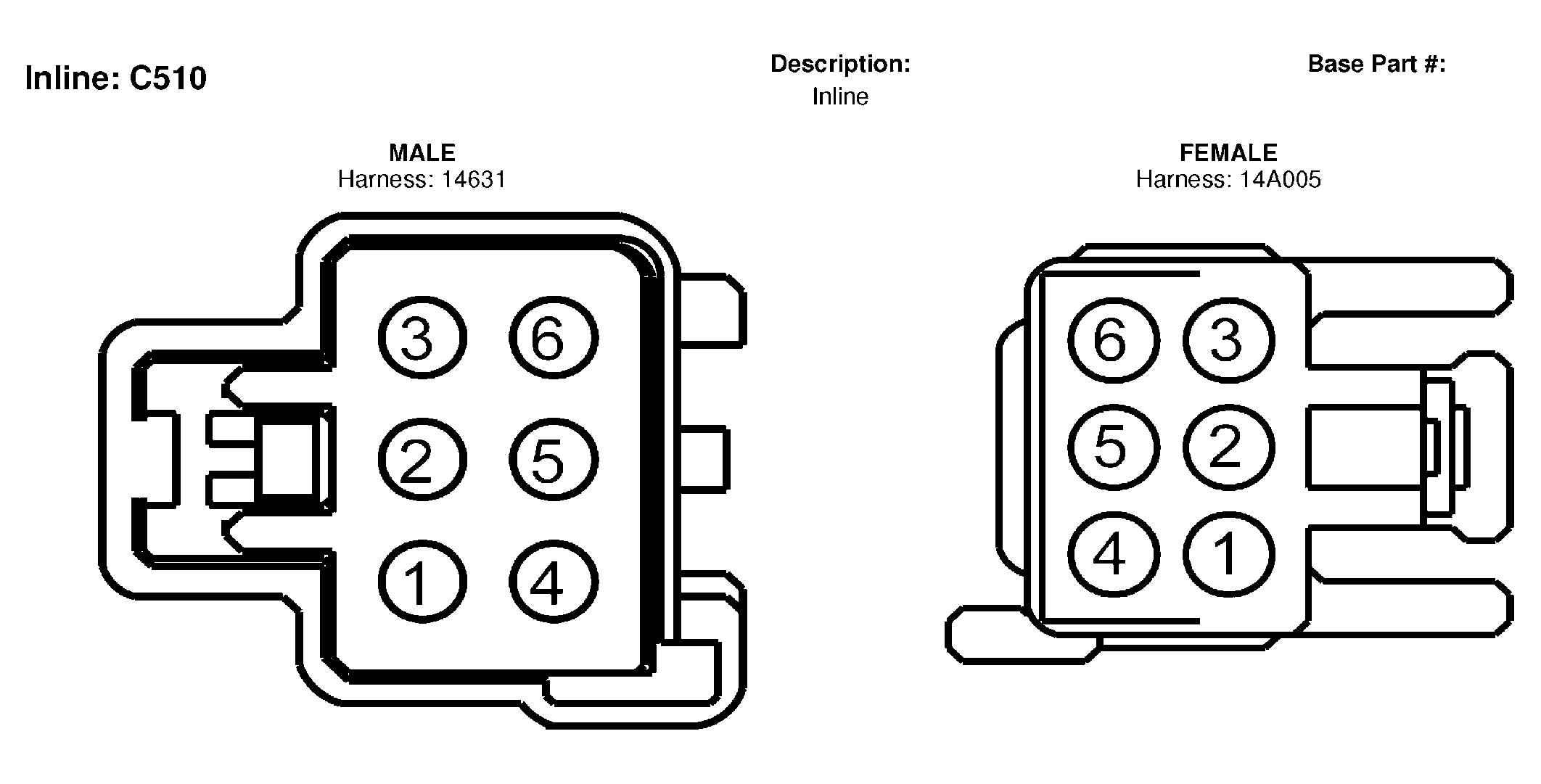

Fig 165: Inline Connector End View (C510)

Courtesy of FORD MOTOR CO.

C510 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	57 (BK)	20
2	53 (BK-LB)	20
3	1524 (DB)	22
4	482 (WH-PK)	16
5	566 (DG)	16	14A005
5	84 (VT-YE)	16	14631
6	26 (WH-VT)	22

Fig 166: Inline Connector End View (C511)

Courtesy of FORD MOTOR CO.

C511 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1020 (DG-VT)	22	14323
1	1020 (DG-VT)	20	14A005
2	*	*
3	964 (DB-LG)	22
4	*	*
5	1019 (TN-LB)	22	14323
5	1019 (TN-LB)	20	14A005
6	1255 (WH-RD)	22	14323
6	1255 (WH-RD)	20	14A005
7	1018 (LG-OG)	22	14323
7	1018 (LG-OG)	20	14A005
8	57 (BK)	22	14323

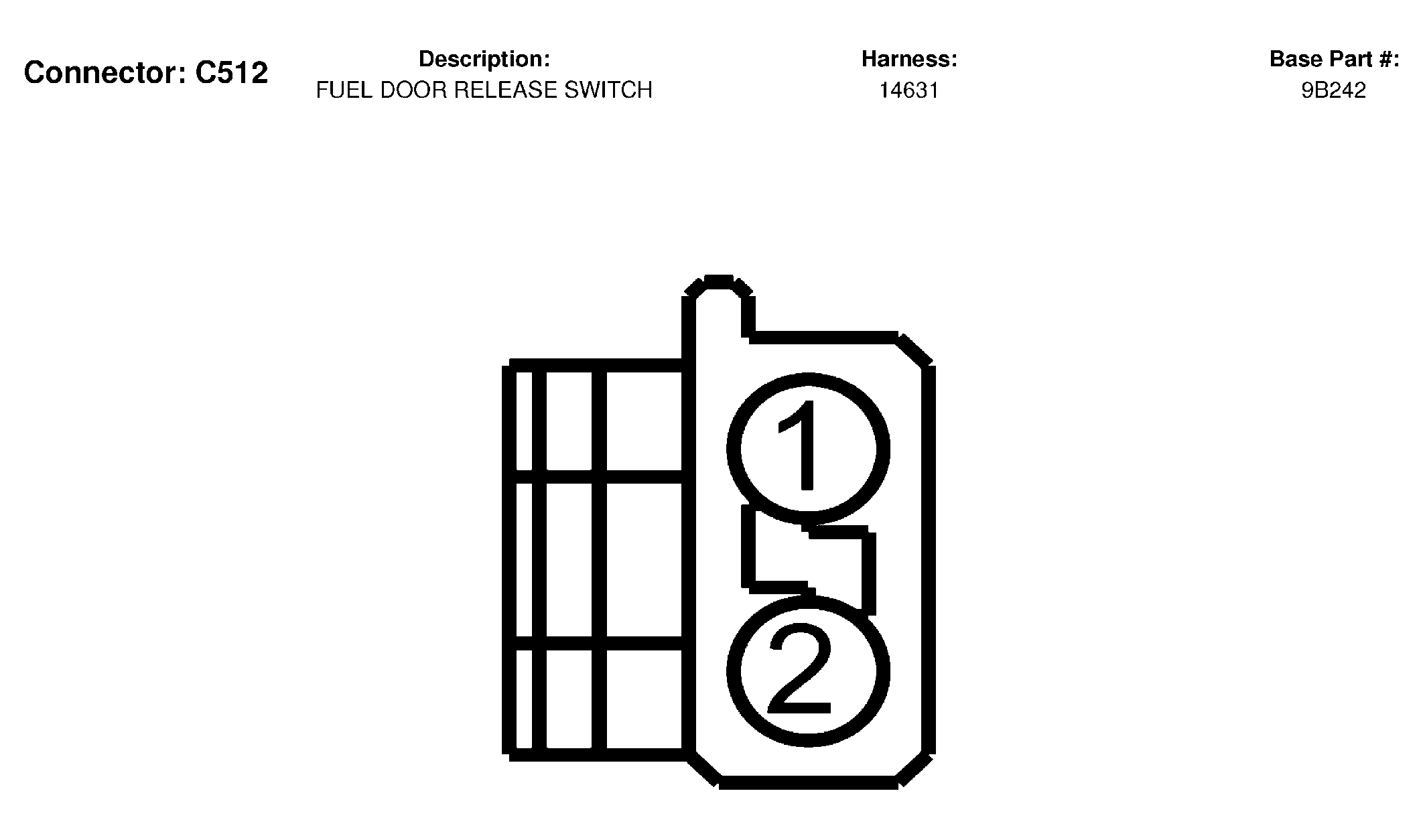

Fig 167: Fuel Door Release Switch Connector End View (C512)

Courtesy of FORD MOTOR CO.

C512 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	482 (WH-PK)	16	Fuel door release solenoid control
2	84 (VT-YE)	16	Voltage supplied at all times (overload protected)

Fig 168: Exterior Rear View Mirror, Driver Side Connector End View (C516)

Courtesy of FORD MOTOR CO.

C516 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	*	*	not used
3	*	*	not used
4	945 (YE-BK)	22	Mirror motor common
5	945 (YE-BK)	22	Mirror motor common
6	46 (VT)	20	Exterior rear view mirror signal
7	47 (LB-WH)	20	Exterior rear view mirror signal return
8	*	*	not used
9	940 (DB-OG)	22	Left mirror, Up/Down mirror movement +/-
10	942 (RD-OG)	22	Left mirror, Right/Left mirror movement +/-
11	*	*	not used
12	59 (DG-VT)	20	Fused rear window defrost relay, switched power

Fig 169: Exterior Rear View Mirror, Driver Side Connector End View (C517)

Courtesy of FORD MOTOR CO.

C517 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	*	*	not used
3	*	*	not used
4	945 (YE-BK)	22	Mirror motor common
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	940 (DB-OG)	22	Left mirror, Up/Down mirror movement +/-
10	942 (RD-OG)	22	Left mirror, Right/Left mirror movement +/-
11	*	*	not used
12	59 (DG-VT)	20	Fused rear window defrost relay, switched power

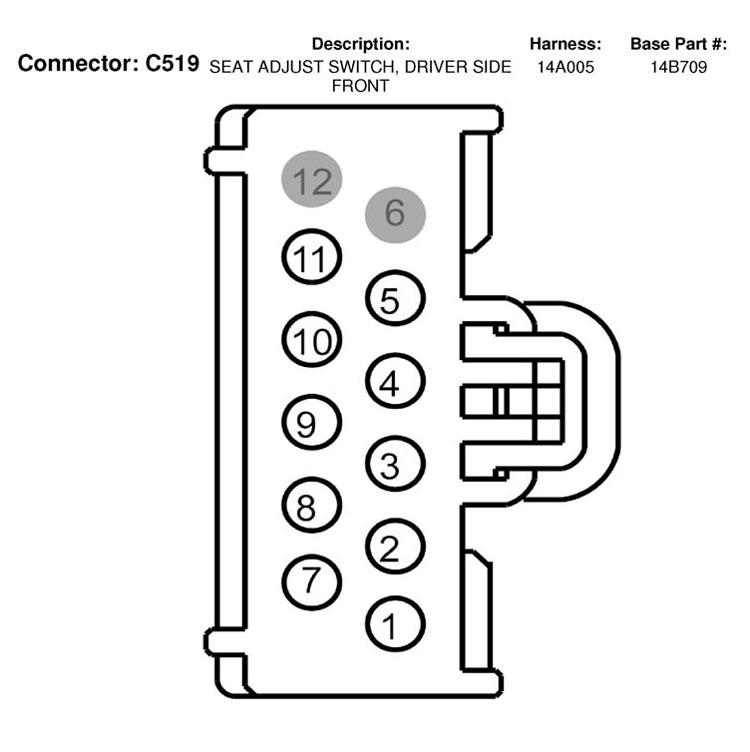

Fig 170: Seat Adjust Switch, Driver Side Front Connector End View (C519)

Courtesy of FORD MOTOR CO.

C519 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	979 (RD-LB)	14	Front height motor +/-
2	918 (GY)	14	Seat backrest motor +/-
3	919 (GY-BK)	14	Seat backrest motor +/-
4	983 (RD-LG)	14	Rear height motor +/-
5	982 (YE-LG)	14	Rear height motor +/-
6	*	*	not used
7	57 (BK)	14	Ground
8	978 (YE-LB)	14	Front height motor +/-
9	980 (YE-WH)	14	Fwd/Rwd motor +/-
10	981 (RD-WH)	14	Fwd/Rwd motor +/-
11	517 (BK-WH)	14	Voltage supplied at all times (overload protected)
12	*	*	not used

Fig 171: Exterior Rear View Mirror, Driver Side Connector End View (C522)

Courtesy of FORD MOTOR CO.

C522 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	955 (GY)	20	Mirror motor sensor, signal return
3	949 (RD-WH)	20	Left mirror, Right/Left mirror movement position signal
4	948 (YE-LB)	20	Left mirror, Up/Down mirror movement +/-
5	540 (RD)	20	Left mirror, Left/Right +/-
6	46 (VT)	20	Exterior rear view mirror signal
7	47 (LB-WH)	20	Exterior rear view mirror signal return
8	951 (DB-WH)	20	Left mirror, Up/Down mirror movement position signal
9	541 (DB-YE)	20	Left mirror, Up/Down +/-
10	947 (YE-RD)	20	Left mirror, Right/Left mirror movement +/-
11	958 (GY-RD)	20	Mirror motor sensor, feed
12	59 (DG-VT)	20	Fused rear window defrost relay, switched power

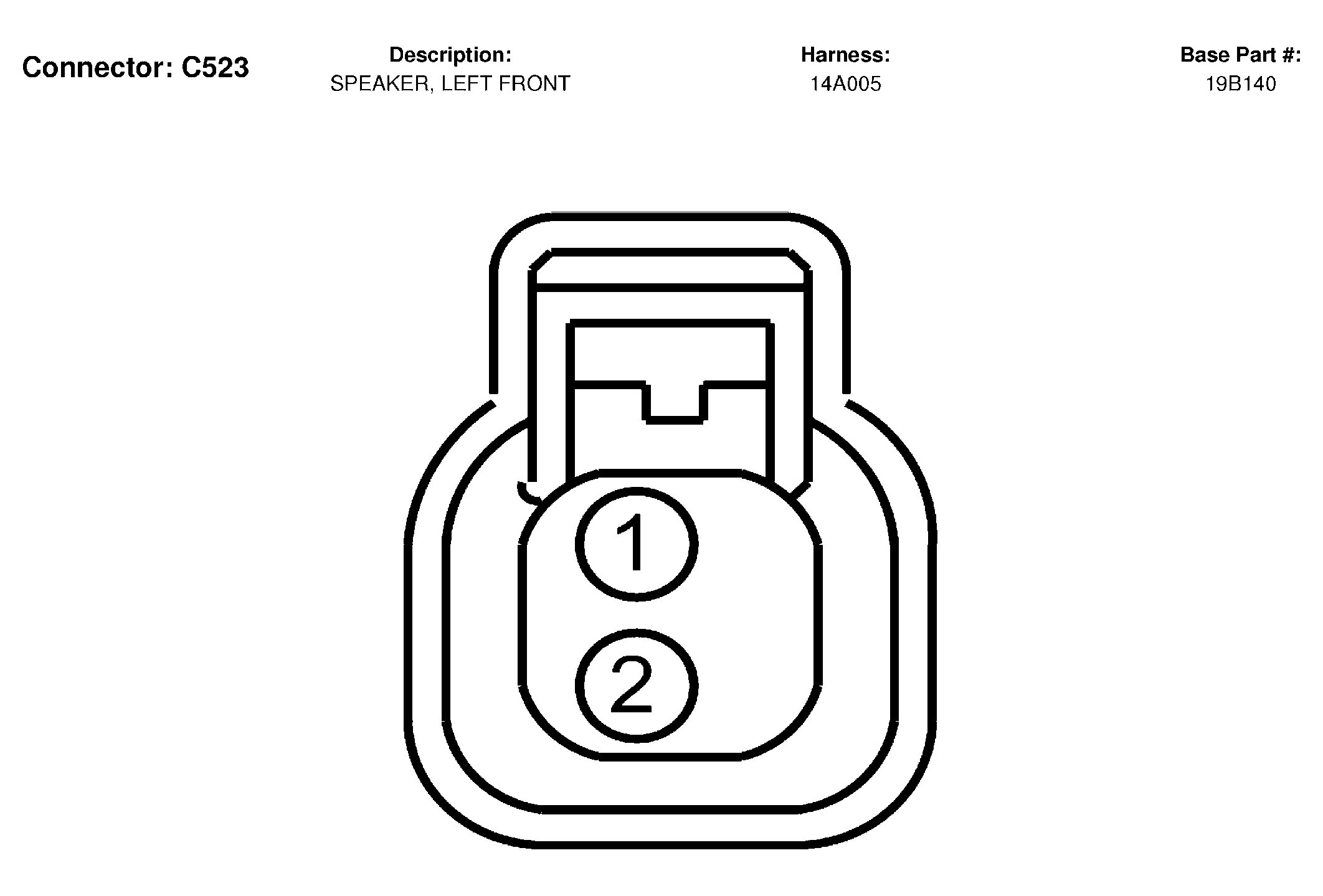

Fig 172: Speaker, Left Front Connector End View (C523)

Courtesy of FORD MOTOR CO.

C523 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	804 (OG-LG)	18	Speaker, left front +
2	813 (LB-WH)	18	Speaker, left front -

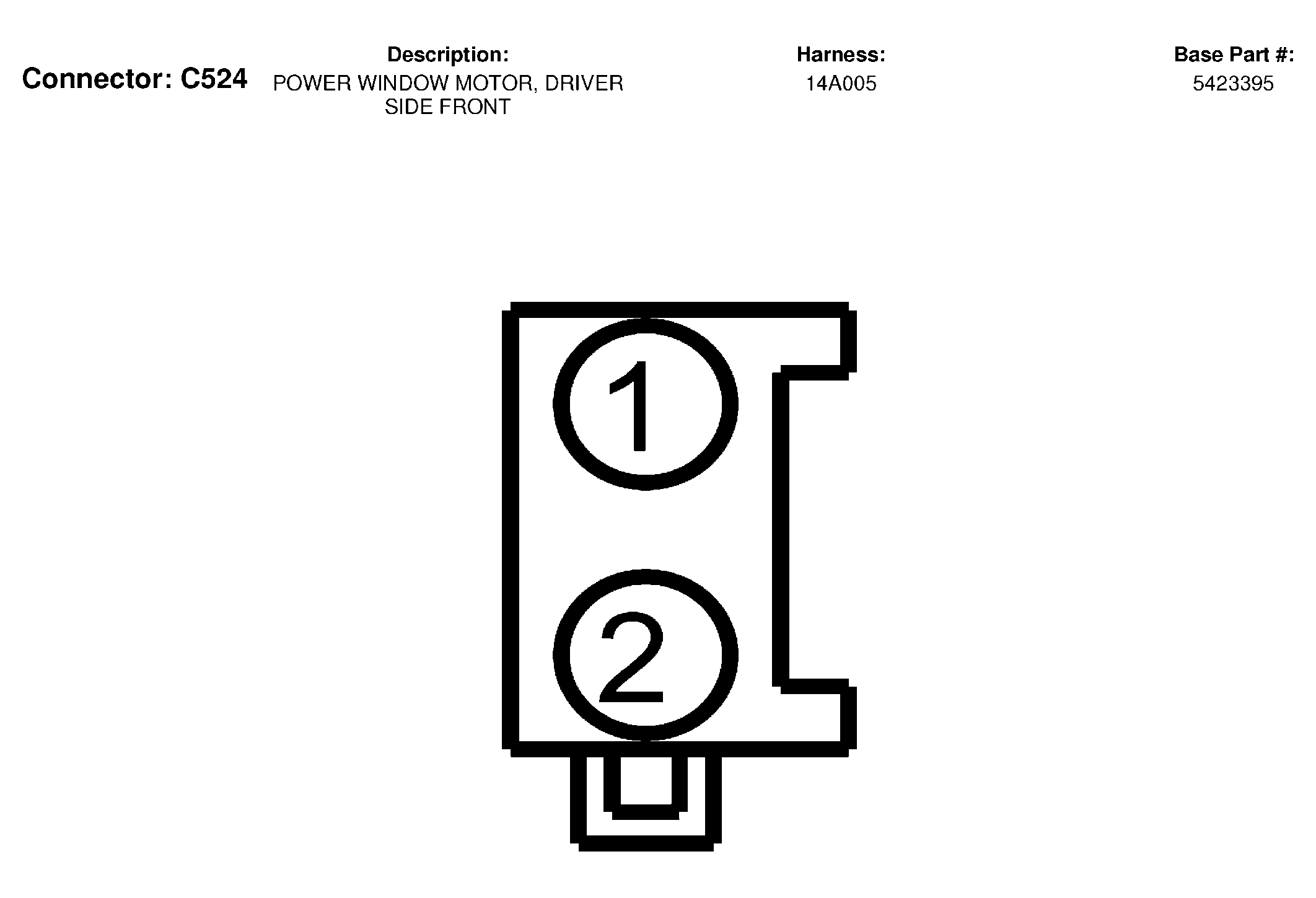

Fig 173: Power Window Motor, Driver Side Front Connector End View (C524)

Courtesy of FORD MOTOR CO.

C524 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	226 (WH-BK)	14	Power window motor, driver front +/-
2	227 (YE)	14	Power window motor, driver front +/-

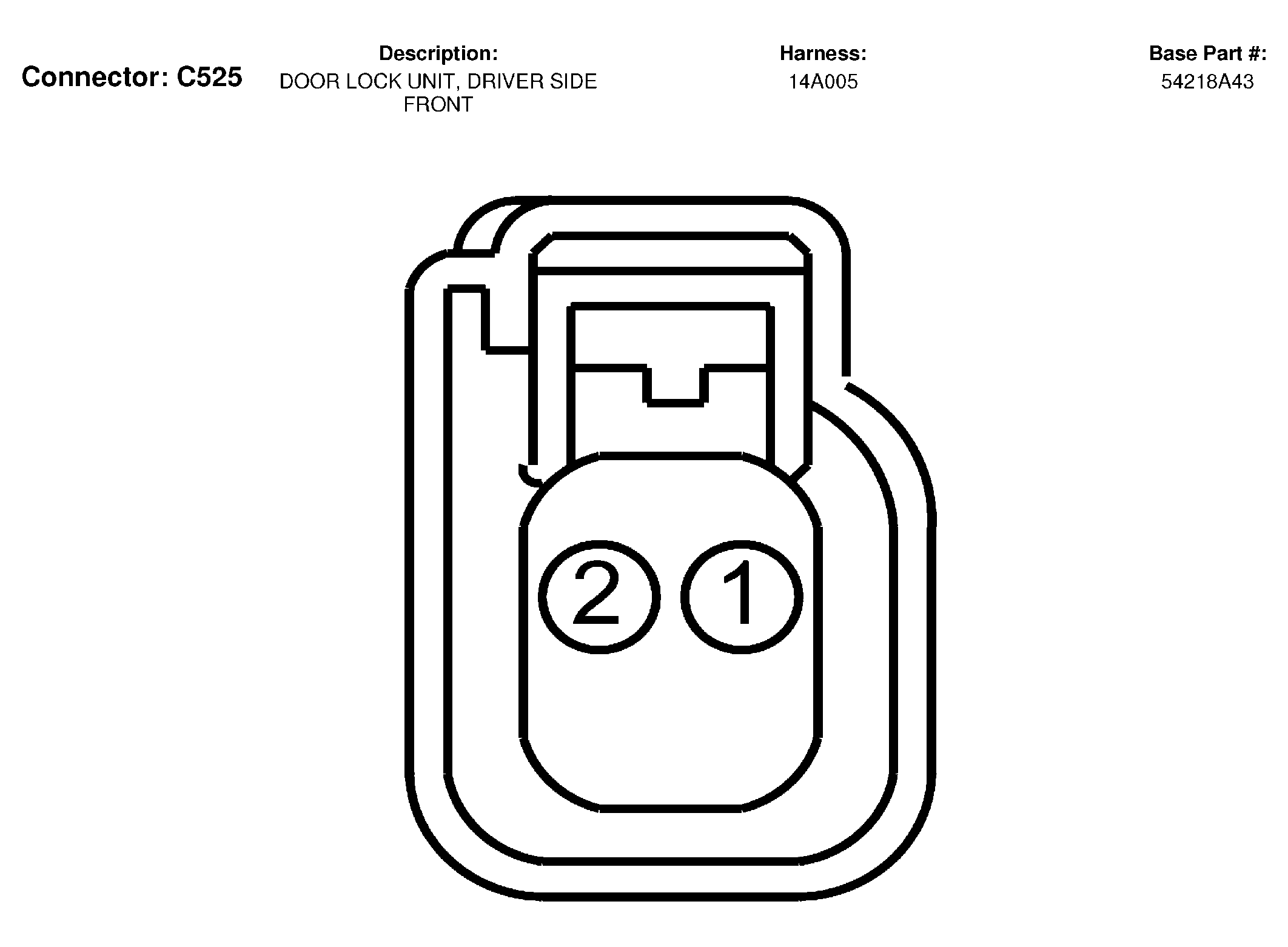

Fig 174: Door Lock Unit, Driver Side Front Connector End View (C525)

Courtesy of FORD MOTOR CO.

C525 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	163 (RD-OG)	16	Driver door Unlock -
2	117 (PK-BK)	16	All door lock +

Fig 175: Door Ajar Switch, Driver Side Front Connector End View (C526A)

Courtesy of FORD MOTOR CO.

C526A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	867 (DB)	20	Door ajar switch signal, driver side front

Fig 176: Door Ajar Switch, Driver Side Front Connector End View (C526B)

Courtesy of FORD MOTOR CO.

C526B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground

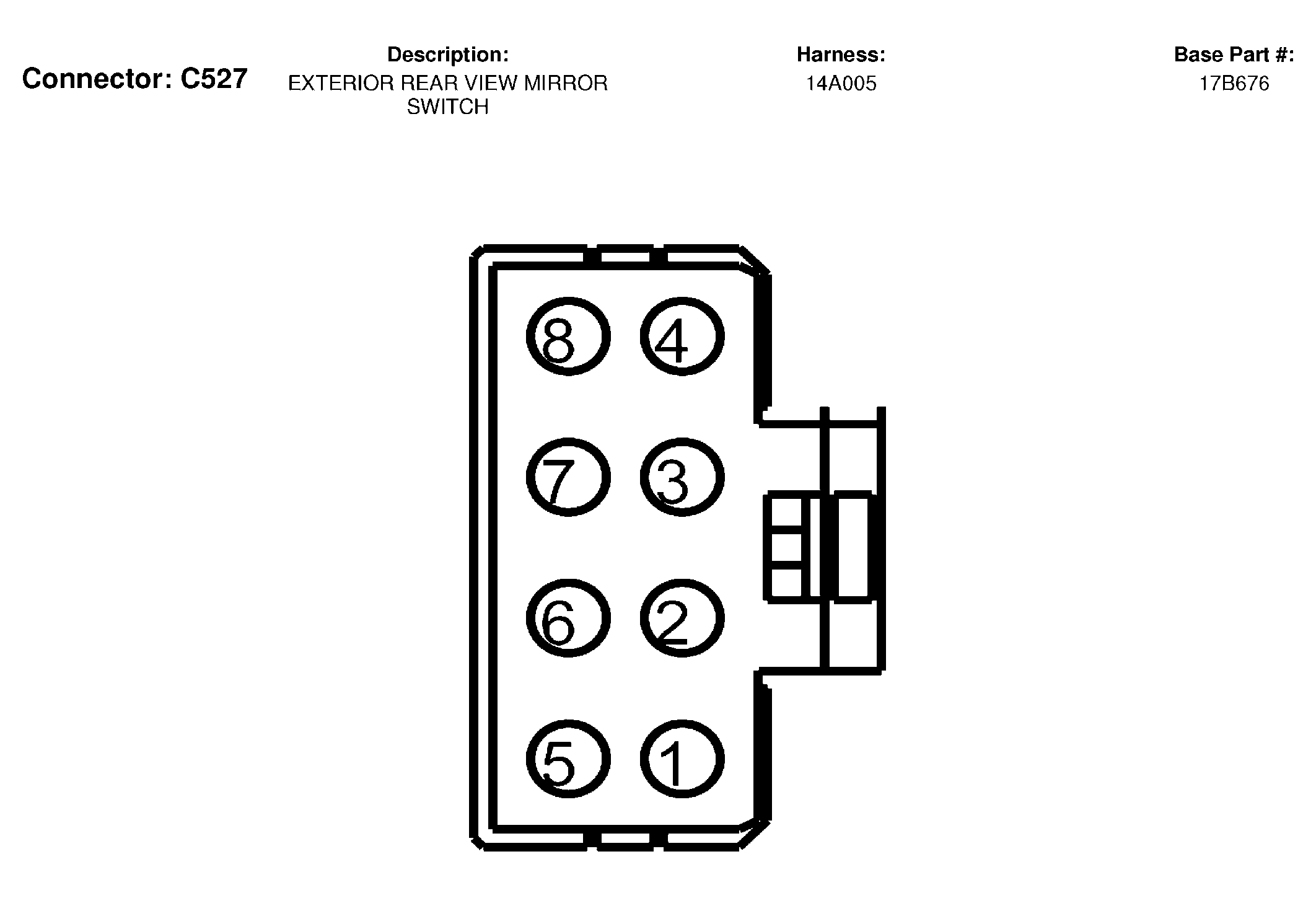

Fig 177: Exterior Rear View Mirror Switch Connector End View (C527)

Courtesy of FORD MOTOR CO.

C527 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	942 (RD-OG)	22	Left mirror, Right/Left mirror movement +/-
2	944 (DG-OG)	20	Right mirror, Right/Left mirror movement +/-	w/o memory
2	944 (DG-OG)	22	Right mirror, Right/Left mirror movement +/-	memory
3	964 (DB-LG)	20	Voltage in Run or Accessory (overload protected)
4	1524 (DB)	20	Voltage supplied at all times (overload protected)
5	943 (VT-OG)	22	Right mirror, Up/Down mirror movement +/-
6	940 (DB-OG)	20	Left mirror, Up/Down mirror movement +/-	w/o memory
6	940 (DB-OG)	22	Left mirror, Up/Down mirror movement +/-	memory
7	945 (YE-BK)	22	Mirror motor common
8	57 (BK)	20	Ground

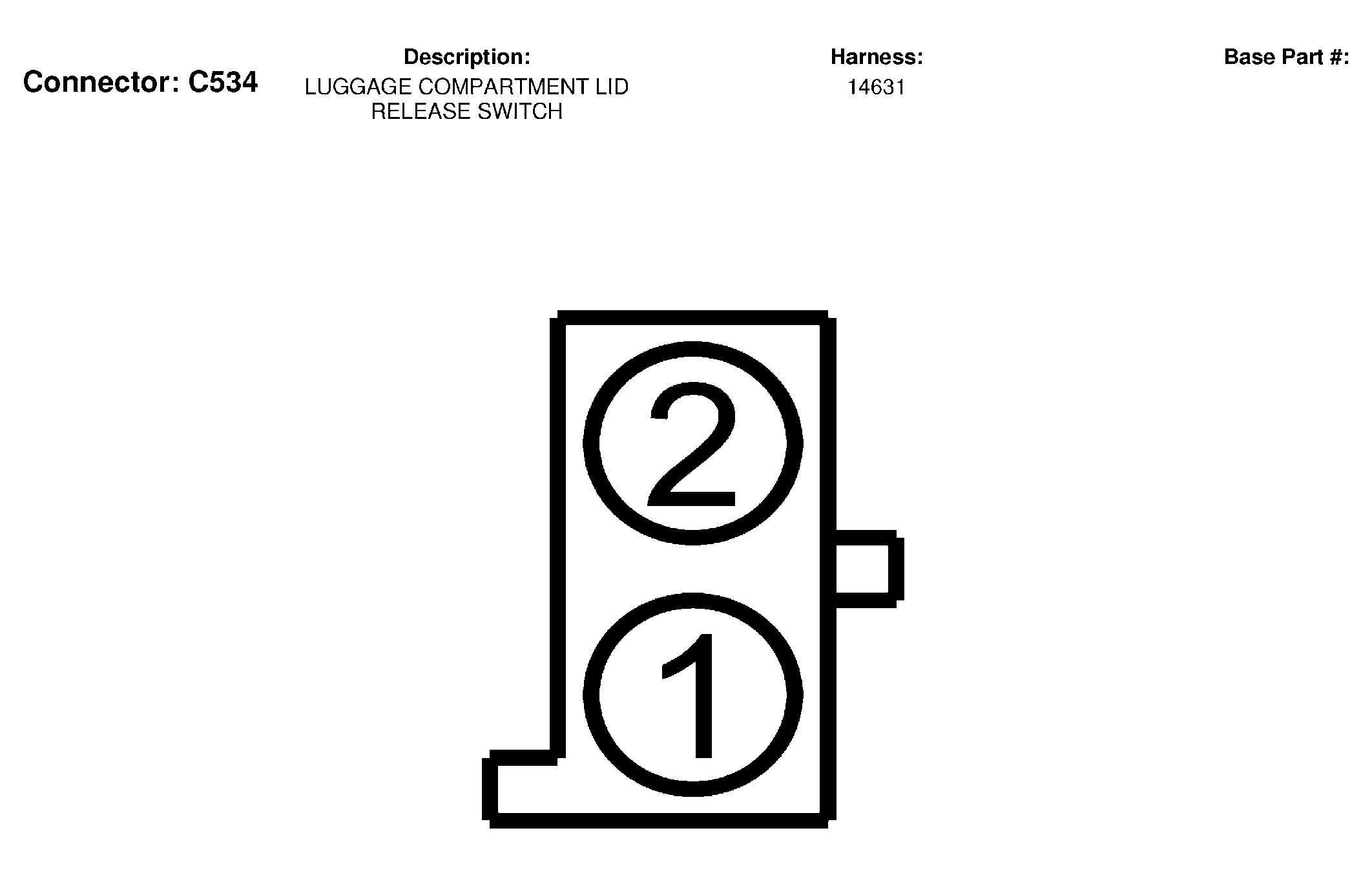

Fig 178: Luggage Compartment Lid Release Switch Connector End View (C534)

Courtesy of FORD MOTOR CO.

C534 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1524 (DB)	22	Voltage supplied at all times (overload protected)
2	26 (WH-VT)	22	Decklid ajar signal

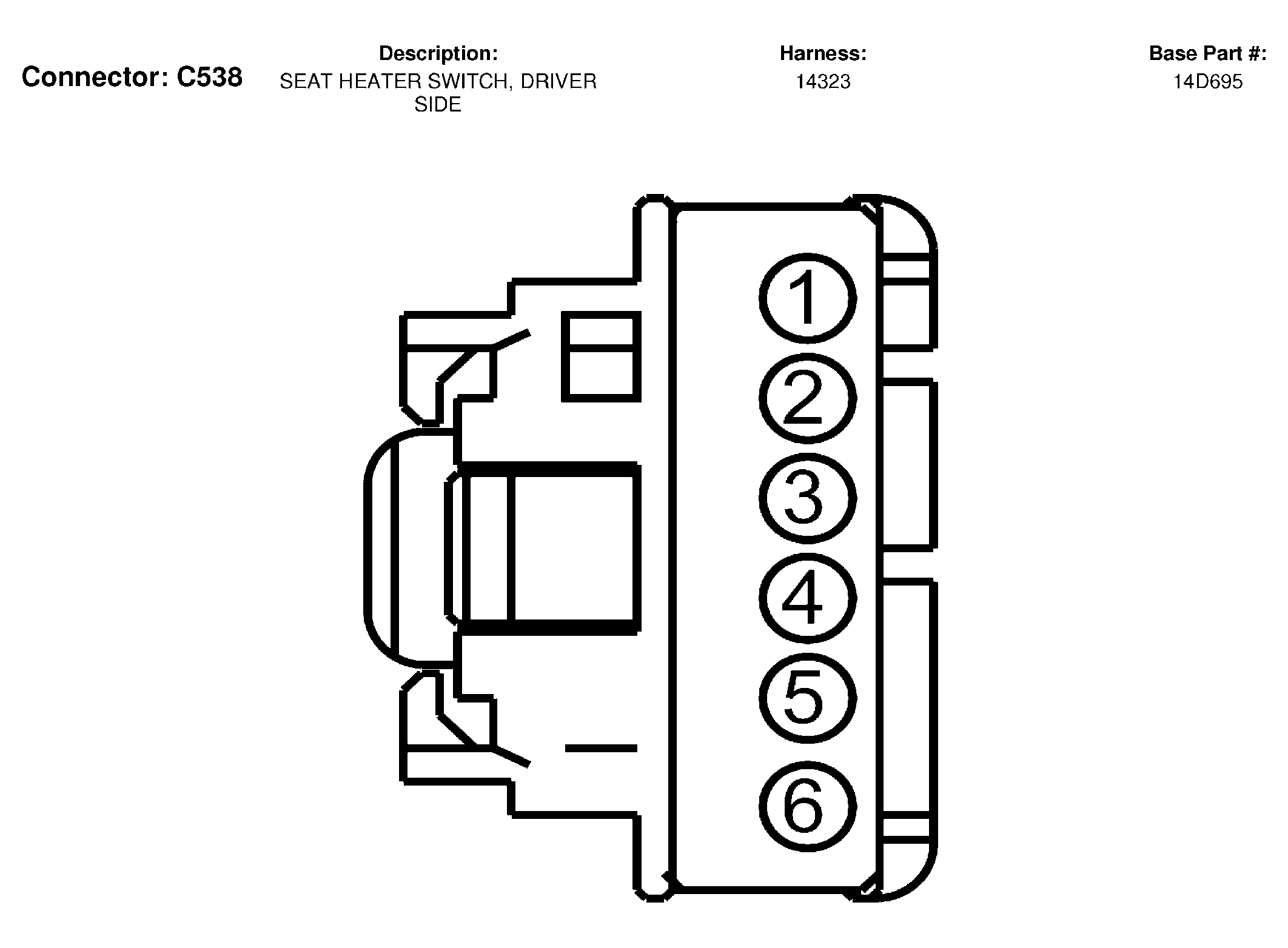

Fig 179: Seat Heater Switch, Driver Side Connector End View (C538)

Courtesy of FORD MOTOR CO.

C538 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	1255 (WH-RD)	22	Low temperature switch signal
3	1018 (LG-OG)	22	Low temperature indicator control
4	1019 (TN-LB)	22	High temperature indicator control
5	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
6	1020 (DG-VT)	22	High temperature switch signal

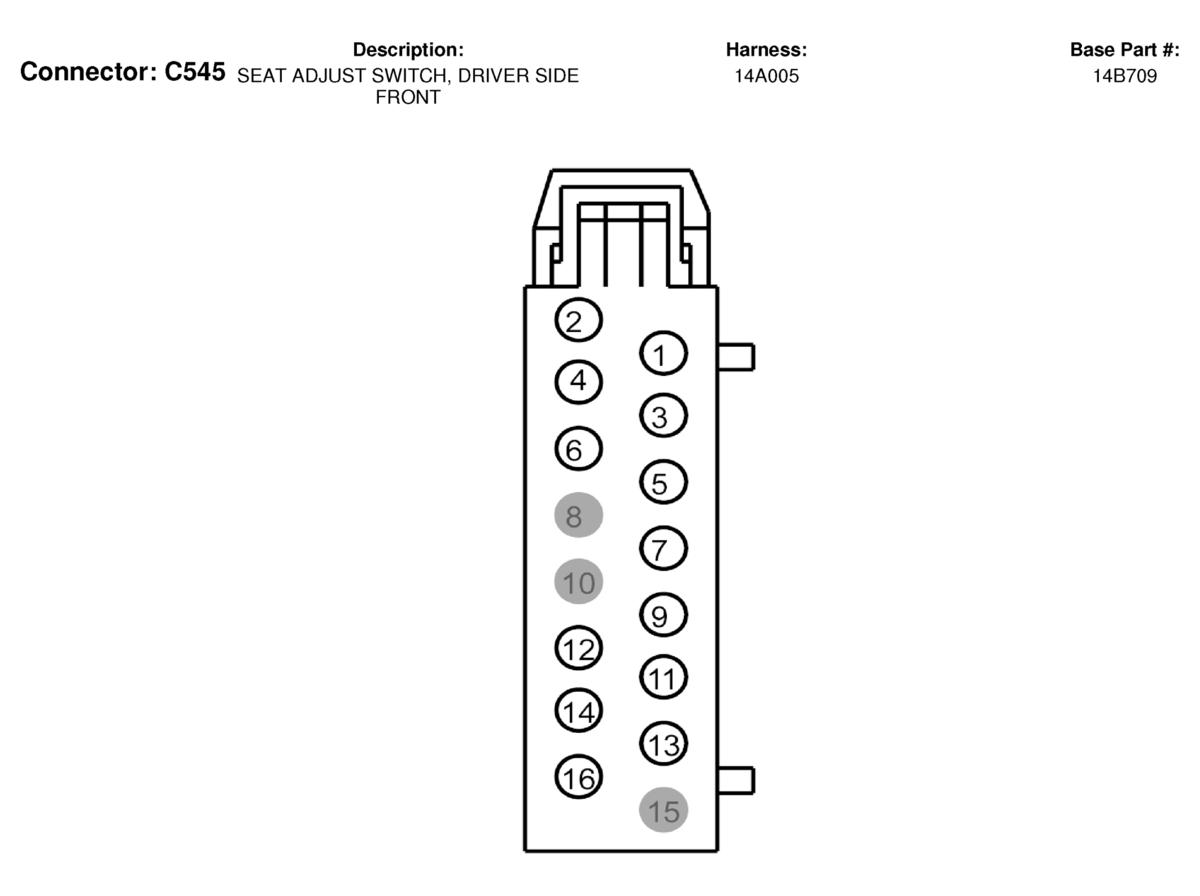

Fig 180: Seat Adjust Switch, Driver Side Front Connector End View (C545)

Courtesy of FORD MOTOR CO.

C545 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	980 (YE-WH)	22	Fwd/Rwd motor +/-
2	981 (RD-WH)	22	Fwd/Rwd motor +/-
3	979 (RD-LB)	22	Front height motor +/-
4	1524 (DB)	22	Voltage supplied at all times (overload protected)
5	978 (YE-LB)	22	Front height motor +/-
6	982 (YE-LG)	22	Rear height motor +/-
7	272 (WH-OG)	22	Memory seat switch indicator control
8	*	*	not used
9	270 (BR-OG)	22	Memory Set
10	*	*	not used
11	267 (BR-LG)	22	Memory seat switch, position 1 signal
12	983 (RD-LG)	22	Rear height motor +/-
13	268 (BK-OG)	22	Memory seat switch, position 2 signal
14	918 (GY)	22	Seat backrest motor +/-
15	*	*	not used
16	919 (GY-BK)	22	Seat backrest motor +/-

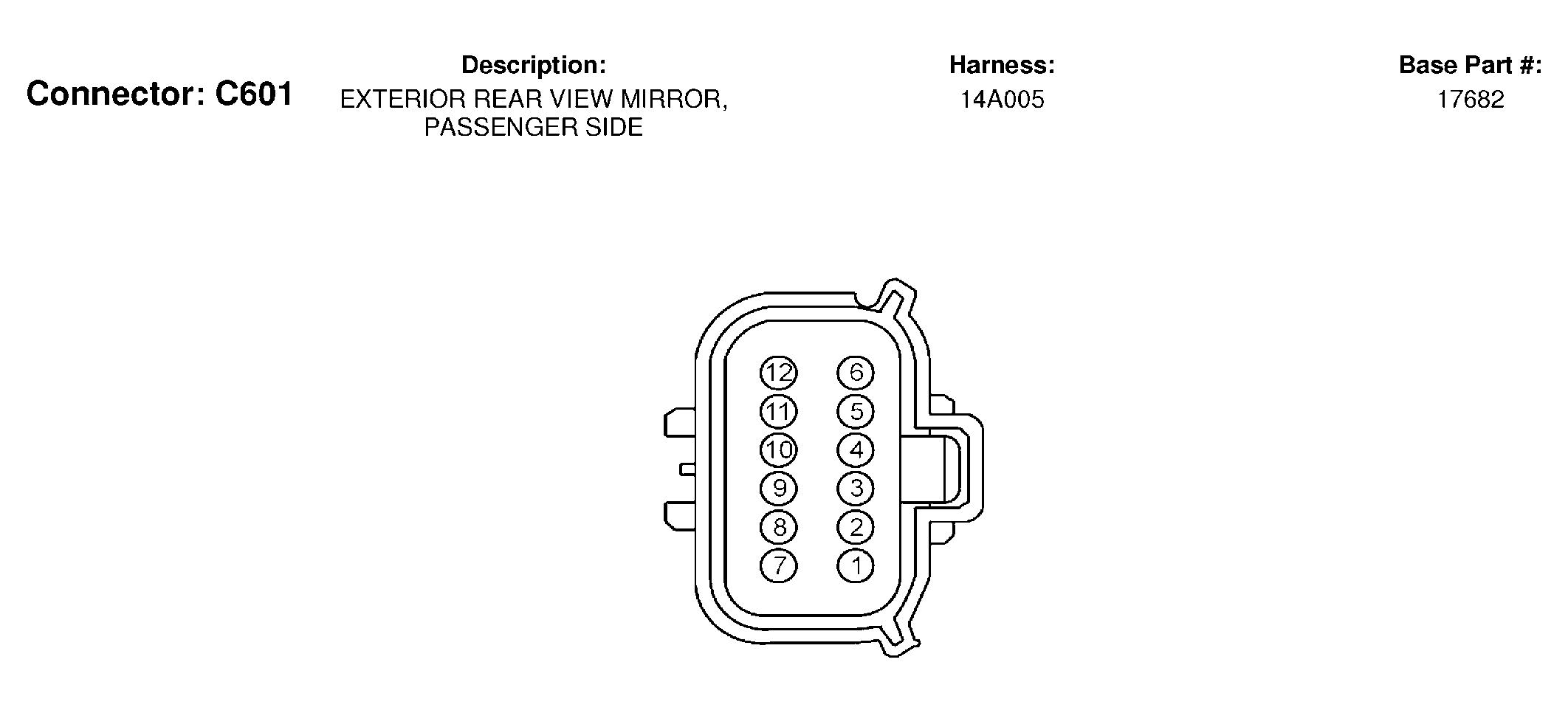

Fig 181: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

Courtesy of FORD MOTOR CO.

C601 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	*	*	not used
3	*	*	not used
4	945 (YE-BK)	20	Mirror motor common
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	943 (VT-OG)	20	Right mirror, Up/Down mirror movement +/-
10	944 (DG-OG)	20	Right mirror, Right/Left mirror movement +/-
11	*	*	not used
12	59 (DG-VT)	20	Fused rear window defrost relay, switched power

Fig 182: Door Ajar Switch, Passenger Side Front Connector End View (C602A)

Courtesy of FORD MOTOR CO.

C602A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	627 (BK-OG)	20	Door ajar switch signal, right front

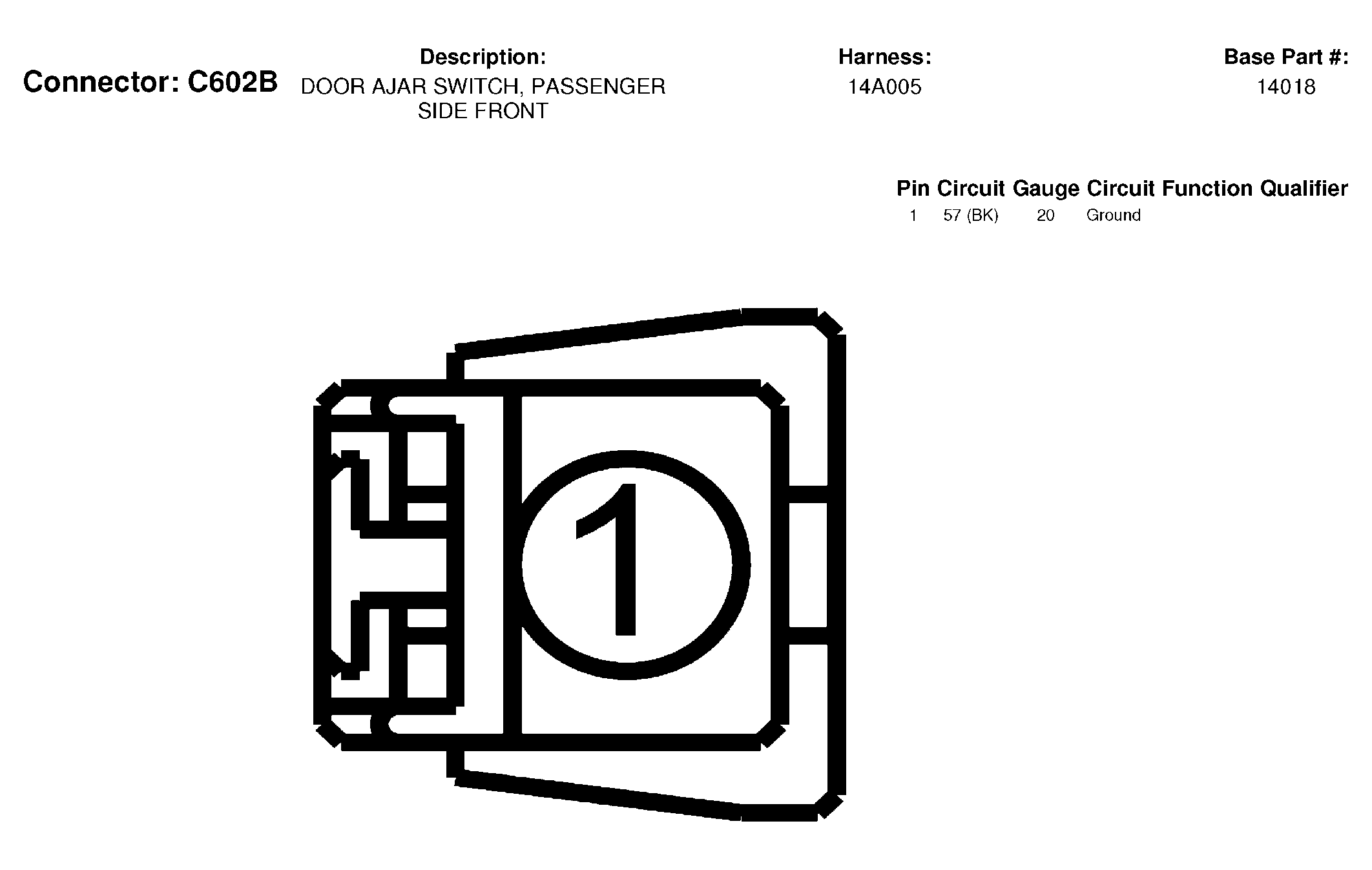

Fig 183: Door Ajar Switch, Passenger Side Front Connector End View (C602B)

Courtesy of FORD MOTOR CO.

C602B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground

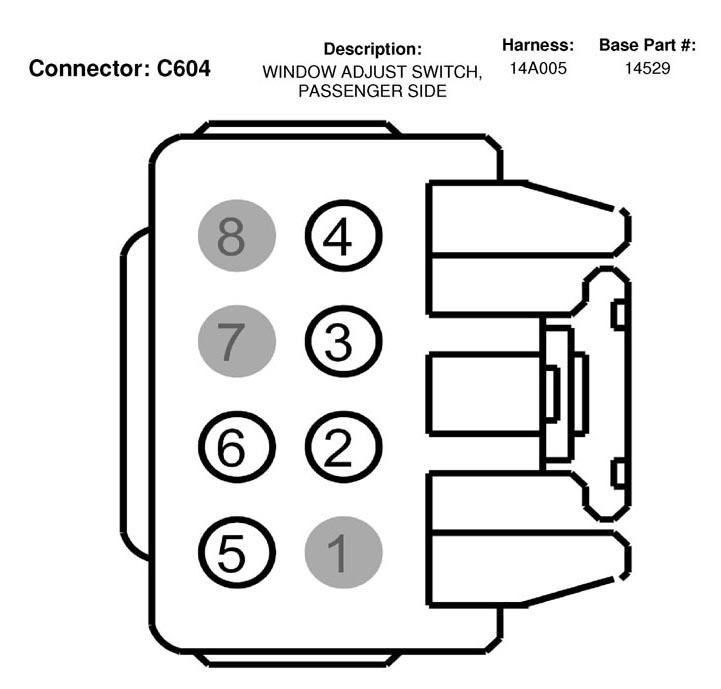

Fig 184: Window Adjust Switch, Passenger Side Connector End View (C604)

Courtesy of FORD MOTOR CO.

C604 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	334 (RD-YE)	12	Power window motor, passenger front +/-
3	313 (WH-YE)	12	Window switch, feed, right front, Up
4	170 (RD-LB)	12	Window lockout signal
5	314 (TN-LB)	12	Window switch, feed, right front, Down
6	333 (YE-RD)	12	Power window motor, passenger front +/-
7	*	*	not used
8	*	*	not used

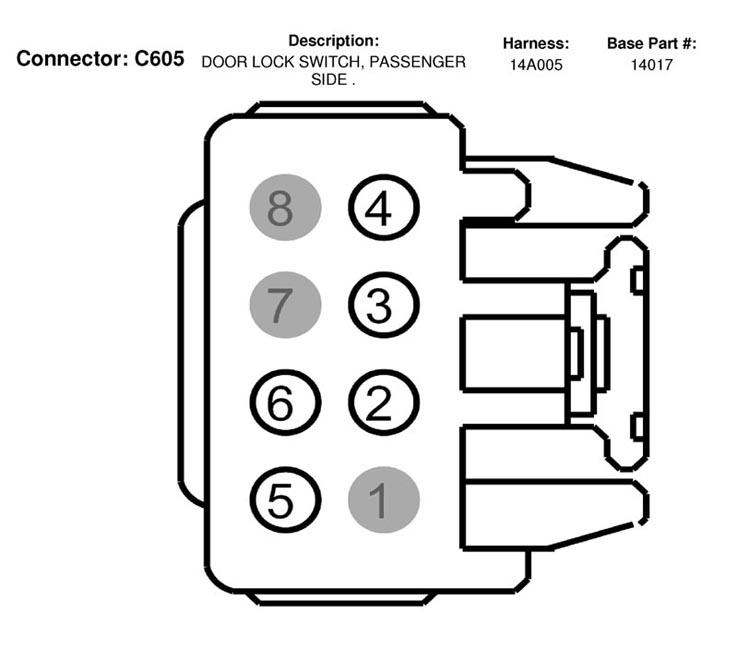

Fig 185: Door Lock Switch, Passenger Side Connector End View (C605)

Courtesy of FORD MOTOR CO.

C605 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	119 (PK-YE)	20	Door lock switch signal, Lock
3	57 (BK)	20	Ground
4	1524 (DB)	20	Voltage supplied at all times (overload protected)
5	964 (DB-LG)	20	Voltage in Run or Accessory (overload protected)
6	120 (PK-LG)	20	Door lock switch signal, Unlock
7	*	*	not used
8	*	*	not used

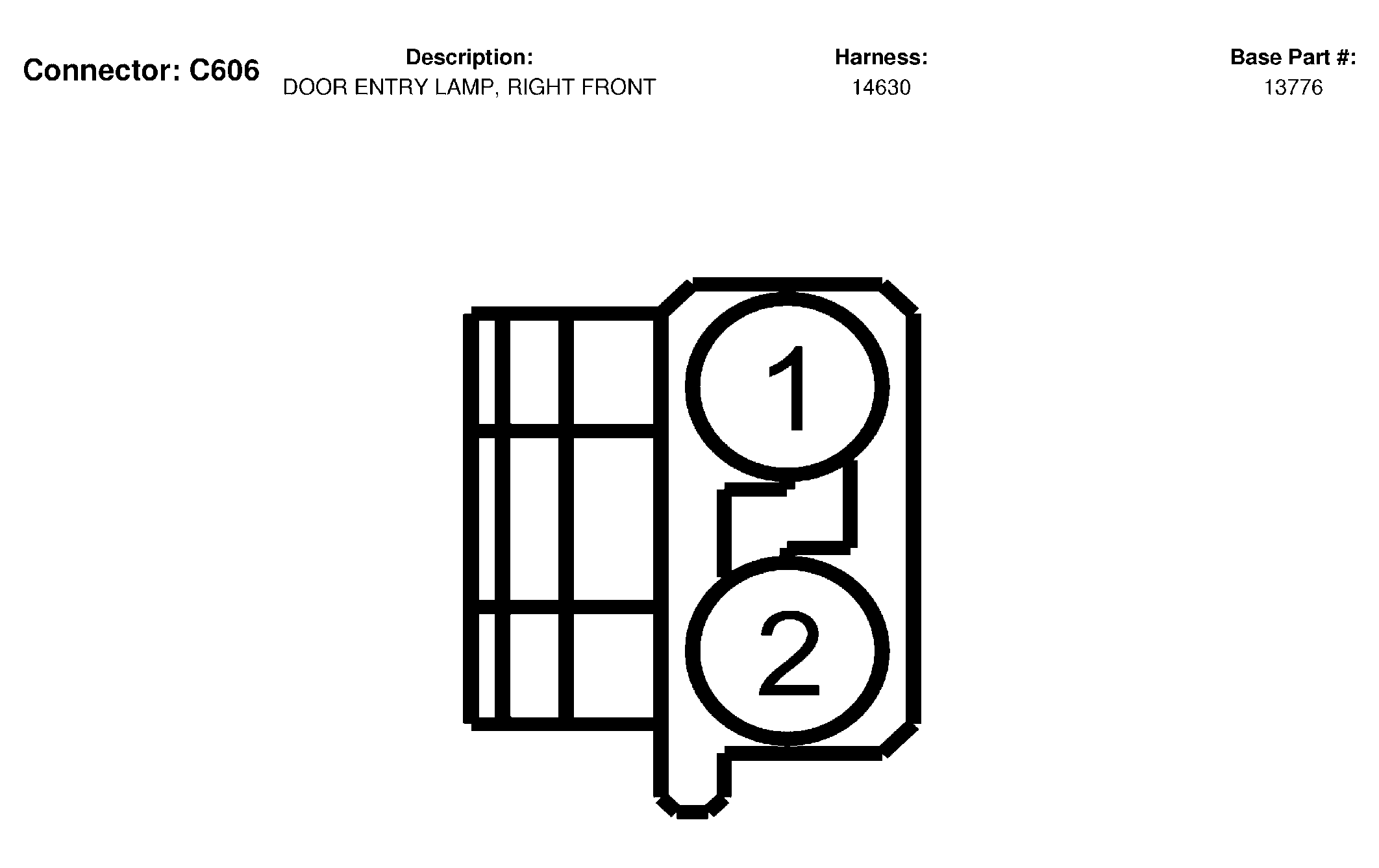

Fig 186: Door Entry Lamp, Right Front Connector End View (C606)

Courtesy of FORD MOTOR CO.

C606 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground

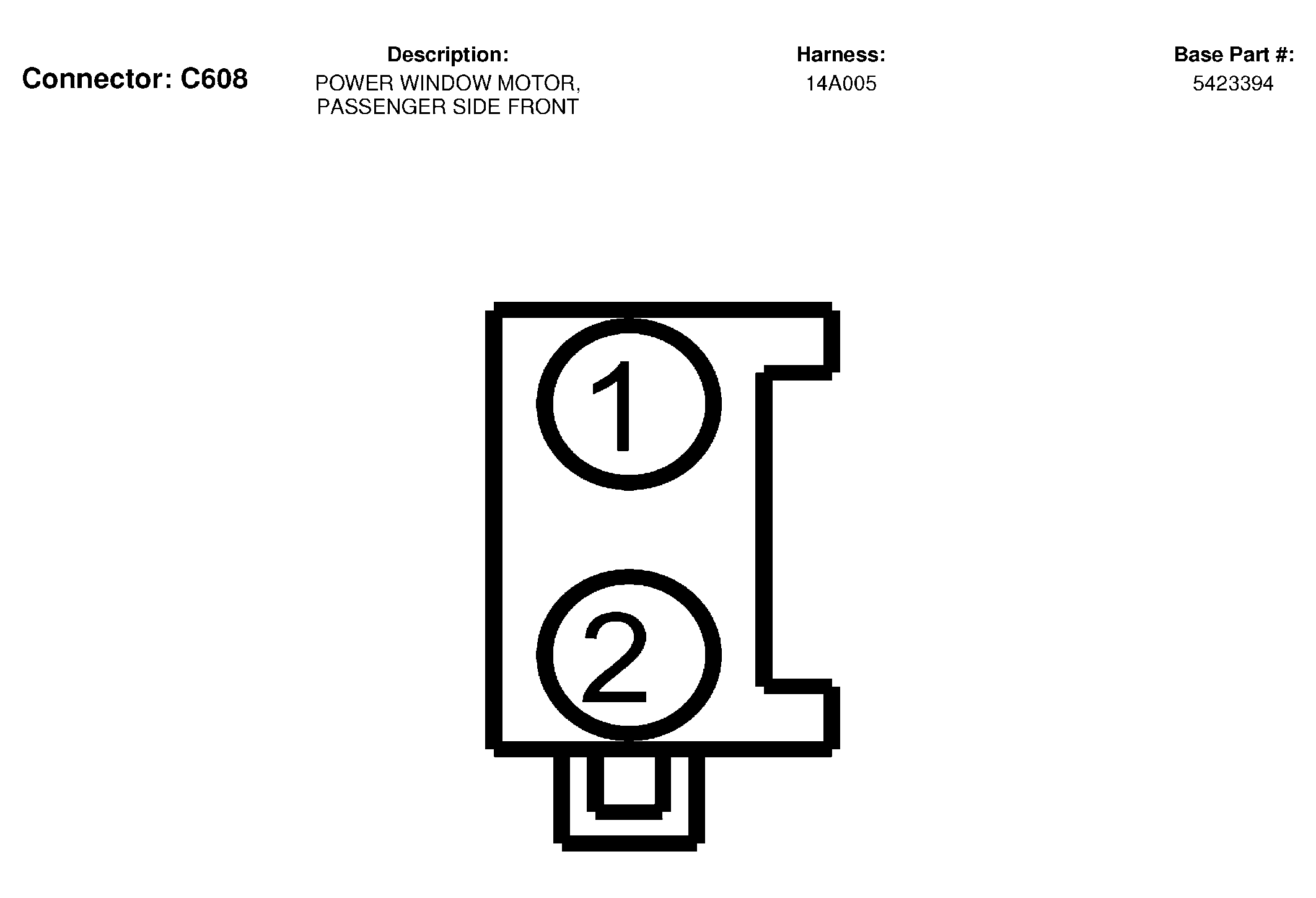

Fig 187: Power Window Motor, Passenger Side Front Connector End View (C608)

Courtesy of FORD MOTOR CO.

C608 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	334 (RD-YE)	12	Power window motor, passenger front +/-
2	333 (YE-RD)	12	Power window motor, passenger front +/-

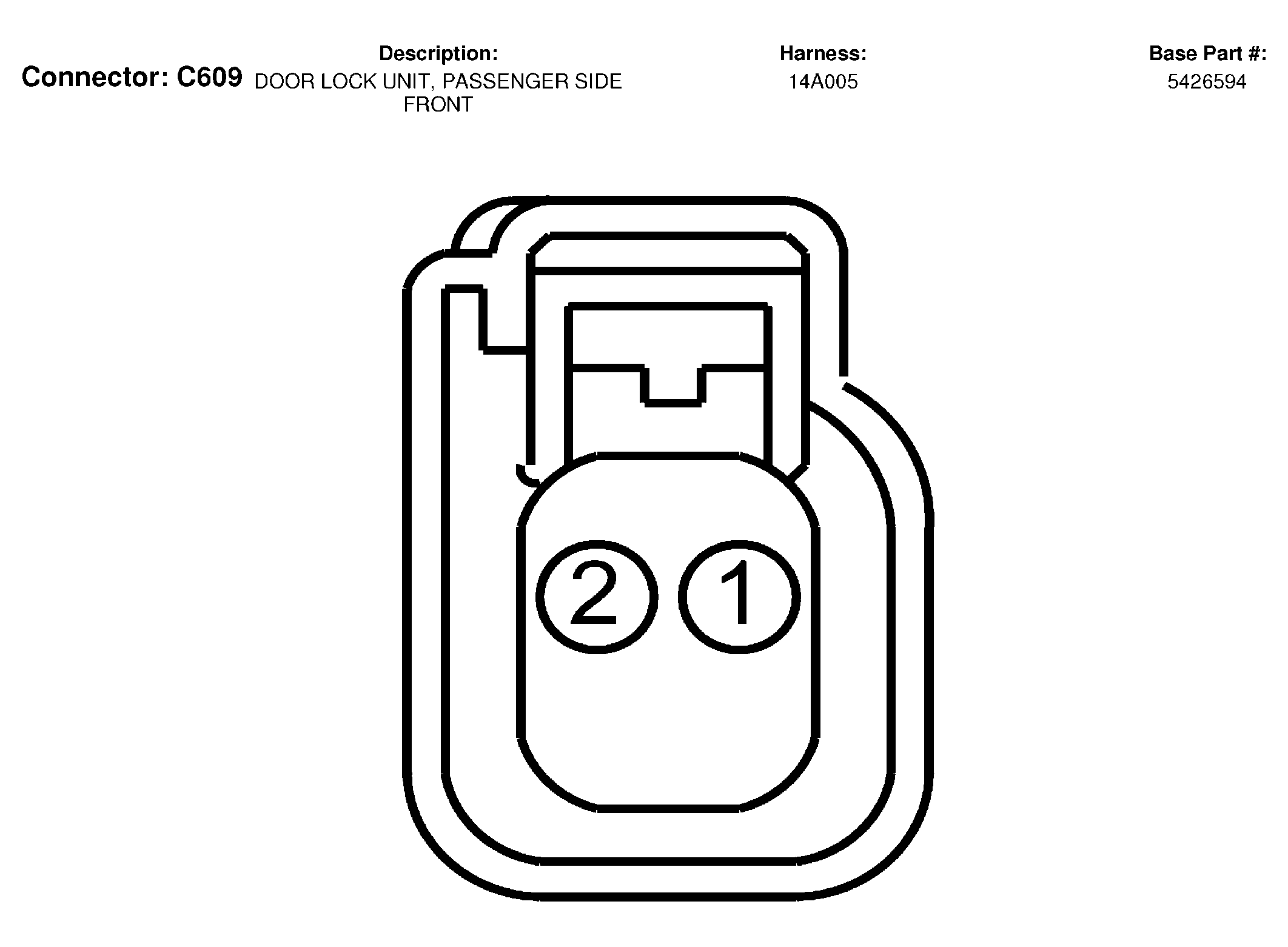

Fig 188: Door Lock Unit, Passenger Side Front Connector End View (C609)

Courtesy of FORD MOTOR CO.

C609 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	118 (PK-OG)	16	Passenger doors Unlock -
2	117 (PK-BK)	16	All door lock +

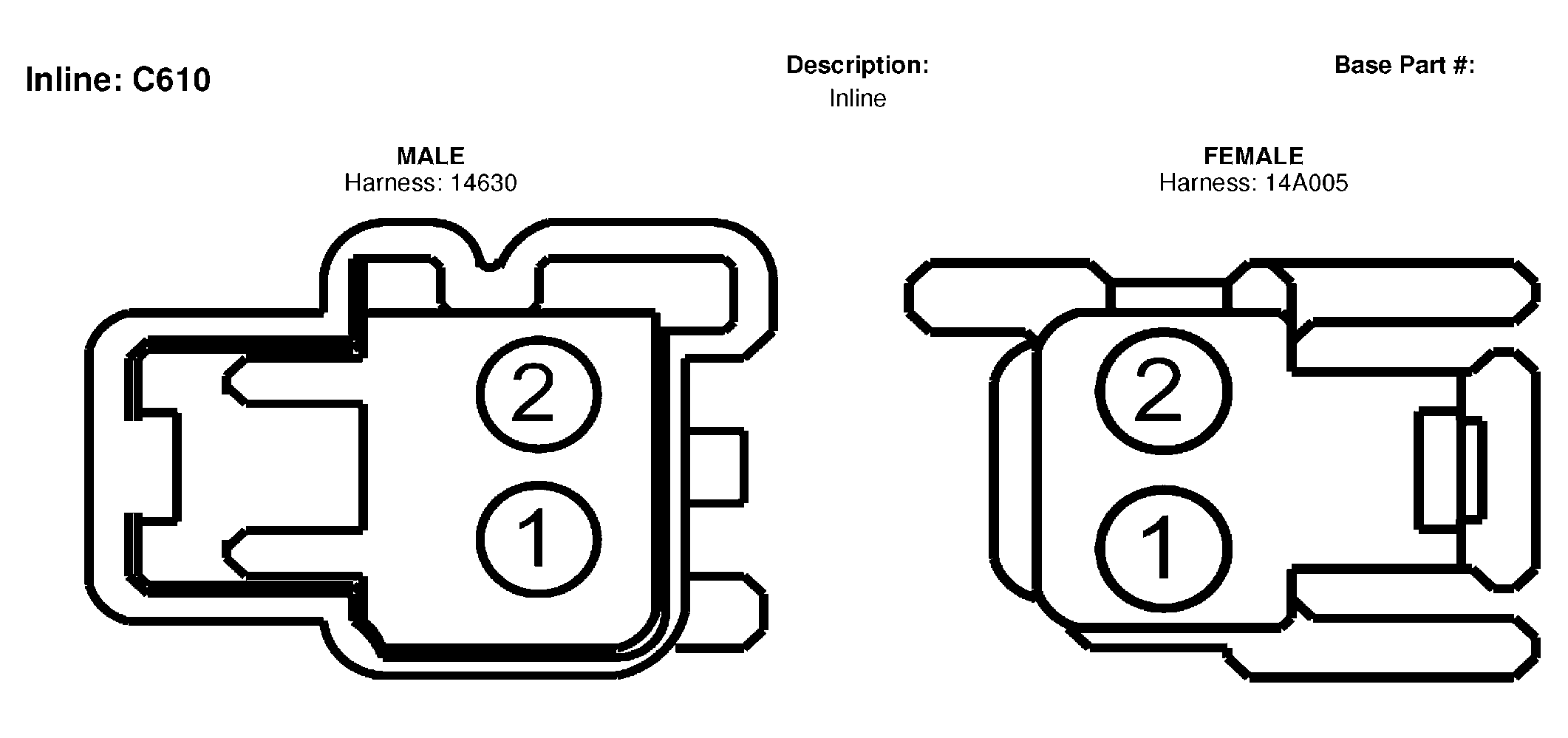

Fig 189: Inline Connector End View (C610)

Courtesy of FORD MOTOR CO.

C610 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	53 (BK-LB)	20
2	57 (BK)	22

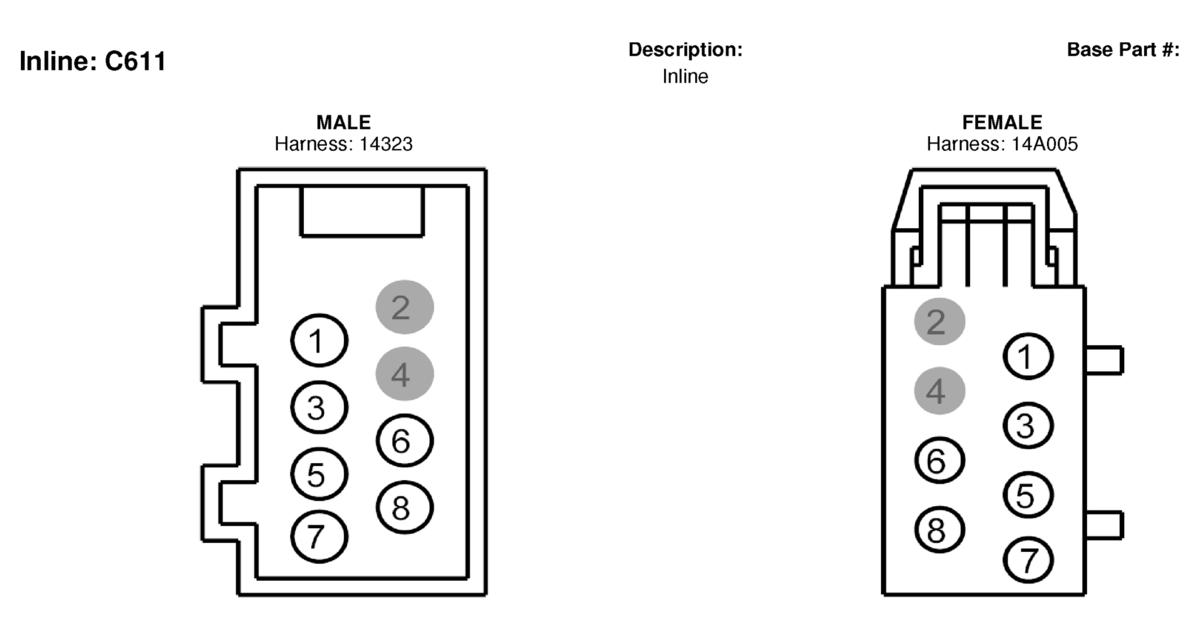

Fig 190: Inline Connector End View (C611)

Courtesy of FORD MOTOR CO.

C611 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1020 (DG-VT)	22	14323
1	581 (RD)	20	14A005
2	*
3	964 (DB-LG)	22
4	*
5	1019 (TN-LB)	22	14323
5	580 (BR)	20	14A005
6	1255 (WH-RD)	22	14323
6	1256 (WH-YE)	20	14A005
7	1018 (LG-OG)	22	14323
7	579 (BK-OG)	20	14A005
8	57 (BK)	22

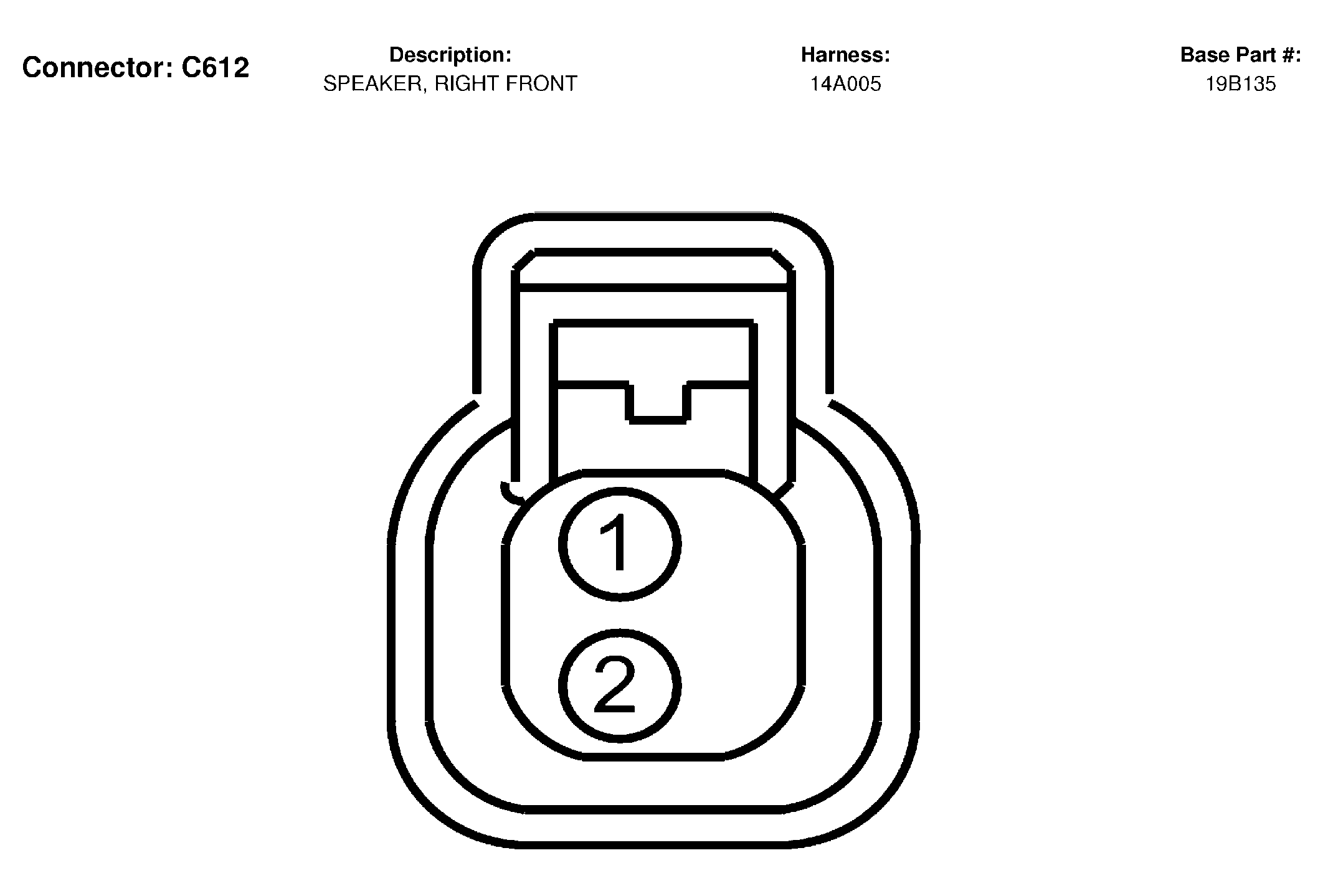

Fig 191: Speaker, Right Front Connector End View (C612)

Courtesy of FORD MOTOR CO.

C612 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	805 (WH-LG)	18	Speaker, right front +
2	811 (DG-OG)	18	Speaker, right front -

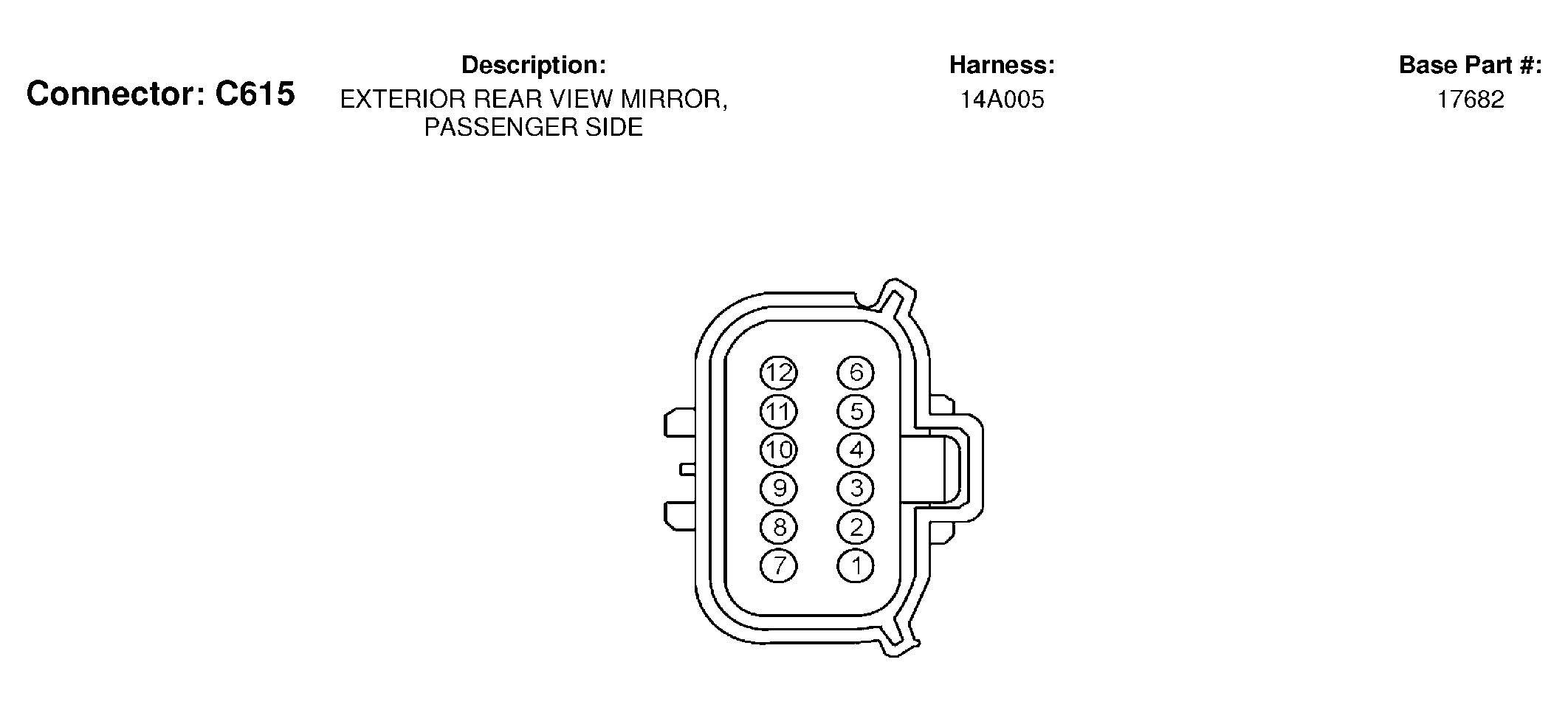

Fig 192: Exterior Rear Vie Mirror, Passenger Side Connector End View (C615)

Courtesy of FORD MOTOR CO.

C615 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	955 (GY)	20	Mirror motor sensor, signal return
3	954 (DG-WH)	20	Right mirror, Right/Left mirror movement position signal
4	953 (WH-VT)	20	Right mirror, Up/Down mirror movement +/-
5	543 (DG)	20	Right mirror, Left/Right +/-
6	*	*	not used
7	*	*	not used
8	957 (VT-WH)	20	Right mirror, Up/Down mirror movement position signal
9	544 (VT)	20	Right mirror, Up/Down +/-
10	952 (WH-LG)	20	Right mirror, Right/Left mirror movement +/-
11	958 (GY-RD)	20	Mirror motor sensor, feed
12	59 (DG-VT)	20	Fused rear window defrost relay, switched power

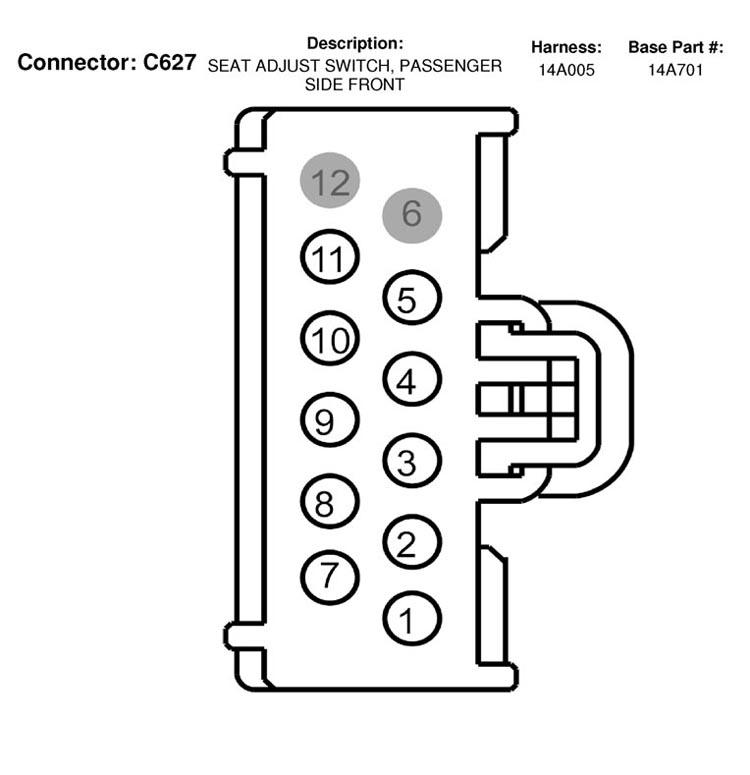

Fig 193: Seat Adjust Switch, Passenger Side Front Connector End View (C627)

Courtesy of FORD MOTOR CO.

C627 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	985 (RD-LB)	14	Front height motor +/-
2	918 (GY)	14	Seat backrest motor +/-
3	919 (GY-BK)	14	Seat backrest motor +/-
4	989 (RD-LG)	14	Rear height motor +/-
5	988 (YE-LG)	14	Rear height motor +/-
6	*	*	not used
7	57 (BK)	12	Ground
8	984 (YE-LB)	14	Front height motor +/-
9	986 (YE-WH)	14	Fwd/Rwd motor +/-	SWB
9	986 (YE-WH)	12	Fwd/Rwd motor +/-	LWB
10	987 (RD-WH)	14	Fwd/Rwd motor +/-	SWB
10	987 (RD-WH)	12	Fwd/Rwd motor +/-	LWB
11	517 (BK-WH)	14	Voltage supplied at all times (overload protected)
12	*	*	not used

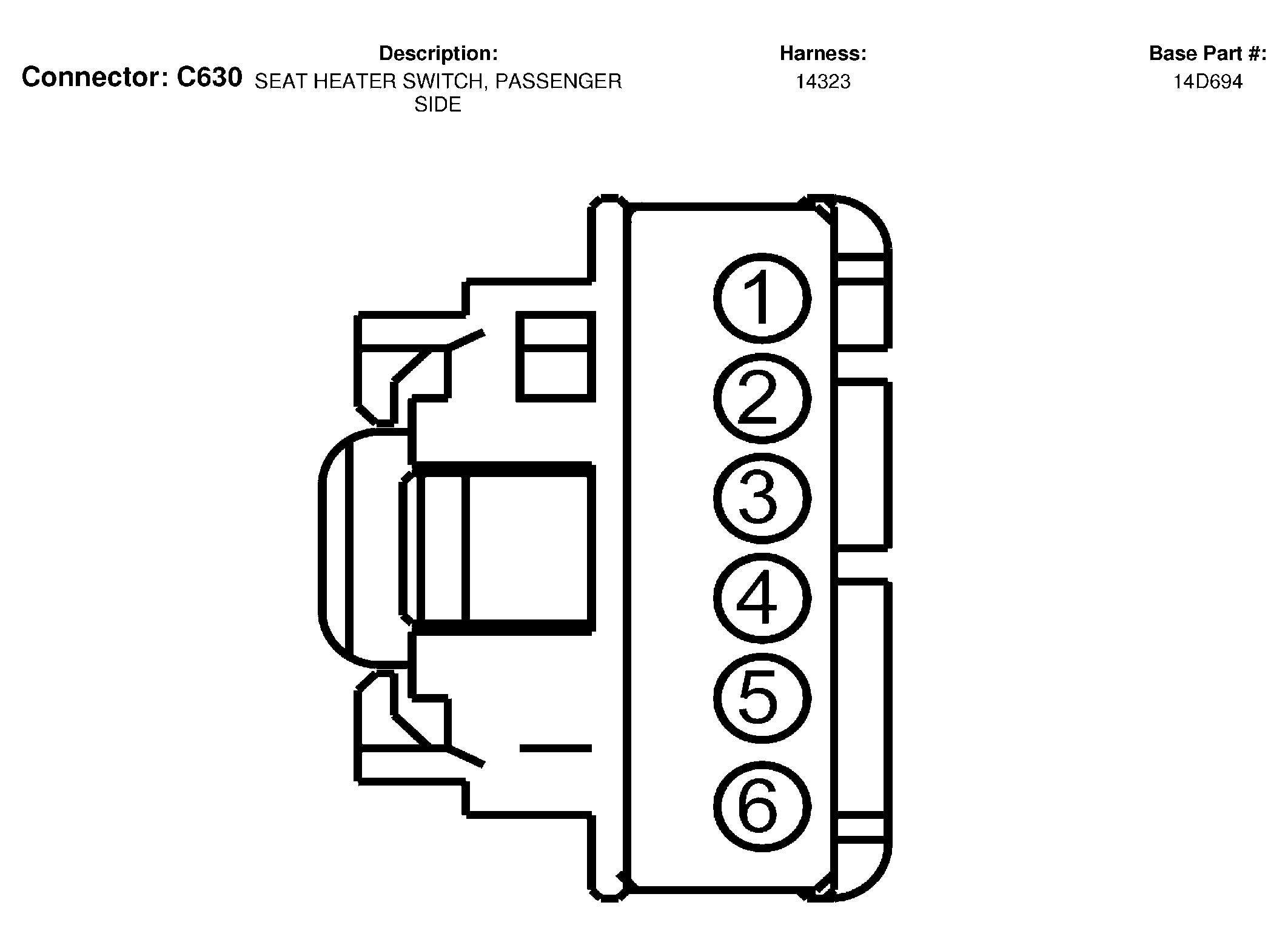

Fig 194: Seat Heater Switch, Passenger Side Connector End View (C630)

Courtesy of FORD MOTOR CO.

C630 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	1255 (WH-RD)	22	Low temperature switch signal
3	1018 (LG-OG)	22	Low temperature indicator control
4	1019 (TN-LB)	22	High temperature indicator control
5	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
6	1020 (DG-VT)	22	High temperature switch signal

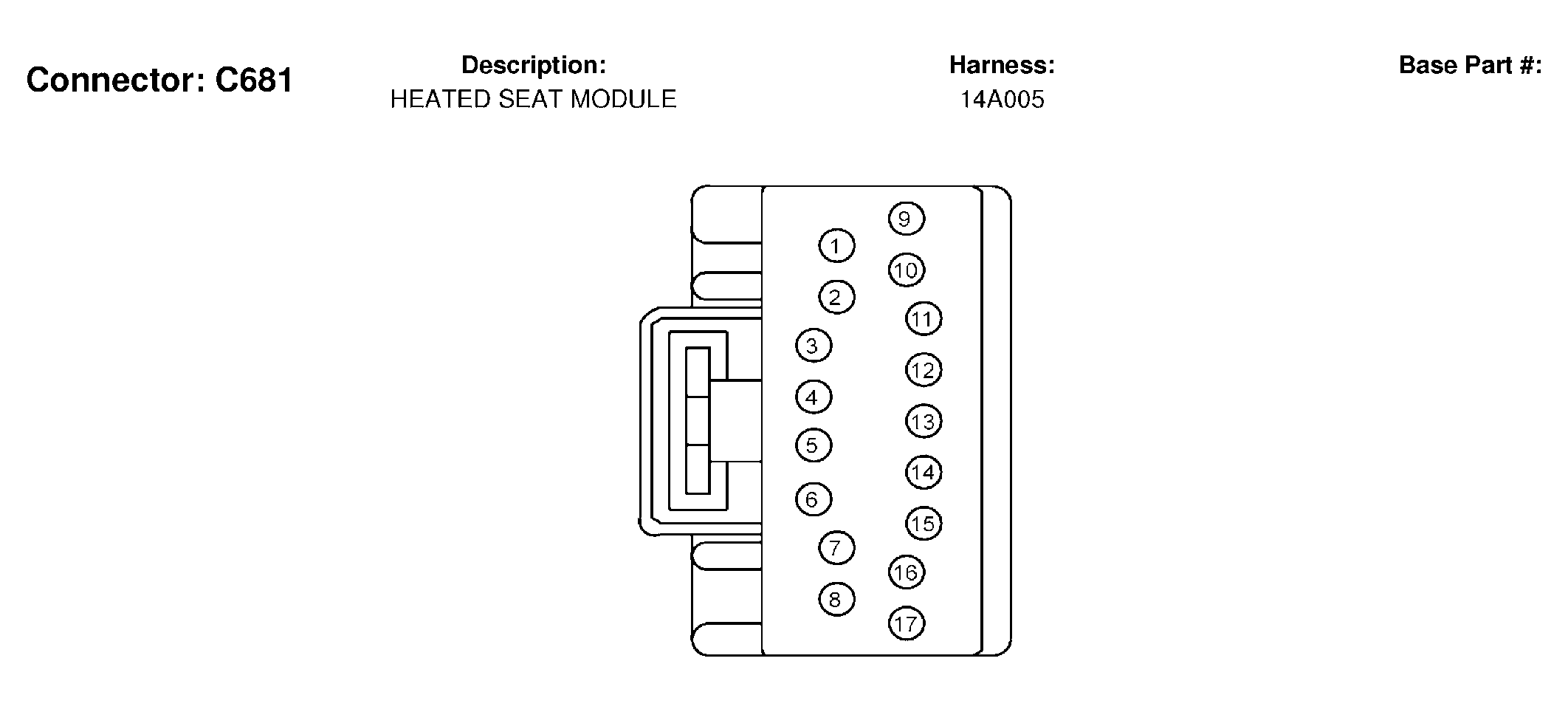

Fig 195: Heated Seat Module Connector End View (C681)

Courtesy of FORD MOTOR CO.

C681 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1048 (LB-WH)	16	Voltage supplied at all times (overload protected)
2	1040 (RD-BK)	20	Voltage supplied in Run (overload protected)
3	579 (BK-OG)	20	Low temperature indicator control, passenger side
4	1019 (TN-LB)	20	High temperature indicator control
5	1018 (LG-OG)	20	Low temperature indicator control
6	580 (BR)	20	High temperature indicator control, passenger side
7	676 (PK-OG)	20	Ground
8	1064 (YE-LB)	16	heater feed
9	1064 (YE-LB)	16	heater feed
10	1060 (BK-LB)	22	Temperature signal
11	1020 (DG-VT)	20	High temperature switch signal
12	1255 (WH-RD)	20	Low temperature switch signal
13	1061 (BR-LB)	20	Temperature return
14	581 (RD)	20	High temperature switch, passenger side signal
15	1256 (WH-YE)	20	Low temperature switch signal
16	1060 (BK-LB)	20	Temperature signal
17	1048 (LB-WH)	16	Voltage supplied at all times (overload protected)

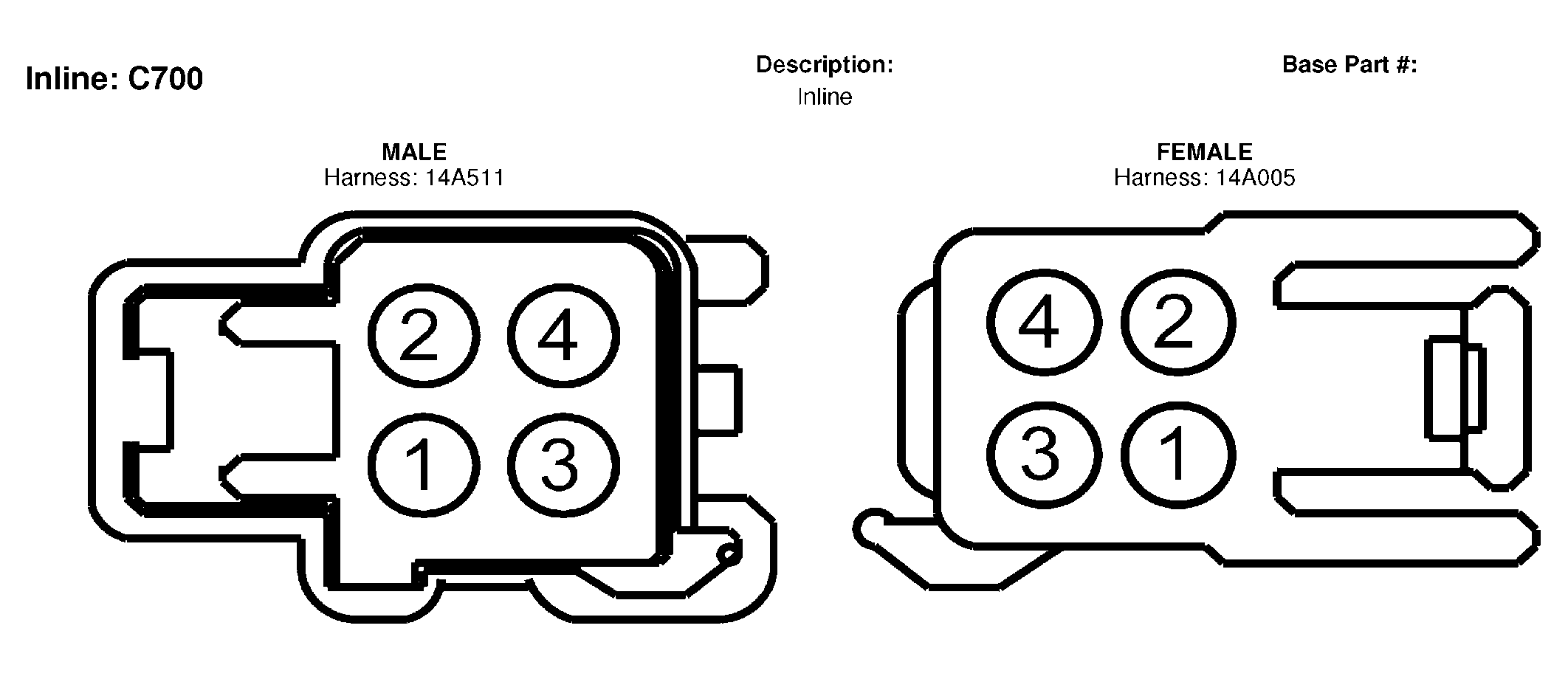

Fig 196: Inline Connector End View (C700)

Courtesy of FORD MOTOR CO.

C700 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	57 (BK)	16
2	131 (VT-OG)	16
3	53 (BK-LB)	20
4	484 (OG-BK)	22

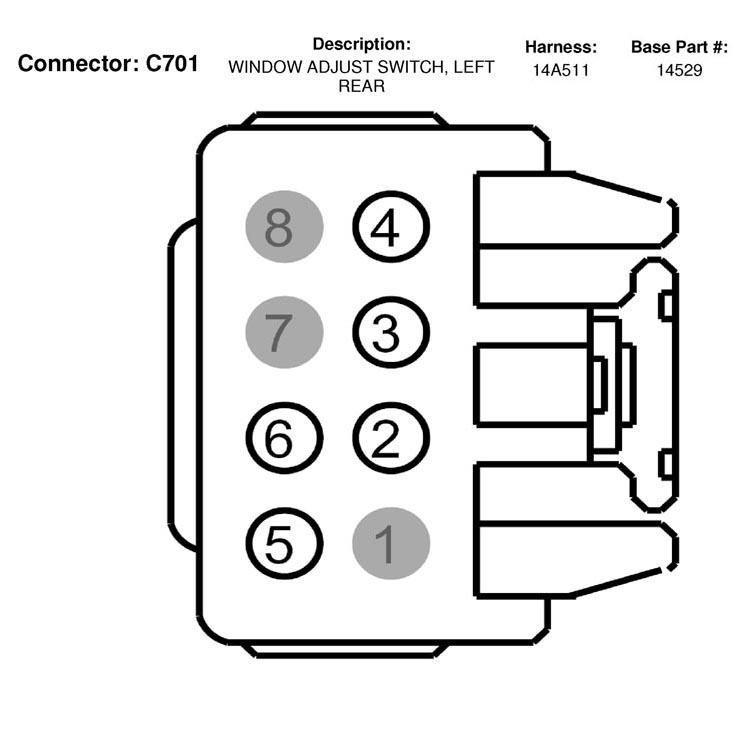

Fig 197: Window Adjust Switch, Left Rear Connector End View (C701)

Courtesy of FORD MOTOR CO.

C701 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	334 (RD-YE)	12	Power window motor, passenger front +/-
3	317 (GY-OG)	12	Window adjust switch, rear +/-
4	170 (RD-LB)	12	Window lockout signal
5	316 (YE-LB)	12	Window adjust switch, rear +/-
6	333 (YE-RD)	12	Power window motor, passenger front +/-
7	*	*	not used
8	*	*	not used

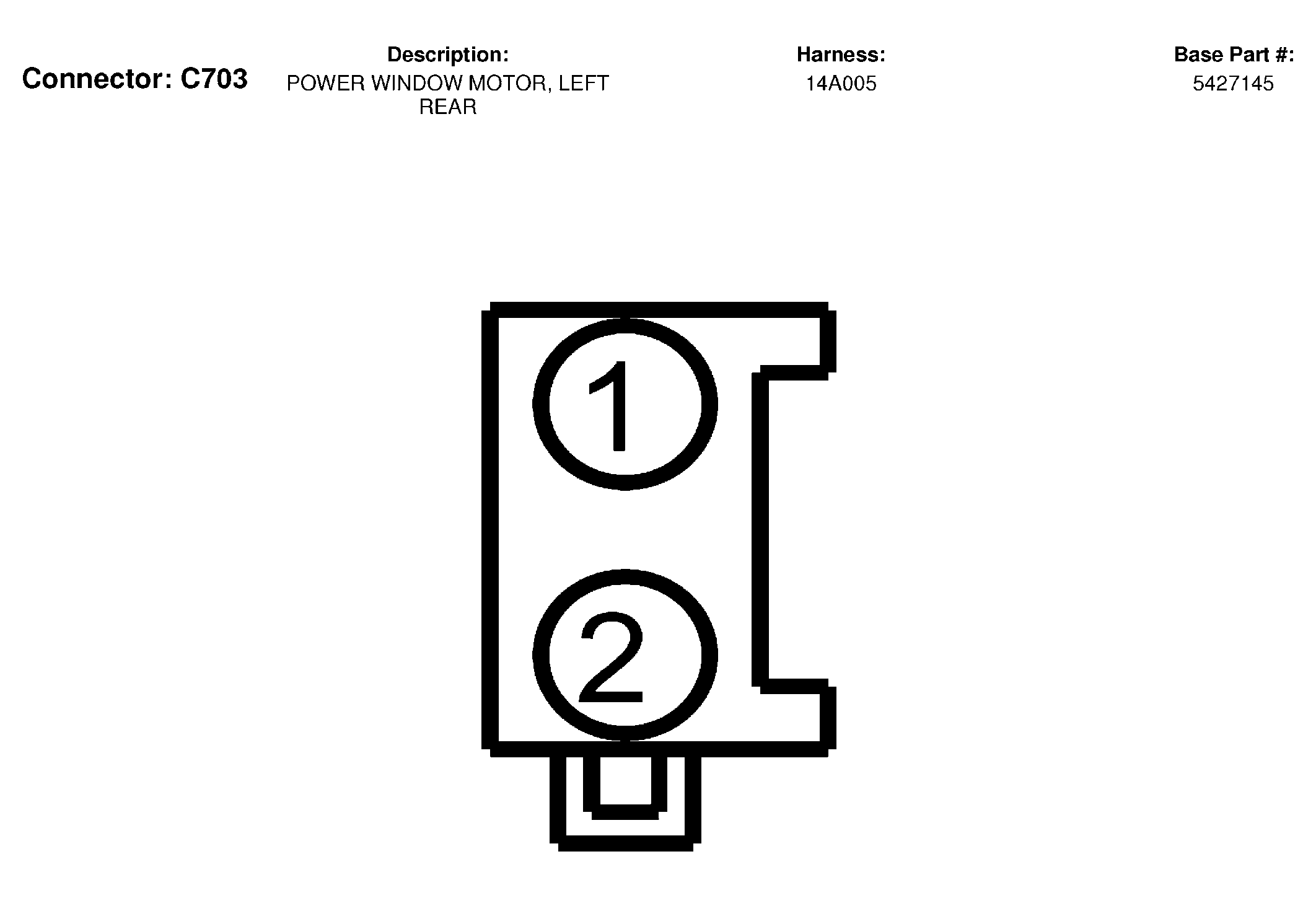

Fig 198: Power Window Motor, Left Rear Connector End View (C703)

Courtesy of FORD MOTOR CO.

C703 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	334 (RD-YE)	14	Power window motor, passenger front +/-
2	333 (YE-RD)	14	Power window motor, passenger front +/-

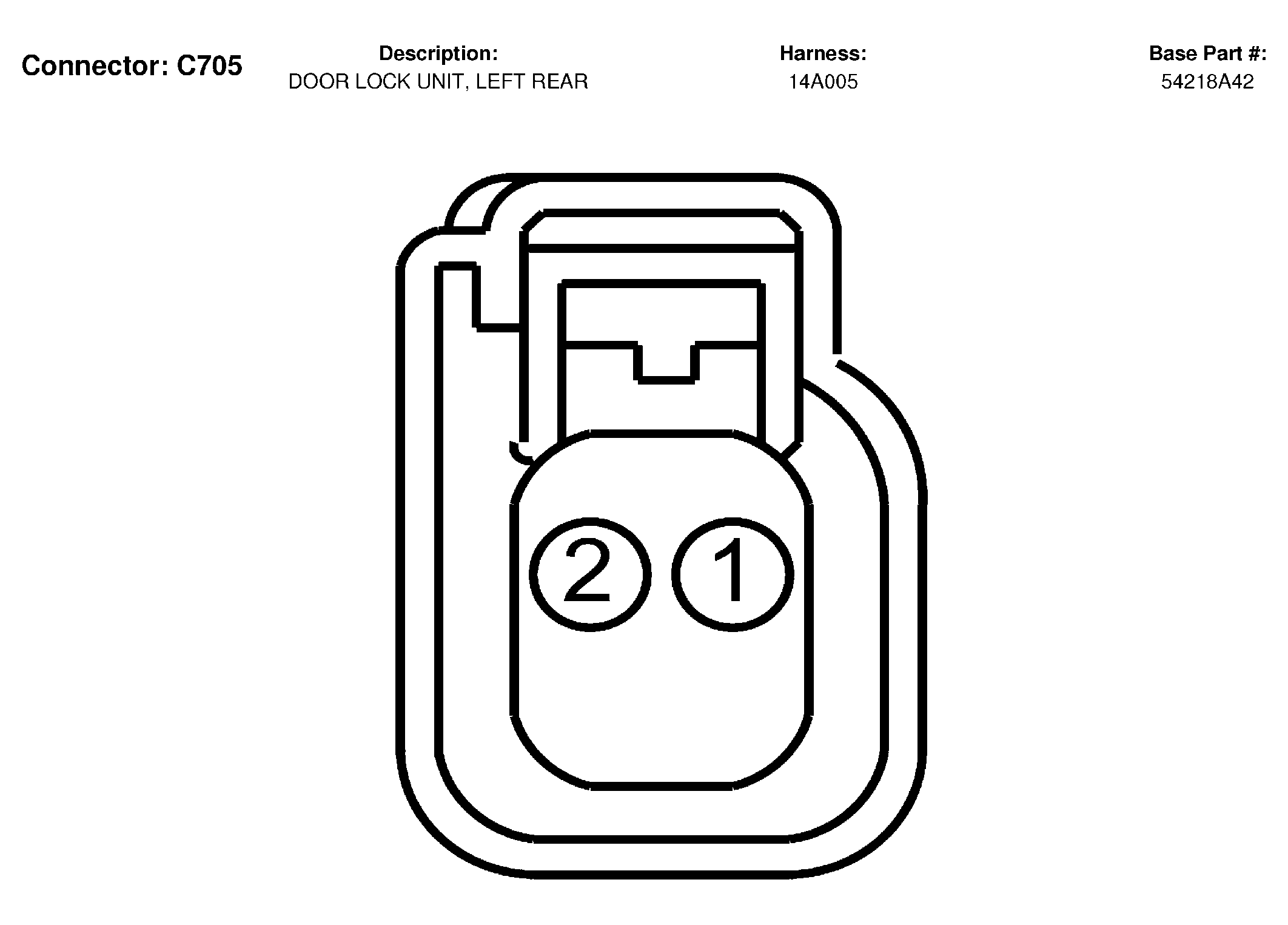

Fig 199: Door Lock Unit, Left Rear Connector End View (C705)

Courtesy of FORD MOTOR CO.

C705 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	118 (PK-OG)	16	Passenger doors Unlock -
2	117 (PK-BK)	16	All door lock +

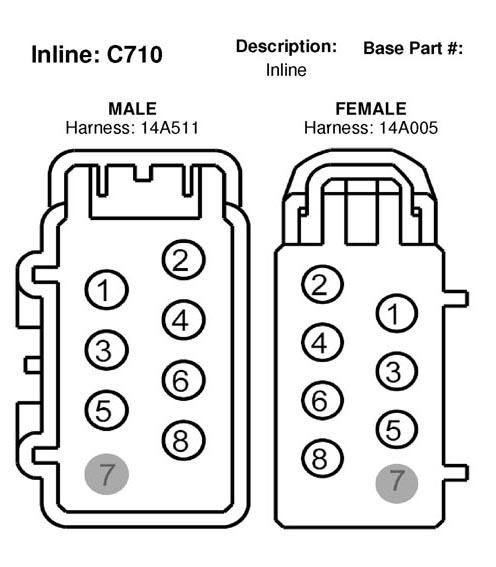

Fig 200: Inline Connector End View (C710)

Courtesy of FORD MOTOR CO.

C710 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	53 (BK-LB)	12	LIMO
1	53 (BK-LB)	20	except LIMO and w/o memory
2	57 (BK)	16
3	334 (RD-YE)	12	14A511
3	334 (RD-YE)	14	14A005
4	333 (YE-RD)	12	14A511
4	333 (YE-RD)	14	14A005
5	316 (YE-LB)	12	14A511
5	316 (YE-LB)	14	14A005
6	317 (GY-OG)	12	14A511
6	317 (GY-OG)	14	14A005
7	*
8	170 (RD-LB)	12	14A511
8	170 (RD-LB)	14	14A005

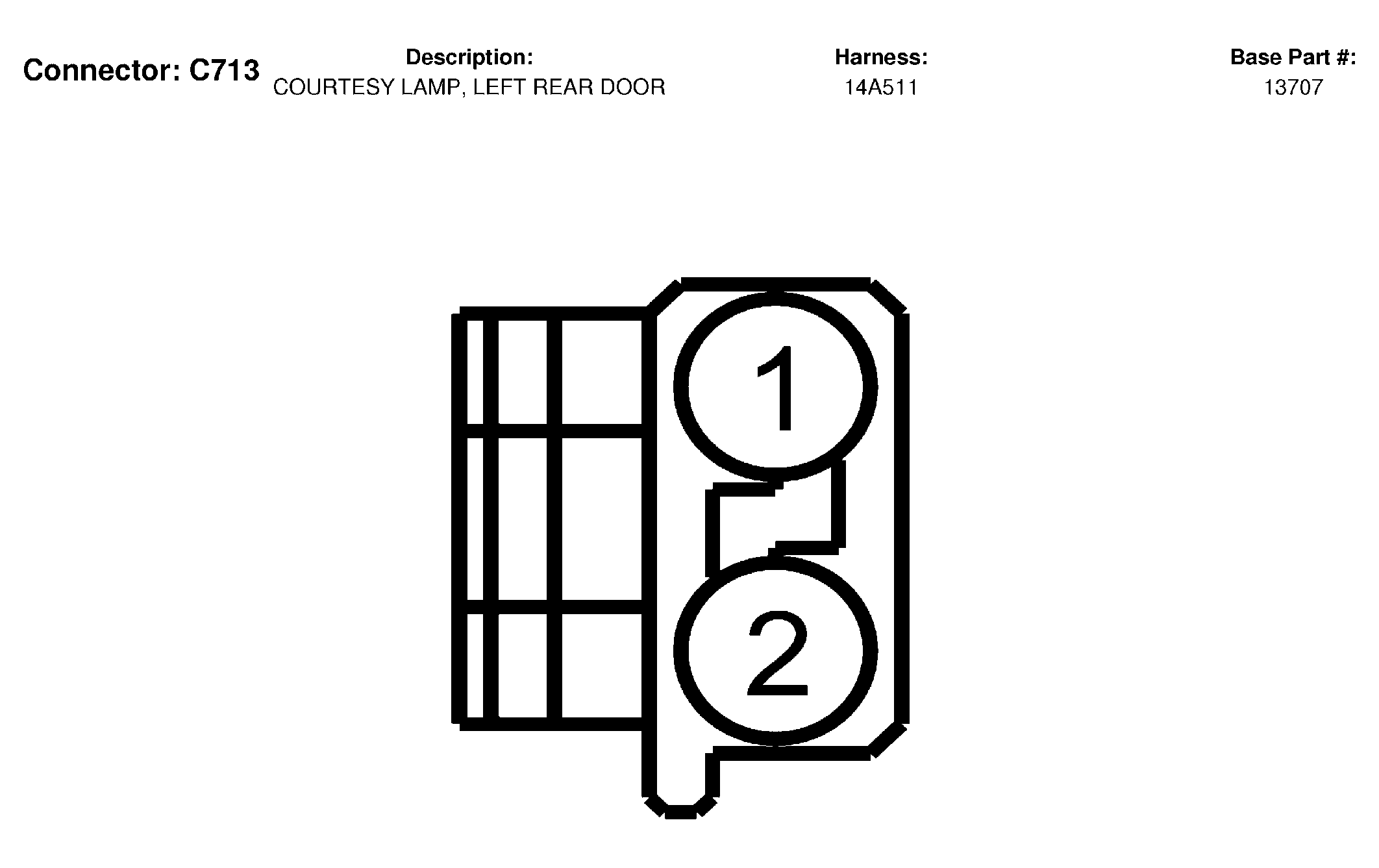

Fig 201: Courtesy Lamp, Left Rear Door Connector End View (C713)

Courtesy of FORD MOTOR CO.

C713 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	20	Ground

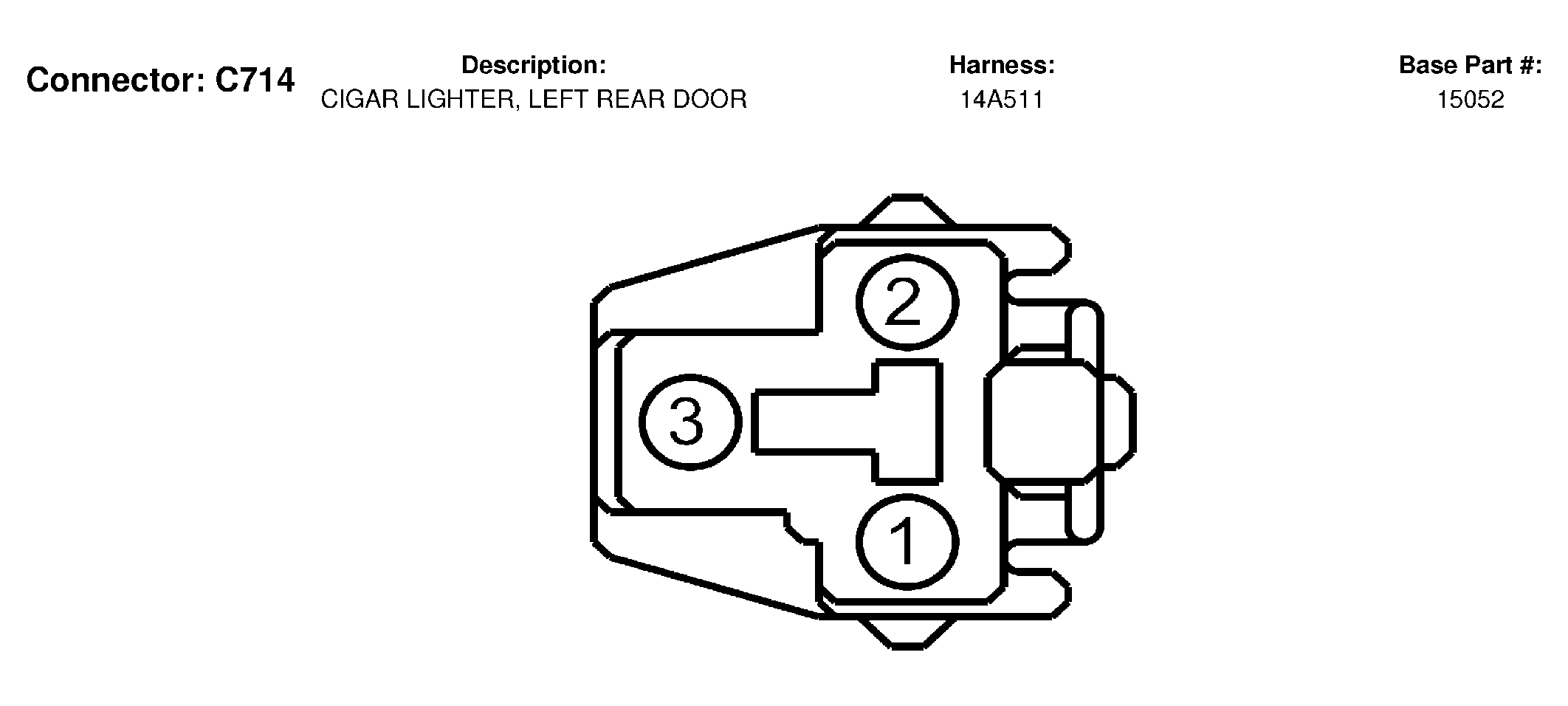

Fig 202: Cigar Lighter, Left Rear Door Connector End View (C714)

Courtesy of FORD MOTOR CO.

C714 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	131 (VT-OG)	16	Voltage supplied at all times (overload protected)
2	484 (OG-BK)	22	Switch illumination +
3	57 (BK)	16	Ground

Fig 203: Door Ajar Switch, Driver Side Rear Connector End View (C715A)

Courtesy of FORD MOTOR CO.

C715A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	627 (BK-OG)	20	Door ajar switch signal, right front

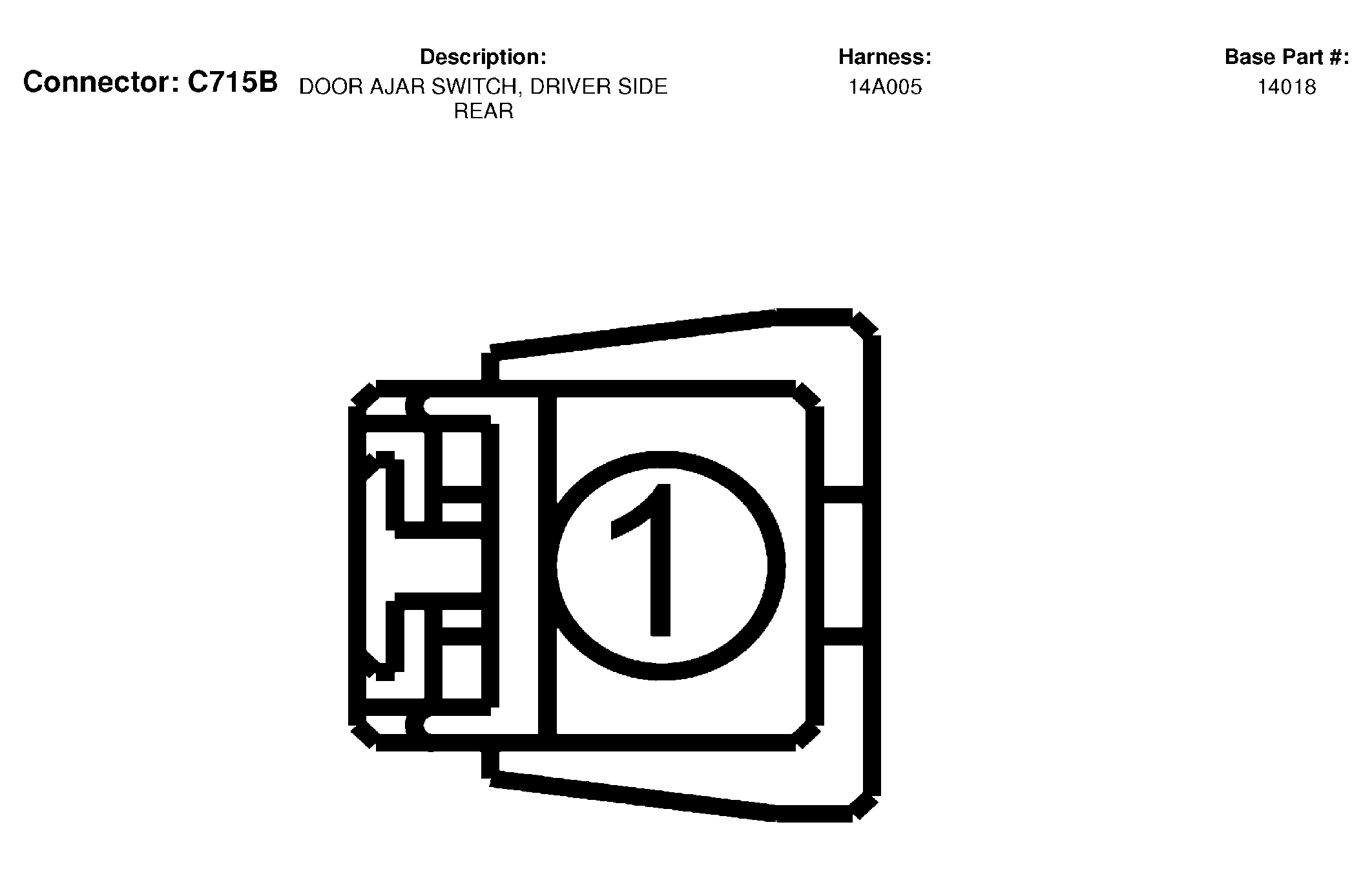

Fig 204: Door Ajar Switch, Driver Side Rear Connector End View (C715B)

Courtesy of FORD MOTOR CO.

C715B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	627 (BK-OG)	20	Door ajar switch signal, right front

Fig 205: Inline Connector End View (C716)

Courtesy of FORD MOTOR CO.

C716 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1020 (DG-VT)	22	14323
1	1020 (DG-VT)	20	14A005
2	*	*
3	964 (DB-LG)	22	14323
3	964 (DB-LG)	20	14A005
4	*	*
5	1019 (TN-LB)	22	14323
5	1019 (TN-LB)	20	14A005
6	1255 (WH-RD)	22	14323
6	1255 (WH-RD)	20	14A005
7	1018 (LG-OG)	22	14323
7	1018 (LG-OG)	20	14A005
8	57 (BK)	22	14323
8	57 (BK)	20	14A005

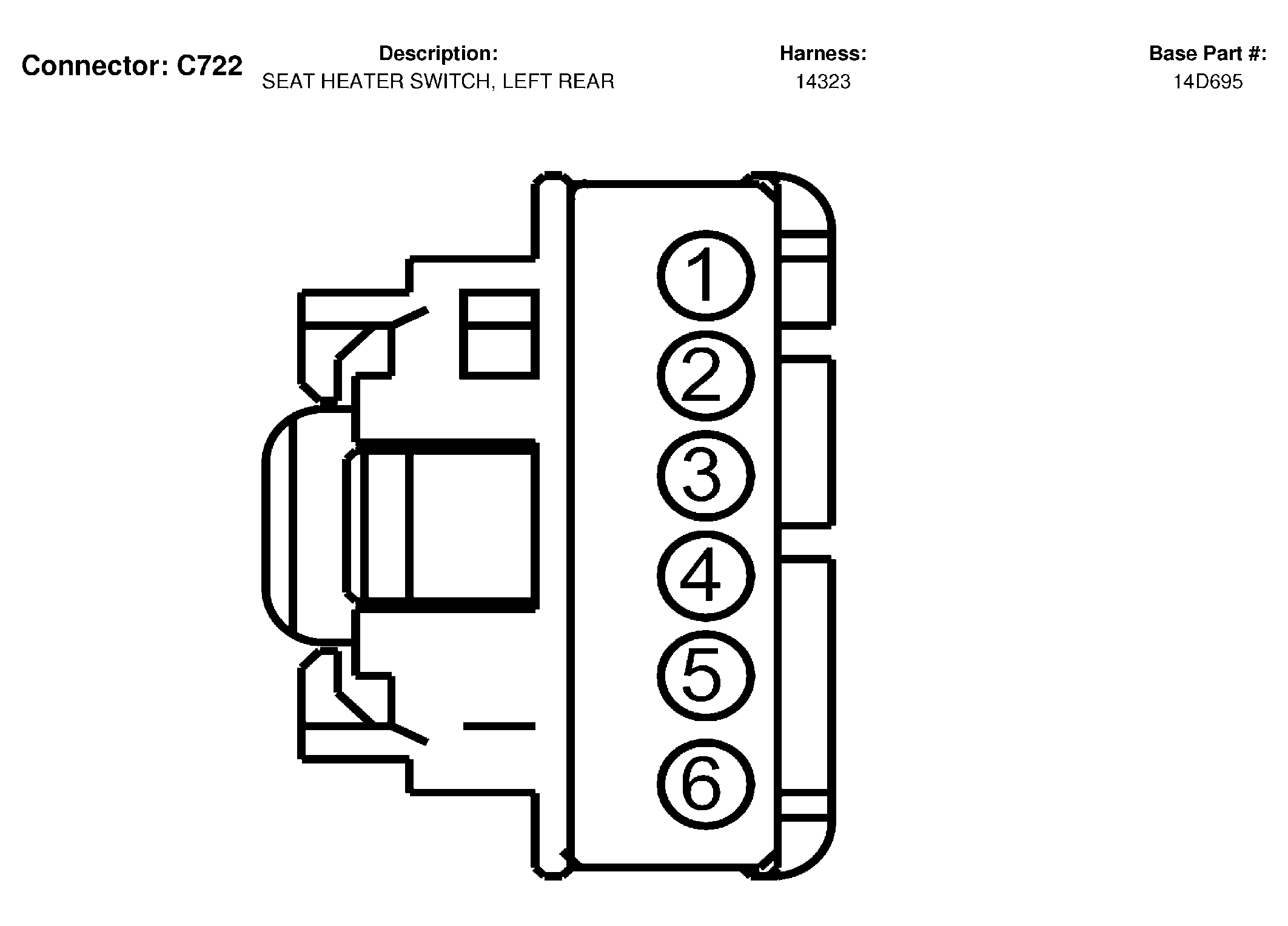

Fig 206: Seat Heater Switch, Left Rear Connector End View (C722)

Courtesy of FORD MOTOR CO.

C722 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	1255 (WH-RD)	22	Low temperature switch signal
3	1018 (LG-OG)	22	Low temperature indicator control
4	1019 (TN-LB)	22	High temperature indicator control
5	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
6	1020 (DG-VT)	22	High temperature switch signal

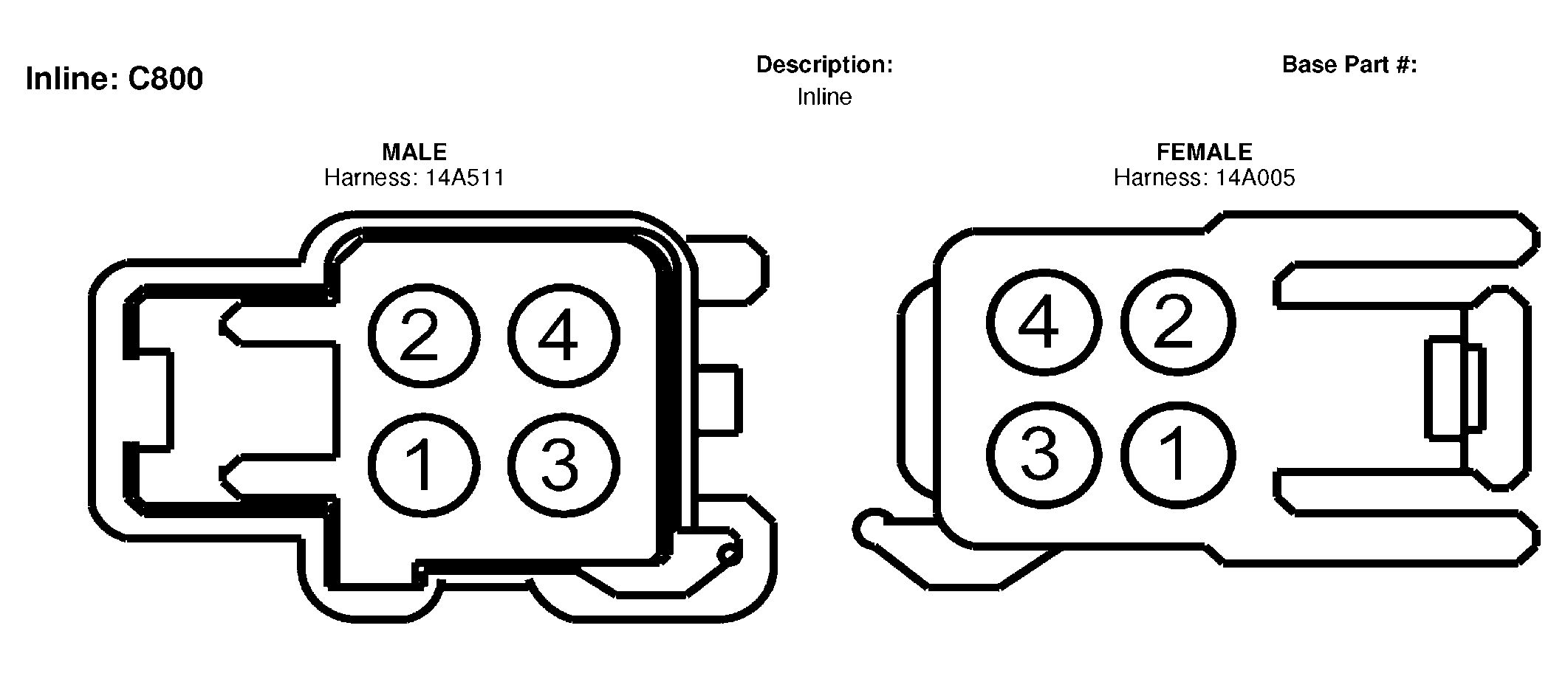

Fig 207: Inline Connector End View (C800)

Courtesy of FORD MOTOR CO.

C800 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	57 (BK)	16
2	131 (VT-OG)	16
3	53 (BK-LB)	20
4	484 (OG-BK)	22

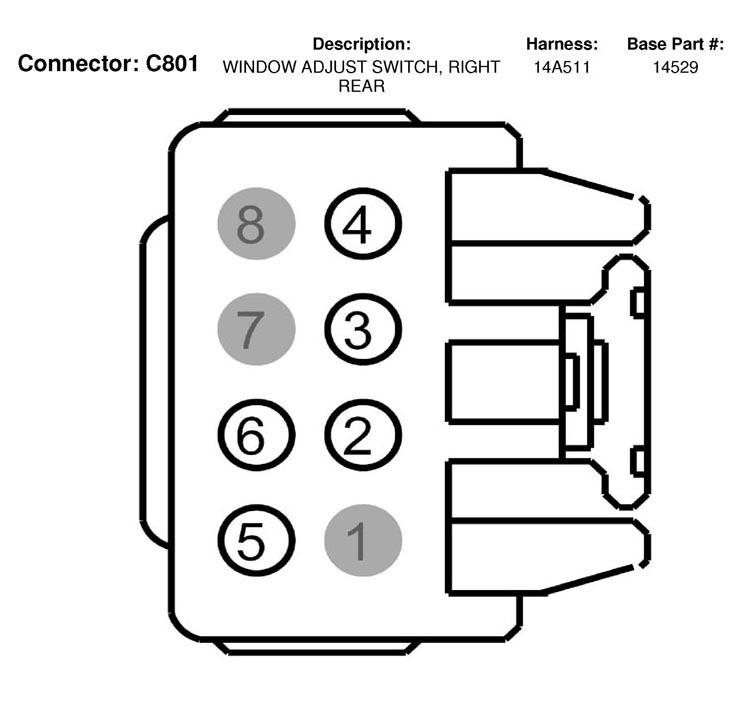

Fig 208: Window Adjust Switch, Right Rear Connector End View (C801)

Courtesy of FORD MOTOR CO.

C801 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	334 (RD-YE)	12	Power window motor, passenger front +/-
3	317 (GY-OG)	12	Window adjust switch, rear +/-
4	170 (RD-LB)	12	Window lockout signal
5	316 (YE-LB)	12	Window adjust switch, rear +/-
6	333 (YE-RD)	12	Power window motor, passenger front +/-
7	*	*	not used
8	*	*	not used

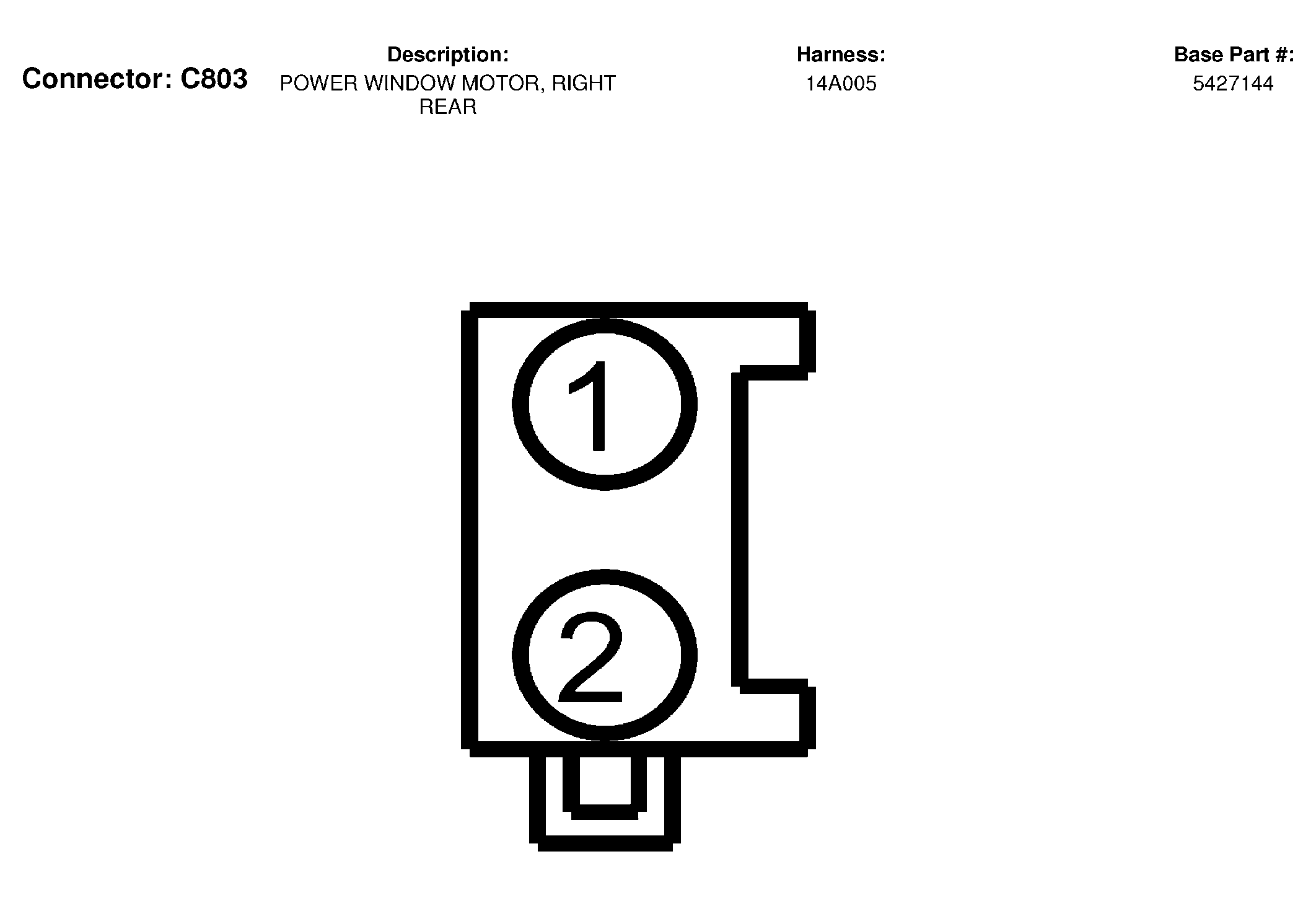

Fig 209: Power Window Motor, Right Rear Connector End View (C803)

Courtesy of FORD MOTOR CO.

C803 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	334 (RD-YE)	12	Power window motor, passenger front +/-
2	333 (YE-RD)	12	Power window motor, passenger front +/-

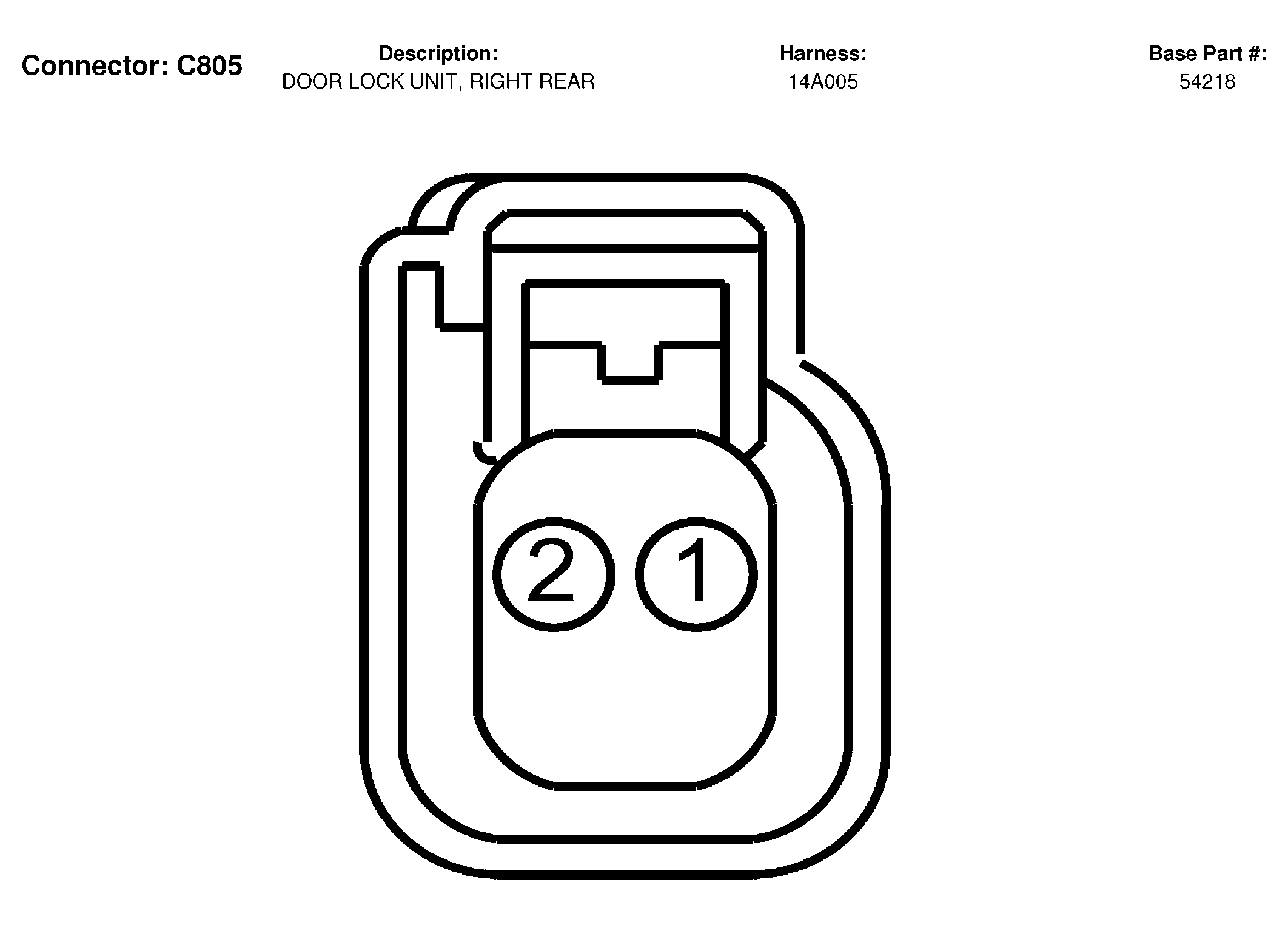

Fig 210: Door Lock Unit, Right Rear Connector End View (C805)

Courtesy of FORD MOTOR CO.

C805 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	118 (PK-OG)	16	Passenger doors Unlock -
2	117 (PK-BK)	16	All door lock +

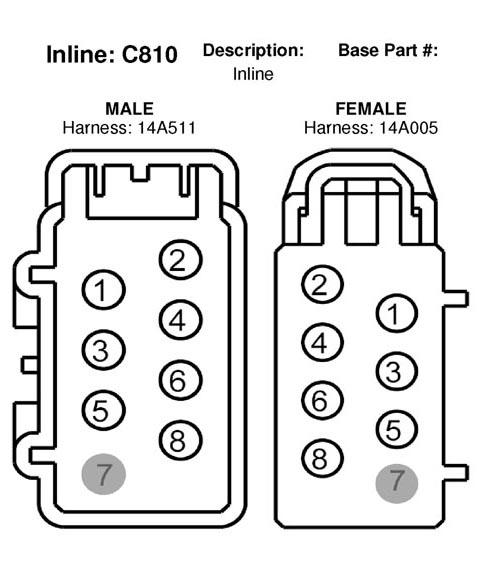

Fig 211: Inline Connector End View (C810)

Courtesy of FORD MOTOR CO.

C810 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	53 (BK-LB)	20	SWB
2	57 (BK)	14	LIMO
2	57 (BK)	20	SWB except LIMO
3	334 (RD-YE)	12
4	333 (YE-RD)	12
5	316 (YE-LB)	12	14A511
5	320 (RD-BK)	12	14A005
6	317 (GY-OG)	12	14A511
6	319 (YE-BK)	12	14A005
7	*	*
8	170 (RD-LB)	1

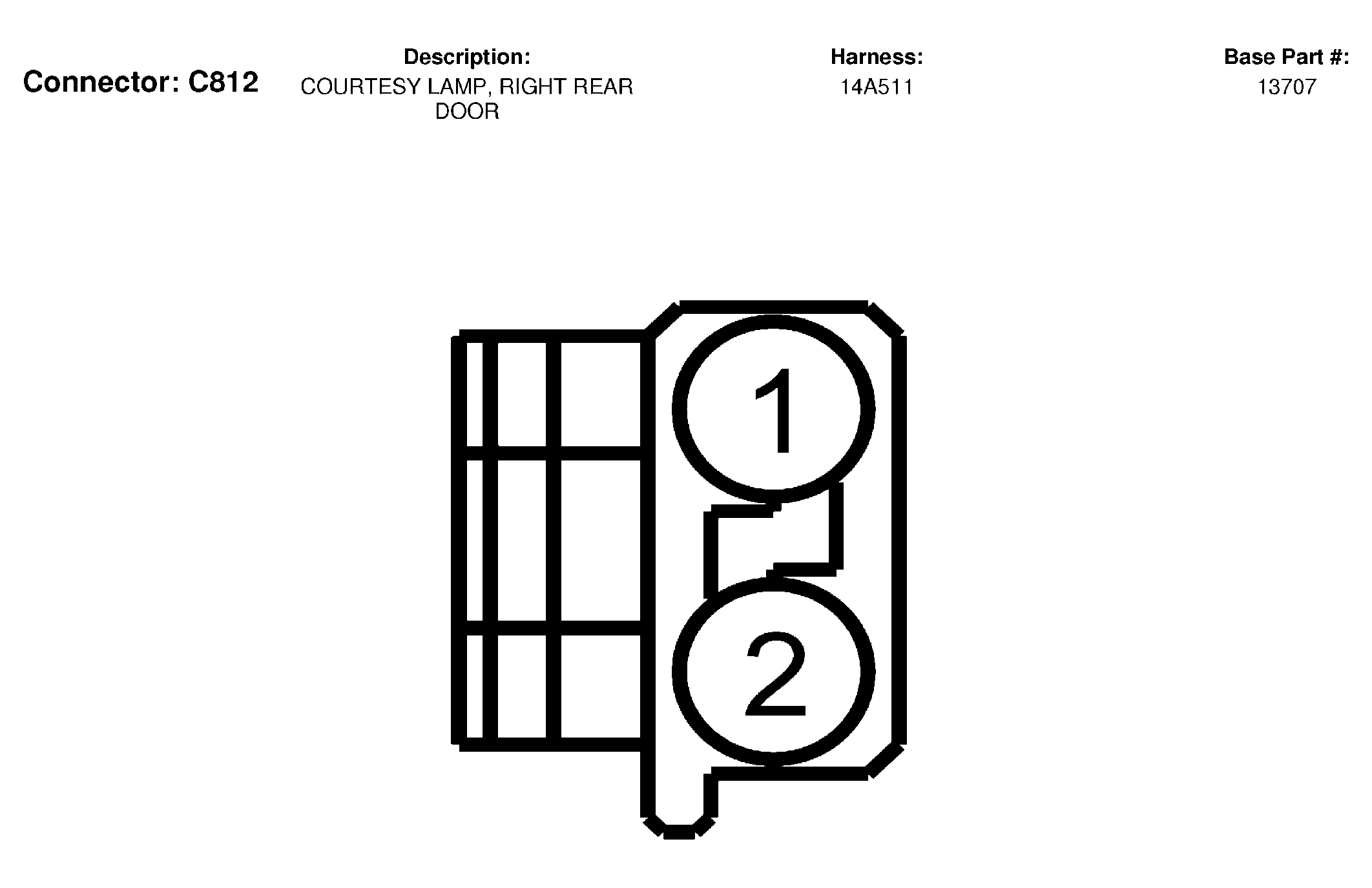

Fig 212: Courtesy Lamp, Right Rear Door Connector End View (C812)

Courtesy of FORD MOTOR CO.

C812 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	20	Ground

Fig 213: Cigar Lighter, Right Rear Door Connector End View (C814)

Courtesy of FORD MOTOR CO.

C814 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	131 (VT-OG)	16	Voltage supplied at all times (overload protected)
2	484 (OG-BK)	22	Switch illumination +
3	57 (BK)	16	Ground

Fig 214: Inline Connector End View (C818)

Courtesy of FORD MOTOR CO.

C818 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1020 (DG-VT)	22	14323
1	581 (RD)	20	14A005
2	*	*
3	964 (DB-LG)	22	14323
3	964 (DB-LG)	20	14A005
4	*	*
5	1019 (TN-LB)	22	14323
5	580 (BR)	20	14A005
6	1255 (WH-RD)	22	14323
6	1256 (WH-YE)	20	14A005
7	1018 (LG-OG)	22	14323
7	579 (BK-OG)	20	14A005
8	57 (BK)	22	14323
8	57 (BK)	20	14A005

Fig 215: Door Ajar Switch, Passenger Side Rear Connector End View (C820A)

Courtesy of FORD MOTOR CO.

C820A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	627 (BK-OG)	20	Door ajar switch signal, right front

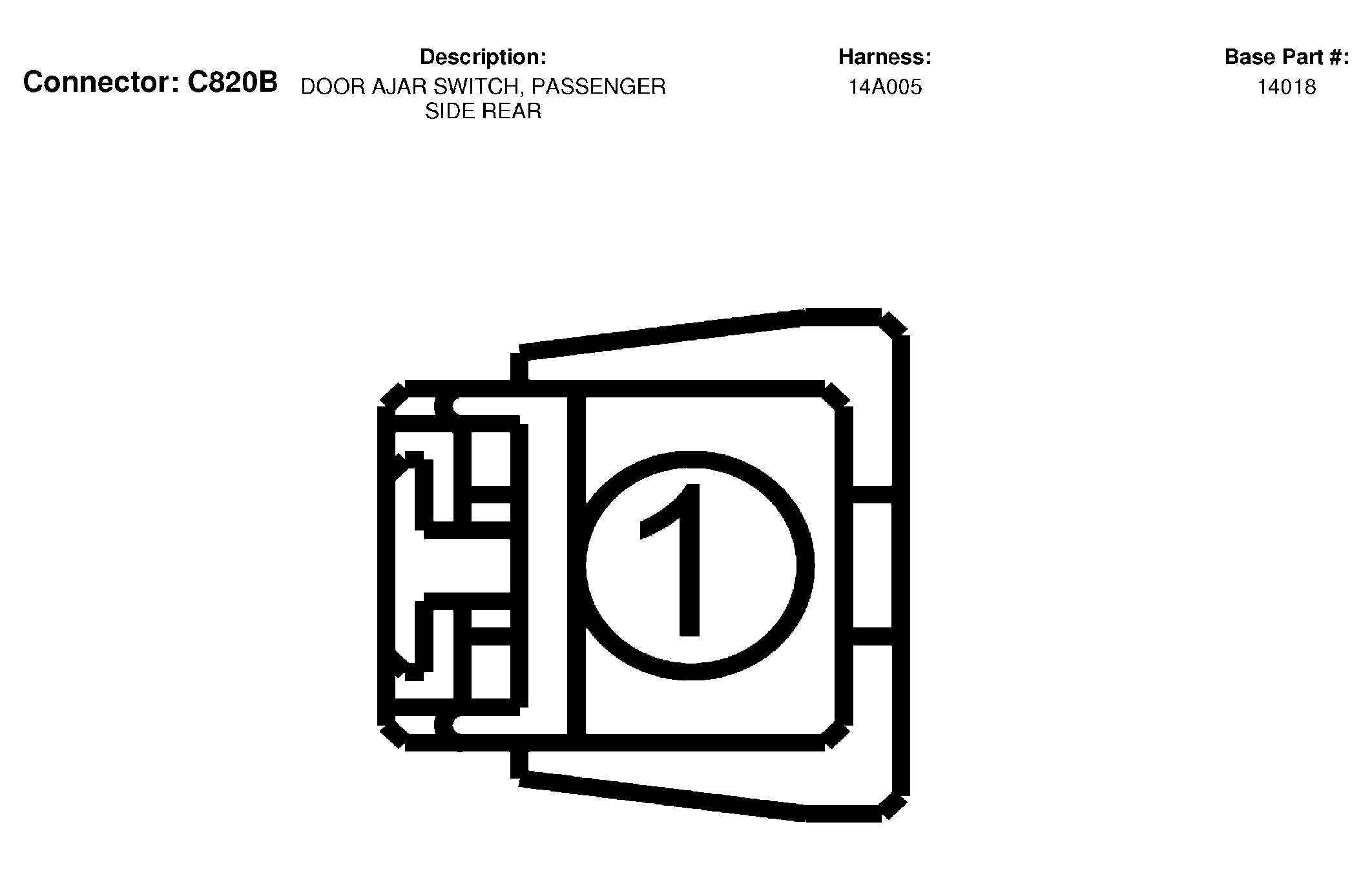

Fig 216: Door Ajar Switch, Passenger Side Rear Connector End View (C820B)

Courtesy of FORD MOTOR CO.

C820B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground

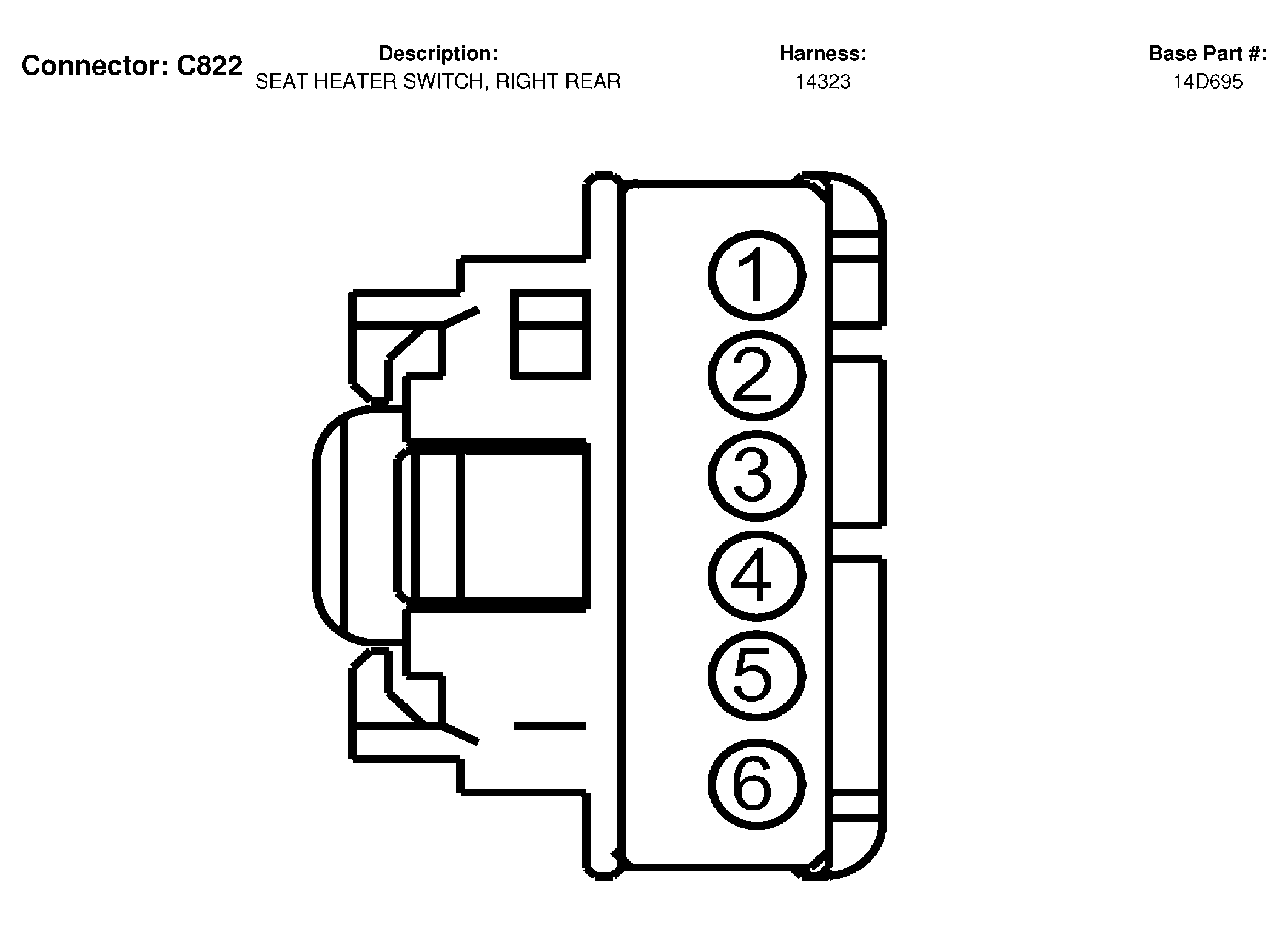

Fig 217: Seat Heater Switch, Right Rear Connector End View (C822)

Courtesy of FORD MOTOR CO.

C822 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	22	Ground
2	1255 (WH-RD)	22	Low temperature switch signal
3	1018 (LG-OG)	22	Low temperature indicator control
4	1019 (TN-LB)	22	High temperature indicator control
5	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
6	1020 (DG-VT)	22	High temperature switch signal

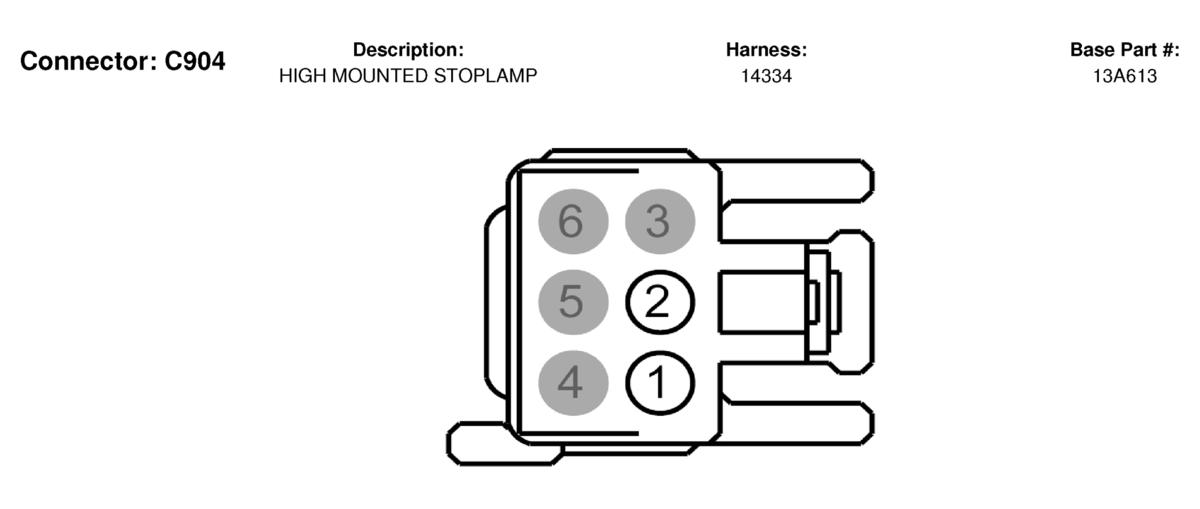

Fig 218: High Mounted Stoplamp Connector End View (C904)

Courtesy of FORD MOTOR CO.

C904 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	511 (LG)	22	Brake pedal position switch output, (overload protected)
2	57 (BK)	22	Ground
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	*	*	not used

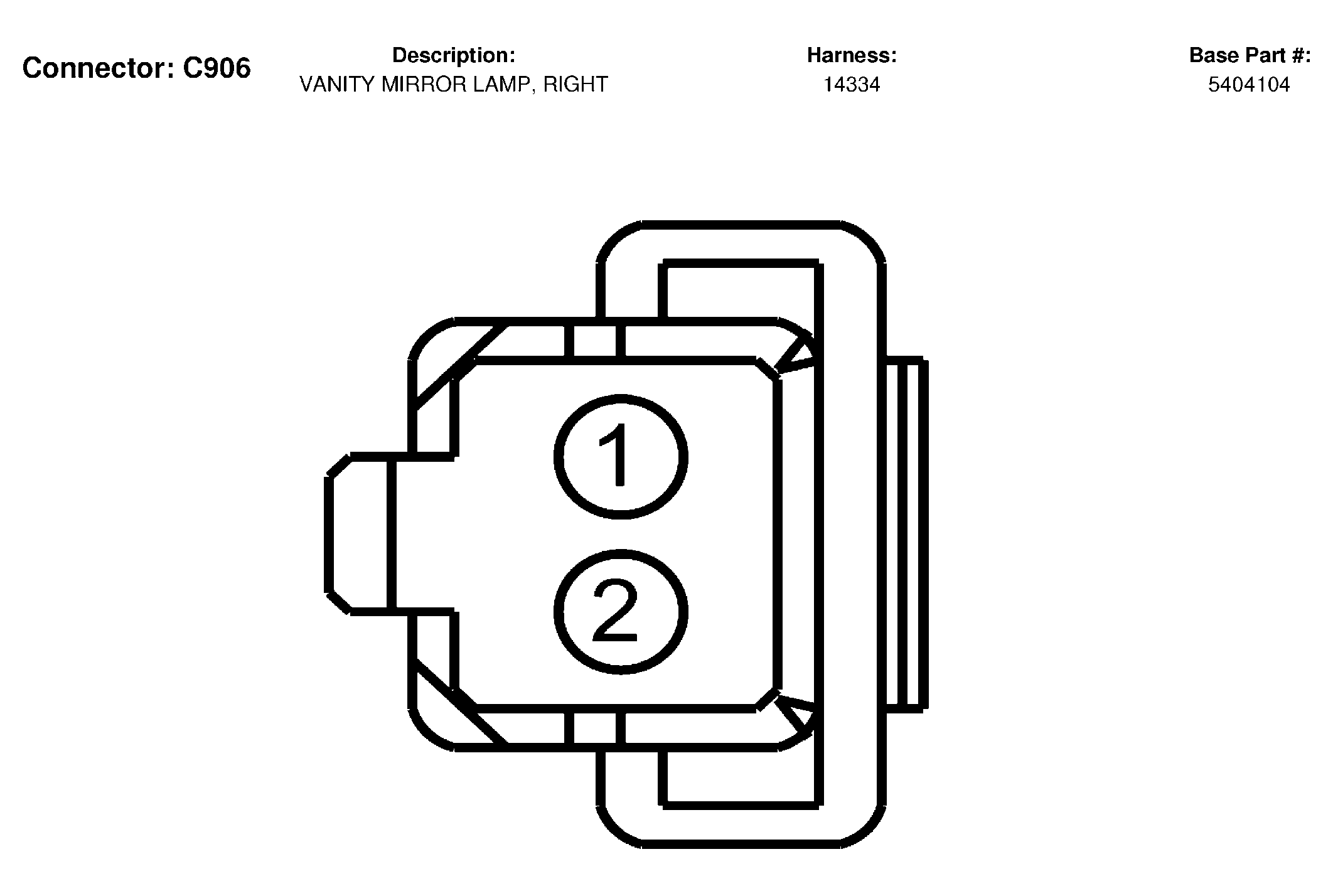

Fig 219: Vanity Mirror Lamp, Right Connector End View (C906)

Courtesy of FORD MOTOR CO.

C906 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	22	Ground
2	705 (LG-OG)	20	Demand lighting

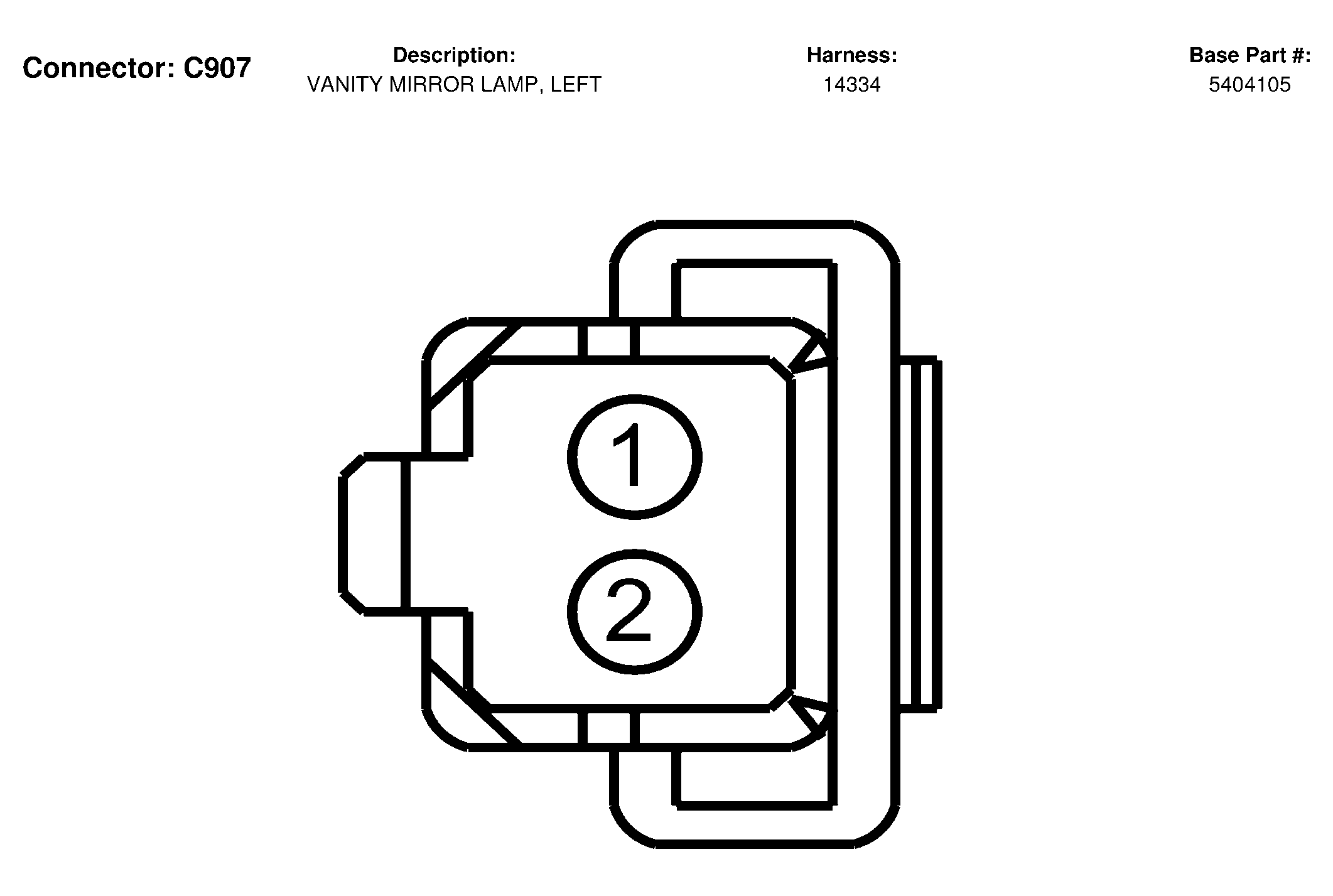

Fig 220: Vanity Mirror Lamp, Left Connector End View (C907)

Courtesy of FORD MOTOR CO.

C907 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	22	Ground
2	705 (LG-OG)	20	Demand lighting

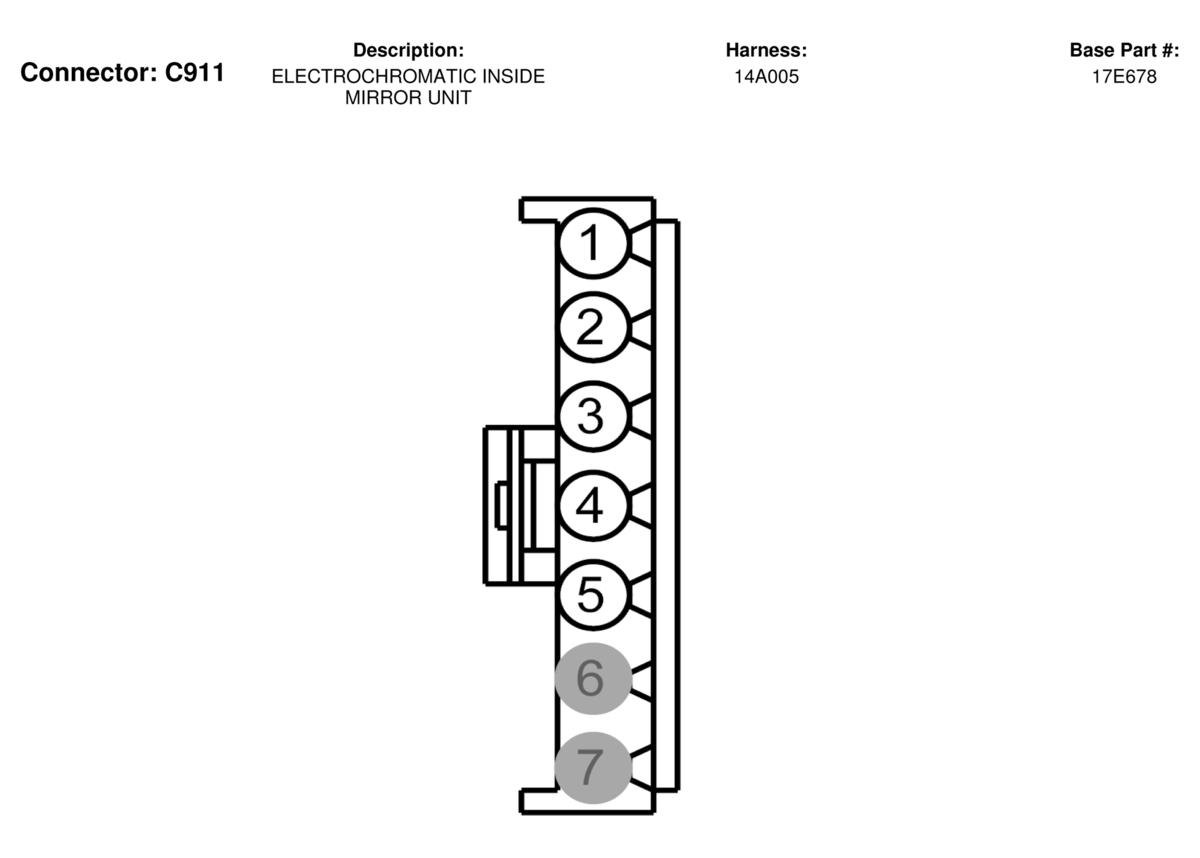

Fig 221: Electrochromatic Inside Mirror Unit Connector End View (C911)

Courtesy of FORD MOTOR CO.

C911 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
2	57 (BK)	22	Ground
3	140 (BK-PK)	22	Voltage supplied in reverse
4	46 (VT)	20	Exterior rear view mirror signal
5	47 (LB-WH)	20	Exterior rear view mirror signal return
6	*	*	not used
7	*	*	not used

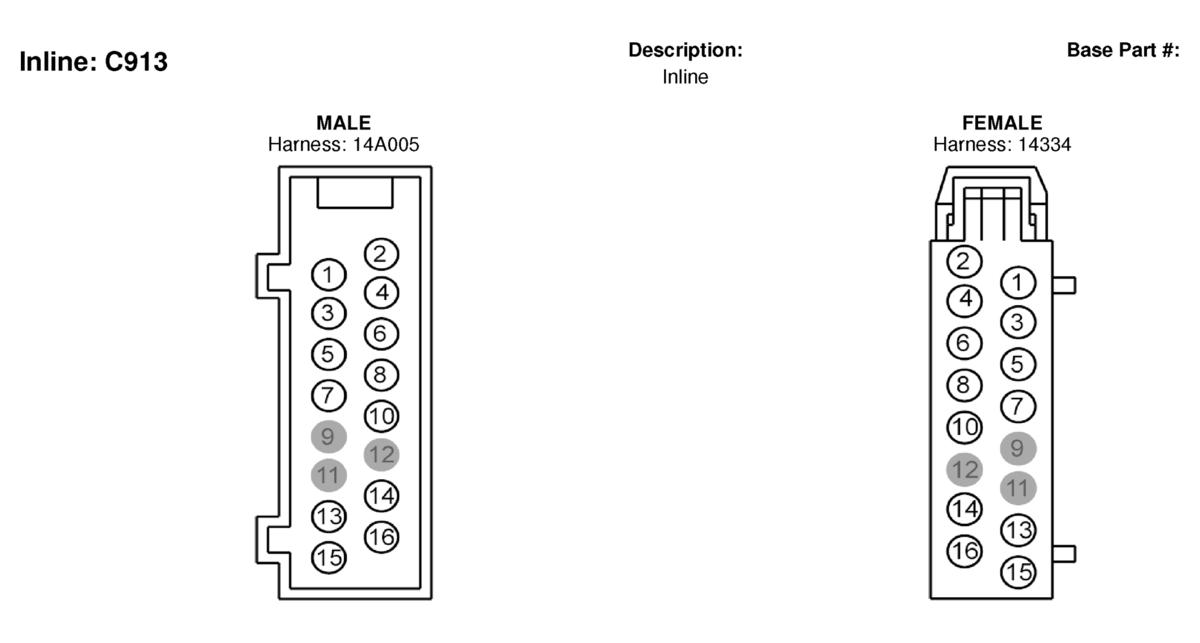

Fig 222: Inline Connector End View (C913)

Courtesy of FORD MOTOR CO.

C913 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1435 (DG-VT)	22
2	1436 (VT-OG)	22
3	1174 (WH-RD)	22
4	705 (LG-OG)	18	14334
4	705 (LG-OG)	20	14A005
5	1523 (DG)	22
6	964 (DB-LG)	22
7	1175 (TN-RD)	22
8	53 (BK-LB)	18
9	*	*
10	569 (DG)	18	14334
10	569 (DG)	22	14A005
11	*	*
12	*	*
13	915 (PK-LB)	22	Early production
14	57 (BK)	18
15	914 (TN-OG)	22	Early production
16	676 (PK-OG)	20	14334
16	676 (PK-OG)	18	14A005

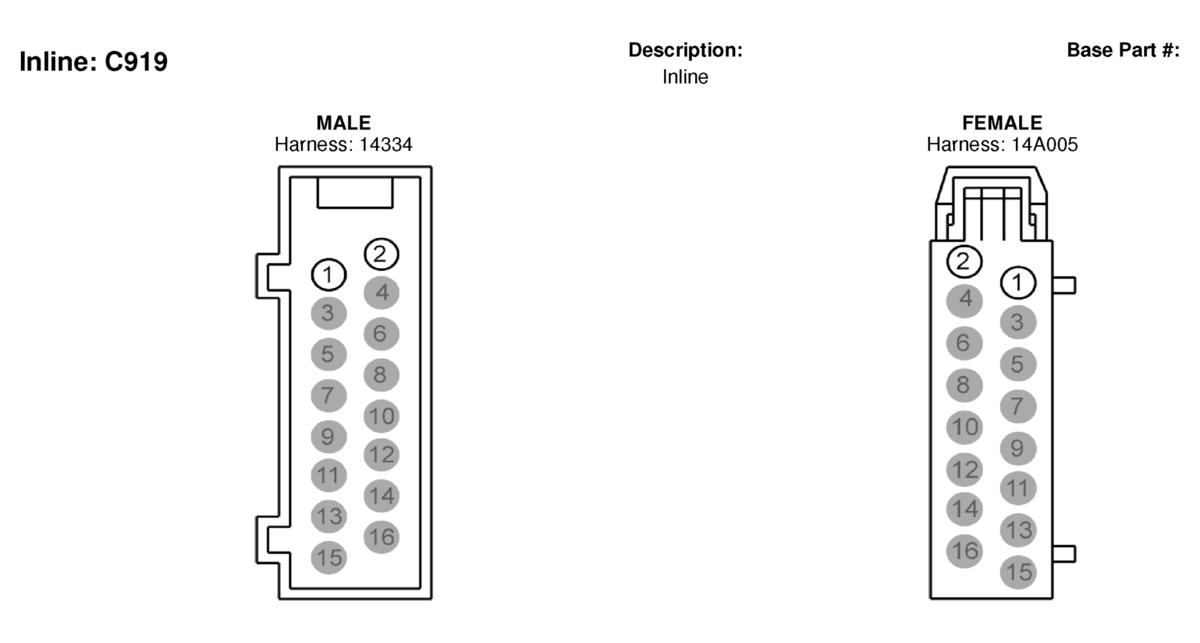

Fig 223: Inline Connector End View (C919)

Courtesy of FORD MOTOR CO.

C919 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	915 (TN-OG)	22
2	915 (PK-LB)	22
3	*	*
4	*	*
5	*	*
6	*	*
7	*	*
8	*	*
9	*	*
10	*	*
11	*	*
12	*	*
13	*	*
14	*	*
15	*	*
16	*	*

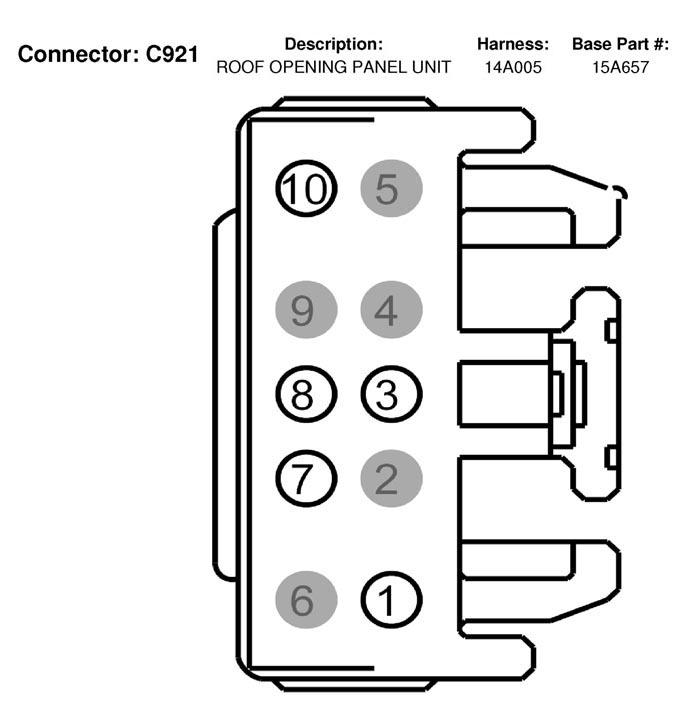

Fig 224: Roof Opening Panel Unit Connector End View (C921)

Courtesy of FORD MOTOR CO.

C921 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	931 (OG)	16	Voltage supplied at all times (overload protected)
2	*	*	not used
3	1499 (PK-LG)	20	Accessory delay relay output
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	1175 (TN-RD)	22	Roof opening panel switch, Open, Down, signal
8	1174 (WH-RD)	22	Roof opening panel switch, Close, Up, signal
9	*	*	not used
10	57 (BK)	16	Ground

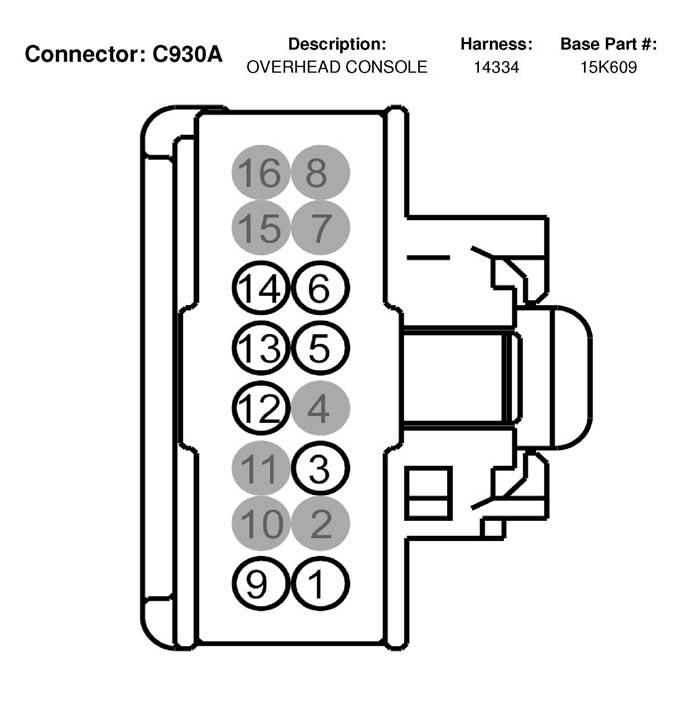

Fig 225: Overhead Console Connector End View (C930A)

Courtesy of FORD MOTOR CO.

C930A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
2	*	*	not used
3	676 (PK-OG)	20	Ground
4	*	*	not used
5	1435 (DG-VT)	22	Parking aid On/Off signal
6	1436 (VT-OG)	22	Parking aid Light emitting diode (LED), control
7	*	*	not used
8	*	*	not used
9	1523 (DG)	20	Voltage supplied at all times (overload protected)
10	*	*	not used
11	*	*	not used
12	1174 (WH-RD)	22	Roof opening panel switch, Close, Up, signal
13	1175 (TN-RD)	22	Roof opening panel switch, Open, Down, signal
14	53 (BK-LB)	20	Courtesy lamps feed
15	*	*	not used
16	*	*	not used

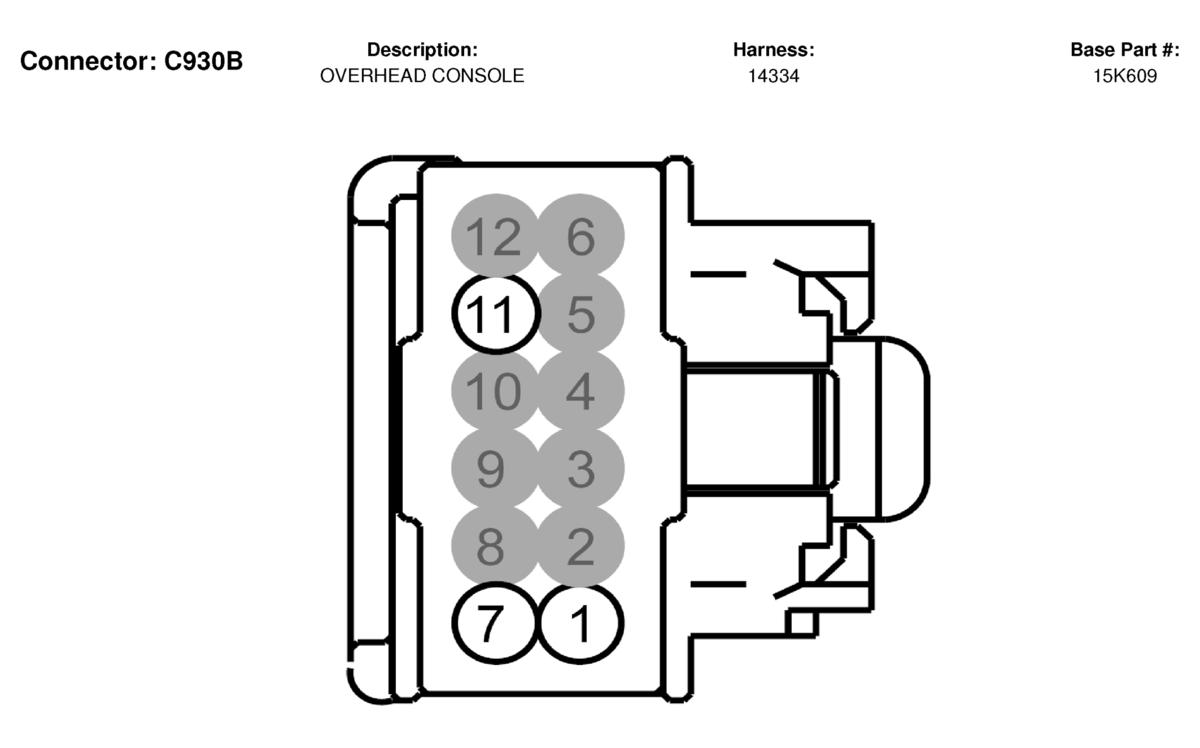

Fig 226: Overhead Console Connector End View (C930B)

Courtesy of FORD MOTOR CO.

C930B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	914 (TN-OG)	22	SCP Bus +
2	*	*	not used
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	915 (PK-LB)	22	SCP Bus -
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	705 (LG-OG)	20	Demand lighting
12	*	*	not used

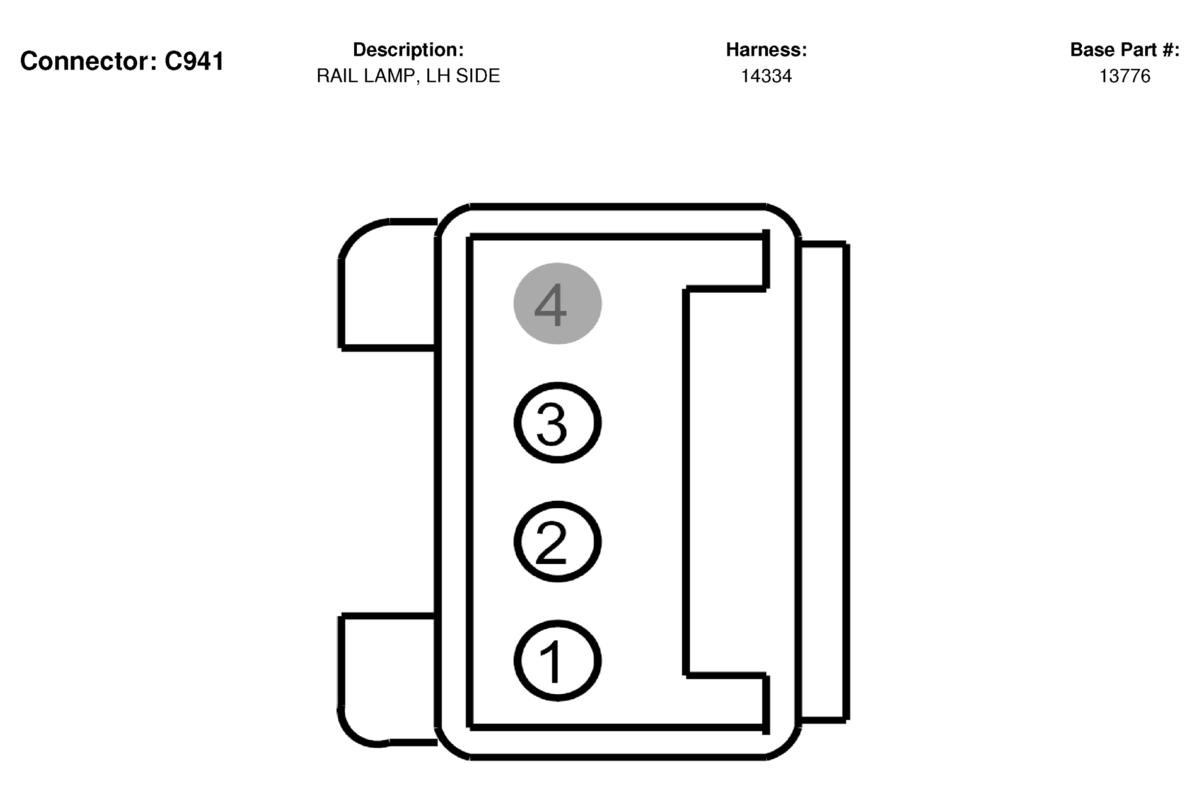

Fig 227: Rail Lamp, LH Side Connector End View (C941)

Courtesy of FORD MOTOR CO.

C941 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground
3	705 (LG-OG)	20	Demand lighting
4	*	*	not used

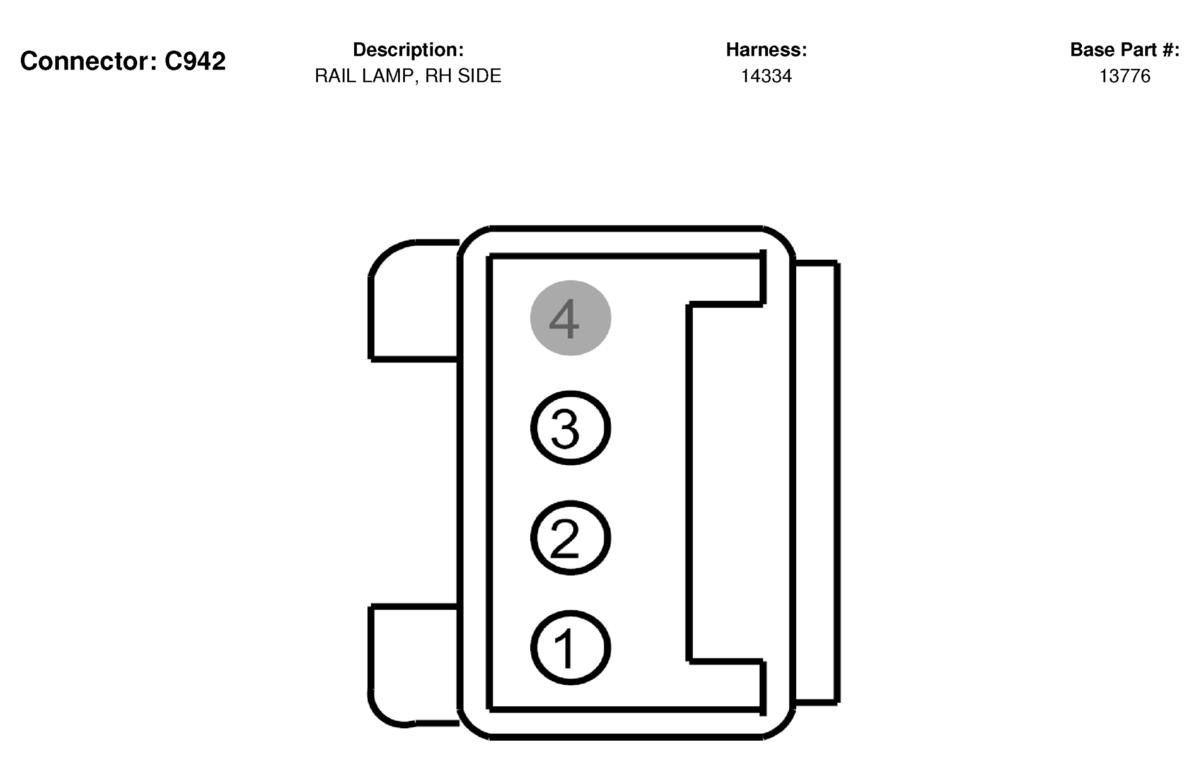

Fig 228: Rail Lamp, RH Side Connector End View (C942)

Courtesy of FORD MOTOR CO.

C942 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground
3	705 (LG-OG)	20	Demand lighting
4	*	*	not used

Fig 229: Vanity Mirror Lamp, Left Rear Connector End View (C950A)

Courtesy of FORD MOTOR CO.

C950A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	705 (LG-OG)	20	Demand lighting

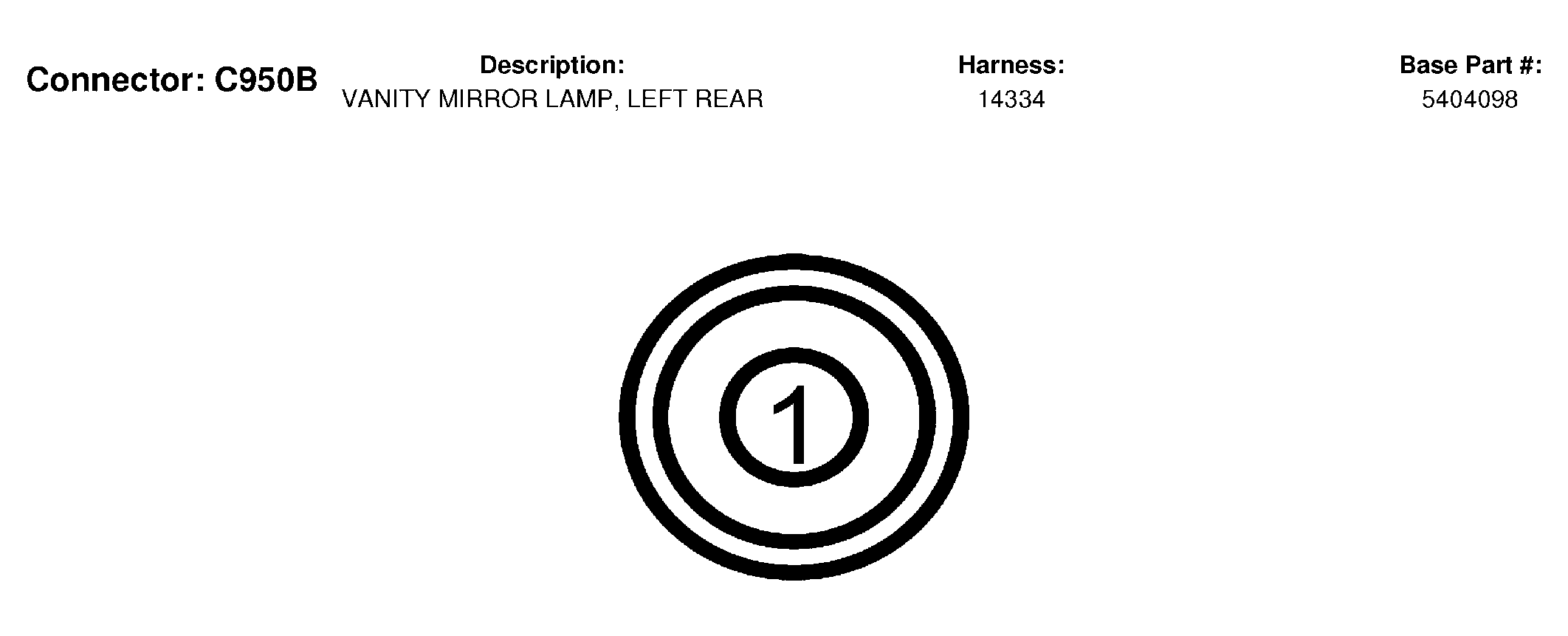

Fig 230: Vanity Mirror Lamp, Left Rear Connector End View (C905B)

Courtesy of FORD MOTOR CO.

C950B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground

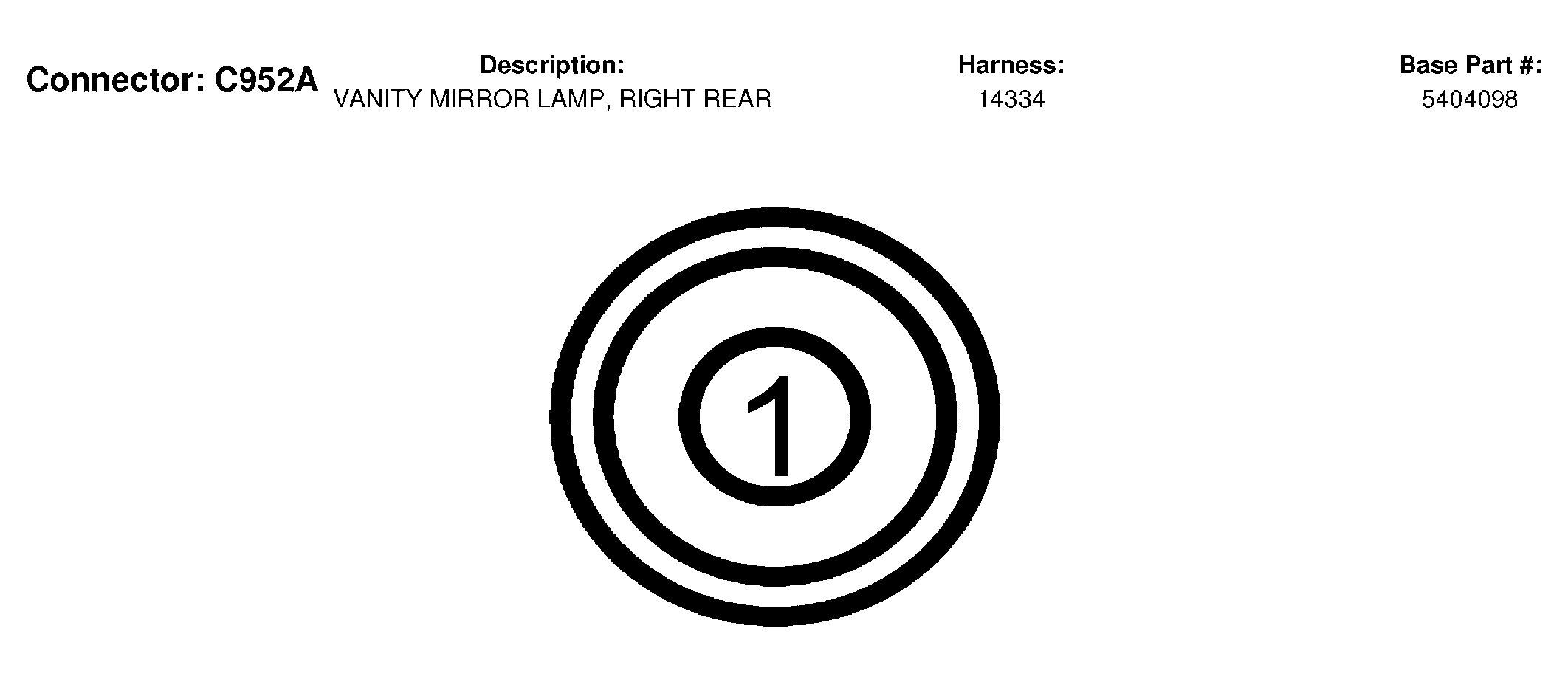

Fig 231: Vanity Mirror Lamp, Right Rear Connector End View (C952A)

Courtesy of FORD MOTOR CO.

C952A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	705 (LG-OG)	20	Demand lighting

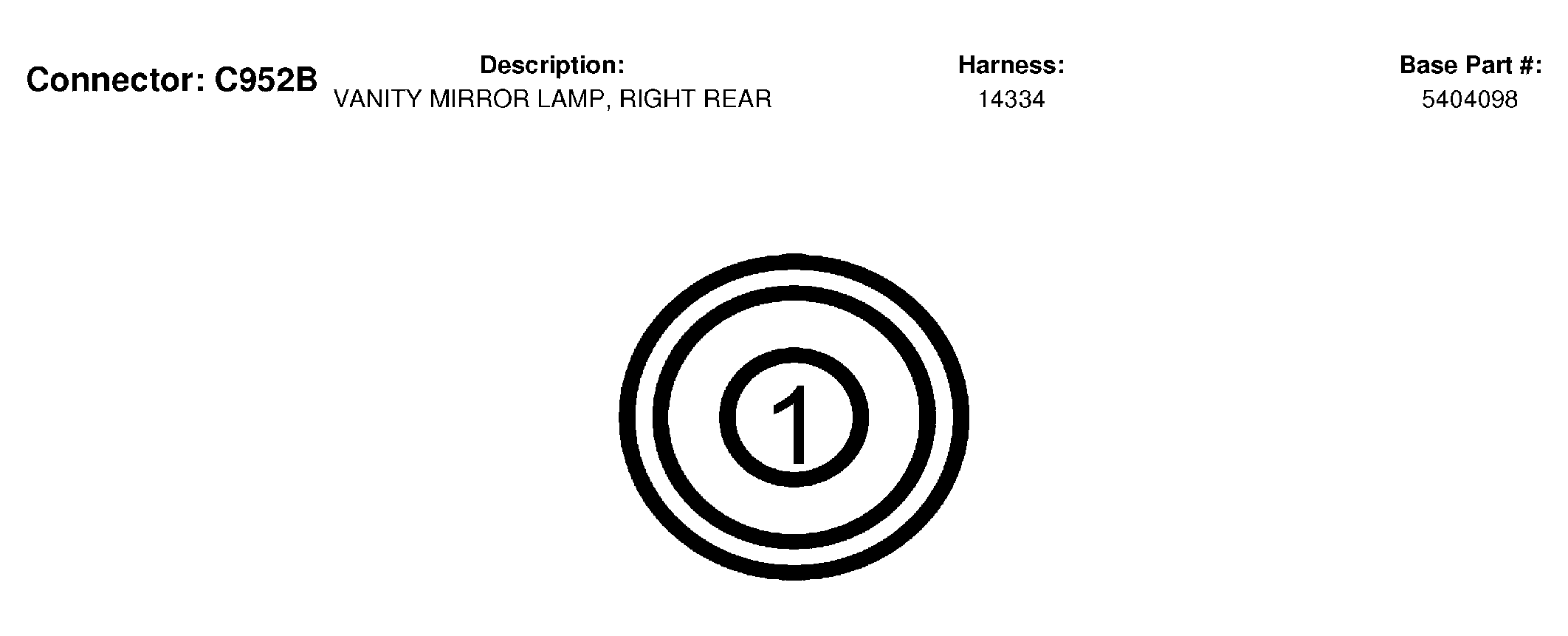

Fig 232: Vanity Mirror Lamp, Right Rear Connector End View (C952B)

Courtesy of FORD MOTOR CO.

C952B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground

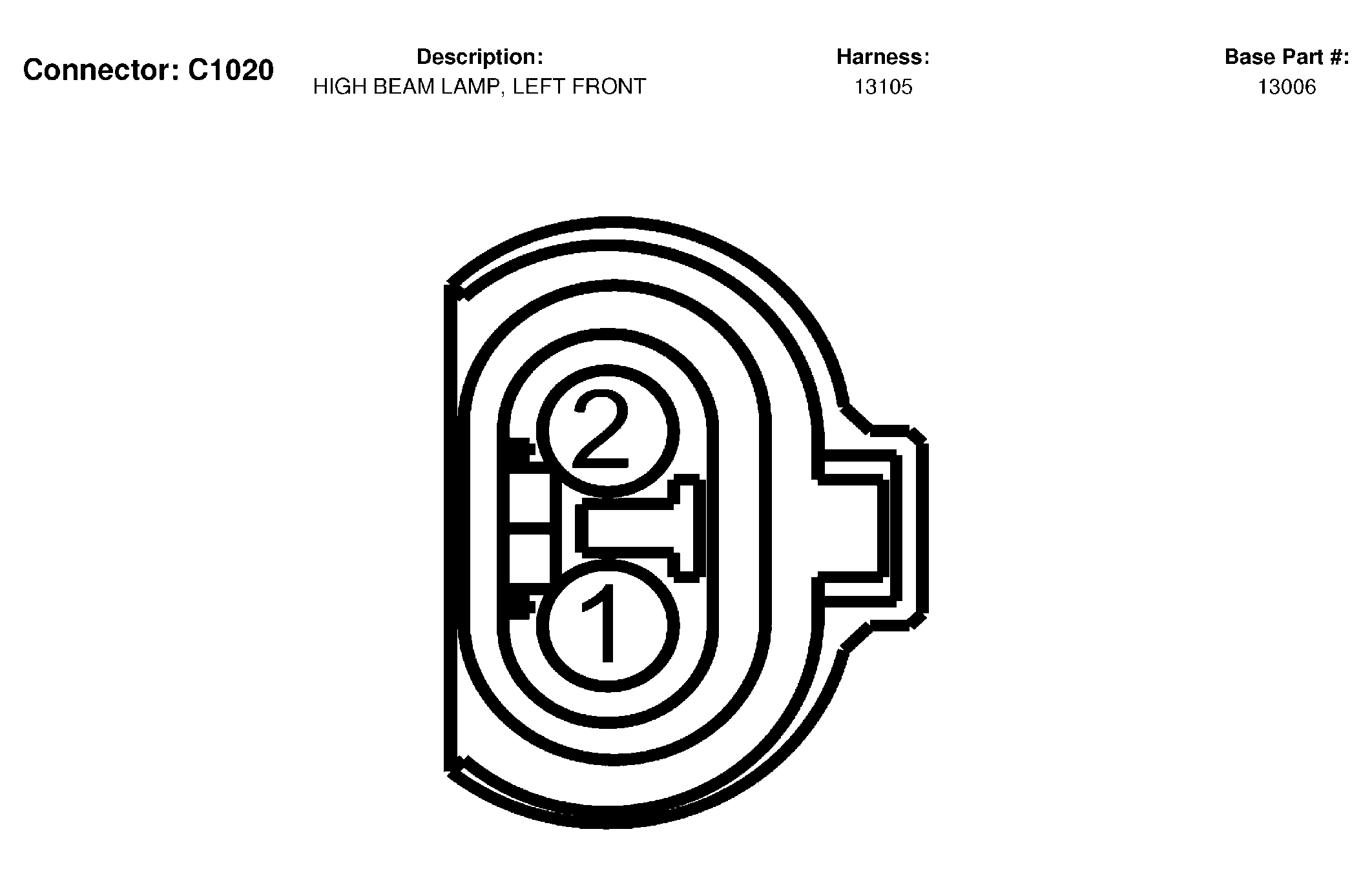

Fig 233: High Beam Lamp, Left Front Connector End View (C1020)

Courtesy of FORD MOTOR CO.

C1020 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1335 (YE-WH)	20	Headlamp, left high beam lamp feed
2	57 (BK)	20	Ground

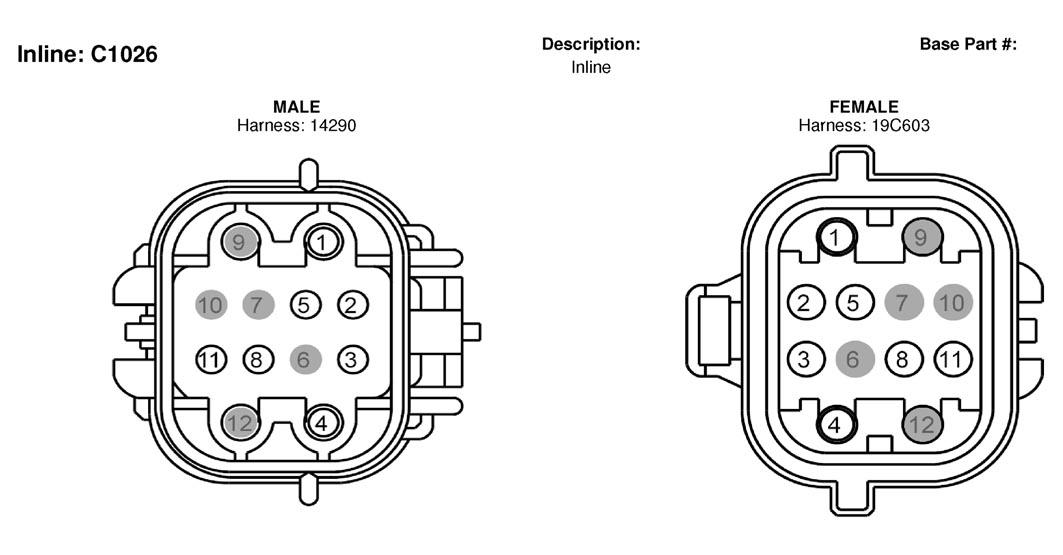

Fig 234: Inline Connector End View (C1026)

Courtesy of FORD MOTOR CO.

C1026 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	57 (BK)	10
2	754 (LG-WH)	20
3	752 (YE-RD)	20
4	371 (PK-WH)	10
5	260 (RD-OG)	20
6	*	*
7	*	*
8	359 (GY-RD)	20
9	*	*
10	*	*
11	3062 (BK-WH)	20
12	*	*

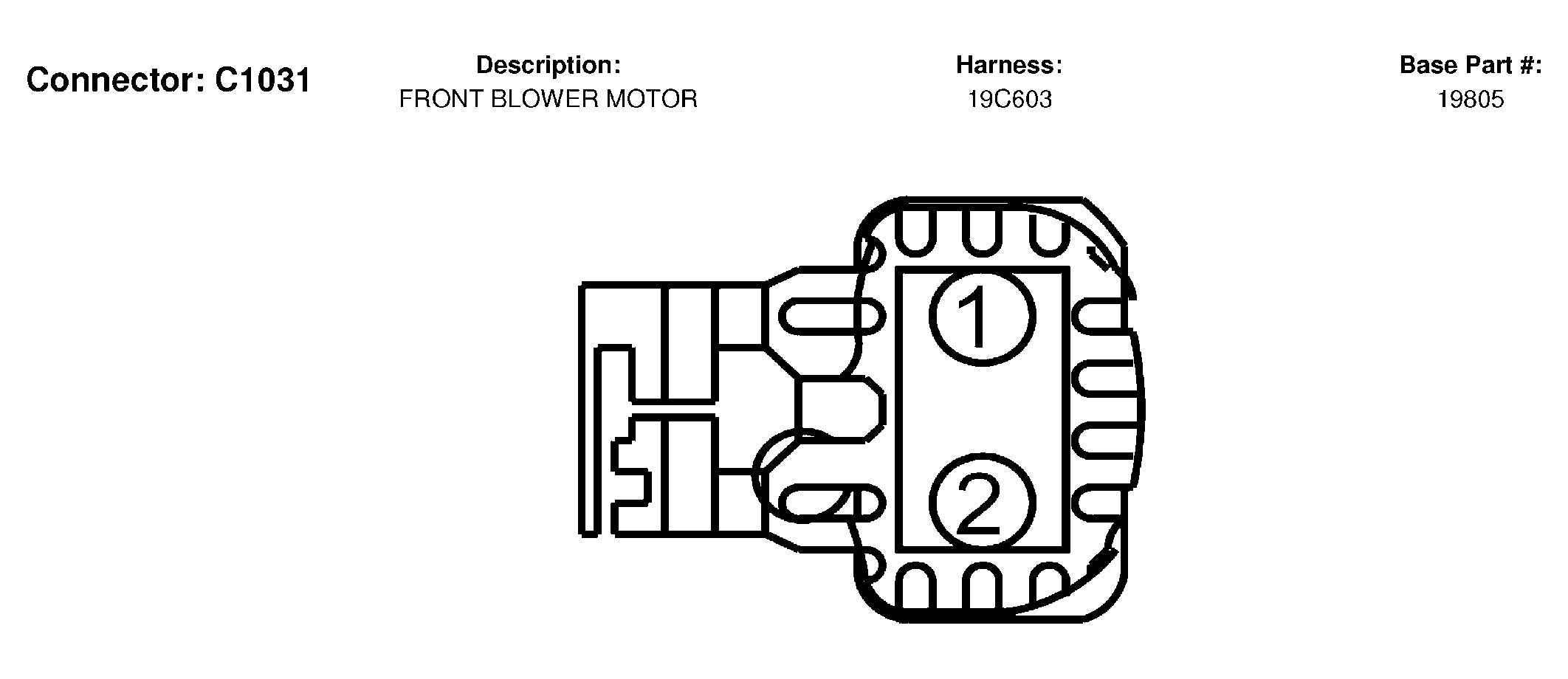

Fig 235: Front Blower Motor Connector End View (C1031)

Courtesy of FORD MOTOR CO.

C1031 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	371 (PK-WH)	10	Blower motor relay output
2	515 (OG-RD)	10	Front blower motor speed control

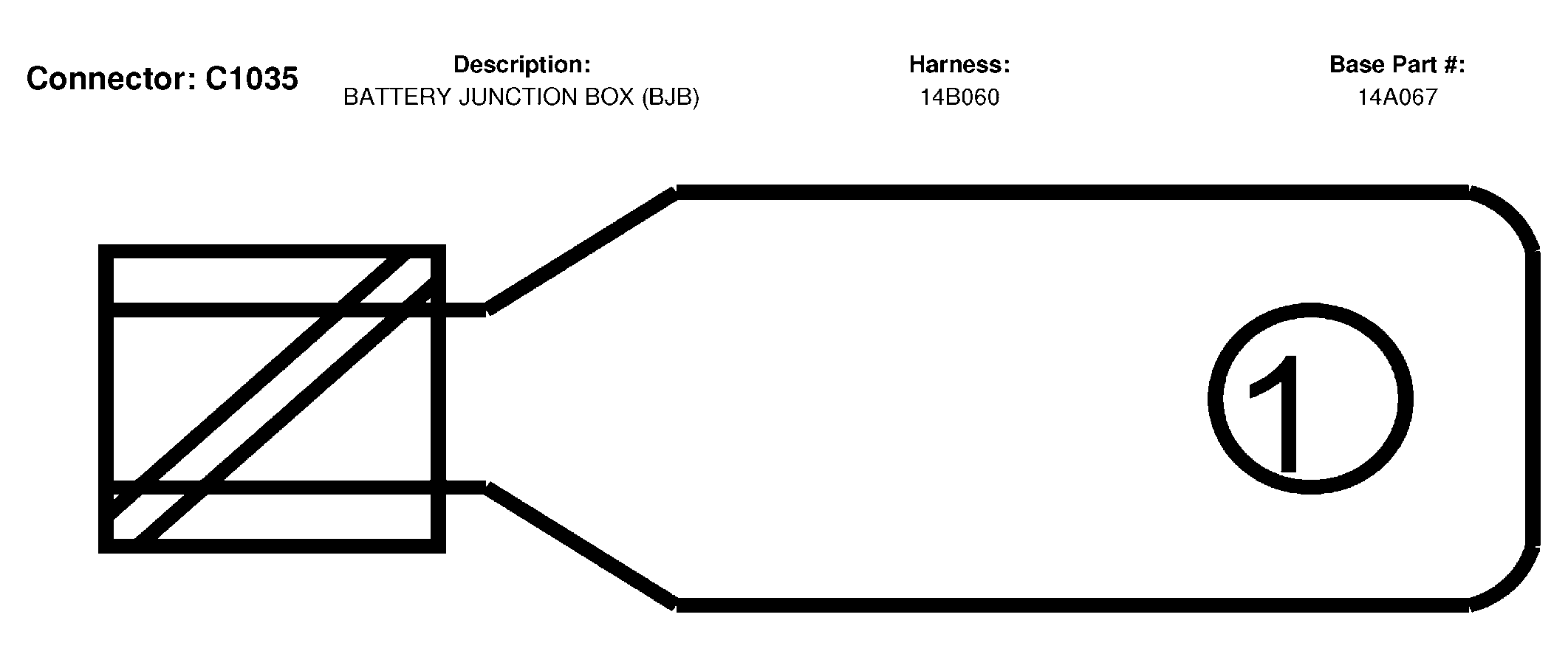

Fig 236: Battery Junction Box (BJB) Connector End View (C1035)

Courtesy of FORD MOTOR CO.

C1035 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	2037 (RD)	04	Battery cable +

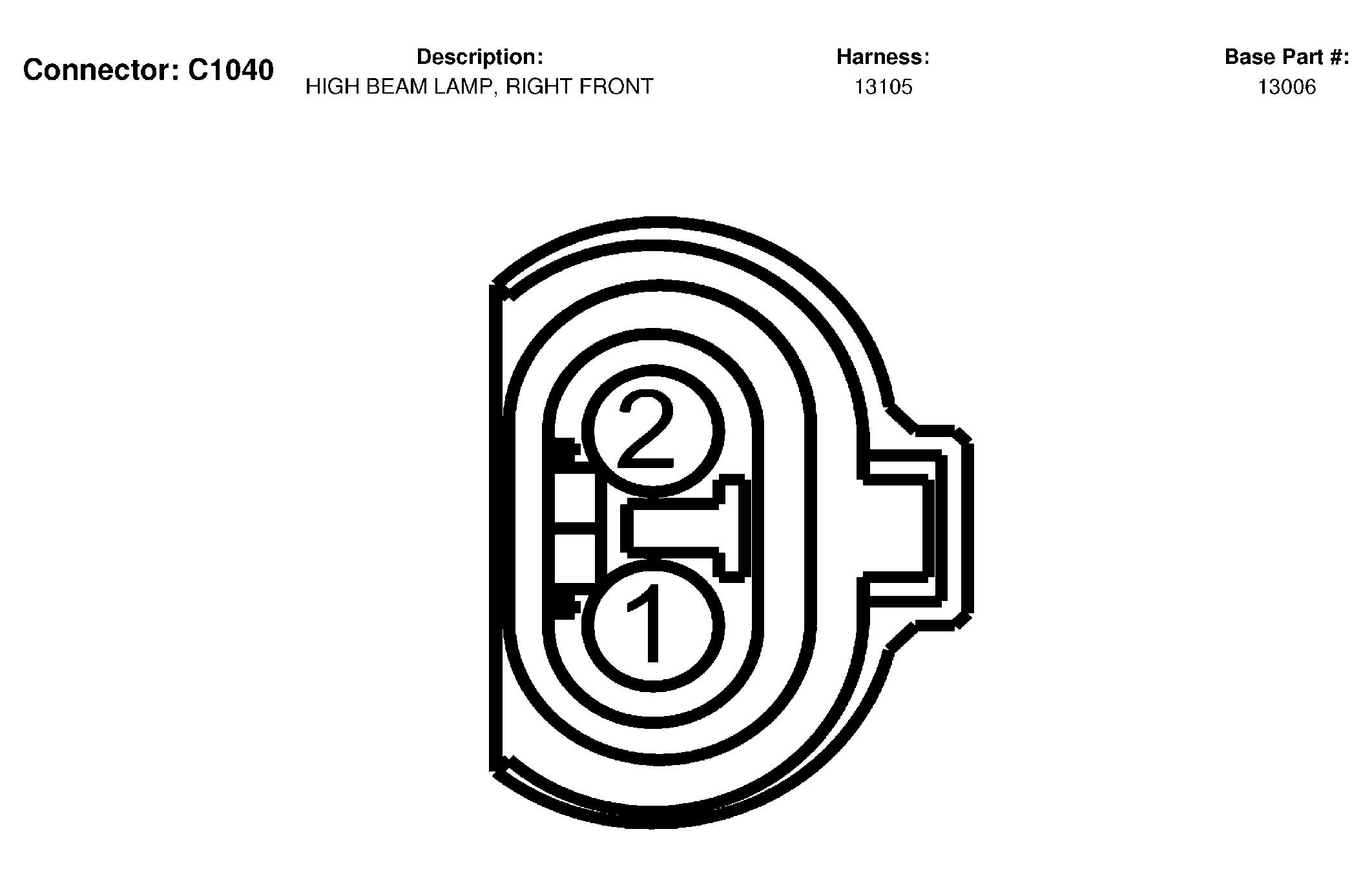

Fig 237: High Beam Lamp, Right Front Connector End View (C1040)

Courtesy of FORD MOTOR CO.

C1040 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1335 (YE-WH)	20	Headlamp, right high beam lamp feed
2	57 (BK)	20	Ground

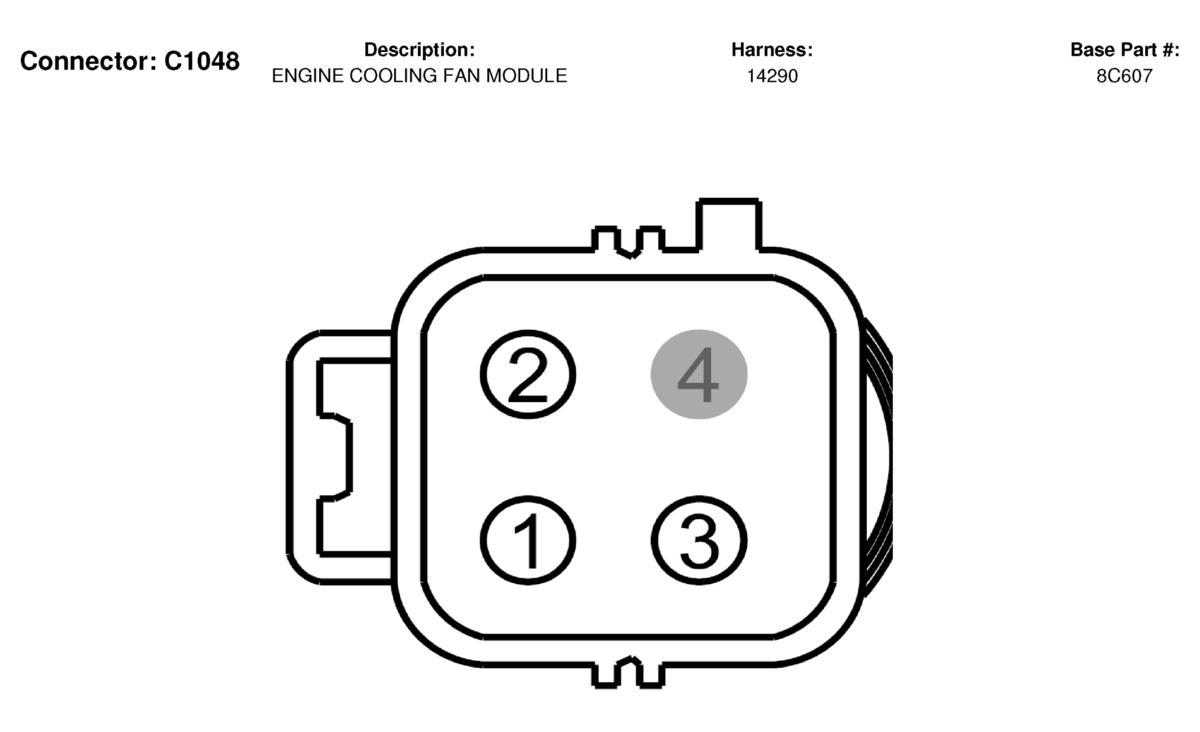

Fig 238: Engine Cooling Fan Module Connector End View (C1048)

Courtesy of FORD MOTOR CO.

C1048 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1153 (RD-BK)	10	Voltage supplied at all times (overload protected)
2	57 (BK)	10	Ground
3	229 (RD-OG)	20	Engine cooling fan motor control
4	*	*	not used

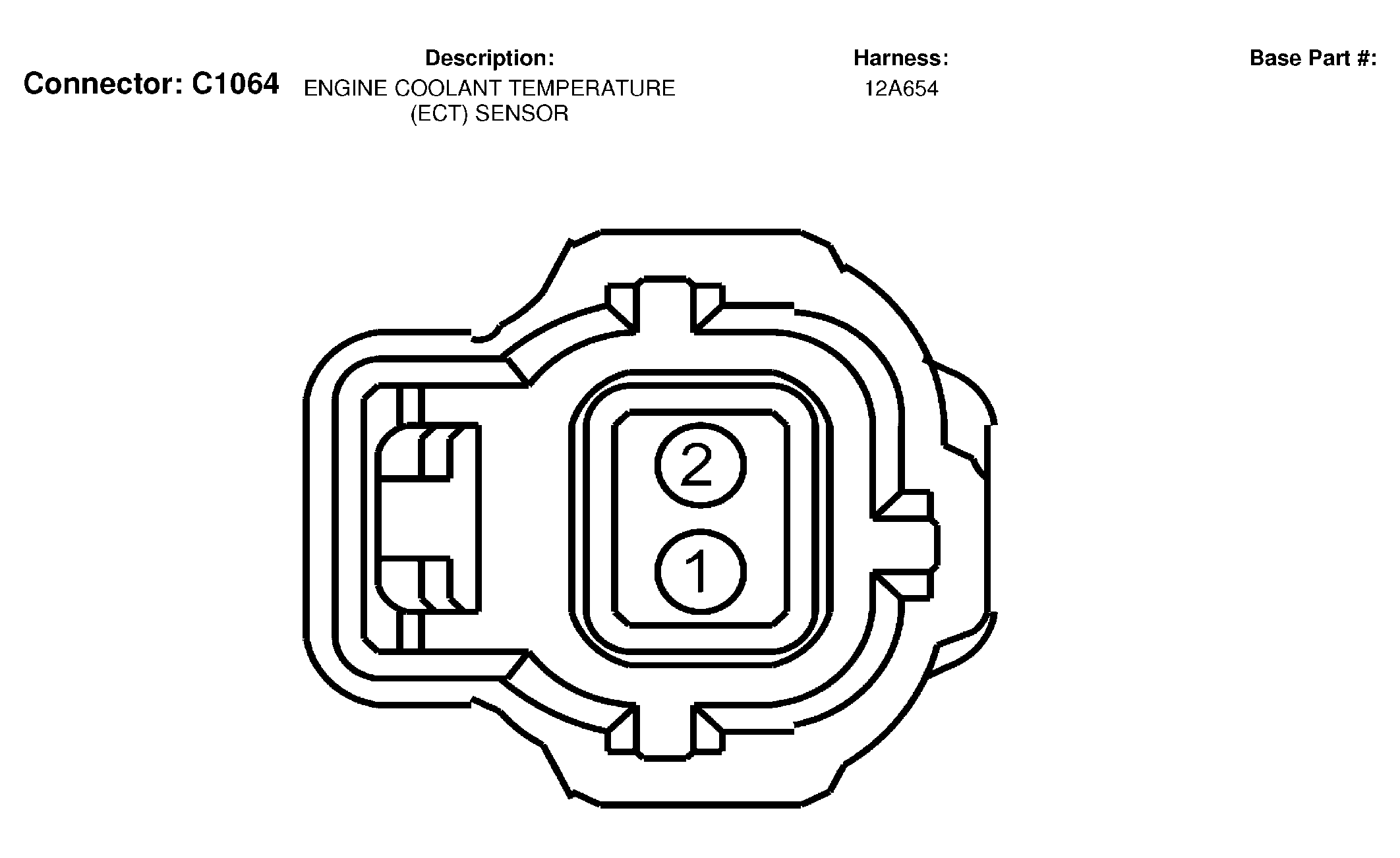

Fig 239: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

Courtesy of FORD MOTOR CO.

C1064 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	39 (RD-WH)	20	Not Used
2	676 (PK-OG)	20	Not Used

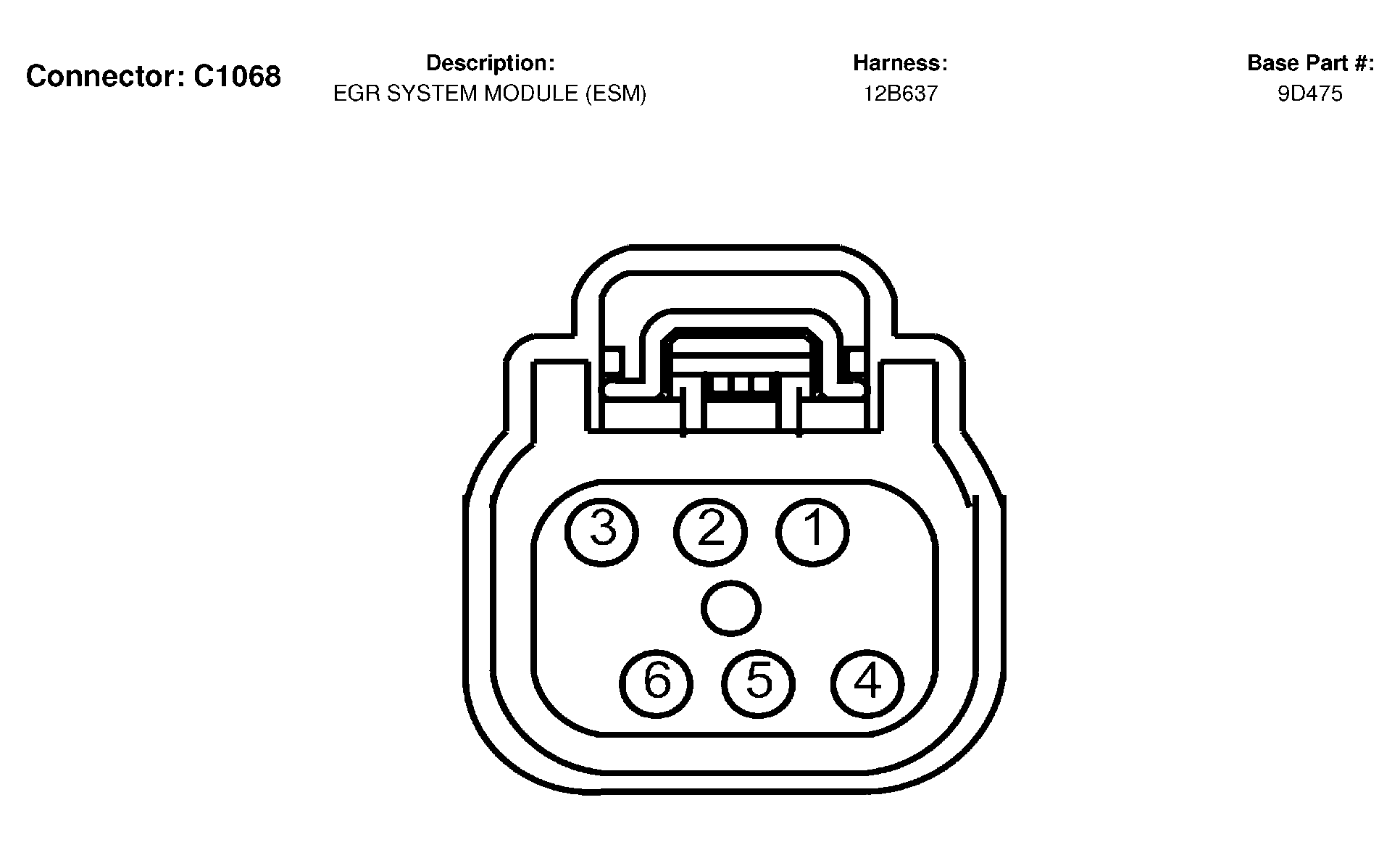

Fig 240: EGR System Module (ESM) Connector End View (C1068)

Courtesy of FORD MOTOR CO.

C1068 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	360 (BR-PK)	20	EVR solenoid signal
2	351 (BR-WH)	20	Reference voltage
3	3067 (LB-RD)	20	Manifold Absolute Pressure signal
4	391(RD-YE)	20	Voltage supplied in Start and Run (overload protected)
5	352 (BR-LG)	20	Differential Pressure Feedback EGR (DPFE) sensor signal
6	359 (GY-RD)	20	Signal return

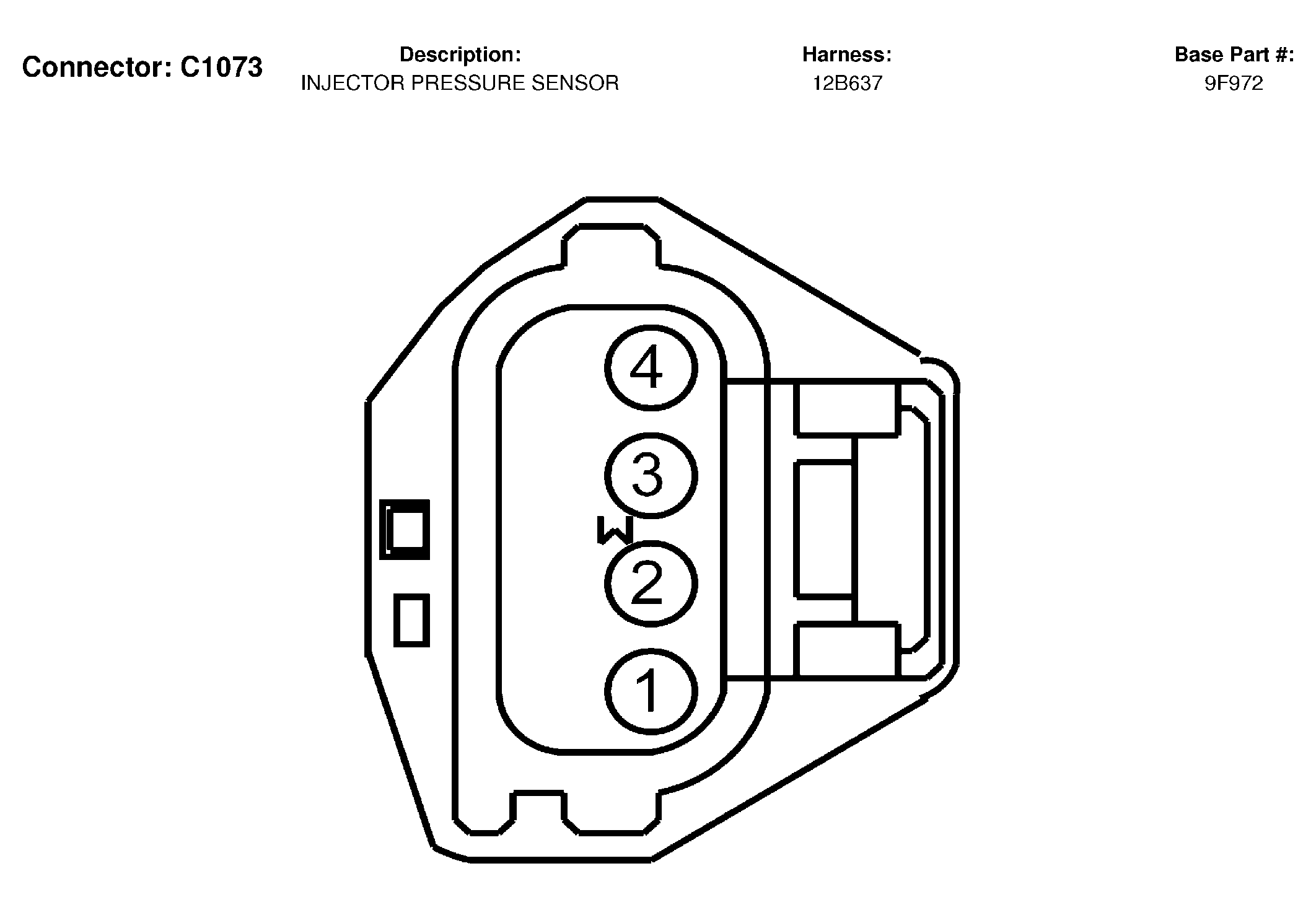

Fig 241: Injector Pressure Sensor Connector End View (C1073)

Courtesy of FORD MOTOR CO.

C1073 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	141 (RD-PK)	20	Fuel rail pressure signal
2	351 (BR-WH)	20	Reference voltage
3	1164 (LB)	20	Fuel rail temperature signal
4	359 (GY-RD)	20	Signal return

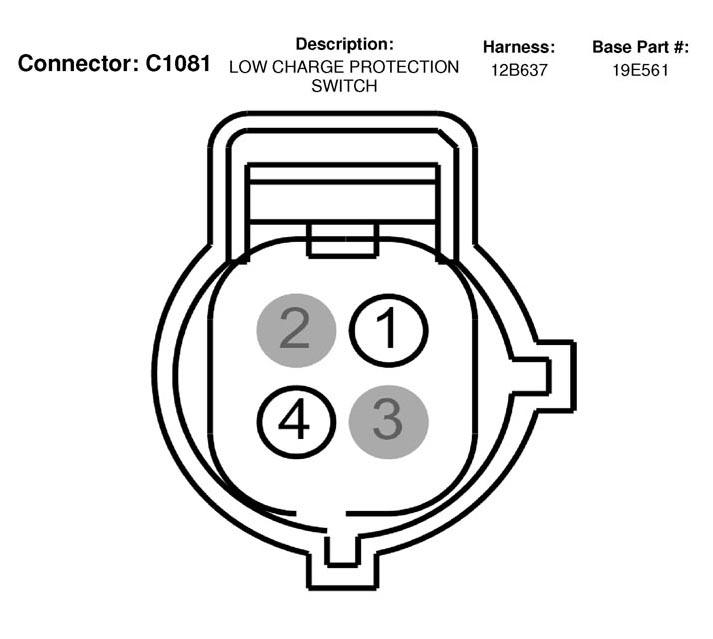

Fig 242: Low Charge Protection Switch Connector End View (C1081)

Courtesy of FORD MOTOR CO.

C1081 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	883 (PK-LB)	20	Low charge protection switch signal
2	*	*	not used
3	*	*	not used
4	348 (RD-VT)	20	Voltage supplied in Run (overload protected)

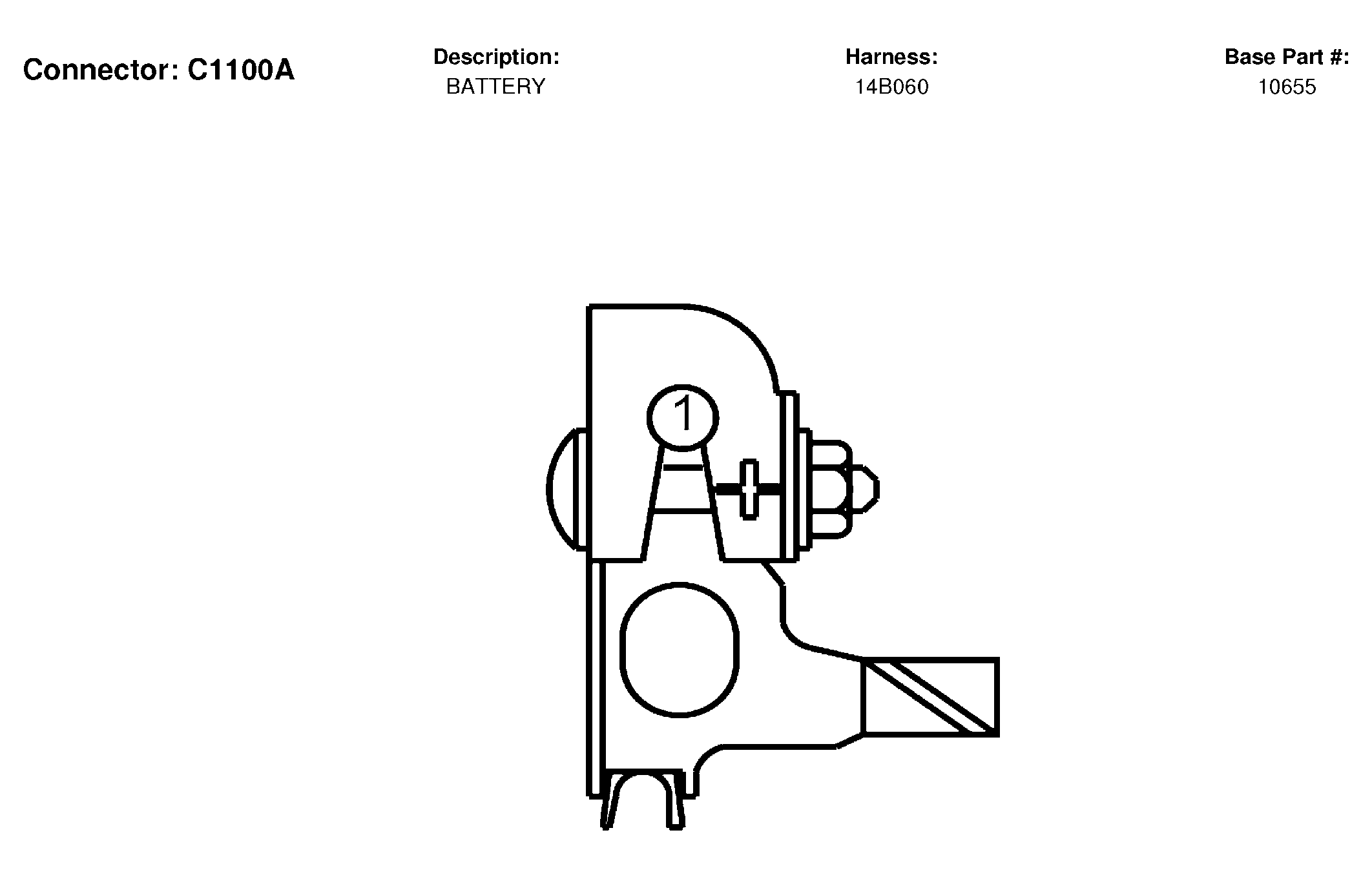

Fig 243: Battery Connector End View (C1100A)

Courtesy of FORD MOTOR CO.

C1100A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	2037 (RD)	04	Battery cable +
1	2037 (RD)	04	Battery cable +
1	2037 (RD)	06	Battery cable +

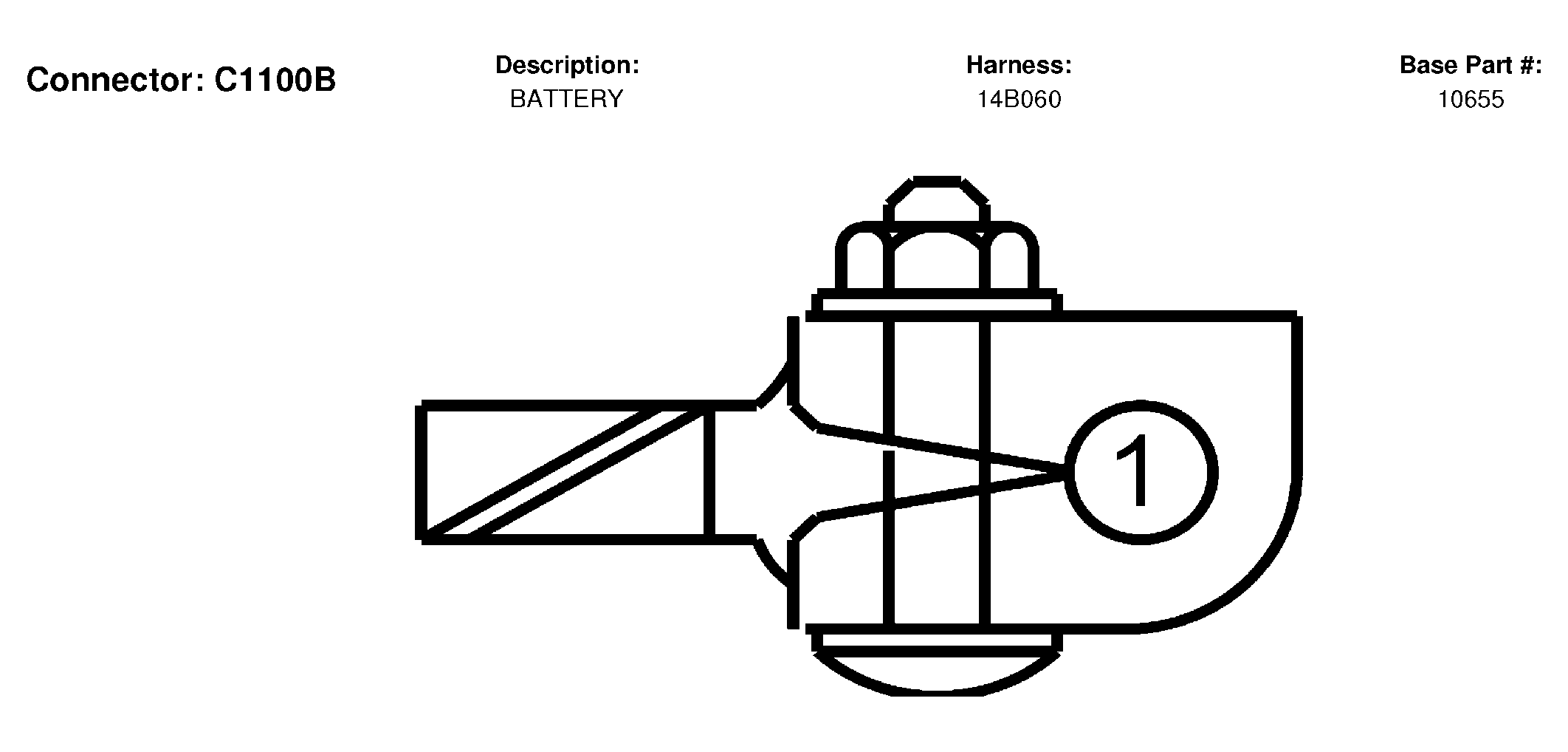

Fig 244: Battery Connector End View (C1100B)

Courtesy of FORD MOTOR CO.

C1100B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	2057 (BK)	04	Battery cable -
1	2057 (BK)	04	Battery cable -

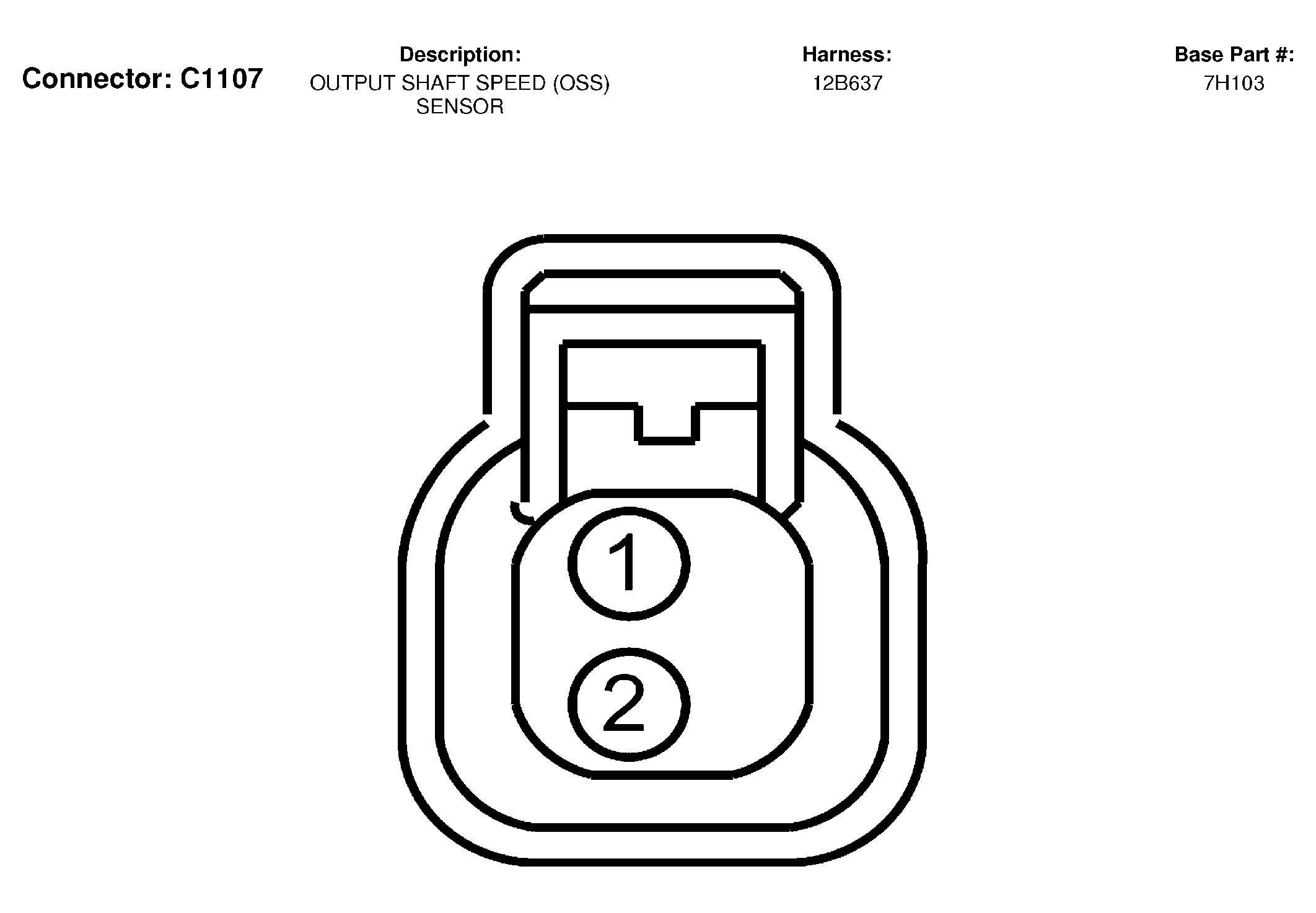

Fig 245: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

Courtesy of FORD MOTOR CO.

C1107 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	359 (GY-RD)	20	Signal return
2	136 (DB-YE)	20	Output Shaft Speed (OSS) sensor signal

Fig 246: Low Beam Lamp, Left Front Connector End View (C1111)

Courtesy of FORD MOTOR CO.

C1111 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	16	Ground
2	161 (DG-OG)	16	Headlamp, left low beam lamp feed

Fig 247: Low Beam Lamp, Right Front Connector End View (C1112)

Courtesy of FORD MOTOR CO.

C1112 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	16	Ground
2	161 (DG-OG)	16	Headlamp, right low beam lamp feed

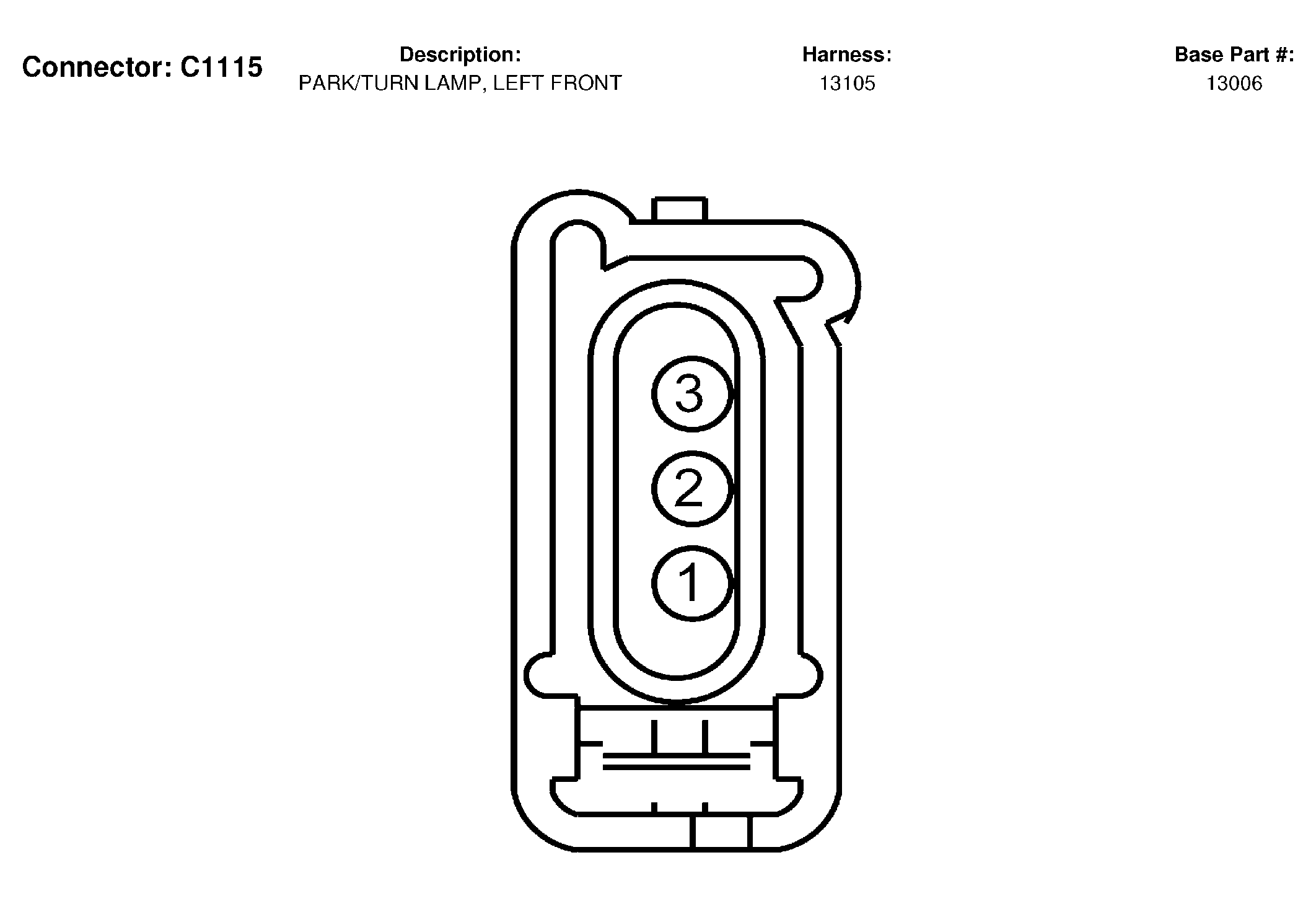

Fig 248: Park/Turn Lamp, Left Front Connector End View (C1115)

Courtesy of FORD MOTOR CO.

C1115 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	2 (WH-LB)	20	Left turn signal

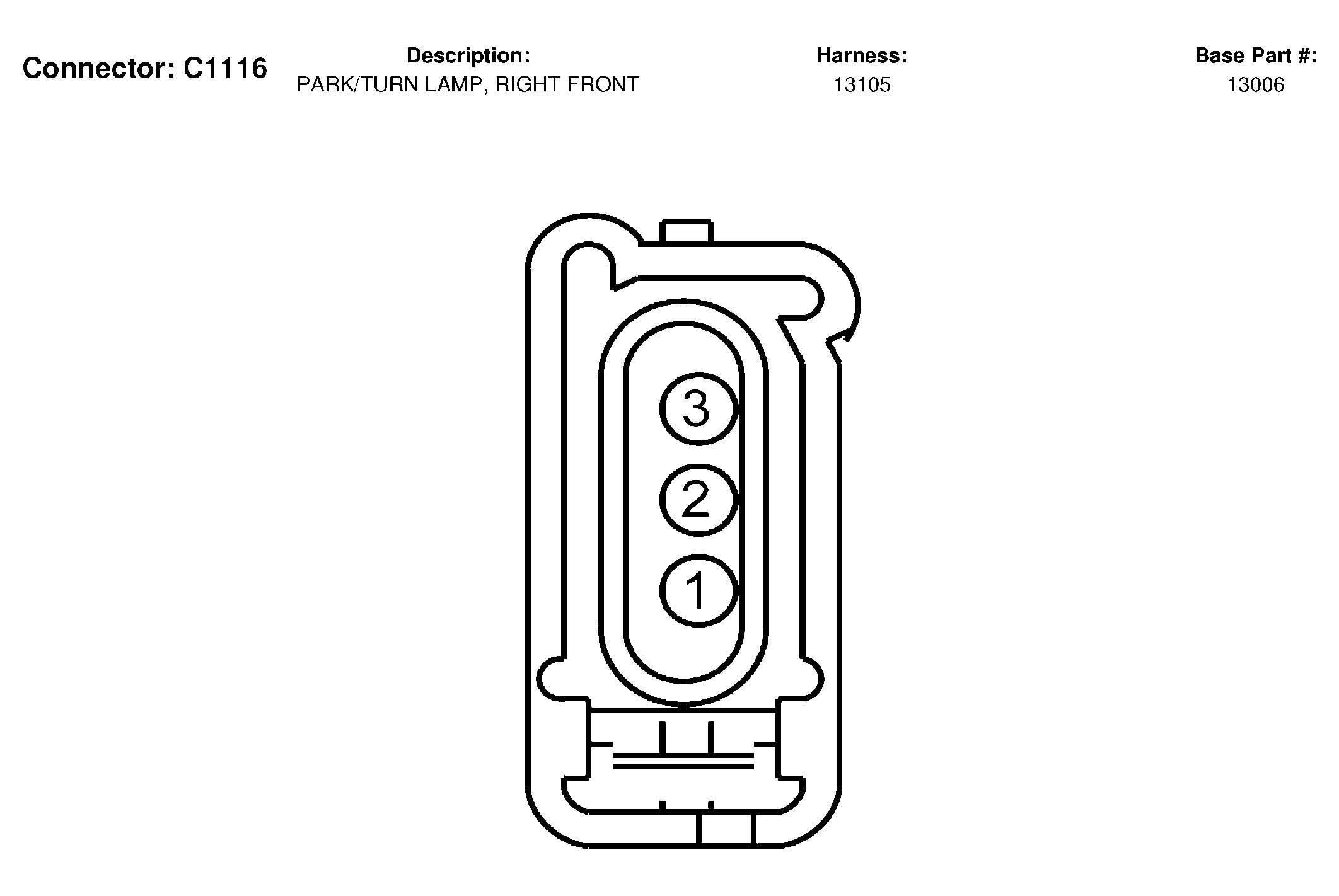

Fig 249: Park/Turn Lamp, Right Front Connector End View (C1116)

Courtesy of FORD MOTOR CO.

C1116 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps
3	2 (WH-LB)	20	Right turn signal

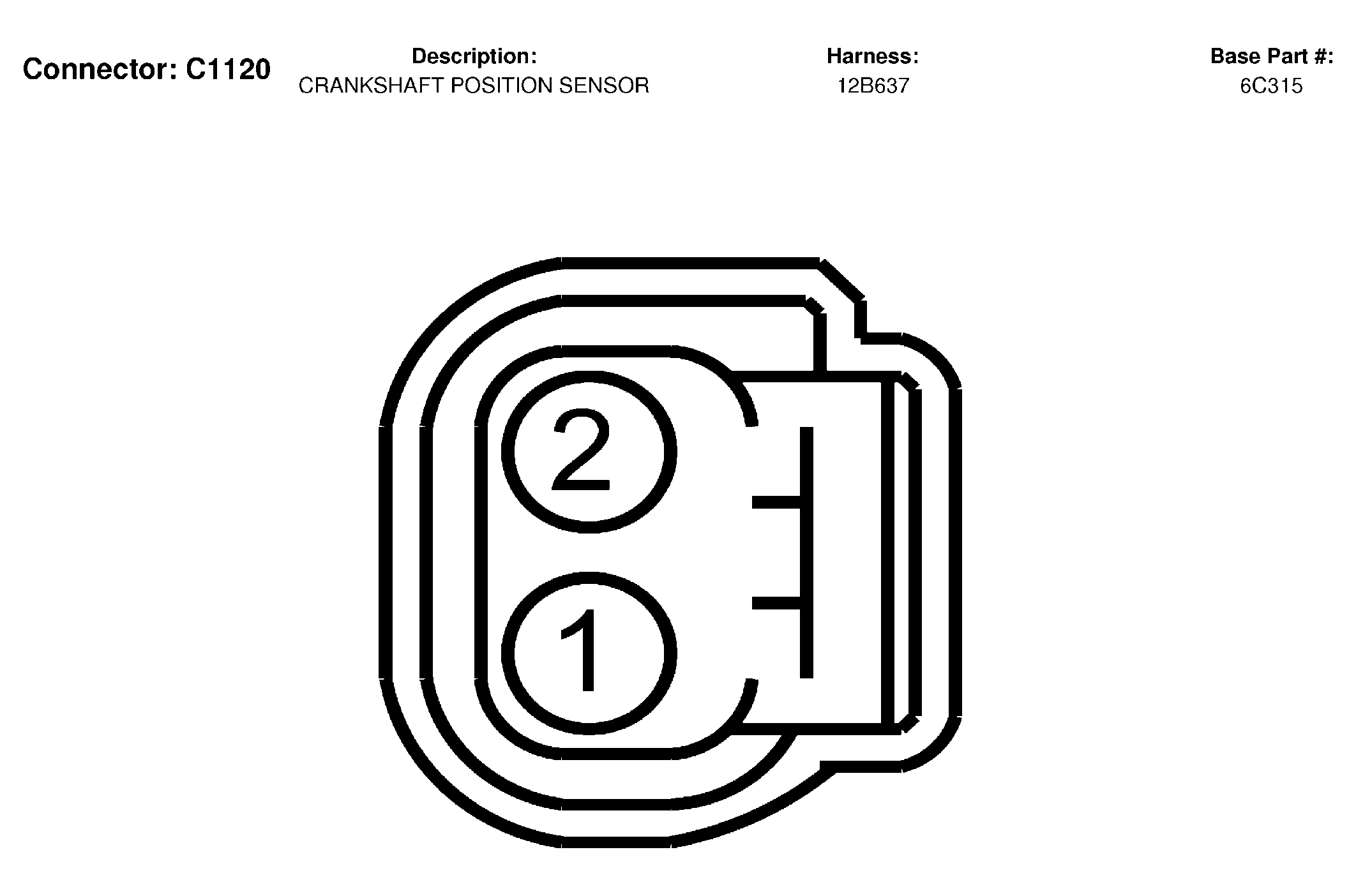

Fig 250: Crankshaft Position Sensor Connector End View (C1120)

Courtesy of FORD MOTOR CO.

C1120 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	139 (GY-YE)	20	Crankshaft position sensor -
2	138 (BK-PK)	20	Crankshaft position sensor +

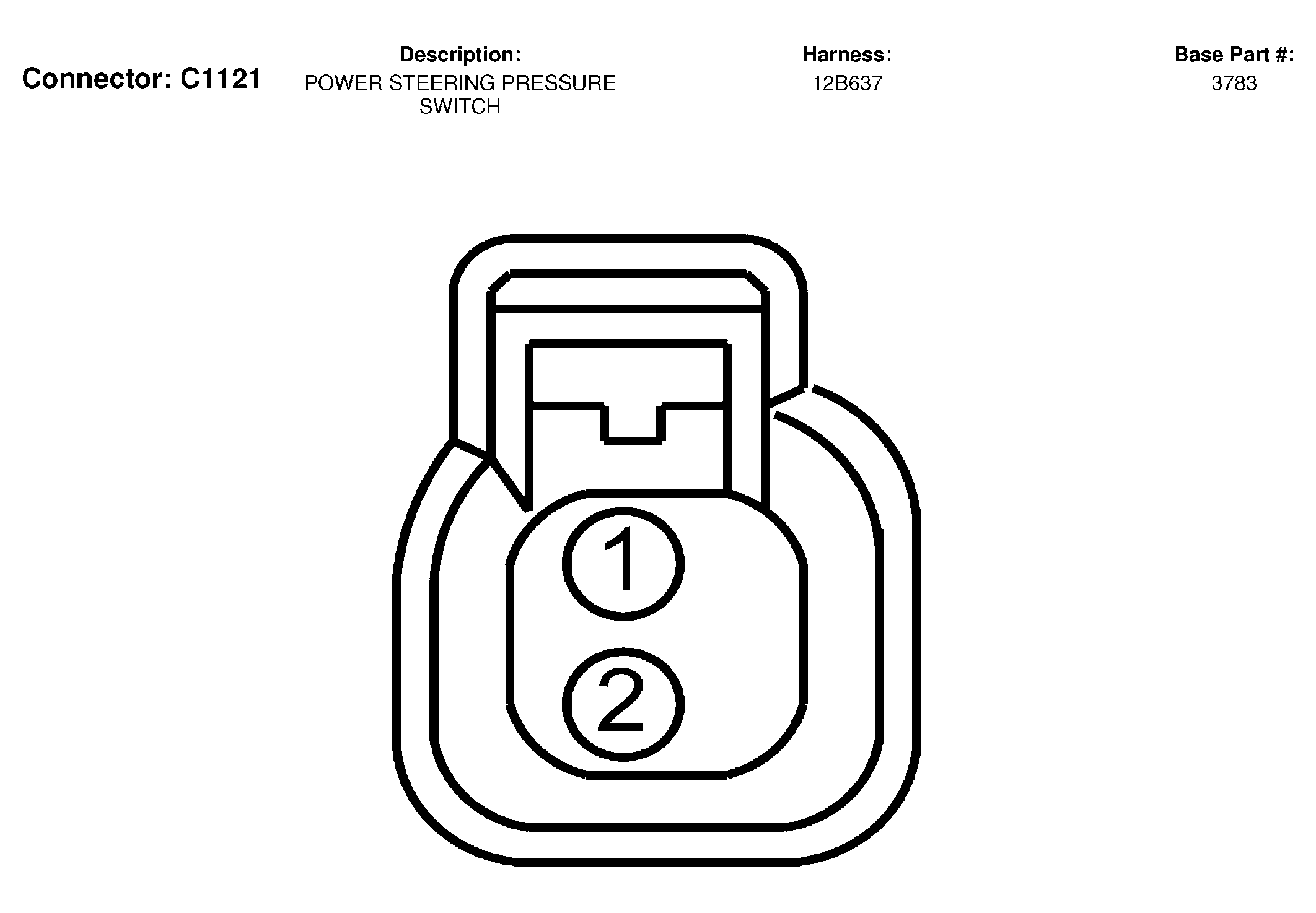

Fig 251: Power Steering Pressure Switch Connector End View (C1121)

Courtesy of FORD MOTOR CO.

C1121 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	330 (YE-LG)	20	Power steering pressure switch signal
2	359 (GY-RD)	20	Signal return

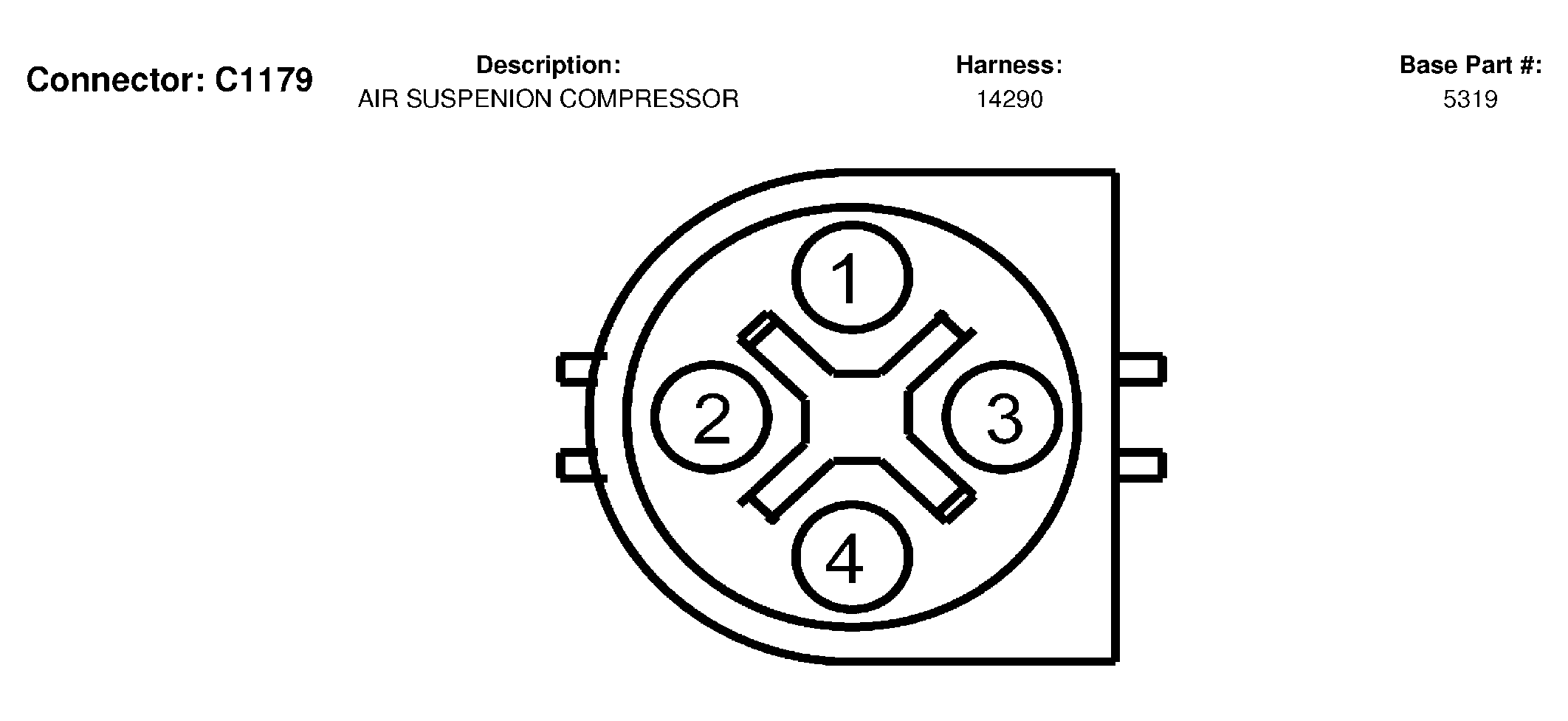

Fig 252: Air Suspension Compressor Connector End View (C1179)

Courtesy of FORD MOTOR CO.

C1179 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	12	Ground
2	538 (GY-RD)	12	Air suspension compressor relay output
3	57 (BK)	18	Ground
4	421 (PK)	14	Air suspension compressor, vent

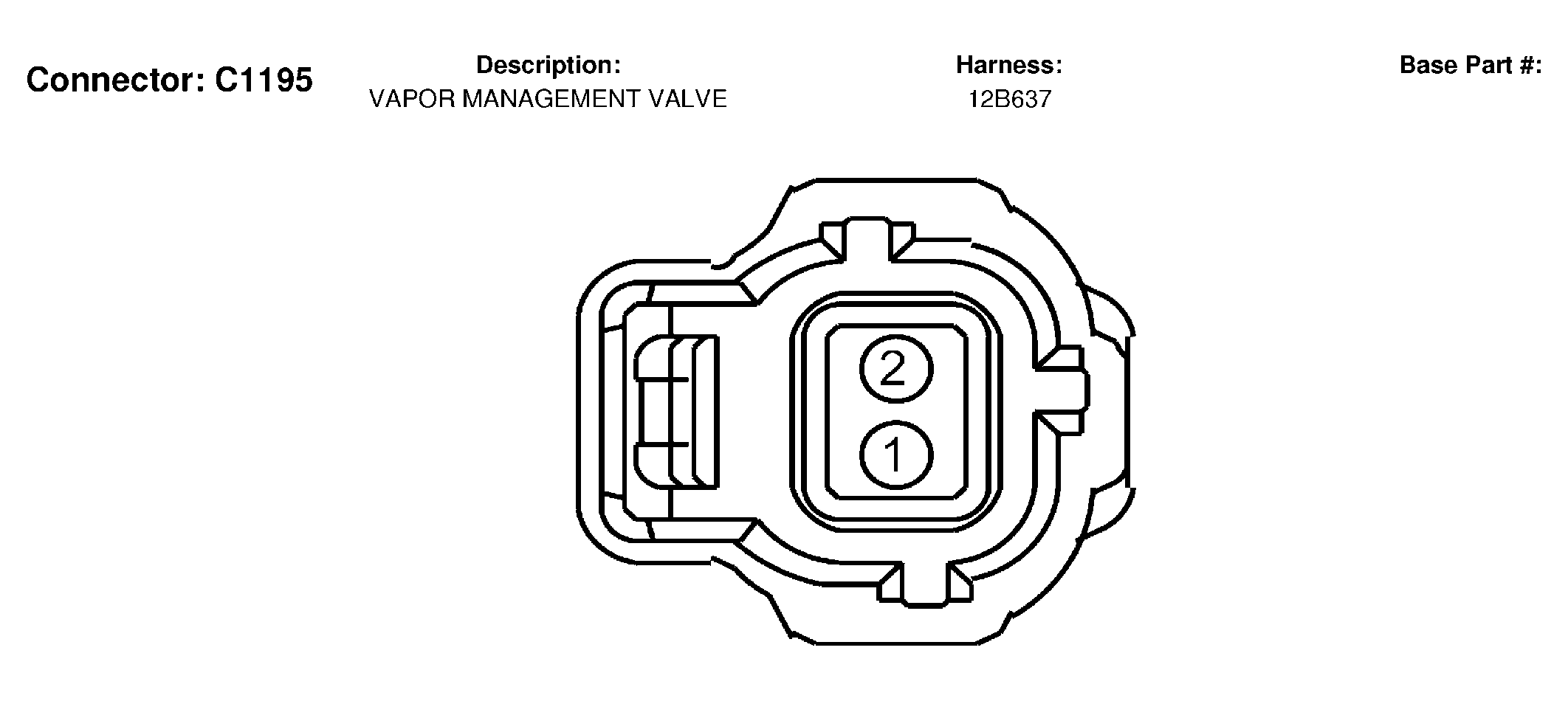

Fig 253: Vapor Management Valve Connector End View (C1195)

Courtesy of FORD MOTOR CO.

C1195 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
2	191 (LG-BK)	20	Vapor management valve control

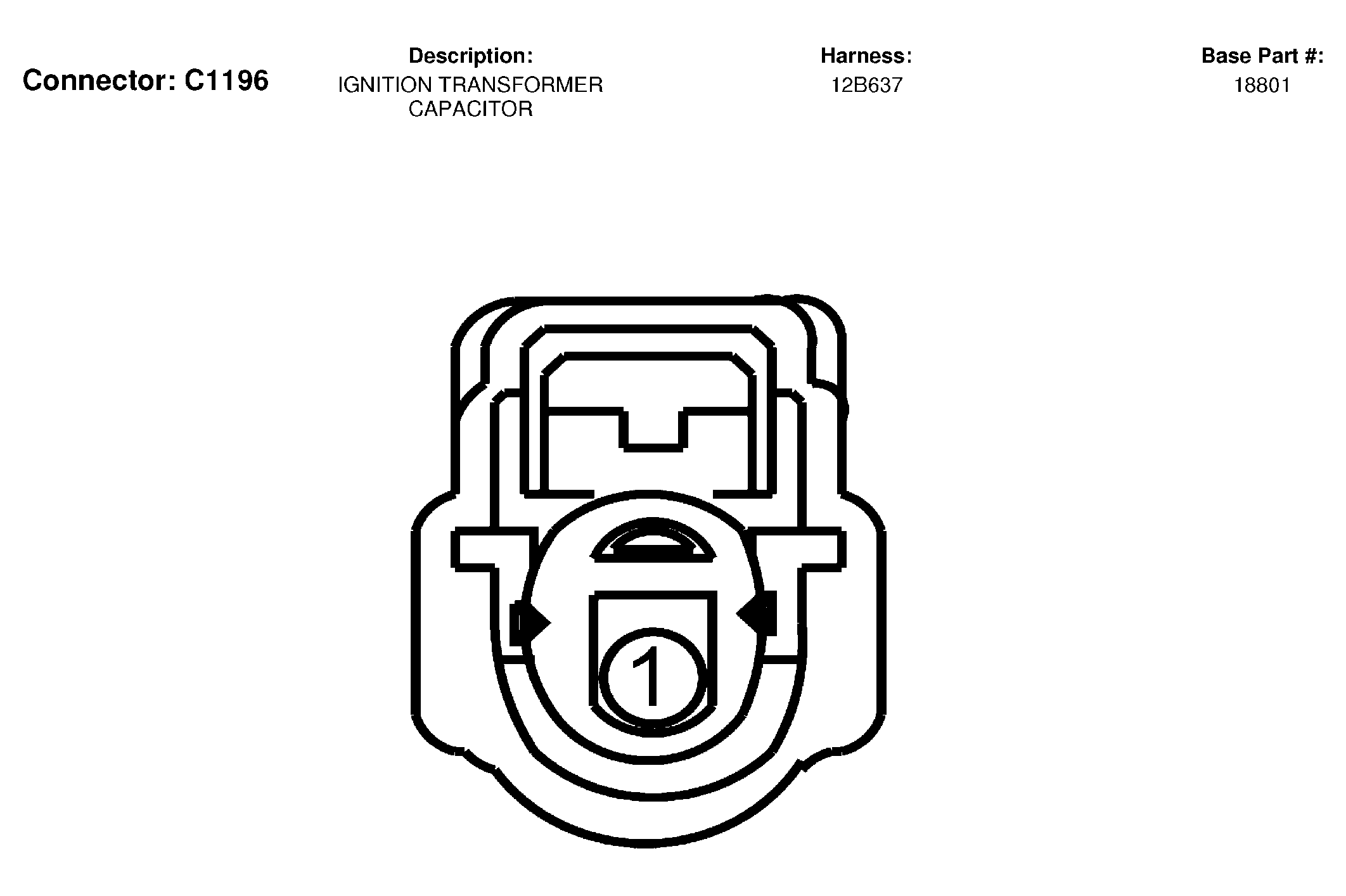

Fig 254: Ignition Transformer Capacitor Connector End View (C1196)

Courtesy of FORD MOTOR CO.

C1196 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1118 (RD)	20	Ignition coils relay output

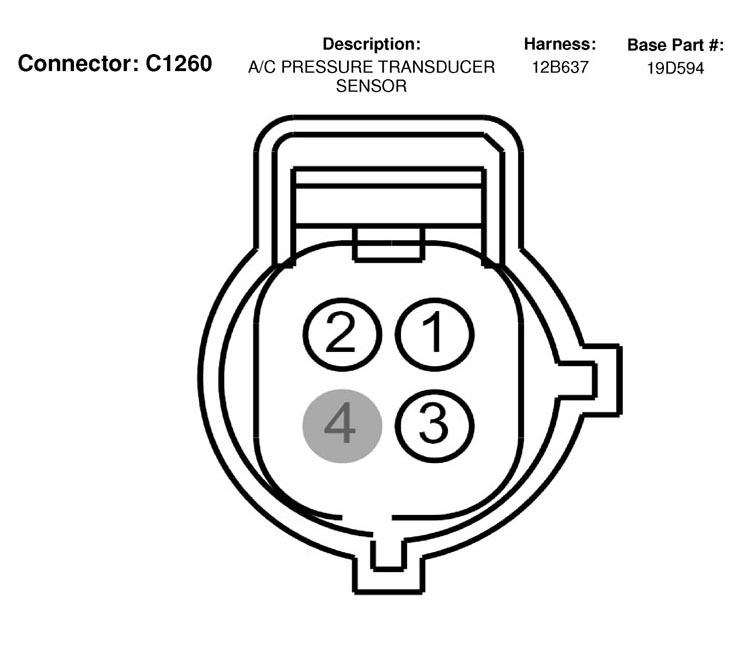

Fig 255: A/C Pressure Transducer Sensor Connector End View (C1260)

Courtesy of FORD MOTOR CO.

C1260 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	359 (GY-RD)	20	Signal return
2	351 (BR-WH)	20	Reference voltage
3	1154 (WH-BK)	20	A/C pressure transducer sensor signal
4	*	*	not used

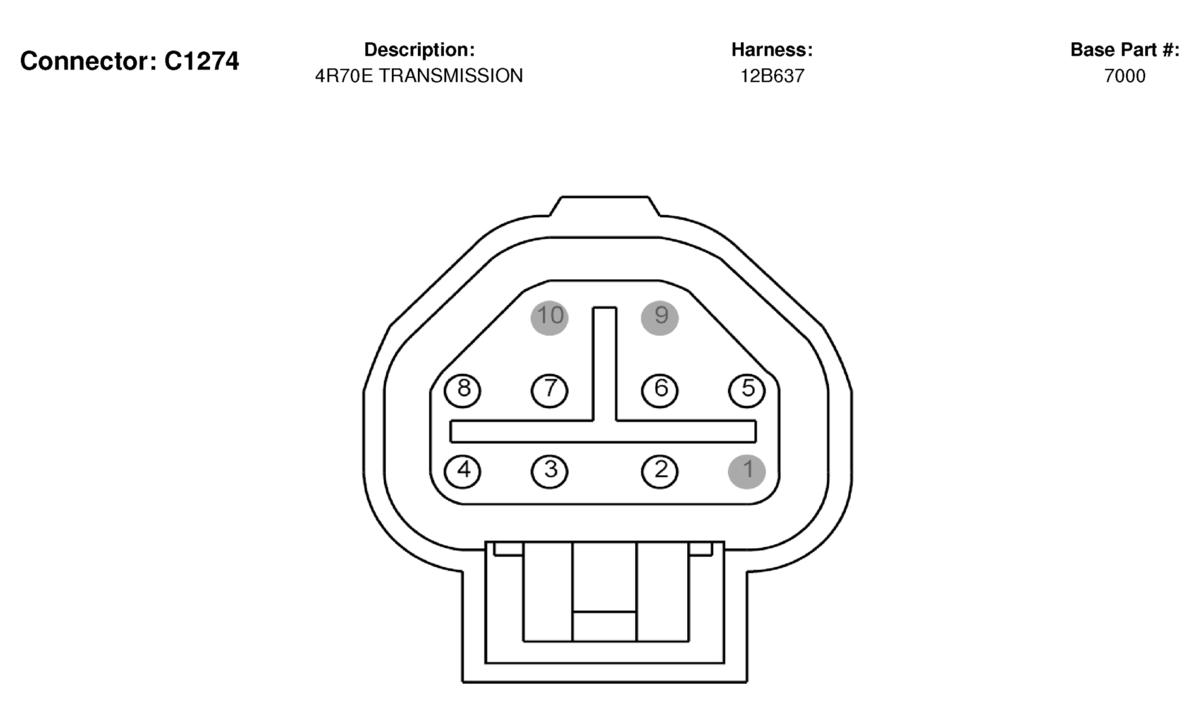

Fig 256: 4R70E Transmission Connector End View (C1274)

Courtesy of FORD MOTOR CO.

C1274 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	359 (GY-RD)	20	Signal Return
3	126 (VT-YE)	20	Torque Converter Clutch (TCC) solenoid control
4	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
5	923 (OG-BK)	20	Transmission Fluid Temperature (TFT) sensor signal
6	925 (WH-YE)	20	Electronic pressure control (EPC) solenoid control
7	237 (OG-YE)	20	Shift solenoid A control
8	315 (VT-OG)	20	Shift solenoid B control
9	*	*	not used
10	*	*	not used

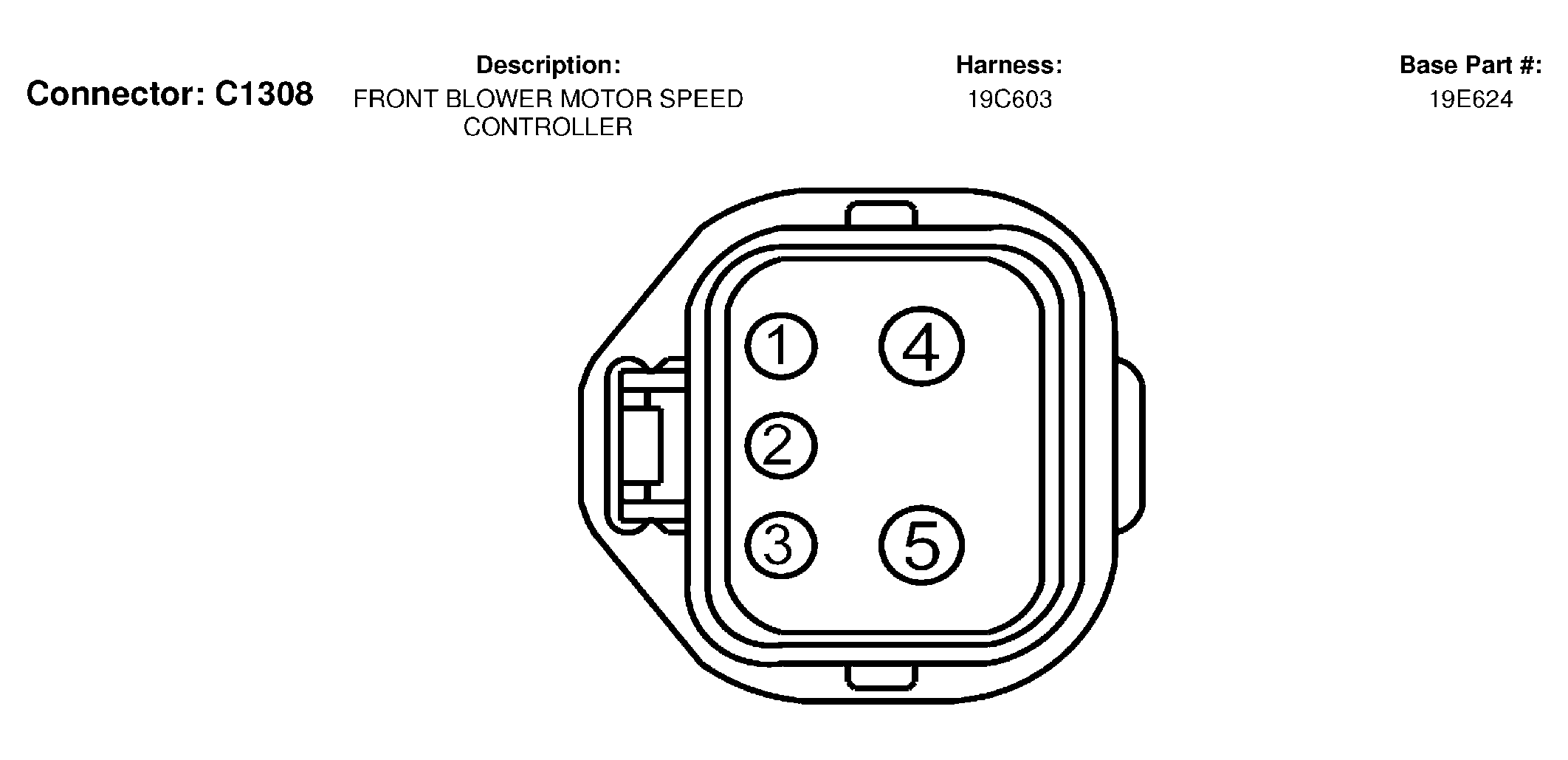

Fig 257: Front Blower Motor Speed Controller Connector End View (C1308)

Courtesy of FORD MOTOR CO.

C1308 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	260 (RD-OG)	20	Blower motor speed control, feed back signal
2	752 (YE-RD)	20	Blower motor speed control, common
3	754 (LG-WH)	20	Blower motor speed control, high
4	515 (OG-RD)	10	Front blower motor speed control
5	57 (BK)	10	Ground

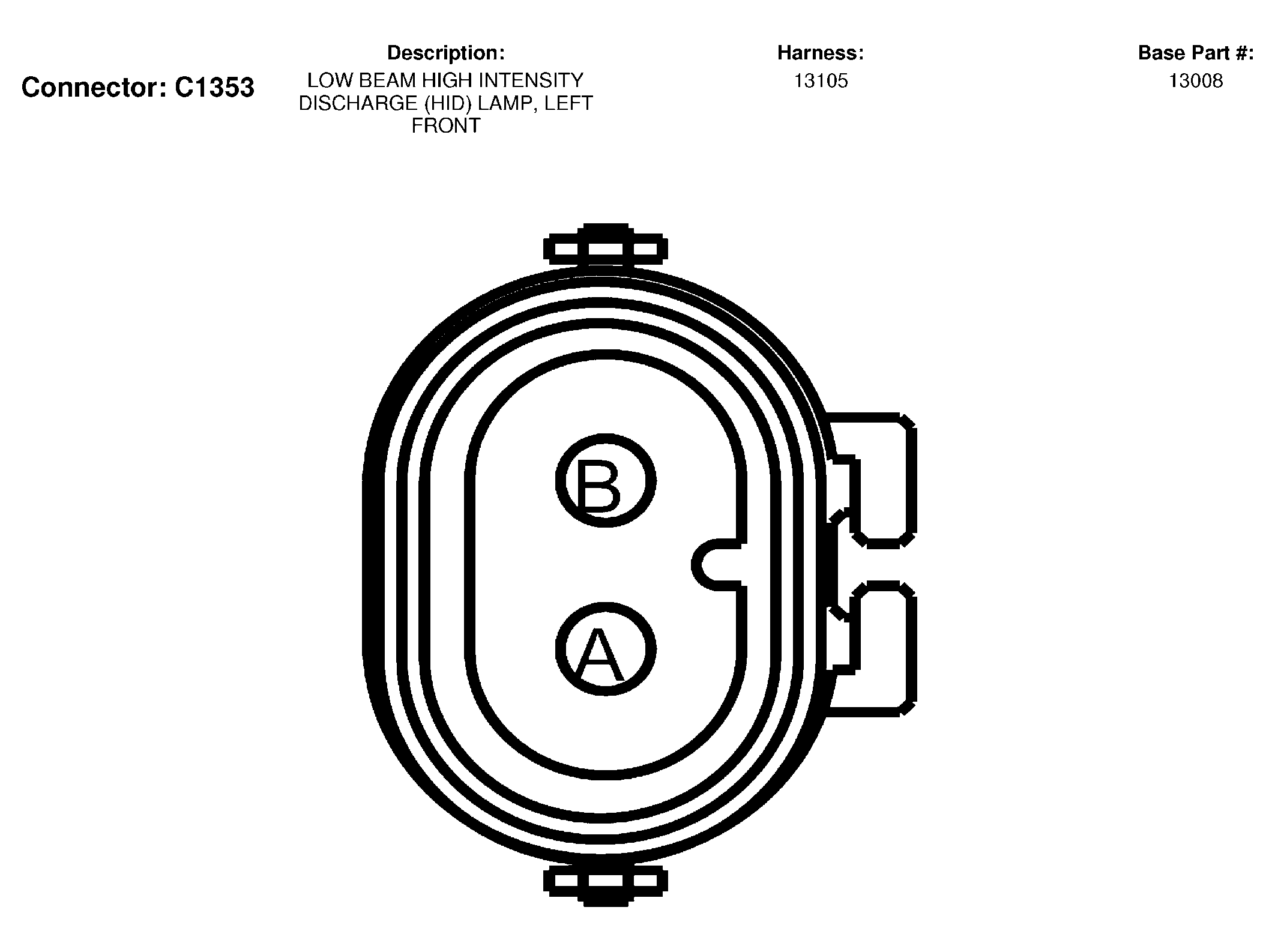

Fig 258: Low Beam High Intensity Discharge (HID) Lamp, Left Front Connector End View (C1353)

Courtesy of FORD MOTOR CO.

C1353 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
B	57 (BK)	20	Ground
A	161 (DG-OG)	20	Headlamp, left low beam lamp feed

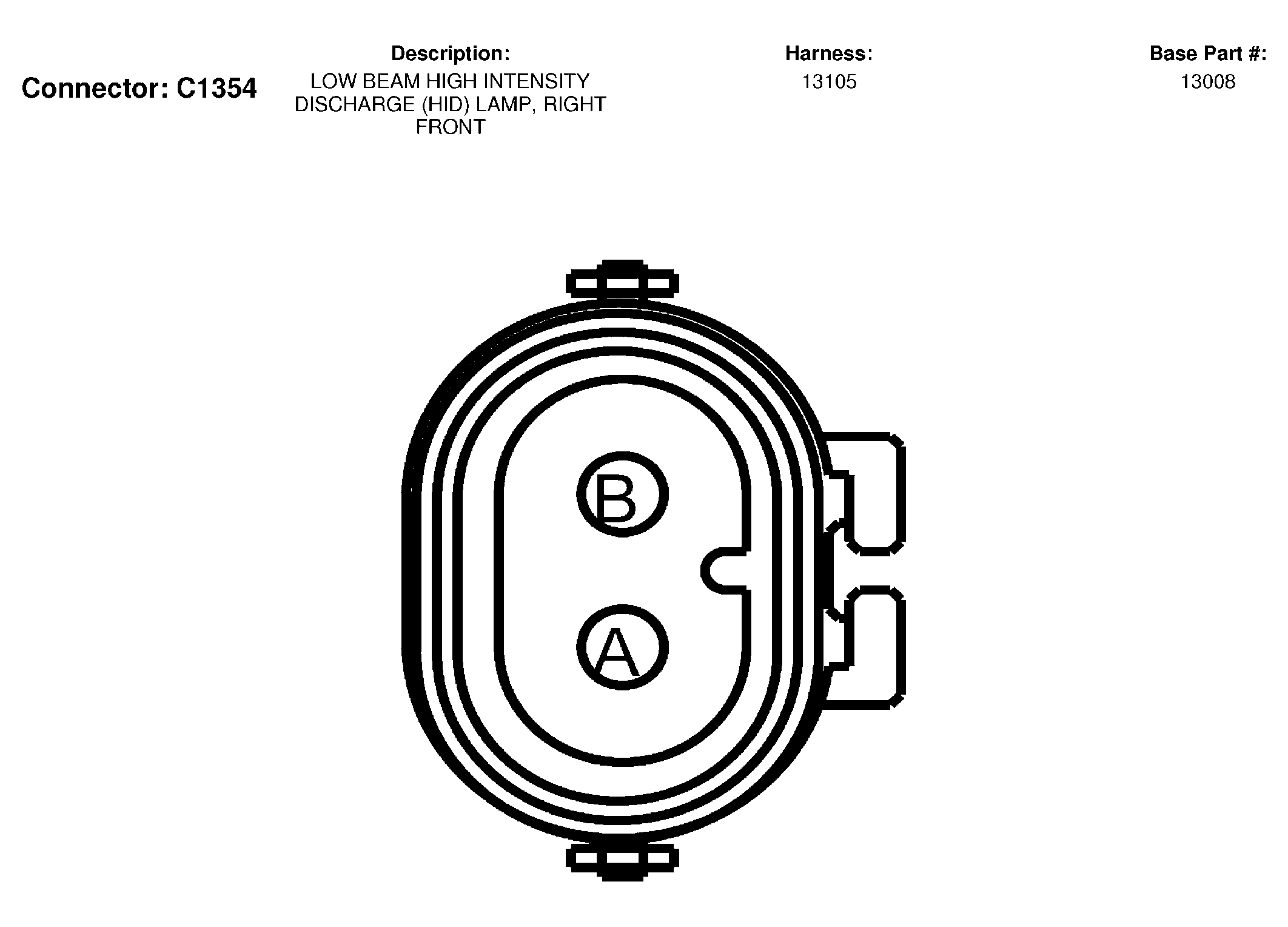

Fig 259: Low Beam High Intensity Discharge (HID) Lamp, Left Front Connector End View (C1354)

Courtesy of FORD MOTOR CO.

C1354 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
B	57 (BK)	20	Ground
A	161 (DG-OG)	20	Headlamp, right low beam lamp feed

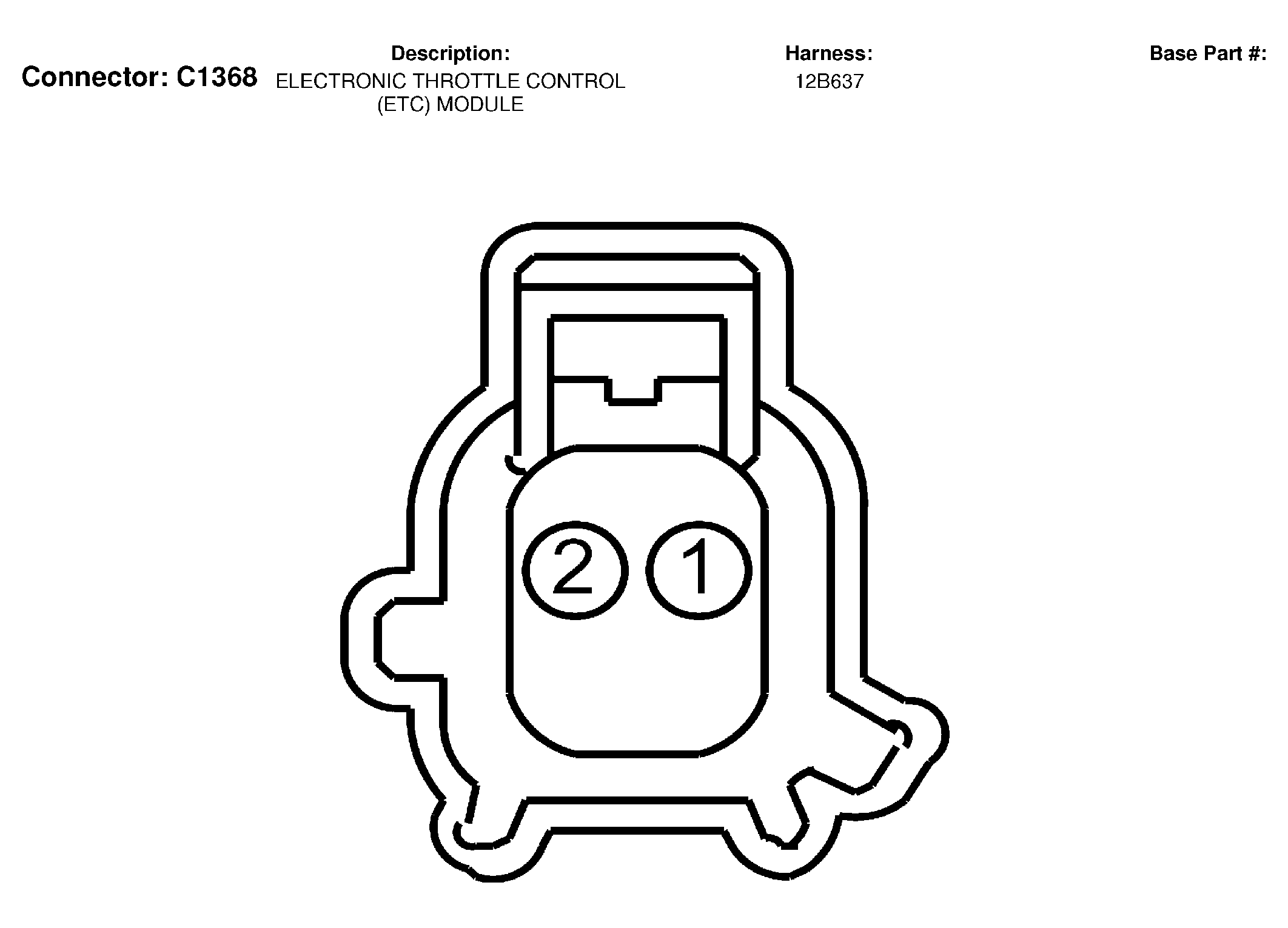

Fig 260: Electronic Throttle Control (ETC) Module Connector End View (C1368)

Courtesy of FORD MOTOR CO.

C1368 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1835 (DB-YE)	18	Throttle actuator control motor +
2	1836 (OG-YE)	18	Throttle actuator control motor -

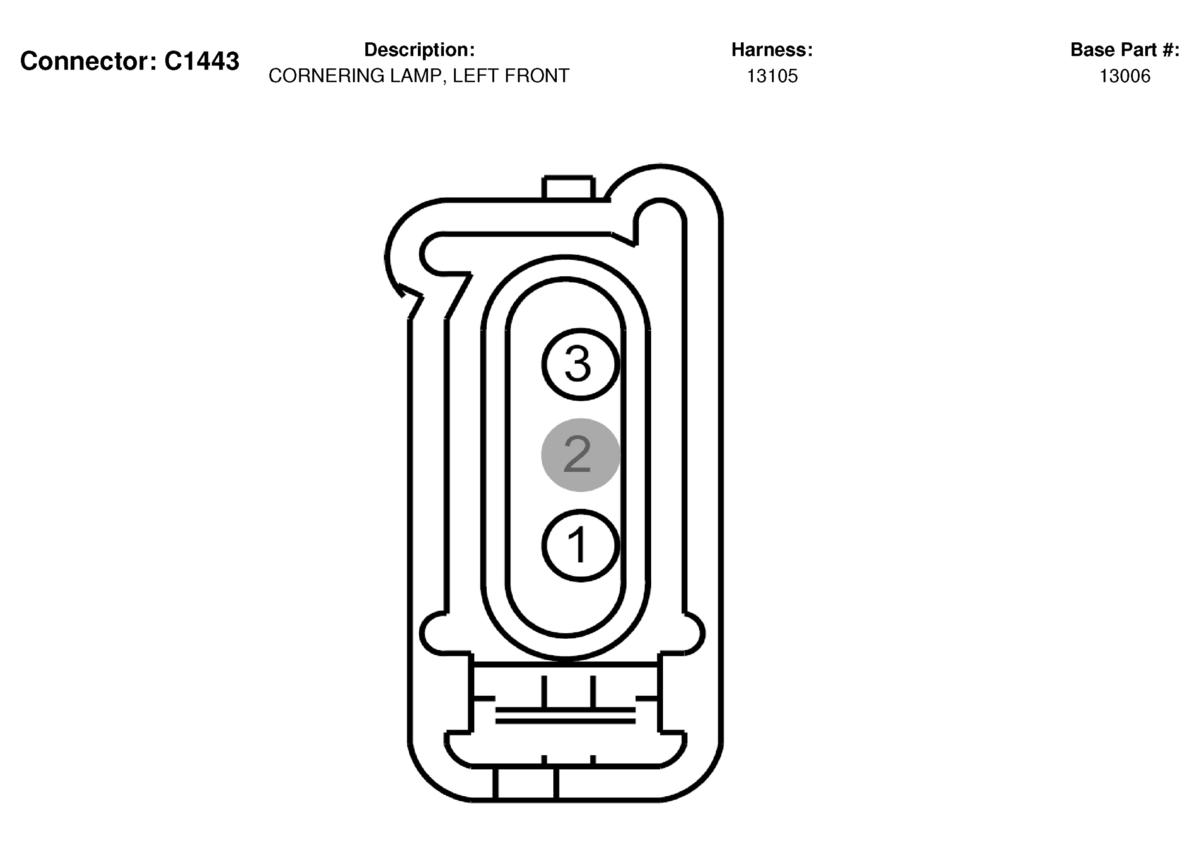

Fig 261: Cornering Lamp, Left Front Connector End View (C1443)

Courtesy of FORD MOTOR CO.

C1443 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	379 (BR-WH)	20	Cornering lamp control
2	*	*	not used
3	14 (BR)	20	Power, Exterior lamps

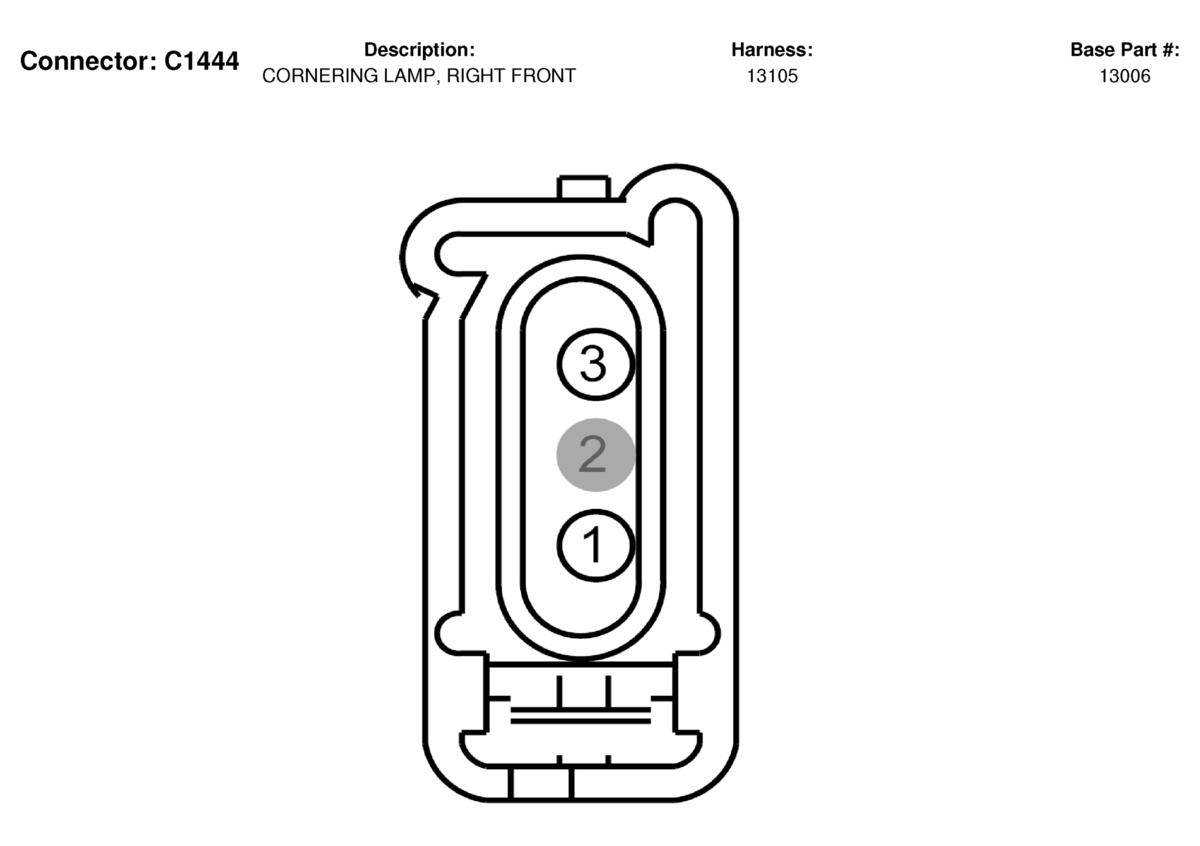

Fig 262: Cornering Lamp, Right Front Connector End View (C1444)

Courtesy of FORD MOTOR CO.

C1444 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	379 (BR-WH)	20	Cornering lamp control
2	*	*	not used
3	14 (BR)	20	Power, Exterior lamps

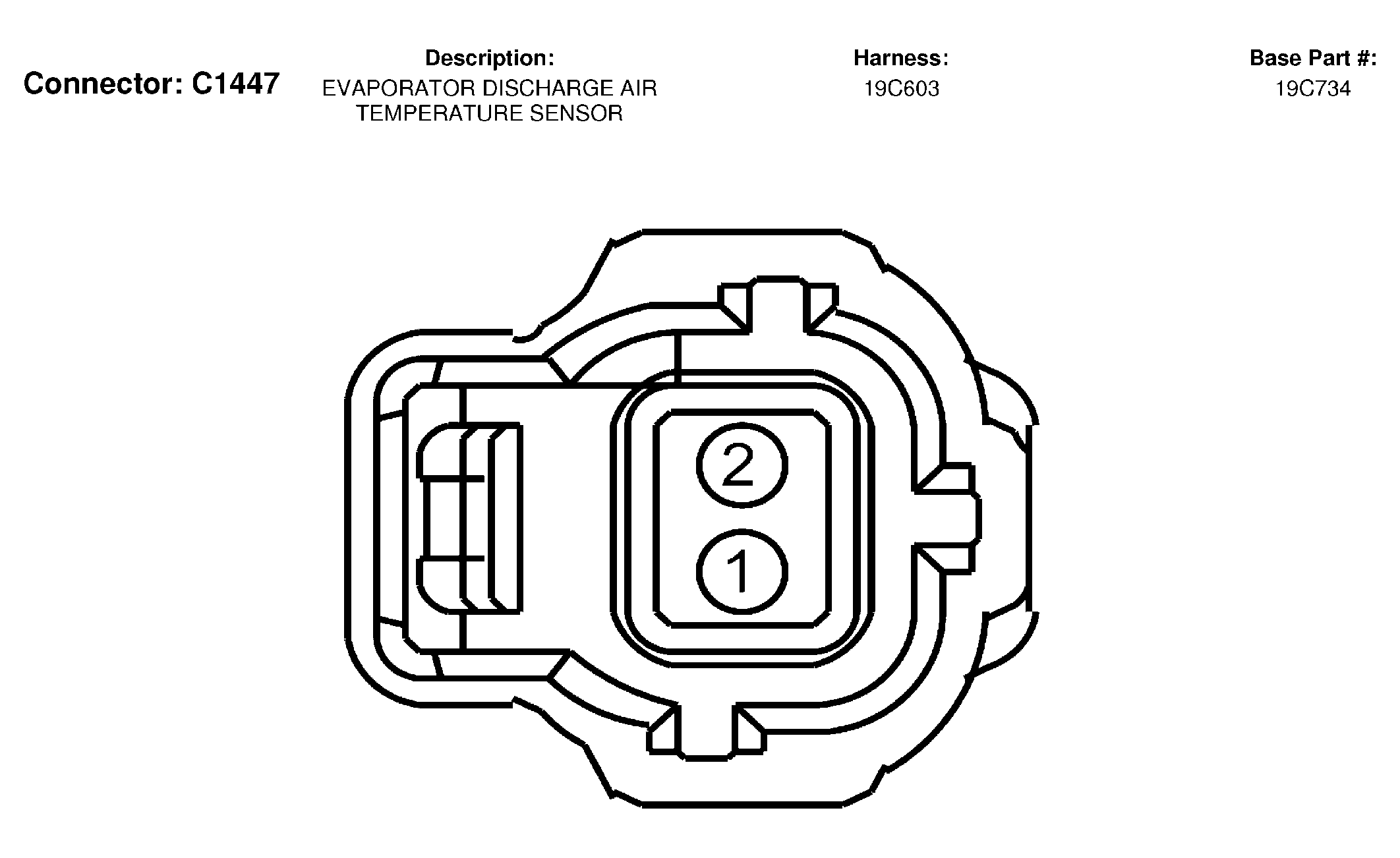

Fig 263: Evaporator Discharge Air Temperature Sensor Connector End View (C1447)

Courtesy of FORD MOTOR CO.

C1447 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	3062 (BK-WH)	20	Evaporator discharge air temperature sensor signal
2	359 (GY-RD)	20	Signal return

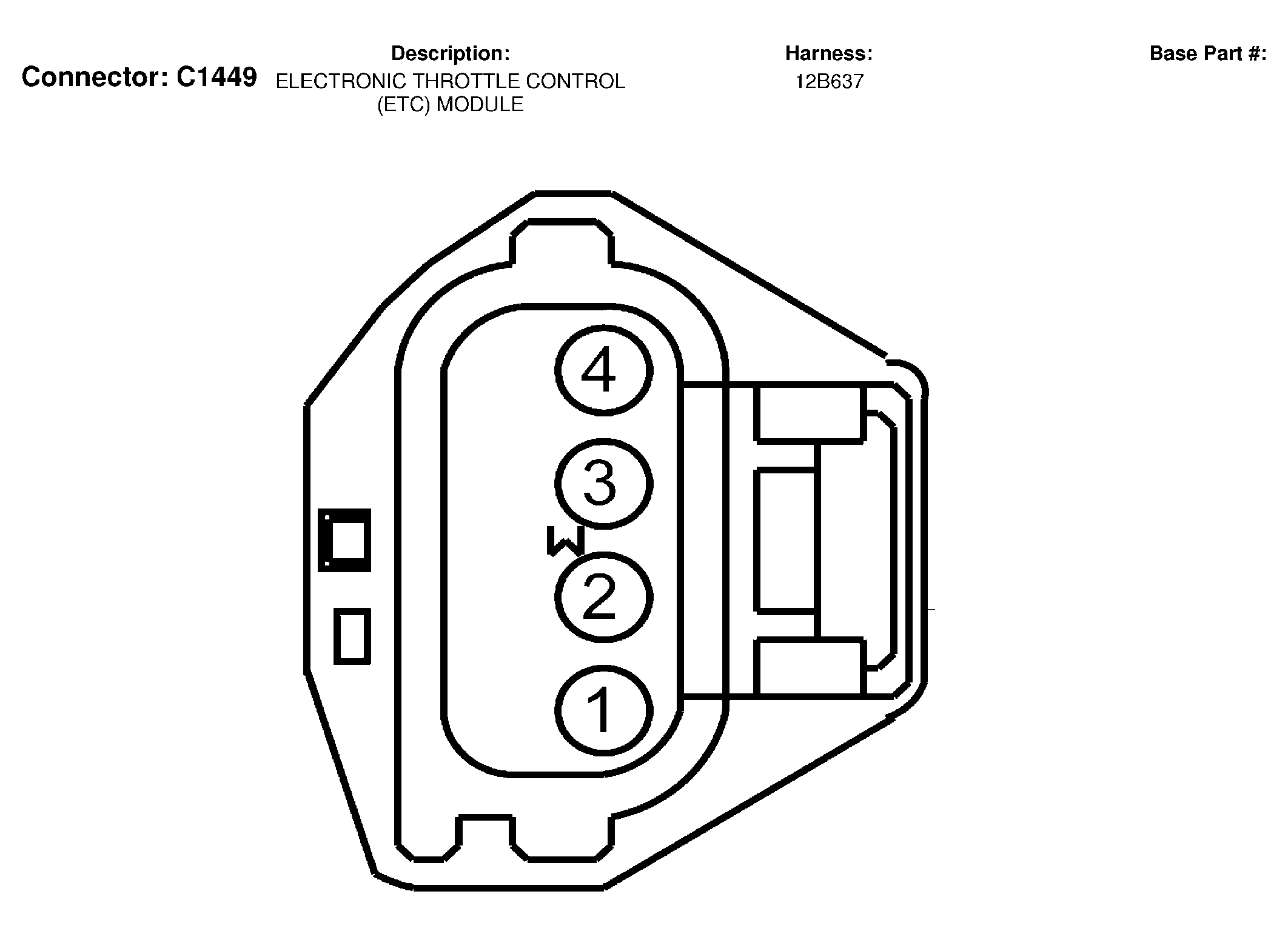

Fig 264: Electronic Throttle Control (ETC) Module Connector End View (C1449)

Courtesy of FORD MOTOR CO.

C1449 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	357 (YE-WH)	20	Throttle position sensor 2 signal
2	1857 (YE-WH)	20	Throttle position sensors, reference voltage
3	1858 (PK-OG)	20	Throttle position sensors, signal return
4	355 (GY-WH)	20	Throttle position sensor 1 signal

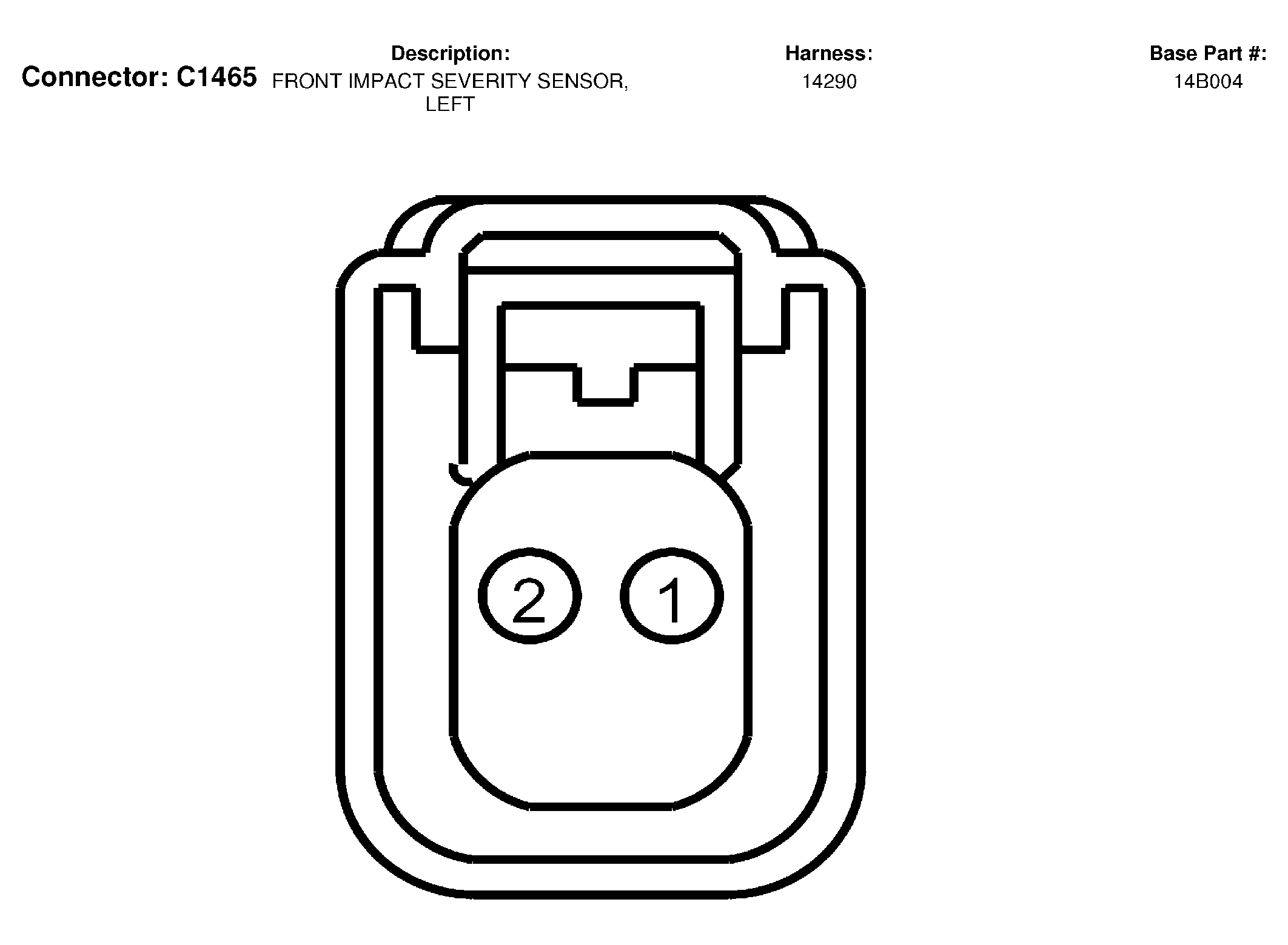

Fig 265: Front Impact Severity Sensor, Left Connector End View (C1465)

Courtesy of FORD MOTOR CO.

C1465 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	617 (PK-OG)	20	Front impact severity sensor feed
2	618 (VT-LG)	20	Front impact severity sensor return

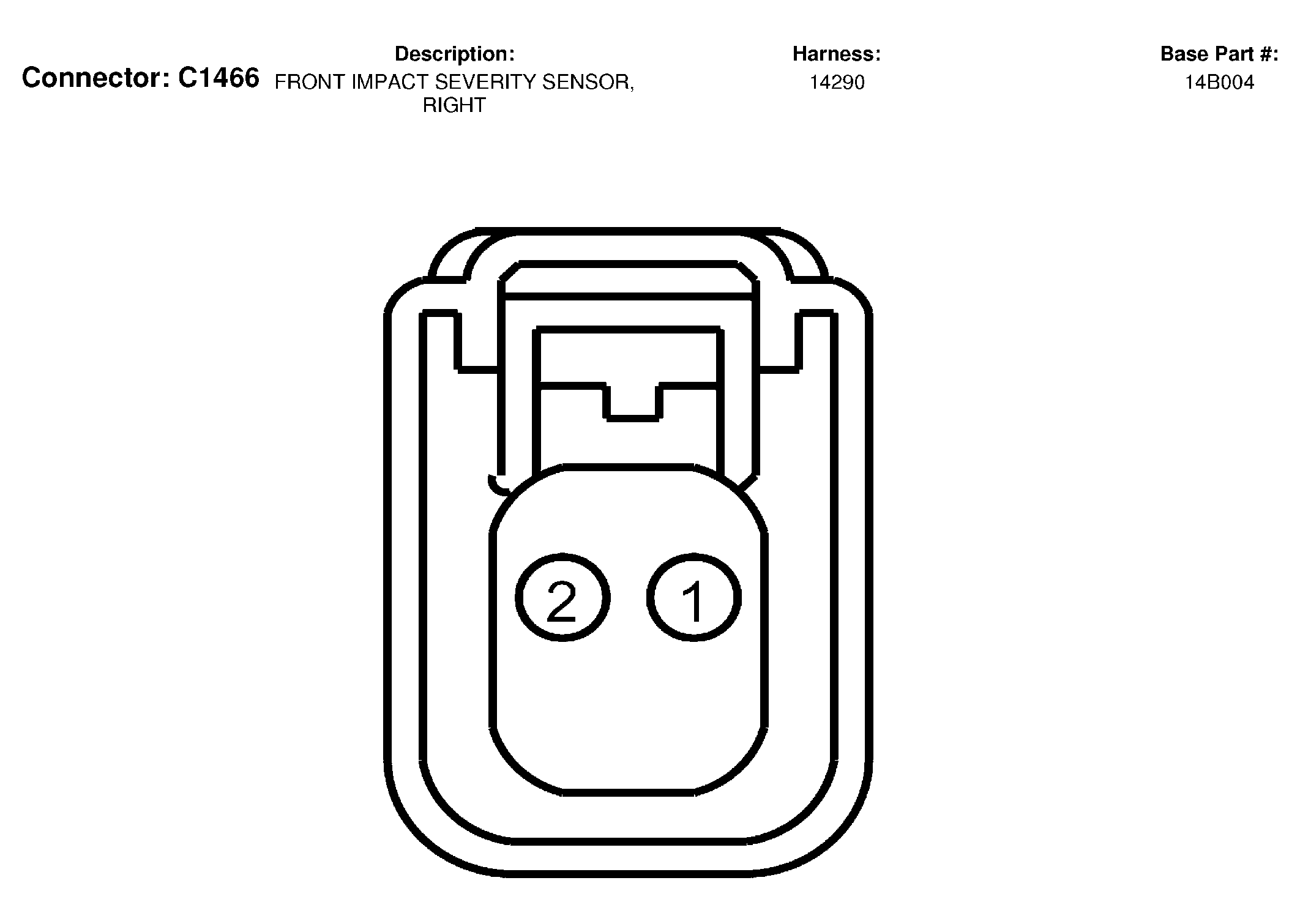

Fig 266: Front Impact Severity Sensor, Right Connector End View (C1466)

Courtesy of FORD MOTOR CO.

C1466 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	619 (PK-WH)	20	Air bag crash sensor #2 feed
2	620 (VT-LB)	20	Air bag crash sensor #2 ground monitor

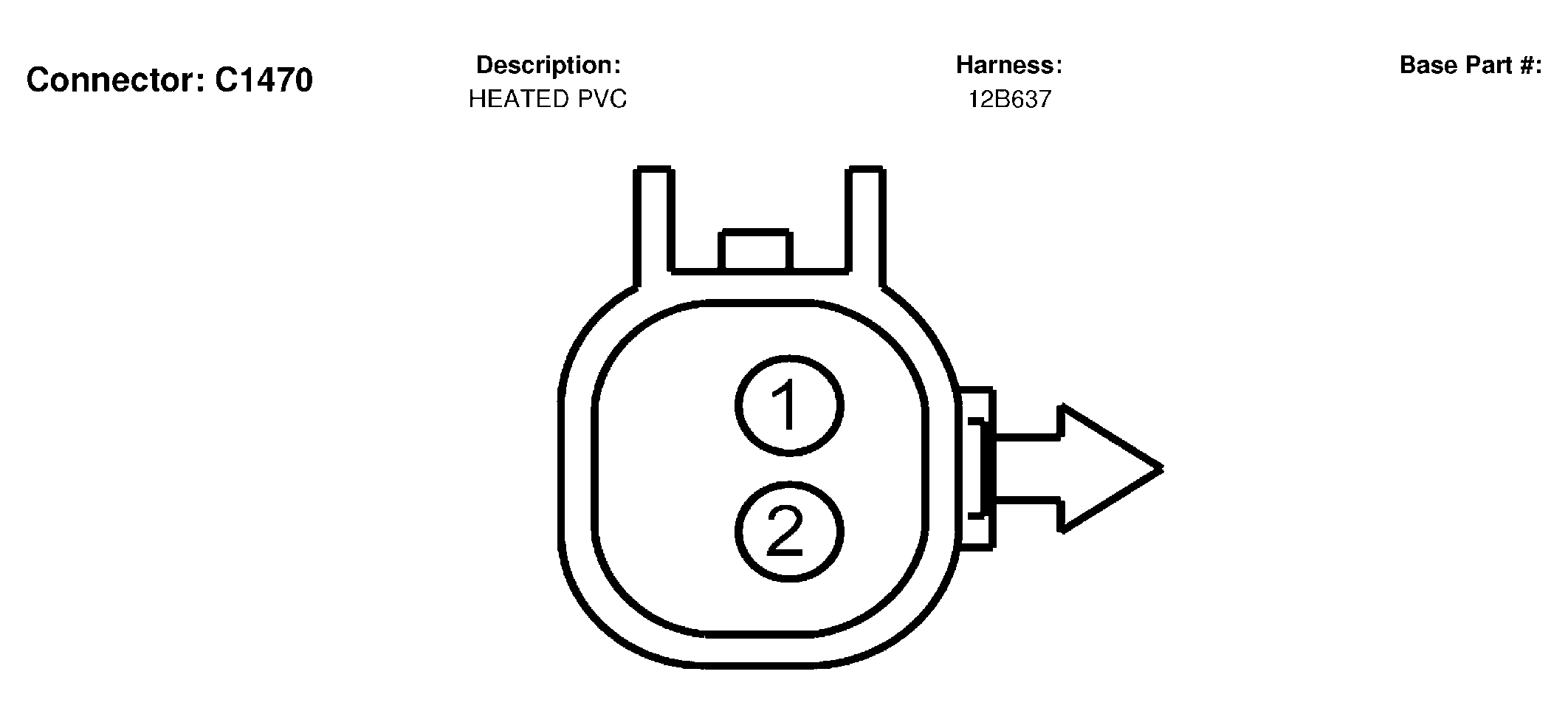

Fig 267: Heater Pvc Connector End View (C1470)

Courtesy of FORD MOTOR CO.

C1470 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	88 (BK-WH)	20	Voltage supplied in Run (overload protected)
2	57 (BK)	20	Ground

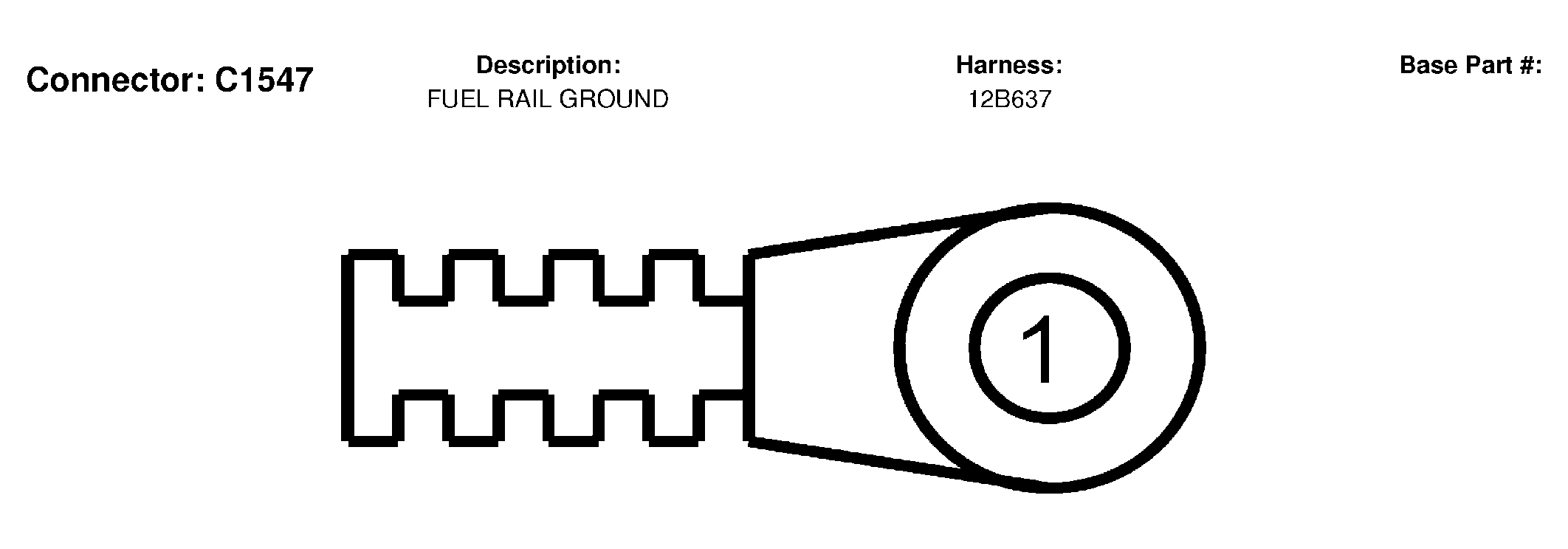

Fig 268: Fuel Rail Ground Connector End View (C1547)

Courtesy of FORD MOTOR CO.

C1547 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	18	Ground

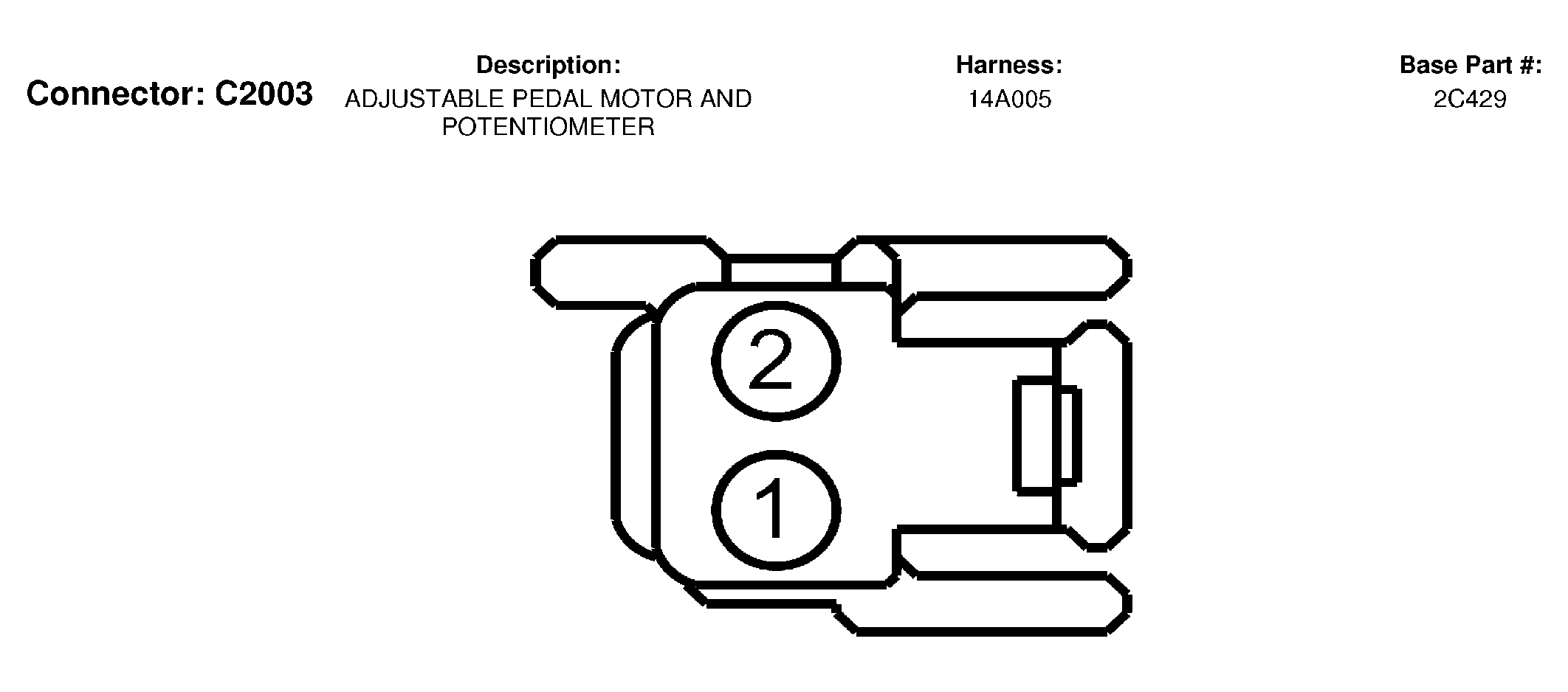

Fig 269: Adjustable Pedal Motor And Potentiometer Connector End View (C2003)

Courtesy of FORD MOTOR CO.

C2003 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1495 (WH)	20	Adjustable pedal motor +/- w/o memory
1	1490 (LB-OG)	14	Adjustable pedal motor +/- memory
2	1494 (RD)	20	Adjustable pedal motor +/- w/o memory
2	1489 (LB-BK)	14	Adjustable pedal motor +/- memory

Fig 270: Brake Shift Interlock Connector End View (C2008)

Courtesy of FORD MOTOR CO.

C2008 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	22	Ground
2	810 (RD-LG)	22	Brake shift interlock +

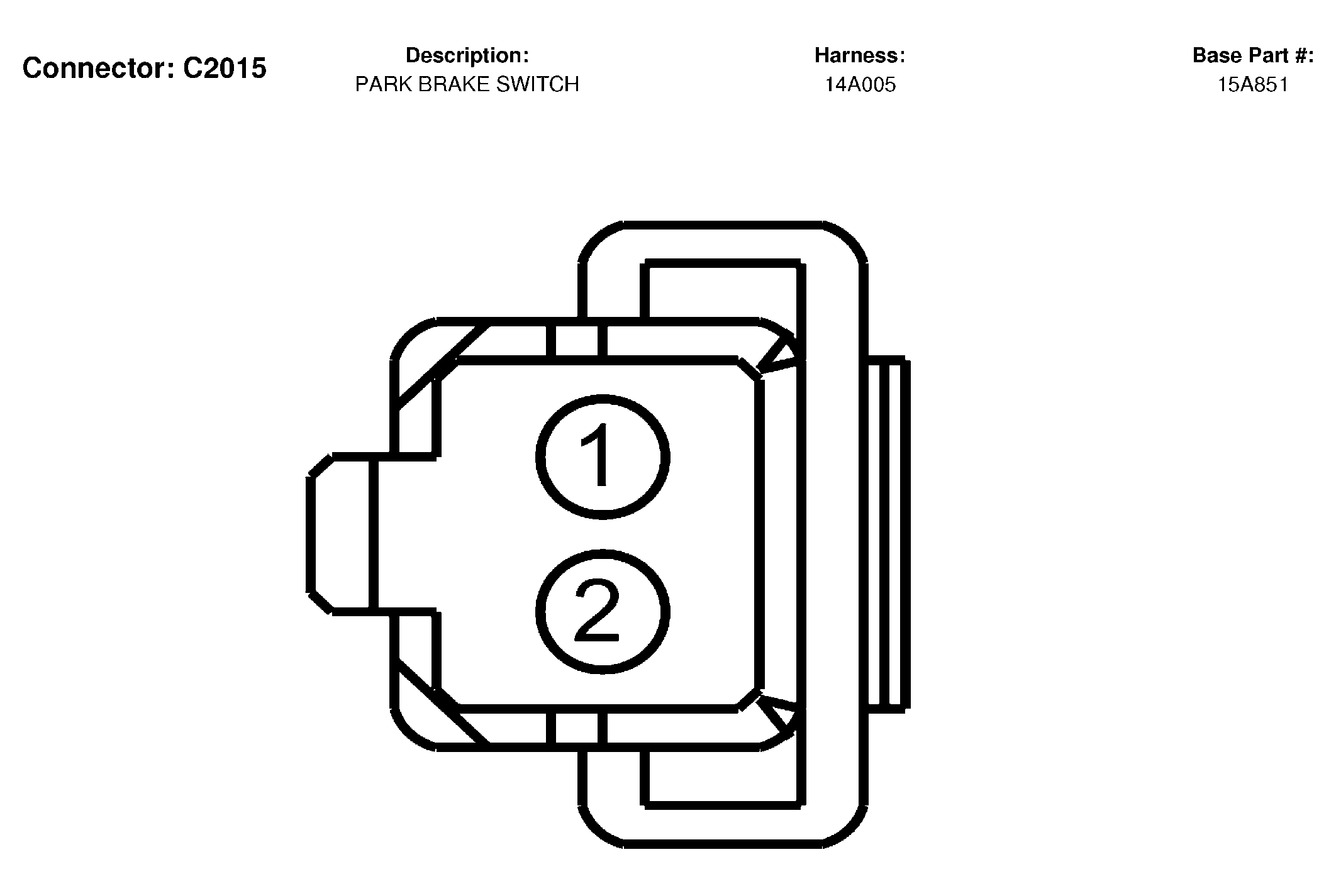

Fig 271: Park Brake Switch Connector End View (C2015)

Courtesy of FORD MOTOR CO.

C2015 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	409 (TN-BK)	22	Brake fluid level switch signal
2	57 (BK)	22	Ground

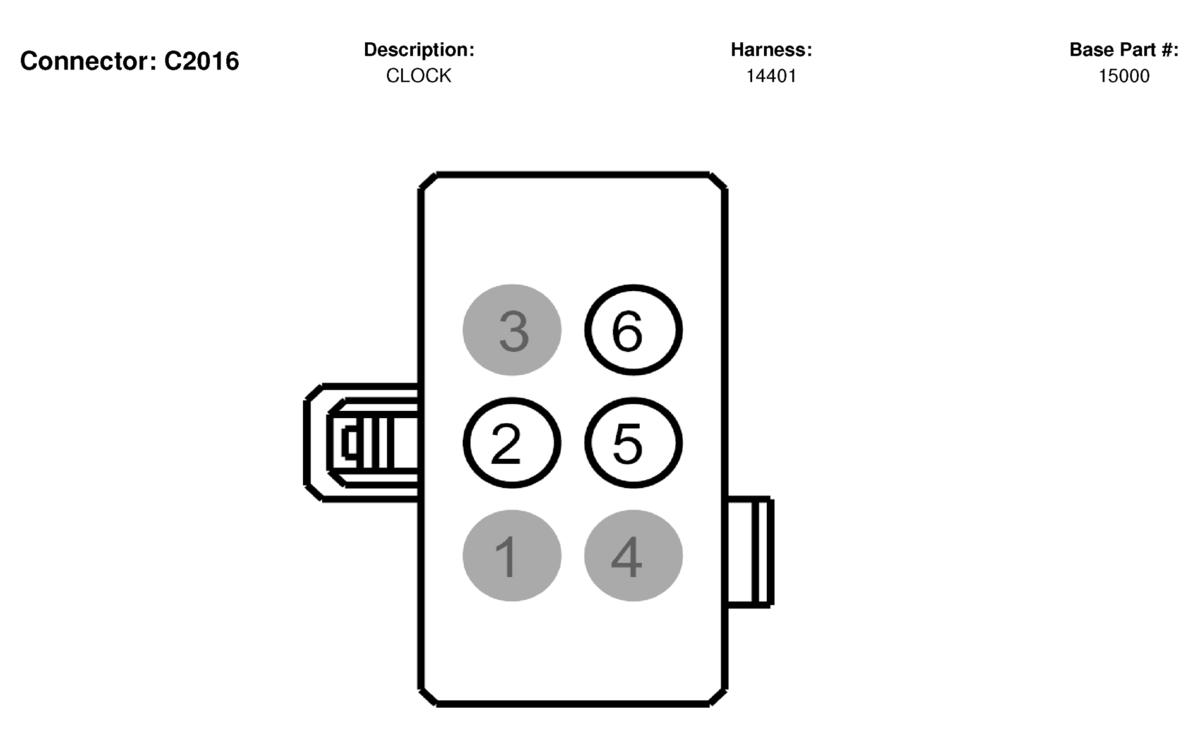

Fig 272: Clock Connector End View (C2016)

Courtesy of FORD MOTOR CO.

C2016 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	484 (OG-BK)	22	Switch illumination +
3	*	*	not used
4	*	*	not used
5	57 (BK)	22	Ground
6	1523 (DG)	22	Voltage supplied at all times (overload protected)

Fig 273: Cigar Lighter, Front Connector End View (C2031)

Courtesy of FORD MOTOR CO.

C2031 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	40 (LB-WH)	16	Voltage supplied at all times (overload protected)
2	484 (OG-BK)	22	Switch illumination +
3	57 (BK)	16	Ground

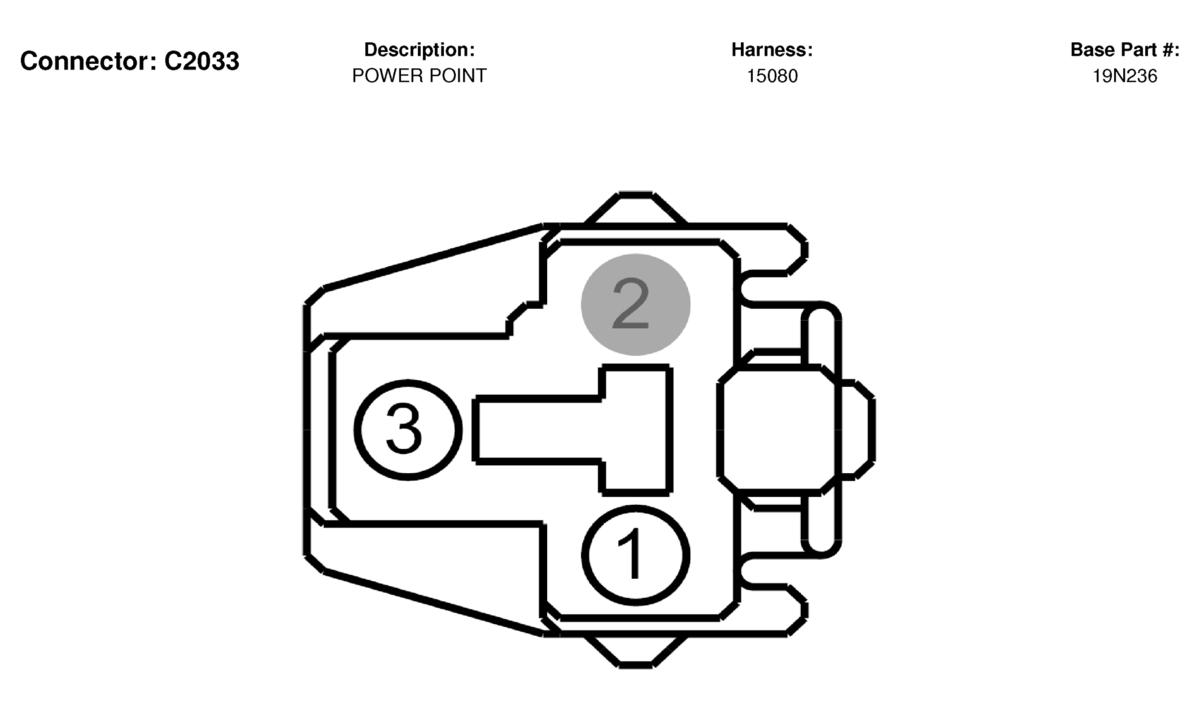

Fig 274: Power Point Connector End View (C2033)

Courtesy of FORD MOTOR CO.

C2033 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1049 (BR-PK)	16	Voltage supplied at all times (overload protected)
2	*	*	not used
3	57 (BK)	16	Ground

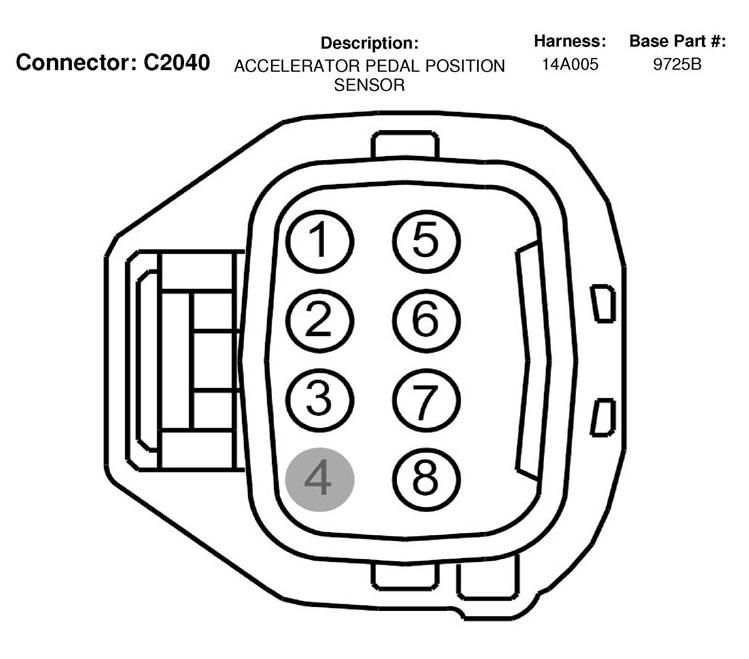

Fig 275: Accelerator Pedal Position Sensor Connector End View (C2040)

Courtesy of FORD MOTOR CO.

C2040 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1284 (TN-WH)	22	Electronic throttle control, signal return
2	1283 (TN-YE)	22	Accelerator pedal position 1 signal
3	359 (GY-RD)	20	Signal return
4	*	*	not used
5	3012 (WH)	22	Accelerator pedal position 2 signal
6	3091 (LB-BK)	22	Electronic throttle control, VREF 2
7	3093 (WH-LB)	22	Electronic throttle control, VREF 1
8	3015 (WH-RD)	22	Accelerator pedal position 3 signal

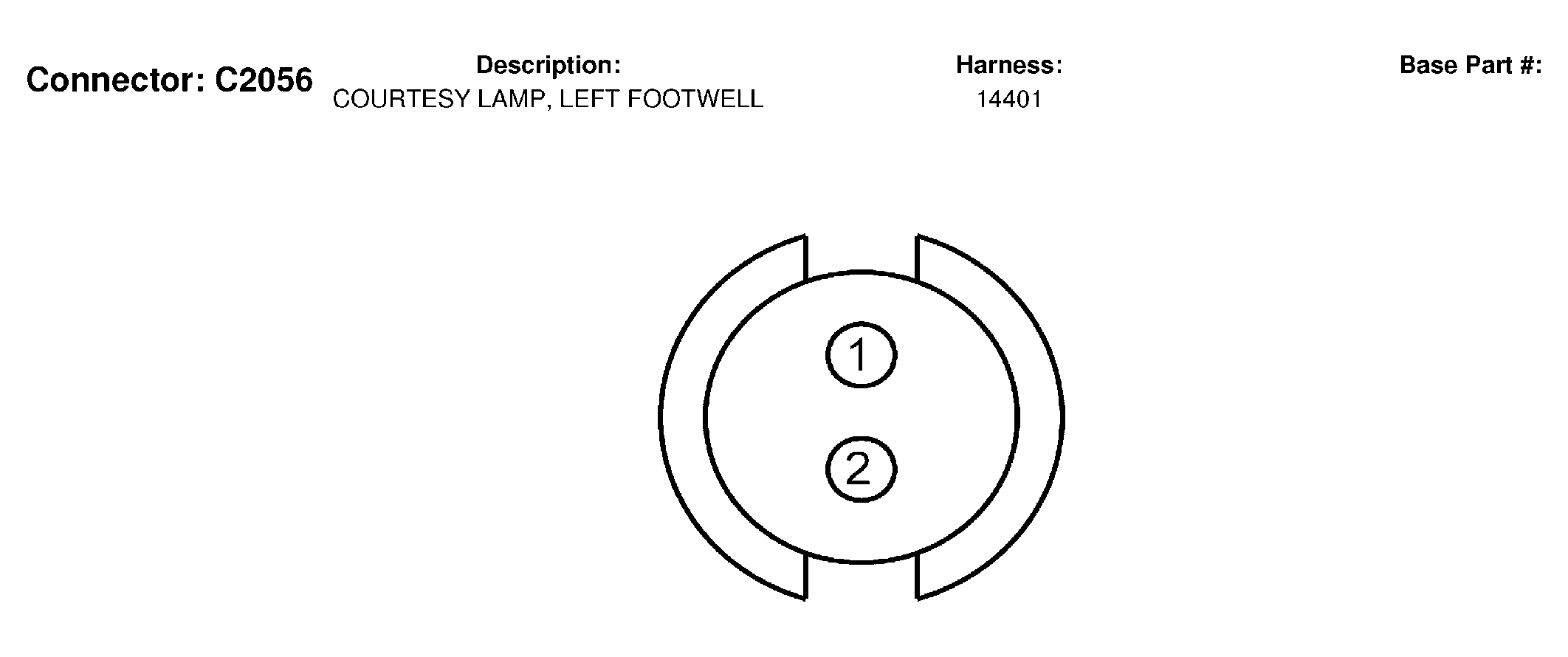

Fig 276: Courtesy Lamp, Left Footwell Connector End View (C2056)

Courtesy of FORD MOTOR CO.

C2056 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground

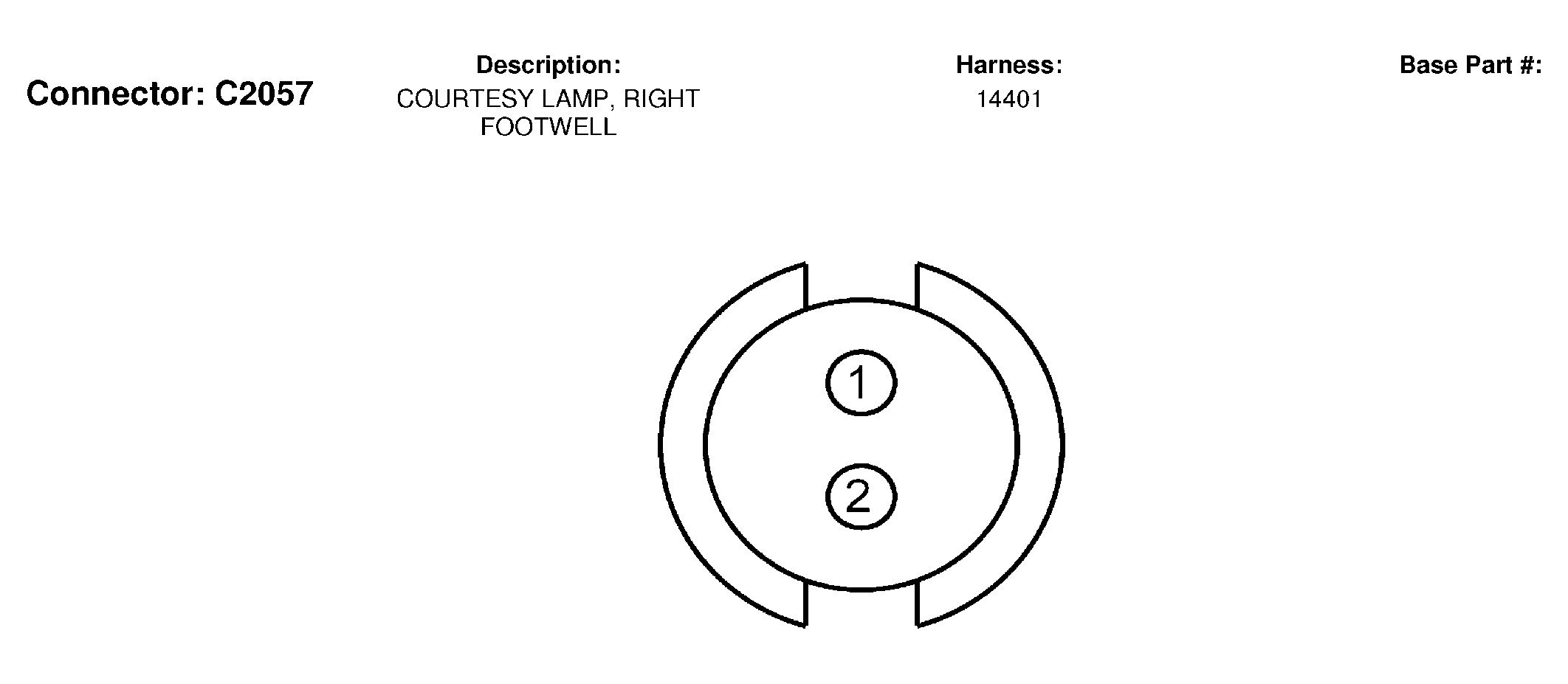

Fig 277: Courtesy Lamp, Right Footwell Connector End View (C2057)

Courtesy of FORD MOTOR CO.

C2057 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	53 (BK-LB)	20	Courtesy lamps feed
2	57 (BK)	22	Ground

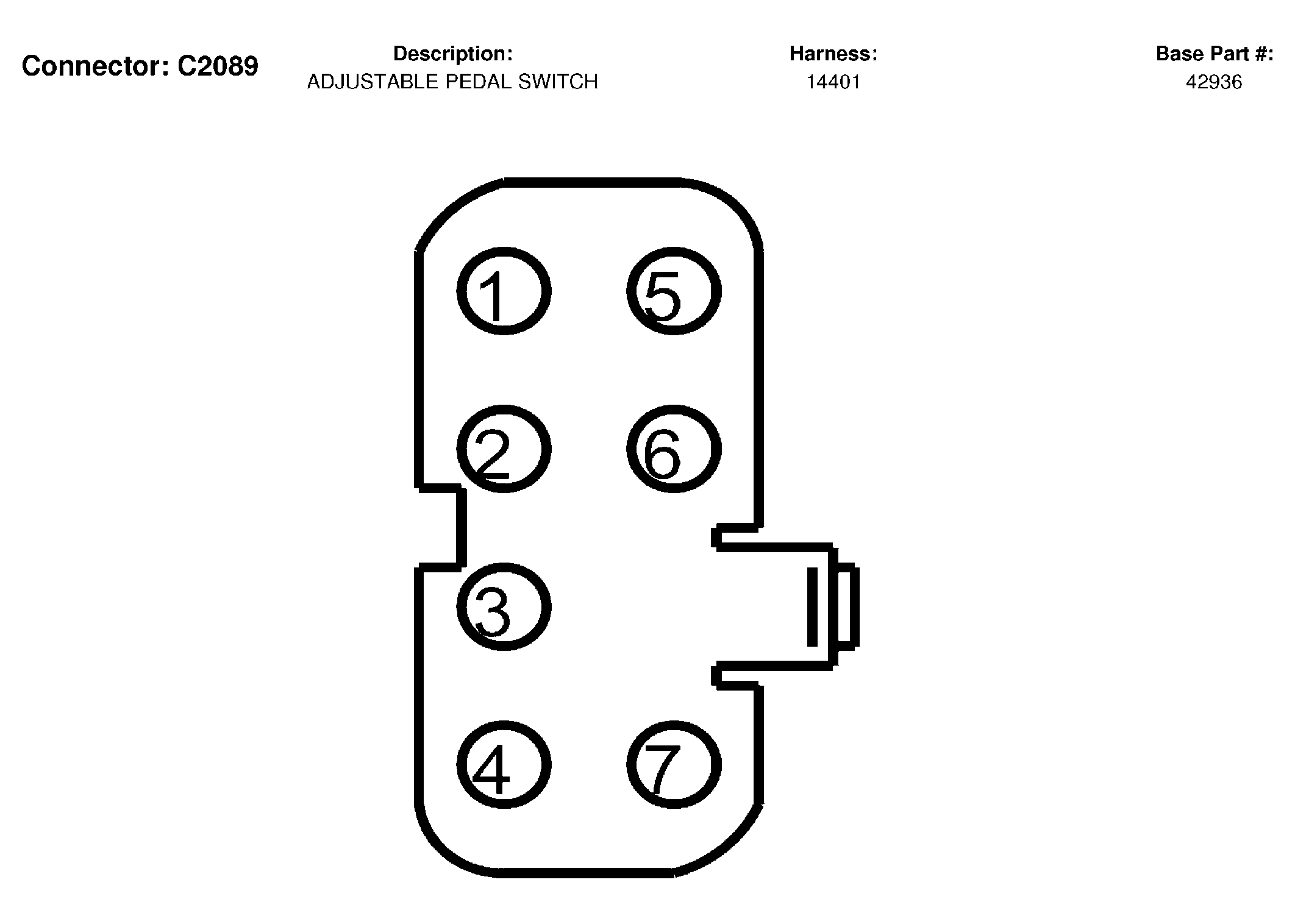

Fig 278: Adjustable Pedal Switch Connector End View (C2089)

Courtesy of FORD MOTOR CO.

C2089 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1493 (PK-BK)	20	Adjustable pedal switch signal, Forward
2	1567 (RD-LB)	20	Voltage supplied at all times (overload protected)
3	57 (BK)	20	Ground
4	57 (BK)	20	Ground
5	484 (OG-BK)	22	Switch illumination +
6	57 (BK)	20	Ground
7	1492 (LB-RD)	20	Adjustable pedal switch signal, Rearward

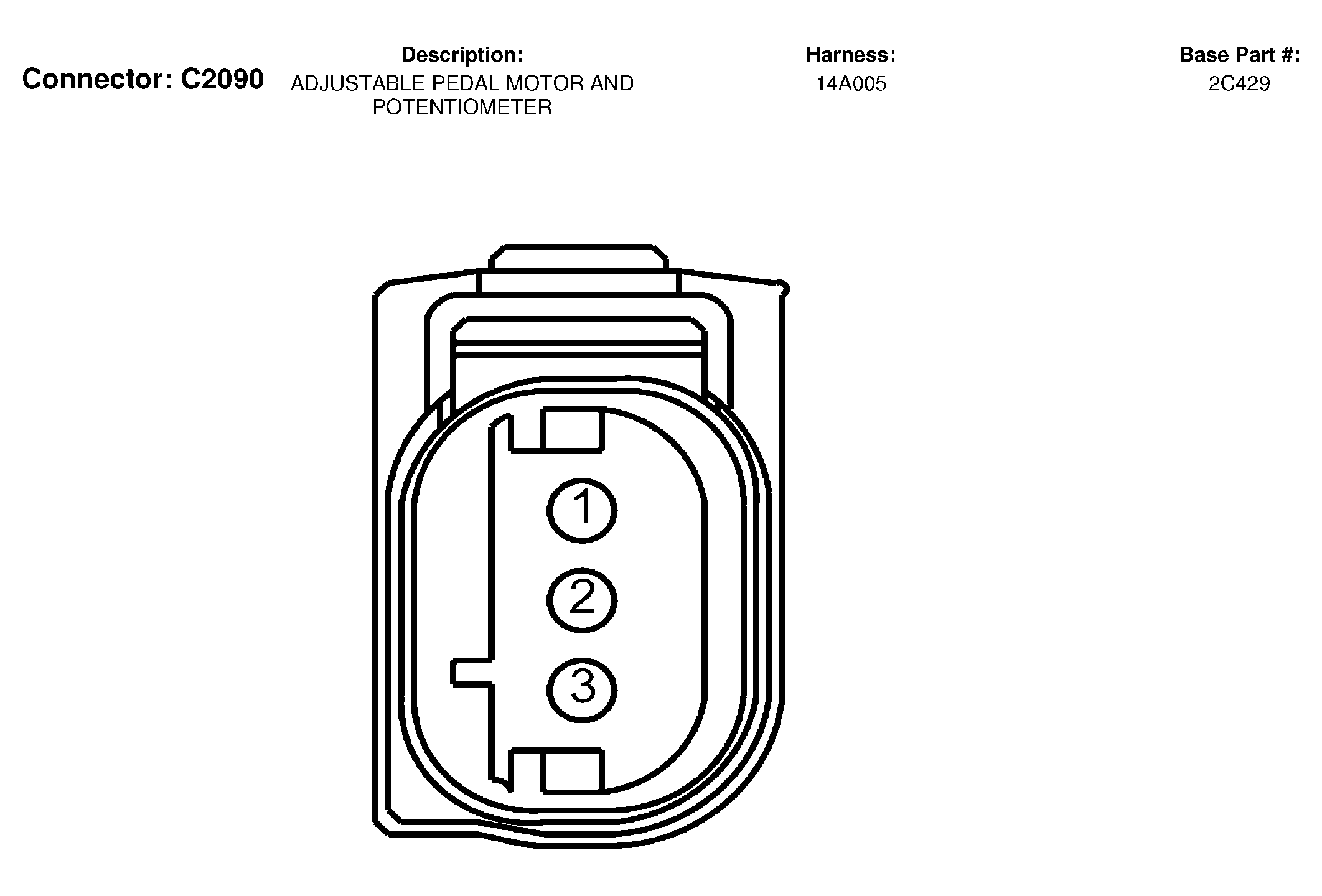

Fig 279: Adjustable Pedal Motor And Potentiometer Connector End View (C2090)

Courtesy of FORD MOTOR CO.

C2090 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	955 (GY)	22	Mirror motor sensor, signal return
2	1491 (LB-YE)	22	Adjustable pedal memory potentiometer signal
3	958 (GY-RD)	22	Mirror motor sensor, feed

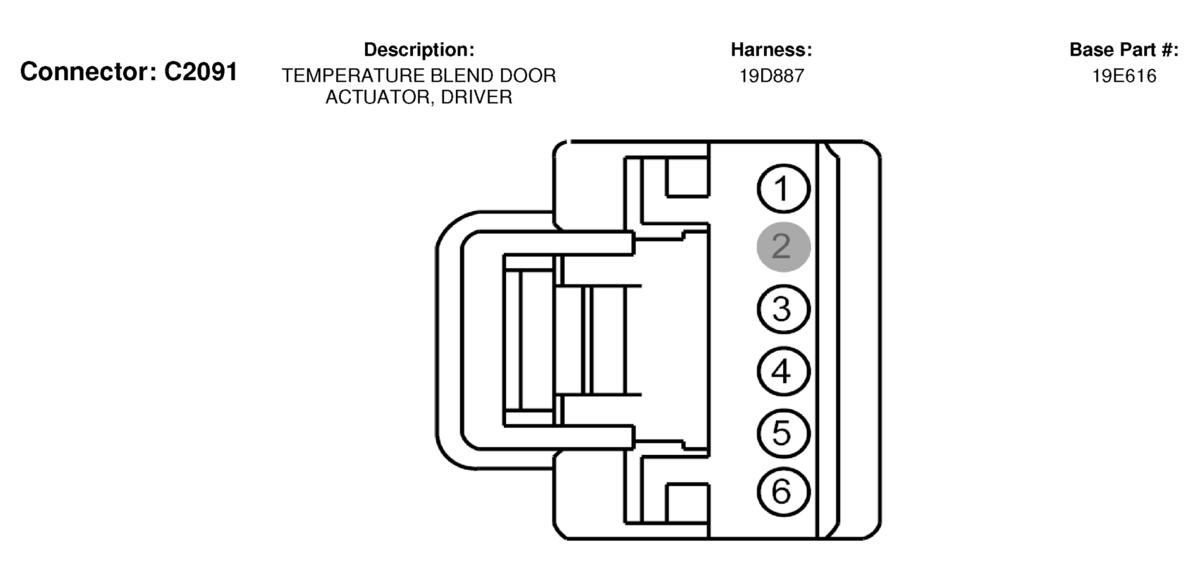

Fig 280: Temperature Blend Door Actuator, Driver Connector End View (C2091)

Courtesy of FORD MOTOR CO.

C2091 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	246 (VT)	22	Temperature blend door actuator, driver +/-
2	*	*	not used
3	437 (YE-LG)	22	Temperature blend door actuator signal
4	438 (RD-WH)	22	Temperature blend door variable resistor -
5	436 (RD-LG)	22	Temperature blend door variable resistor +
6	245 (BR-LG)	22	Temperature blend door actuator, driver +/-

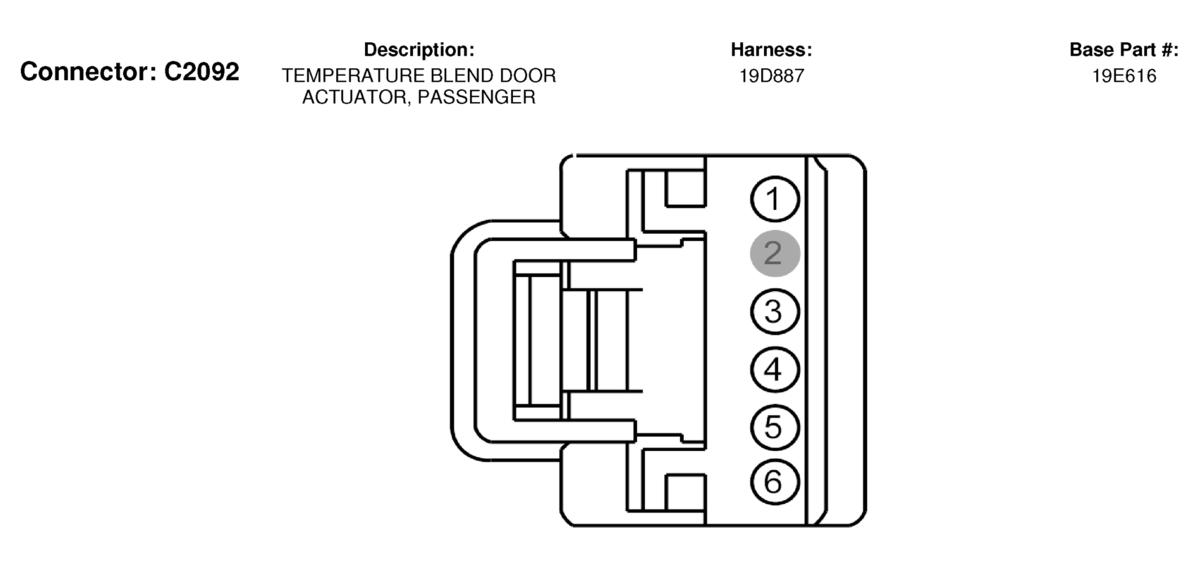

Fig 281: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

Courtesy of FORD MOTOR CO.

C2092 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1124 (WH)	22	Temperature blend door actuator +/-
2	*	*	not used
3	1122 (RD)	22	Temperature blend door actuator signal
4	438 (RD-WH)	22	Temperature blend door variable resistor -
5	436 (RD-LG)	22	Temperature blend door variable resistor +
6	1125 (BR)	22	Temperature blend door actuator +/-

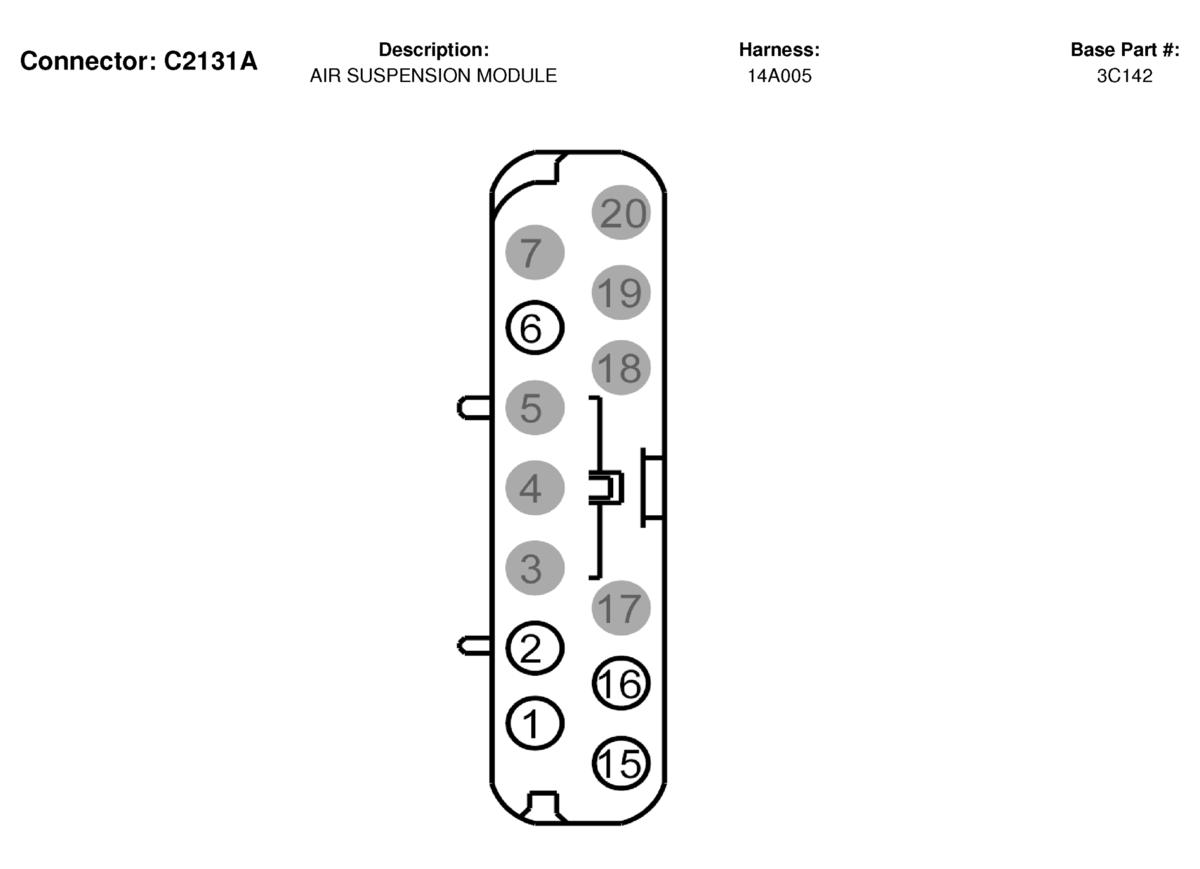

Fig 282: Air Suspension Module Connector End View (C2131A)

Courtesy of FORD MOTOR CO.

C2131A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	418 (DG-YE)	20	Voltage supplied at all times (overload protected)
2	635 (YE)	20	Air Suspension On/Off signal
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	676 (PK-OG)	18	Ground
7	*	*	not used
15	418 (DG-YE)	20	Voltage supplied at all times (overload protected)
16	298 (VT-OG)	22	Voltage supplied in Run (overload protected)
17	*	*	not used
18	*	*	not used
19	*	*	not used
20	*	*	not used

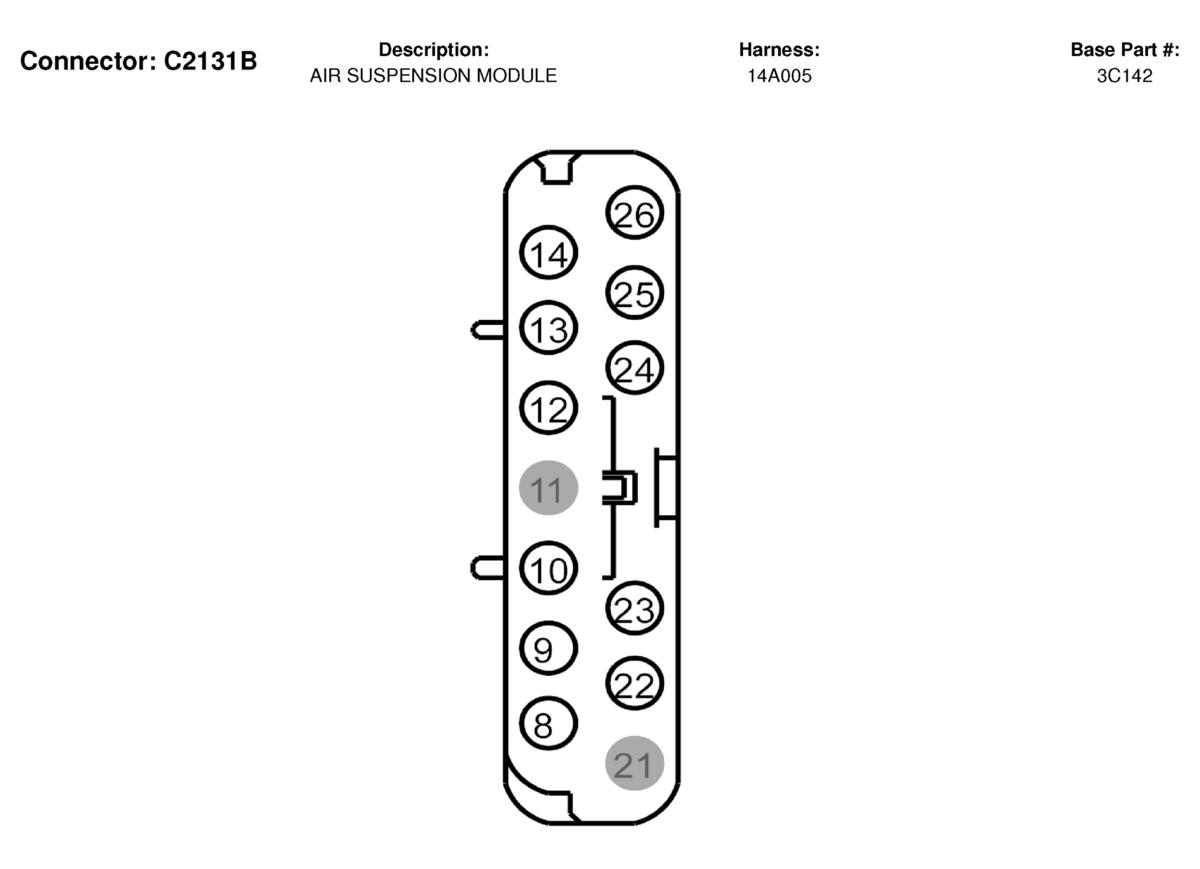

Fig 283: Air Suspension Module Connector End View (C2131B)

Courtesy of FORD MOTOR CO.

C2131B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
8	432 (BK-PK)	20	Air suspension module ground
9	914 (TN-OG)	22	SCP Bus +
10	915 (PK-LB)	22	SCP Bus -
11	*	*	not used
12	427 (PK-BK)	20	Air suspension height sensor signal
13	1114 (BR-PK)	20	Air spring solenoid valve control, left rear
14	114 (LB-YE)	20	Power steering valve solenoid +
21	*	*	not used
22	417 (VT-OG)	20	Air suspension disable switch +
23	420 (DB-YE)	20	Air suspension compressor relay control
24	421 (PK)	20	Air suspension compressor, vent
25	1115 (TN-WH)	20	Air spring solenoid valve control, right rear
26	115 (LG-BK)	20	Power steering valve solenoid -

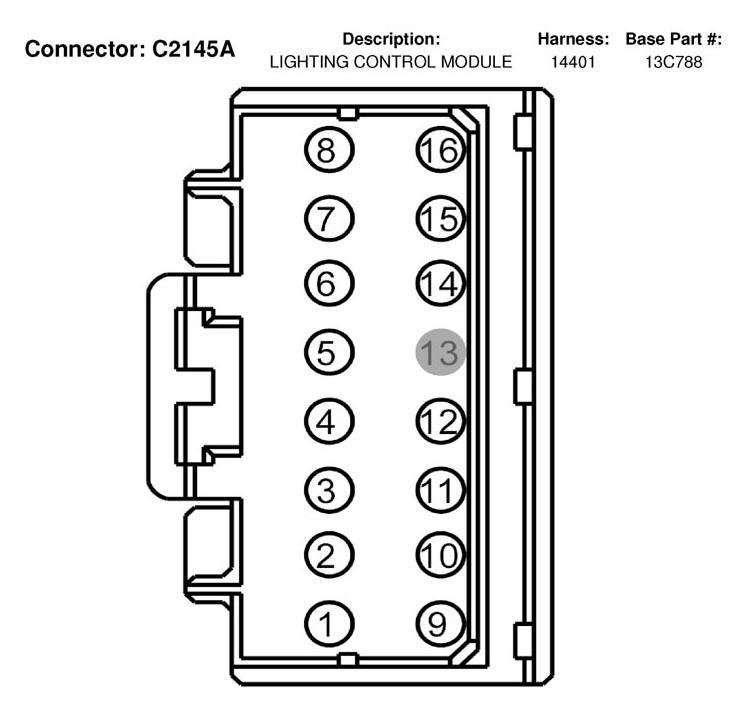

Fig 284: Lighting Control Module Connector End View (C2145A)

Courtesy of FORD MOTOR CO.

C2145A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	914 (TN-OG)	22	SCP Bus +
2	1036 (BR-WH)	22	Illumination dimmer signal
3	810 (RD-LG)	22	Brake shift interlock +
4	640 (RD-YE)	22	Voltage supplied in Start and Run (overload protected)
5	1083 (LB-PK)	22	Air bag, tone driver
6	1033 (RD-YE)	22	Headlamp, On, signal
7	1304 (VT-OG)	22	Anti-theft hood switch signal
8	218 (WH-VT)	22	Autolamp sensor signal
9	915 (PK-LB)	22	SCP Bus -
10	220 (VT-OG)	22	Autolamp On/Off signal
11	939 (VT)	22	Traction control switch indicator control
12	221 (OG-WH)	22	Voltage supplied at all times (overload protected)
13	*	*	not used
14	676 (PK-OG)	20	Ground
15	158 (BK-PK)	20	Key warning switch signal
16	1032 (WH-BK)	22	Park lamps, On, signal

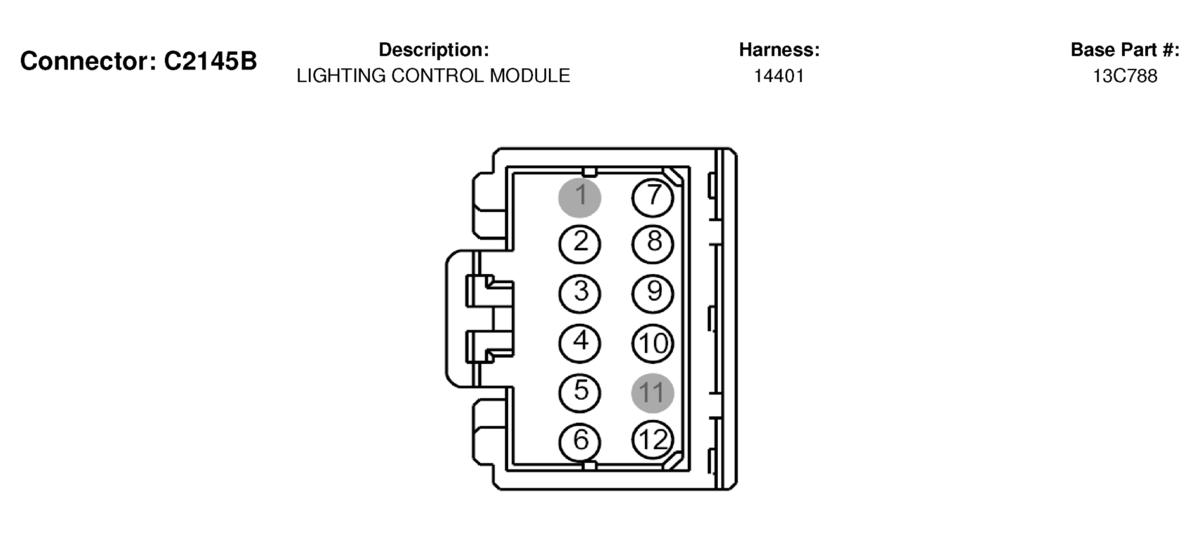

Fig 285: Lighting Control Module Connector End View (C2145B)

Courtesy of FORD MOTOR CO.

C2145B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	1400 (TN-WH)	22	Headlamps Off signal
3	1034 (BK-WH)	22	Front dome lamp switch signal
4	26 (WH-VT)	22	Decklid ajar signal
5	1651 (WH-RD)	22	Brake pedal position switch signal
6	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
7	1 (DB)	22	Horn relay control
8	194 (PK)	22	Accessory delay relay control
9	1313 (LB-BK)	22	Anti-theft inhibit switch, disarm
10	1312 (LG-BK)	22	Anti-theft inhibit switch, arm
11	*	*	not used
12	1350 (WH-PK)	22	Decklid anti-theft inhibit switch signal

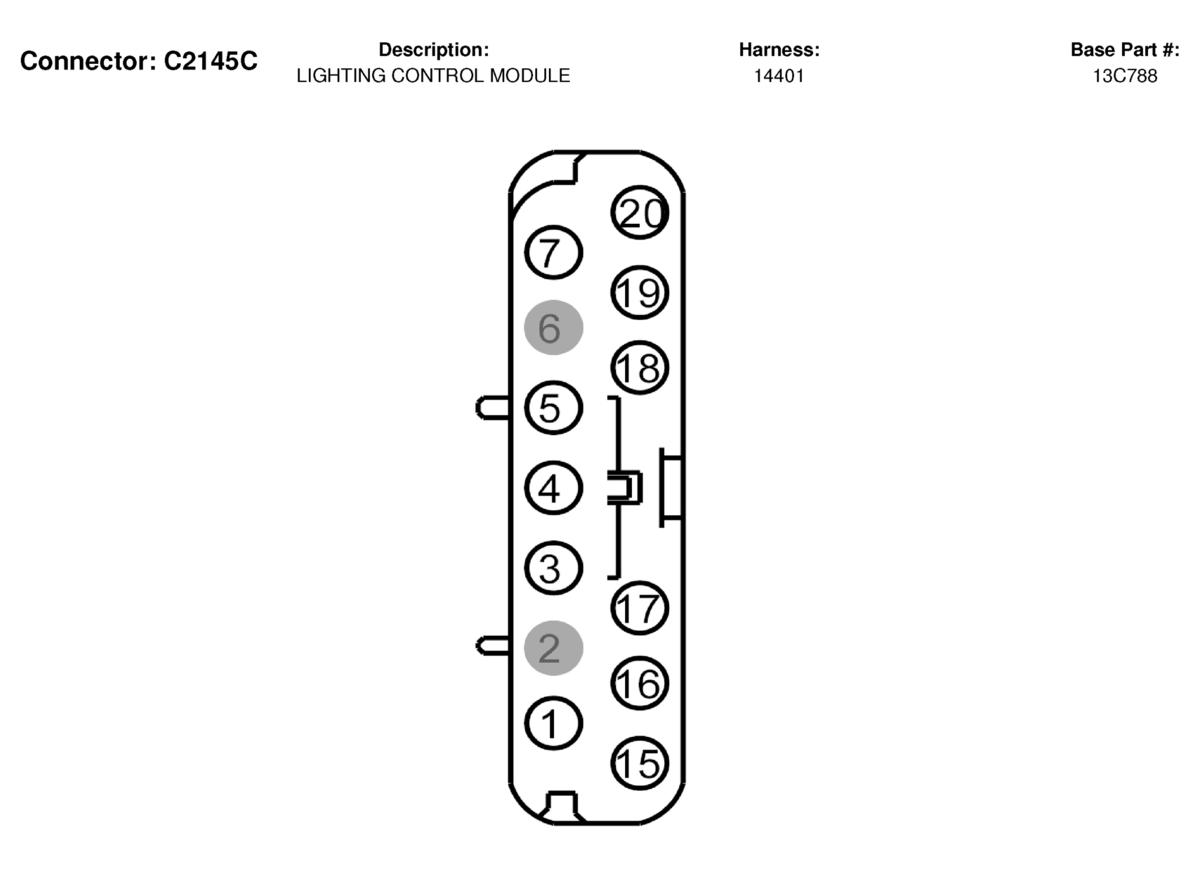

Fig 286: Lighting Control Module Connector End View (C2145C)

Courtesy of FORD MOTOR CO.

C2145C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	910 (PK)	16	Voltage supplied at all times (overload protected)
2	*	*	not used
3	484 (OG-BK)	22	Switch illumination +
4	54 (LG-YE)	20	Voltage supplied at all times (overload protected)
5	53 (BK-LB)	20	Courtesy lamps feed
6	*	*	not used
7	676 (PK-OG)	20	Ground
15	1335 (YE-WH)	20	Headlamp, right high beam lamp feed
16	1337 (VT-YE)	20	Headlamp, left high beam lamp feed
17	905 (GY-LB)	20	Voltage supplied at all times (overload protected)
18	705 (LG-OG)	20	Demand lighting
19	1056 (DB-LG)	18	Voltage supplied at all times (overload protected)
20	161 (DG-OG)	20	Headlamp, right low beam lamp feed

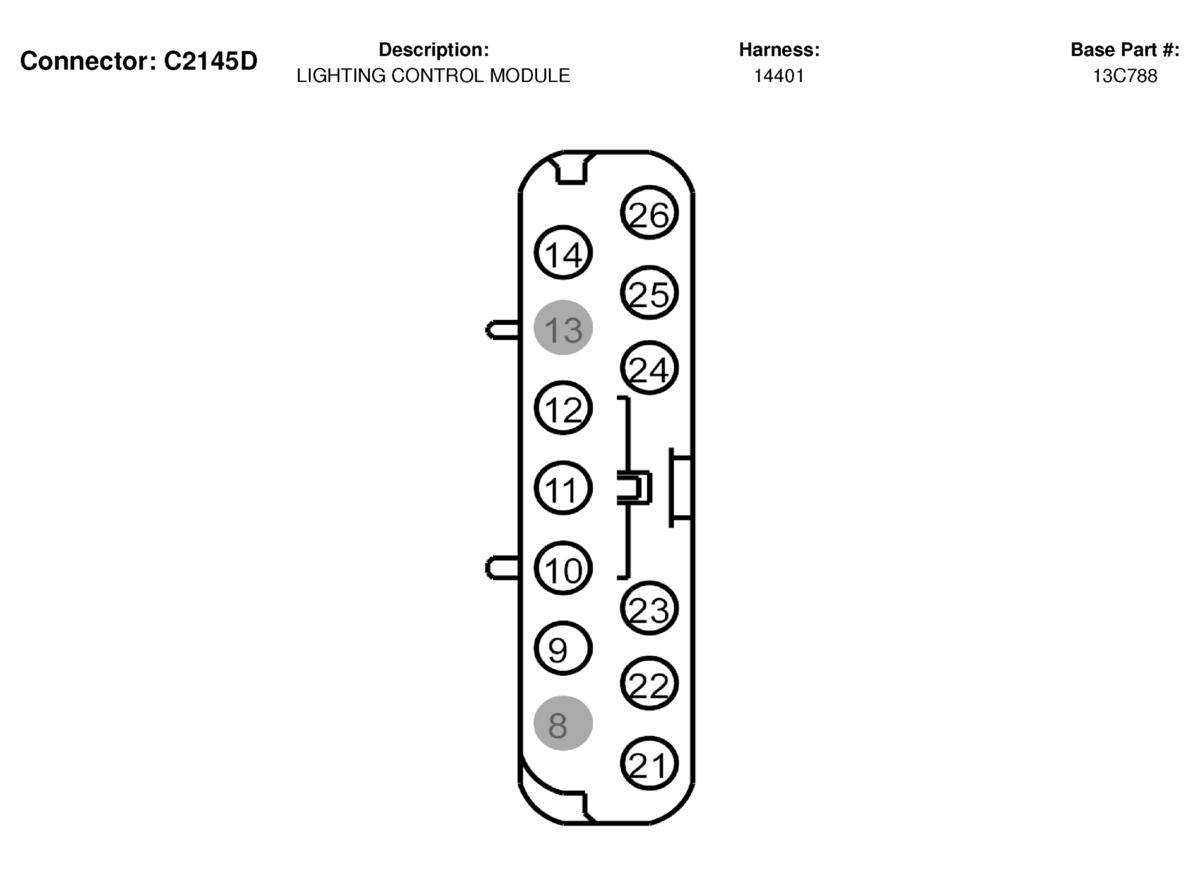

Fig 287: Lighting Control Module Connector End View (C2145D)

Courtesy of FORD MOTOR CO.

C2145D CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
8	*	*	not used
9	707 (WH-YE)	22	Luggage compartment lamp ground
10	14 (BR)	20	Power, Exterior lamps
11	385 (WH-RD)	20	Turn signal flasher power
12	385 (WH-RD)	20	Turn signal flasher power
13	*	*	not used
14	28 (BK-PK)	20	Wiper ON/OFF signal
21	1055 (WH-LG)	18	Voltage supplied at all times (overload protected)
22	160 (DB-WH)	20	Headlamp, left low beam lamp feed
23	195 (TN-WH)	20	Voltage supplied at all times (overload protected)
24	44 (LB)	20	Turn signal flasher output
25	44 (LB)	20	Turn signal flasher output
26	12 (LG-BK)	20	High beam signal

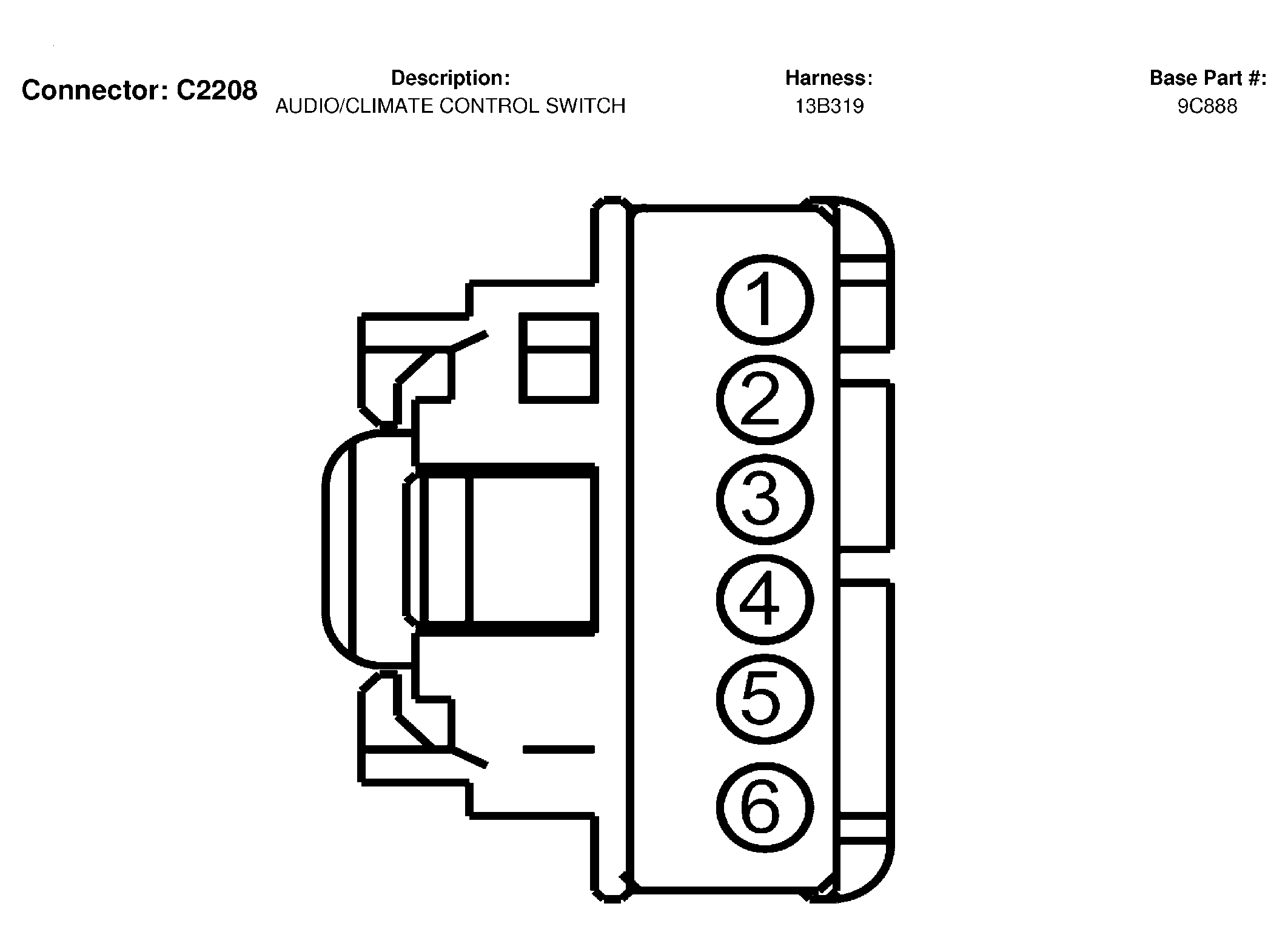

Fig 288: Audio/Climate Control Switch Connector End View (C2208)

Courtesy of FORD MOTOR CO.

C2208 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	484 (OG-BK)	22	Switch illumination +
2	57 (BK)	22	Ground
3	57 (BK)	22	Ground	w/o navigation
4	57 (BK)	22	Ground	navigation
5	595 (LB-RD)	22	Audio/climate control switch, Radio, signal	w/o navigation
6	595 (LB-RD)	22	Audio/climate control switch, Radio, signal	navigation
6	1070 (BR-LB)	22	Audio/climate control switch signal	w/o navigation

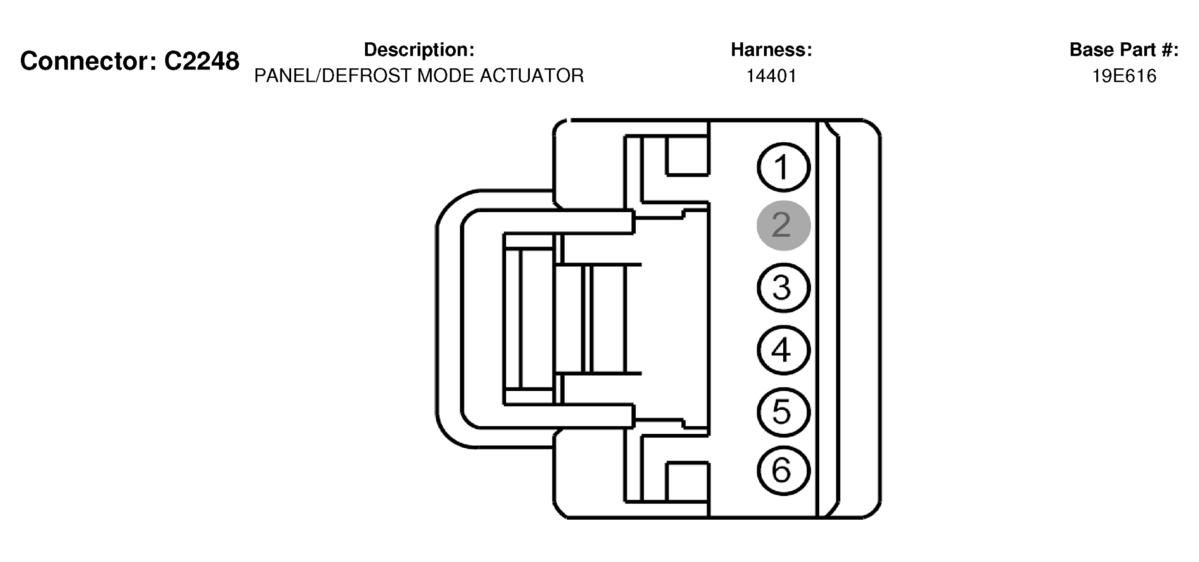

Fig 289: Panel/Defrost Mode Actuator Connector End View (C2248)

Courtesy of FORD MOTOR CO.

C2248 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1379 (PK-LB)	22	Panel/Defrost mode actuator +/-
2	*	*	not used
3	1123 (YE-WH)	22	Panel/Defrost mode actuator signal
4	438 (RD-WH)	22	Temperature blend door variable resistor -
5	436 (RD-LG)	22	Temperature blend door variable resistor +
6	1380 (TN-YE)	22	Panel/Defrost mode actuator +/-

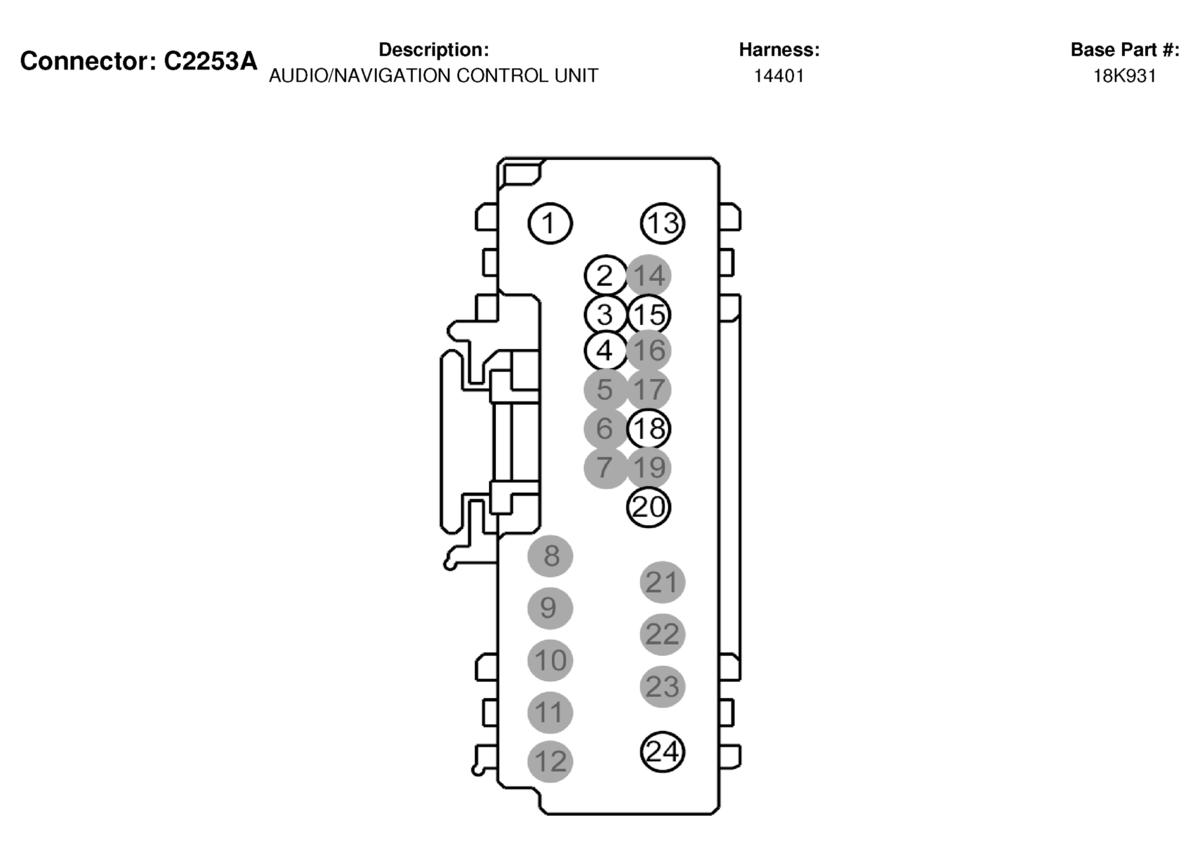

Fig 290: Audio/Navigation Control Unit Connector End View (C2253A)

Courtesy of FORD MOTOR CO.

C2253A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1772 (VT)	16	Voltage supplied at all times (overload protected)
2	1499 (PK-LG)	22	Accessory delay relay output
3	484 (OG-BK)	22	Switch illumination +
4	57 (BK)	20	Ground
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	*	*	not used
12	*	*	not used
13	694 (BK-LG)	16	Ground
14	*	*	not used
15	1000 (RD-BK)	20	Voltage supplied in Start (overload protected)
16	*	*	not used
17	*	*	not used
18	595 (LB-RD)	22	Audio/climate control switch, Radio, signal
19	*	*	not used
20	1442 (DG-WH)	22	Parking aid, audio mute signal	Early production
21	*	*	not used
22	*	*	not used
23	*	*	not used
24	694 (BK-LG)	16	Ground

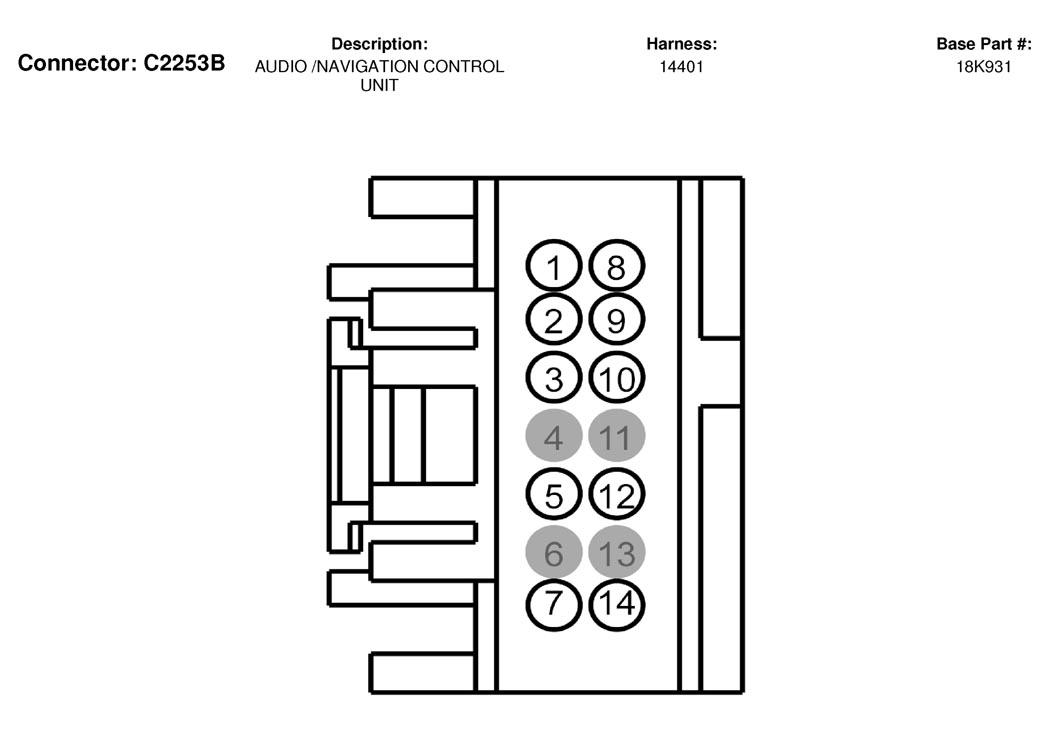

Fig 291: Audio/Navigation Control Unit Connector End View (C2253B)

Courtesy of FORD MOTOR CO.

C2253B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1534 (BK)	22	video R
2	1535 (BK)	22	video G
3	1538 (YE-RD)	22	video return
4	*	*	not used
5	1530 (LB)	22	Voice +
6	*	*	not used
7	1532 (DB-WH)	22	CAN +
8	1536 (BK)	22	video B
9	1537 (RD)	22	video signal
10	48 (-)	22	Shield
11	*	*	not used
12	1531 (LG)	22	Voice -
13	*	*	not used
14	1533 (DG-OG)	22	CAN -

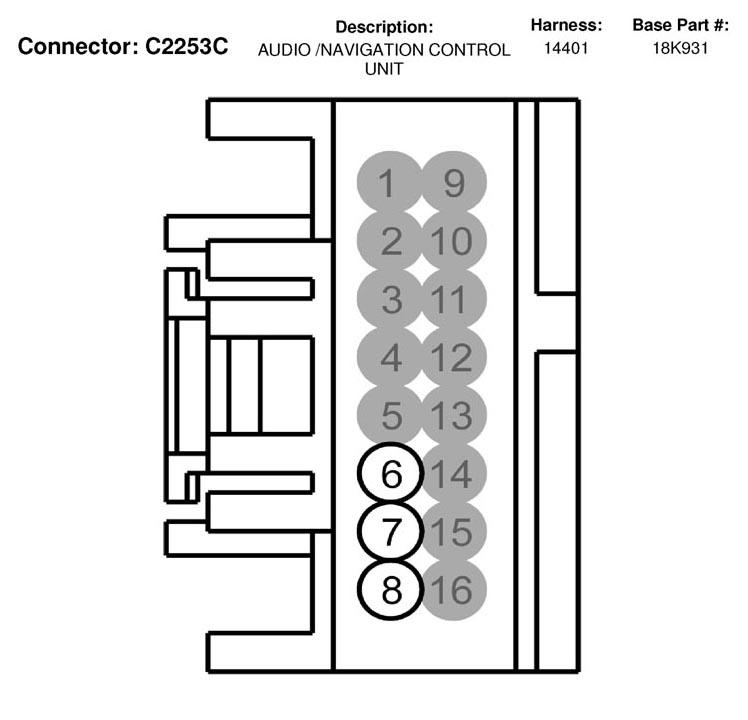

Fig 292: Audio/Navigation Control Unit Connector End View (C2253C)

Courtesy of FORD MOTOR CO.

C2253C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	*	*	not used
4	*	*	not used
5	*	*	not used
6	1068 (LG-BK)	22	Audio System ON (ASYSON)
7	832 (LB-PK)	22	Audio corporate protocol A
8	833 (TN)	22	Audio corporate protocol B
9	*	*	not used
10	*	*	not used
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	*	*	not used
16	*	*	not used

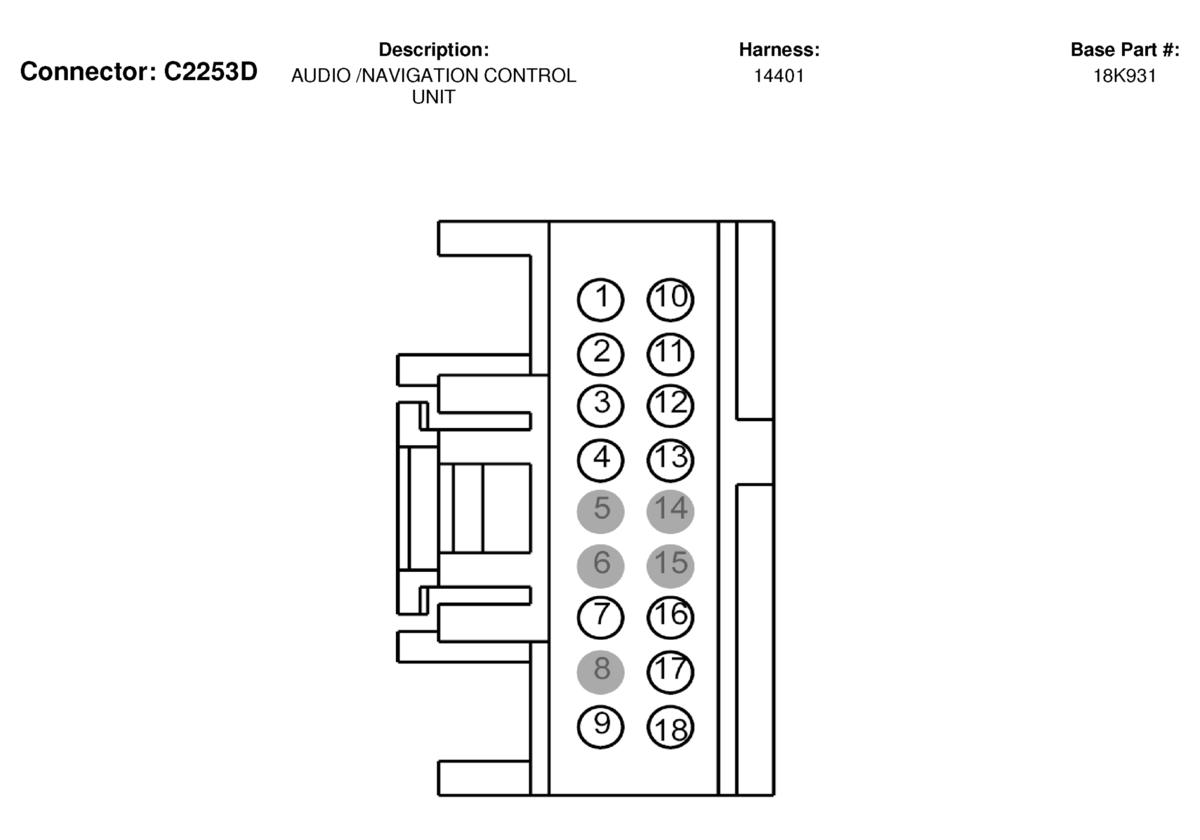

Fig 293: Audio/Navigation Control Unit Connector End View (C2253D)

Courtesy of FORD MOTOR CO.

C2253D CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	280 (LG)	22	Audio, left front +
2	279 (WH-RD)	22	Audio, right front +
3	277 (LB-BK)	22	Audio, left rear +
4	278 (VT-WH)	22	Audio, right rear +
5	*	*	not used
6	*	*	not used
7	168 (RD-BK)	22	Subwoofer +
8	*	*	not used
9	173 (DG-VT)	22	Subwoofer, High, mute
10	857 (WH-OG)	22	Left front -
11	858 (BR)	22	Right front -
12	859 (YE)	22	Left rear -
13	855 (LB)	22	Right rear -
14	*	*	not used
15	*	*	not used
16	167 (BR-OG)	22	Subwoofer -
17	48 (-)	22	Shield
18	174 (GY-BK)	22	Subwoofer enable

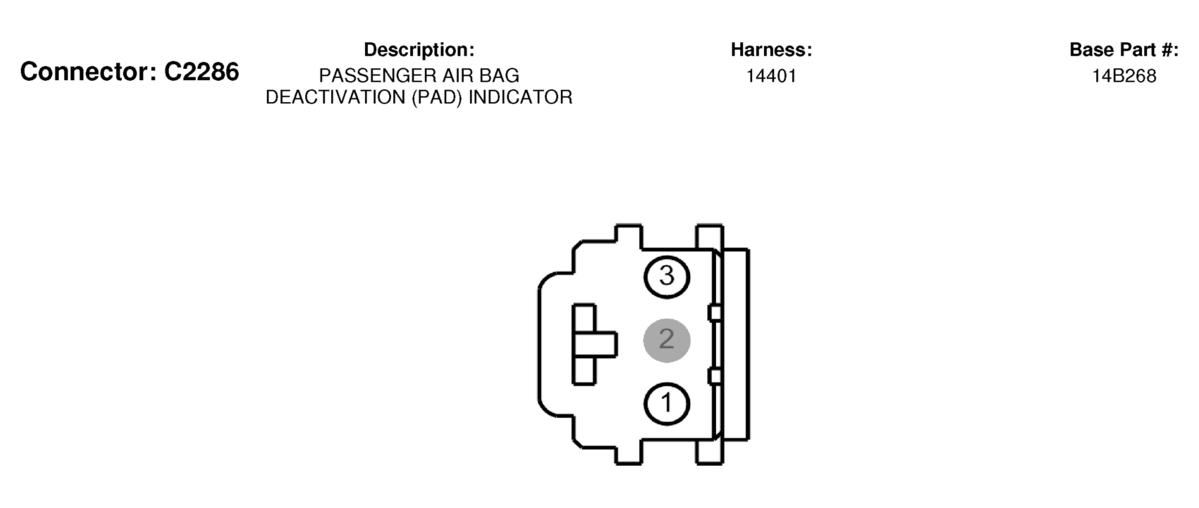

Fig 294: Passenger Air Bag Deactivation (PAD) Indicator Connector End View (C2286)

Courtesy of FORD MOTOR CO.

C2286 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	937 (RD-WH)	20	Voltage supplied in Start and Run (overload protected)
2	*	*	not used
3	1632 (TN-LB)	22	Passenger air bag deactivation indicator control

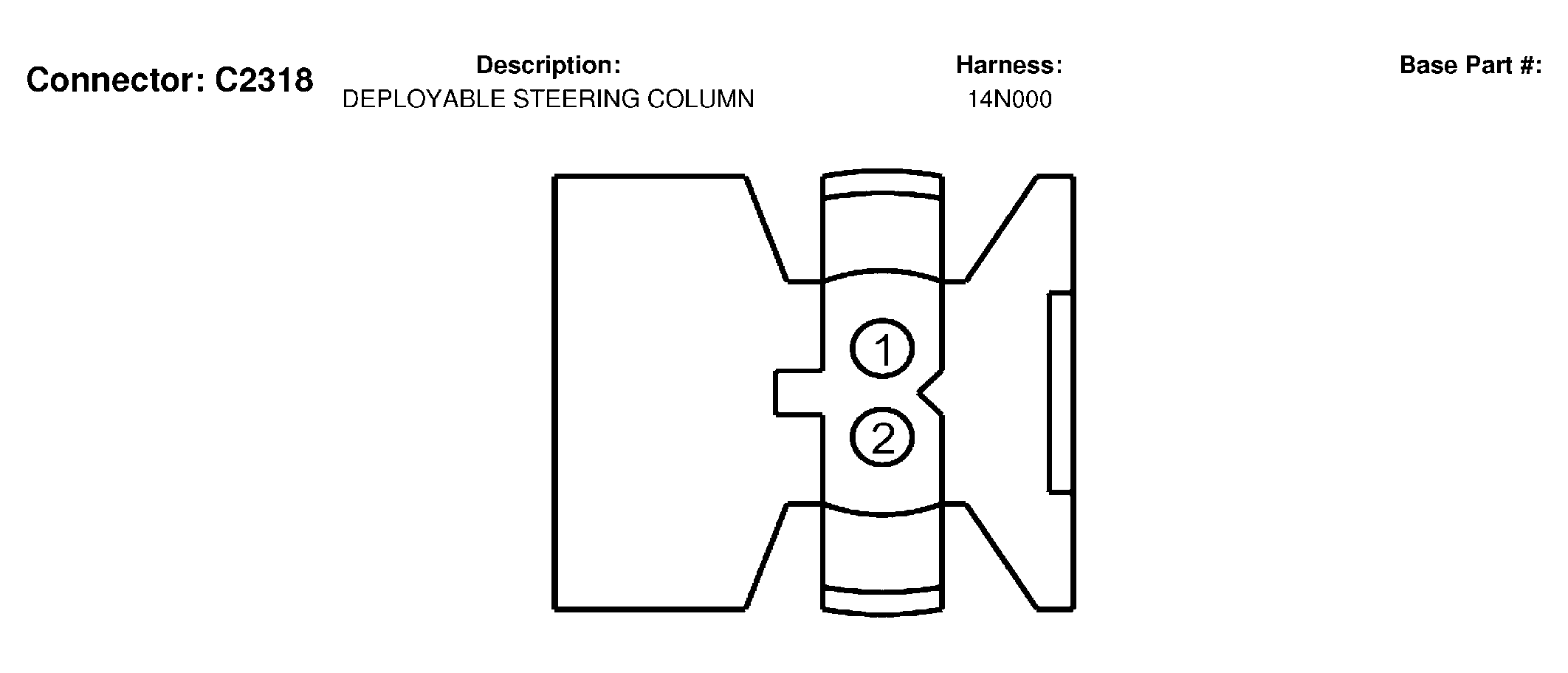

Fig 295: Deployable Steering Column Connector End View (C2318)

Courtesy of FORD MOTOR CO.

C2318 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	2136 (OG)	20	Deployable steering column feed
2	2137 (RD-LB)	20	Deployable steering column return

Fig 296: Inline Connector End View (C3007)

Courtesy of FORD MOTOR CO.

C3007 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	186 (BR-LB)	12
2	605 (RD)	16
3	676 (PK-OG)	18
4	705 (LG-OG)	20
5	53 (BK-LB)	18
6	569 (DG)	22
7	964 (DB-LG)	22
8	*	*

Fig 297: Power Seat Motor Assembly, Right Connector End View (C3015)

Courtesy of FORD MOTOR CO.

C3015 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	987 (RD-WH)	14	Fwd/Rwd motor +/-	SWB
1	1465 (GY-WH)	12	Fwd/Rwd motor +/-	LWB
2	984 (YE-LB)	14	Front height motor +/-
3	985 (RD-LB)	14	Front height motor +/-
4	986 (YE-WH)	14	Fwd/Rwd motor +/-	SWB
4	1466 (GY-OG)	12	Fwd/Rwd motor +/-	LWB
5	989 (RD-LG)	14	Rear height motor +/-
6	988 (YE-LG)	14	Rear height motor +/-

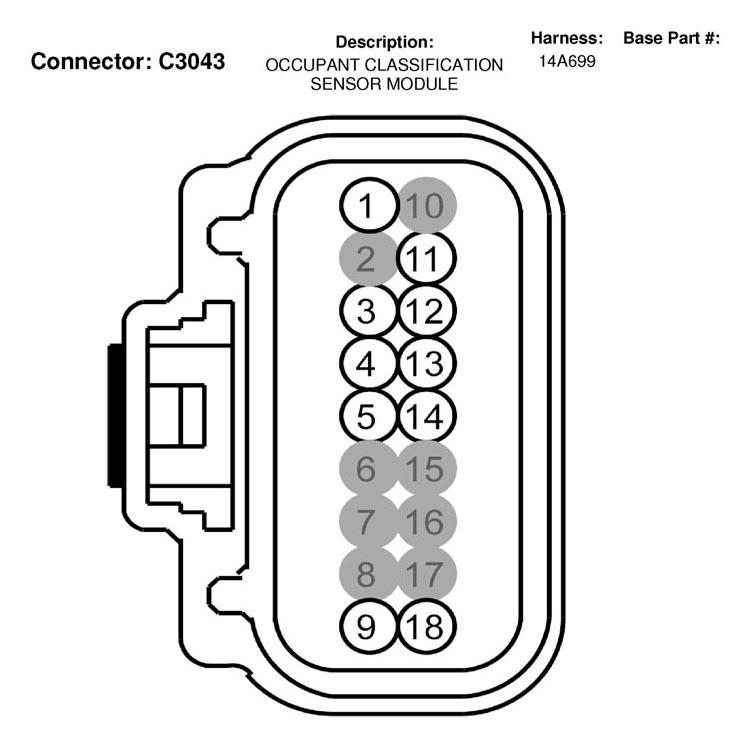

Fig 298: Occupant Classification Sensor Module Connector End View (C3043)

Courtesy of FORD MOTOR CO.

C3043 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	937 (RD-WH)	22	Voltage supplied in Start and Run (overload protected)
2	*	*	not used
3	1568 (RD-WH)	22	Occupant classification sensor +
4	1570 (TN-BK)	22	Occupant classification sensor signal
5	1569 (GY-LB)	22	Occupant classification sensor -
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	1919 (PK-OG)	22	CAN +
10	*	*	not used
11	2088 (TN-RD)	22	Safety belt sensor, passenger, feed
12	2089 (OG-BK)	22	Safety belt sensor, passenger, signal
13	2090 (DB-OG)	22	Safety belt sensor, passenger, return
14	676 (PK-OG)	22	Ground
15	*	*	not used
16	*	*	not used
17	*	*	not used
18	1918 (BR-WH)	22	CAN -

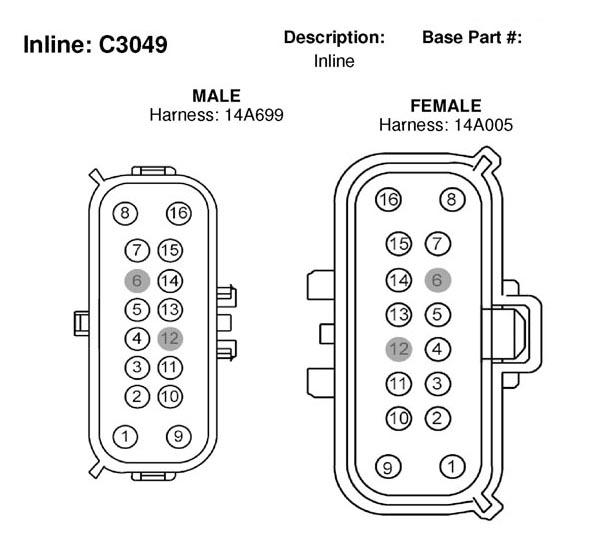

Fig 299: Inline Connector End View (C3049)

Courtesy of FORD MOTOR CO.

C3049 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1489 (LB-BK)	14
2	1064 (YE-LB)	16
3	1558 (TN-BK)	22
4	1257 (WH-LB)	20
5	1258 (RD)	20
6	*	*
7	566 (DG)	16
8	919 (GY-BK)	14	w/o memory
8	1490 (LB-OG)	14	memory
9	918 (GY)	14	w/o memory
9	490 (RD)	14	memory
10	1060 (BK-LB)	22
11	1061 (BR-LB)	22
12	*	*
13	1520 (LG)	22
14	57 (BK)	16
15	85 (BR-LB)	22
16	57 (BK)	14

Fig 300: Safety Belt Buckle Switch, Driver Connector End View (C3065)

Courtesy of FORD MOTOR CO.

C3065 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	85 (BR-LB)	22	Safety belt buckle switch, driver +
2	1558 (TN-BK)	22	Signal return

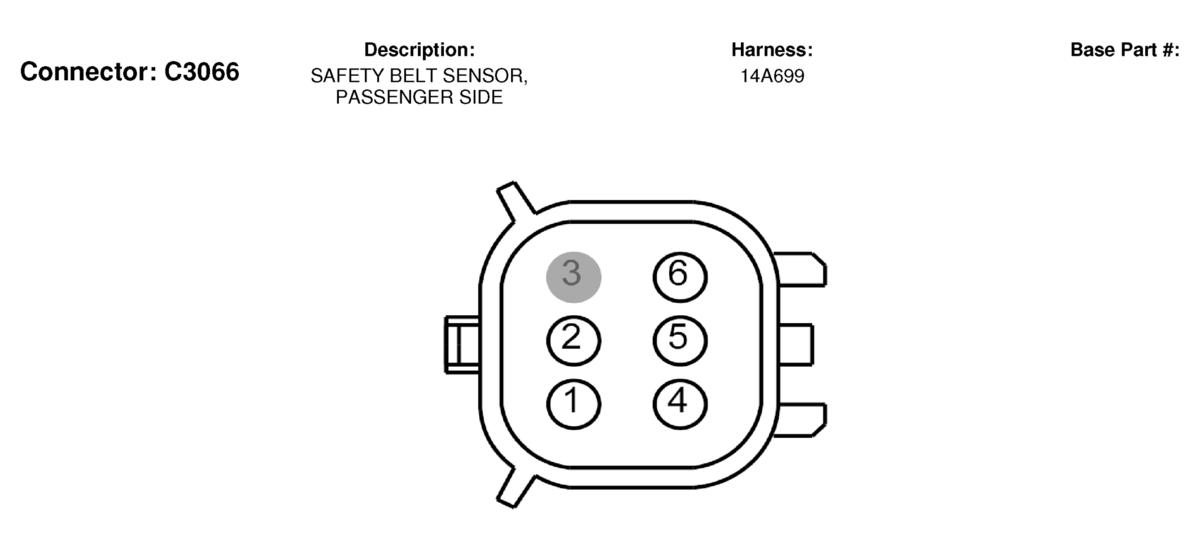

Fig 301: Safety Belt Sensor, Passenger Side Connector End View (C3066)

Courtesy of FORD MOTOR CO.

C3066 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1514 (RD-BK)	22	Safety belt buckle switch, passenger signal
2	1558 (TN-BK)	22	Signal return
3	*	*	not used
4	2088 (TN-RD)	22	Safety belt sensor, passenger, feed
5	2090 (DB-OG)	22	Safety belt sensor, passenger, return
6	2089 (OG-BK)	22	Safety belt sensor, passenger, signal

Fig 302: Inline Connector End View (C3133)

Courtesy of FORD MOTOR CO.

C3133 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	170 (RD-LB)	14
2	316 (YE-LB)	14
3	317 (GY-OG)	14
4	118 (PK-OG)	16
5	53 (BK-LB)	20
6	117 (PK-BK)	16
7	627 (BK-OG)	20
8	57 (BK)	22

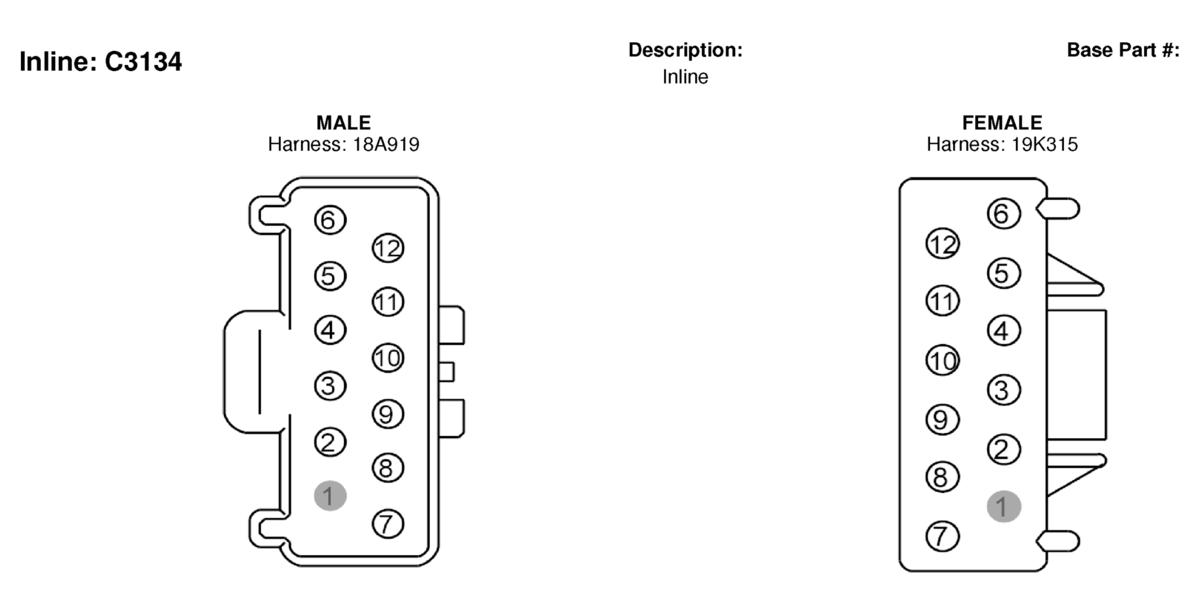

Fig 303: Inline Connector End View (C3134)

Courtesy of FORD MOTOR CO.

C3134 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	*	*
2	1466 (GY-OG)	12
3	1465 (GY-WH)	12
4	170 (RD-LB)	12
5	986 (YE-WH)	12
6	987 (RD-WH)	12
7	583 (YE)	20
8	931 (WH-RD)	14	19K315
8	931 (WH-RD)	16	18A919
9	1521 (LG)	16
10	595 (LB-RD)	20
11	57 (BK)	12
12	676 (PK-OG)	20

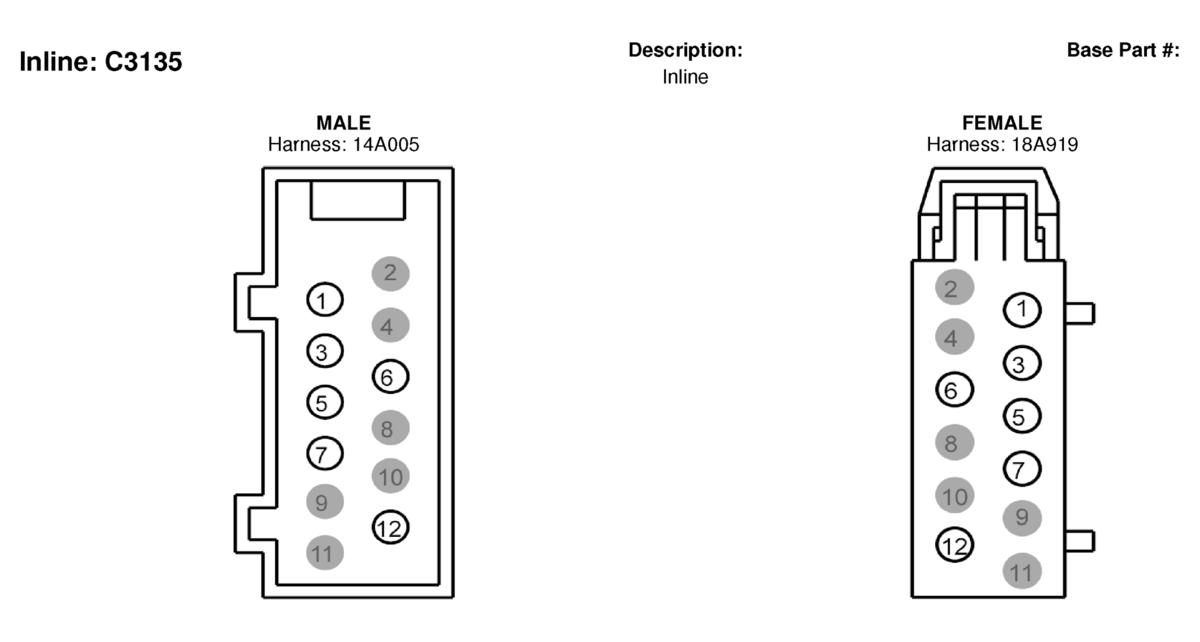

Fig 304: Inline Connector End View (C3135)

Courtesy of FORD MOTOR CO.

C3135 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge	Qualifier
1	1068 (LG-BK)	20	14A005
1	1068 (LG-BK)	22	18A919
2	*	*
3	484 (OG-BK)	20
4	*	*
5	833 (TN)	20	14A005
5	833 (TN)	22	18A919
6	832 (LB-PK)	20	14A005
6	832 (LB-PK)	22	18A919
7	676 (PK-OG)	20	14A005
7	676 (PK-OG)	22	18A919
7	676 (PK-OG)	22	18A919
8	*	*
9	*	*
10	*	*
11	*	*
12	964 (DB-LG)	20	14A005
12	964 (DB-LG)	22	18A919

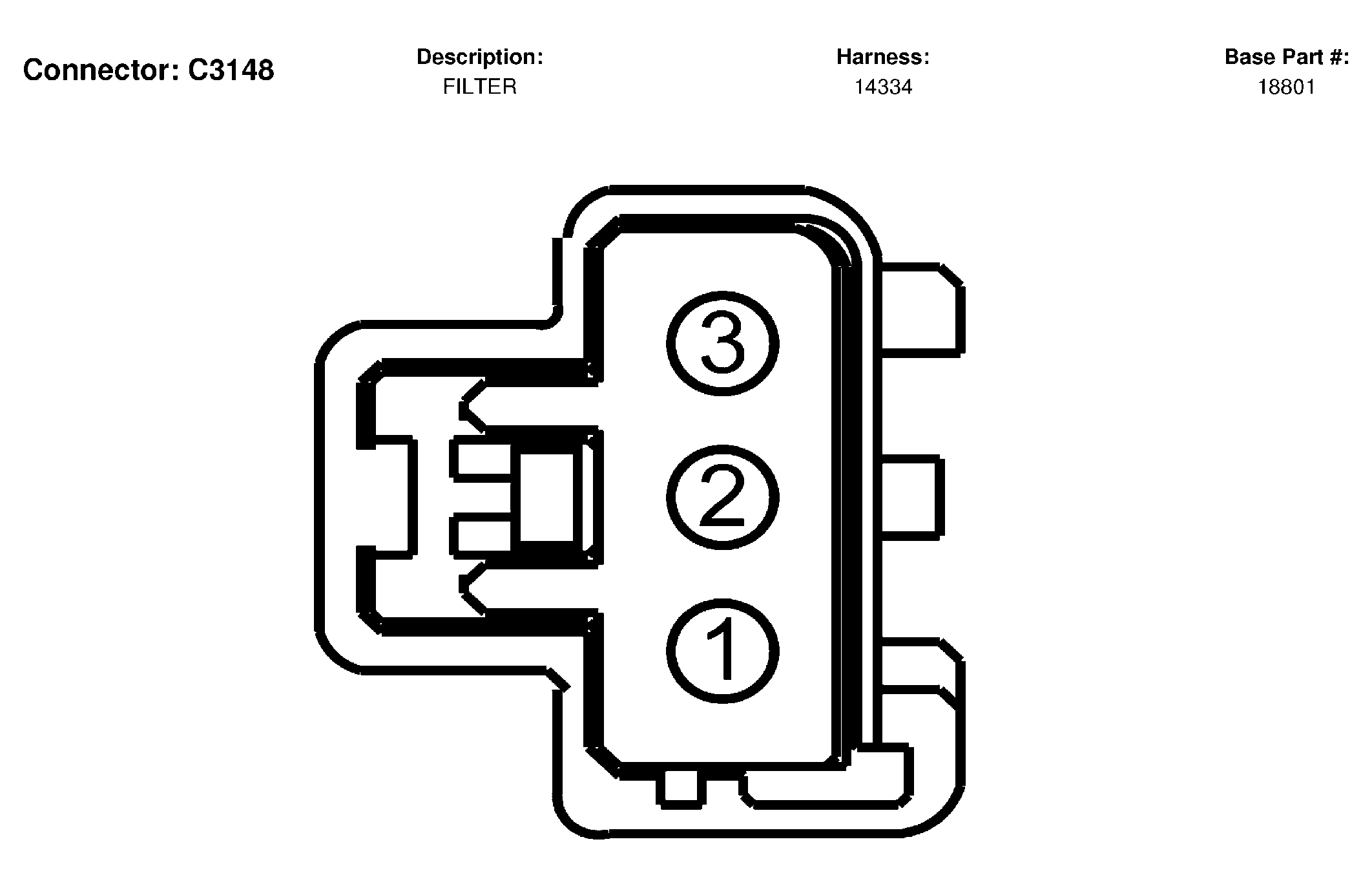

Fig 305: Filter Connector End View (C3148)

Courtesy of FORD MOTOR CO.

C3148 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	569 (DG)	18	Brake pedal position switch output, (overload protected)
2	57 (BK)	22	Ground
3	511 (LG)	22	Brake pedal position switch output, (overload protected)

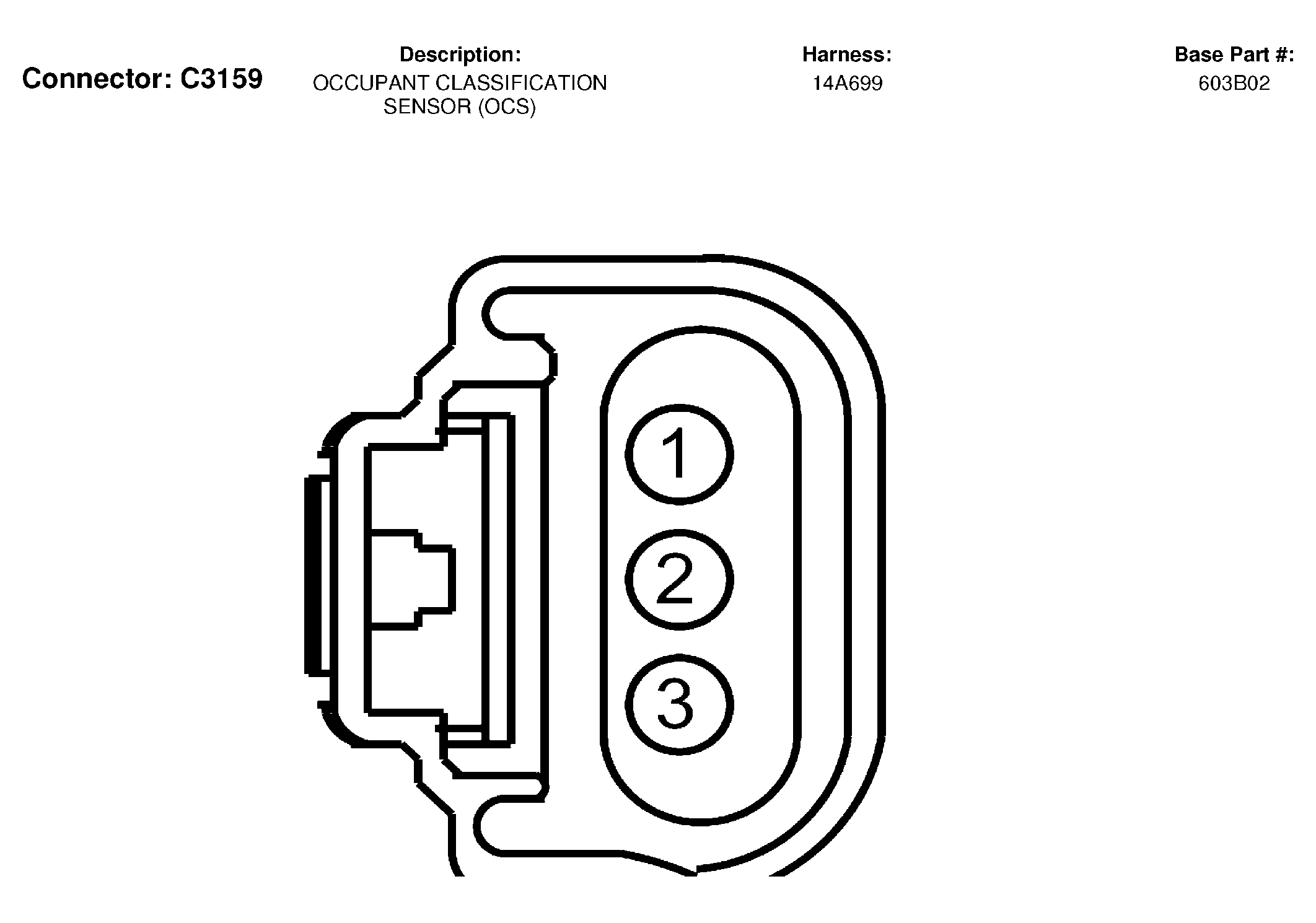

Fig 306: Occupant Classification Sensor (OCS) Connector End View (C3159)

Courtesy of FORD MOTOR CO.

C3159 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1568 (RD-WH)	22	Occupant classification sensor +
2	1570 (TN-BK)	22	Occupant classification sensor signal
3	1569 (GY-LB)	22	Occupant classification sensor -

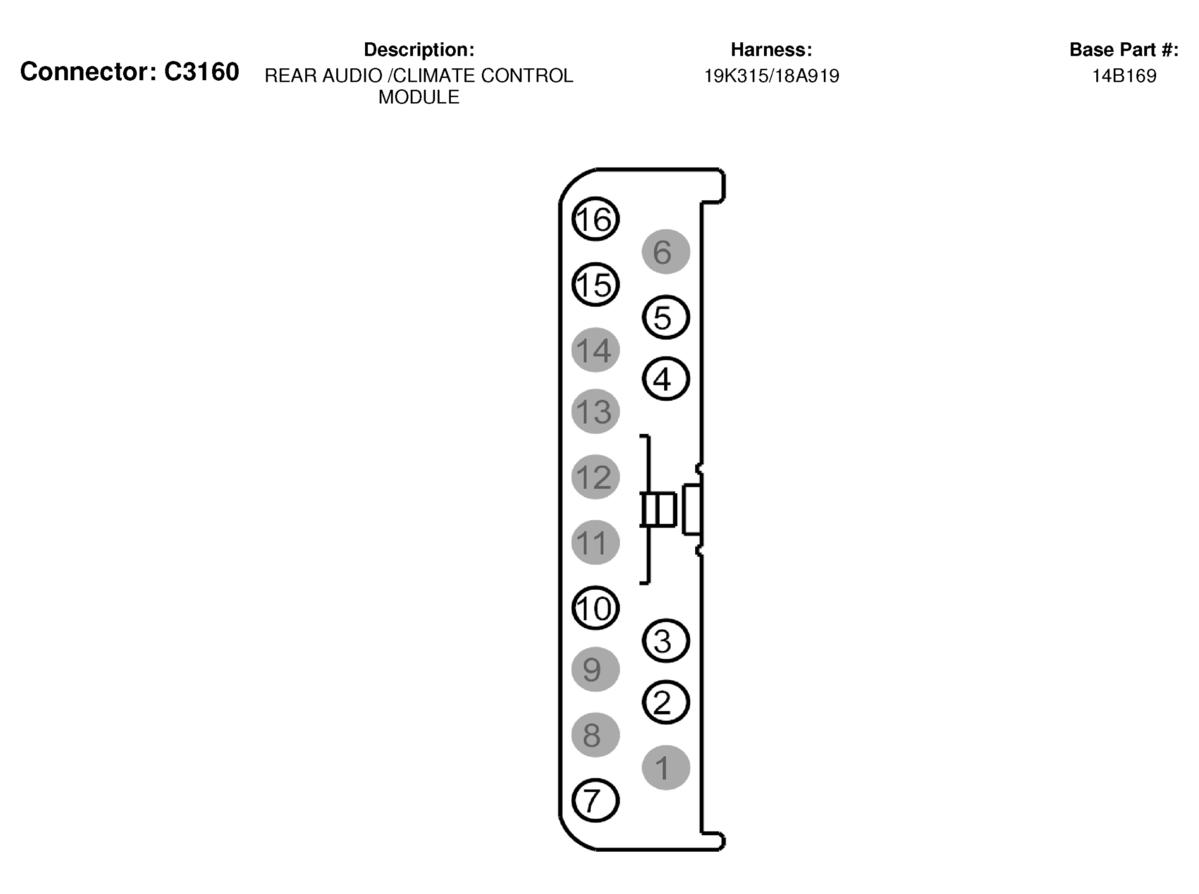

Fig 307: Rear Audio/Climate Control Module Connector End View (C3160)

Courtesy of FORD MOTOR CO.

C3160 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	1068 (LG-BK)	22	Audio System ON (ASYSON)
3	833 (TN)	22	Audio corporate protocol B
4	484 (OG-BK)	22	Switch illumination +
5	676 (PK-OG)	22	Ground
6	*	*	not used
7	595 (LB-RD)	20	Audio/climate control switch, Radio, signal
8	*	*	not used
9	*	*	not used
10	832 (LB-PK)	22	Audio corporate protocol A
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
16	583 (YE)	20	Rear audio/climate control switch +

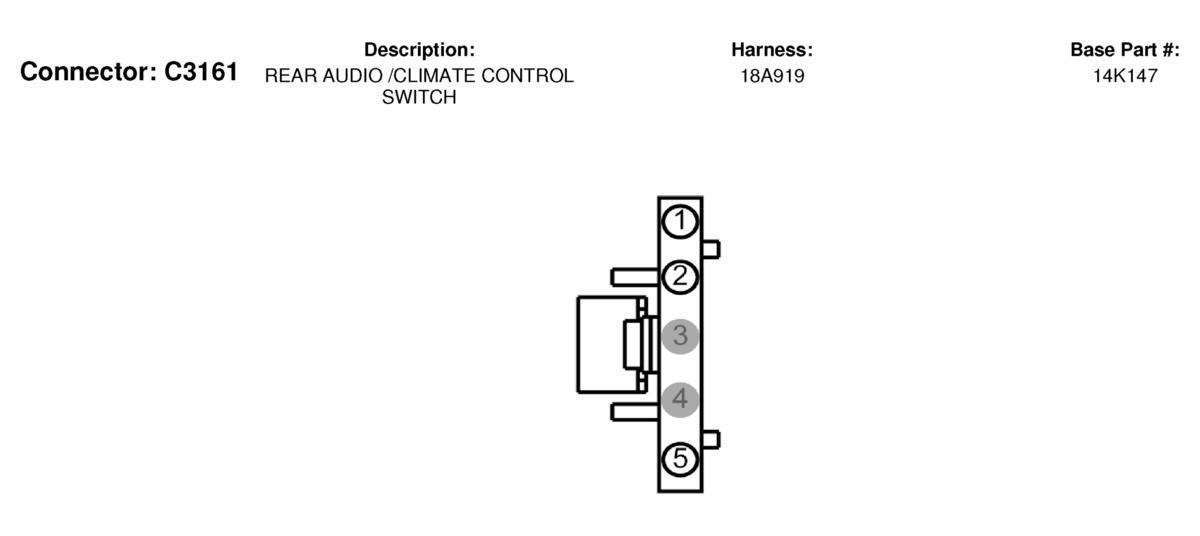

Fig 308: Rear Audio/Climate Control Switch Connector End View (C3161)

Courtesy of FORD MOTOR CO.

C3161 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	583 (YE)	22	Rear audio/climate control switch +
2	595 (LB-RD)	22	Audio/climate control switch, Radio, signal
3	*	*	not used
4	*	*	not used
5	676 (PK-OG)	22	Ground

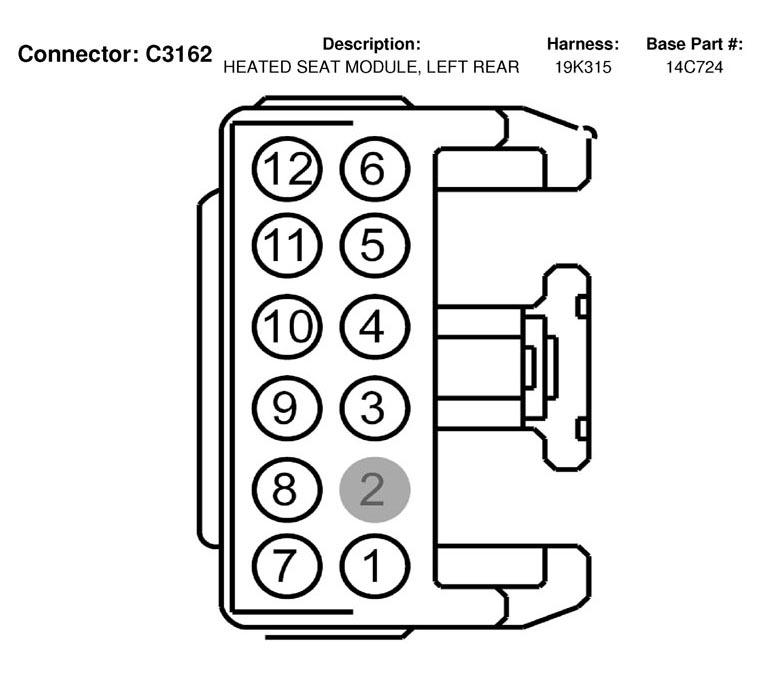

Fig 309: Heated Seat Module, Left Rear Connector End View (C3162)

Courtesy of FORD MOTOR CO.

C3162 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	16	Ground
2	*	*	not used
3	1061 (BR-LB)	22	Temperature return
4	1060 (BK-LB)	22	Temperature signal
5	1040 (RD-BK)	20	Voltage supplied in Run (overload protected)
6	1064 (YE-LB)	16	heater feed
7	1065 (WH-LB)	16	heater return
8	1020 (DG-VT)	22	High temperature switch signal
9	1018 (LG-OG)	22	Low temperature indicator control
10	1019 (TN-LB)	22	High temperature indicator control
11	1255 (WH-RD)	22	Low temperature switch signal
12	1445 (RD-LG)	16	Voltage supplied at all times (overload protected)

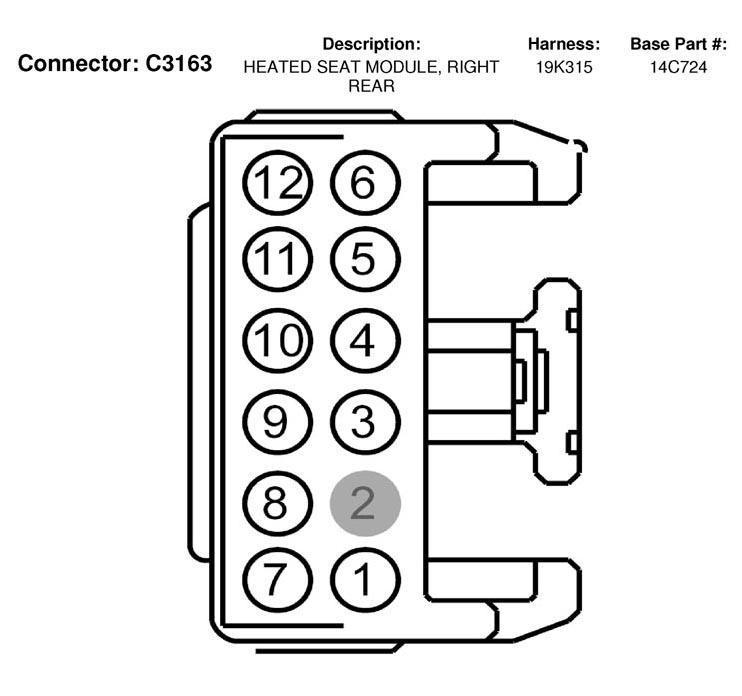

Fig 310: Heated Seat Module, Right Rear Connector End View (C3163)

Courtesy of FORD MOTOR CO.

C3163 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	57 (BK)	16	Ground
2	*	*	not used
3	1061 (BR-LB)	22	Temperature return
4	1060 (BK-LB)	22	Temperature signal
5	1040 (RD-BK)	22	Voltage supplied in Run (overload protected)
6	1064 (YE-LB)	16	heater feed
7	1065 (WH-LB)	16	heater return
8	581 (RD)	22	High temperature switch, passenger side signal
9	579 (BK-OG)	22	Low temperature indicator control, passenger side
10	580 (BR)	22	High temperature indicator control, passenger side
11	1256 (WH-YE)	22	Low temperature switch signal
12	1445 (RD-LG)	16	Voltage supplied at all times (overload protected)

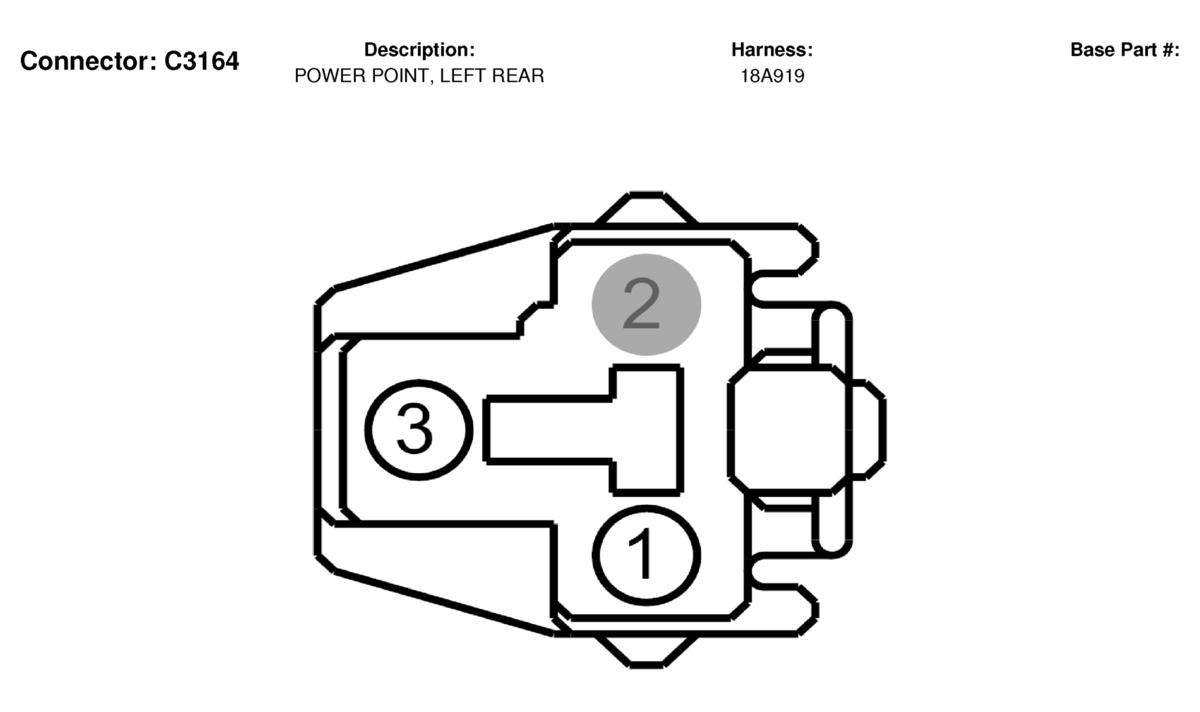

Fig 311: Power Point, Left Rear Connector End View (C3164)

Courtesy of FORD MOTOR CO.

C3164 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1507 (WH-RD)	16	Voltage supplied at all times (overload protected)
2	*	*	not used
3	57 (BK)	16	Ground

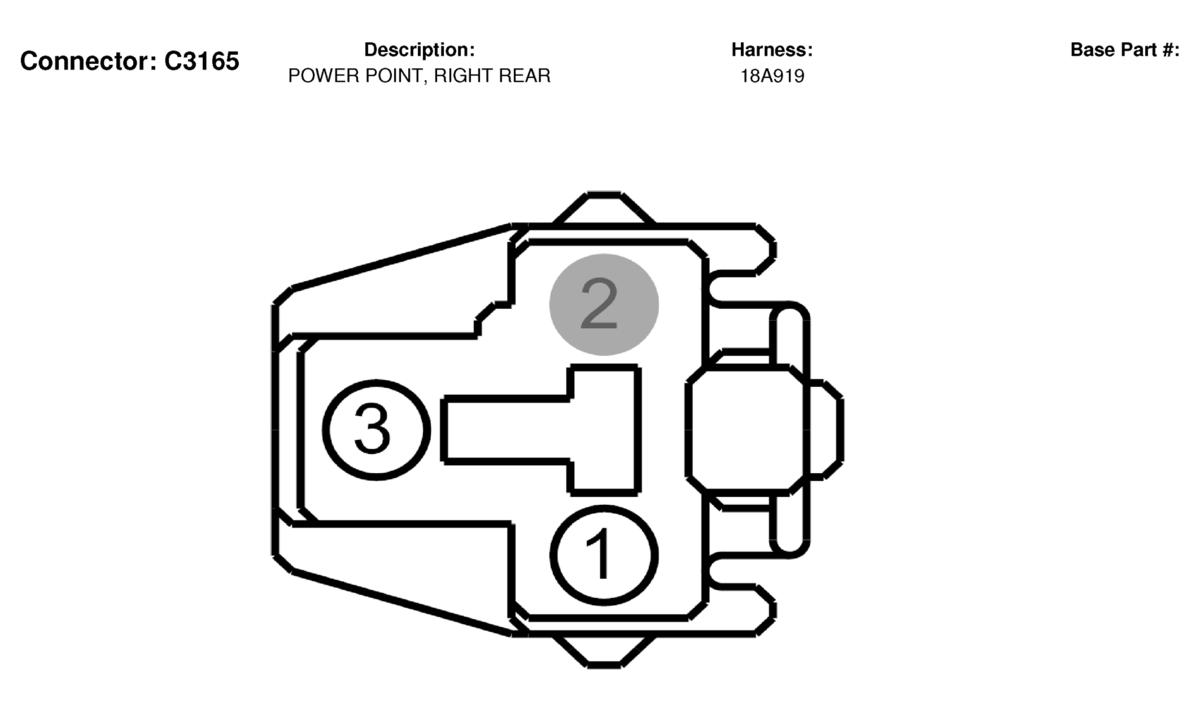

Fig 312: Power Point, Right Rear Connector End View (C3165)

Courtesy of FORD MOTOR CO.

C3165 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1521 (LG)	16	Voltage supplied at all times (overload protected)
2	*	*	not used
3	57 (BK)	16	Ground

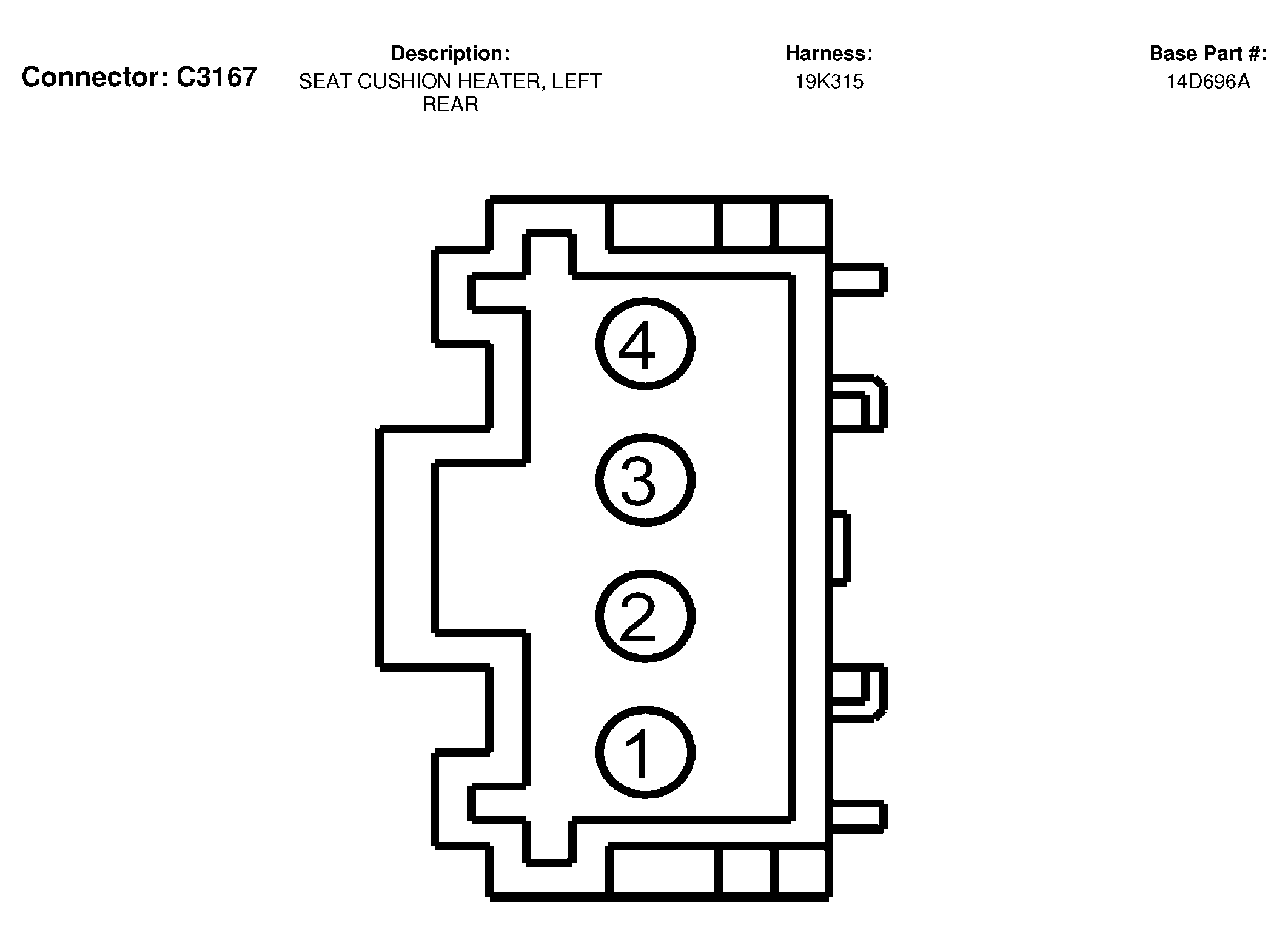

Fig 313: Seat Cushion Heater, Left Rear Connector End View (C3167)

Courtesy of FORD MOTOR CO.

C3167 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1064 (YE-LB)	16	heater feed
2	1060 (BK-LB)	22	Temperature signal
3	1061 (BR-LB)	22	Temperature return
4	1064 (YE-LB)	16	heater feed

Fig 314: Seat Back Heater, Left Rear Connector End View (C3168)

Courtesy of FORD MOTOR CO.

C3168 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1065 (WH-LB)	16	heater return
2	1064 (YE-LB)	16	heater feed

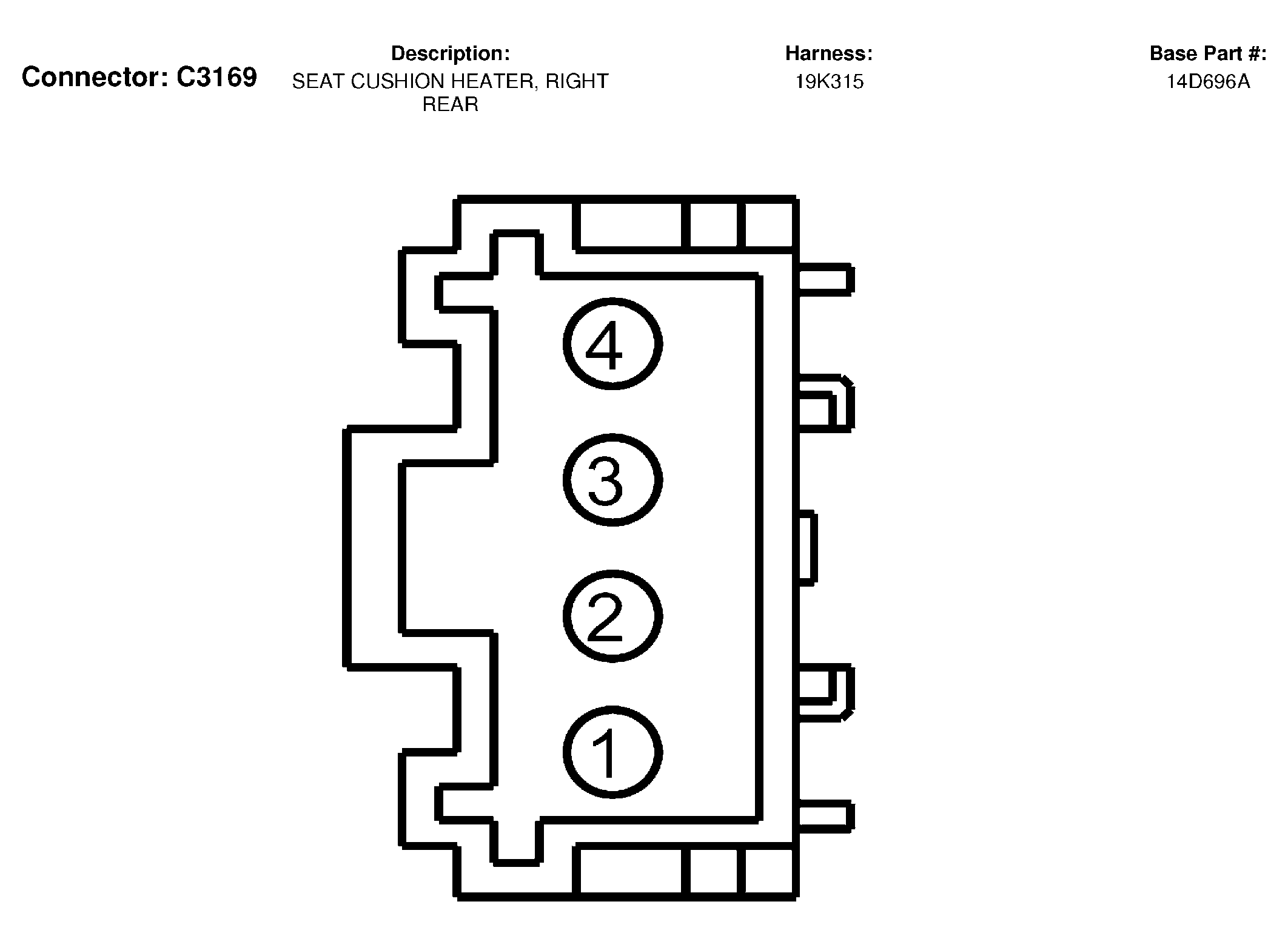

Fig 315: Seat Cushion Heater, Right Rear Connector End View (C3169)

Courtesy of FORD MOTOR CO.

C3169 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1064 (YE-LB)	16	heater feed
2	1060 (BK-LB)	22	Temperature signal
3	1061 (BR-LB)	22	Temperature return
4	1064 (YE-LB)	16	heater feed

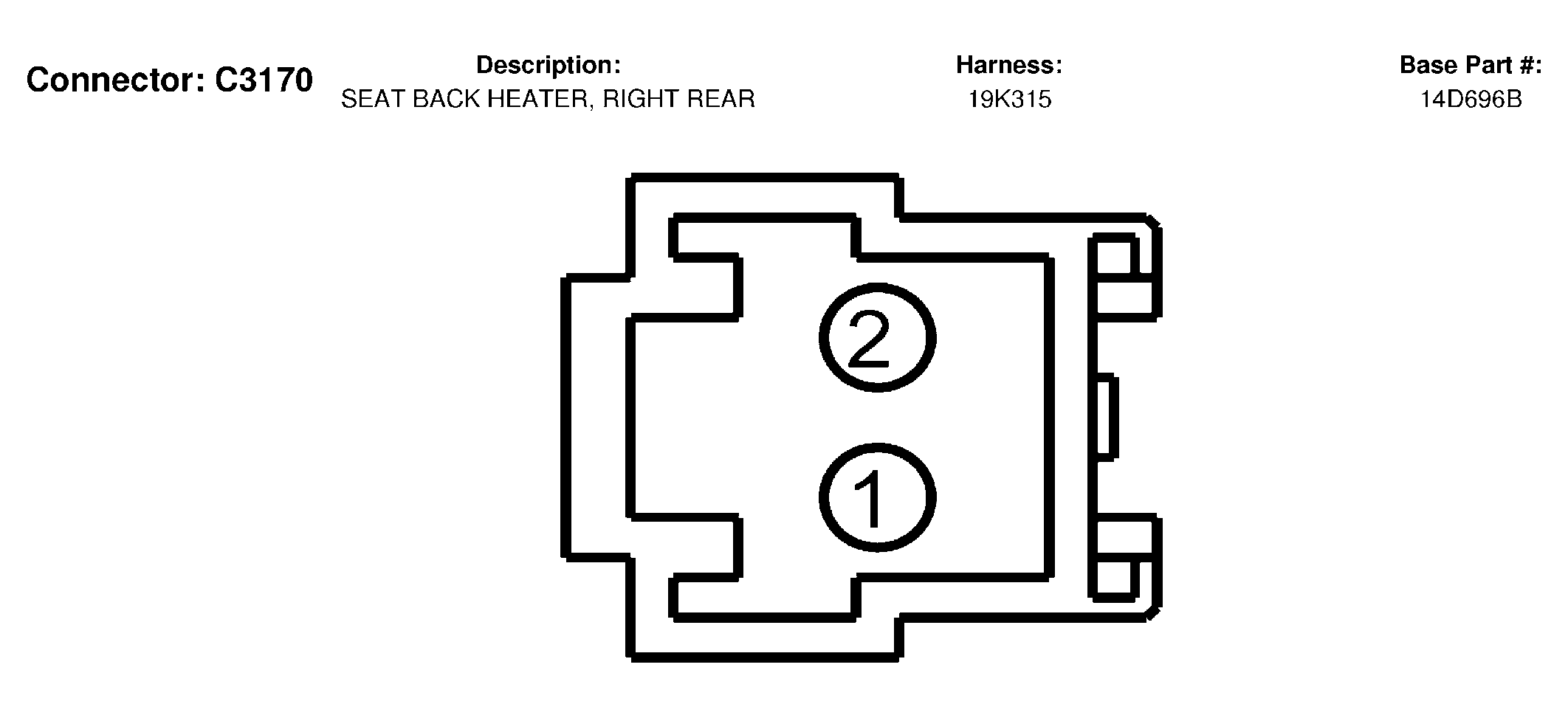

Fig 316: Seat Back Heater, Right Rear Connector End View (C3170)

Courtesy of FORD MOTOR CO.

C3170 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1065 (WH-LB)	16	heater return
2	1064 (YE-LB)	16	heater feed

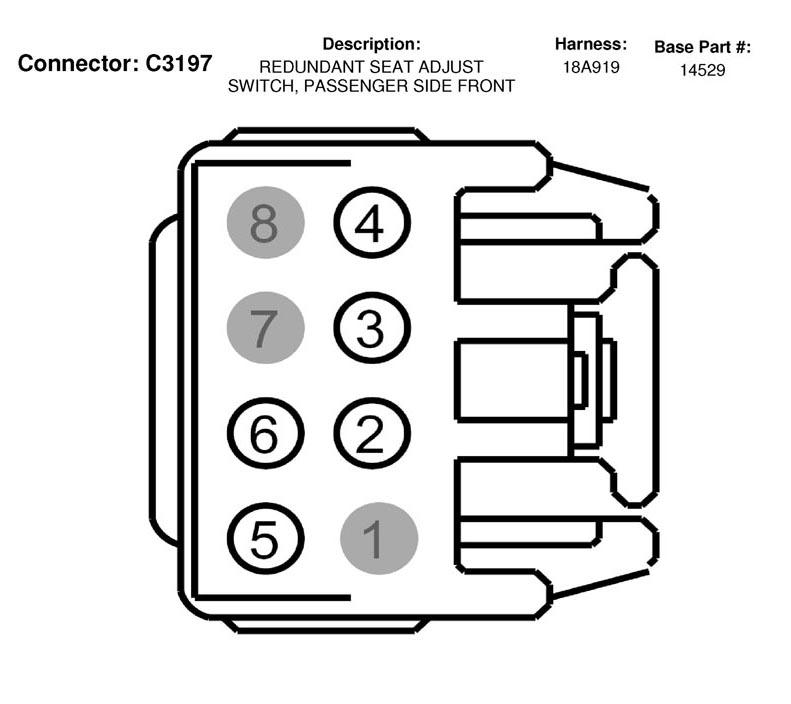

Fig 317: Redundant Seat Adjust Switch, Passenger Side Front Connector End View (C3197)

Courtesy of FORD MOTOR CO.

C3197 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	1465 (GY-WH)	12	Redundant seat adjust switch +/-
3	987 (RD-WH)	12	Fwd/Rwd motor +/-
4	170 (RD-LB)	12	Window lockout signal
5	986 (YE-WH)	12	Fwd/Rwd motor +/-
6	1466 (GY-OG)	12	Redundant seat adjust switch +/-
7	*	*	not used
8	*	*	not used

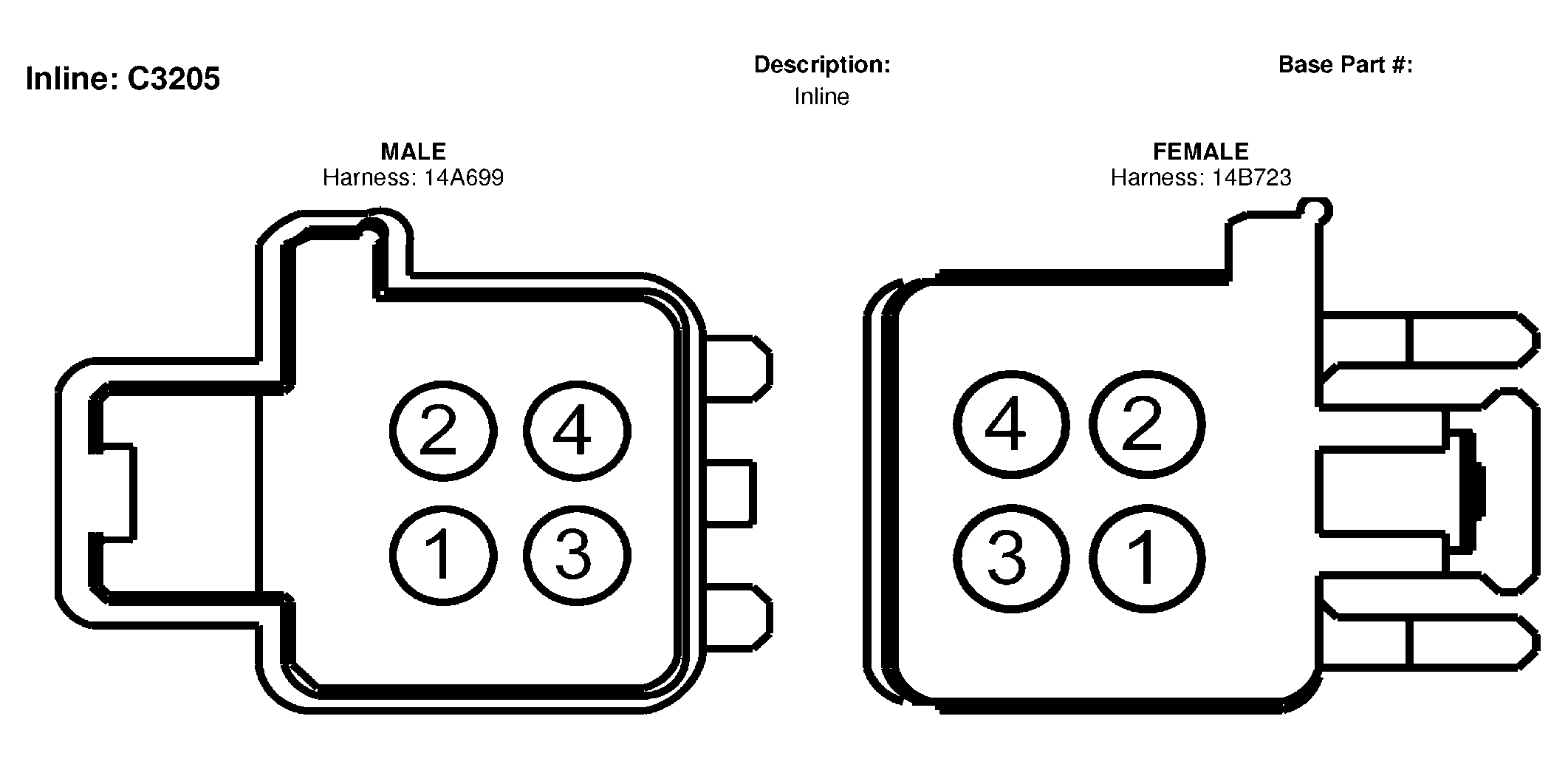

Fig 318: Inline Connector End View (C3205)

Courtesy of FORD MOTOR CO.

C3205 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	566 (DG)	16
2	1097 (BR)	16
3	1094 (PK)	16
4	57 (BK)	16

Fig 319: Inline Connector End View (C3206)

Courtesy of FORD MOTOR CO.

C3206 (MALE AND FEMALE) CONNECTOR REFERENCE

Pin	Circuit	Gauge
1	566 (DG)	16
2	1097 (BR)	16
3	1094 (PK)	16
4	57 (BK)	16

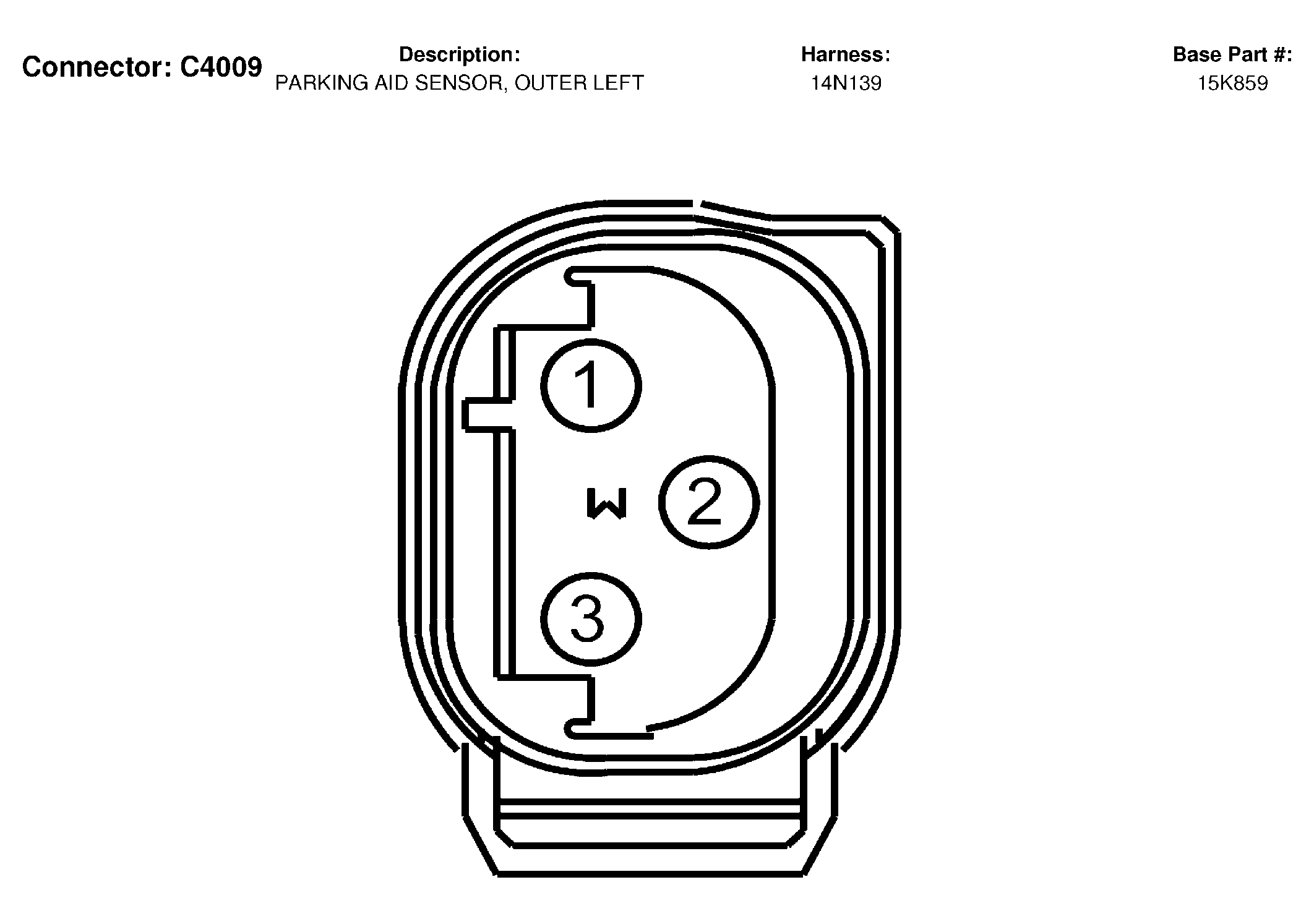

Fig 320: Parking Aid Sensor, Outer Left Connector End View (C4009)

Courtesy of FORD MOTOR CO.

C4009 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1444 (DB-YE)	20	parking aid sensor, left signal
2	1440 (DG-YE)	20	parking aid sensor -
3	1439 (BR-PK)	20	parking aid sensor +

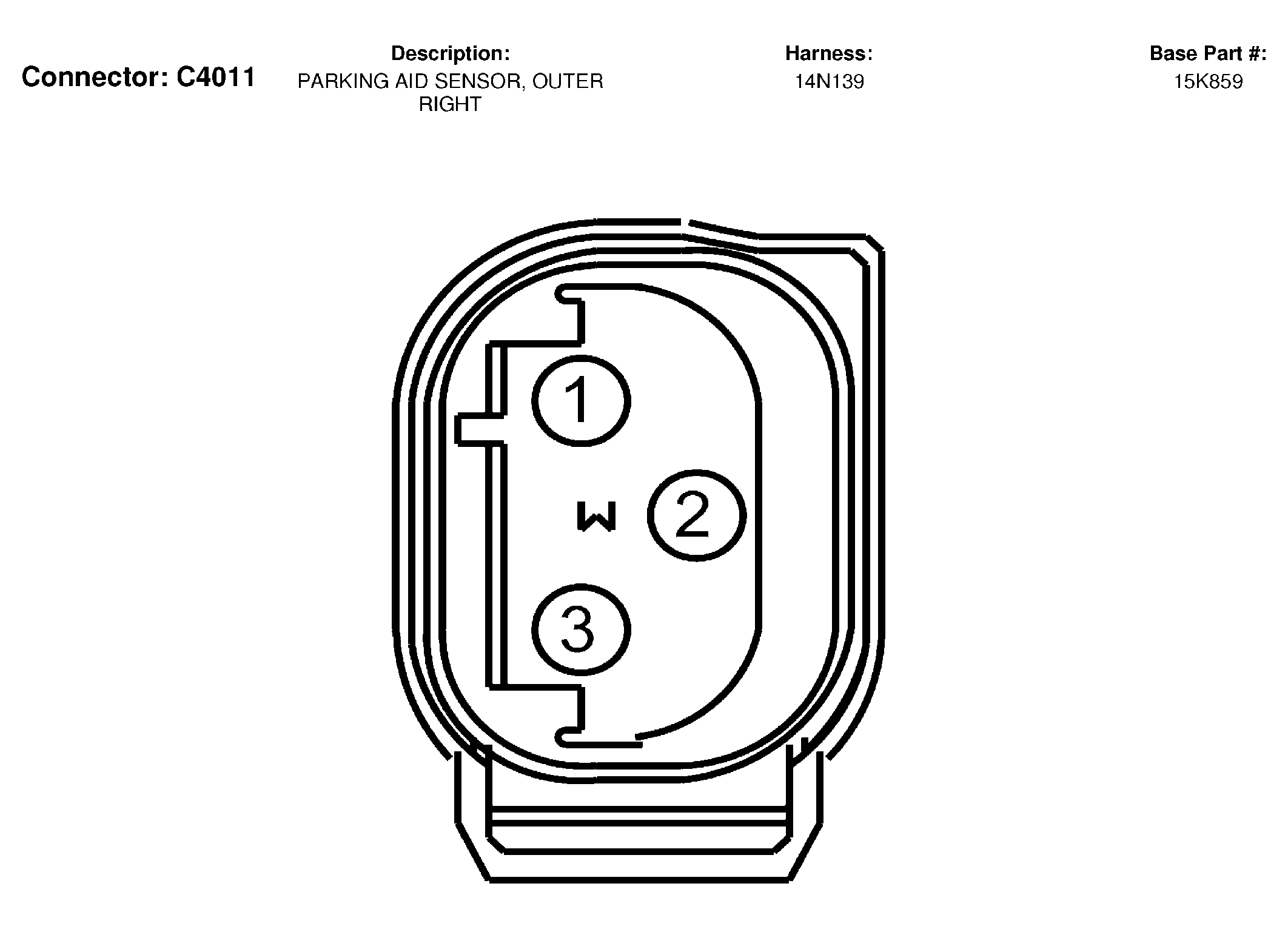

Fig 321: Parking Aid Sensor, Outer Right Connector End View (C4011)

Courtesy of FORD MOTOR CO.

C4011 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1441 (WH-LG)	20	parking aid sensor, right signal
2	1440 (DG-YE)	20	parking aid sensor -
3	1439 (BR-PK)	20	parking aid sensor +

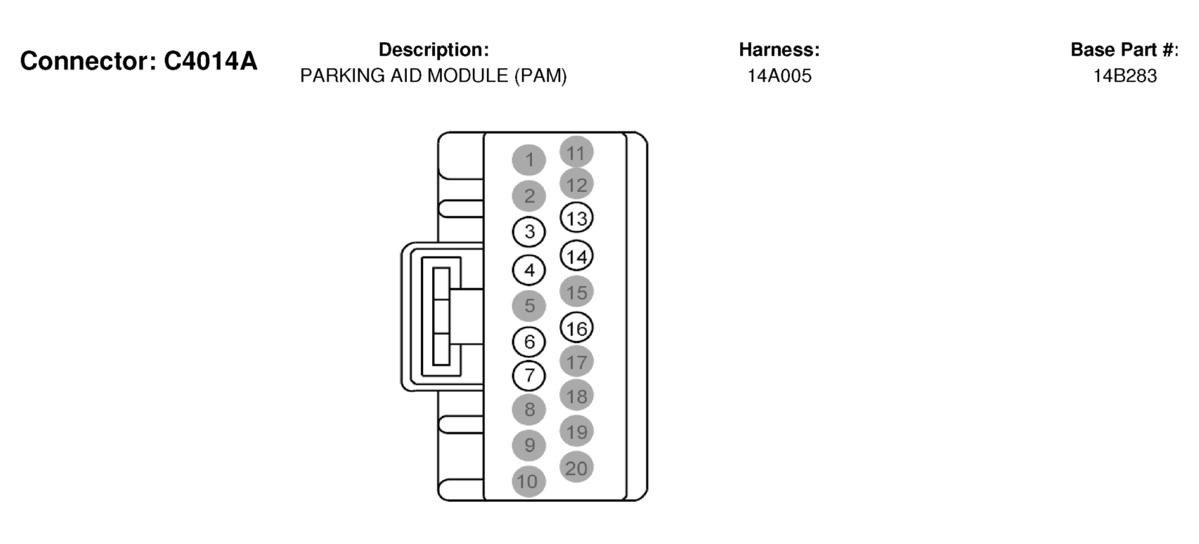

Fig 322: Parking Aid Module (PAM) Connector End View (C4014A)

Courtesy of FORD MOTOR CO.

C4014A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	1440 (DG-YE)	20	parking aid sensor -
4	1438 (DG)	20	Parking aid radar sensor -
5	*	*	not used
6	1444 (DB-YE)	20	parking aid sensor, left signal
7	1441 (WH-LG)	20	parking aid sensor, right signal
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	*	*	not used
12	*	*	not used
13	1439 (BR-PK)	20	parking aid sensor +
14	1437 (BK-PK)	20	Parking aid radar sensor +
15	*	*	not used
16	1443 (WH-LB)	20	Parking aid radar sensor signal
17	*	*	not used
18	*	*	not used
19	*	*	not used
20	*	*	not used

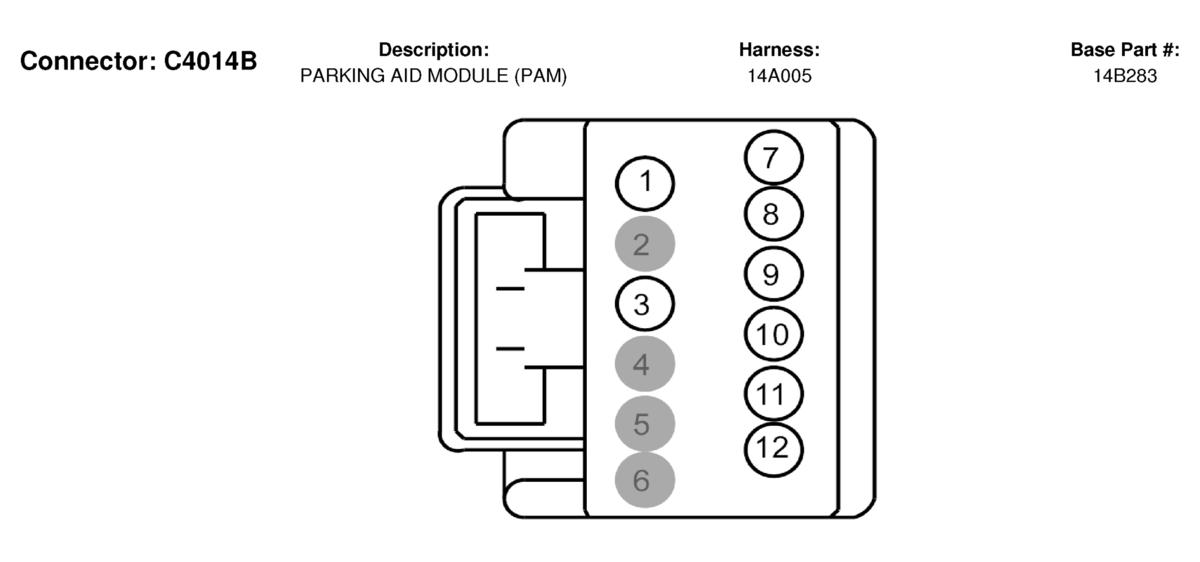

Fig 323: Parking Aid Module (PAM) Connector End View (C4014B)

Courtesy of FORD MOTOR CO.

C4014B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	693 (OG)	22	UBP Bus
2	*	*	not used
3	1442 (DG-WH)	22	Parking aid, audio mute signal	Early production
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	676 (PK-OG)	22	Ground
8	679 (GY-BK)	22	vehicle speed signal
9	1435 (DG-VT)	22	Parking aid On/Off signal
10	1436 (VT-OG)	22	Parking aid Light emitting diode (LED), control
11	140 (BK-PK)	22	Voltage supplied in reverse
12	1003 (GY-YE)	22	Voltage supplied in Run (overload protected)

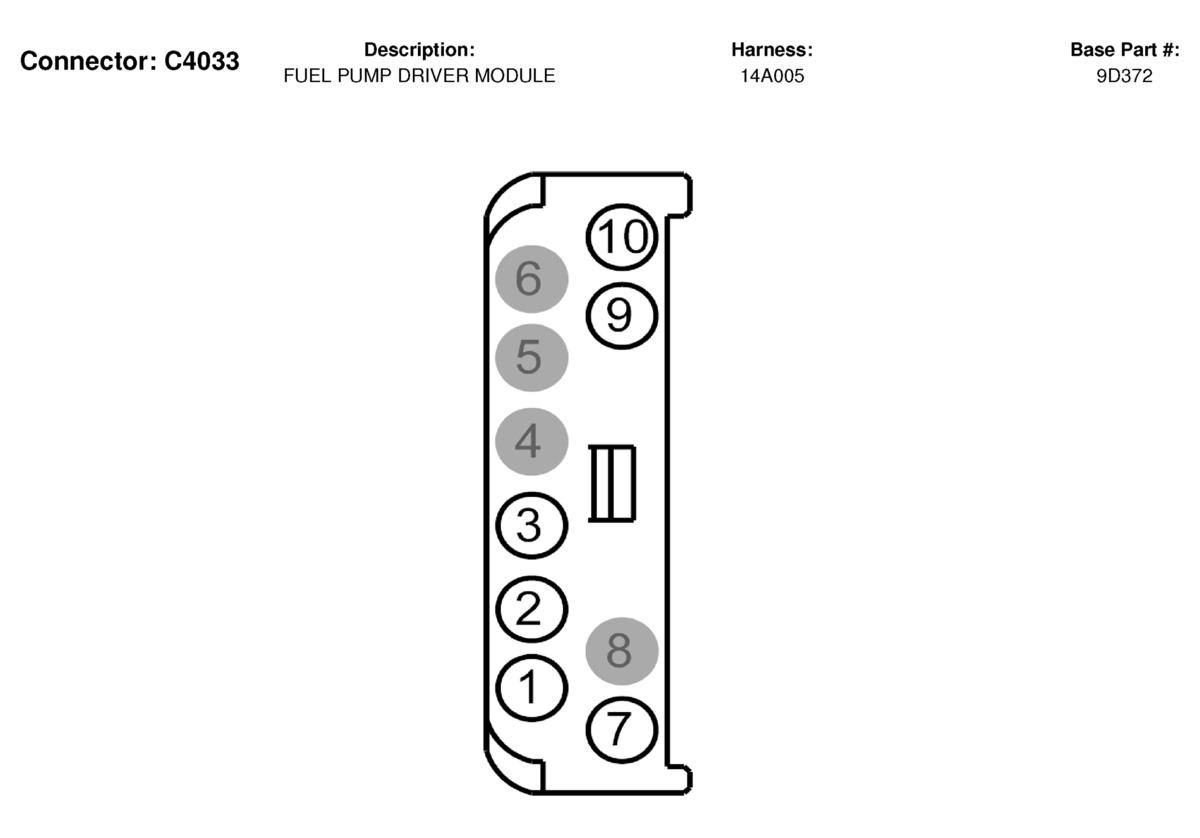

Fig 324: Fuel Pump Driver Module Connector End View (C4033)

Courtesy of FORD MOTOR CO.

C4033 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	926 (LB-OG)	22	Modulated fuel pump signal
2	57 (BK)	14	Ground
3	789 (BR-WH)	14	Fuel pump, return
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	238 (DG-YE)	22	Fuel pump monitor
8	*	*	not used
9	866 (WH)	14	Inertia Fuel Shutoff (IFS) output
10	787 (PK-BK)	14	Fuel pump, feed

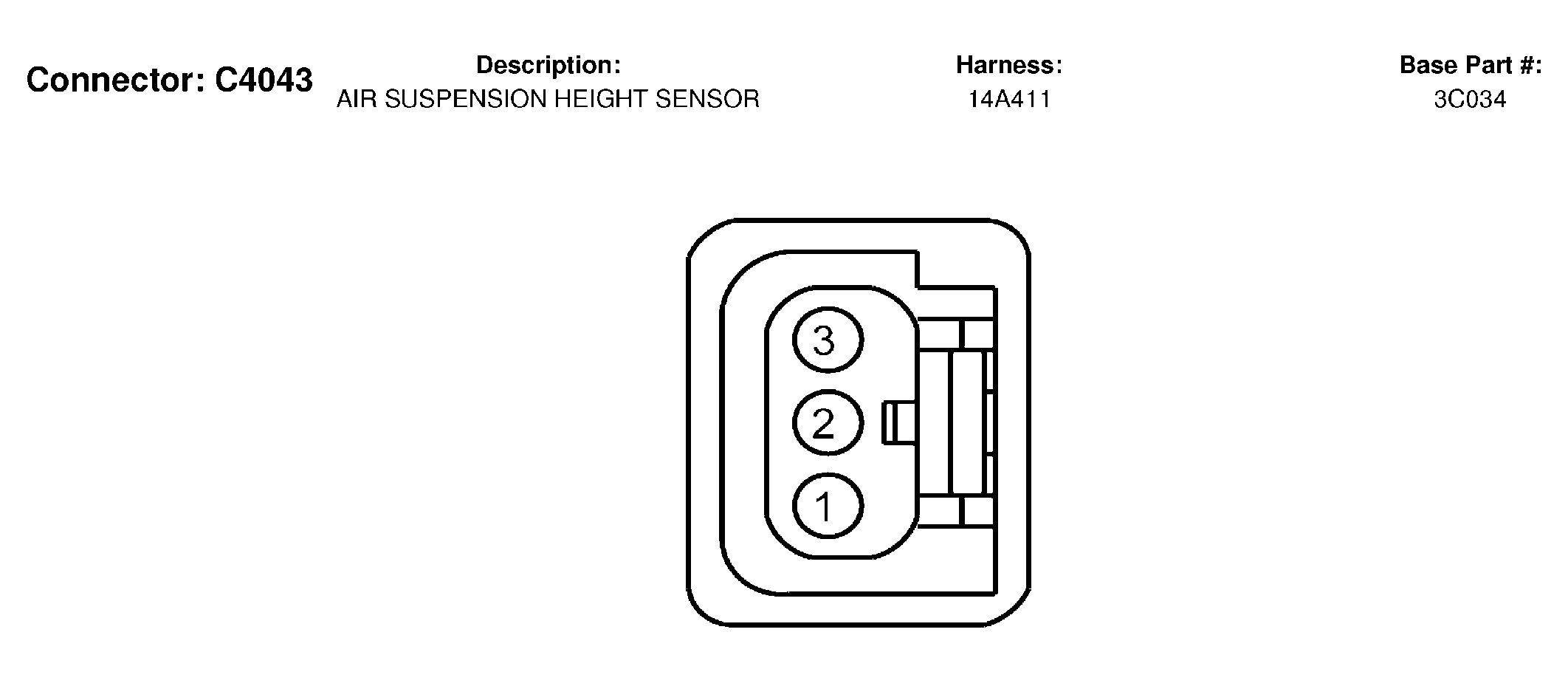

Fig 325: Air Suspension Height Sensor Connector End View (C4043)

Courtesy of FORD MOTOR CO.

C4043 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	432 (BK-PK)	20	Air suspension module ground
2	427 (PK-BK)	20	Air suspension height sensor signal
3	417 (VT-OG)	20	Air suspension disable switch +

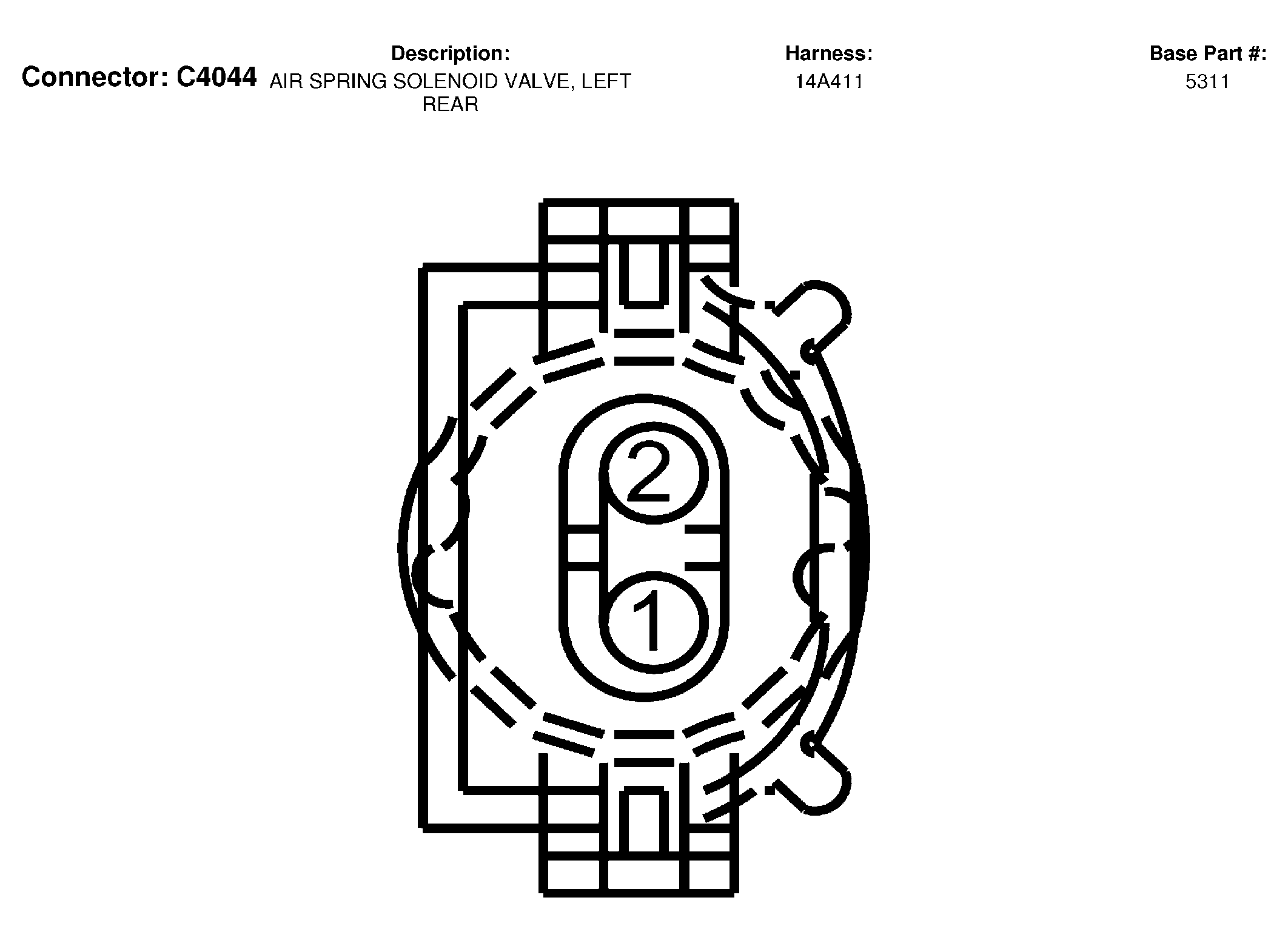

Fig 326: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

Courtesy of FORD MOTOR CO.

C4044 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1114 (BR-PK)	20	Air spring solenoid valve control, left rear
2	57 (BK)	20	Ground

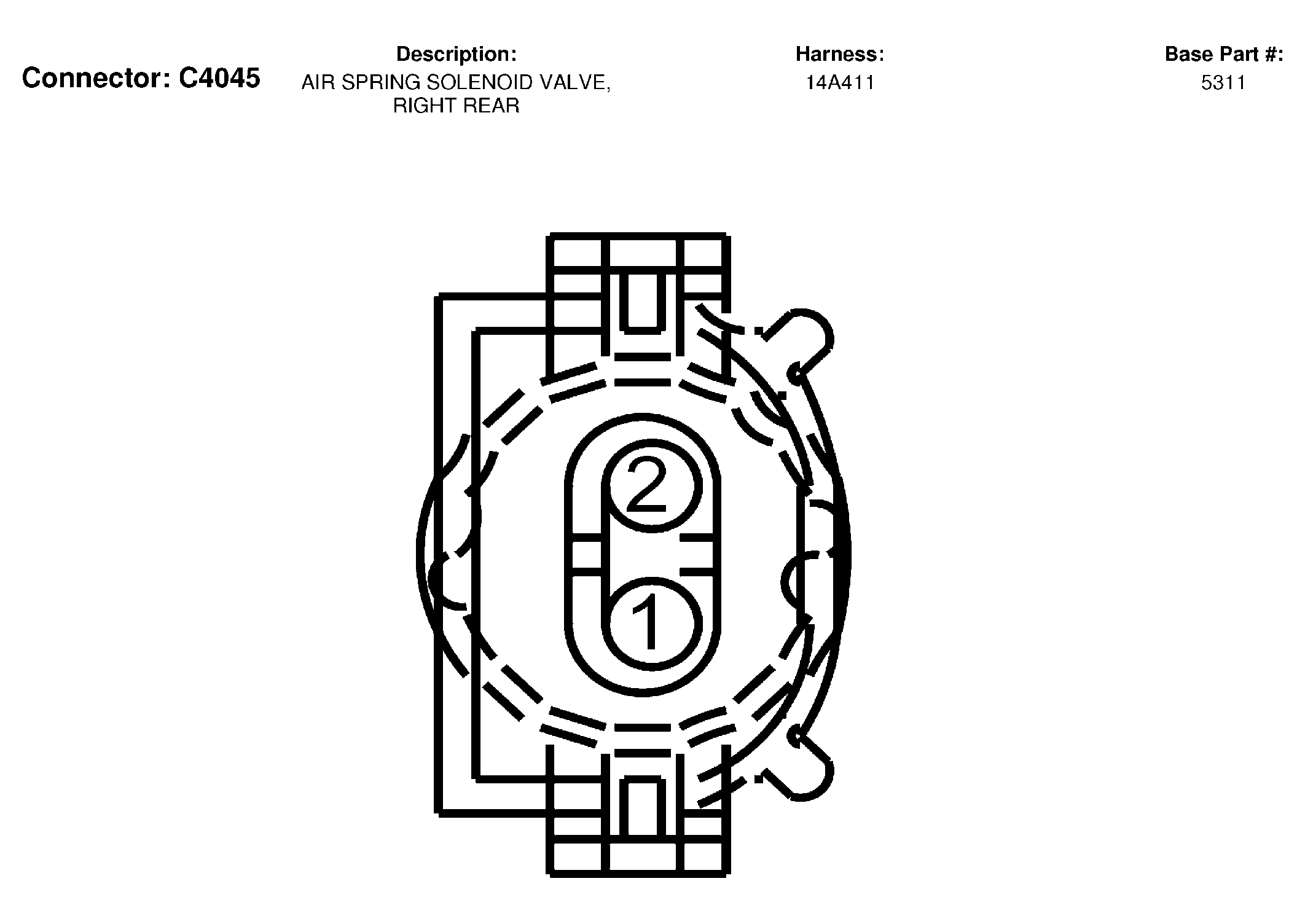

Fig 327: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

Courtesy of FORD MOTOR CO.

C4045 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1115 (TN-WH)	20	Air spring solenoid valve control, right rear
2	57 (BK)	20	Ground

Fig 328: License Plate Lamp Connector End View (C4046)

Courtesy of FORD MOTOR CO.

C4046 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground
2	14 (BR)	20	Power, Exterior lamps

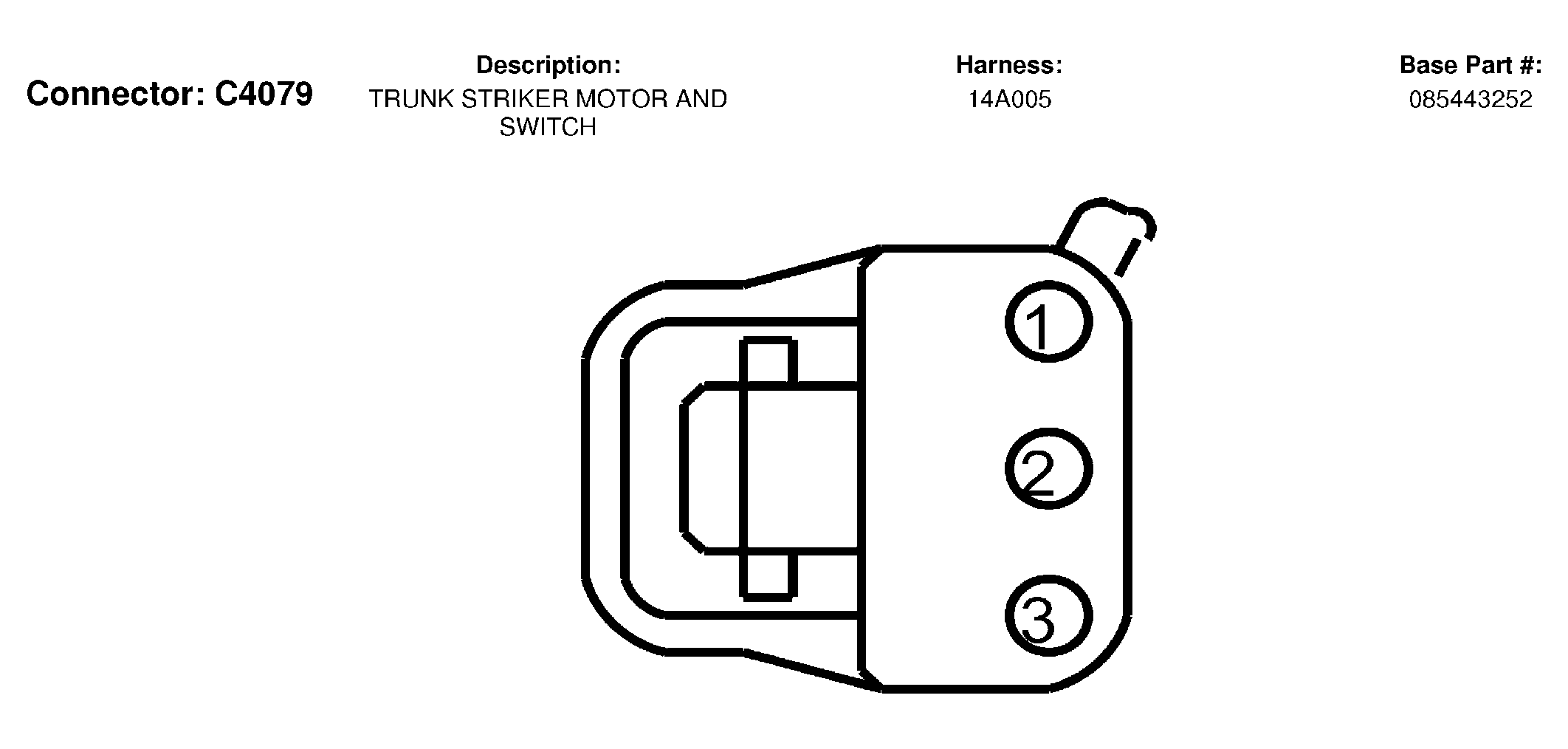

Fig 329: Trunk Striker Motor And Switch Connector End View (C4079)

Courtesy of FORD MOTOR CO.

C4079 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1604 (VT-OG)	22	Trunk striker switch signal, Down
2	1605 (VT-WH)	22	Trunk striker switch signal, Up
3	57 (BK)	20	Ground

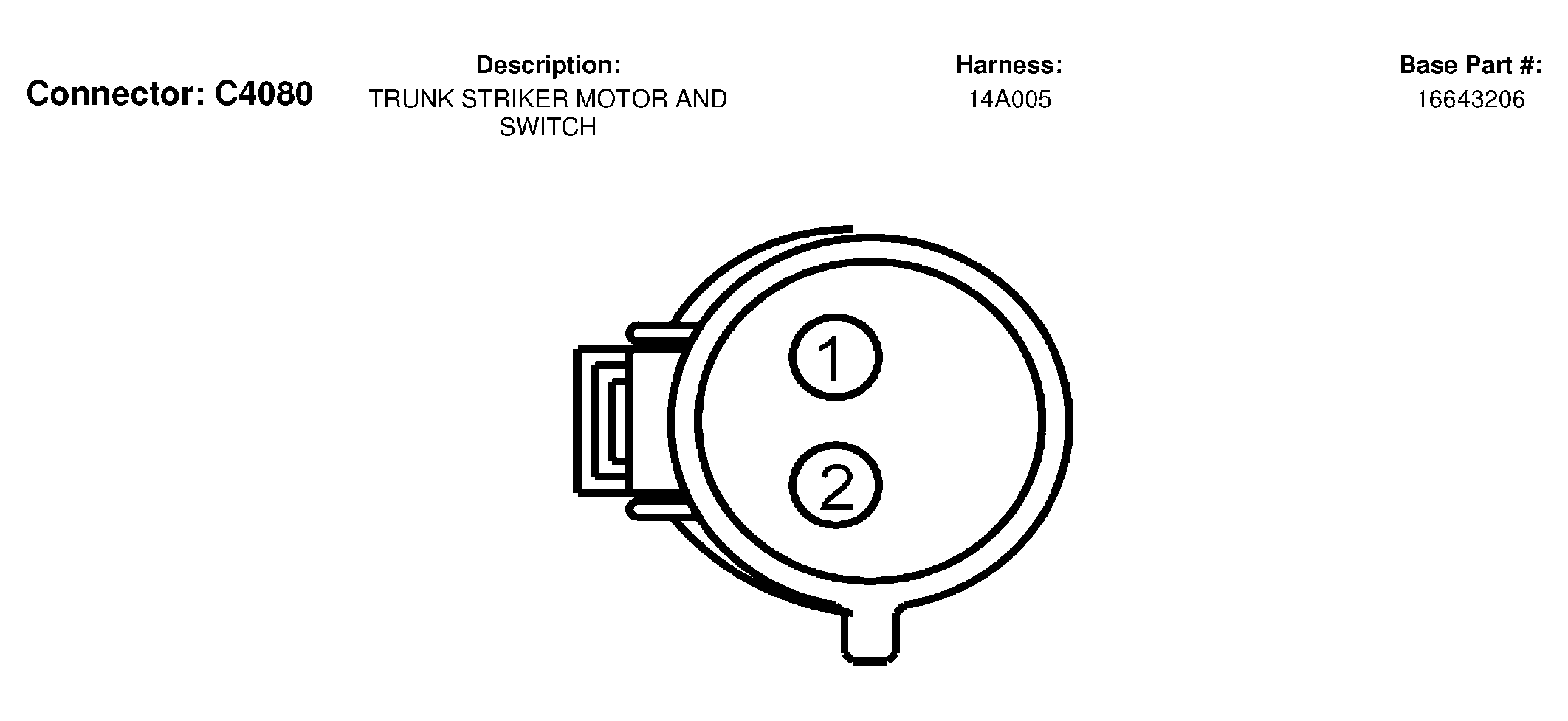

Fig 330: Trunk Striker Motor And Switch Connector End View (C4080)

Courtesy of FORD MOTOR CO.

C4080 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	1603 (RD-LG)	14	Trunk striker motor +/-
2	1601 (WH-PK)	14	Trunk striker motor +/-

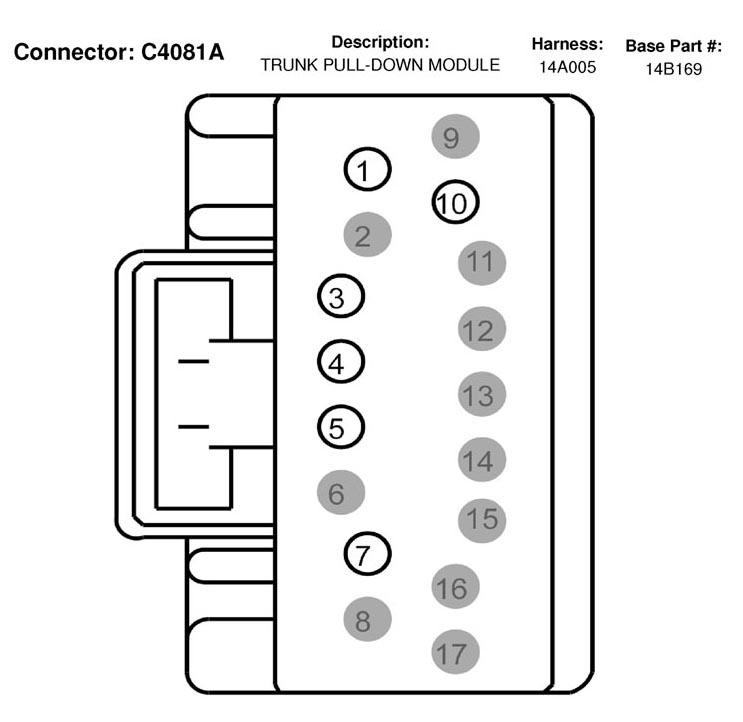

Fig 331: Trunk Pull-Down Module Connector End View (C4081A)

Courtesy of FORD MOTOR CO.

C4081A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	26 (WH-VT)	22	Decklid ajar signal
2	*	*	not used
3	1604 (VT-OG)	22	Trunk striker switch signal, Down
4	486 (BR-WH)	20	Luggage compartment lid release solenoid signal
5	1605 (VT-WH)	22	Trunk striker switch signal, Up
6	*	*	not used
7	70 (LB-WH)	22	ISO Bus
8	*	*	not used
9	*	*	not used
10	1237 (LG-RD)	16	Decklid signal - Open, closed
11	*	*	not used
12	*	*	not used
13	*	*	not used
14	*	*	not used
15	*	*	not used
16	*	*	not used
17	*	*	not used

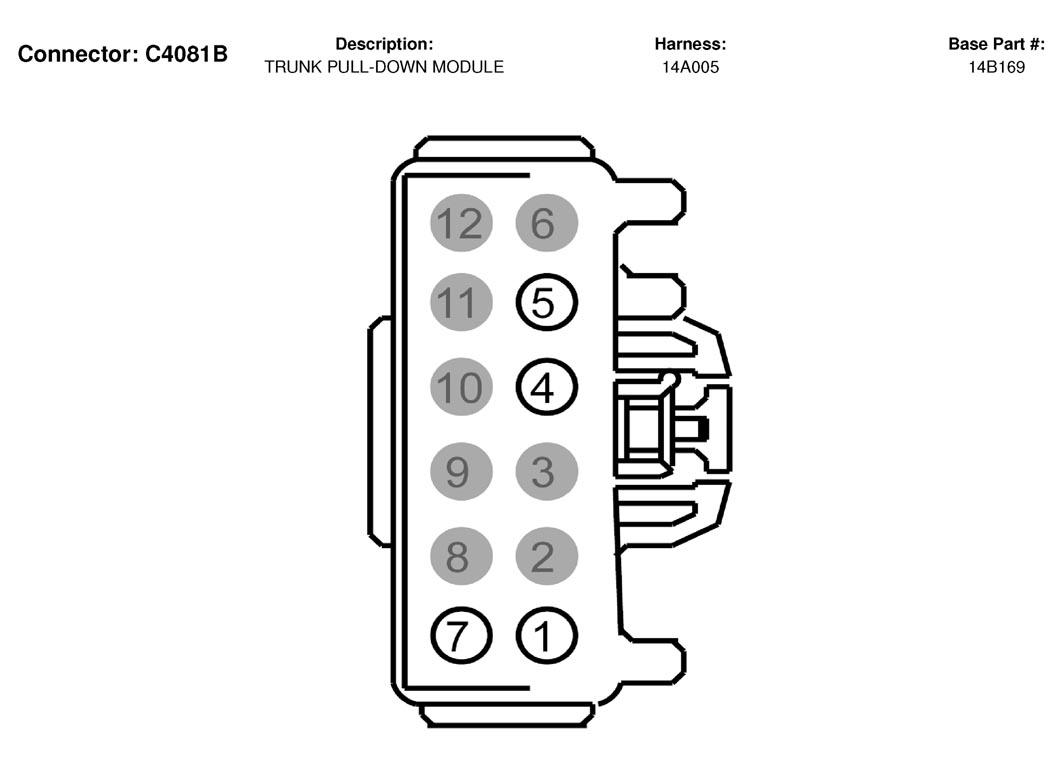

Fig 332: Trunk Pull-Down Module Connector End View (C4081B)

Courtesy of FORD MOTOR CO.

C4081B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1602 (WH-OG)	14	Luggage compartment lid motor +/-
2	*	*	not used
3	*	*	not used
4	1601 (WH-PK)	14	Trunk striker motor +/-
5	1603 (RD-LG)	14	Trunk striker motor +/-
6	*	*	not used
7	1600 (TN-RD)	14	Luggage compartment lid motor +/-
8	*	*	not used
9	*	*	not used
10	*	*	not used
11	*	*	not used
12	*	*	not used

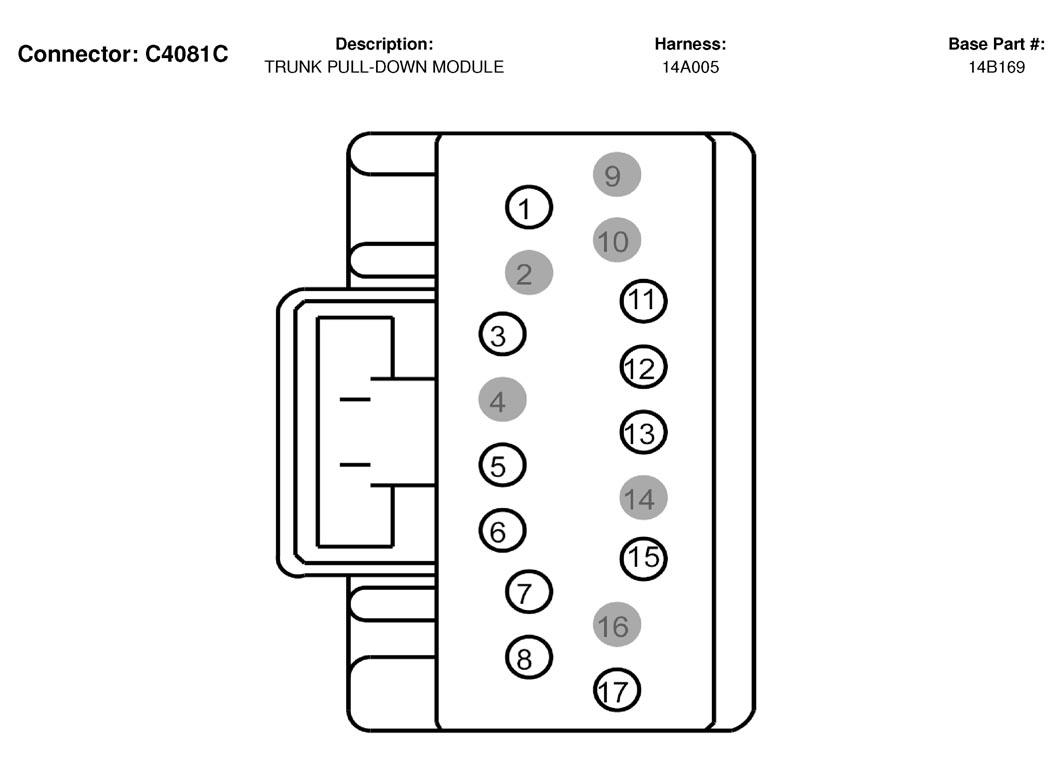

Fig 333: Trunk Pull-Down Module Connector End View (C4081C)

Courtesy of FORD MOTOR CO.

C4081C CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	679 (GY-BK)	22	vehicle speed signal
2	*	*	not used
3	1617 (WH-LG)	22	Power trunk motor signal 1
4	*	*	not used
5	1615 (WH-YE)	22	Sensor +
6	640 (RD-YE)	22	Voltage supplied in Start and Run (overload protected)
7	1609 (LG-YE)	20	Clutch +
8	605 (RD)	16	Luggage compartment lid release solenoid control
9	*	*	not used
10	*	*	not used
11	1618 (WH-BK)	22	Power trunk motor signal 2
12	676 (PK-OG)	20	Ground
13	1616 (OG-LG)	22	Sensor -
14	*	*	not used
15	1610 (WH-LB)	20	Clutch -
16	*	*	not used
17	1524 (DB)	20	Voltage supplied at all times (overload protected)

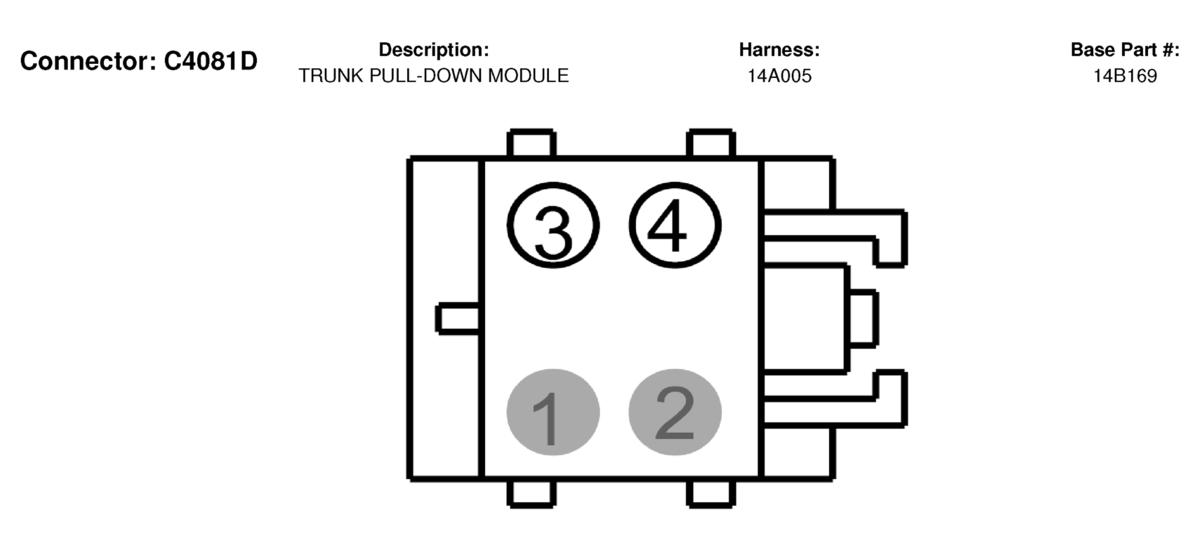

Fig 334: Trunk Pull-Down Module Connector End View (C4081D)

Courtesy of FORD MOTOR CO.

C4081D CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	*	*	not used
3	57 (BK)	10	Ground
4	1190 (YE-BK)	10	Voltage supplied at all times (overload protected)

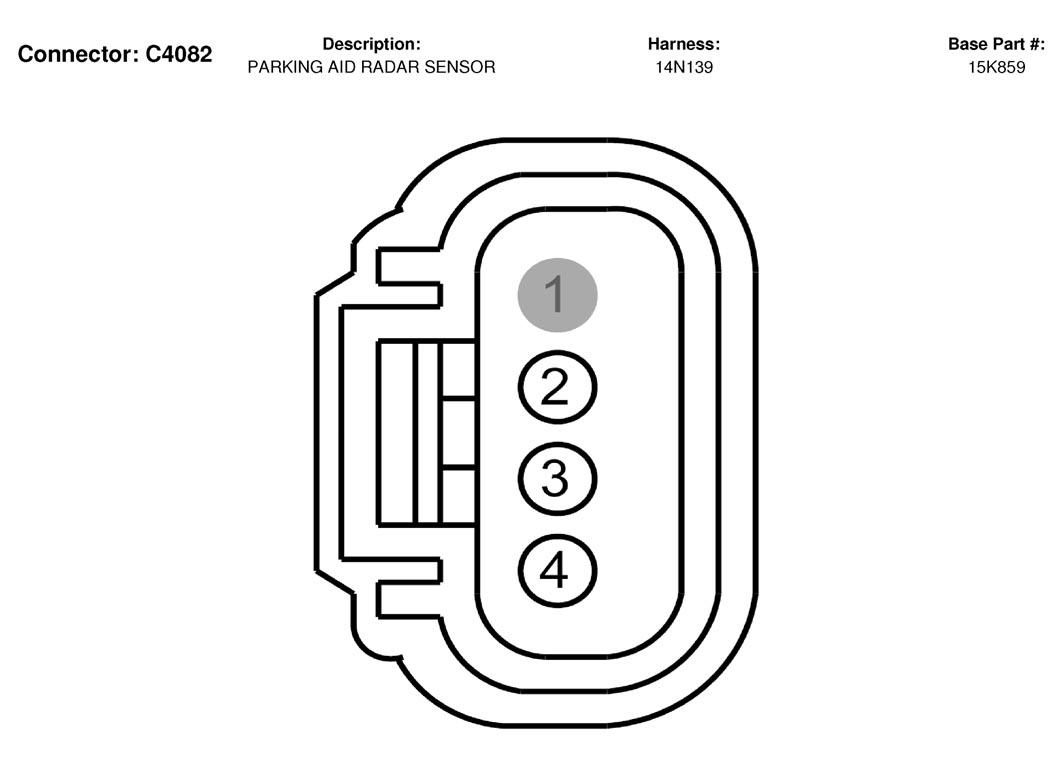

Fig 335: Parking Aid Radar Sensor Connector End View (C4082)

Courtesy of FORD MOTOR CO.

C4082 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	1443 (WH-LB)	20	Parking aid radar sensor signal
3	1438 (DG)	20	Parking aid radar sensor -
4	1437 (BK-PK)	20	Parking aid radar sensor +

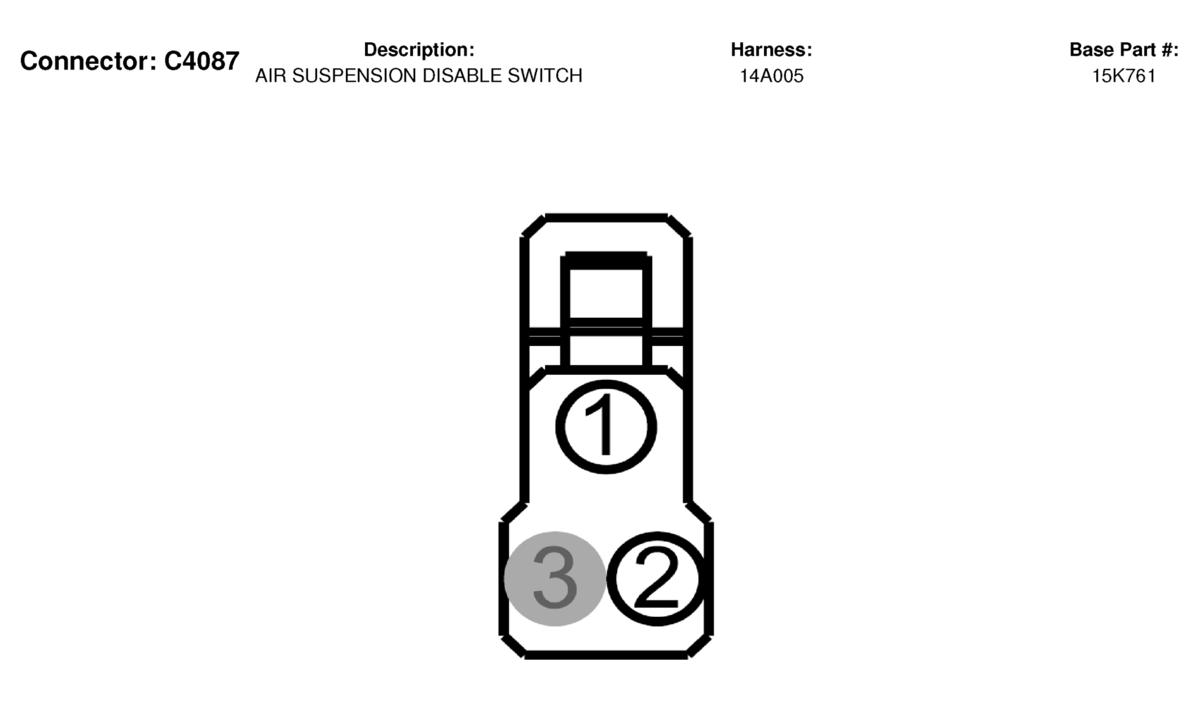

Fig 336: Air Suspension Disable Switch Connector End View (C4087)

Courtesy of FORD MOTOR CO.

C4087 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	635 (YE)	20	Air Suspension On/Off signal
2	417 (VT-OG)	20	Air suspension disable switch +
3	*	*	not used

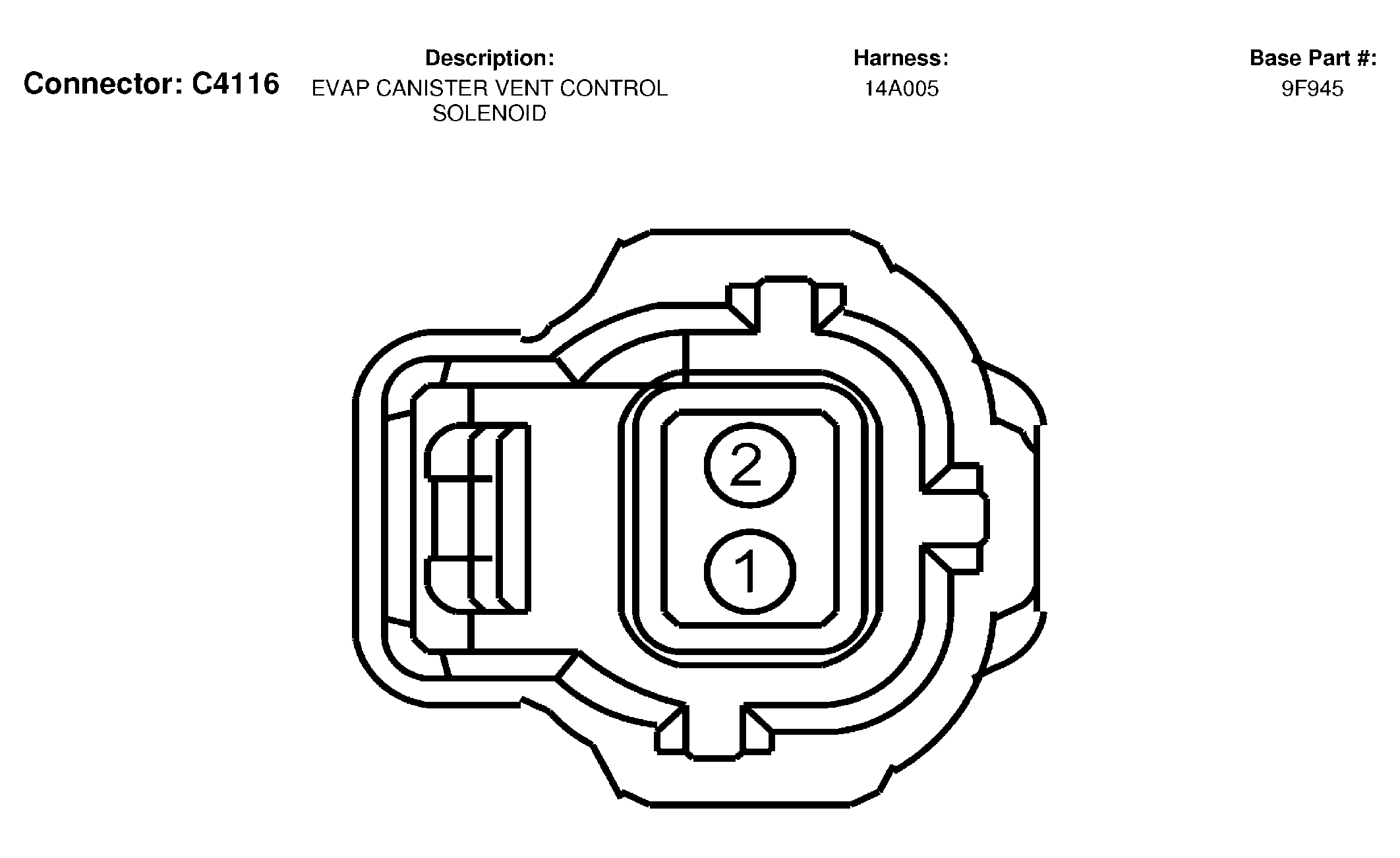

Fig 337: EVAP Canister Vent Control Solenoid Connector End View (C4116)

Courtesy of FORD MOTOR CO.

C4116 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	391 (RD-YE)	20	Voltage supplied in Start and Run (overload protected)
2	91 (VT-WH)	20	EVAP canister vent control solenoid control

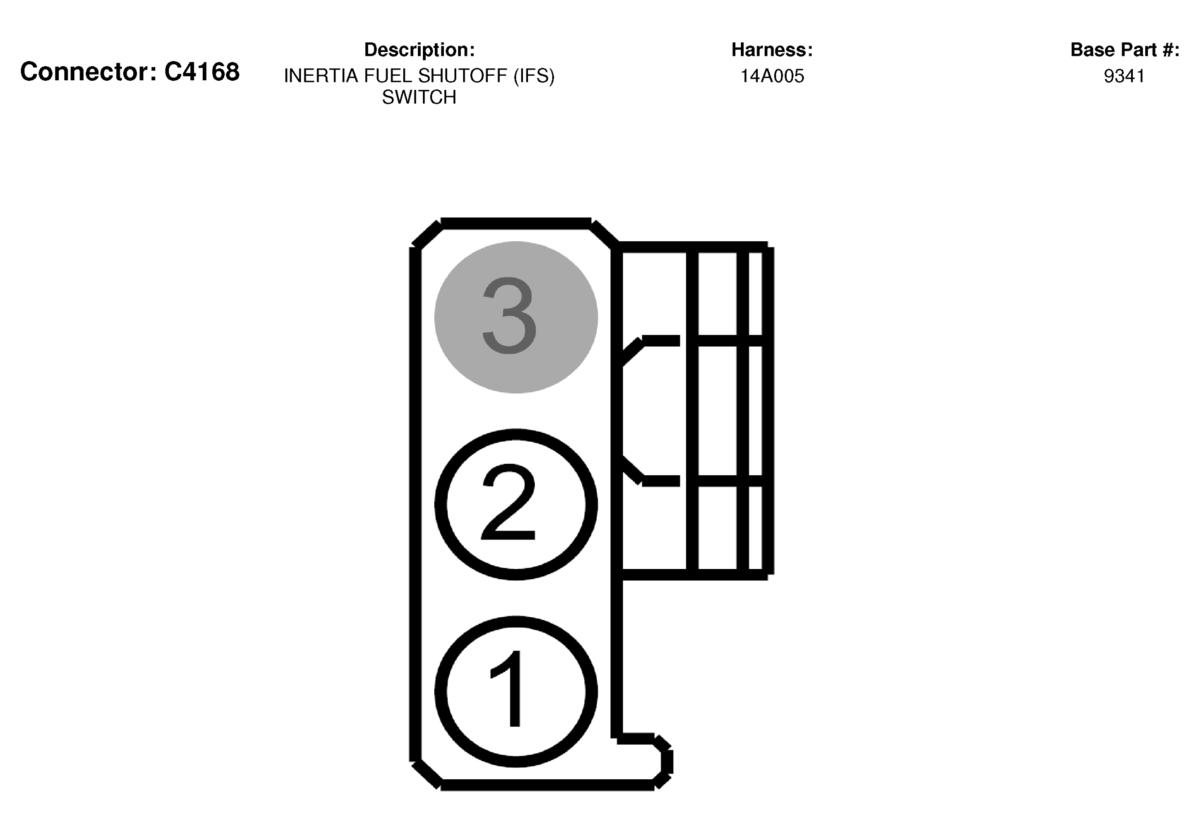

Fig 338: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

Courtesy of FORD MOTOR CO.

C4168 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	866 (WH)	14	Inertia Fuel Shutoff (IFS) output
2	366 (RD-BK)	12	Fuel pump relay output
3	*	*	not used

Fig 339: Trunk Pull-Down Module Connector End View (C4197)

Courtesy of FORD MOTOR CO.

C4197 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	26 (WH-VT)	22	Decklid ajar signal
2	1605 (VT-WH)	22	Trunk striker switch signal, Up
3	486 (BR-WH)	20	Luggage compartment lid release solenoid signal
4	*	*	not used
5	57 (BK)	14	Ground
6	1190 (YE-BK)	14	Voltage supplied at all times (overload protected)
7	1603 (RD-LG)	14	Trunk striker motor +/-
8	1604 (VT-OG)	22	Trunk striker switch signal, Down
9	*	*	not used
10	1601 (WH-PK)	14	Trunk striker motor +/-

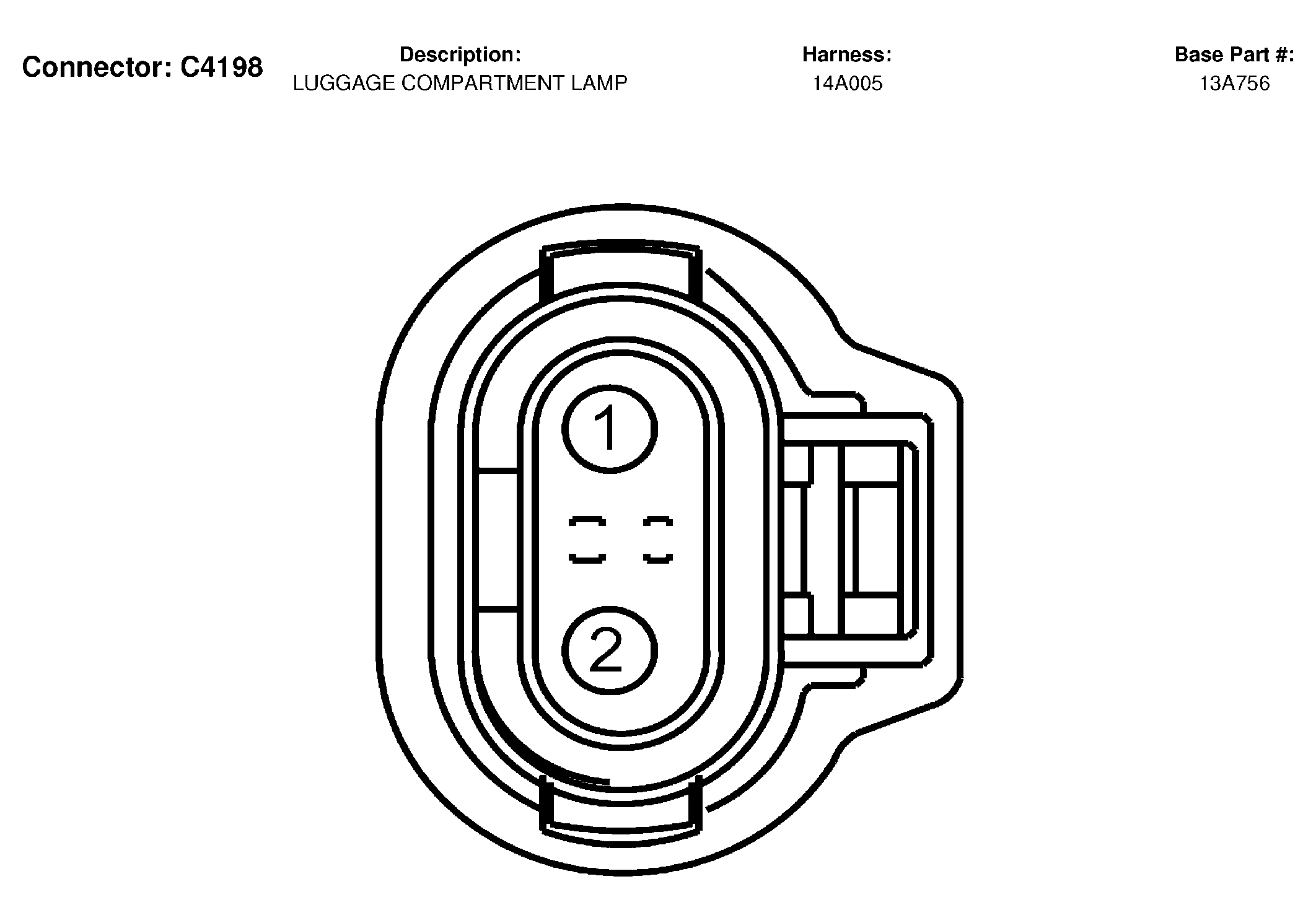

Fig 340: Luggage Compartment Lamp Connector End View (C4198)

Courtesy of FORD MOTOR CO.

C4198 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	707 (WH-YE)	22	Luggage compartment lamp ground
2	705 (LG-OG)	20	Demand lighting

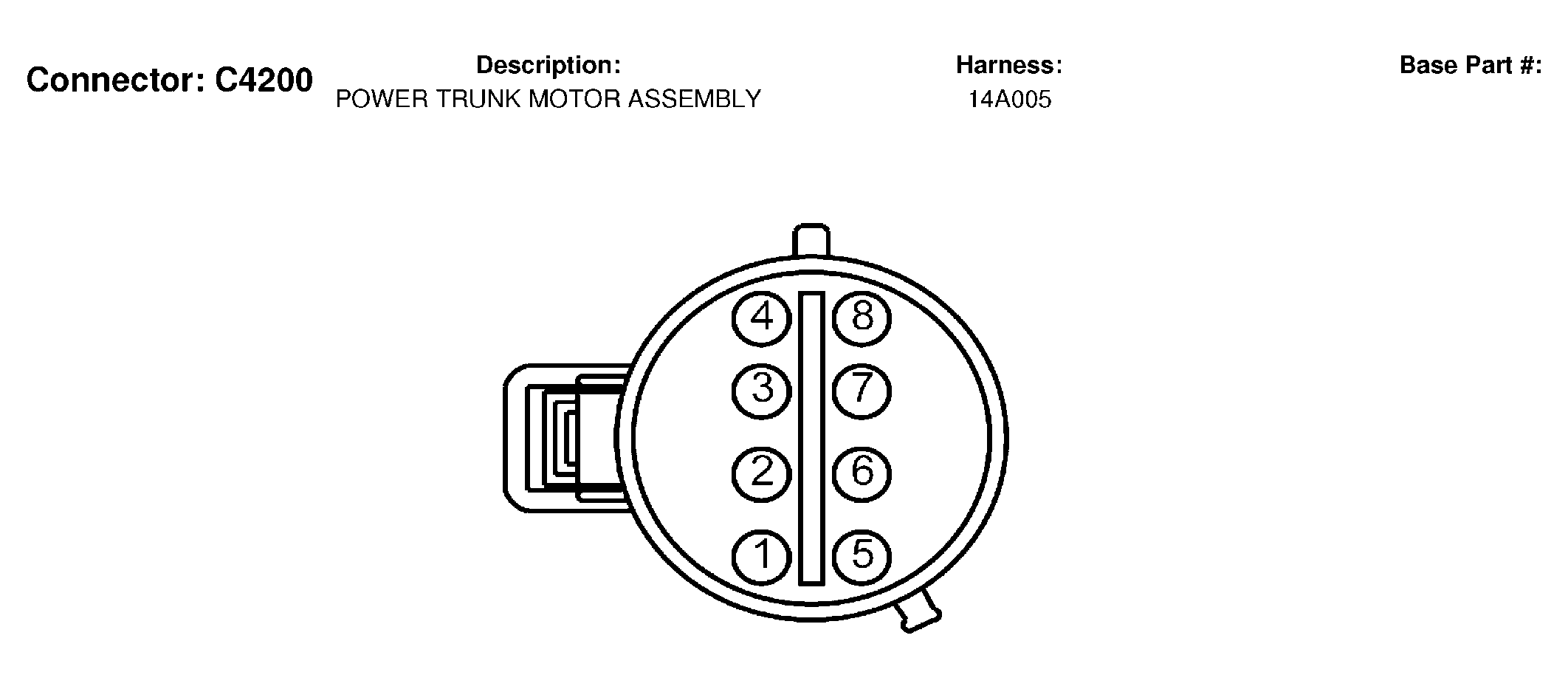

Fig 341: Power Trunk Motor Assembly Connector End View (C4200)

Courtesy of FORD MOTOR CO.

C4200 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1609 (LG-YE)	20	Clutch +
2	1600 (TN-RD)	14	Luggage compartment lid motor +/-
3	1616 (OG-LG)	22	Sensor -
4	1615 (WH-YE)	22	Sensor +
5	1610 (WH-LB)	20	Clutch -
6	1602 (WH-OG)	14	Luggage compartment lid motor +/-
7	1617 (WH-LG)	22	Power trunk motor signal 1
8	1618 (WH-BK)	22	Power trunk motor signal 2

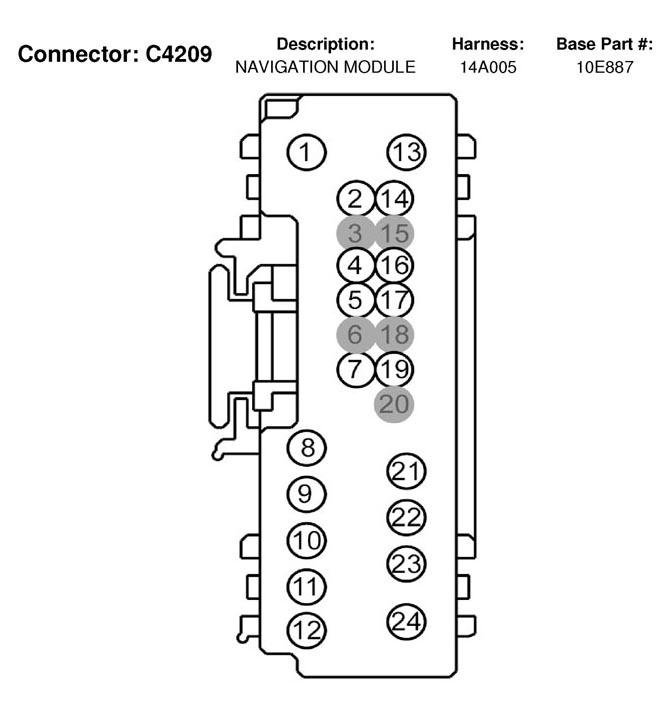

Fig 342: Navigation Module Connector End View (C4209)

Courtesy of FORD MOTOR CO.

C4209 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	1772 (VT)	18	Voltage supplied at all times (overload protected)
2	1499 (PK-LG)	22	Accessory delay relay output
3	*	*	not used
4	914 (TN-OG)	22	SCP Bus +
5	1532 (DB-WH)	22	CAN +
6	*	*	not used
7	1196 (DG-WH)	22	Microphone +
8	1534 (BK)	22	video R
9	1536 (BK)	22	video B
10	1538 (YE-RD)	22	video return
11	1530 (LB)	22	Voice +
12	1531 (LG)	22	Voice -
13	694 (BK-LG)	18	Ground
14	679 (GY-BK)	22	vehicle speed signal
15	*	*	not used
16	915 (PK-LB)	22	SCP Bus -
17	1533 (DG-OG)	22	CAN -
18	*	*	not used
19	1197 (LG-BK)	22	Microphone -
20	*	*	not used
21	1535 (BK)	22	video G
22	1537 (RD)	22	video signal
23	48 (-)	22	Shield
24	48 (-)	22	Shield

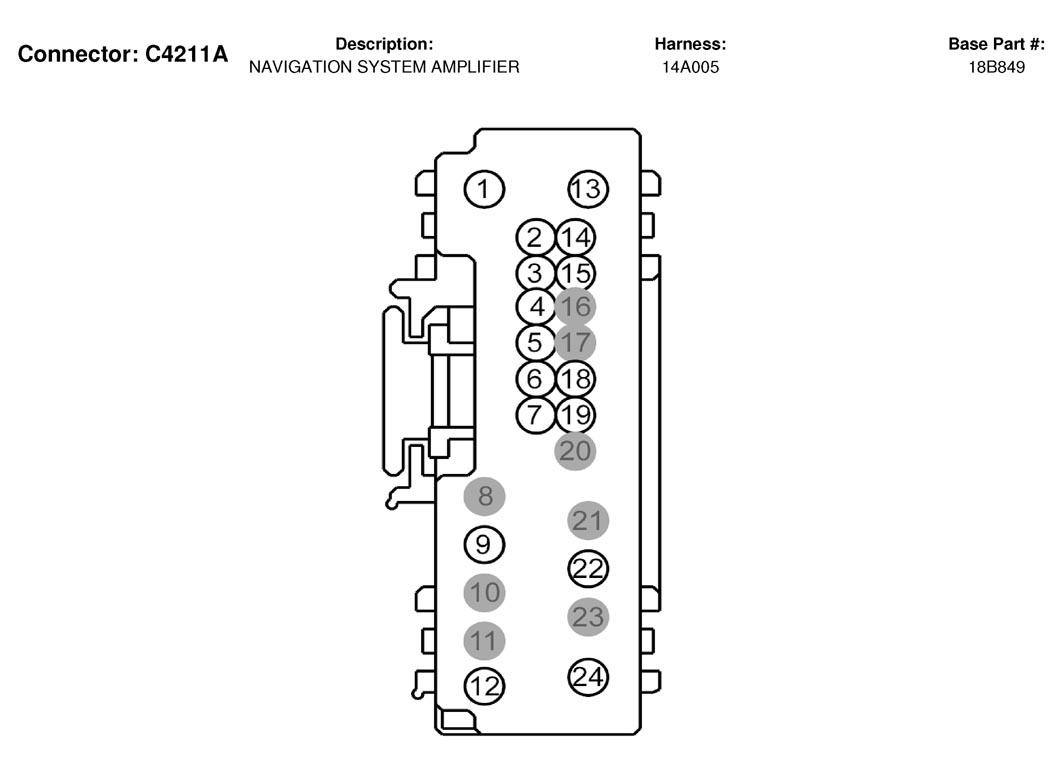

Fig 343: Navigation System Amplifier Connector End View (C4211A)

Courtesy of FORD MOTOR CO.

C4211A CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	720 (RD-YE)	16	Voltage supplied at all times (overload protected)
2	280 (LG)	22	Audio, left front +
3	857 (WH-OG)	22	Left front -
4	168 (RD-BK)	22	Subwoofer +
5	167 (BR-OG)	22	Subwoofer -
6	277 (LB-BK)	22	Audio, left rear +
7	859 (YE)	22	Left rear -
8	*	*	not used
9	174 (GY-BK)	22	Subwoofer enable
10	*	*	not used
11	*	*	not used
12	694 (BK-LG)	16	Ground
13	720 (RD-YE)	16	Voltage supplied at all times (overload protected)
14	279 (WH-RD)	22	Audio, right front +
15	858 (BR)	22	Right front -
16	*	*	not used
17	*	*	not used
18	278 (VT-WH)	22	Audio, right rear +
19	855 (LB)	22	Right rear -
20	*	*	not used
21	*	*	not used
22	173 (DG-VT)	22	Subwoofer, High, mute
23	*	*	not used
24	694 (BK-LG)	16	Ground

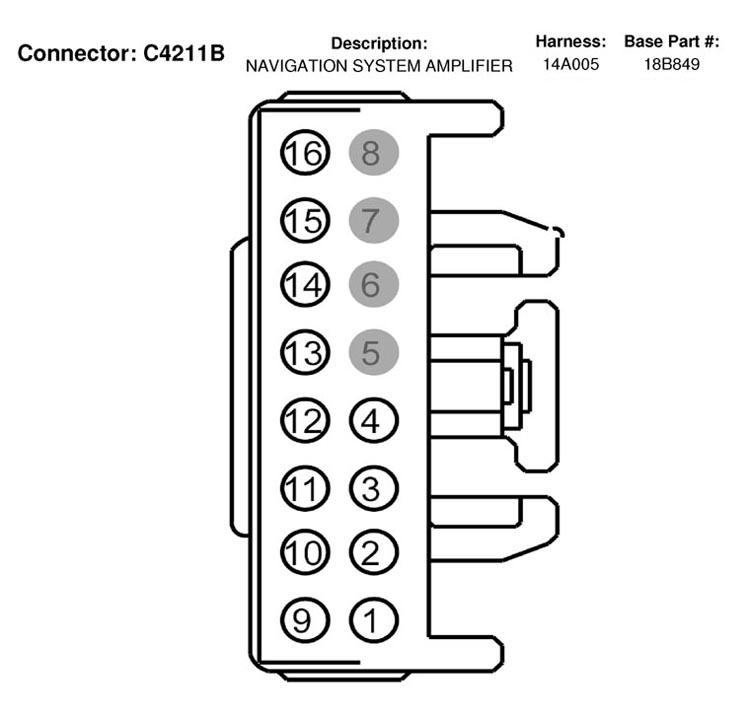

Fig 344: Navigation System Amplifier Connector End View (C4211B)

Courtesy of FORD MOTOR CO.

C4211B CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	805 (WH-LG)	18	Speaker, right front +
2	811 (DG-OG)	18	Speaker, right front -
3	804 (OG-LG)	18	Speaker, left front +
4	813 (LB-WH)	18	Speaker, left front -
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	*	*	not used
9	803 (BR-PK)	16	Speaker, right rear -
10	802 (OG-RD)	16	Speaker, right rear +
11	800 (GY-LB)	18	Speaker, left rear +
12	801 (TN-YE)	18	Speaker, left rear -
13	287 (BK-WH)	18	Subwoofer speaker 1 -
14	822 (BK-LG)	18	Subwoofer speaker 2 +
15	288 (VT)	18	Subwoofer speaker 2 -
16	823 (LG)	18	Subwoofer speaker 1 +

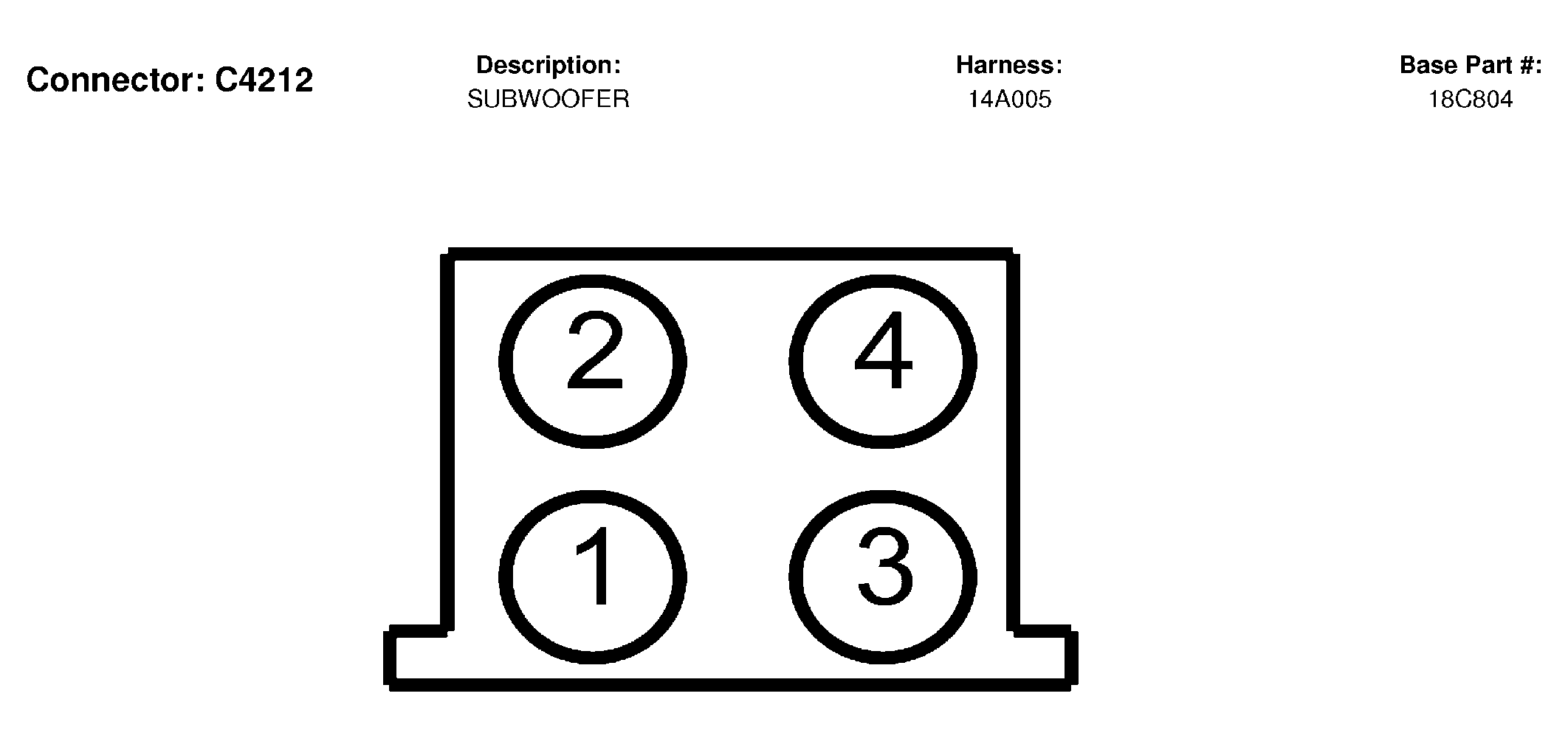

Fig 345: Subwoofer Connector End View (C4212)

Courtesy of FORD MOTOR CO.

C4212 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	823 (LG)	18	Subwoofer speaker 1 +
2	288 (VT)	18	Subwoofer speaker 2 -
3	822 (BK-LG)	18	Subwoofer speaker 2 +
4	287 (BK-WH)	18	Subwoofer speaker 1 -

Fig 346: Isolator/Radio Antenna Module Connector End View (C4221)

Courtesy of FORD MOTOR CO.

C4221 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	186 (BR-LB)	12	Rear window defrost relay output

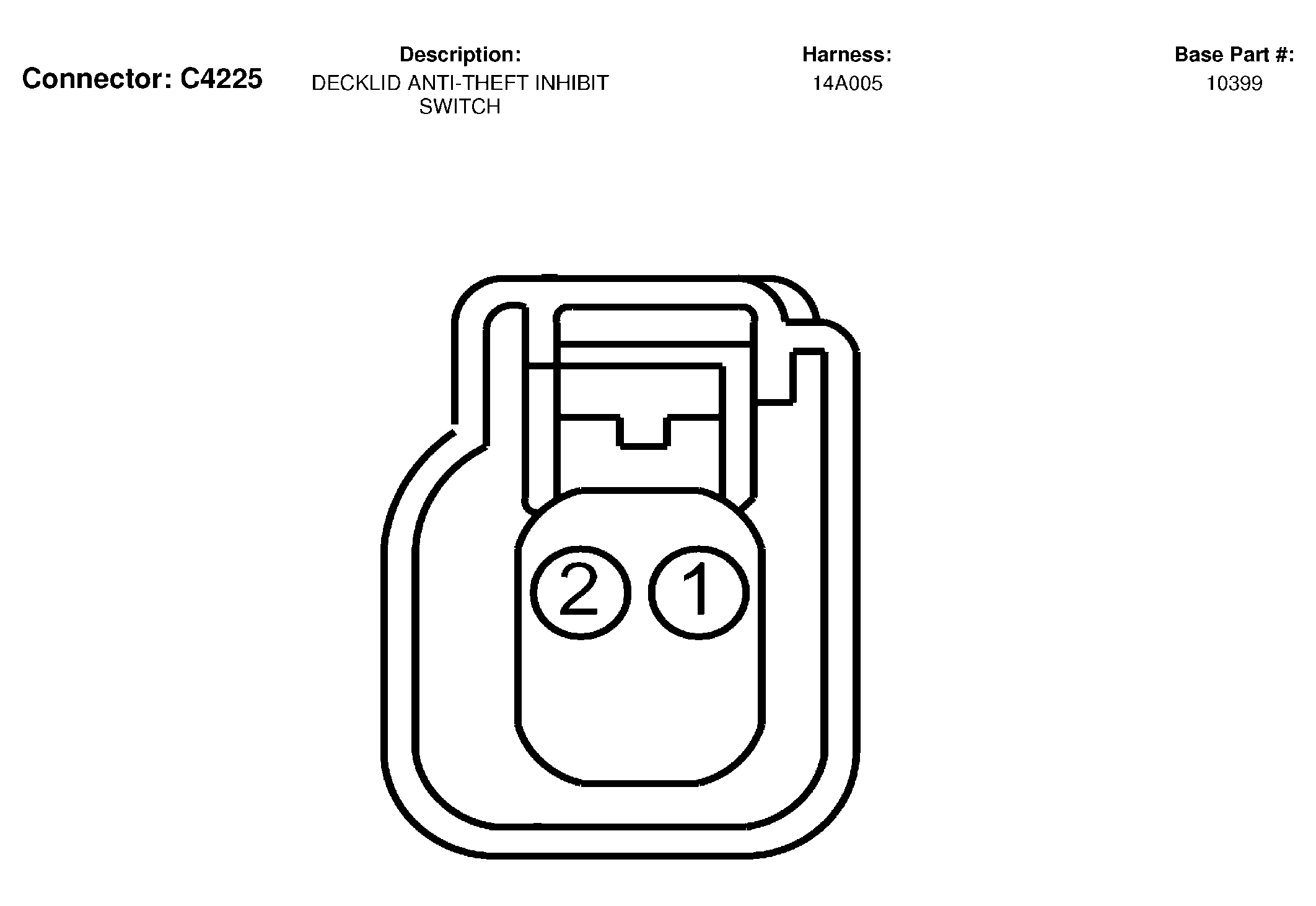

Fig 347: Decklid Anti-Theft Inhibit Switch Connector End View (C4225)

Courtesy of FORD MOTOR CO.

C4225 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	57 (BK)	20	Ground
2	1350 (WH-PK)	20	Decklid anti-theft inhibit switch signal

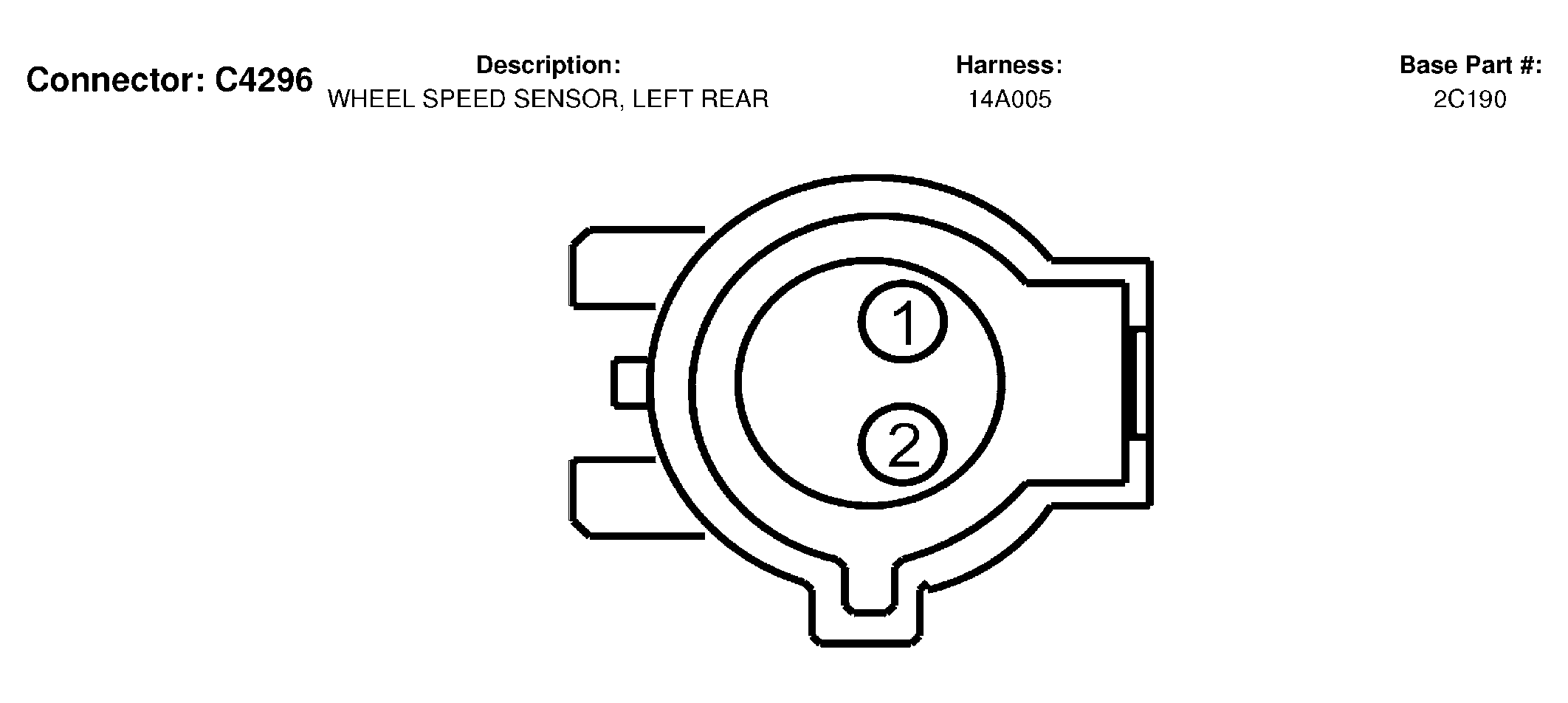

Fig 348: Wheel Speed Sensor, Left Rear Connector End View (C4296)

Courtesy of FORD MOTOR CO.

C4296 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	518 (LG-RD)	20	Wheel speed sensor, left rear -
2	519 (LG-BK)	20	Wheel speed sensor, left rear +

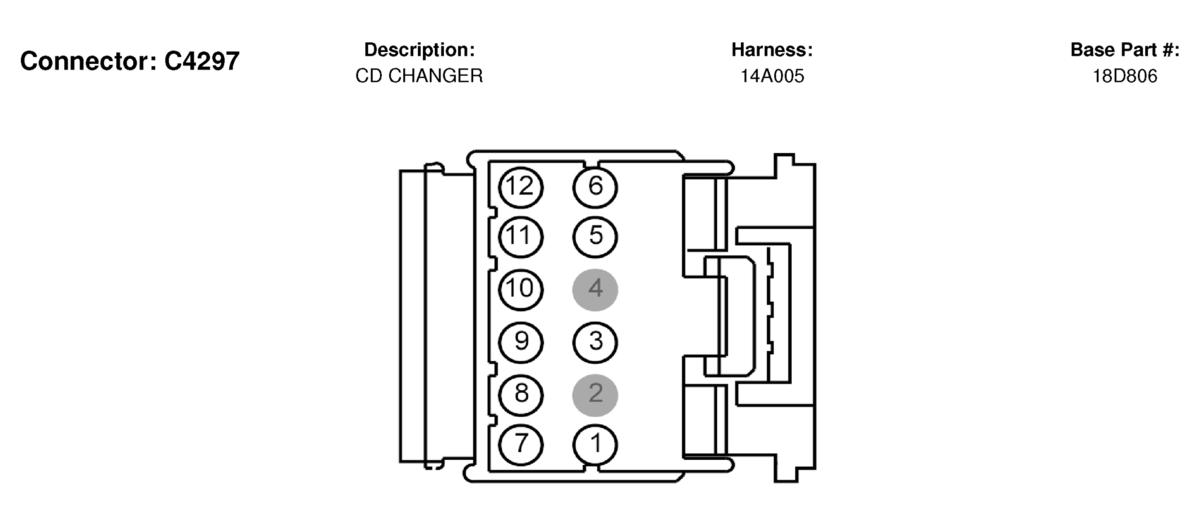

Fig 349: CD Changer Connector End View (C4297)

Courtesy of FORD MOTOR CO.

C4297 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	832 (LB-PK)	22	Audio corporate protocol A
2	*	*	not used
3	694 (BK-LG)	20	Ground
4	*	*	not used
5	798 (LG-RD)	22	CD changer, Left +
6	799 (OG-BK)	22	CD changer, Right +
7	833 (TN)	22	Audio corporate protocol B
8	1068 (LG-BK)	22	Audio System ON (ASYSON)
9	1772 (VT)	20	Voltage supplied at all times (overload protected)
10	48 (-)	22	Shield
11	856 (VT)	22	CD changer, Left -
12	690 (GY)	22	CD changer, Right -

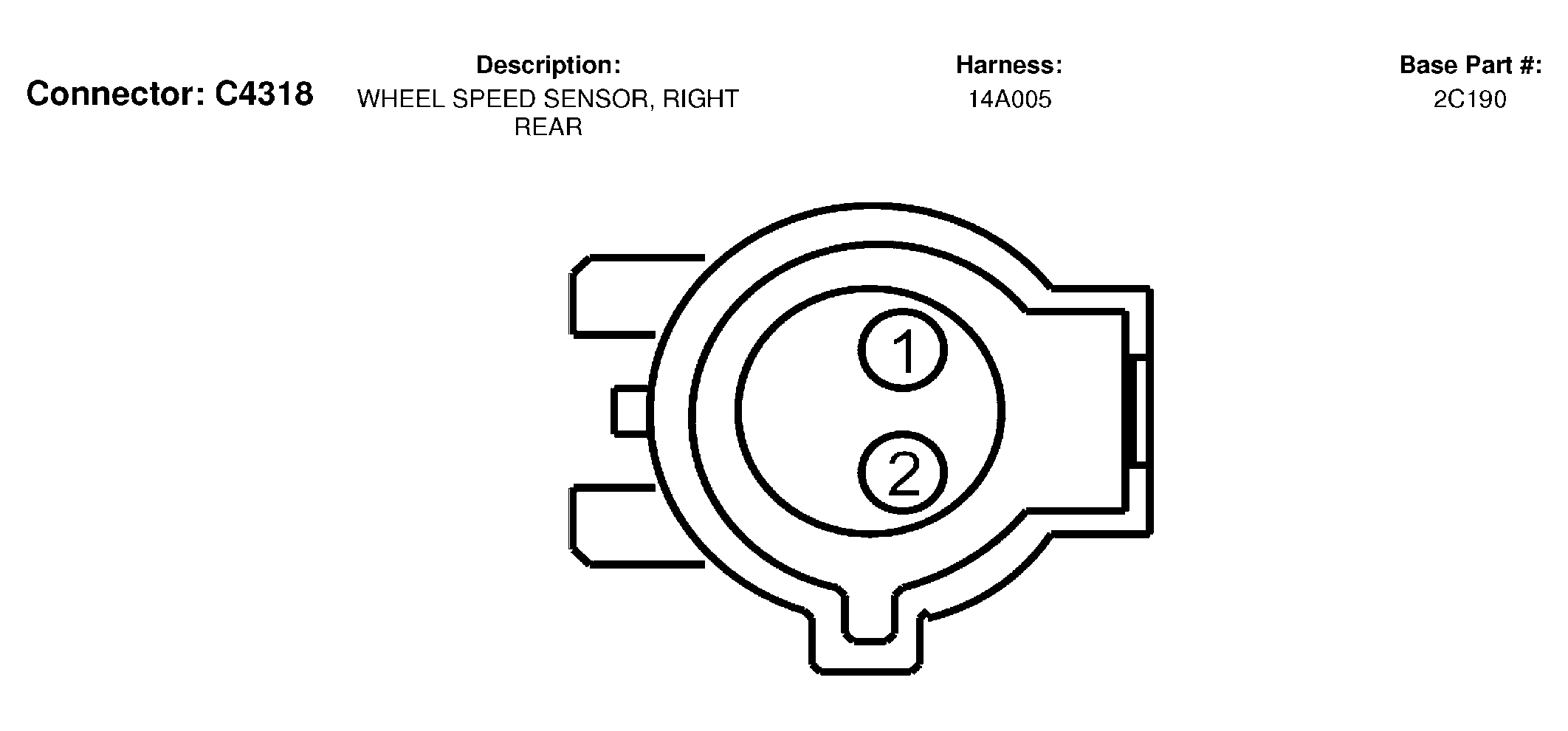

Fig 350: Wheel Speed Sensor, Right Rear Connector End View (C4318)

Courtesy of FORD MOTOR CO.

C4318 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	523 (RD-PK)	18	Wheel speed sensor, right rear -
2	524 (PK-BK)	18	Wheel speed sensor, right rear +

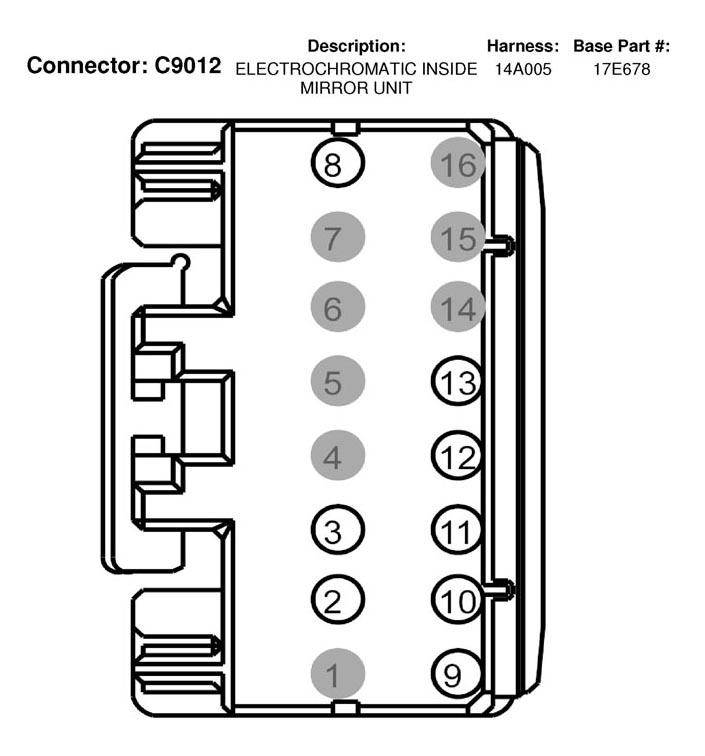

Fig 351: Electrochromatic Inside Mirror Unit Connector End View (C9012)

Courtesy of FORD MOTOR CO.

C9012 CONNECTOR REFERENCE

Pin	Circuit	Gauge	Circuit Function
1	*	*	not used
2	676 (PK-OG)	22	Ground
3	140 (BK-PK)	22	Voltage supplied in reverse
4	*	*	not used
5	*	*	not used
6	*	*	not used
7	*	*	not used
8	47 (LB-WH)	20	Exterior rear view mirror signal return
9	1196 (DG-WH)	22	Microphone +
10	1197 (LG-BK)	22	Microphone -
11	48 (-)	22	Shield
12	46 (VT)	20	Exterior rear view mirror signal
13	964 (DB-LG)	22	Voltage in Run or Accessory (overload protected)
14	*	*	not used
15	*	*	not used
16	*	*	not used
