Wheel Alignment Angles: Notes

Camber Adjustment

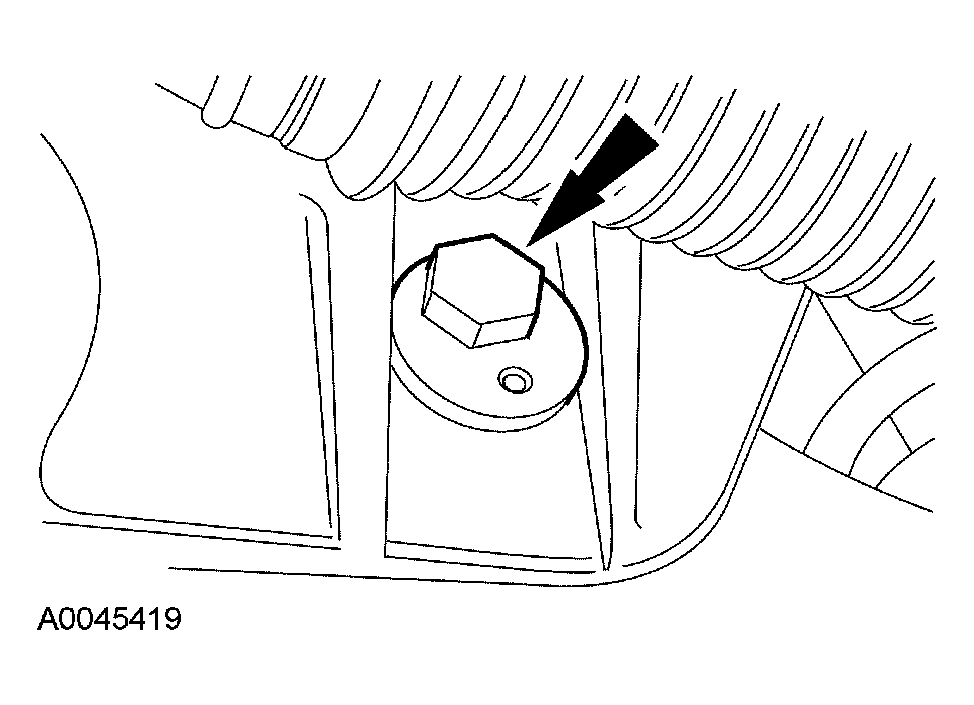

Fig 1: Identifying Camber Adjustment

Courtesy of FORD MOTOR CO.

Camber is adjusted by rotating cam bolts that are located at the forward pivot bushing of the lower control arms. A retaining flag must be removed and discarded prior to adjusting.

Caster Adjustment

Fig 2: Identifying Caster Adjustment

Courtesy of FORD MOTOR CO.

Caster is adjusted by loosening the lower arm rearward pivot bushing nut and moving the arm inward or outward. When adjusting the LH caster, a centering washer must be removed and discarded prior to adjusting.

Toe is adjusted by loosening the spindle tie-rod jam nut and rotating the spindle tie-rod.
