System Diagram

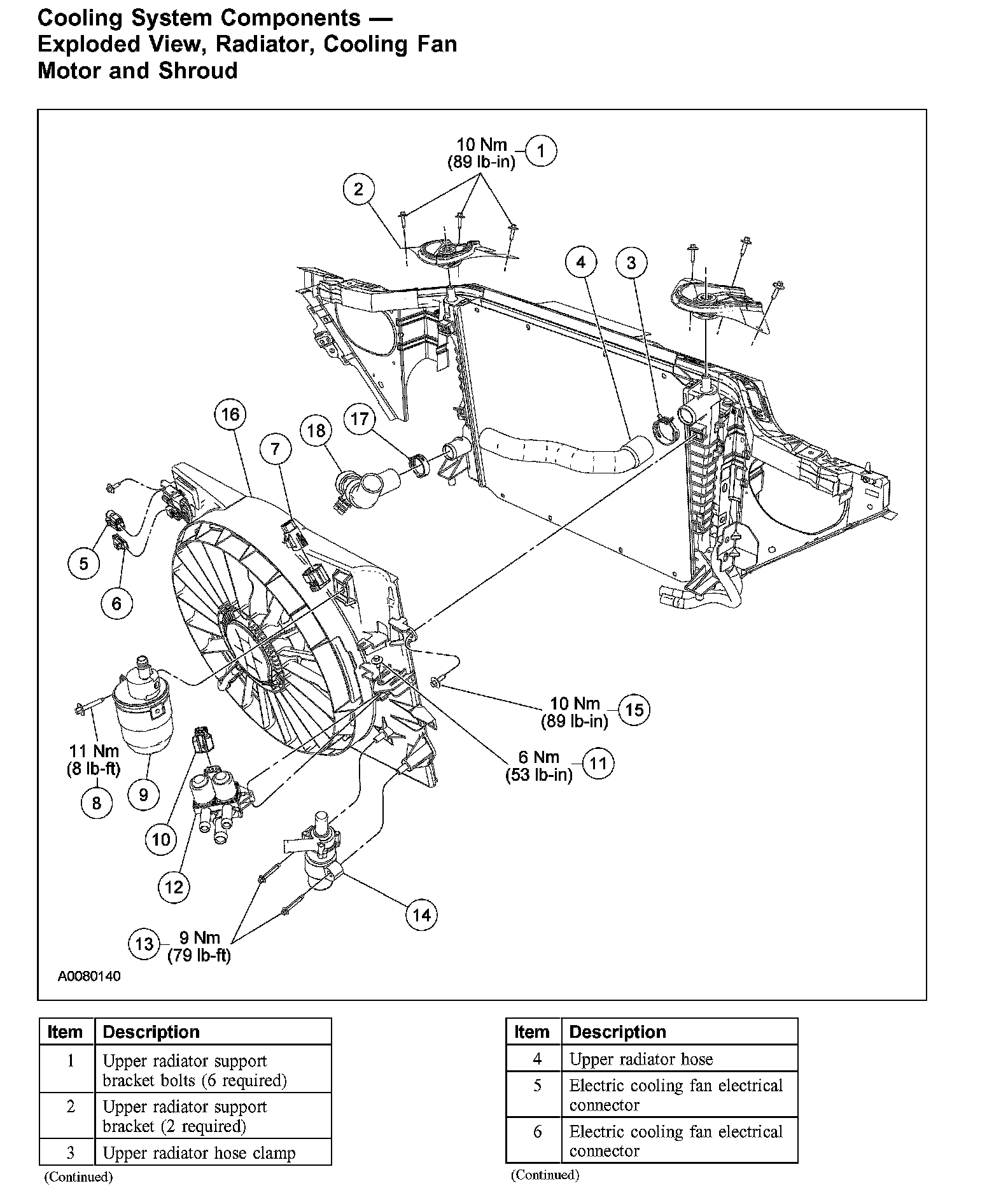

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud

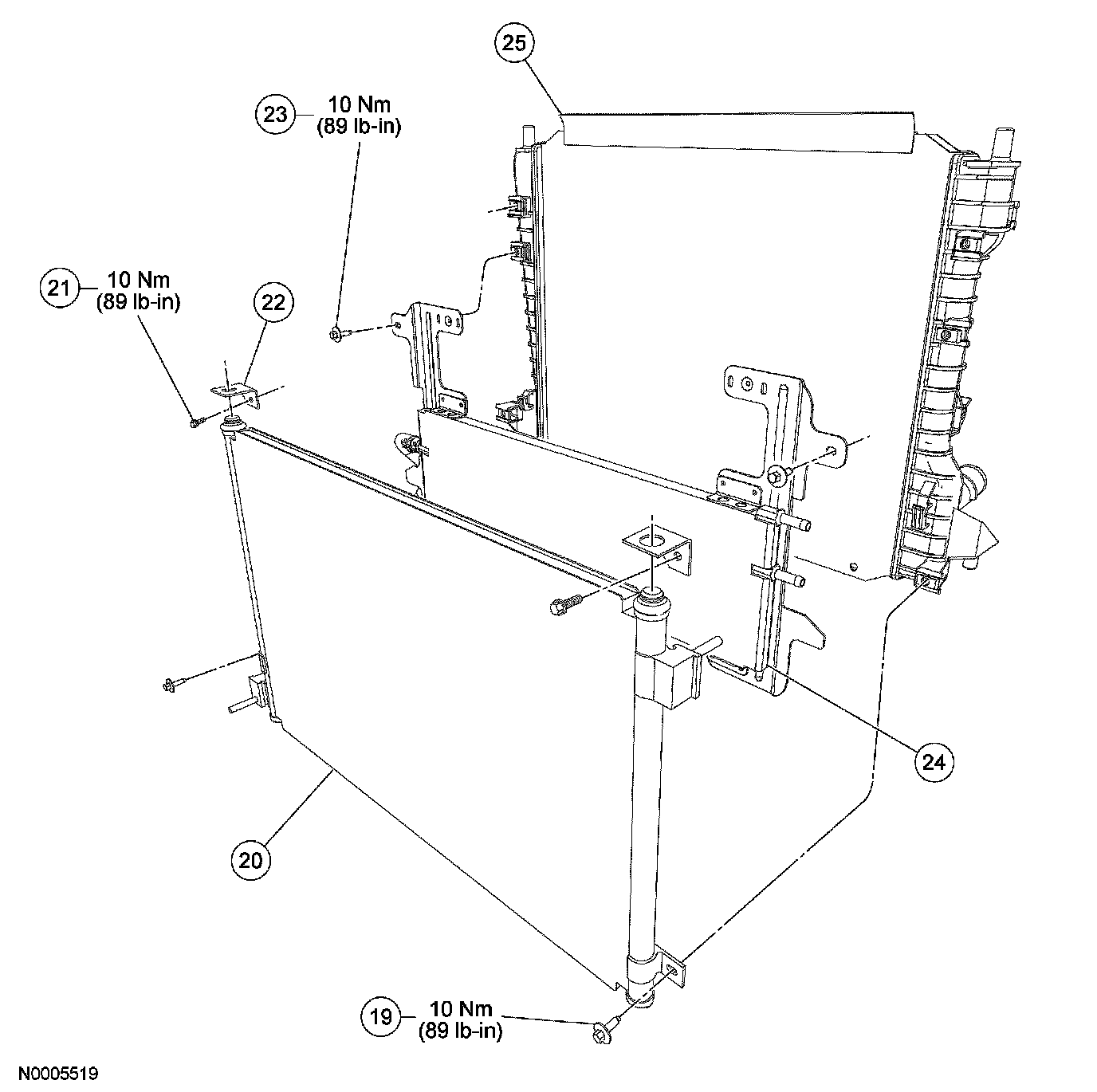

Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:




Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:







Cooling System Components - Exploded View, Radiator, Cooling Fan Motor and Shroud:
