Flex Plate

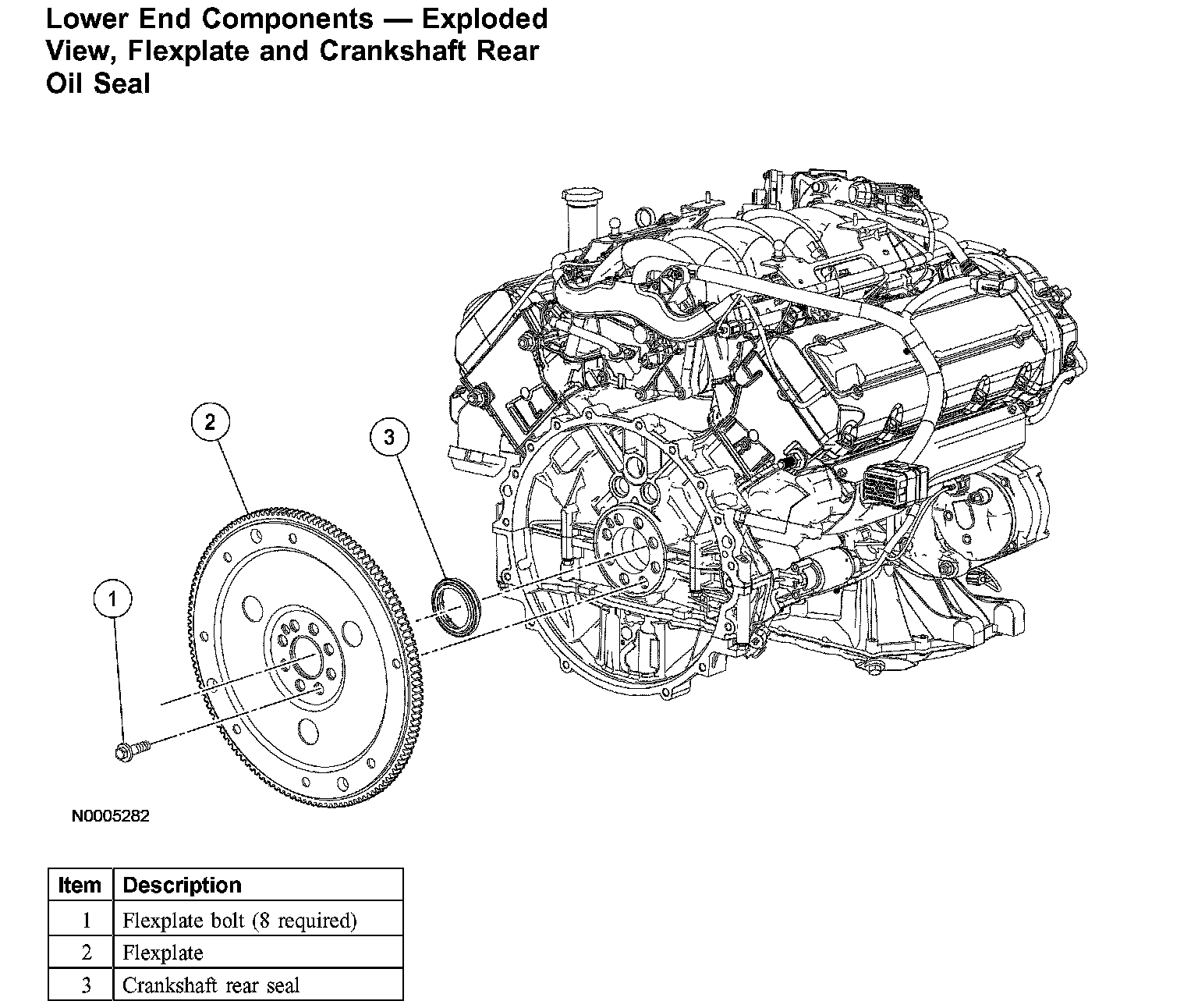

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Oil Seal
Lower End Components - Exploded View, Flexplate and Crankshaft Rear Oil Seal:
