Driver Seat Module (DSM): Notes

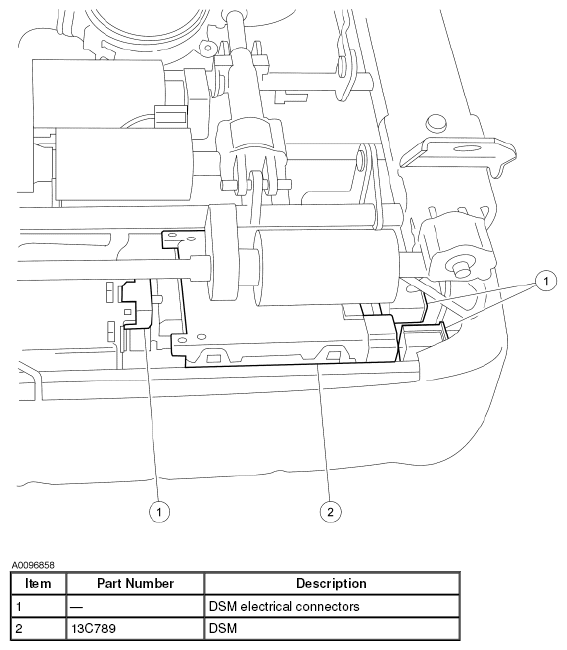

Fig 1: Identifying Driver Seat Module (DSM) Components

G04692969

Courtesy of FORD MOTOR CO.
