Exhaust Gas Recirculation (EGR) System Components - Exploded View

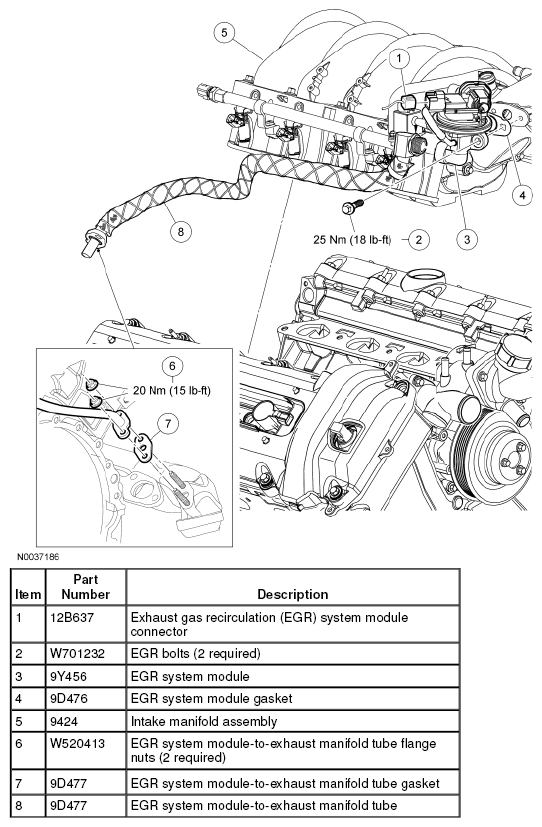

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Components With Torque Specifications
G04691043Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
