Compressor Manifold and Tube Assembly: Notes

MATERIAL SPECIFICATION

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D		 WSH-M1C231-B

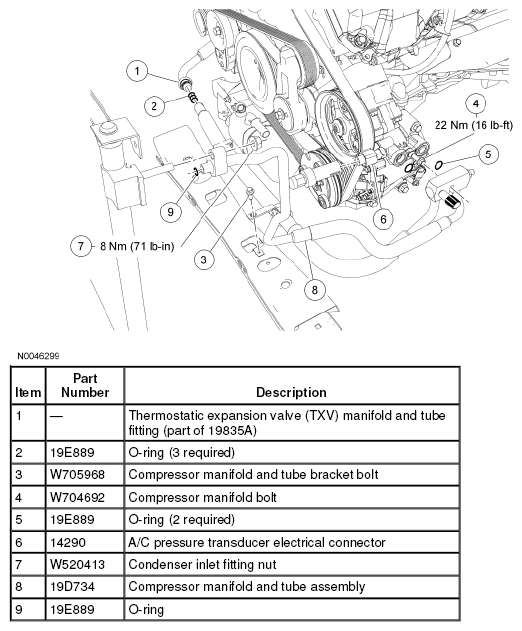

Fig 1: Compressor Manifold And Tube Assembly Replacement Components With Torque Specifications
G04692133
