Rear Safety Belt System

NOTE: RH rear safety belt components shown, LH similar.

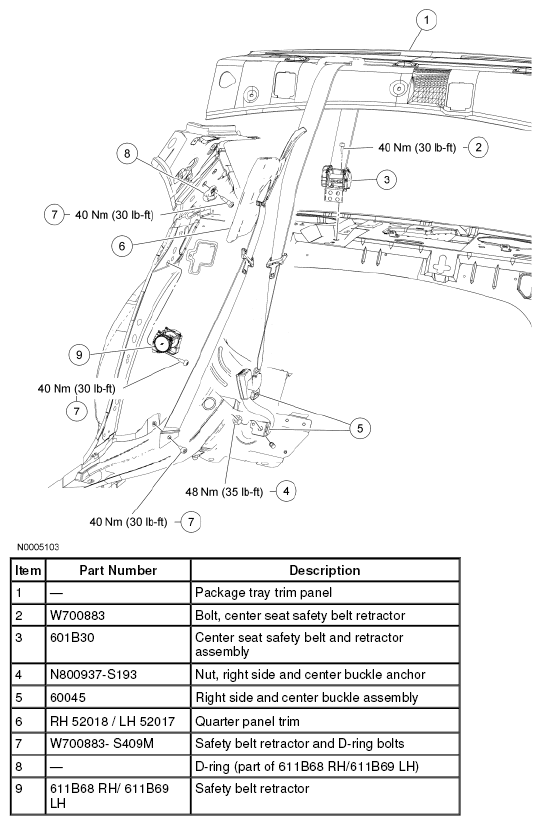

Fig 1: Exploded View Of Rear Safety Belt System With Torque Specifications
G04693485Courtesy of FORD MOTOR CO.
  1. For additional information, refer to appropriate procedure.
