Keyless Entry Key-Pad: Service and Repair

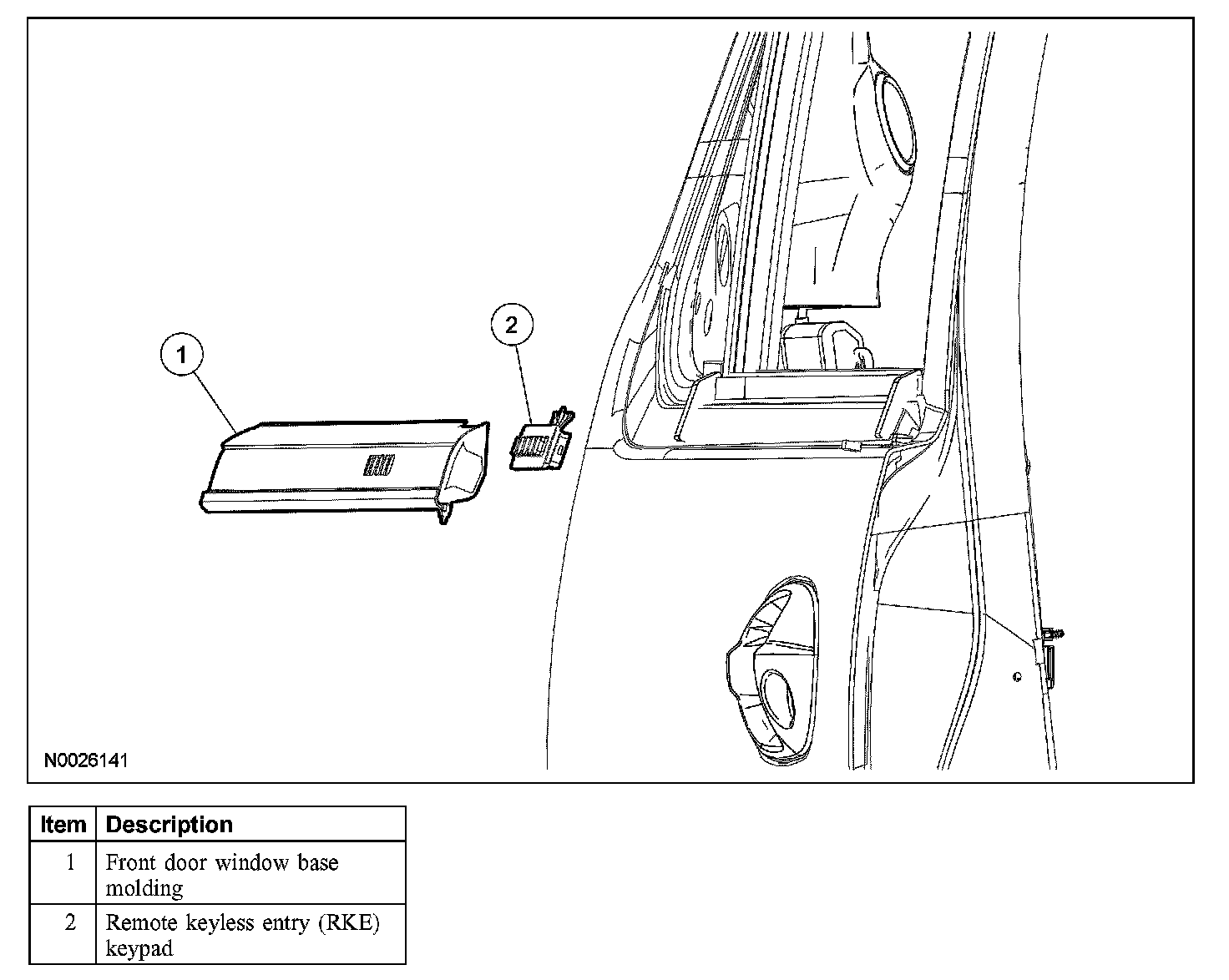

REMOTE KEYLESS ENTRY KEYPAD







Removal and Installation
1. Remove the exterior mirror.







2. Disconnect the RKE keypad electrical connector.
3. Remove the front door window glass.

4. CAUTION: Damage to the base moulding may occur during the removal procedure.

Remove the front door window base moulding.







5. Remove the RKE keypad.
6. To install, reverse the removal procedure.
