Auxiliary Function Selector Switch Assembly, Rear

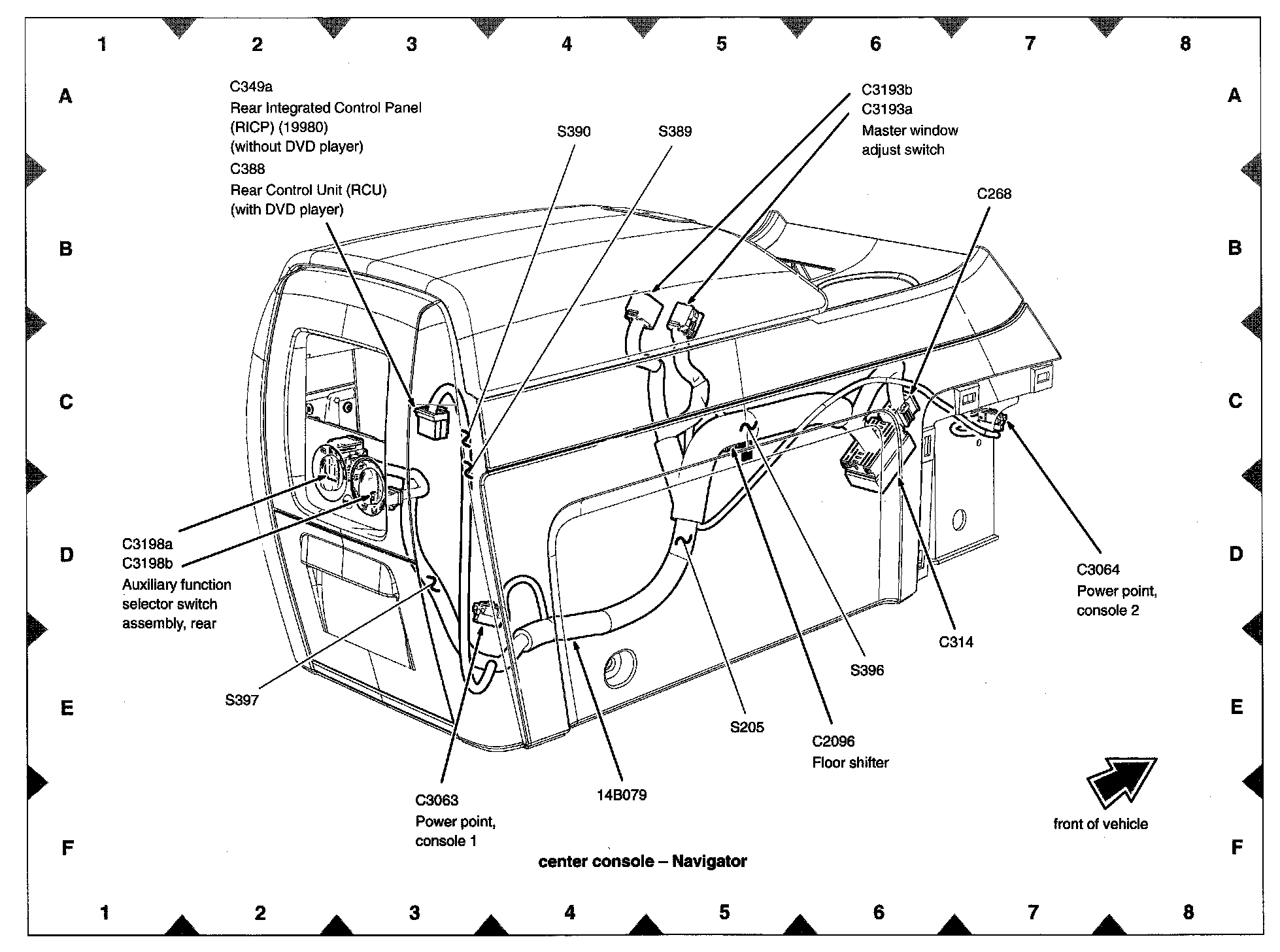

View 151-25 (Center Console):

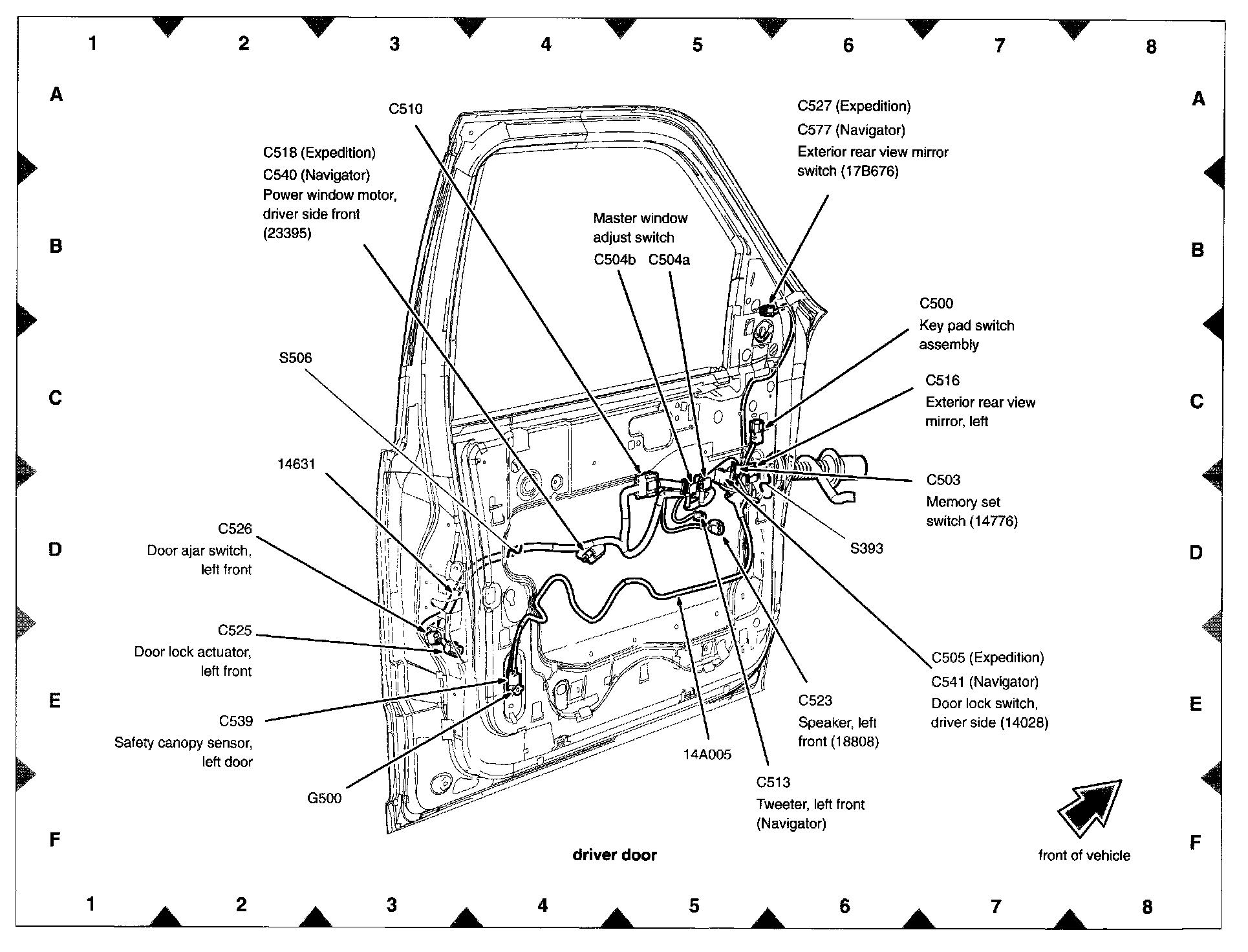

View 151-28 (Driver Door):
